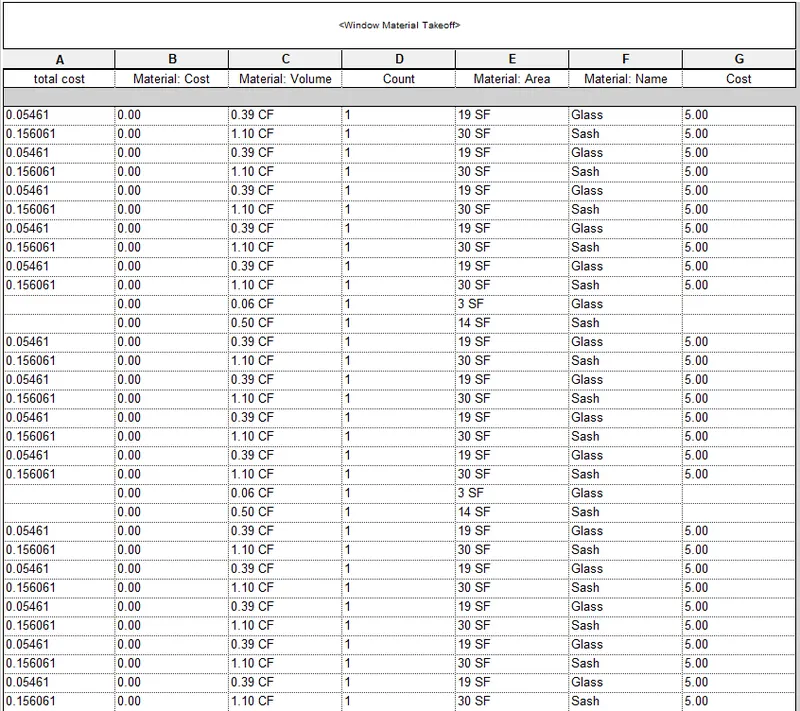

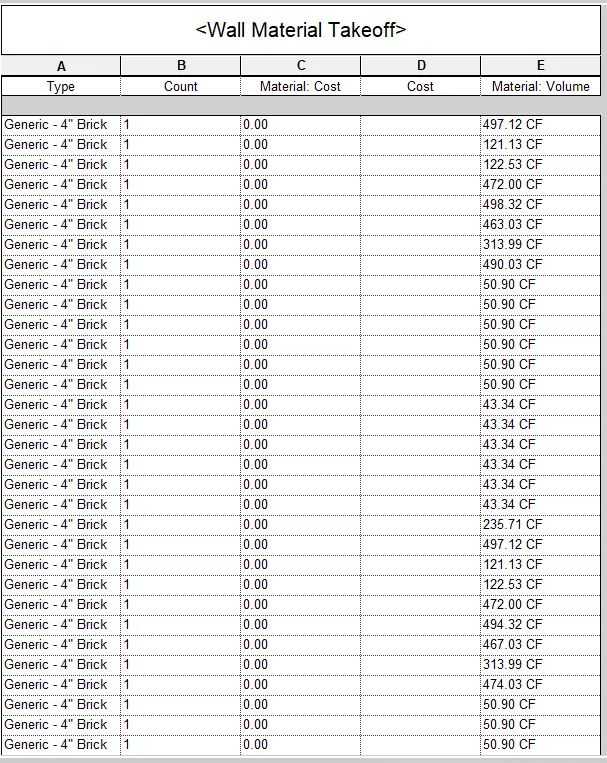

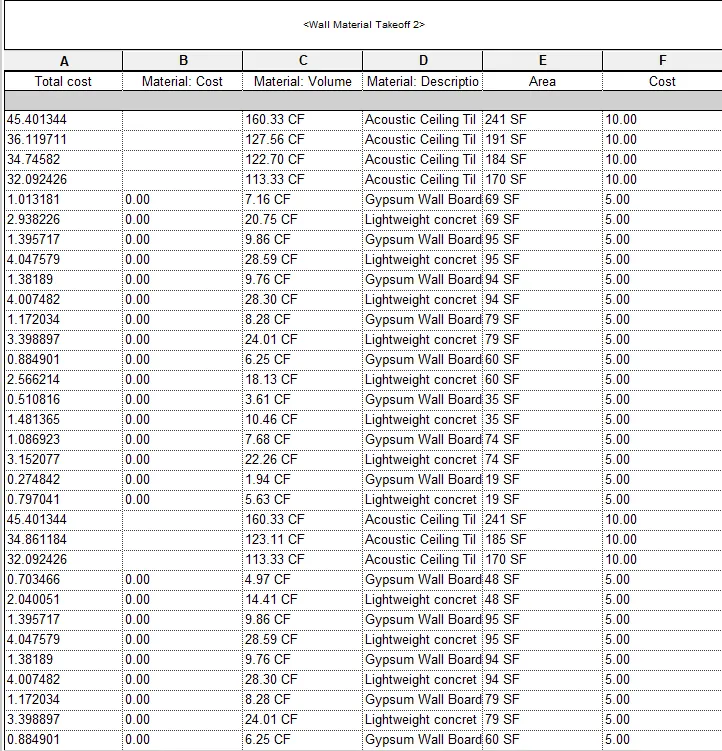

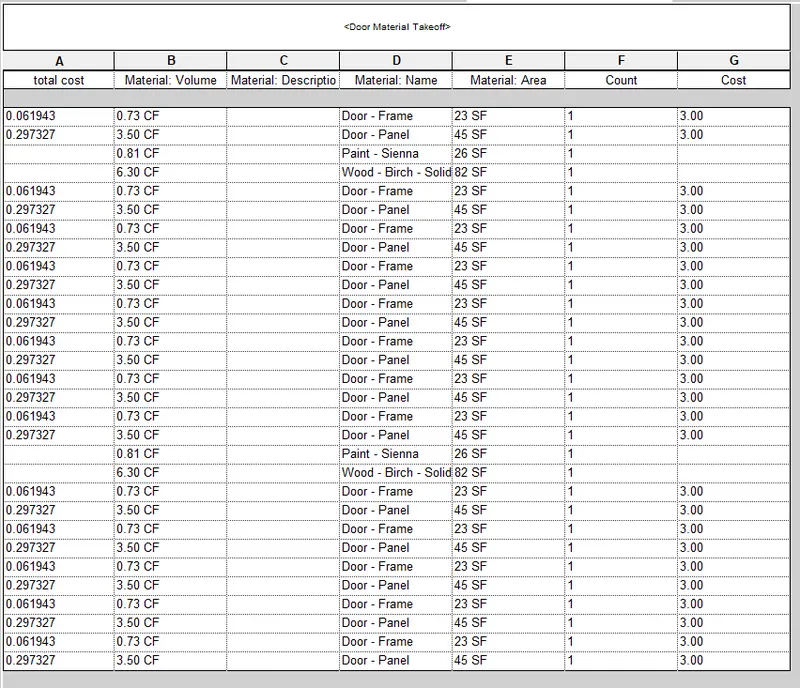

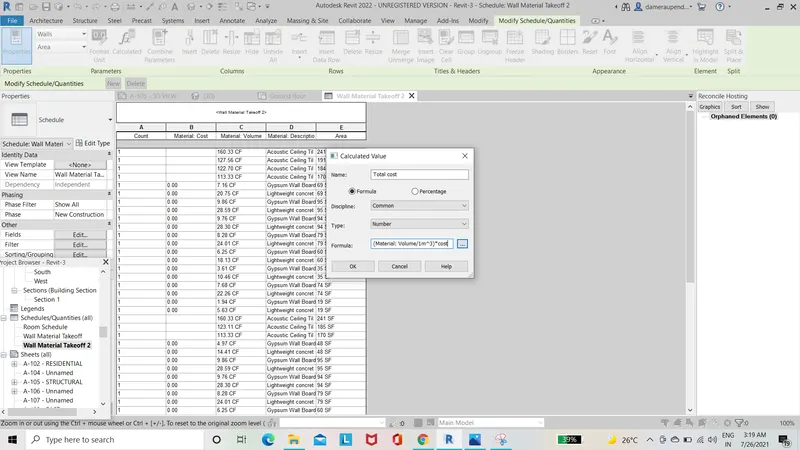

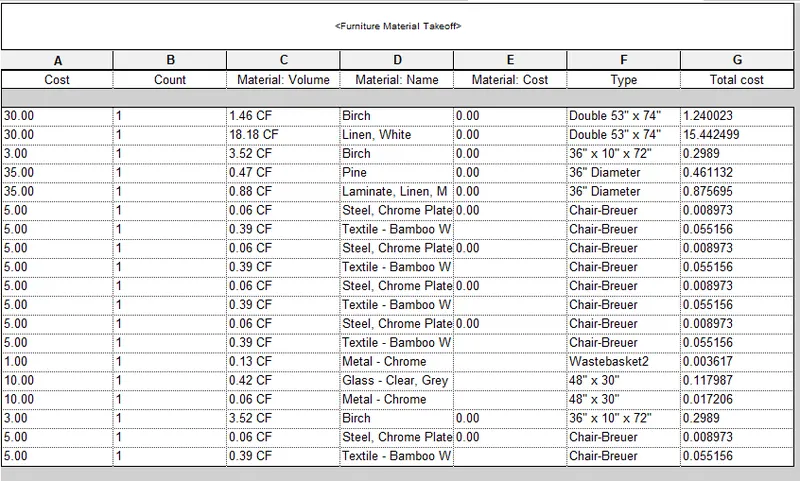

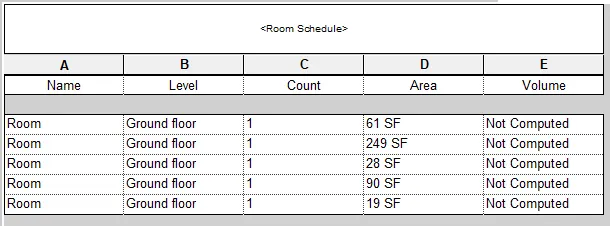

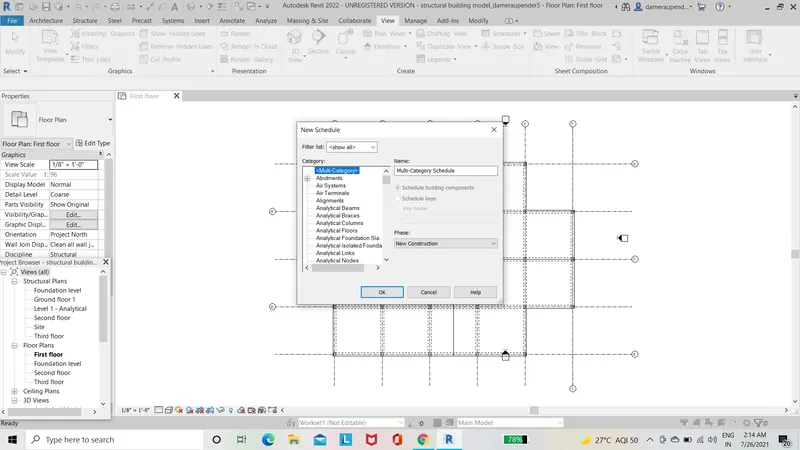

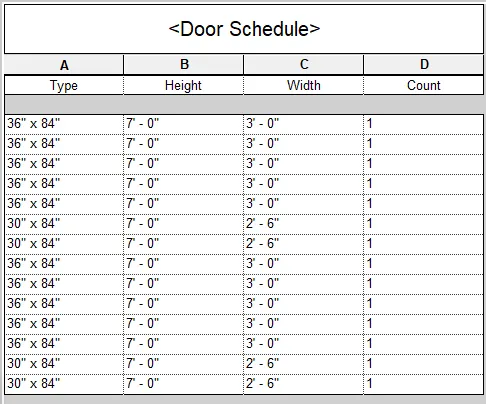

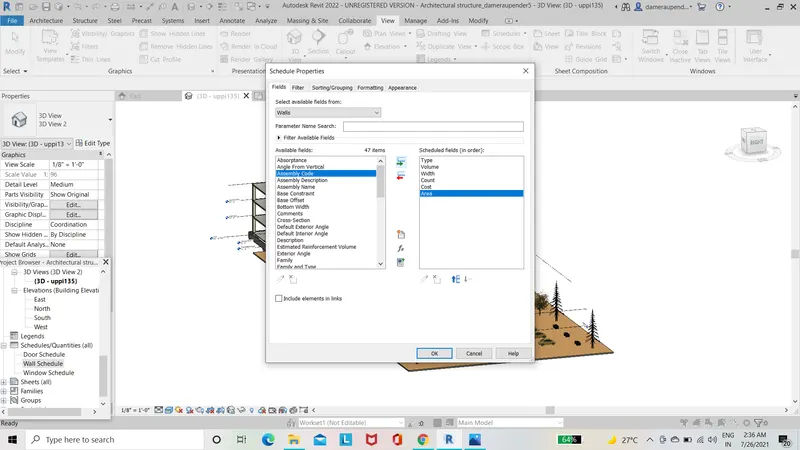

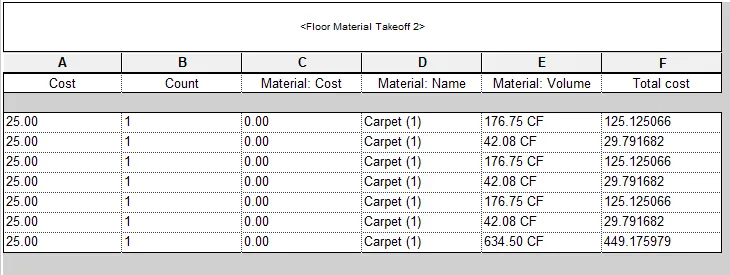

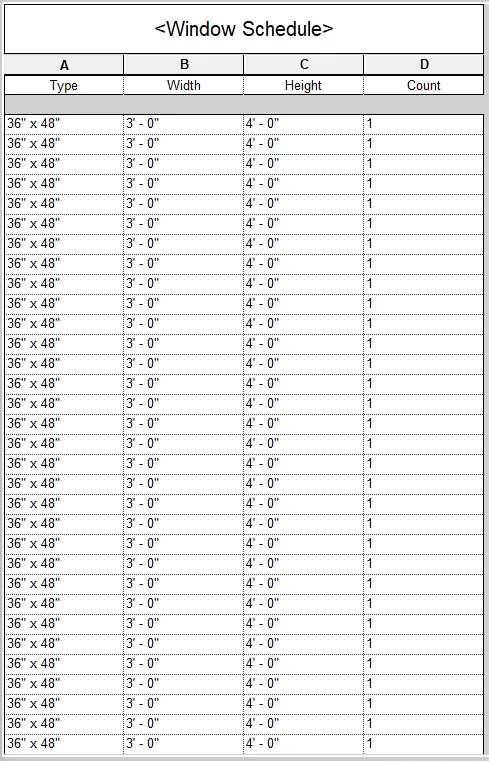

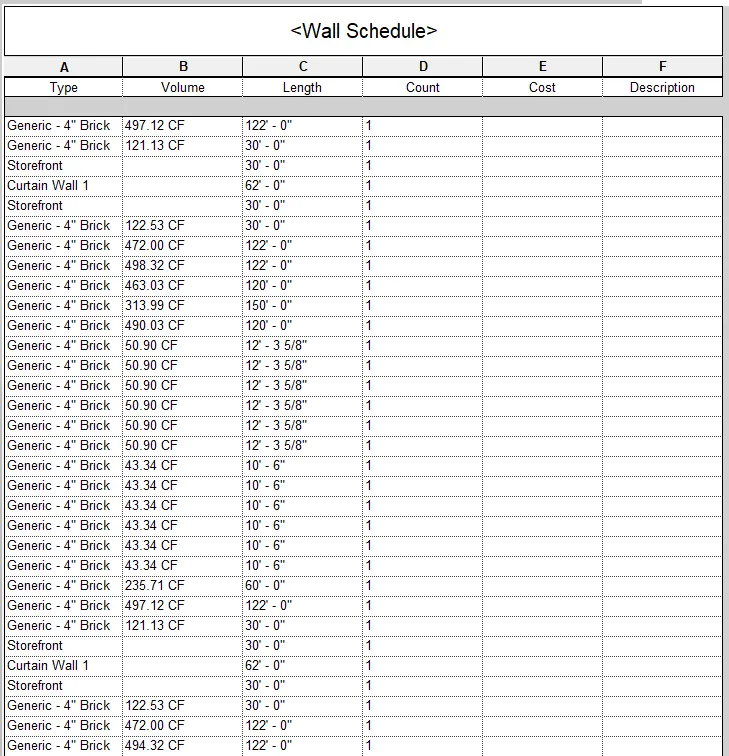

Preparing Schedule & Cost Estimation for a building using REVIT

1) ANS:- AIM:- To perform Form-Finding Analysis on Membrane Roof with cables using RFEM software. PROCEDURE:- First open the RFEM software and select new file and a new dialogue box is appeared as shown below. In that box give the name and discreption about the model as shown below. Also in general data click on option…

1) ANS:- AIM:- To perform Form-Finding of a Hyper form using RFEM software. PROCEDURE:- First open the RFEM software and select new file and a new dialogue box is appeared as shown below. In that box give the name and discreption about the model as shown below. After that select node option and create nodes as shown…

1) Case(1):- ANS:-   Case(2):- ANS:-

1) ANS:- AIM:- To develop the general arraangement for the RC office building and analyzing with design the building as per IS stadard code in TEKLA structural desginer. PROCEDURE:- step(1):- First open the TEKLA software in that open the new file. Next go to model tab and select construction level. Edit the construction…

1) ANS:- AIM:- To generate report for the steel building design from challenges 1-6 along with the loading summary. TOOLS USED:- Tekla model. Report. Model report. Show reports. Edit header. PROCEDURE:- Firstly open the TEKLA model that is previously created as shown below. Next we have go to report tab and select. Now…

1) ANS:- AIM:- To design the slab and foundation of model using TEKLA software. TOOLS USED:- Analyze. 1st order linear. Status. Check panel. Properties window. Catalouge. Pile cap column. Validation. Review. PROCEDURE:- First open the previously created file in the TEKLA structural design software. Next open the 3D view…

1) ANS:- AIM:-  To design RC columns and beams baased on analysis. TOOLS USED:- Frame. Structure window. Analysis. 1st order linear. Interactive design. PROCEDURE:- First open the previous week challenge in TEKLA softwre. Next we have to perform 1st order linear analysis as shown below. Next open any frame and opened.…

1) ANS:- AIM:- To generate seismic loading based on Is codal provision and zone 2. Any other data you can assume and input accordingly. TOOLS USED:- Load. Loadcases. seismic wizard. Seismic load. Analyze. PROCEDURE:- First we have to open the previous week challenge in the TEKLA software. After open the file now click…

1) ANS:- AIM:- To calculate dead load in design based on IS code and apply on model. Dead Load Calculations:- Slab load =(model slab in software). Finishes loading(50mm thickness)=0.05x24KN/m2=1.2kn/m2. Brickwall with cement plaster thickness=230mm. unit weight =20KN/m3.(IS:875 part-1;Table-1). Floor height (Gorund…

 1) ANS:- AIM:- To set up model for RC Building design base on the parameters for cover. PROCEDURE:- Firstly we have to open new file in TEKLA software using new icon present in file tab. Now let us select the settings icon from the home tab. After selecting the settings icon a dialog box appears then let us modify…

ANS:- AIM:-To analyse and Design a steel Building to 10T CRANE as per IS standard code in TEKLA structural Designer and to design a structure according to the attachments provided. PROCEDURE:- First we have to open the TEKLA software and open new file and draw the grid lines using the grid lines option. Next define the…

1) ANS:- BENDING MOMENT:-                                 The bending moment can be defined as the bending effect which is caused due to any internal or external force.It is only of the important concept to be studied and bending moment…

1) ANS:- AIM:- To generate manual wind loading in the design report based IS code as per the following input. TOOLS REQUIRED: IS code book. Calculator. Ms Excel. PROCEDURE:- First we have to open Microsoft Excel and enter the require values for calculation. Now we should check required standard values from IS code book.…

1) ANS:- Dead load calucation:- After doing the above calculations,open TEKLA software and open the week-3 challange. Next go to Load option in tha ribbon in that select the Load cases and enter the following cases. After that click on the on the Load combinations and in that click on generate the load combinations. Next…

1) ANS:- AIM:-To create beam proprties for First floor and model the beams by using TEKLA software. PROCEDURE:- First open the TEKLA software in that go to open option and open the week-2 challenge. Next  go to home in that select manage property and in that select new memaber as steel beam of size MB300 and FE410…

ANS:- To create column and beams to the Grid. PROCEDURE:- Opening the TEKLA file which was saved with grid in last challenge. Define the different levels such as base level,ground level,intermediate level and roof level appropriately according to the plan. Selecting manage property sets and adding memebers like concrete…

 1)ANS:-PROJECT WORKSPACE:-Open tekla softeware and click on new from the file option.We get the project workspace and we can access it.SCENE CONTENT:On the Project workspace,we can see there is an option at the right side of interface called scene content.It used to filter the different components of the model.CREATE…

ANSWER:- AIM:- To design and analysis of G+3 Hostel Building in ETABS and Foundation in CSI SAFE. INTRODUCTION:- The procedure for analysis and design of a given building will depend on the type of building,its complexity,the number of stories,etc. First the architectural drawings of the building are studied,structural…

ANSWER:- AIM:-To model and analyze the G+7 residential building from the given architectural drawings using ETABS 218. INTRODUCTION:- ETABS is an engineering software product that caters to multi-story building analysis and design. Modeling tools and templates,code-base load prescriptions ,analysis methods and solution…

ANSWER:- AIM:-To design the square footing using the given details. INTRODUCTION:- Footings which are provided under each column independently are callled as isolated footings. They are usually square,rectangular or circular in section. Footing is laid on PCC. Before laying PCC,termite control liguid is sprayed on top…

ANSWER:- AIM:- To provide, The cross sectional steel arrangement of the shear wall from its base up to terrace ,in compliance with provisions of IS 13920-2016.     The drawings of the reinforcement details of the shear wall from base up to terrace. INTRODUCTION:- Shear walls are vertical elements of the horizontal force…

ANSWER:- AIM:- To provide ,the details of longitudinal reinforcement for the two columns (3A & 3B), from foundation to terrace level.   The details of shear reinforcement as per special confining reinforcement provision of clause 8.1 of IS 13920-2016. INTRODUCTION: A reinforced concrete column is a structural…

ANS: AIM:- To design the beams in detail from the Etabs 2019.  To provide details of longitudinal and shear reinforcement for the  given two continuous beams.  To calculate the value of maximum shear force in any one of the span in the continuous beams. INTRODUCTION:- Beams are horizontal structural elements…

ANS:- AIM:-  To model and anlyse all the buildings from A to K with the given structural data and compare the anaysis between the models based on the different factors. PROCEDURE:- BUILDING(A): First open the ETABS software. Next click on the file option at the left side top corner and select the new model,as…

ANS:- AIM:-To model a 25 storey building with the given structural properties using ETABS 2018. INTRODUCTION:- ETABS is an engineering software product that used to creates multi-story building analysis and design. Modeling tools and templates,code based load prescriptions,analysis methods and solution techniques,all coordinate…

1Q) ANS:- FIGURE(A):- The four shear walls are symmetrically placed and are in uniform size because of this there will be uniform distributed of seismic forces. Walls are placed in L shape .Because of these heavy biaxial stresses will be imposed on them,due to this the floor below the walls will undergo heavy deformation.…

1) ANS: 1.SYMMETRY:-         Having a look over the aspects of symmetry of the framing plan,it is observed that the distribution of mass ,stiffness across the plan.it is considered for one of the good symmetrical aspects.This tends to reduse the horizontal displacement s in both of the two orthogonal…

1Q) ANS:-

1Q) AIM: To compute the lateral stiffness of one storey frame with given parameters. 2Q) 2a) AIM:To determine the number of degree of freedom,establish the equation of motion and claculate their natural frequencies. 2b) AIM:To determine the number of degree of freedom,establish the equation of motion and claculate their…

1Q)   FLEXURAL FAILURE OF BEAM:- Flexural failure occurs when the imposed loads exceeds the flexural capacity of the structural member. Flexural strength is defined as stress in material just before the yielding statrts in flexural test;it represents the highest stress value experienced at moment of rapture. REMEDY/SOLUTION…

1Q) AIM:To use the architectural/structural project file developed from week 6-8.Export the revit file to naviswork cache file. TOOLS UESD: File Export NWC Navisworks View  Default 3D view PROCEDURE: Open the revit file which we want to export to the navisworks file. click on file and select export option and choose…

1Q) AIM:To creat a set of sinusoidal points and create a curve and create a surface out of the curve by using Dynamo. TOOLSUSED: manage Dynamo code block math.sin integer slides add pointby coordinates surface by lost PROCEDURE: open the revit software and create a new template. save the file go to manage tab and select…

1) ans:            a. Using 3D model create a section box is BX           b. To create similar doors and windows in a floor plan layout is CS           c. To reduce the thickness of lines visible in plan views is TL   …

1Q) Ans:- HVAC stands for heating,ventilation,and air conditiong.         HVAC systems are responsible for the regulation of heat, airflow, ventilation, and air conditioning of an entire building. You won’t see the machines when you enter the building but you will most certainly feel the…

1)     I select office Building from the given three models. 2) AIM:        Assume resonable assumptions for geographic and location details for your project modeling .Based on assumptions and type of structure selected identify the modeling requirements from NBC. PROCEDURE: my project is…

1) AIM: To opening a architectural template and setup a basepoint and projcet shared coordinates for the projcet. TOOLS USED: Template Manage  Project parameter Shared coordinates PROCEDURE: step1: open revit select new and choose architectural template step2: type the command VG(visibility/Graphics) Enlarge site…

1) BUILDING CODE:Building code is a set of rules that specify the standars for consructed objects such as buildings and non-building structures.                    codes express all aspects of construction including structural integrity ,fire resistsnce ,safe exits,lighting,electrical,energy…

                                                                 3D RESIDENTIAL MODEL WITH CEILING                …

                                       GROUND FLOOR OF THE RESIDENTIAL BUILDING                       FIRST FLOOR OF THE RESIDENTIAL BUILDING        …

1)BUILDING INFORMATION MODELING:-                                                    BIM is a process in which all the information of the 3D building models are linked and incorporated to produse…

                                                                             3D MODEL VIEW          …

                                                               3D RESIDENTIAL BUILDING DESIGN  AIM: To creat a 3 dimensional model of the residential building…

      AIM:To creeat a 3D isometric view of the building with plan and elevation by using Autocad 3D modelling. PROCEDURE: First open the Autocad and click on settings below and in that select 3D modelling. After selecting the 3D modeling set the units and limits as per the drawing requirements. After that go to views and…

  AIM:To creeat a 3D furniture element by using Autocad 3D modelling. PROCEDURE: First open the Autocad and click on settings below and in that select 3D modelling. After selecting the 3D modeling set the units and limits as per the drawing requirements. All the lines in the above drawing are drawn by using line command…

AIM:To creat a layout of the plan and section by using autocad. PROCEDURE: First open the autocad and set the units and limits as per the drawing requirements. Next by using layout command create one layout and named it and save it. After creating the layout by clicking right click on the layout name and select the pageset…

AIM:To draw the layout of the kitchen by using Autocad. PROCEDURE: First open the autocad and set the units and limits as per the drawing requirements. Next create different layers for different objects like walls,windows,columns,beams,footings,text,dimnsions,etc. In above drawing all the lines are drawn by using the line…

   AIM:To create the templates  by using Autocad. PROCEDURE: First open the autocad and set the units and limits as per the drawing requirements. In above drawing all the lines are drawn by using the line command in the below command section. All the texts in the above drawing are written by using the line command. Dim…

AIM:To draw the layout of a residential building by using Autocad. PROCEDURE: First open the autocad and set the units and limits as per the drawing requirements. Next create different layers for different objects like walls,windows,columns,beams,footings,text,dimnsions,etc. In above drawing all the lines are drawn by…

                         1ST,2ND & 3RD FLOOR PLAN   AIM:To draw the plan and section of a building by using Autocad. PROCEDURE: First open the autocad and set the units and limits as per the drawing requirements. Next go to layer command and create…

  AIM: To  Draw the elevation and details of a wardrobe by using autocad. PROCEDURE: First open the autocad and set the units and limits as the drawing requirements. In above drawing all lines are drawn by using the command line in the below command section. All the dimensions are given by using the dim…

  AIM:To creat a column scedule by using autocad. PRPCEDURE: First open the autocad and set set the units and limits as per the drawing requirements. In above drawing all the lines are drawn by using the line command in the command section . All the texts are written by using the text command and to the text select…

    AIM: To sketch the layout of a resisdence building plan by using autocad. PROCEDURE: Fisrt open the autocad and set the units and limits as per the requirements of the drawing. To draw the layout of a building first of all create different layers for different objects like walls,doors,windows,steps,text,dimension,etc.…

    AIM:To draw the drawing in decimal units by using autocad. PROCEDURE: First selcet the units and limits as per the drawing requirements. In above drawing all the lines are drawn by using the line command in below command section. All the circles are drawn by using circle command by giving required radius…

     AIM:Draw the the c.s of load bearing wall over the spread footing. procedure: open the autocad and set  the units and limits as per the drawing requirements. next start the drawing by using various commands like line,circle,rce,etc. in the above drawing all the lines are drawn by using line command…

m                                                                                           …

The individual loads from the members as per IS code.    Dead load       Weight of slab =thickness *unit weight of RCC              =0.125*25=3.125kn/m2 Weight of beam          =0.3*0.45*25*=3.375kn/m.…

1) The mix design for M35 grade concrete Step(1): Target mean strength ft=fck+1.65*S From table 1 of IS 10262:2009                 Standard deviation S= 5N/mm2                 Ft= 35+1.65*5=43.25N/mm2 Step(2): Selection of water cement ratio…
