Week 11 Challenge

1)

ANS:-

AIM:- To design the slab and foundation of model using TEKLA software.

TOOLS USED:-

1. Analyze.
2. 1st order linear.
3. Status.
4. Check panel.
5. Properties window.
6. Catalouge.
7. Pile cap column.
8. Validation.
9. Review.

PROCEDURE:-

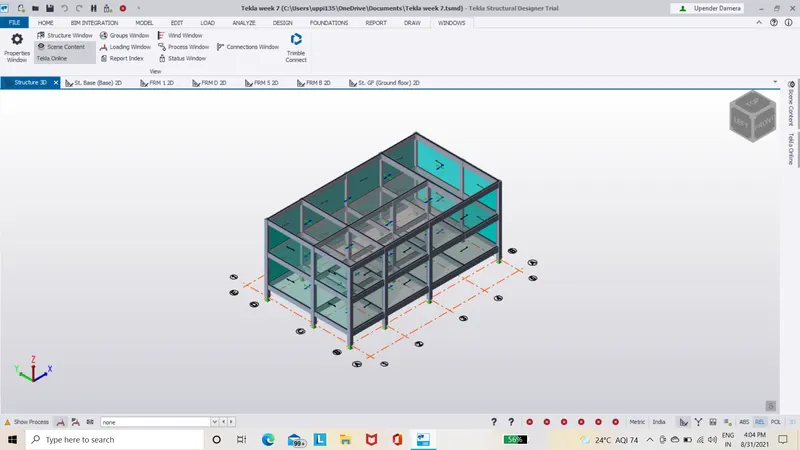

• First open the previously created file in the TEKLA structural design software.

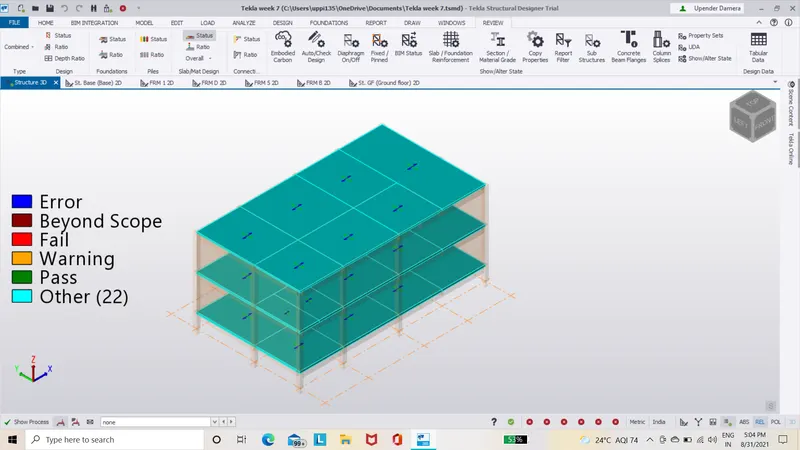

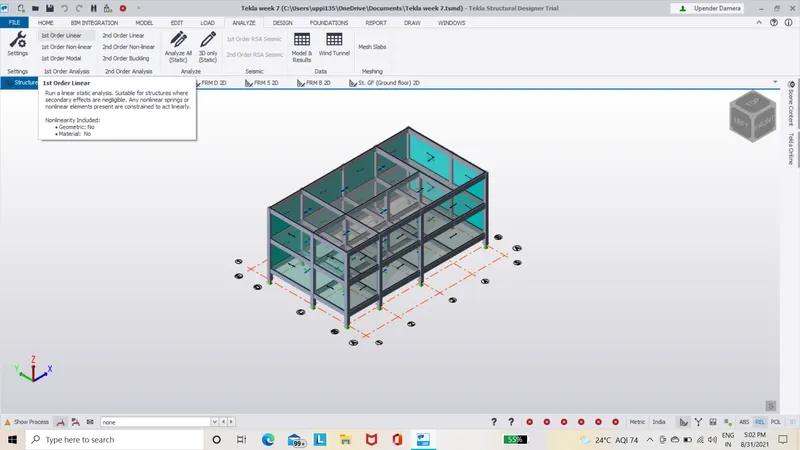

• Next open the 3D view of model and click on 1st analysis and perform analysis and perform Analyisis All(static).

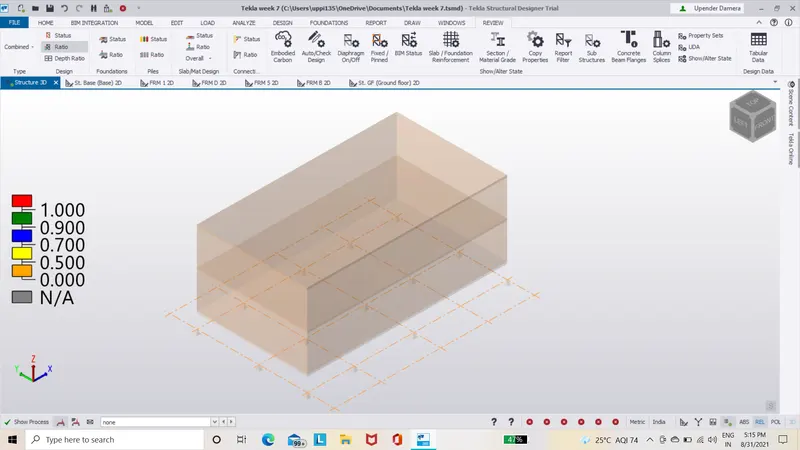

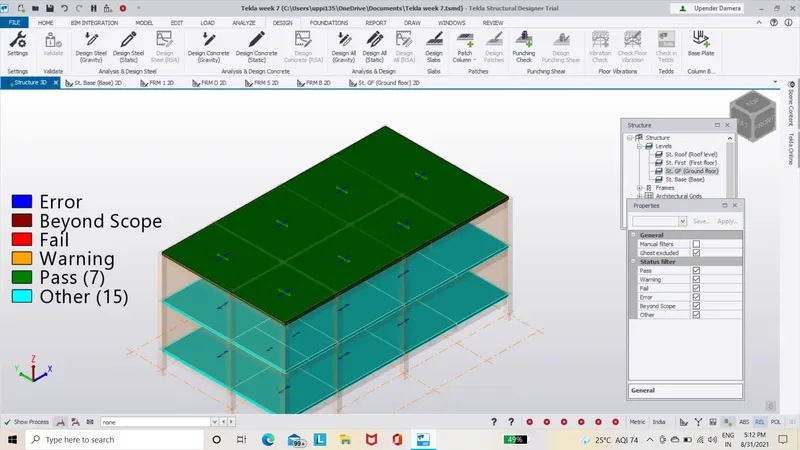

• Next we have to click on status in the result view as shown below.

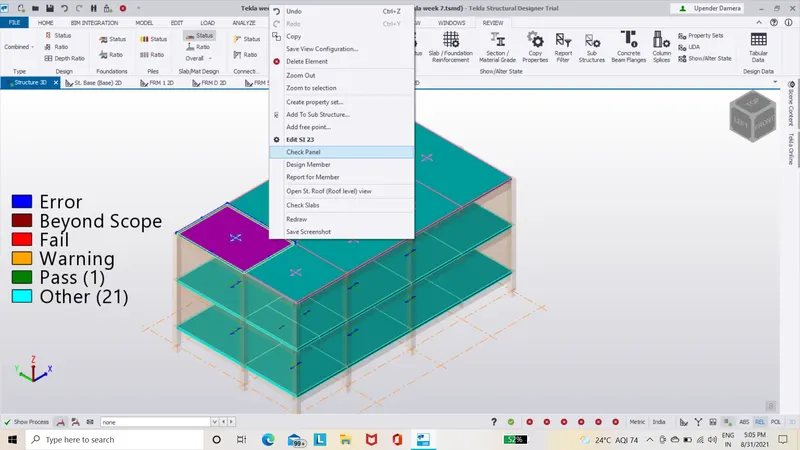

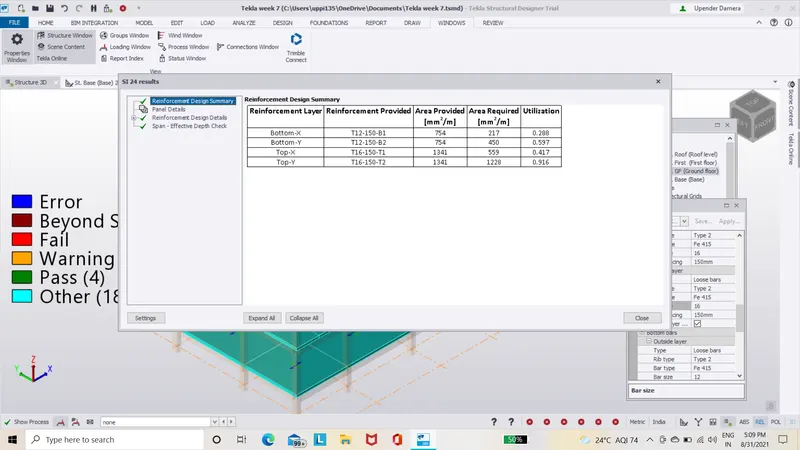

• Next select one slab item and right click and choose check panel and see the errors that rise same as shown below.

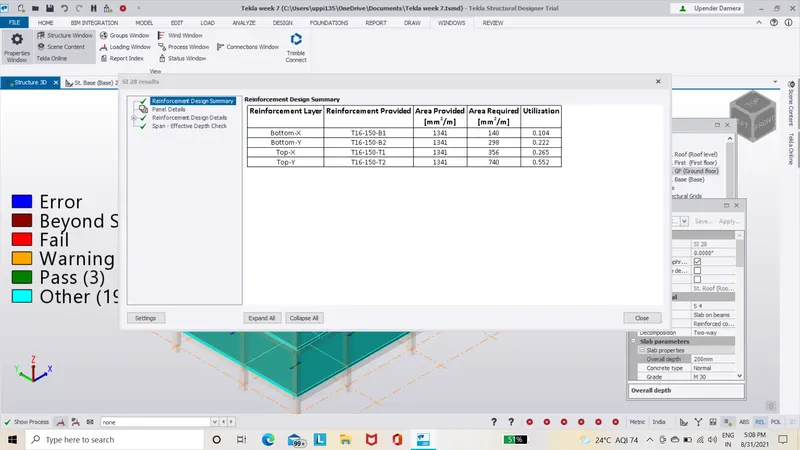

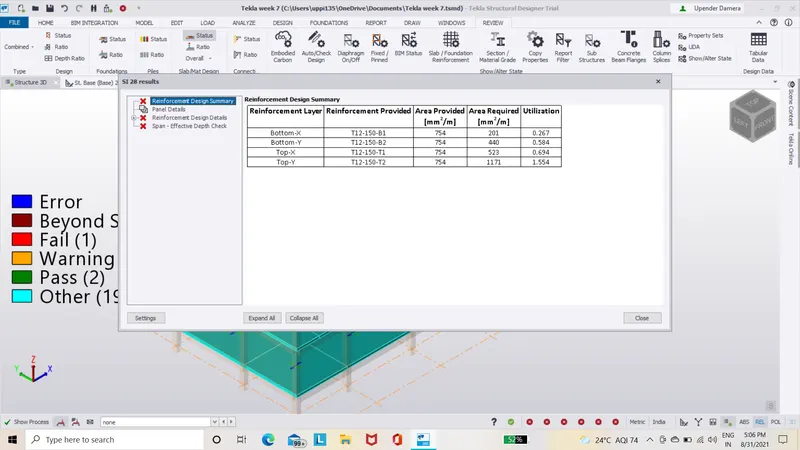

• Solve the errors by carefully observing the error by changing the properties of slab and reinforcement detials such as Bottom and Top bars and spacing between them.

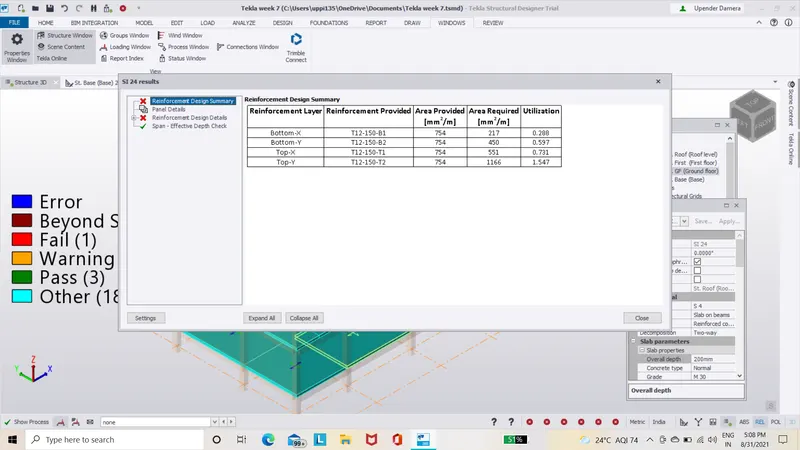

• After making the neccessary changes,agian check the panel if there are errors ,if the errors are still exisiting again edit the properties and check till slab is passed.

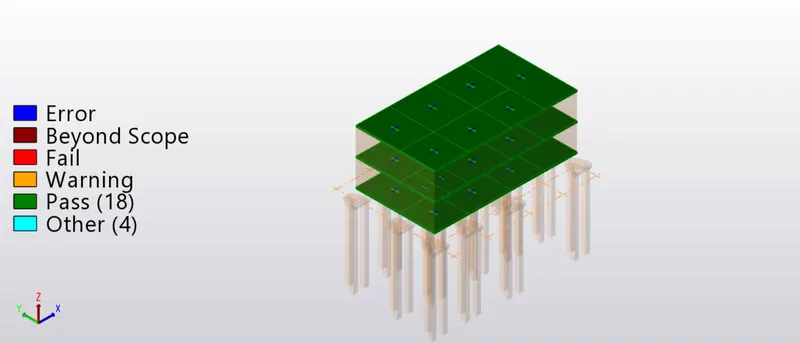

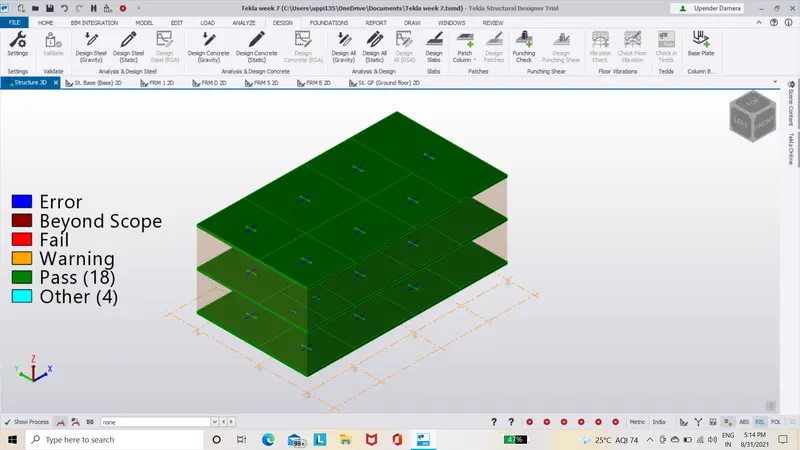

• Continue the process for all the slabs of structure as shown below.

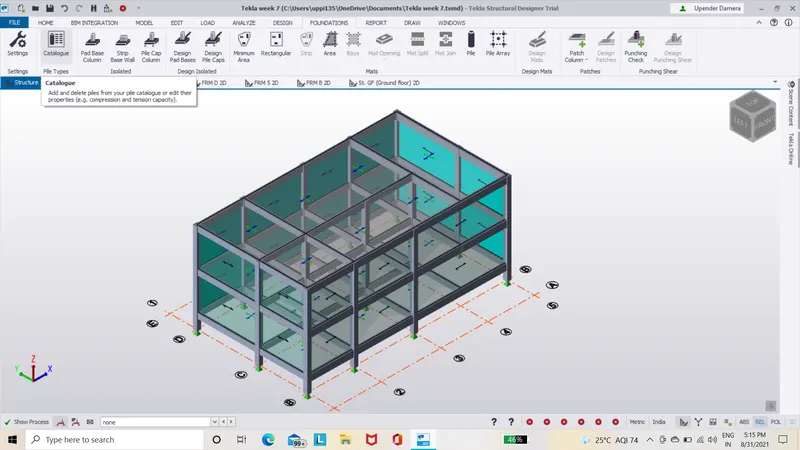

• Next we have design foundation for the model for that go to Foundation tab in that click on catalogue option as shown below.

• Click on add in the dialogue box that appears below.

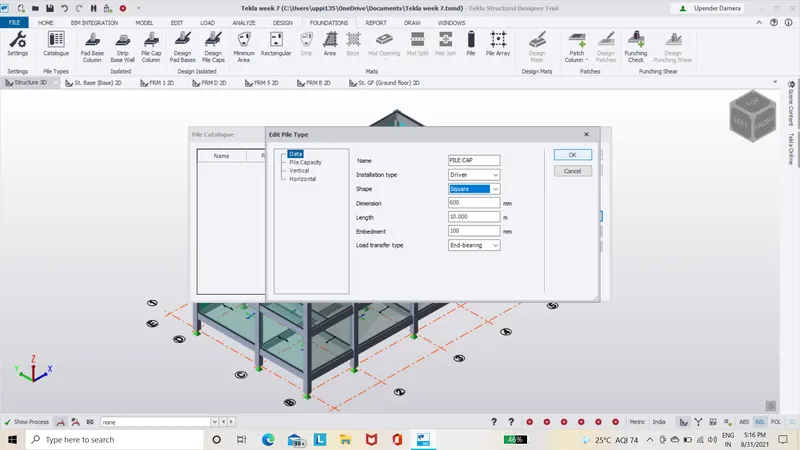

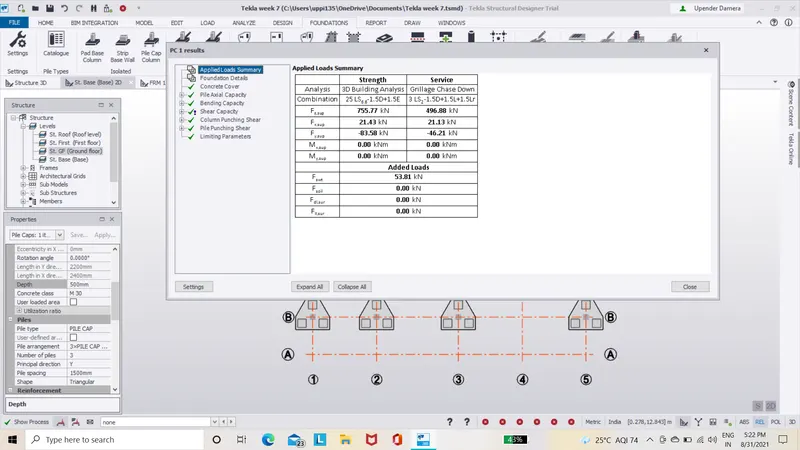

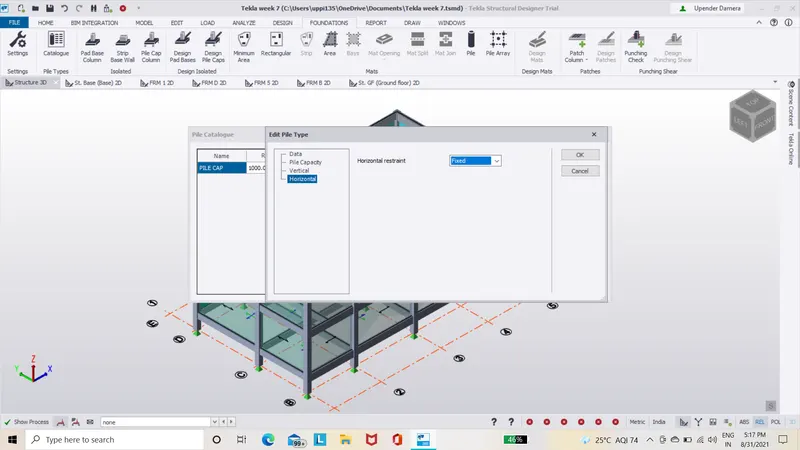

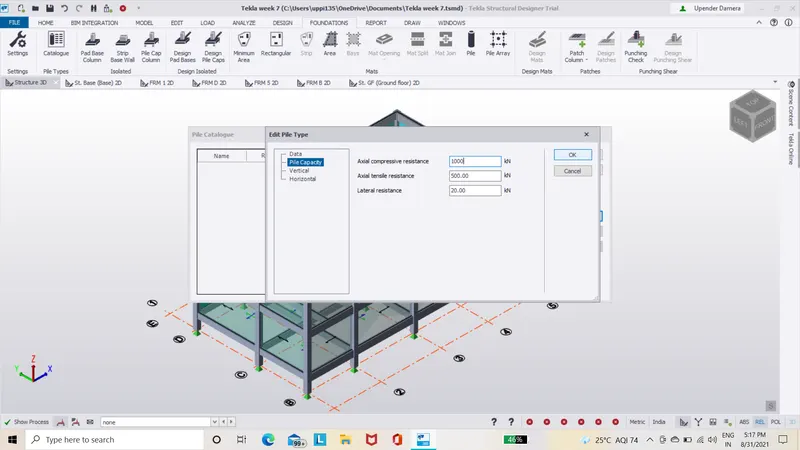

• Set the properties of the pile cap as shown in the picture below and press ok.

• Again we have to click on ok.
• Now click on pile cap column in the foundation tab as shown below.

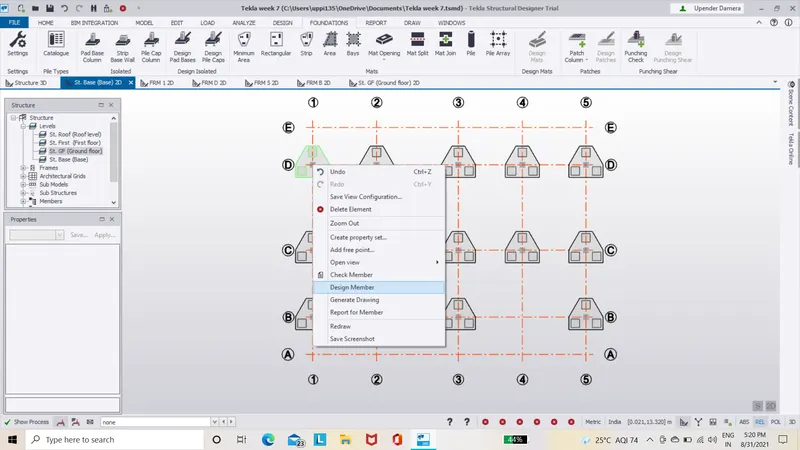

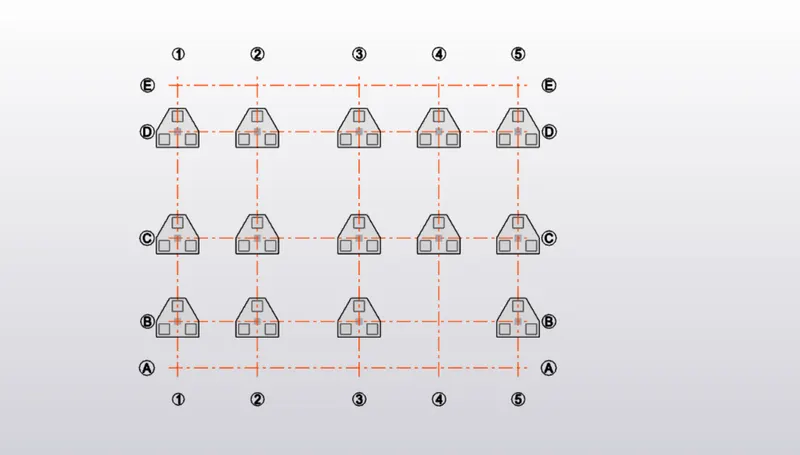

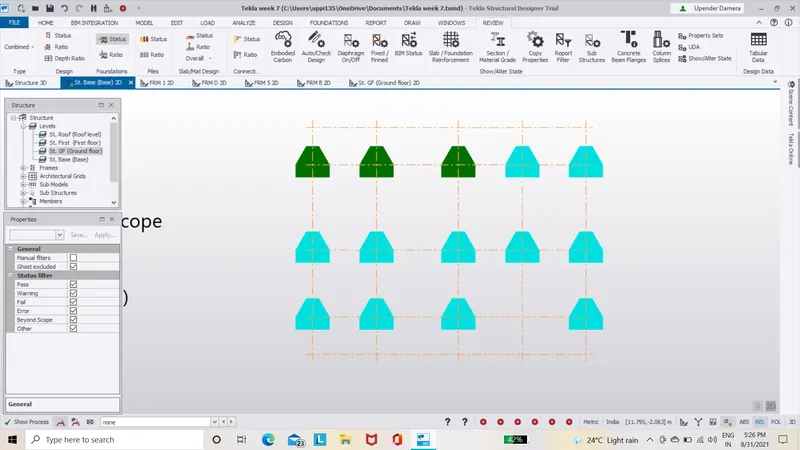

• To create foundation click on column location to create pile caps under the columns as shown below.

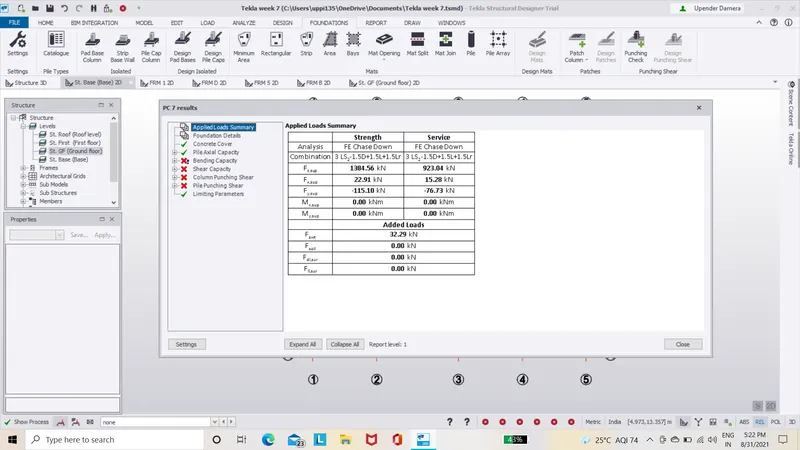

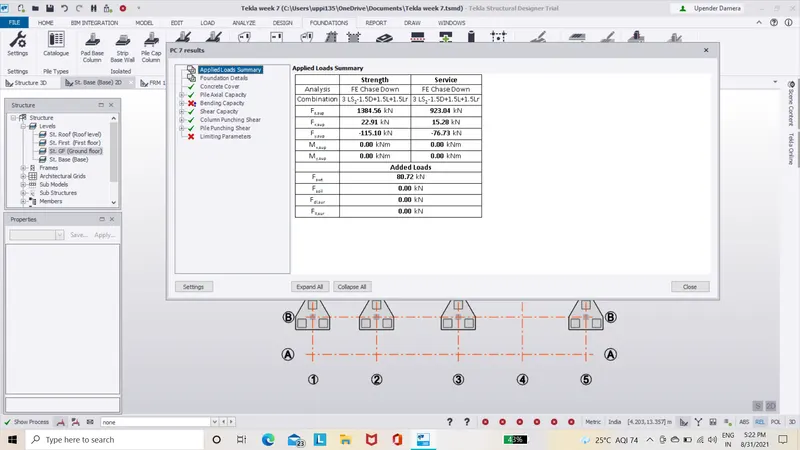

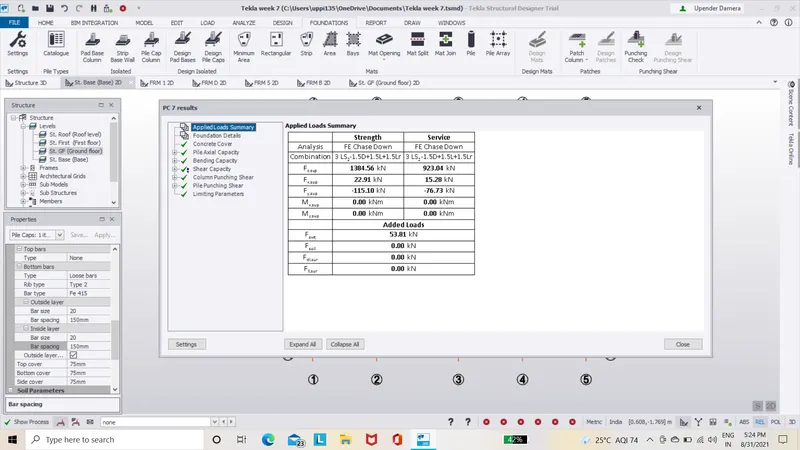

• After creating the foundation we to check & Design the foundation by right click on foundation as shown below.

• Solve the errors by carefully observing the error by changing the properties of slab and reinforcement detials such as Bottom and Top bars and spacing between them.

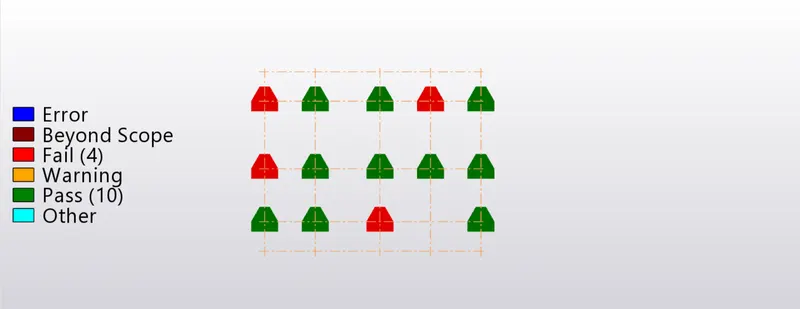

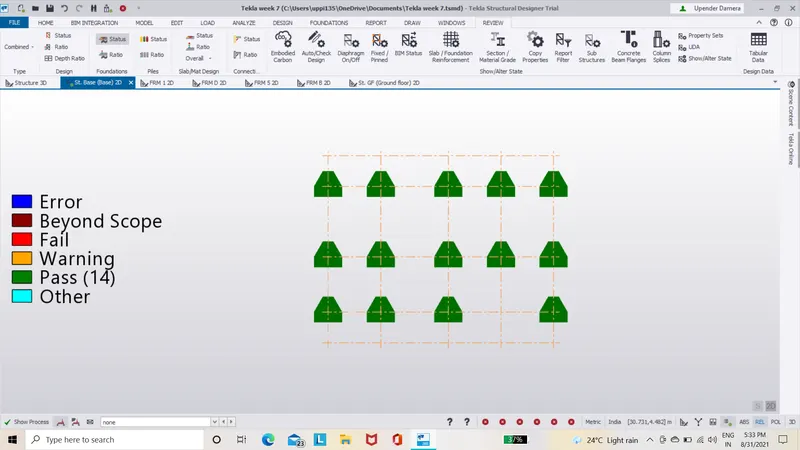

• And do the same process for all the foundations and resolve the errors as shown below.

• At last click on the validate in the model tab to check if there are any errors as shown below.

RESULT:-

• The slabs are designed so as to susutain against the loads.

• Pile caps are created and the model is validated to be error free.
