Calculation of Stiffness in Structural elements

1Q)

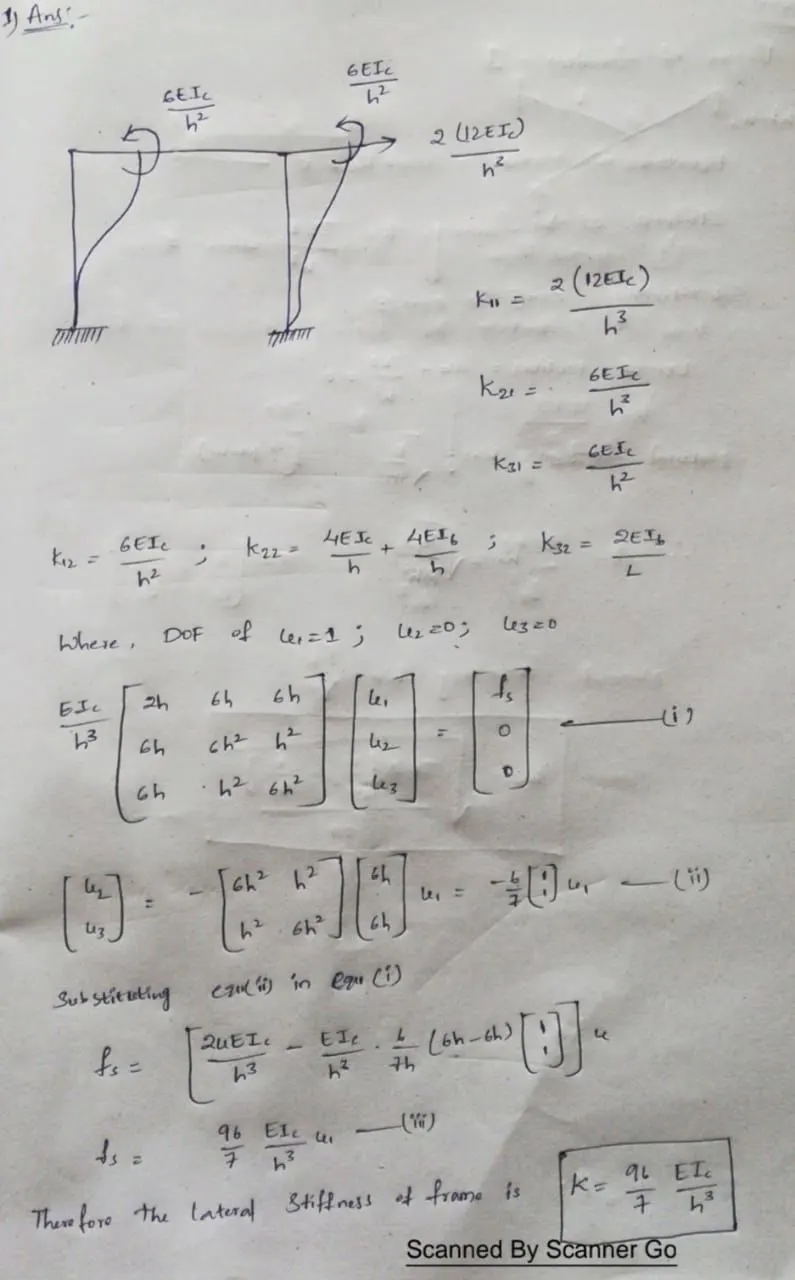

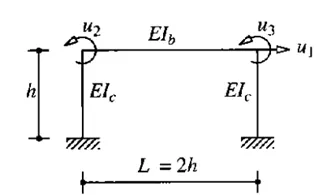

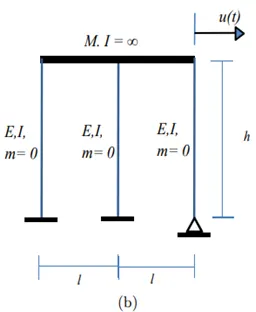

AIM: To compute the lateral stiffness of one storey frame with given parameters.

2Q)

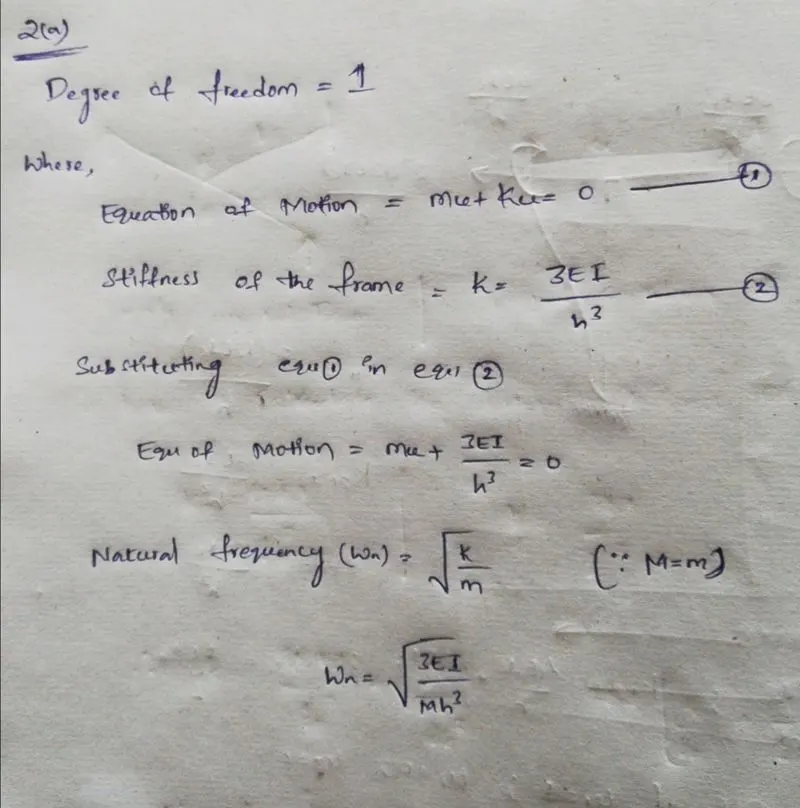

2a)

AIM:To determine the number of degree of freedom,establish the equation of motion and claculate their natural frequencies.

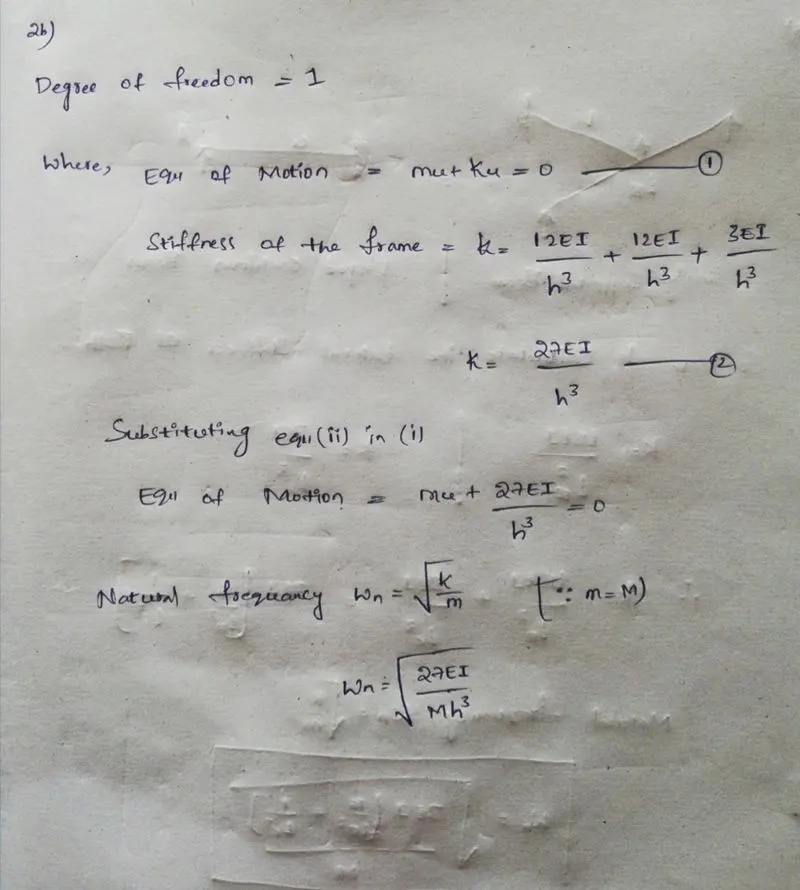

2b)

AIM:To determine the number of degree of freedom,establish the equation of motion and claculate their natural frequencies.

3Q)

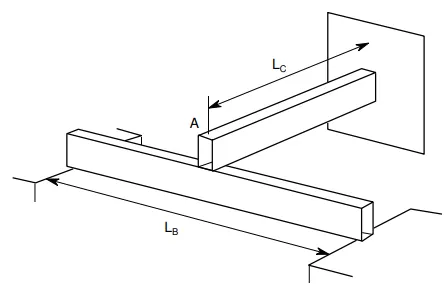

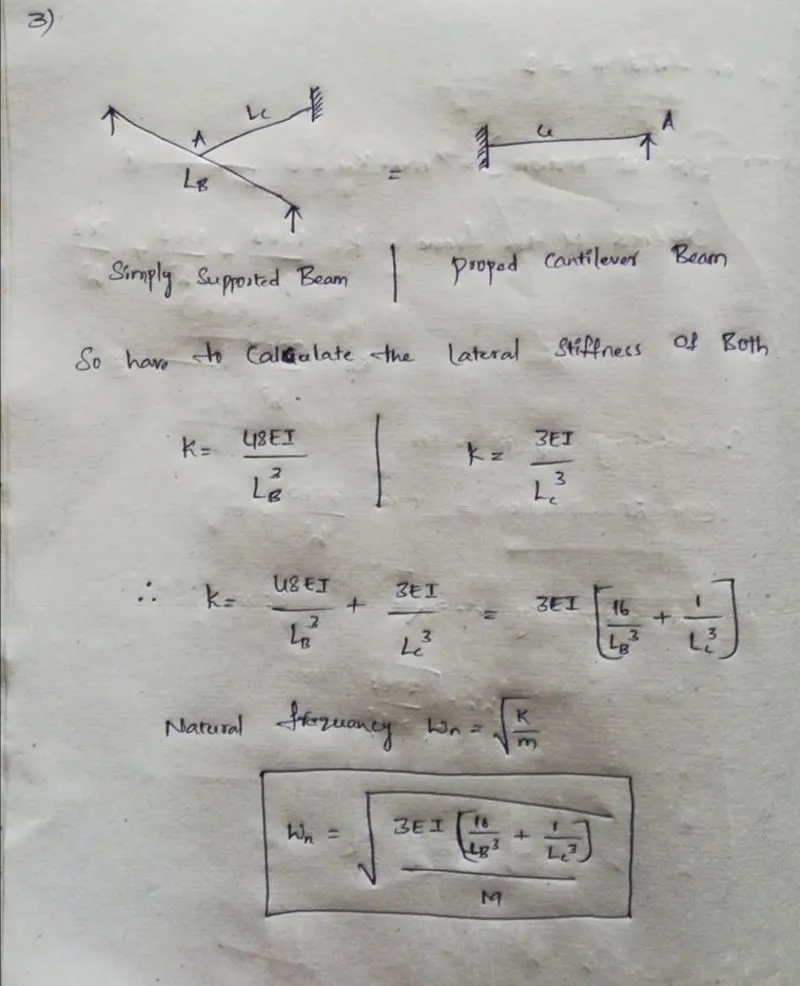

AIM:To calculate the natural period of the given system.

4Q)

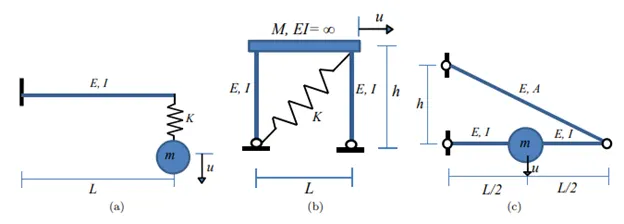

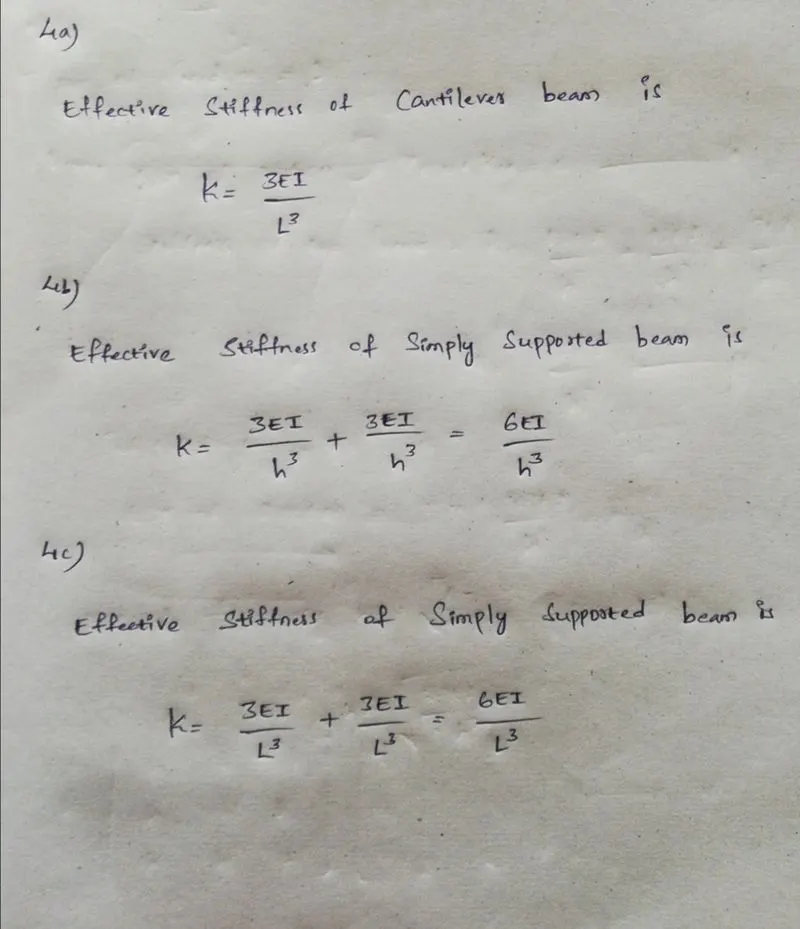

AIM:To determine the expression for the effective stiffness of the following systems.
