Week 1 Challenge

1)

ANS:-

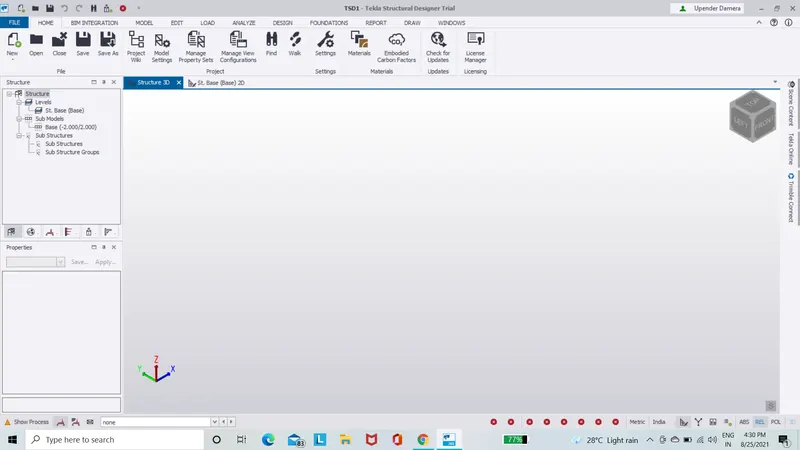

PROJECT WORKSPACE:-

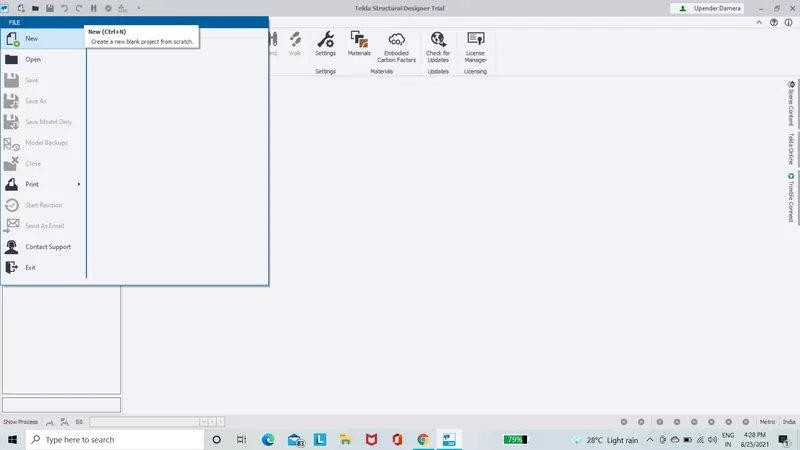

1. Open tekla softeware and click on new from the file option.
2. We get the project workspace and we can access it.

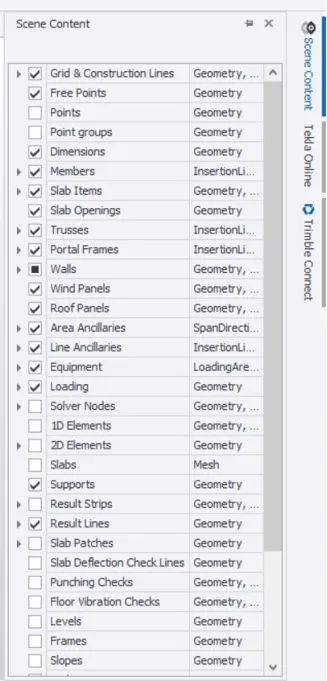

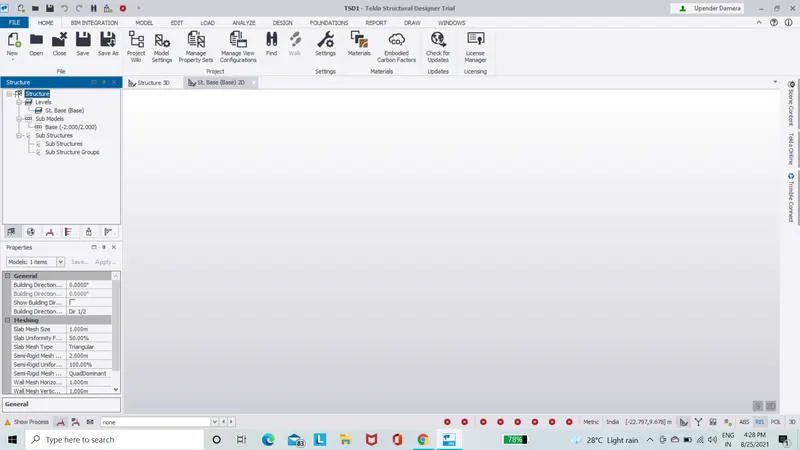

SCENE CONTENT:

1. On the Project workspace,we can see there is an option at the right side of interface called scene content.
2. It used to filter the different components of the model.

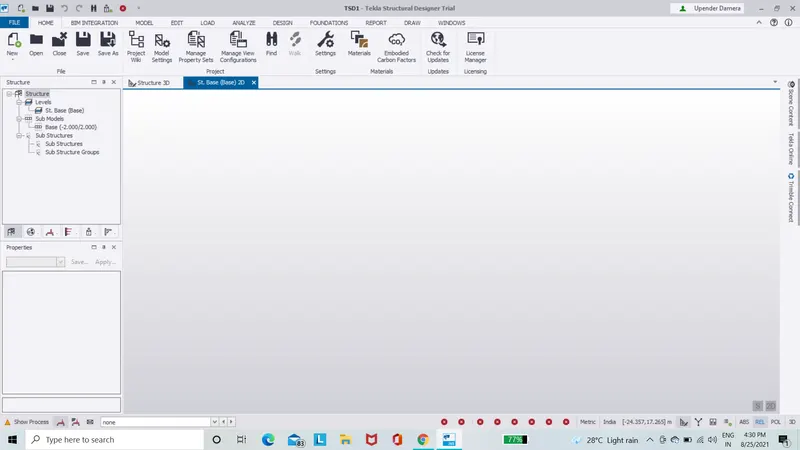

CREATE TWO SCENE VIEWS:

1. On the project interface we see two options at the top,base 2D and structure 3D.
2. To obtain the 2D view,click on base 2D.

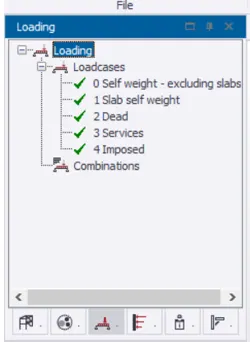

LOAD DROP LIST:

1. To obtain the loading drop list,click on the loading option left of project interface.
2. It shows the different loads and load combinations to be applied to the structure.

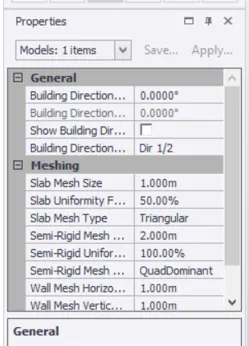

PROPERTIES WINDOWS:

1. There is an option called properties windows below project settings.
2. Click on it and we get the different options which can be used to assign to the object.


2)

ANS:-

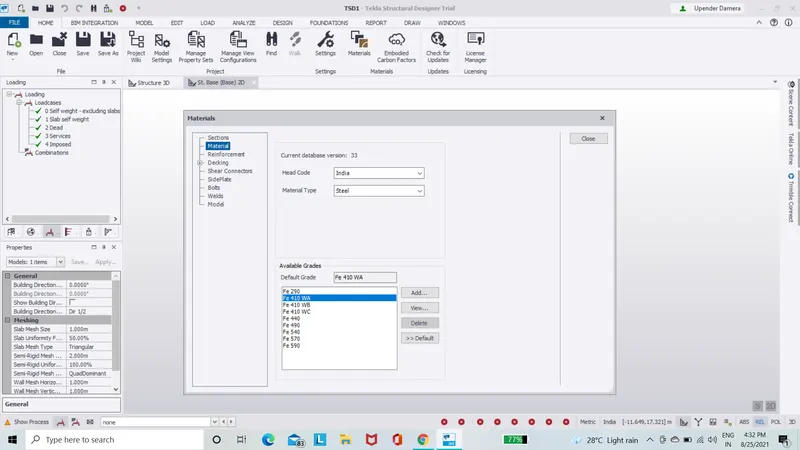

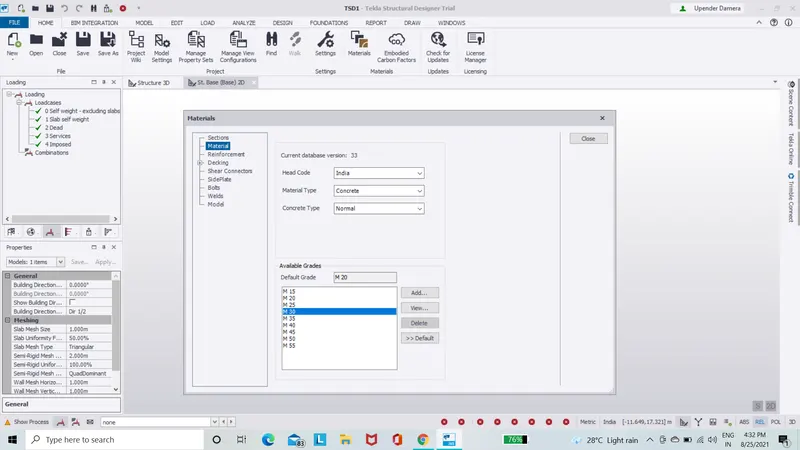

1. To make the grade changes in steel FE410 and concrete grade M30,select the material option from the ribbon.
2. And change the grade to FE410 and concrete grade M30.

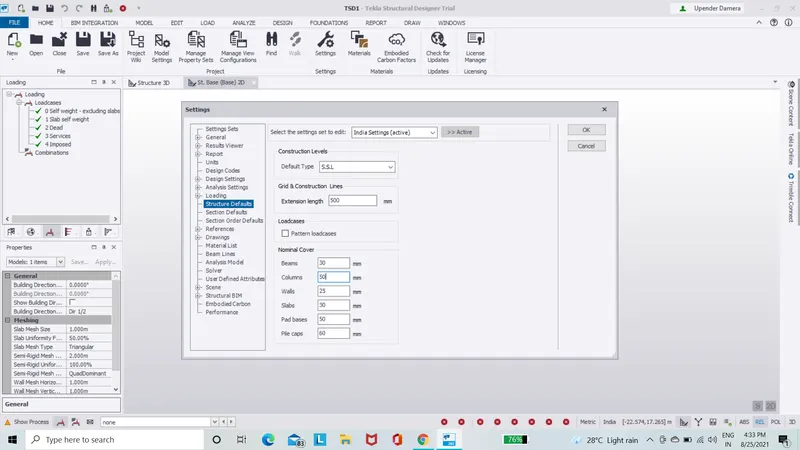

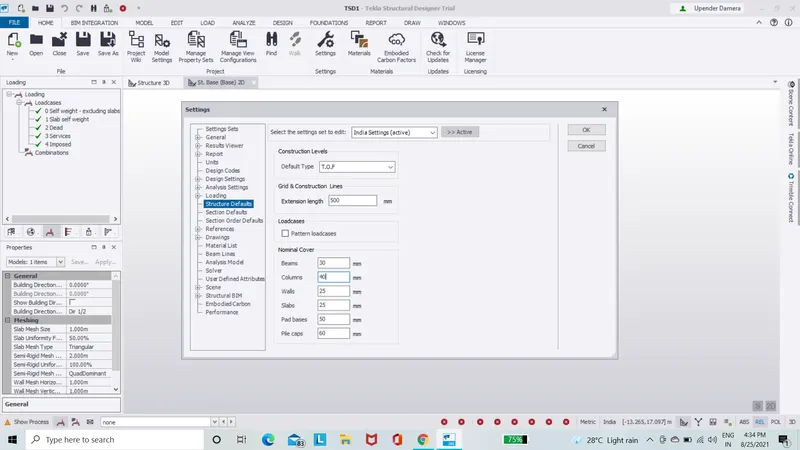

3. To change the nominal cover of componenets,go to settings and select structure default,change the cover as given in question.

Nominal cover above ground.

Nominal cover below the ground.

3)

ANS:-

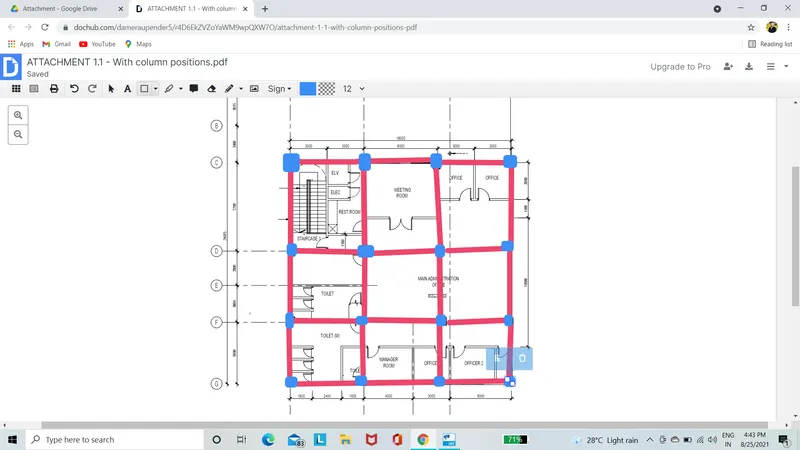

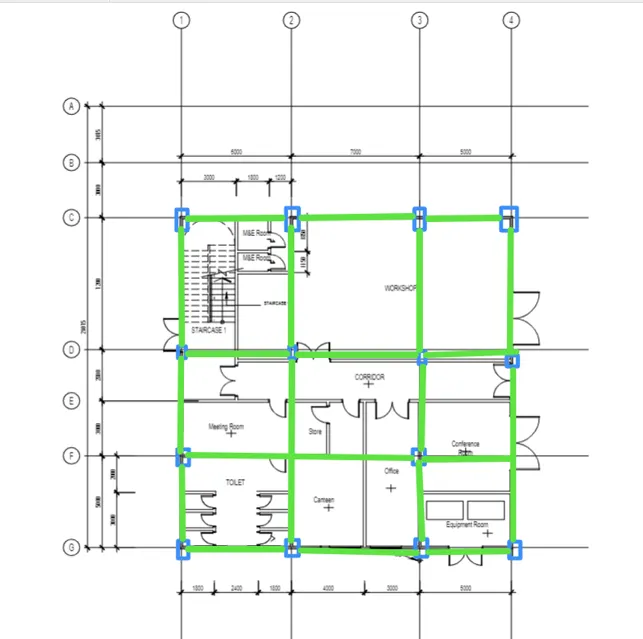

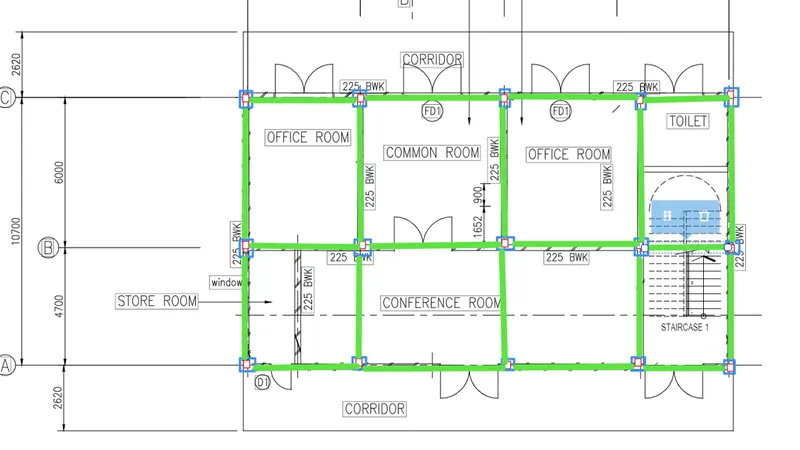

1. Symmetry and uniformity of column is very important for all layouts,which we have tried to maintain here.
2. Fist provide 4 columns at 4 intersections along the last grid or line.
3. Similarly is maintained for all 4 grids throughout the plan.
4. All these columns are connected by primary beams.

4)

ANS:-

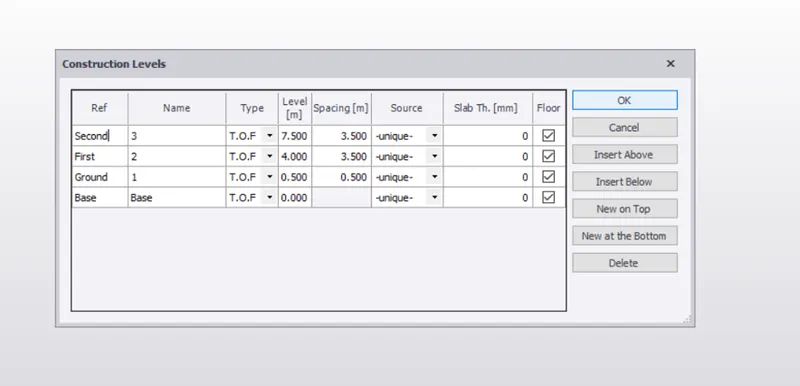

Open TEKLA ,go to construction levels and make thesettings as ground floor to roof.Change the spacing between foundation and ground floor as 500mm.and enter the spacing of rest floors.

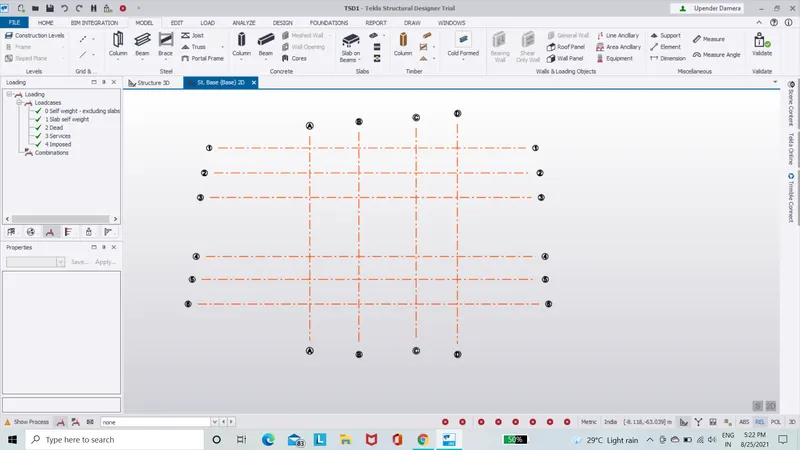

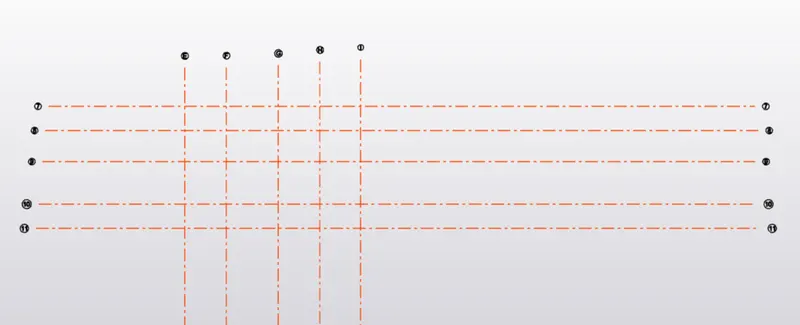

• To make the grids as fig.1 go to grid line and draw a horizontal grid.
• Next subselect the parallel option from the same and click the previous line.
• Enter the spacing as give in the grid plan,repeat the same procedure for the entire layout.
