Week 10 Challenge

1)

ANS:-

AIM:- To design RC columns and beams baased on analysis.

TOOLS USED:-

1. Frame.
2. Structure window.
3. Analysis.
4. 1st order linear.
5. Interactive design.

PROCEDURE:-

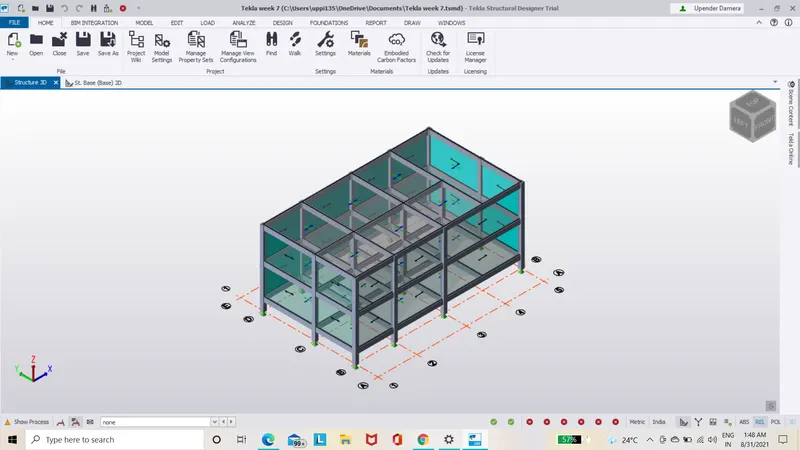

• First open the previous week challenge in TEKLA softwre.

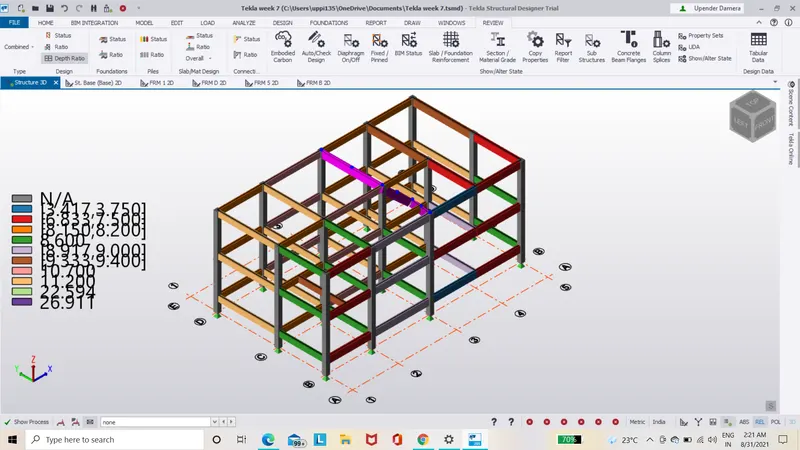

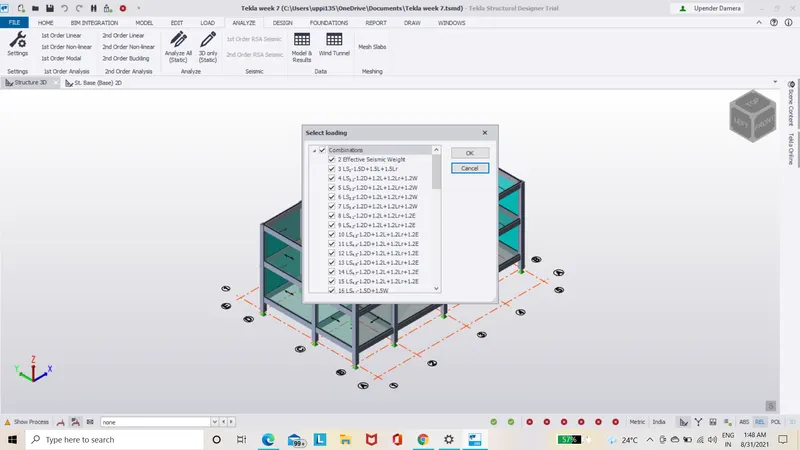

• Next we have to perform 1st order linear analysis as shown below.

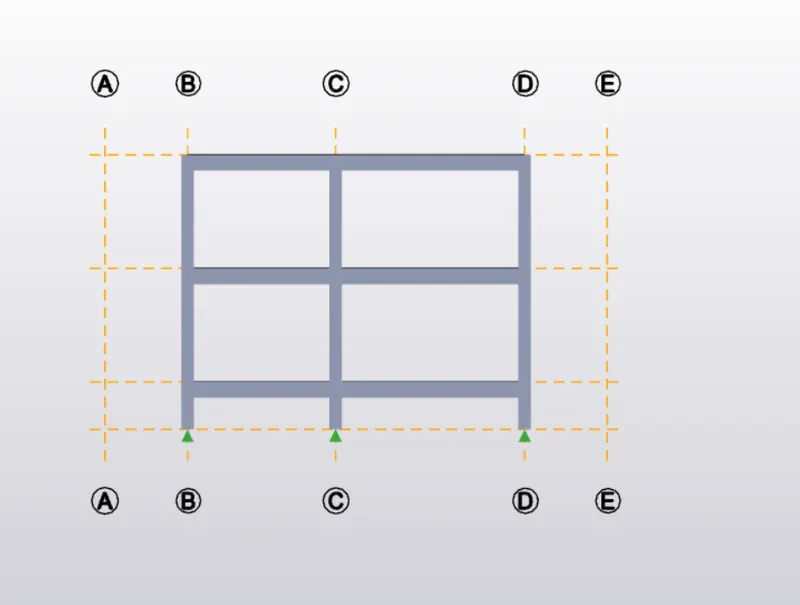

• Next open any frame and opened.

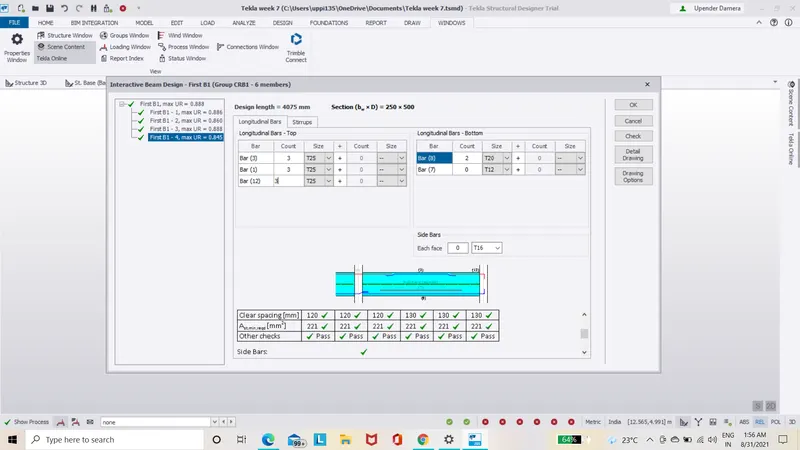

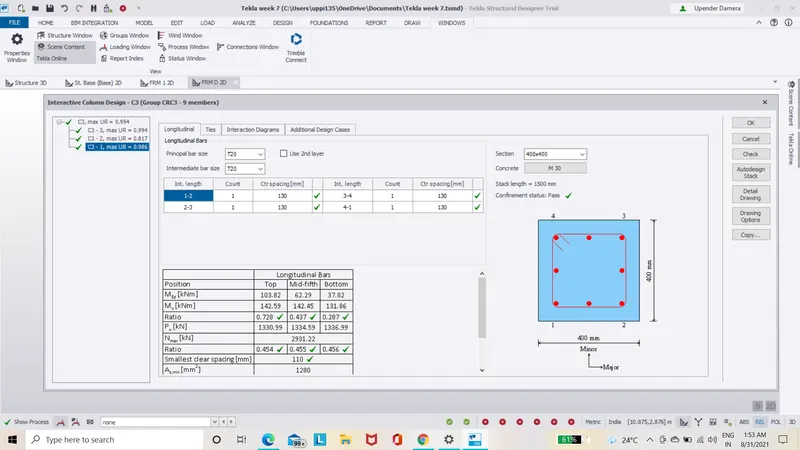

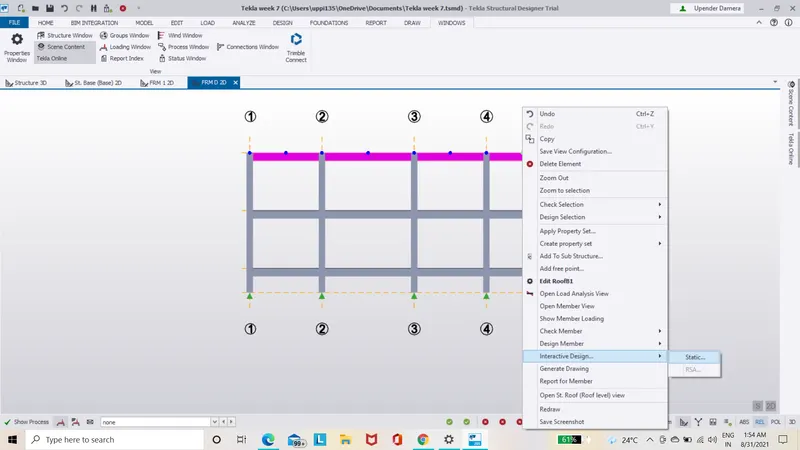

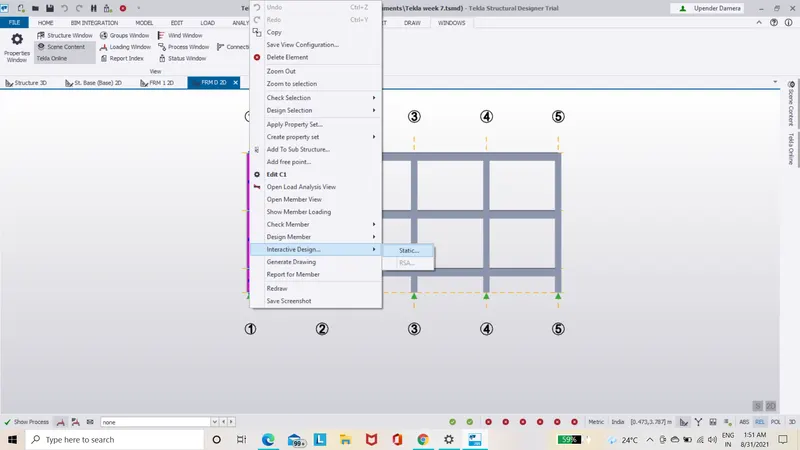

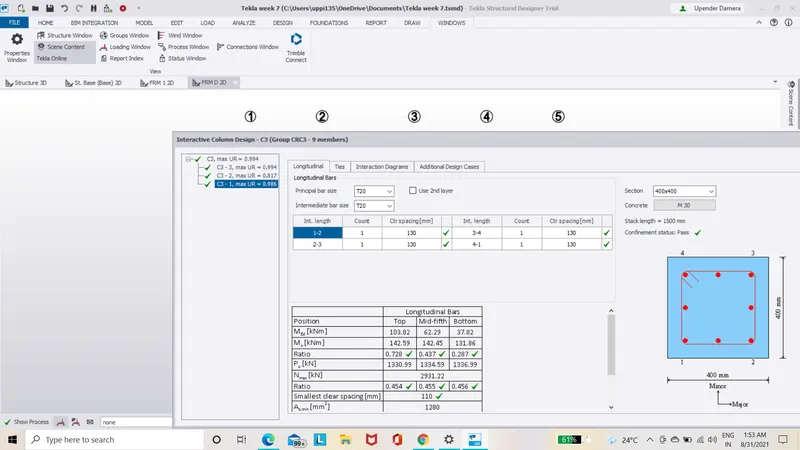

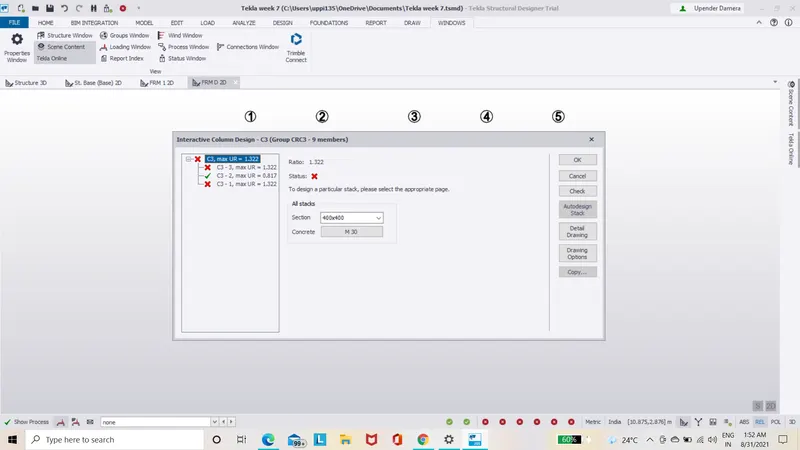

• Select one of the beam or column and right click and click on interactive Design and see if the column or beam passes i.e, all the beams have have tick mark.perform analysis (static) before doing this.

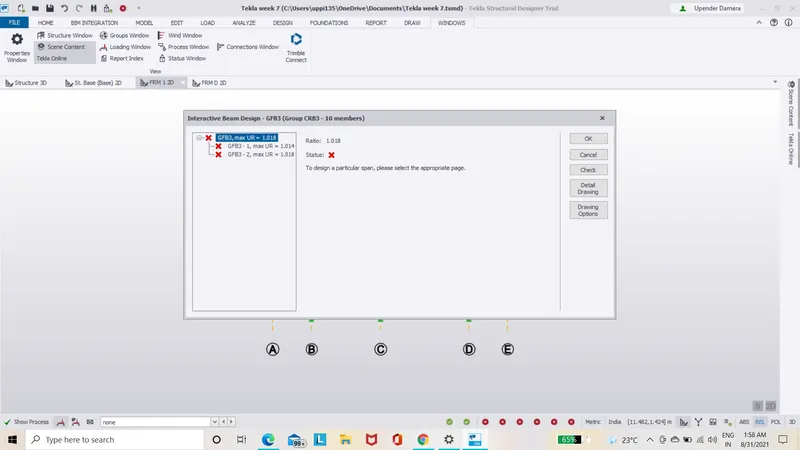

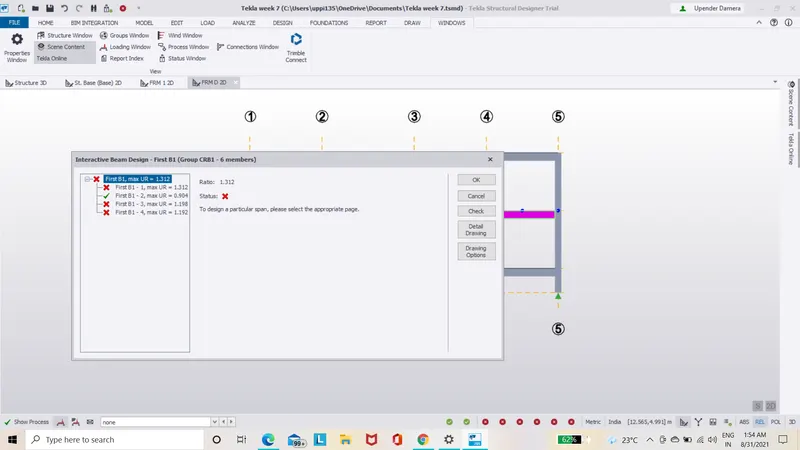

• If the member fails ,observe the problem and solve it accordingly.

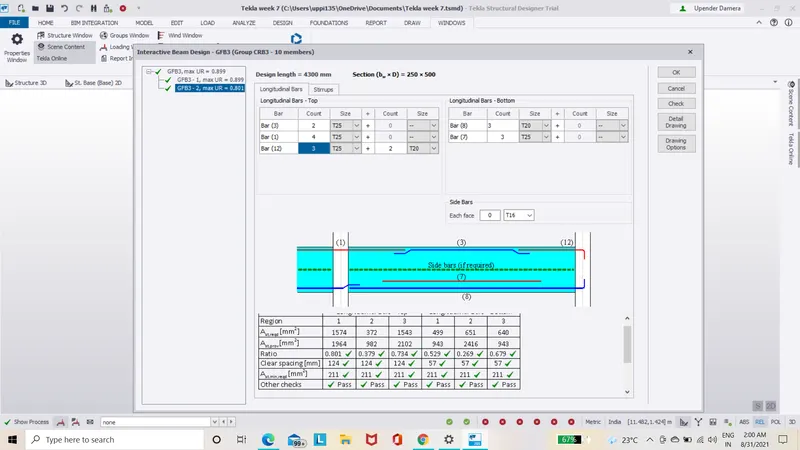

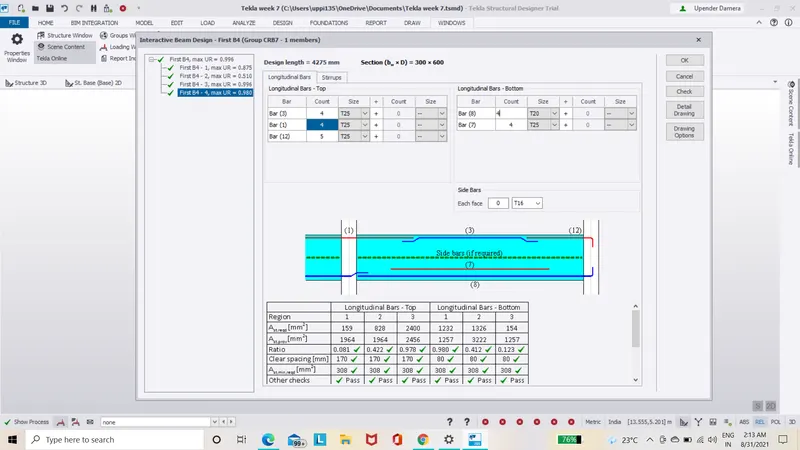

• Here the issue which i got os solved by increasing number of bars and size of bars in the longitudinal bars.

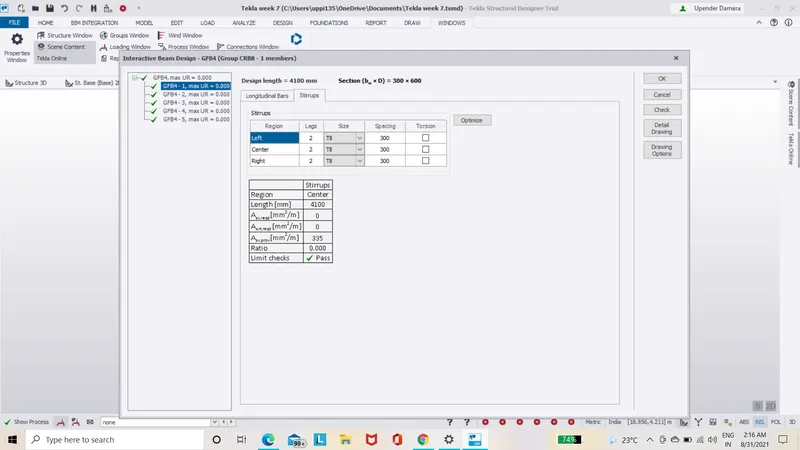

• For error in links tab,change the number of legs and size of member and click ok. The number of legs for left ,center and right was found to be 2,3 and 2 and spacings were found to be 300,200 and 300 for a correct beam. Hence we copy the correct member details to failure member details to correct the wrong members and click ok.

• Continue to do the same process for all the beams and columns until the whole structure members are passed.

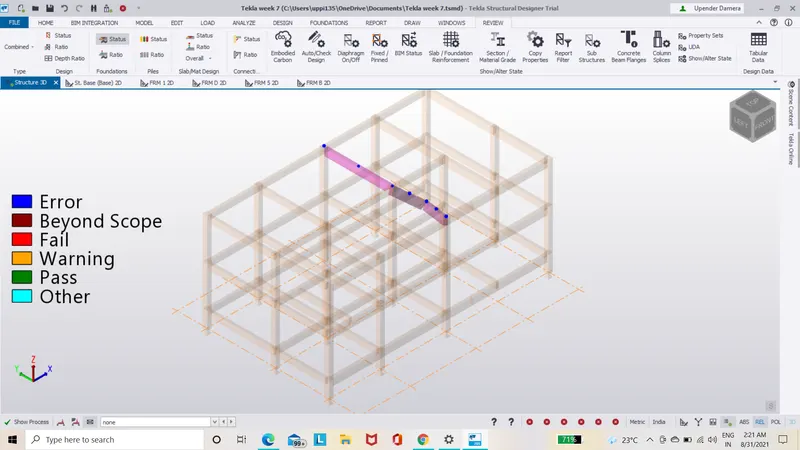

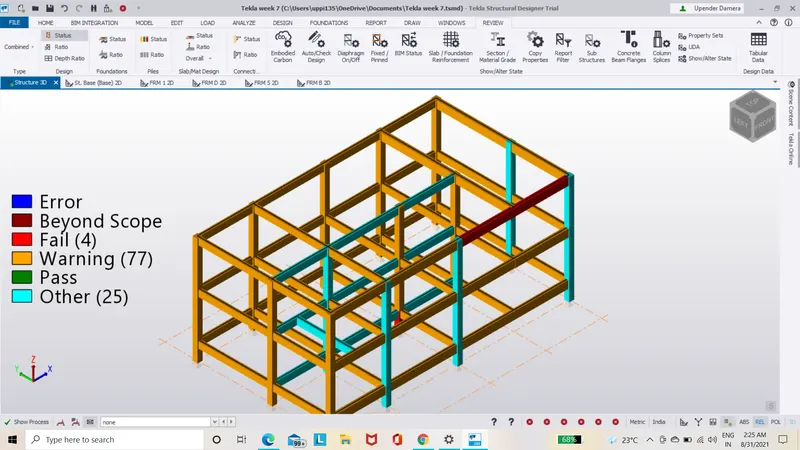

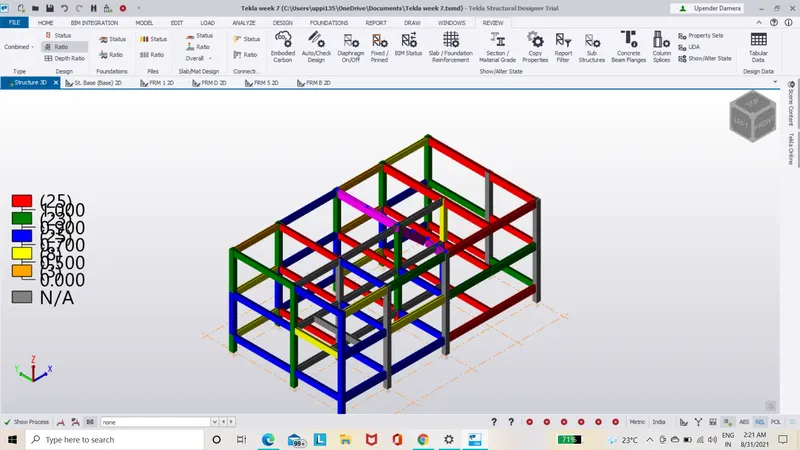

• Check the view of 3D structure if the members are passed or not ,if there are red colour beams i structure it means they have to be verified and corrected.

RESULT:-

The whole structure is designed as per the analysis result.
