Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

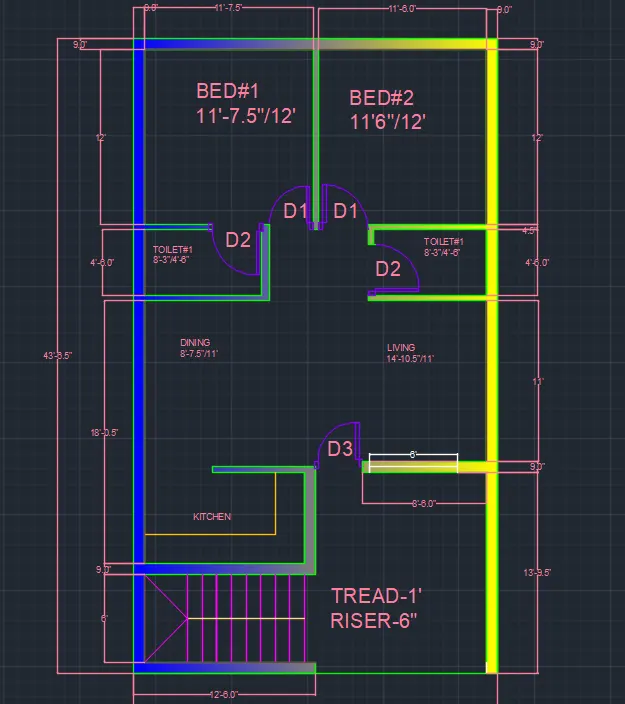

AIM: To sketch the layout of a resisdence building plan by using autocad.

PROCEDURE:

• Fisrt open the autocad and set the units and limits as per the requirements of the drawing.
• To draw the layout of a building first of all create different layers for different objects like walls,doors,windows,steps,text,dimension,etc.
• After creating the layers then start sketching the layout of residence building plan.
• In the above drawing all the lines are drawn by using line command .
• And all the text are written by using the text command.
• offcet command is used to creat new object with the same dimensions of another object.
• All the dimensions are given by using dime command.
• Trim command is used to remove the unwanted objects.
• Also arc command is used for draw the doors.
• Hatch command is used for walls and other objects.
• move command is used to move object from place to another place.
• Also use rotate command to rotate the objcet.

COMMANDS USED :

1. line command
2. text command
3. hatch command
4. dime command
5. offcet command
6. rec command
7. arc command

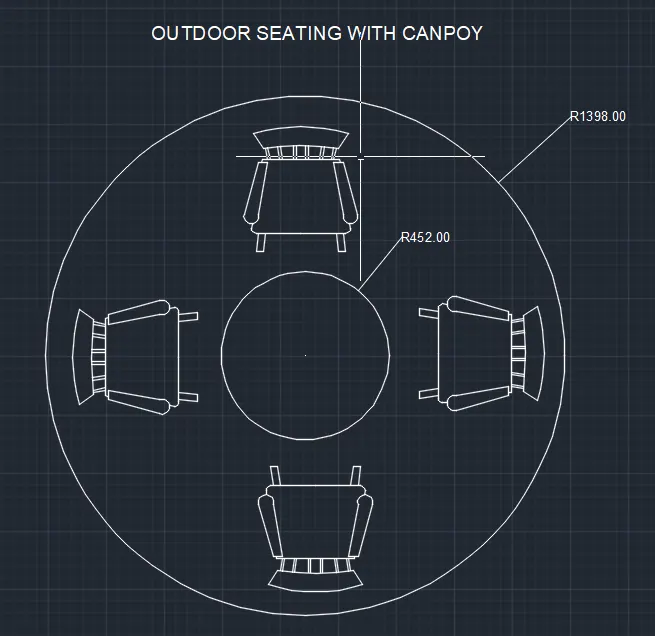

AIM:To draw the seating plan for an outdoor canpoy by using the autocad.

PROCEDURE:

• Fisrt open the autocad and set the units and limits as per the requirements of the drawing.
• In the above drawing all the lines are drawn by using line command .
• The circles are drawn by using circle command in the below command section.
• All the dimensions are given by using dime command.
• And all the text are written by using the text command.
• To draw the chairs go to the command ADCENTRE and in the click on house blocks and in that select the chairs.
• move command is used to move object from place to another place.
• Also use rotate command to rotate the objcet.

COMMANDS USED:

1. circle command
2. adcenter command
3. move command
4. rotate command
5. dime command

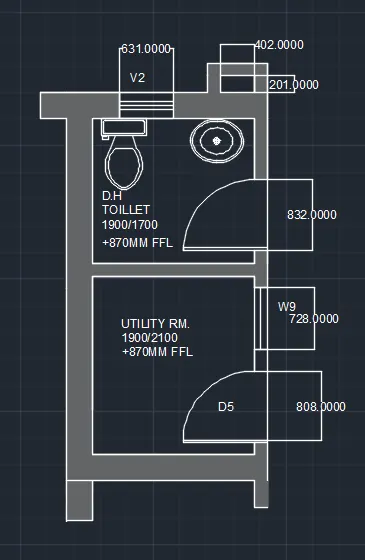

AIM:To Sketch the part plan for the toilers and utilities room by using the autocad.

PROCEDURE:

• Fisrt open the autocad and set the units and limits as per the requirements of the drawing.
• In the above drawing all the lines are drawn by using line command .
• All the dimensions are given by using dime command.
• And all the text are written by using the text command.
• To draw the bath tub and sink go to the command ADCENTRE and in the click on house blocks and in that select the bath tub and sink.
• move command is used to move object from place to another place.
• Also use rotate command to rotate the objcet.
• Arc command is used for draw the doors.
• And all the text are written by using the text command.

COMMANDS USED:

1. line command
2. adcenter command
3. move command
4. rotate command
5. dime command
6. hatch command
7. move command
