Week 9 Challenge

1)

ANS:-

AIM:- To generate seismic loading based on Is codal provision and zone 2. Any other data you can assume and input accordingly.

TOOLS USED:-

1. Load.
2. Loadcases.
3. seismic wizard.
4. Seismic load.
5. Analyze.

PROCEDURE:-

• First we have to open the previous week challenge in the TEKLA software.

• After open the file now click on load tap and select loadcases.

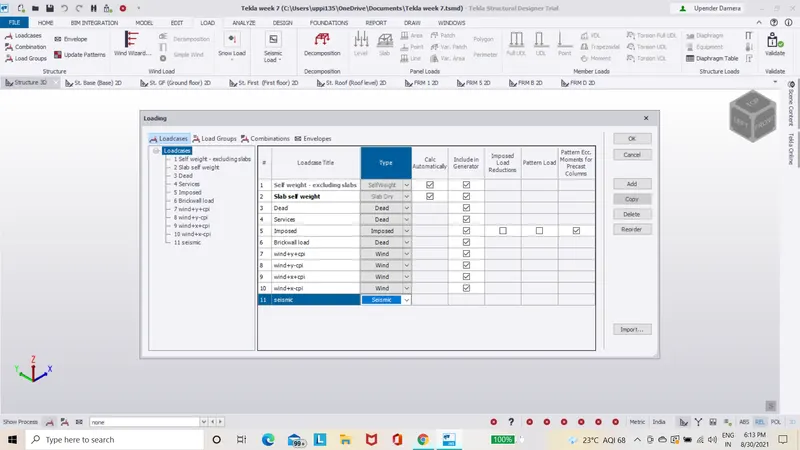

• Now create a new laod with name as Seismic load.as shown below.

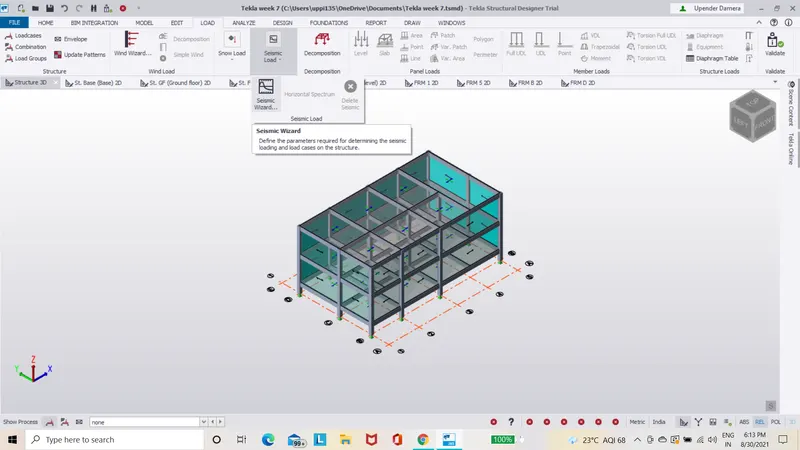

• Next select the seismic wizard option in the load tab.

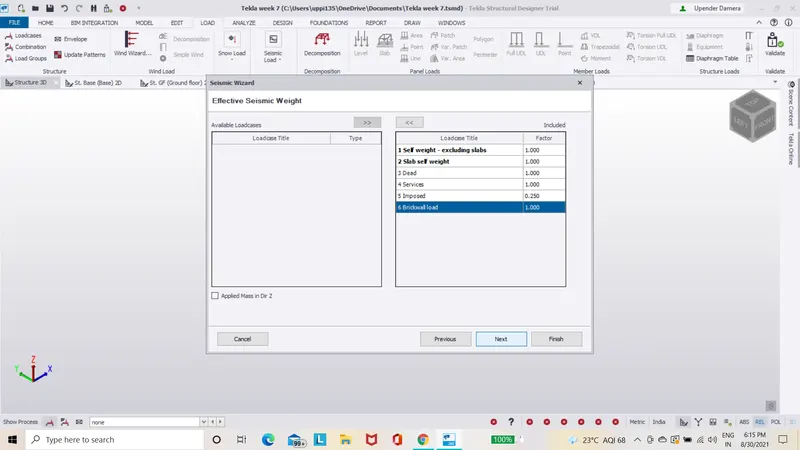

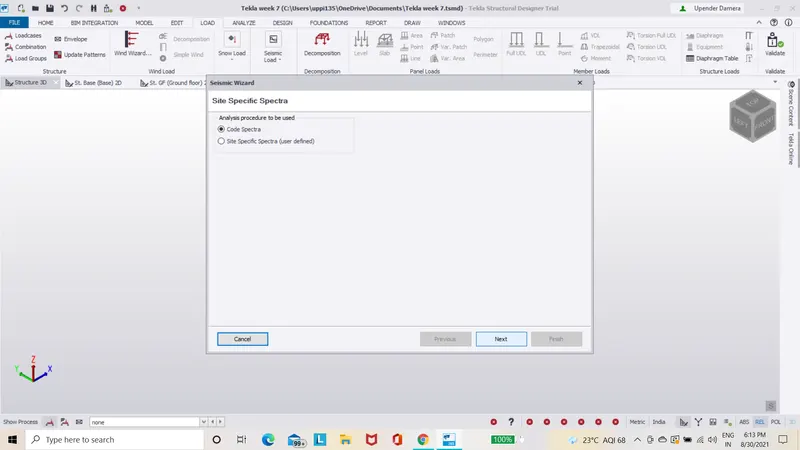

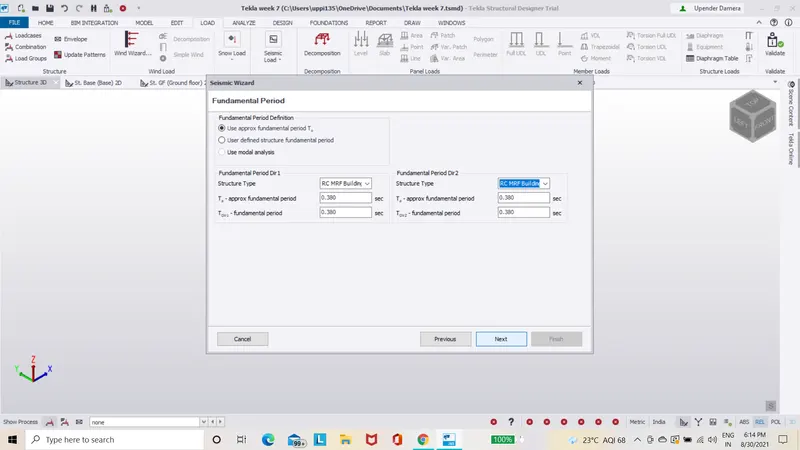

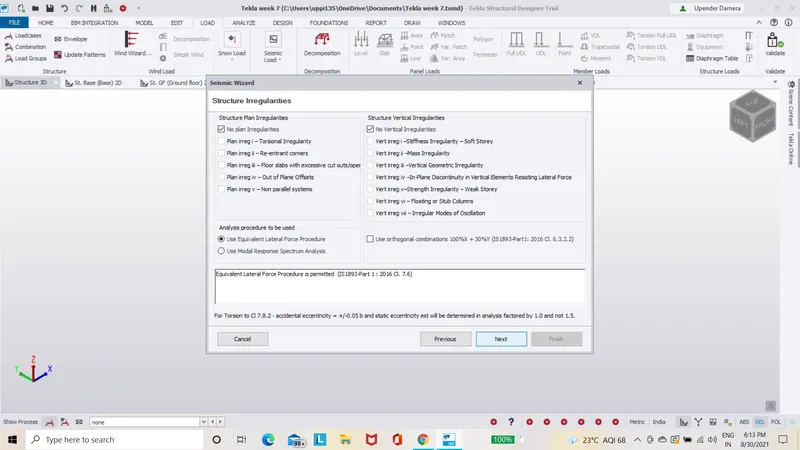

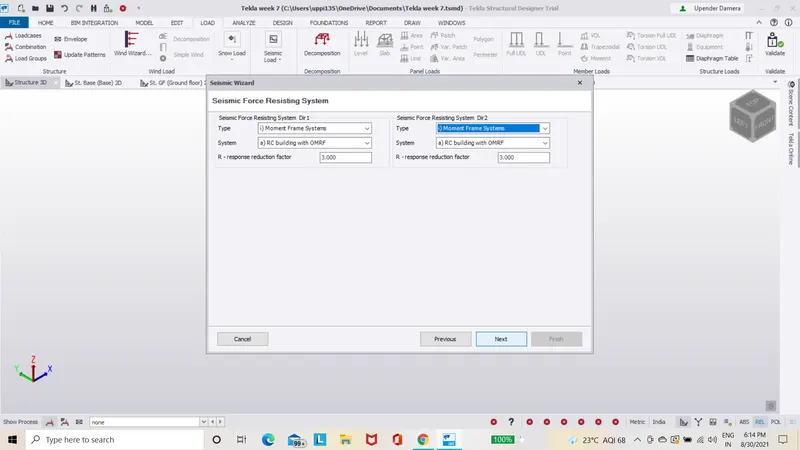

• Now seismic load dialog box will appears as shown below.

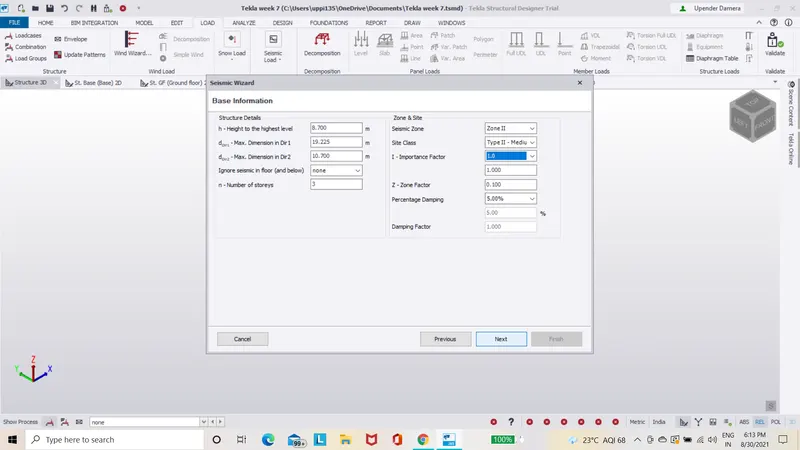

• Now we selelct and fill the required parameters suitable for the structure.

• At last click on the finish button.

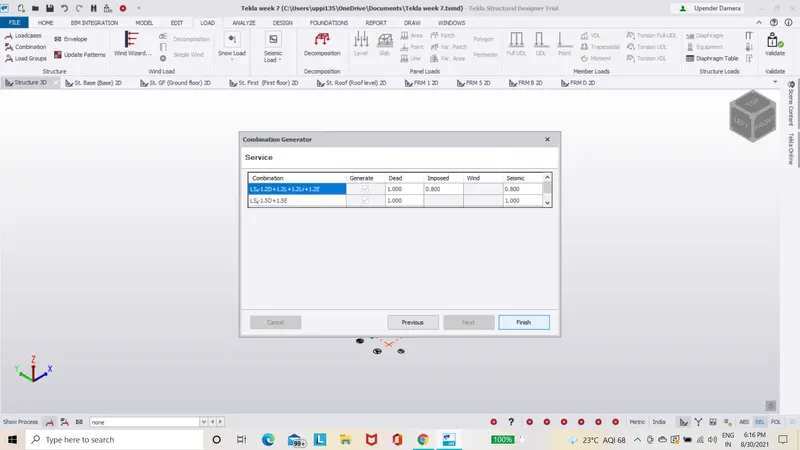

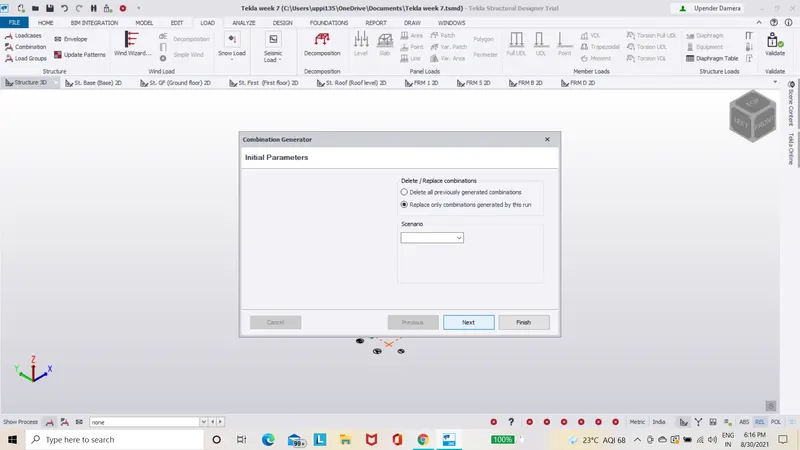

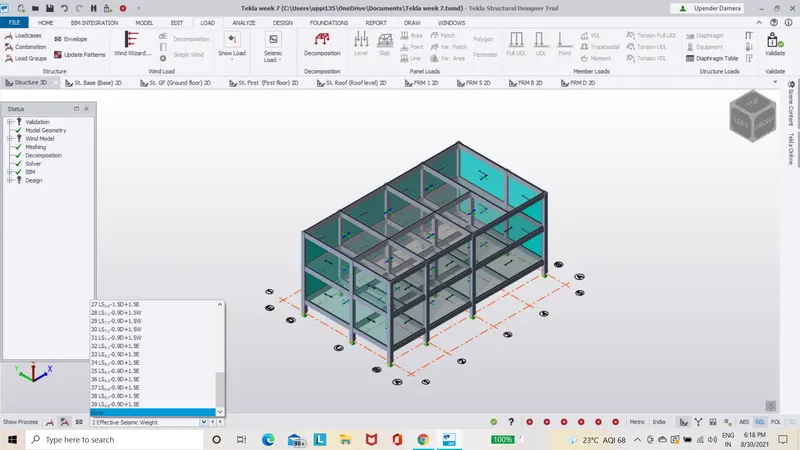

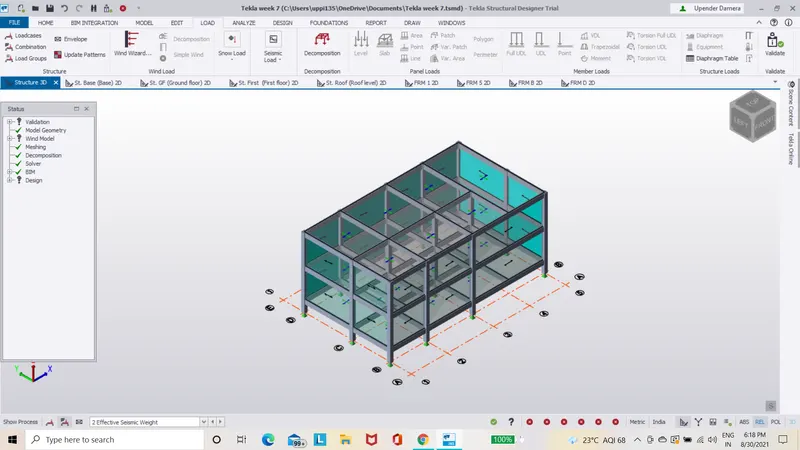

• Now we can check the loads in the loadcases and apply them on the structure. so we can use those for analysis of the structure.

RESULT:-

With all the above steps we can create and apply the seismic loads on the structure.

2)

ANS:-

AIM:- To run the analysis and summarize your understanding of the analysis results.

TOOLS USED:-

1. Analyze.
2. 1st order analyze.
3. Loads.
4. Report data.
5. Model and result.

PROCEDURE:-

• First open the file where we have applied the seismic load.

• Now click on analyze tab.
• Seclect 1st order lenear.

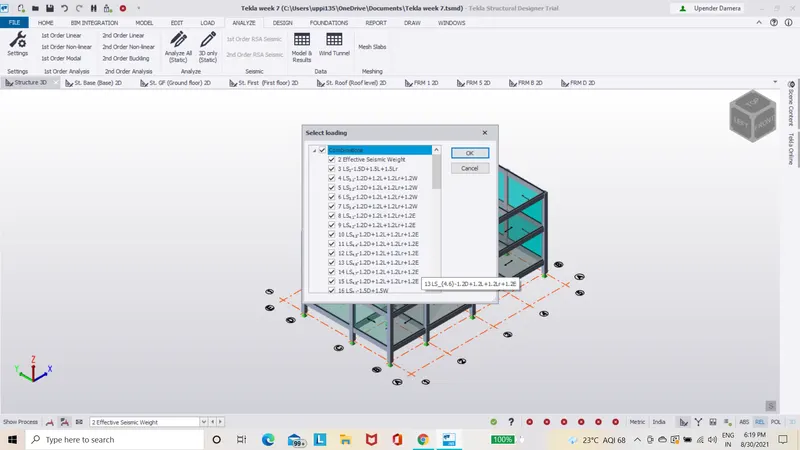

• Now select loading dialog box appears.

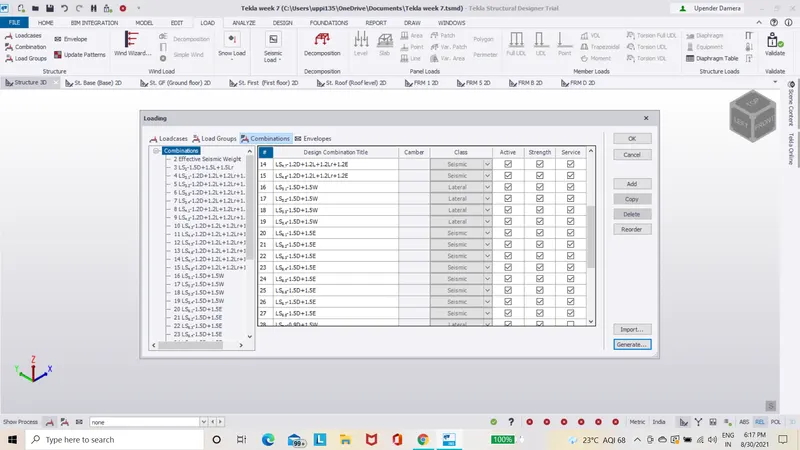

• In the dialog box select all the required loadings and click on ok.

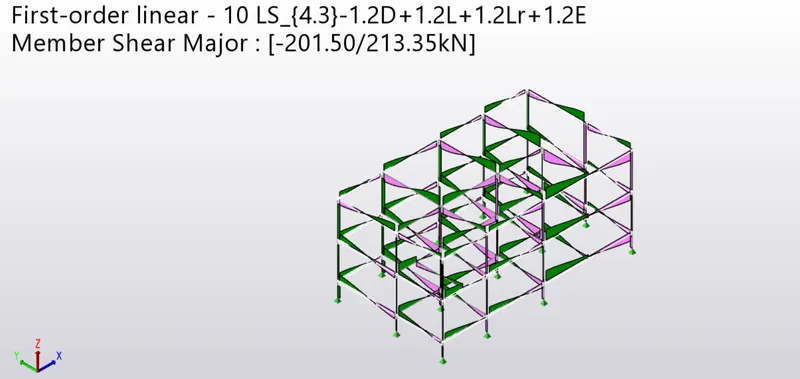

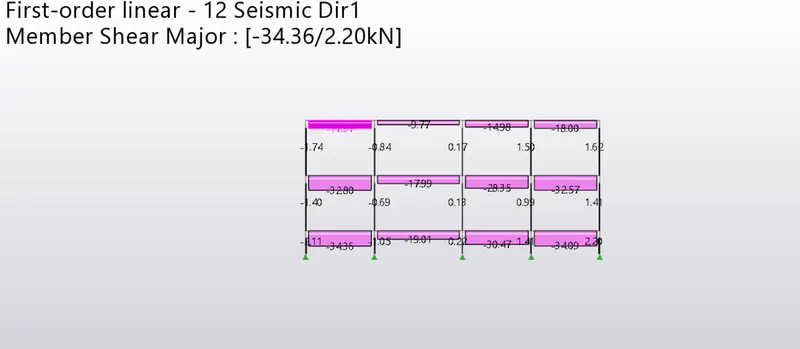

• Now the results tab will open ,apply bending moment,shear force and deflection to check the structure.

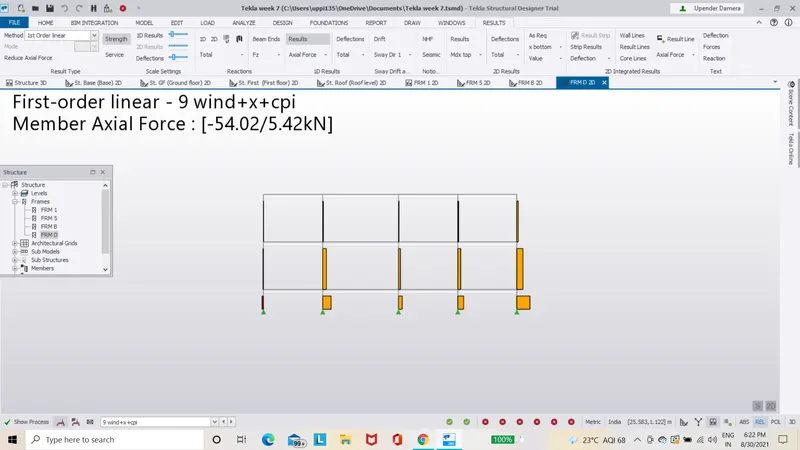

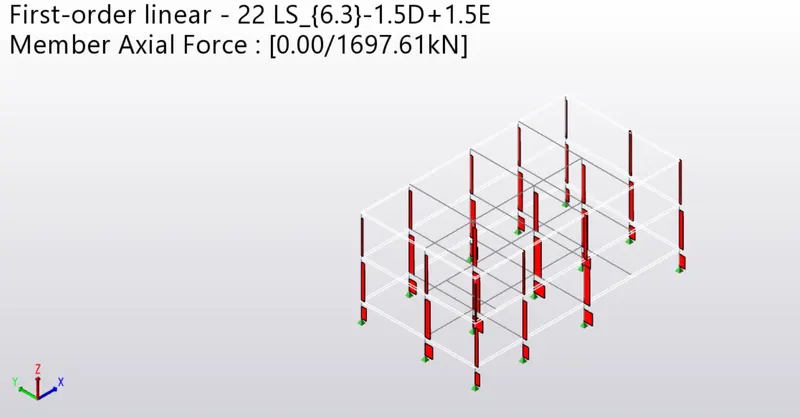

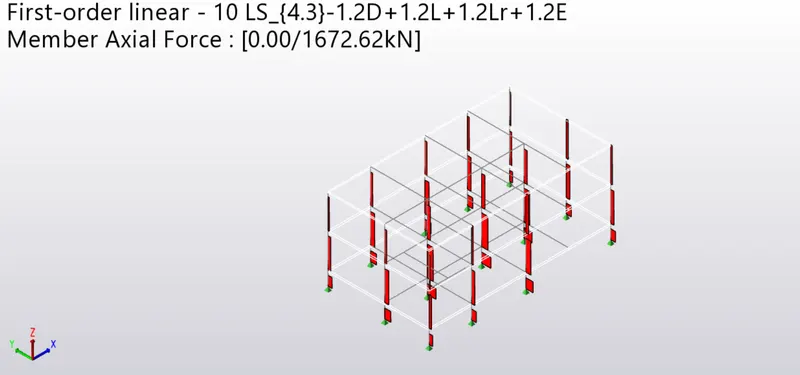

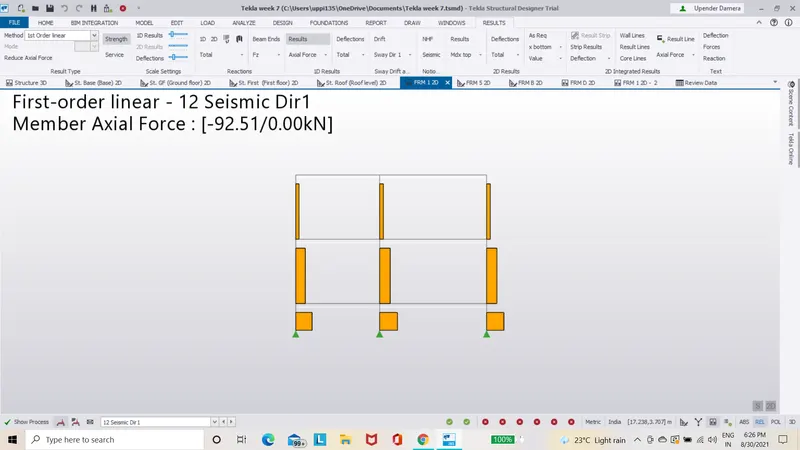

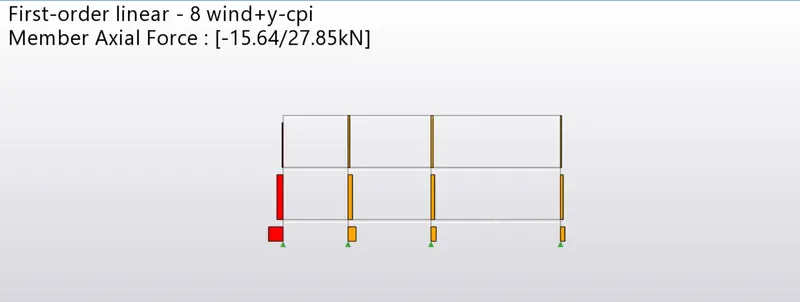

• The axial loads are correct as they are decreasing with increase in height of the structure.

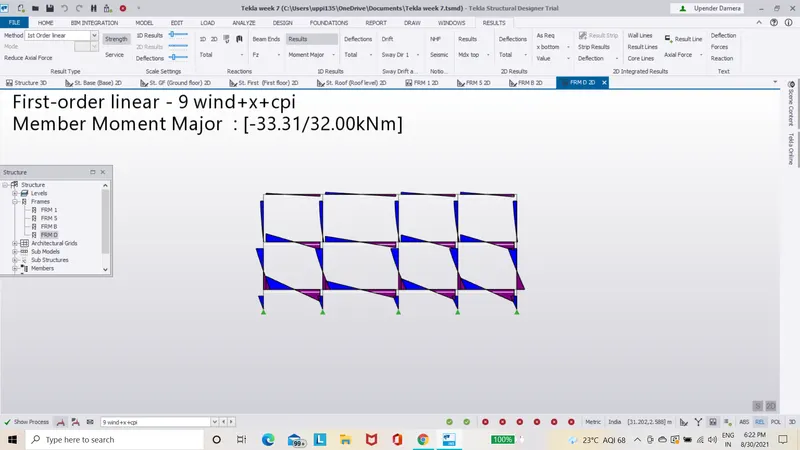

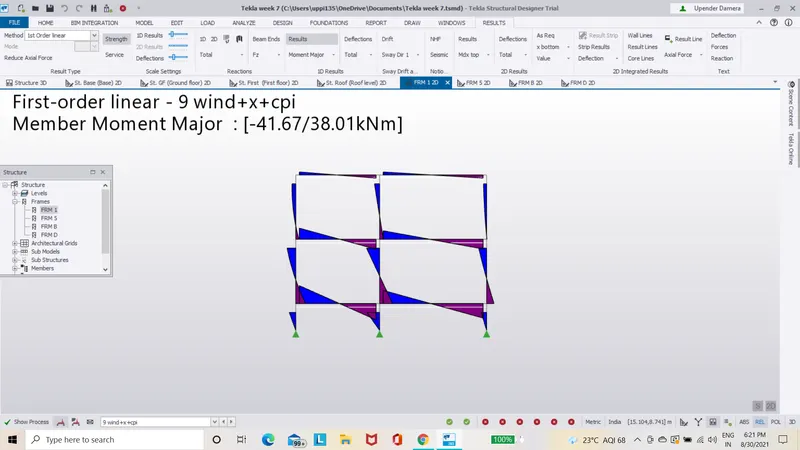

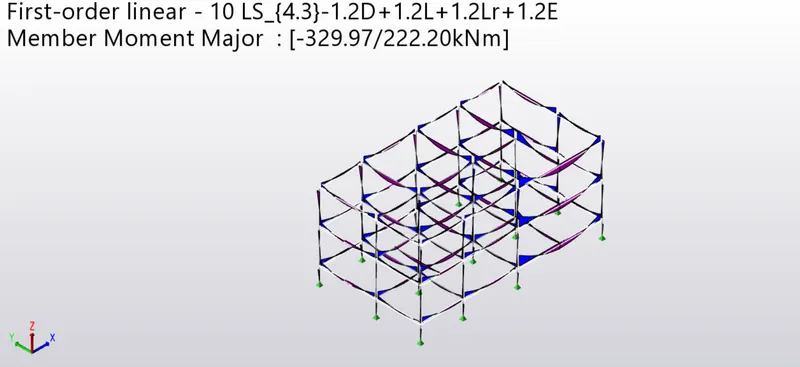

• The momet major force is also correct as all the beam types are selected correctly.

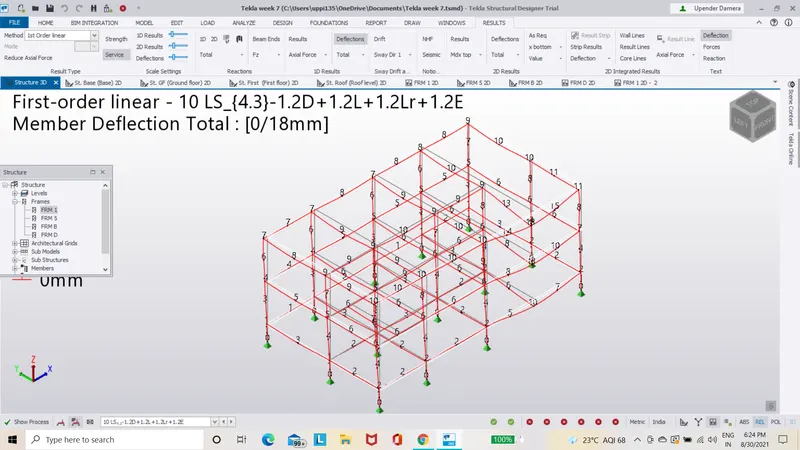

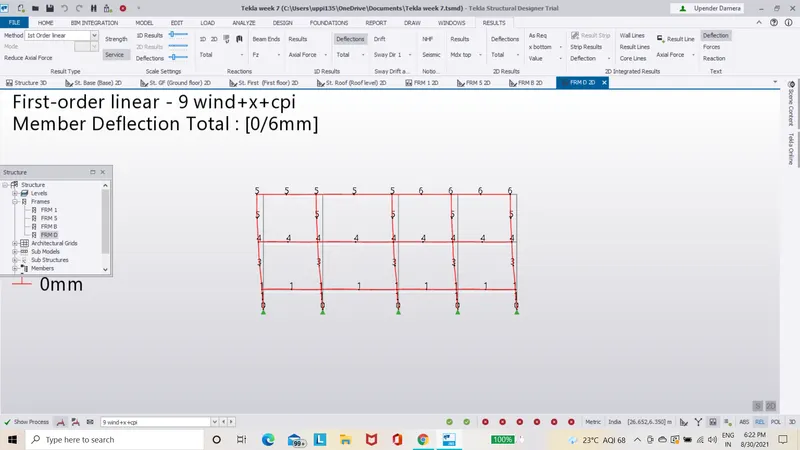

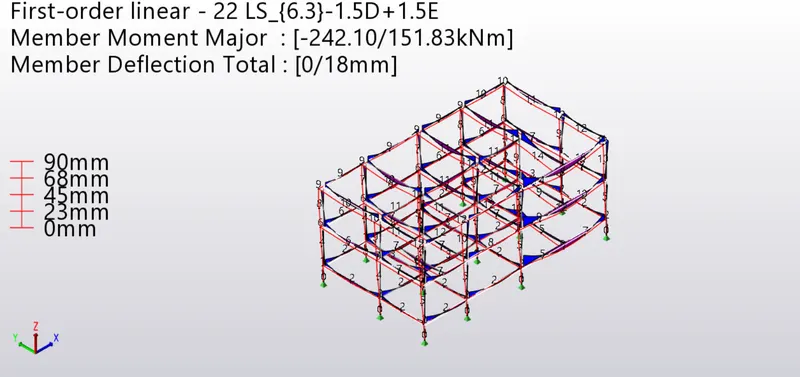

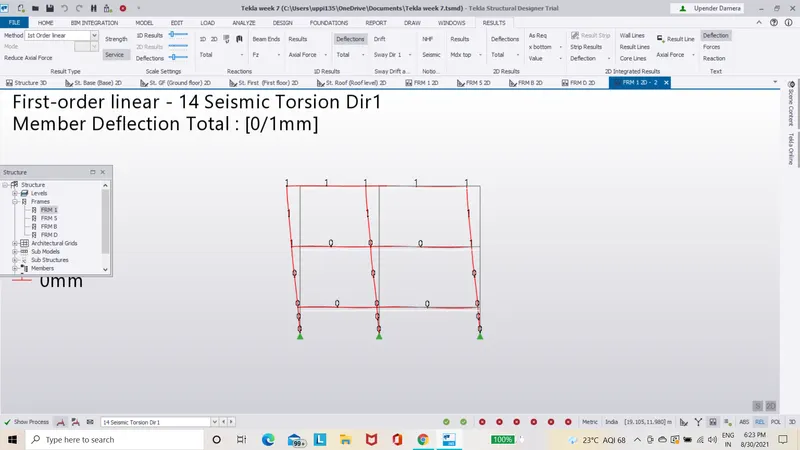

• This is the deflection, is can be decrease by increasing the grading of concrete in the columns.

• Now we can obtain report data by clicking on model and result.

RESULT:-

With the above steps we can analyze and correct our structure.
