Generate report for the steel building design from challenges 1 – 6 along with the loading summary. AIM : To generate the report for the steel building design. PROCEDURE : open the previous model in tekla. go to report option from the ribbon , select model report. now select load cases,combinations summary…
Md Abdul Muqeet
updated on 01 Aug 2021
AIM :
To generate the report for the steel building design.
PROCEDURE :

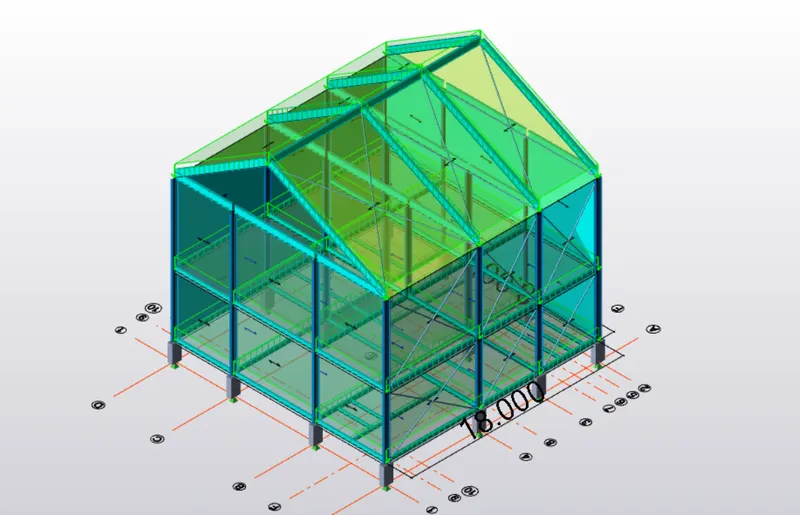

open the previous model in tekla.
go to report option from the ribbon , select model report.

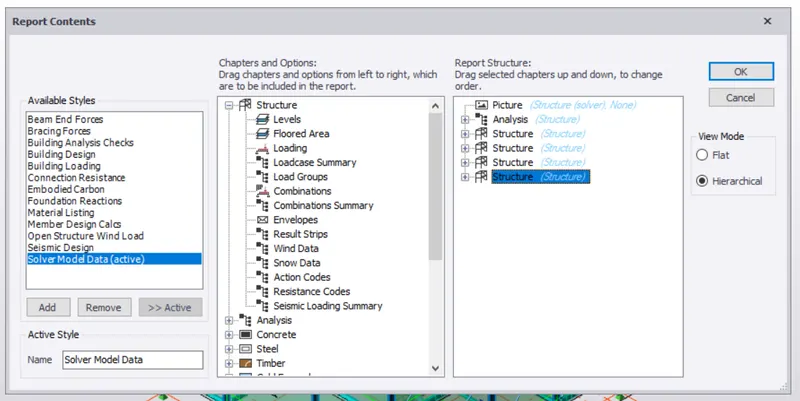

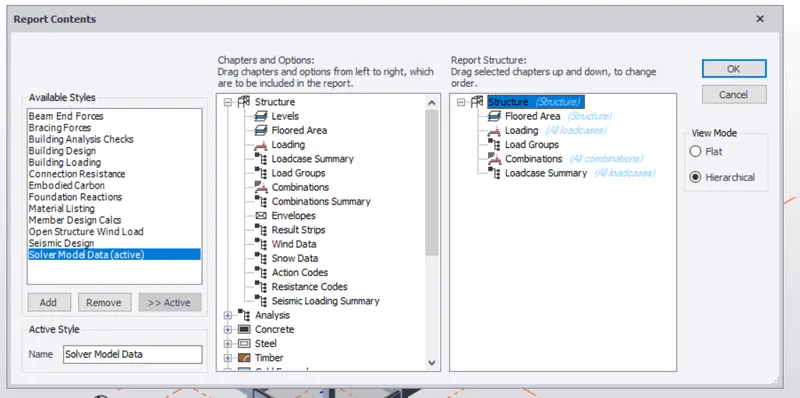

now select load cases,combinations summary to obtain report.

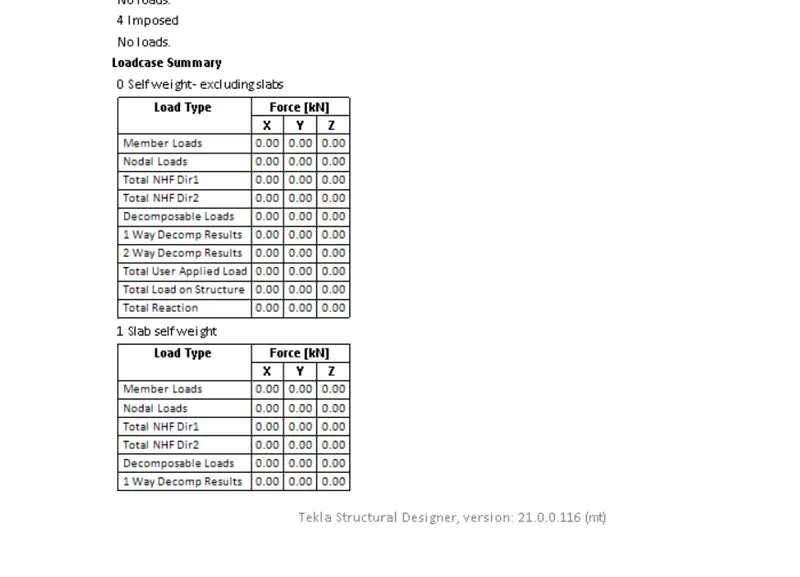

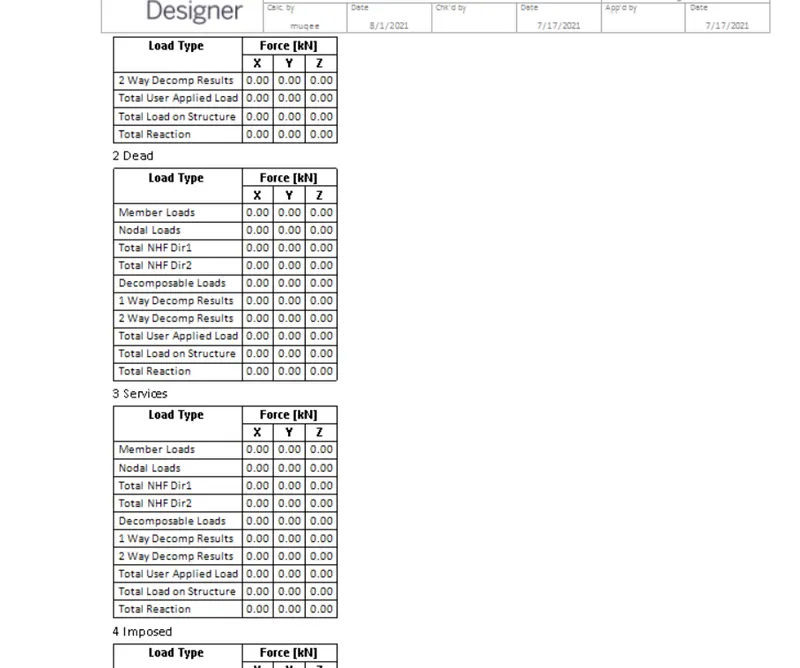

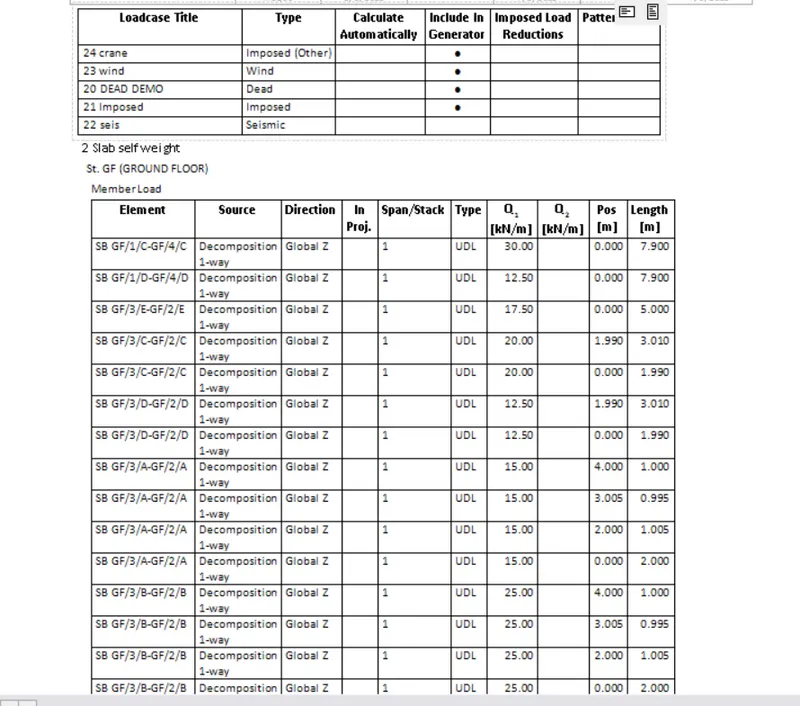

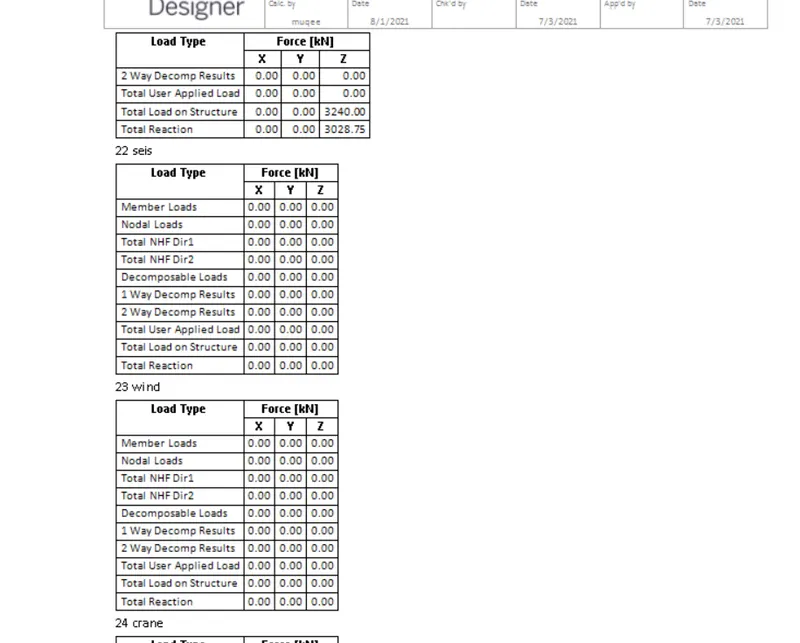

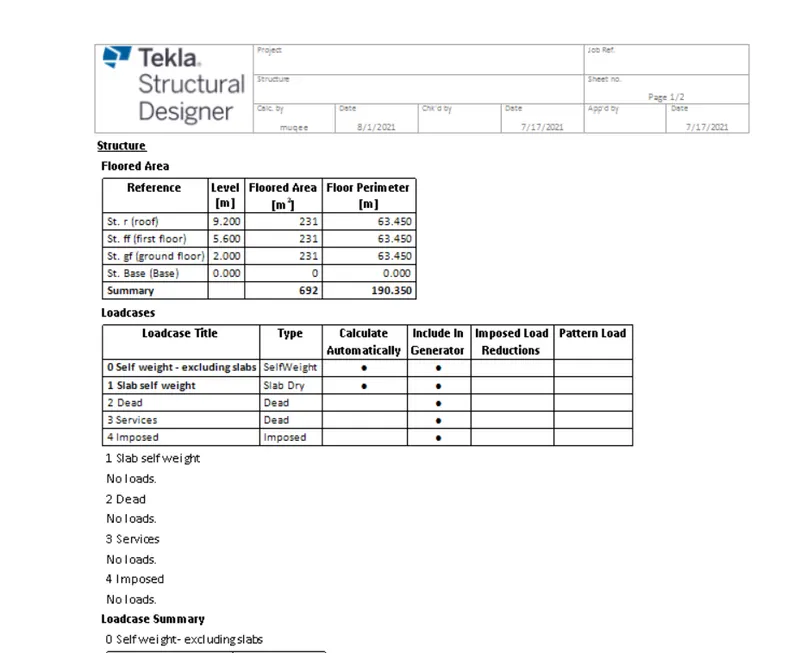

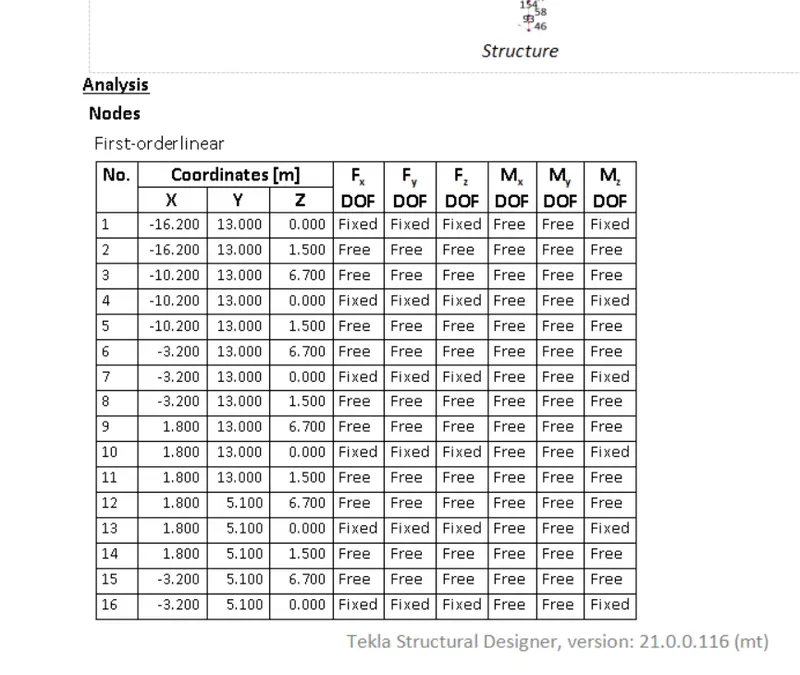

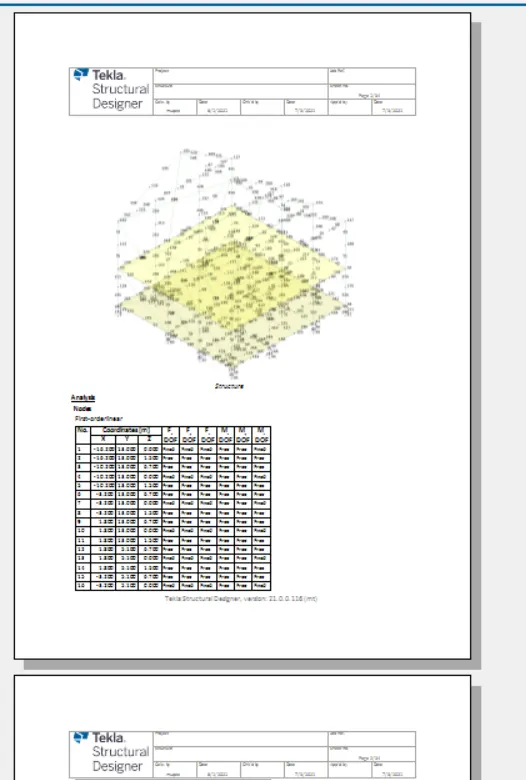

click on show report option to obtain the report.

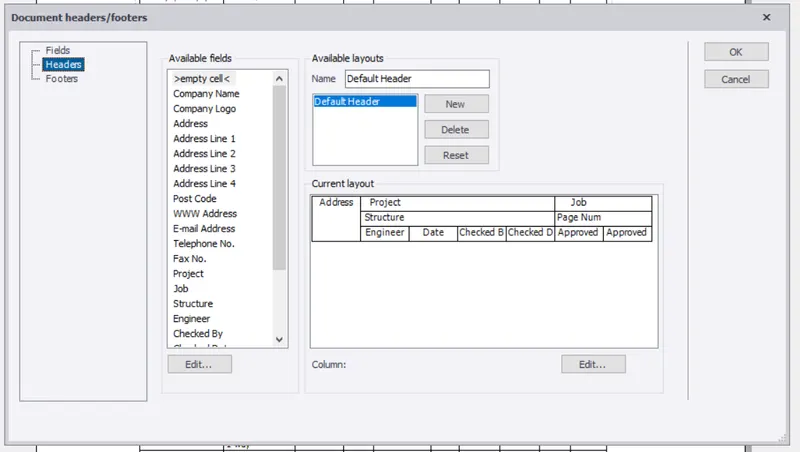

with the help of edit header option, we can make changes in the project name, address etc.

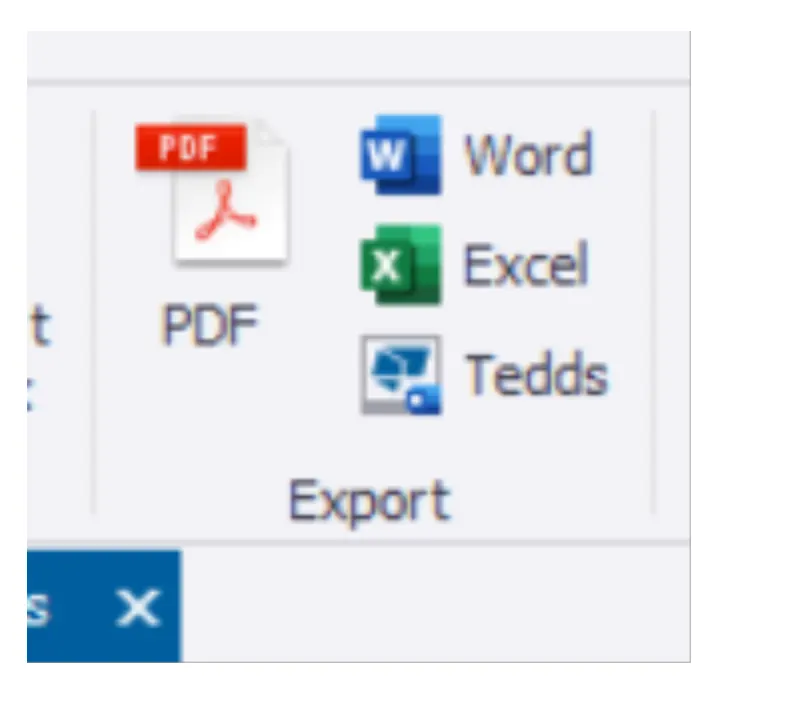

we can also convert this report into PDF, word etc.
Q2)
AIM:
To generate the report for RC structure along with loading summary.
PROCEDURE:

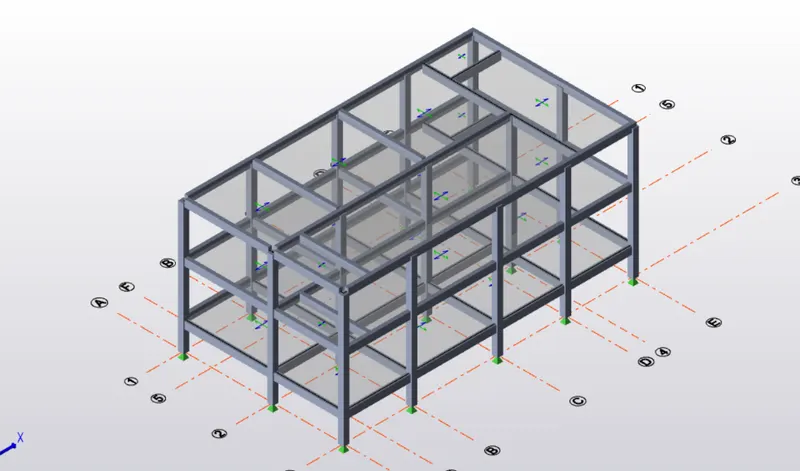

open the previous rc model in tekla.
go to report option from the ribbon , select model report.

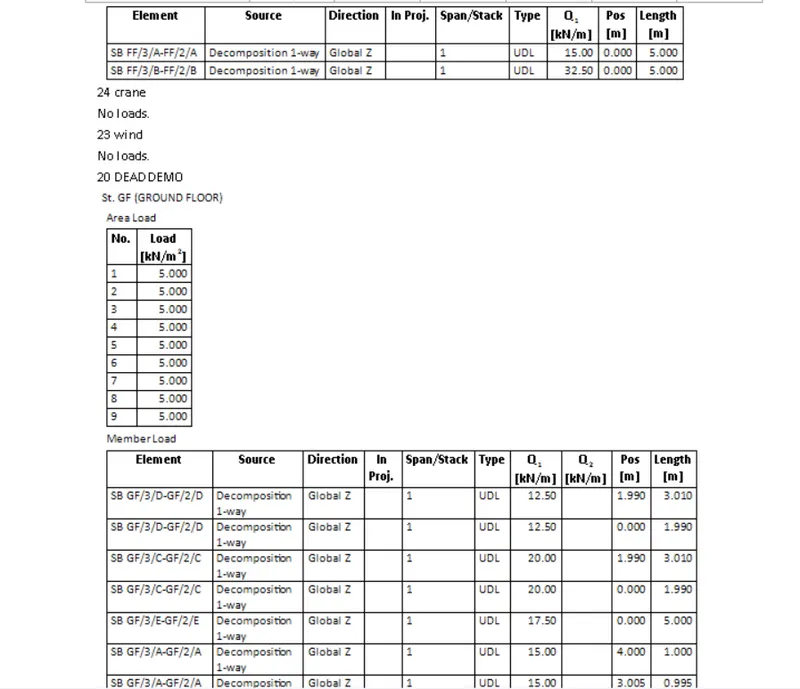

now select load cases,combinations summary to obtain report.
click on show report option to obtain the report.
we can convert this report in PDF, WORD format.
using edit header we can make changes in the settings, project names etc.
Q3)
AIM :
To Update the layers settings in the model and generate plan drawings and details from the model.
PROCEDURE :

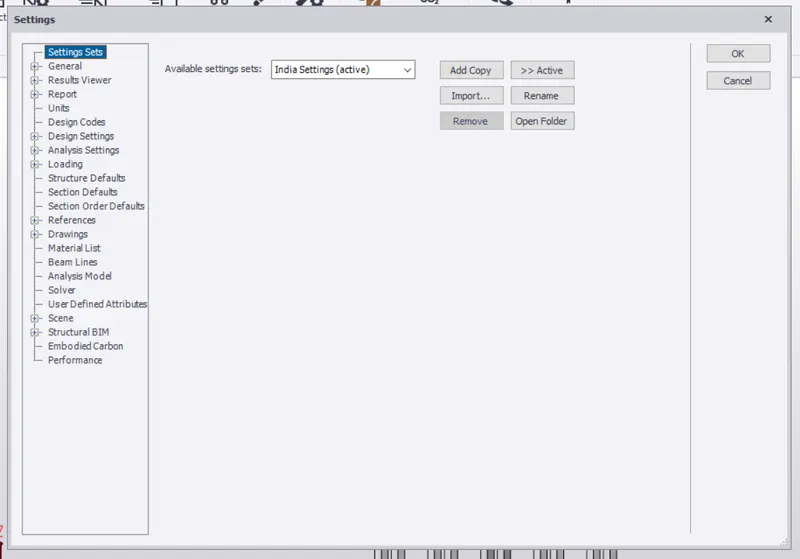

go to settings option from the ribbon.

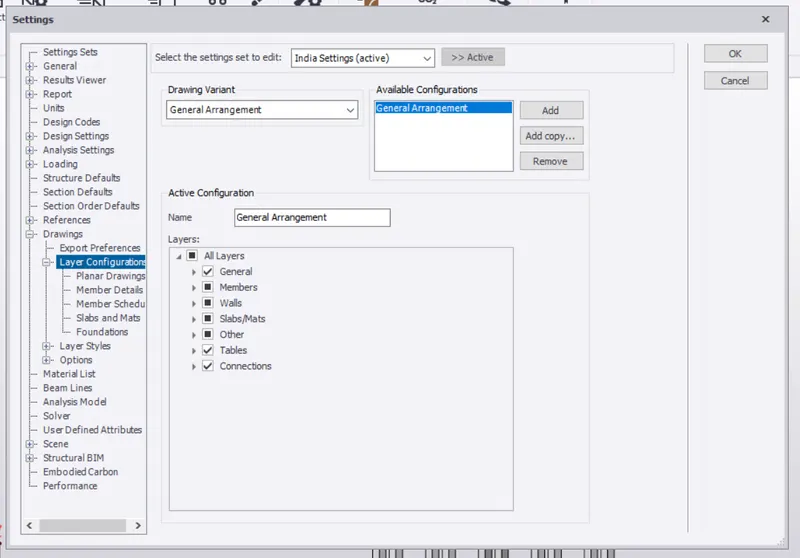

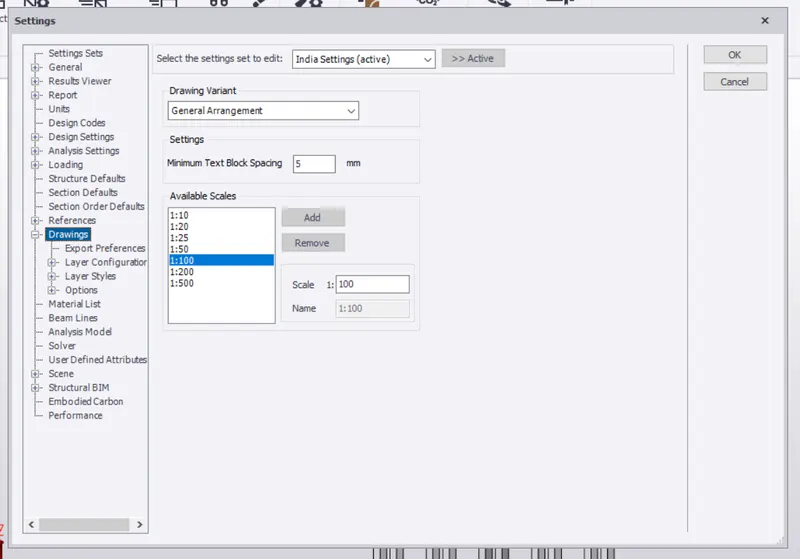

select drawing option from that ,adjust the scale and subselect layer configuration.

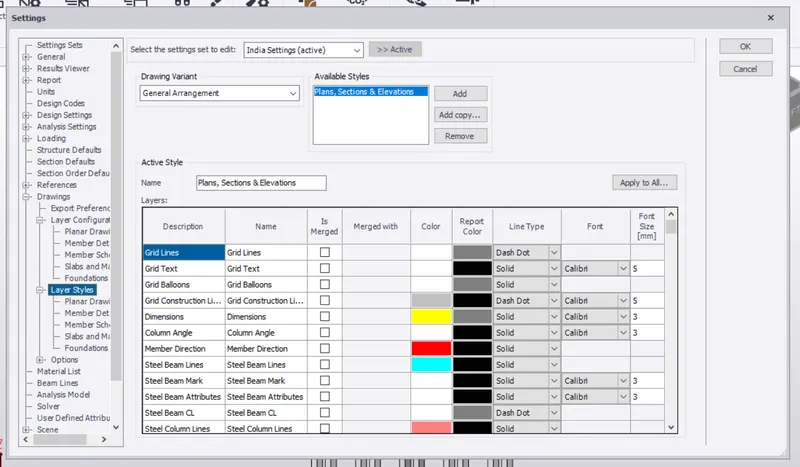

now select layer styles,we get the list of colours of different members of the model.

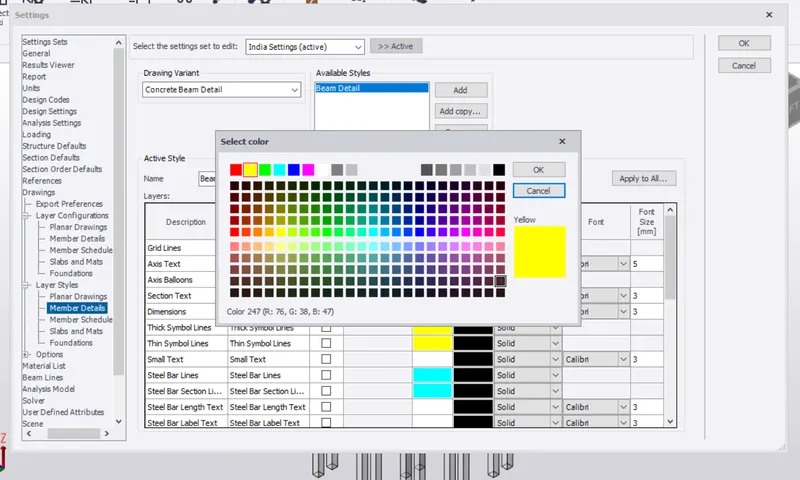

click on any one colour and then select the desired colour.
in this way we can make changes in the layer settings.
