3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Q1)
AIM:
Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.
PROCEDURE:

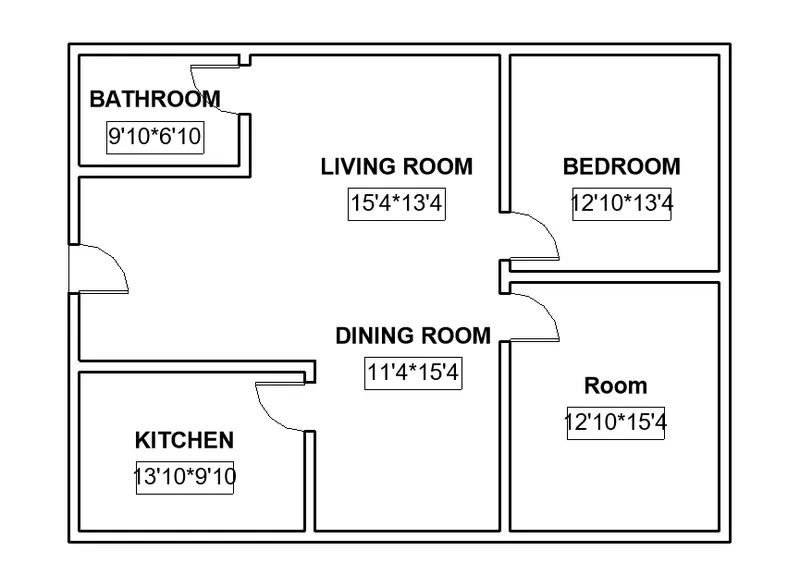

we have a plan as shown in figure.

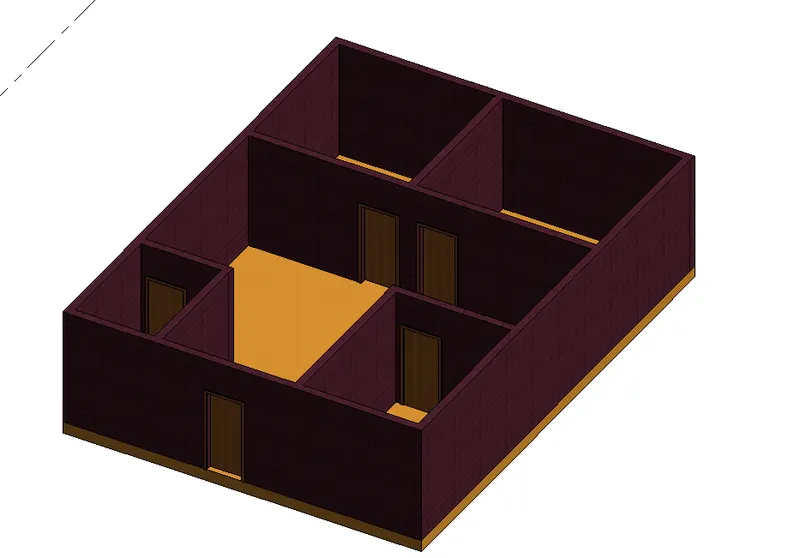

change the view to 3d view.

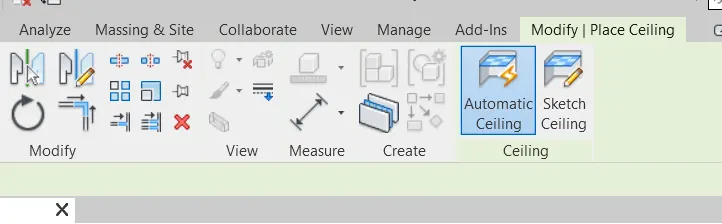

now go to the ceiling option from the ribbon and select sketch ceiling.
now select all the top corners of the building and click ok.

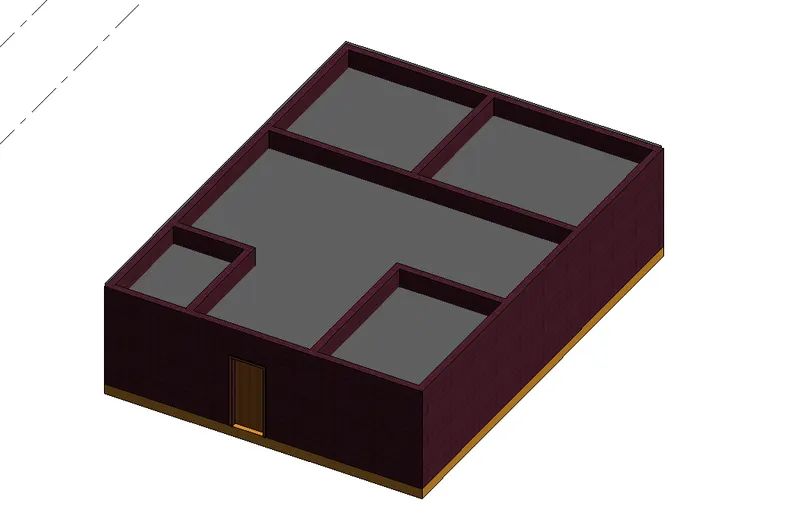

a ceiling will be obtained,place it exactly covering all the corners.
Q2)
AIM:
Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
PROCEDURE:
to change the slope of given figure go to manage tab.

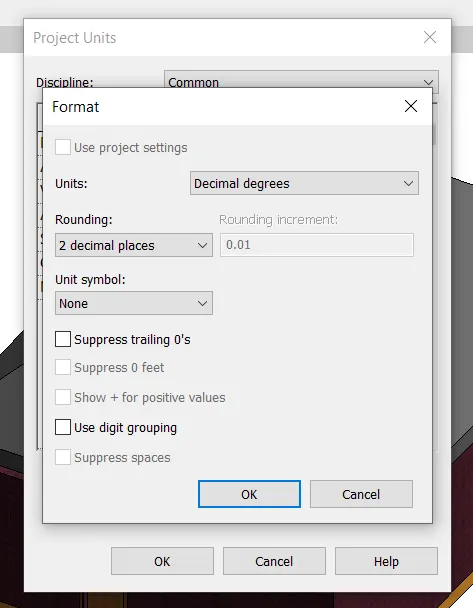

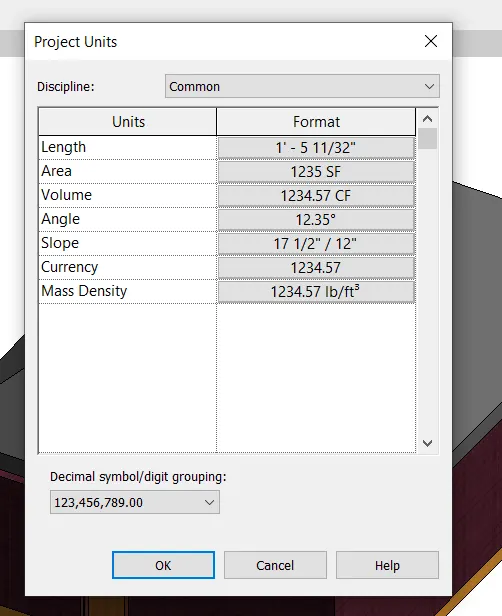

select project units option from it we get an interface as shown.
select slope, units to decimal degrees and unit symbol as degrees.

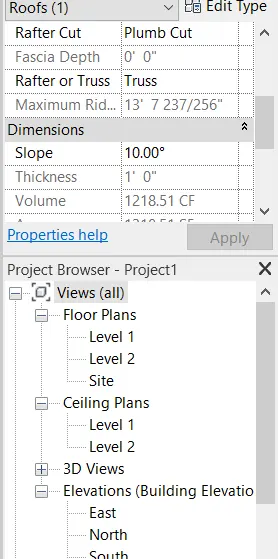

now go back to the figure select the roof and change the slope to 10degree
from the properties option ,then click apply.

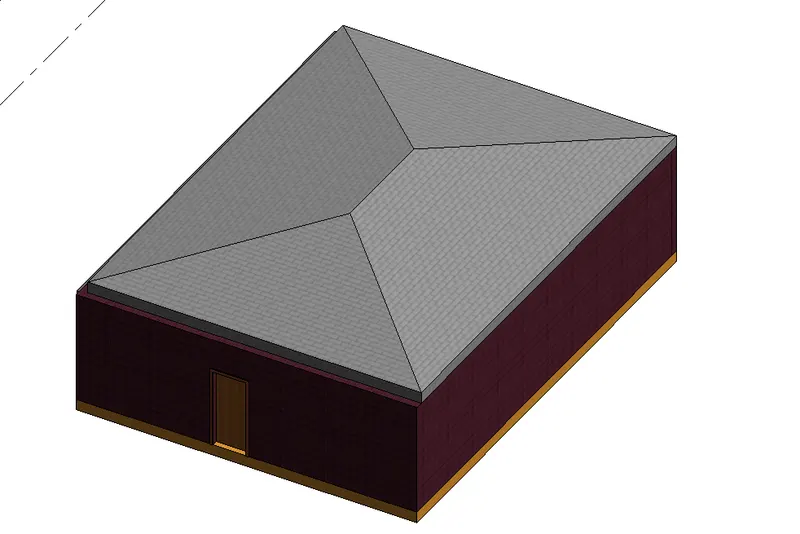

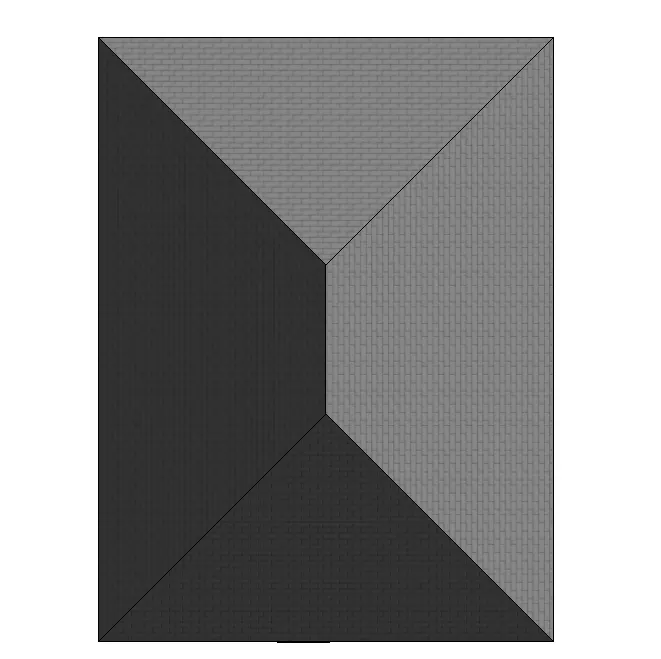

a roof of 10degree slope is obtained as shown in figure.
Q3)
AIM :
Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns.
PROCEDURE:
as the plan with components has already been plotted.
now go to plan views from the view tab and select floor plan.

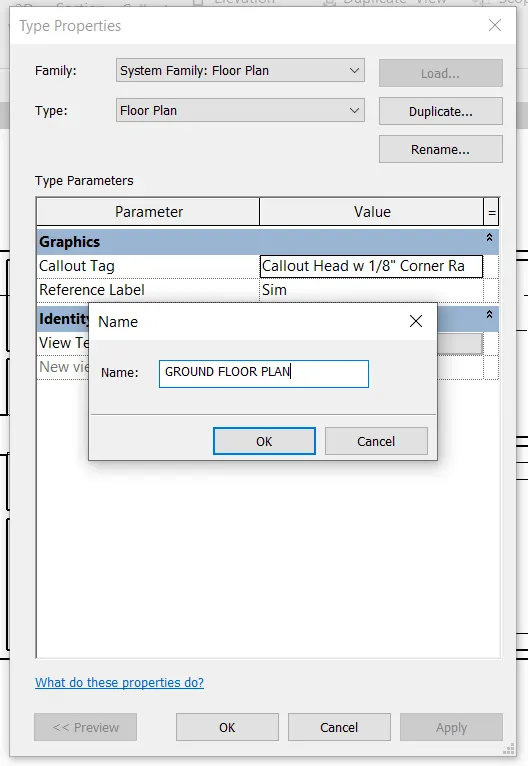

and change the name of level 1 as ground floor plan and level 2 as floor level.

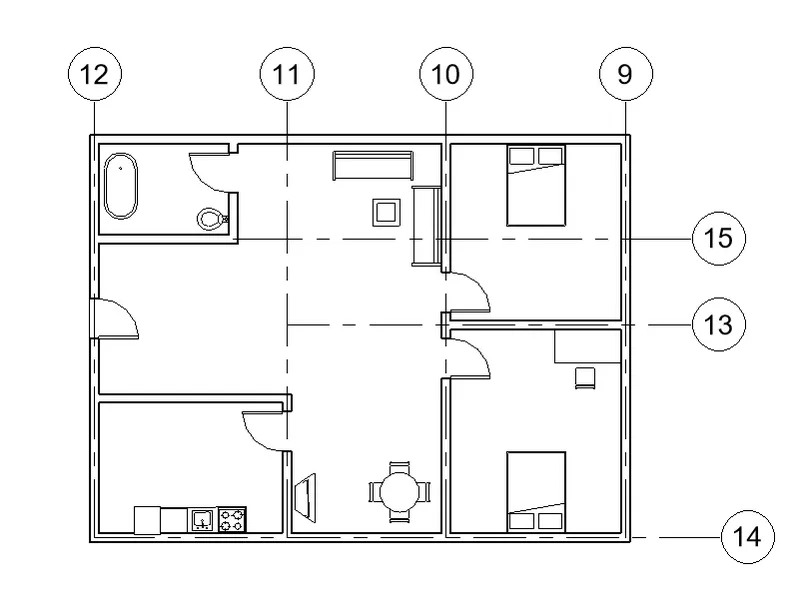

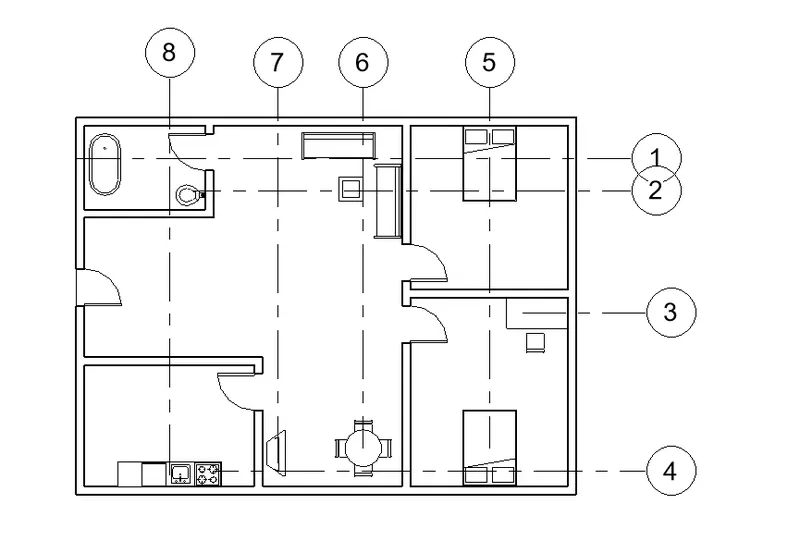

with the help of grids draw the architectural and structural plan as shown in figure.
Q4)
AIM:
Q4)
AIM:
Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
PROCEDURE:
go to the annotate tab and select the linear dimension.
since we have created the horizontal and vertical grids.

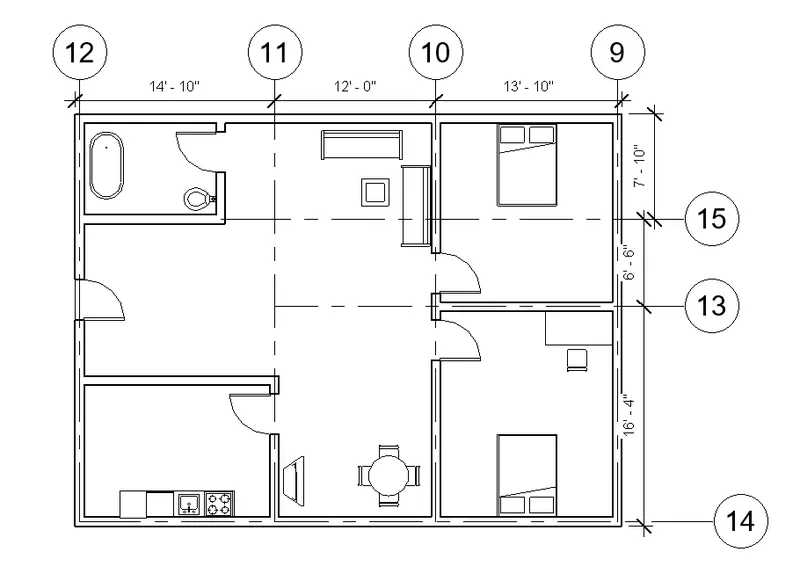

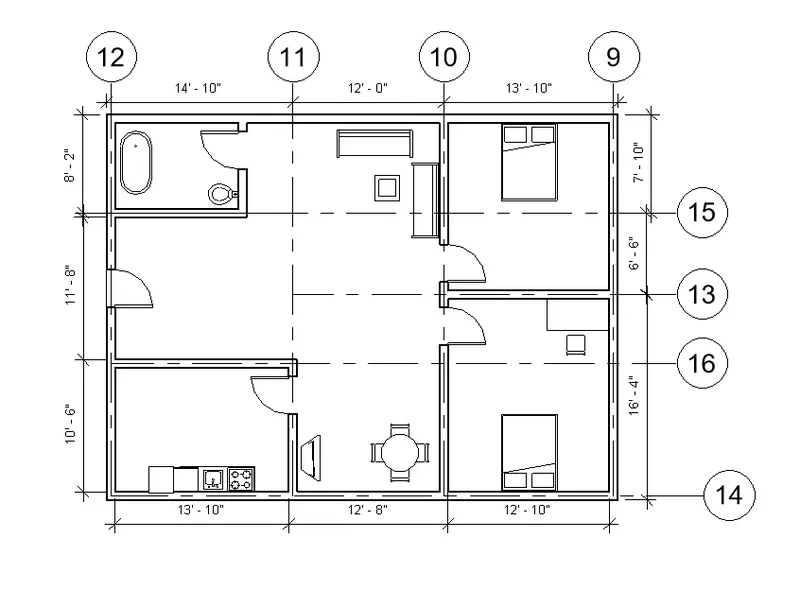

select the two points between those grid lines and mark the dimension as shown in figure.
two plans architectural and structural with separate grids is shown in figure.
Q5)
AIM:
Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
PROCEDURE:

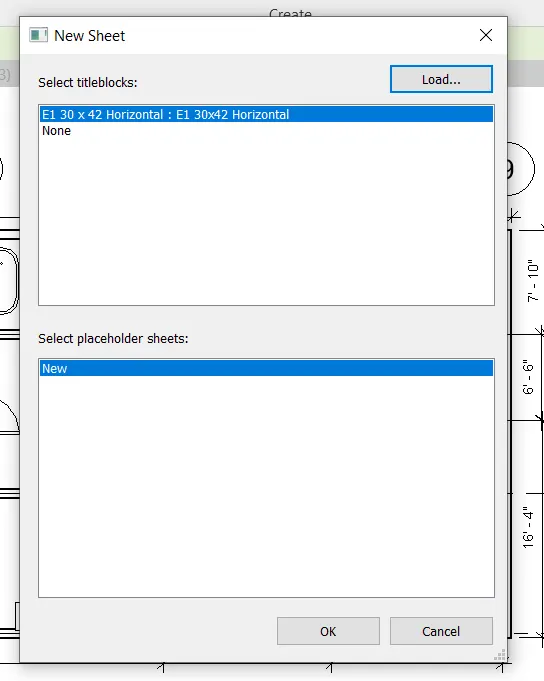

go to the sheet tab from ribbon we get an interface as shown below.

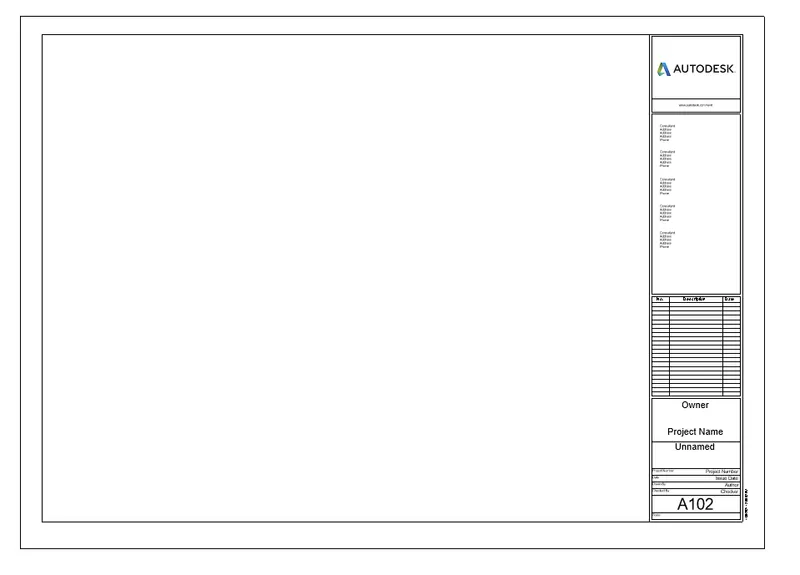

click ok and a template sheet appears.
go to the view tab below sheet and add the view you want.
drag the view and bring it to the sheet.
we can also edit the sheet details by clicking on it.
Q6)
AIM :

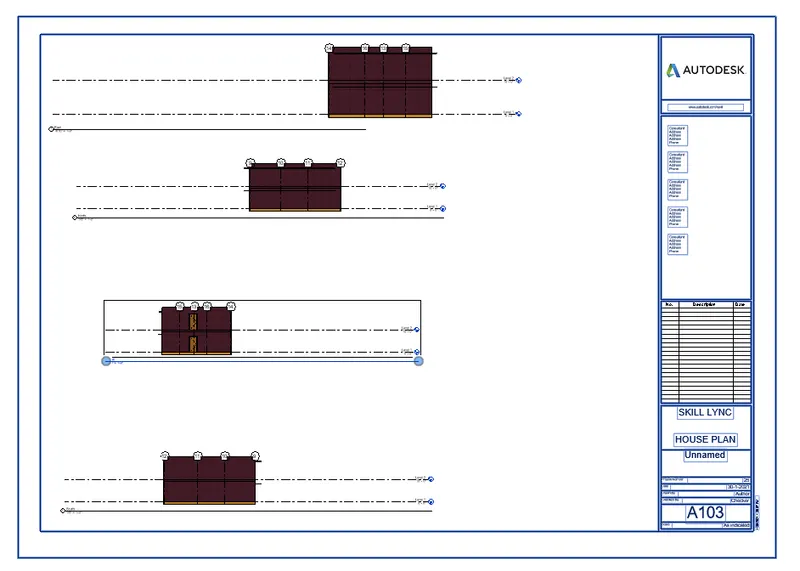

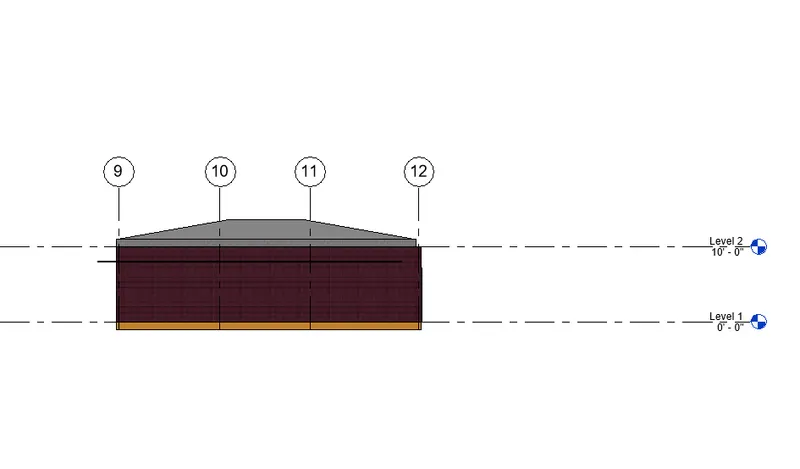

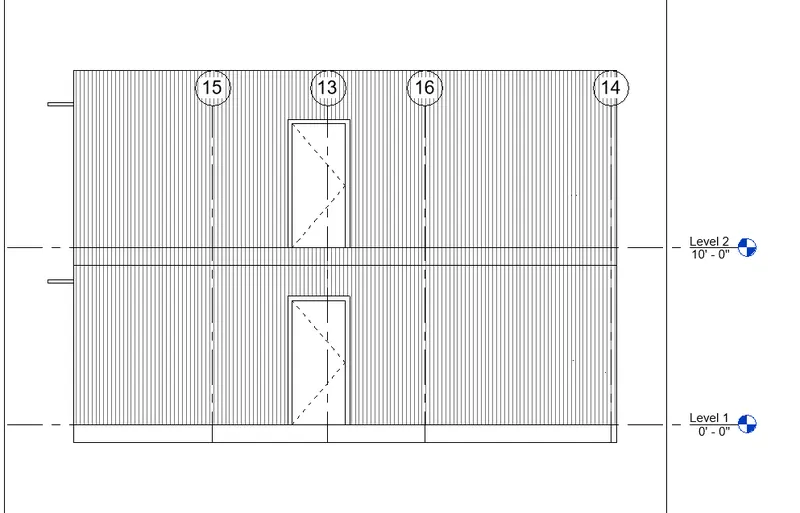

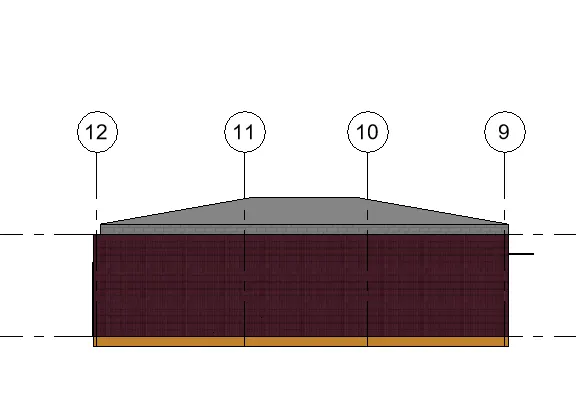

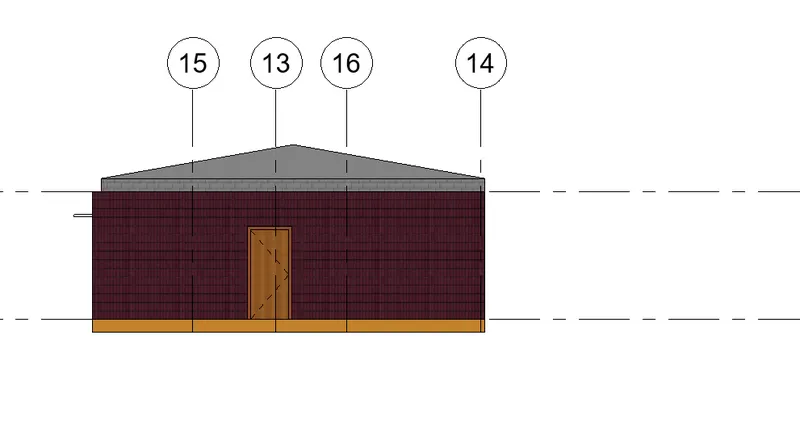

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.
PROCEDURE:
as the 3d model and plans are already prepared.
now go to the elevation view from project browser.
select the different directions,take a picture of each of them,
and show the different views of the building corresponding to
different directions.
Q7)
AIM:
Produce section cut through each room either cutting across longitudinally or in a transverse direction.
PROCEDURE :
go to the section option from the ribbon ,a blue line appears on the figure,
along with the dotted line.
drag the dotted line close to the continuos line and section will be cut.
now go to section option from the project browser.
and click section 1 ,a figure as shown below will be obtained.
Q8)
AIM:
Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
PROCEDURE:
go to the sheet option from ribbon tab.
a sheet will appear as shown in figure.
now add the view from the view option.
and select the view you want to paste.

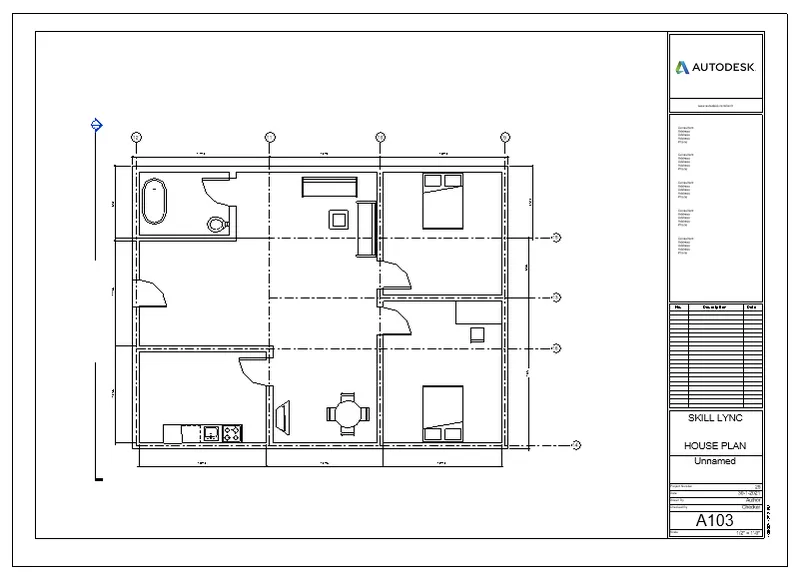

go one by one,add plan section and elevation as shown in figure.
Q9)
AIM :
Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file.
PROCEDURE:

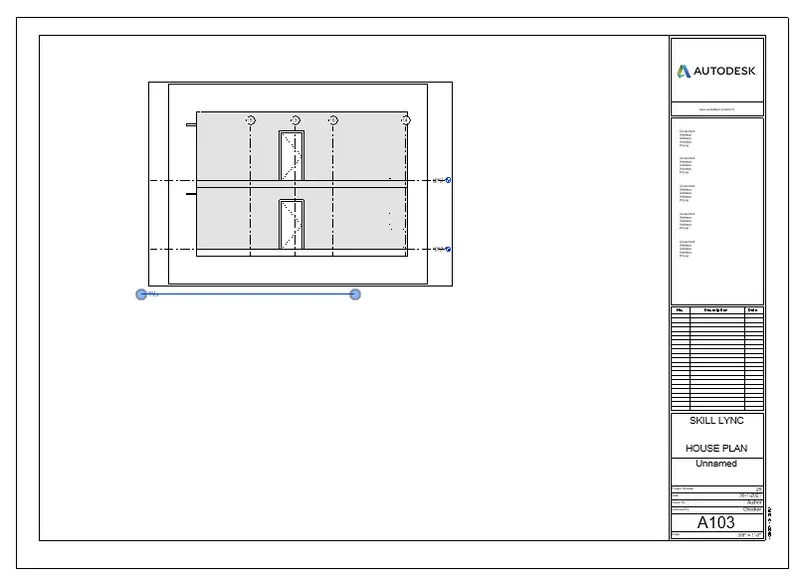

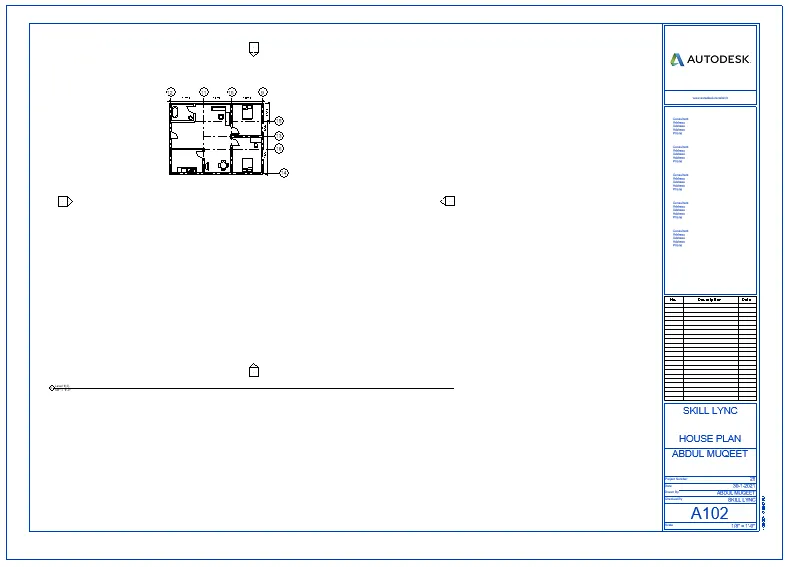

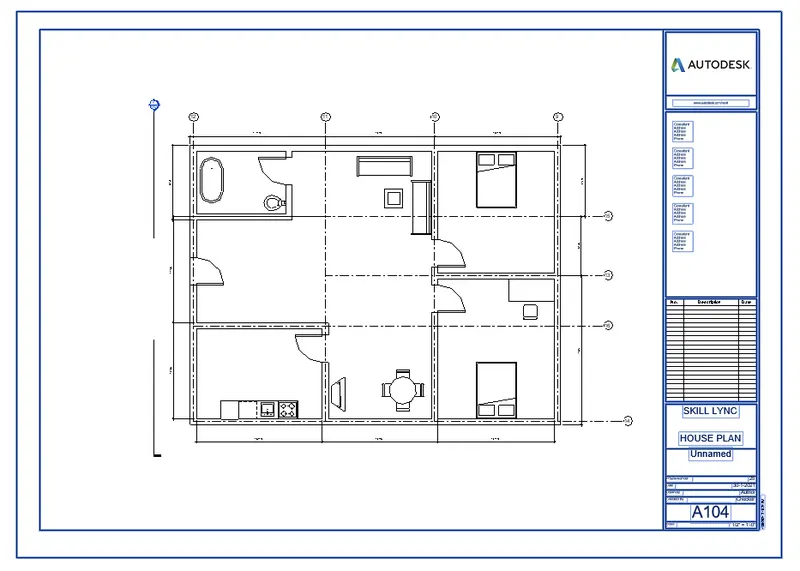

go to the sheet option from ribbon tab.
a sheet will appear as shown in figure.
now add the view from the view option.
and select the view you want to paste.
go one by one,add plan section and elevation as shown in figure.
Q10)
AIM :

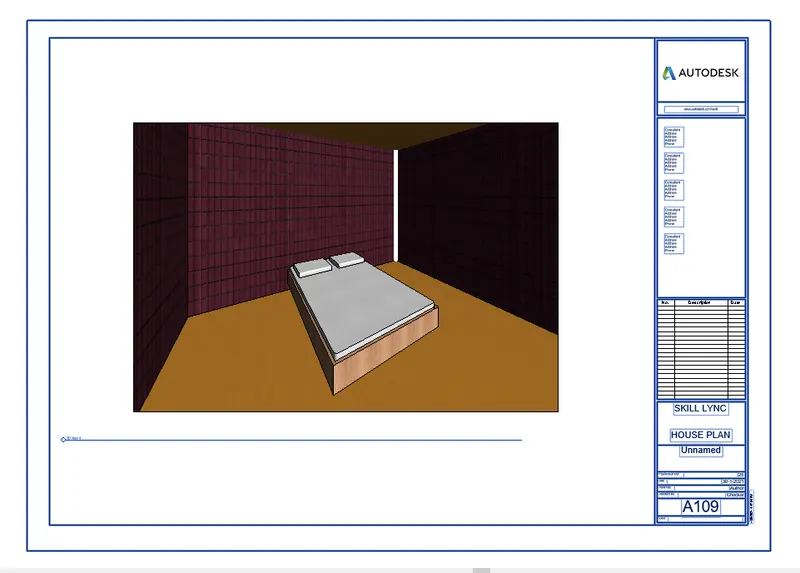

Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
PROCEDURE :

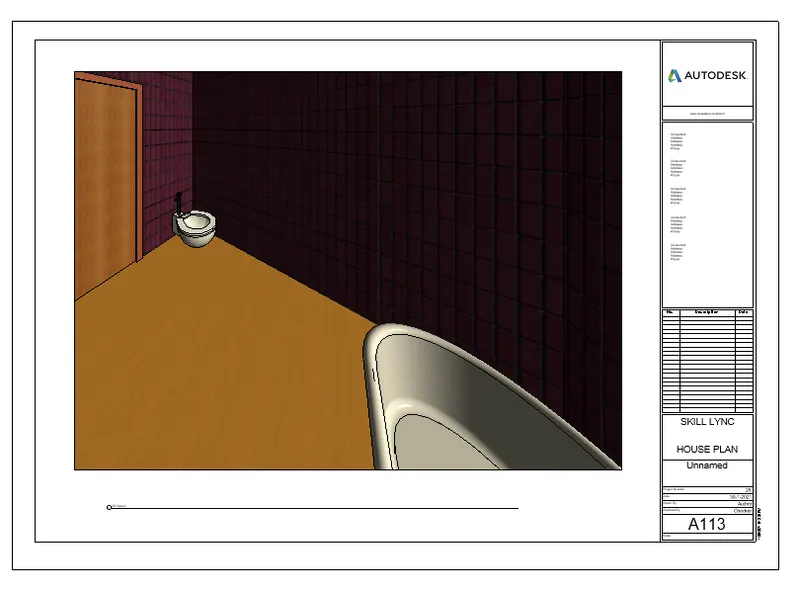

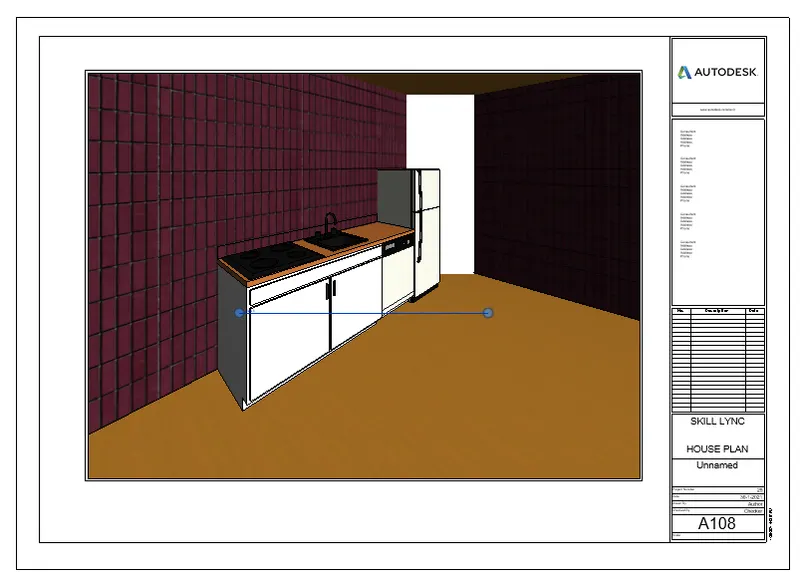

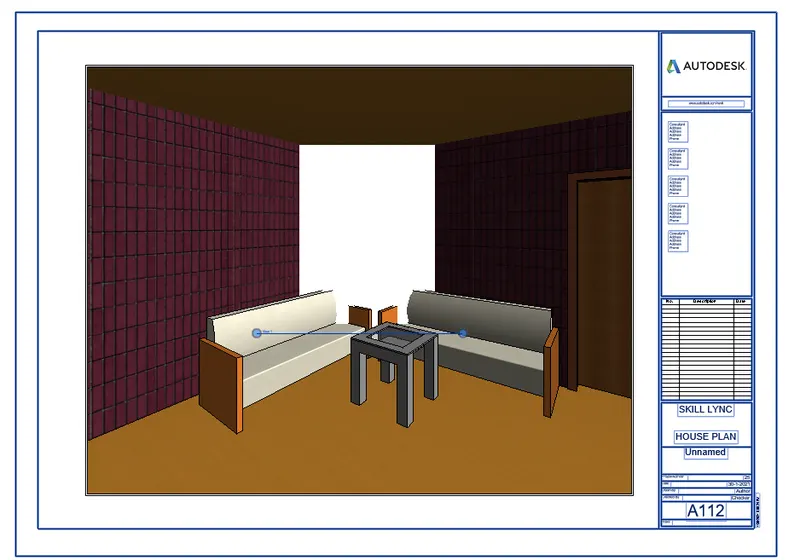

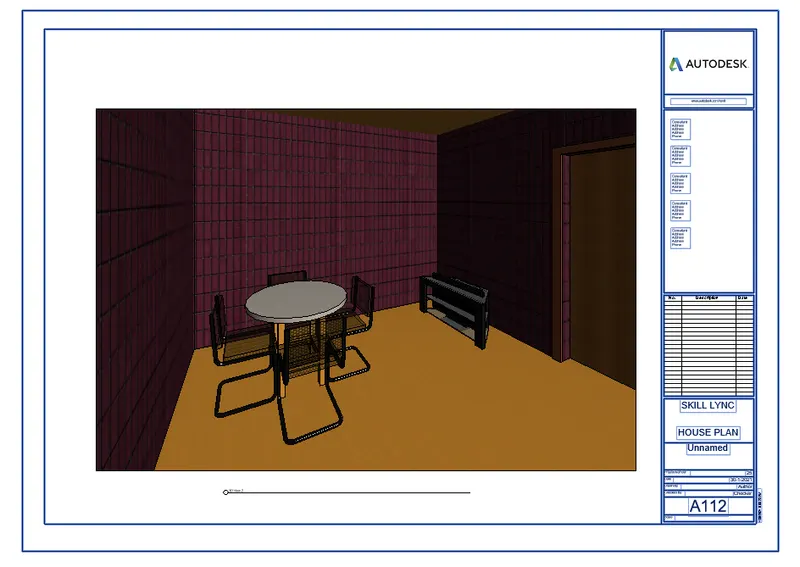

to take the camera views, place the camera in the different rooms of floor plan.
after taking the different camera views,go to the sheet option from ribbon.
drag the different views created in the project browser to the sheet and alter the scale accordingly.
