Meshing of Hood

TITLE

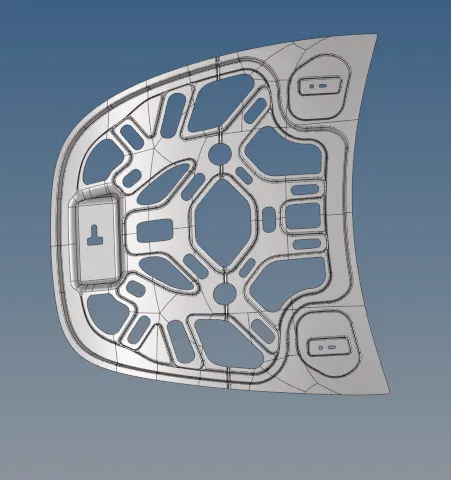

Import the model

STEPS

1.First to import the model

2.Select the import on the toolbar and click on the imported geometry
3.Click on the files it will be shown the model and select it

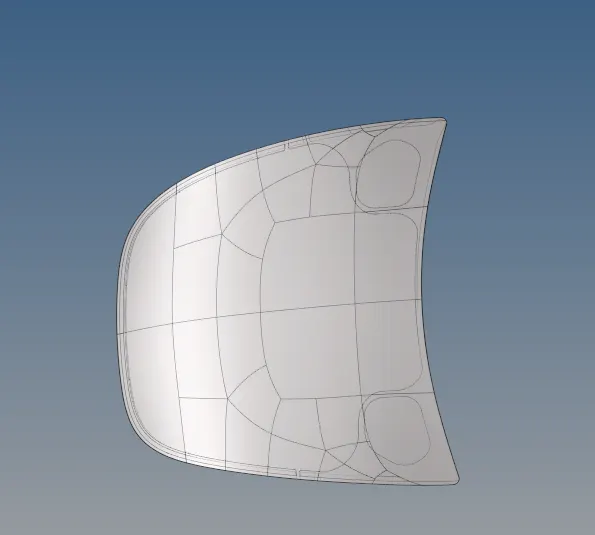

4.Click on the import it will be shown in the graphic area

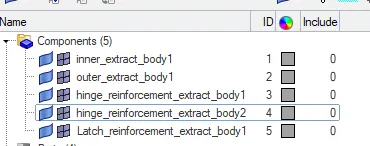

5.Click on the components than the five components will be highlighted

OUTPUT

TITLE

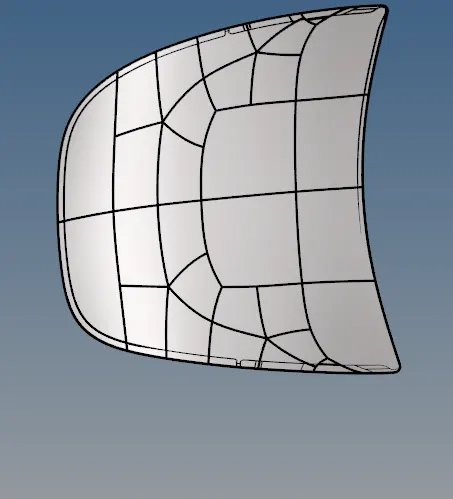

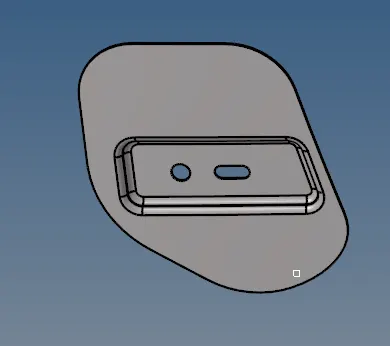

Create the mid surface

STEPS

1.Select the geometry(Geom)  in the main menu bar

2.Select the mid surfaces.

3.Select auto mid surfaces. Click on the extraction option and set the skin offset.
4.Go to auto extraction. Click on the surf and select the surface and click on the extract.

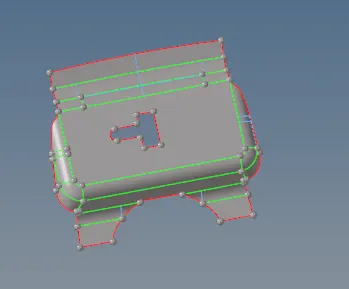

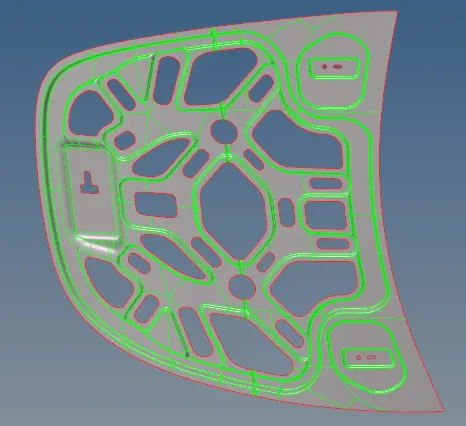

5.The mid surface will be displayed on the surface

6.Repeat the above steps for other components

OUTPUT

TITLE

Creating auto cleanup

STEPS

1.Select the geometry(Geom)  in the main menu bar

2.Select the auto cleanup

3.Select surf in displayed and click on the creat

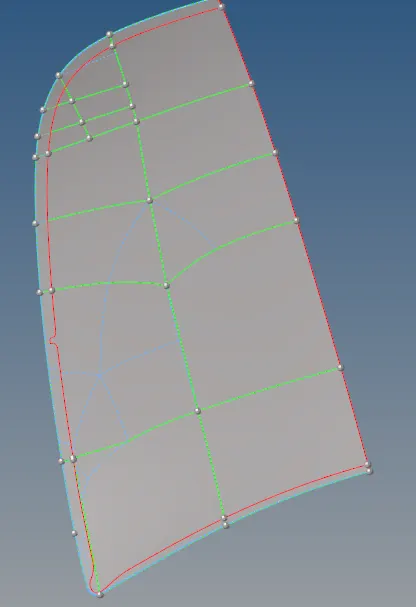

4.It will be cleanup and repeat the step for all mid surfaces

OUTPUT

TITLE

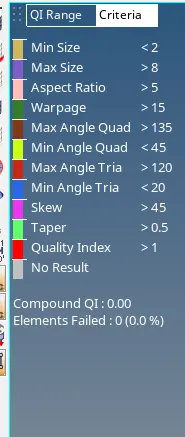

Giving the values for quality criteria

STEPS

1.Click on the menu bar select preferences then go to the criteria file

2.In the challenge given values enter in the criteria

OUTPUT

TITLE

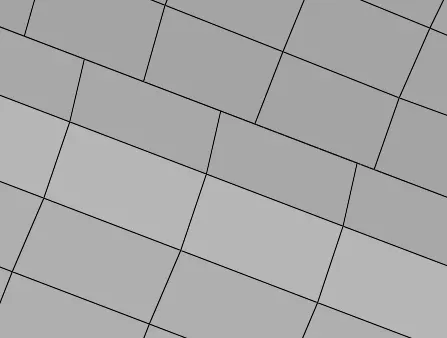

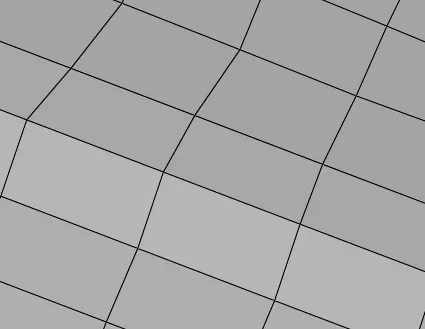

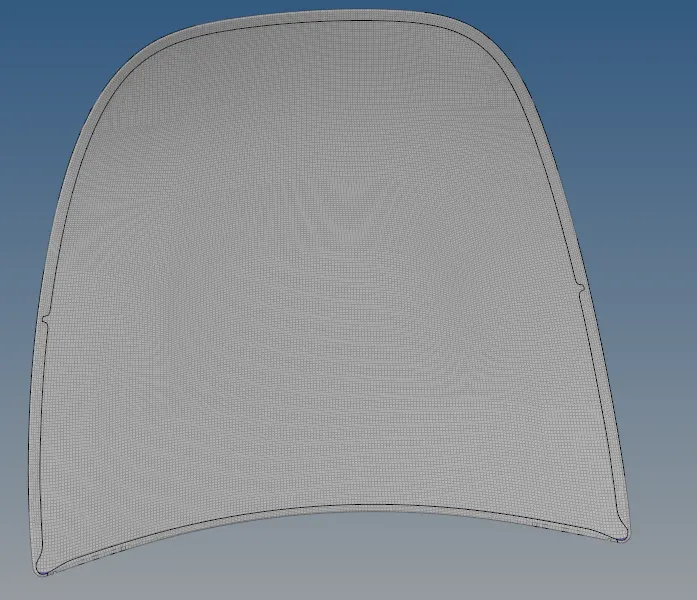

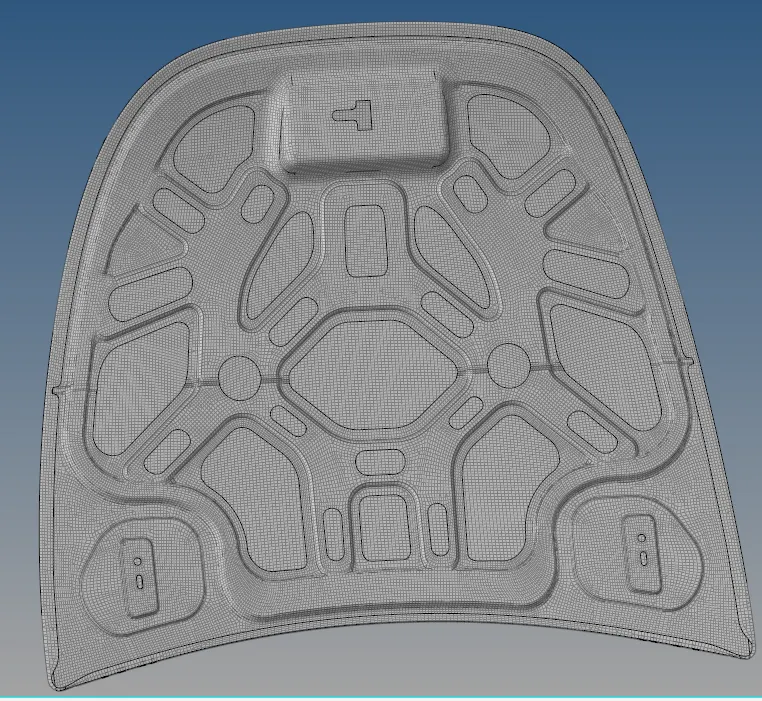

Create the mesh

STEPS

1.Select the 2D in the main menu bar

2.Select the auto mesh and click all the surface give the element size 5

3.Click on the mesh type it will be set mixed

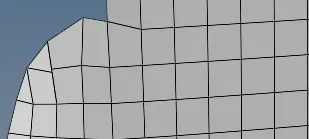

4.Click on the mesh it will have meshed

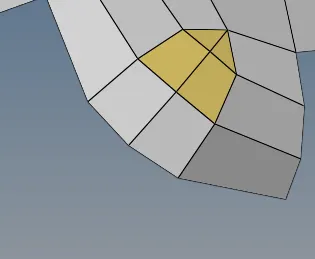

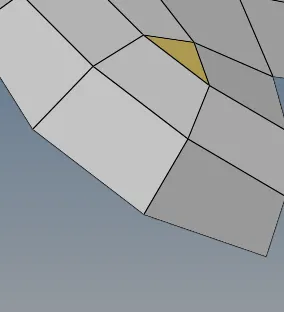

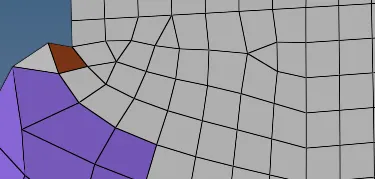

5.There should be no back to back trias on the mesh, fillets, plane surfaces

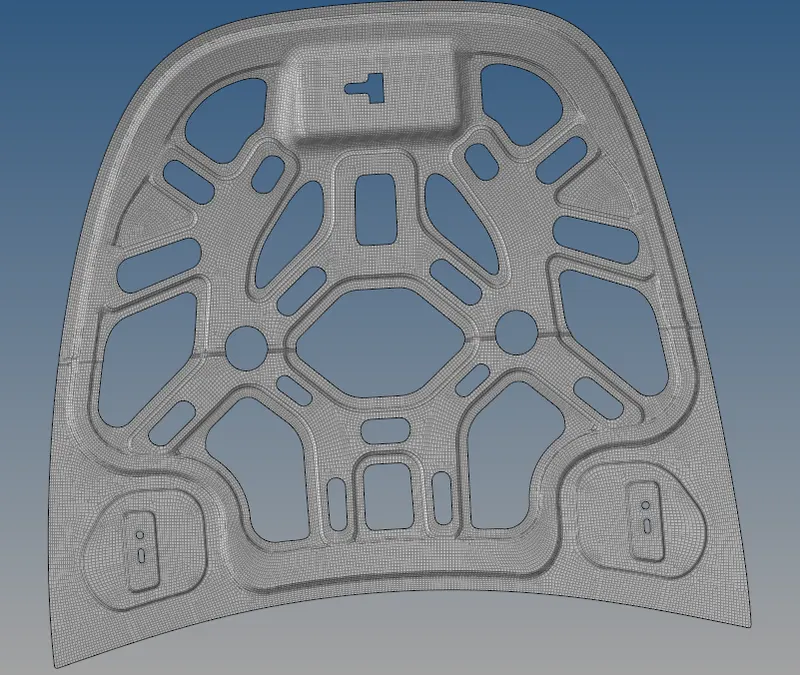

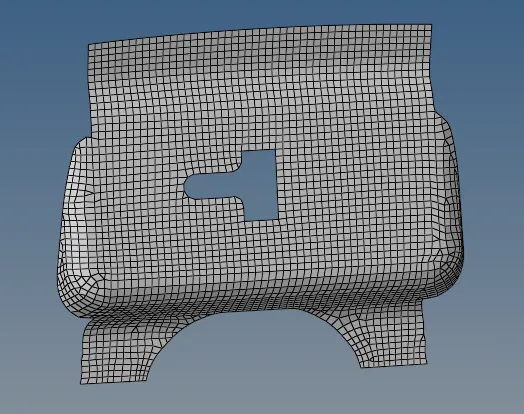

6.Buy using this rules mesh all components

OUTPUT
