Week 3 Verification of Weld Joints

OBJECTIVE:-

To simulate three different types of welding using three different weld materials

Weld Material used:

Case 1. Stainless Steel: In this case, the material of the plates must also be the same. Use Stainless steel for both weldments and plates. No need to add flux to the weldments.

Case 2. Aluminium Alloy: The material to be chosen for this case is Aluminium alloy(high strength, wrought). [Plate material to be used is stainless steel]

Case 3. Bronze: In order to simulate "Brazing", you should be using bronze as the weld material. Assign Stainless Steel to both plates and Copper to the "Ribs".

STEPS FOR PERFORMING ANALYSIS:

1. Open ANSYS workbench.

2. Select the static structural module.

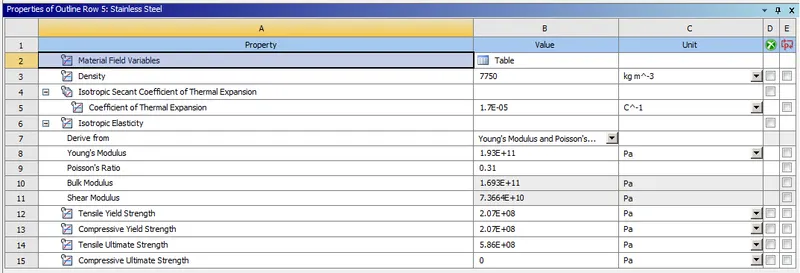

3. Select the proper Engineering data card.

4. Import geometry.

5. Open Mechanical model.

6. Give proper connections (contacts and joints).

7. Generate mesh.

8. Set Analysis Setting as given.

9. Insert output request

10. Analyze Result.

ANALYSIS SETUP:4

GEOMETRY

Import given model in ANSYS Workbench for static structural analysis.

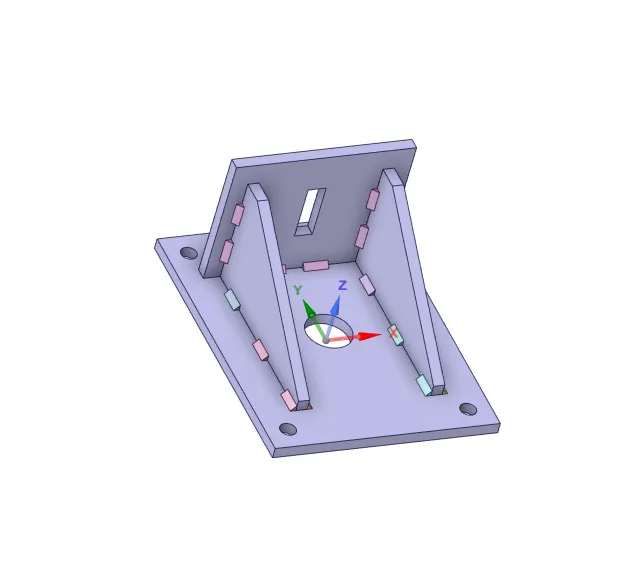

Fig. CAD Model

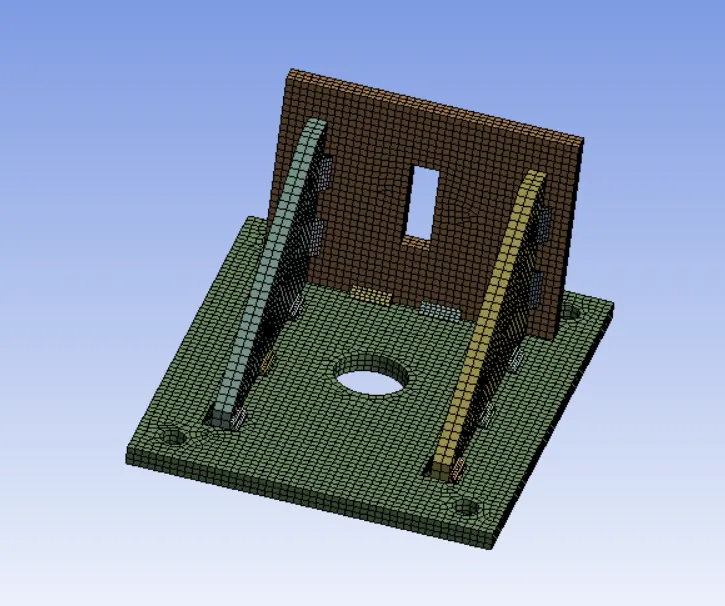

MESHED MODEL:

Details

Big plate and small Plate = 5mm

Ribs = 4mm

No of nodes = 83397

No. of elements = 15428

PROCEDURE FOR ALL CASE:

1. Import model in ANSYS Workbench.

2. Assign material properties.

3. Open the mechanical module where we going to perform analysis.

4. Meshed the model with desired element size.

5. Now after meshing, From Project Tree, select "Connections" and create "Contact".

• Contacts:

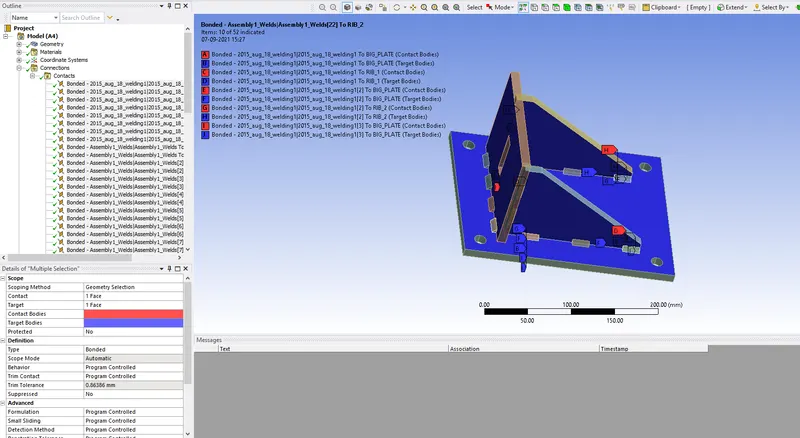

1. First, select all welds in the contact tree and assign " Type = Bonded "

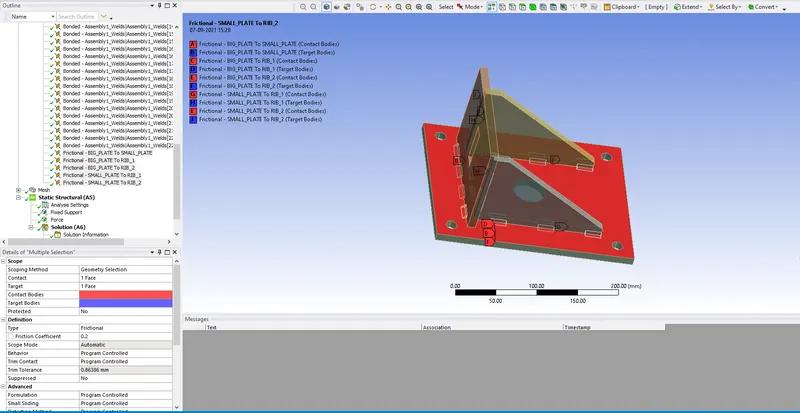

1. Now for the contact between plate and ribs, ribs and plate.

Type = Frictional

Frictional Coeff = 0.2

6. BOUNDARY CONDITIONS:-

Now let's define the Boundary condition.

• Here we are going to look at stress developed in the component while applying a load of 15000 N.
• In the analysis setting Turn on Large deflection and leave all the settings as default.

• Other boundary conditions are given below:

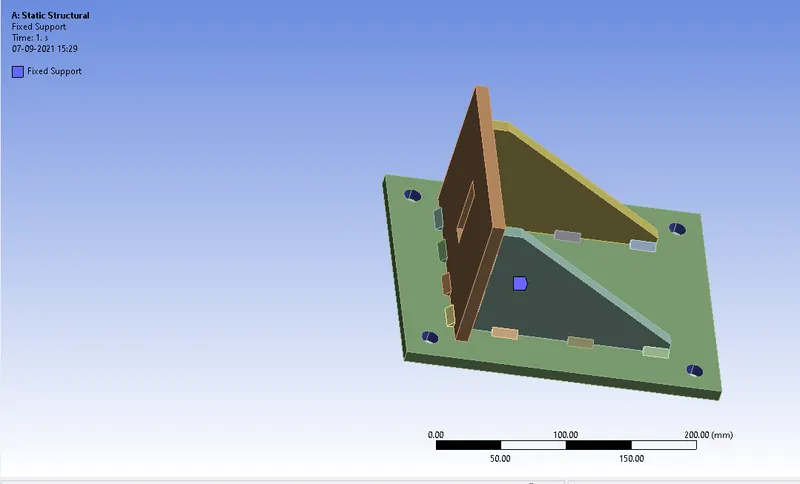

1: Fixed Support: Select all holes of the Big Plate.

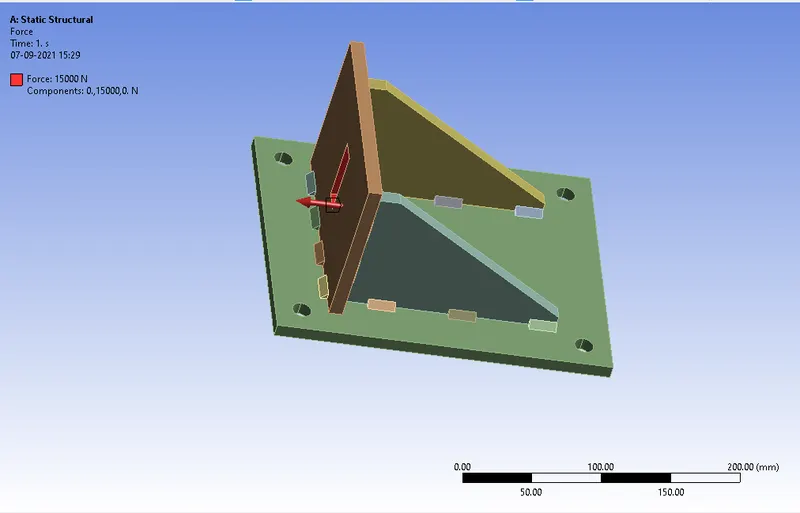

2. Force: Now apply a load of 15000 N to the hole of the Small Plate.

7. SOLUTION:

• After giving proper Boundary conditions, create a solution for the output result.

1. Equivalent Stress (Von-misses), Equivalent Elastic Strain and Total Deformation for the complete model,

2. Equivalent Stress and Strain for Ribs and Weld joints

3. Directional Deformation in the Y direction.

4. Contact tool for stress and pressure between

• Plate and Ribs

RESULT:

CASE 1:

Material: Stainless steel for both Plate and Ribs.

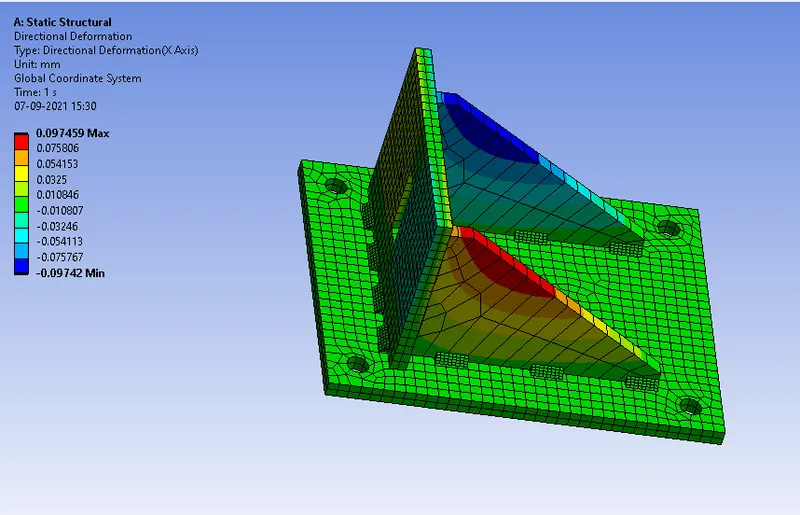

1. Directional Deformation:

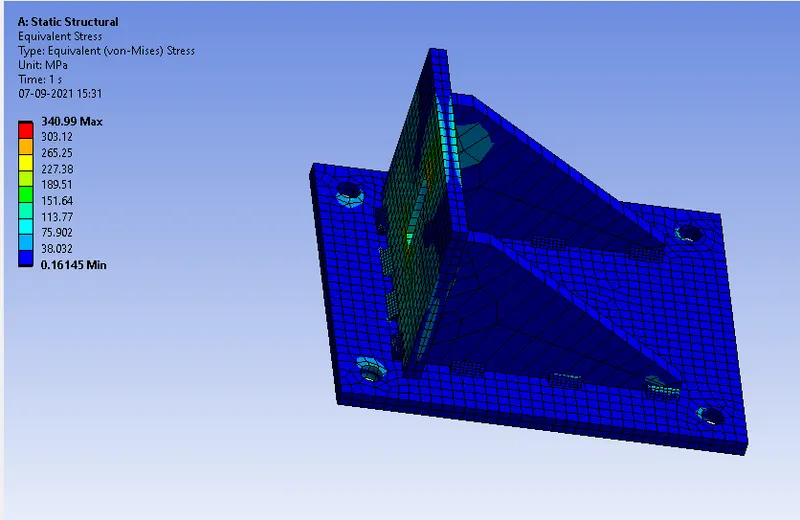

2. Equivalent Von-Misses Stress:

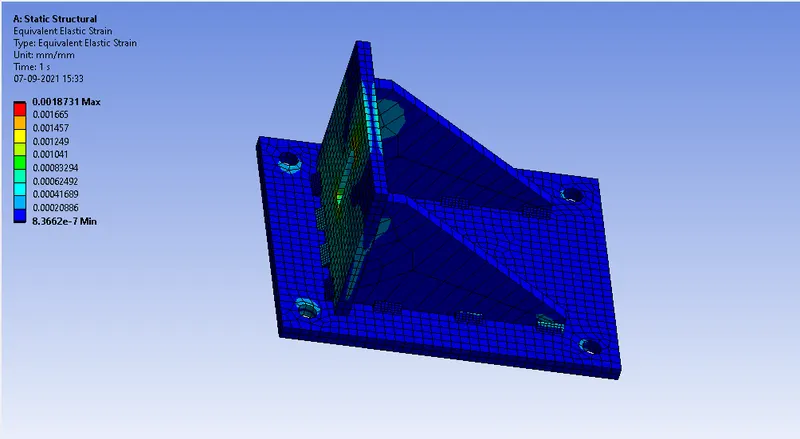

3. Equivalent Elastic Strain:

CASE 2:

Material: Aluminium Alloy for weldments and stainless steel for the plate.

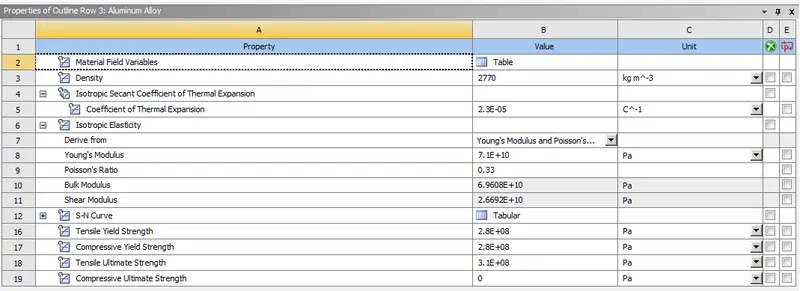

Fig. Aluminum Alloy

Fig. Stainless Steel

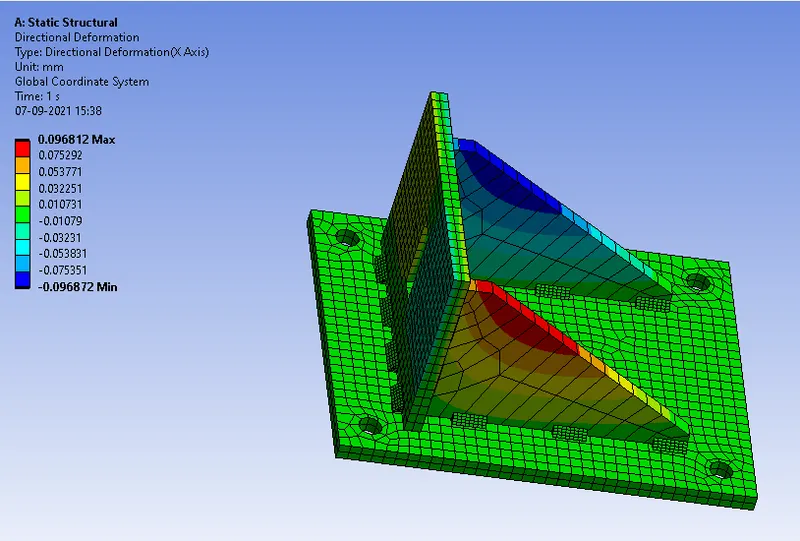

1. Directional Deformation in Y direction:

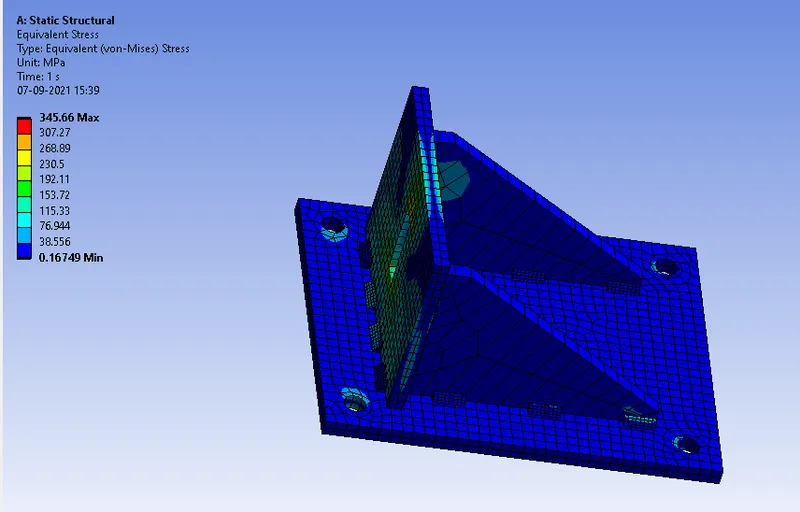

2. Equivalent Stress:

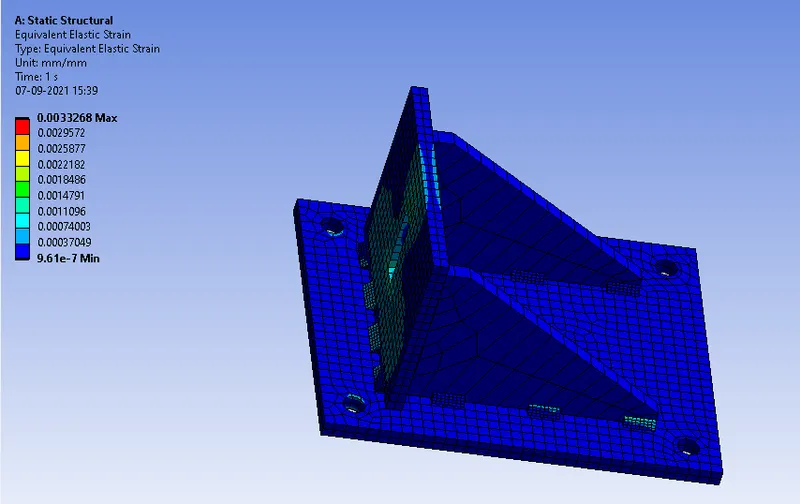

3. Equivalent Elastic Strain:

Case 3:

Material: Bronze for weld material. Assign Stainless Steel to both plates and Copper to the "Ribs".

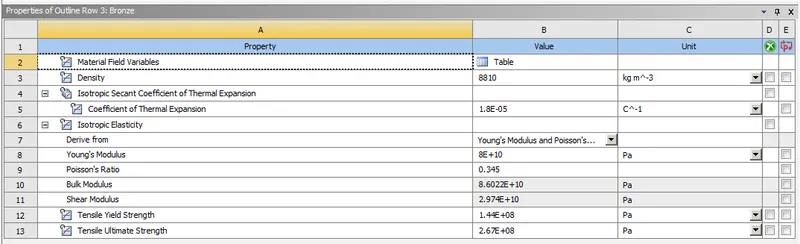

Fig. Bronze for Weldments

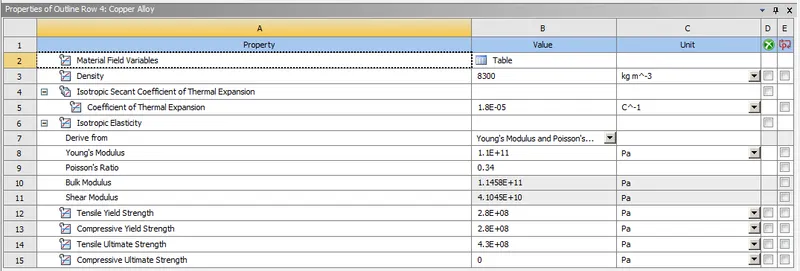

Fig. Copper alloy for ribs

Fig. Stainless Steel for Plate

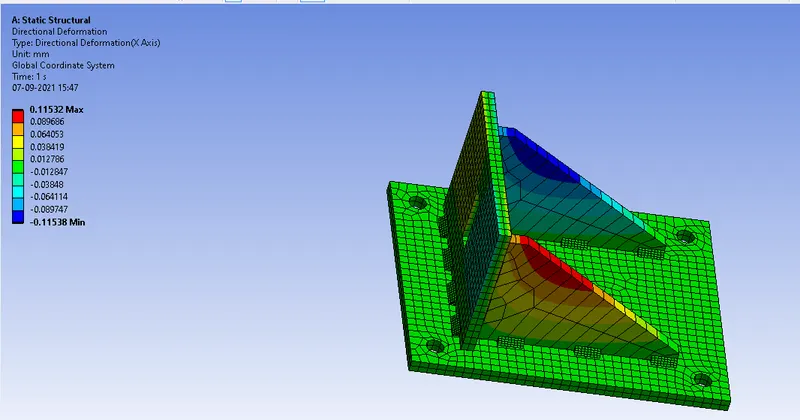

1. Directional Deformation:

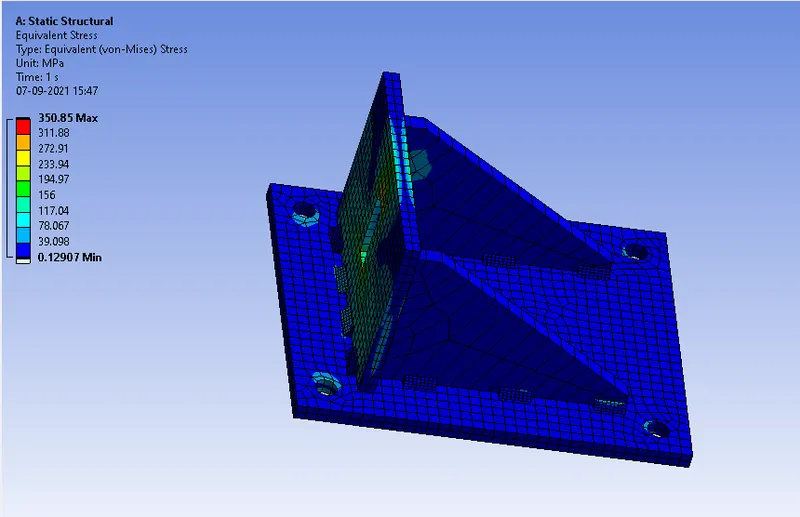

2. Equivalent Stress:

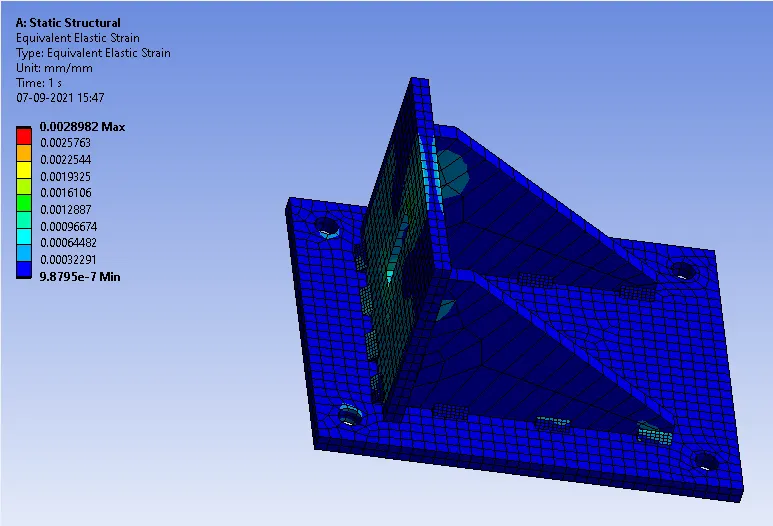

3. Equivalent Elastic Strain:

COMPARISON:-

S No.	Directional Deformation	Maximum Stress of Setup(MPa)	Maximum Strain Setup(mm/mm)
Case 1	0.097459	340.99	0.0018731
Case 2	0.096812	345.66	0.0033268
Case 3	0.11532	350.85	0.0028982

CONCLUSION:-

In the above cases, less stress and strain produced in case 1 so the best results give the case1
