Week 4 -Wire Bending Challenge
OBJECTIVE:-
To perform an analysis to simulate the bending of a wire in ANSYS. You will have to use Copper Alloy (Non-Linear), Aluminium Alloy (Non-Linear) and Magnesium Alloy (Non-Linear) for the wire alone. You need to find out the Equivalent stress and Equivalent strain on the wire alone. Compare the results
CASE SETUP AND EXECUTION:-
1. First open the Ansys workbench.

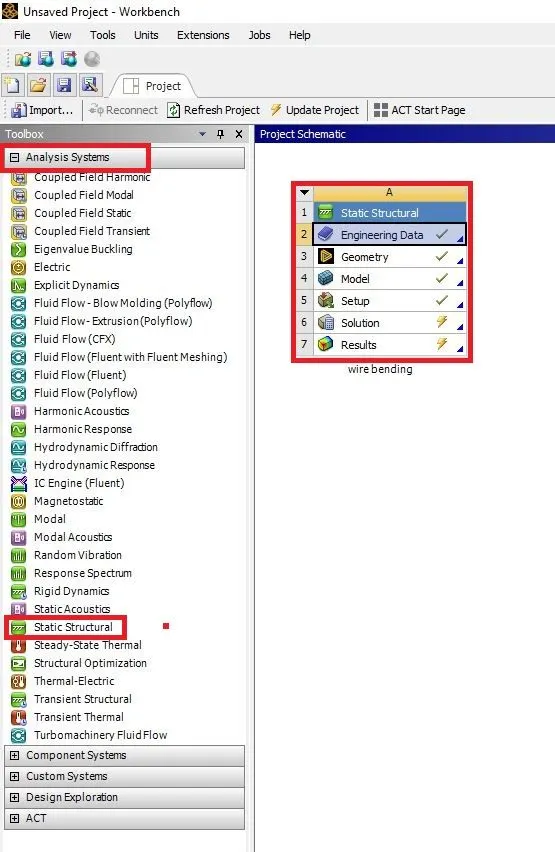

2. Goto toolbox select the analysis systems and double click on the static structural as shown below.

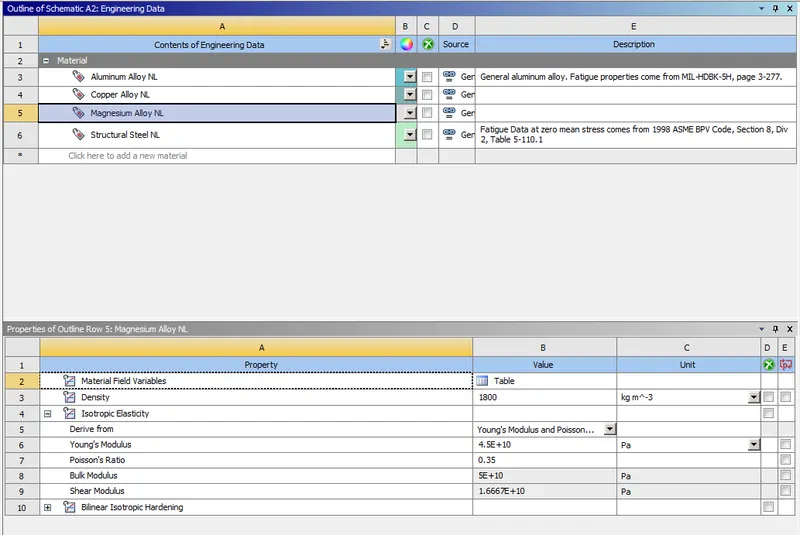

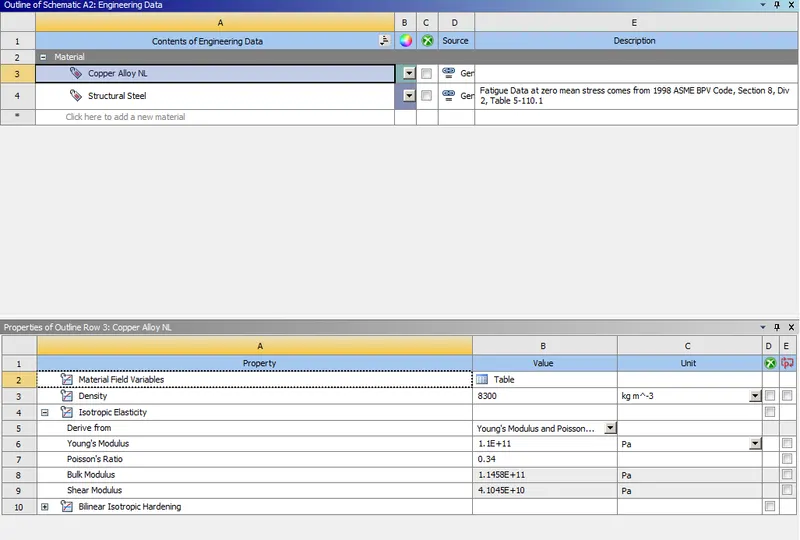

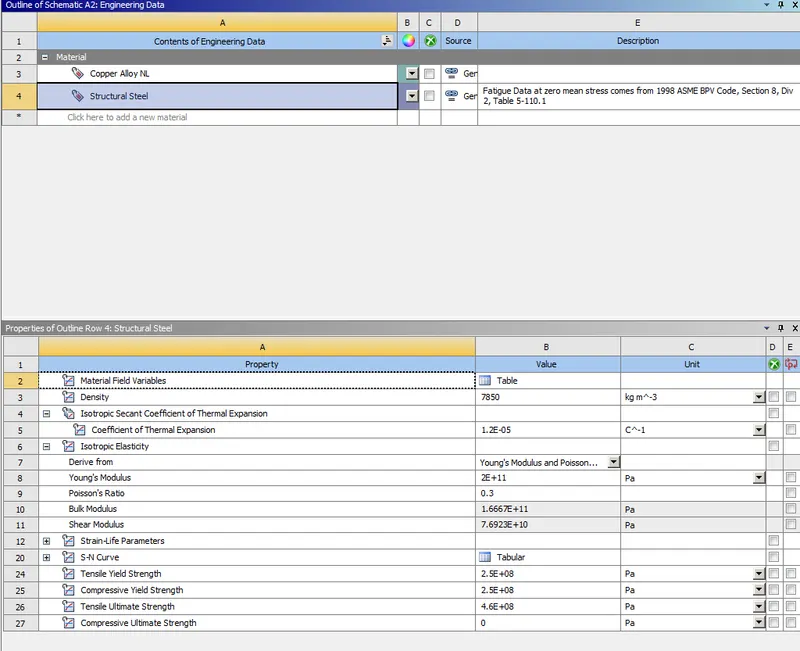

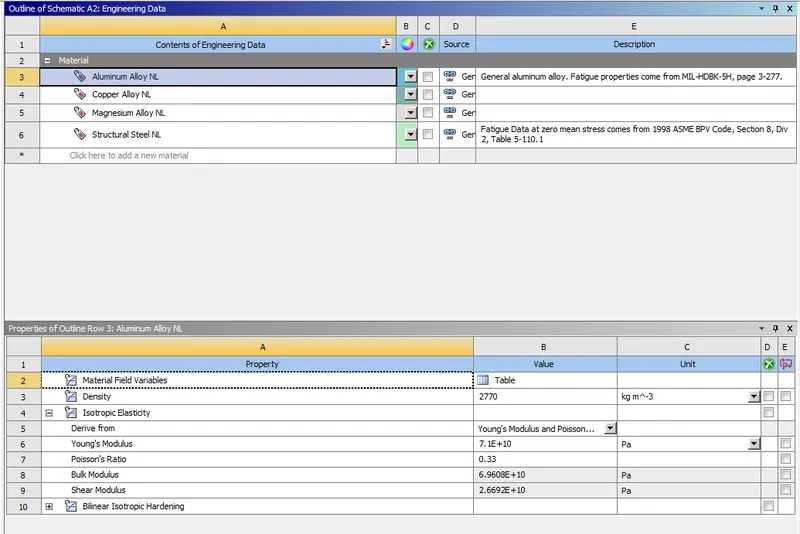

3. Next the required material by using the Engineering data.
4. Next right click on the Geometry select import geometry click on browser select the required file.
5. Next right click on the model click on the edit.

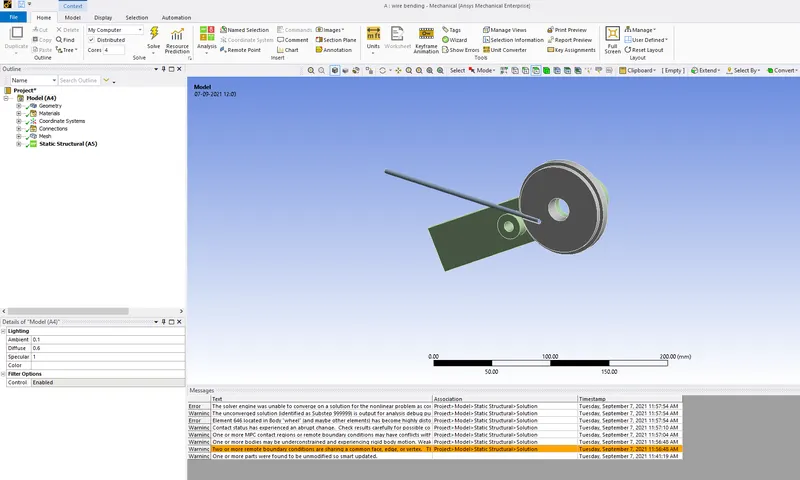

6. See the Mechanical new tab on your window as shown below.
7. Assign the required materials for geometry components.

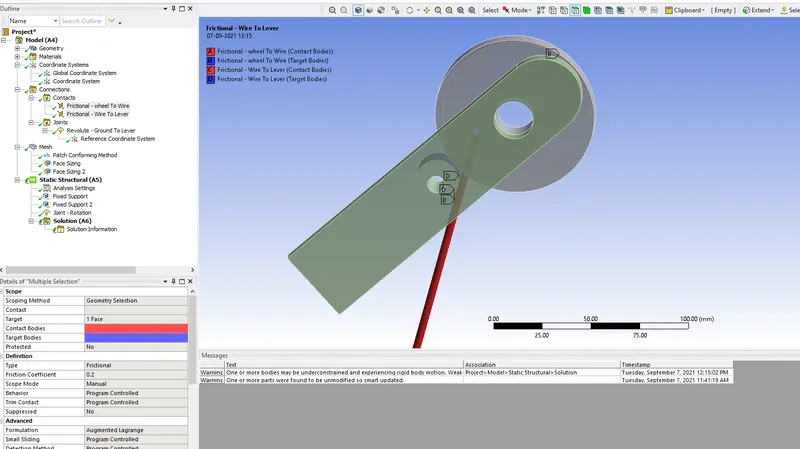

8. Next create the contacts as shown below.

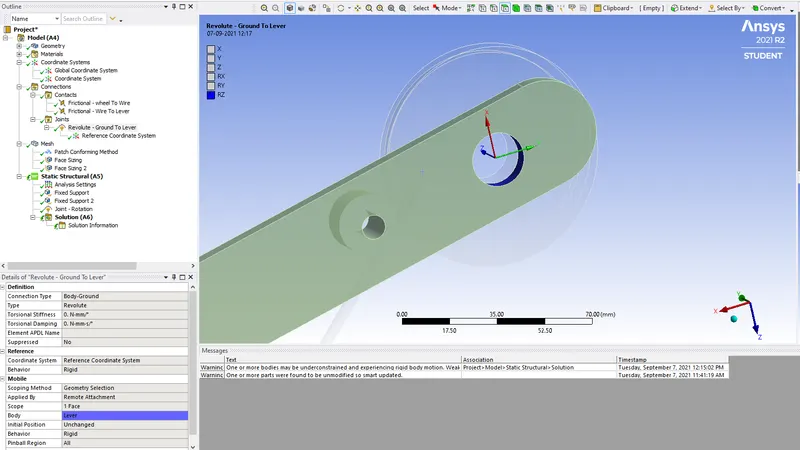

9. Next create a joint as shown below.

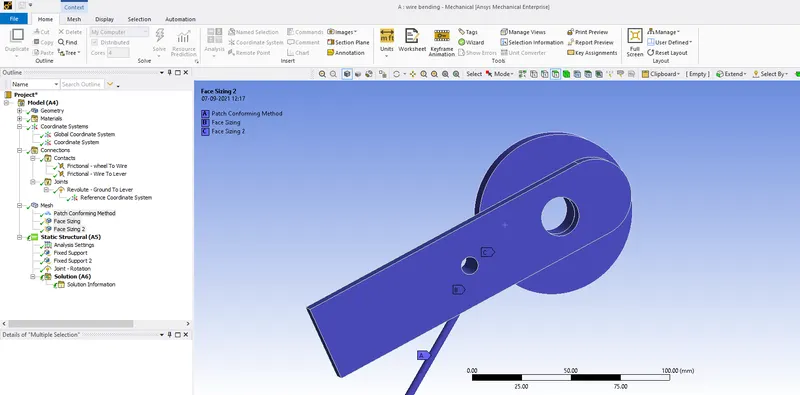

10. Next generate the Mesh as shown below.

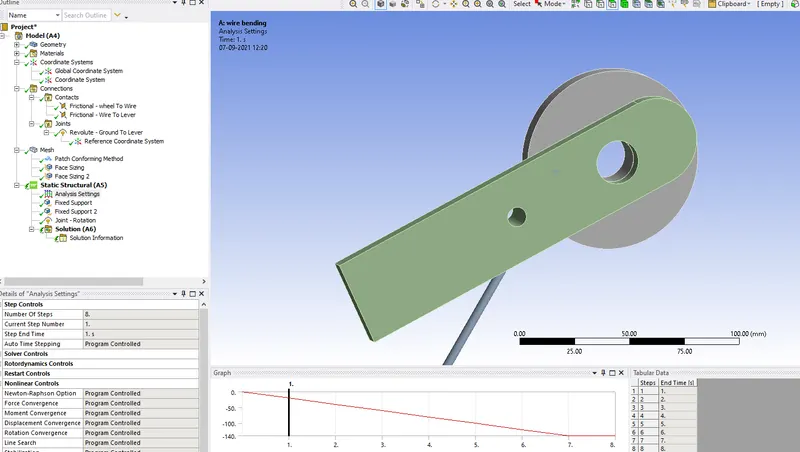

11. Next going to analysis settings give the required time as shown below.

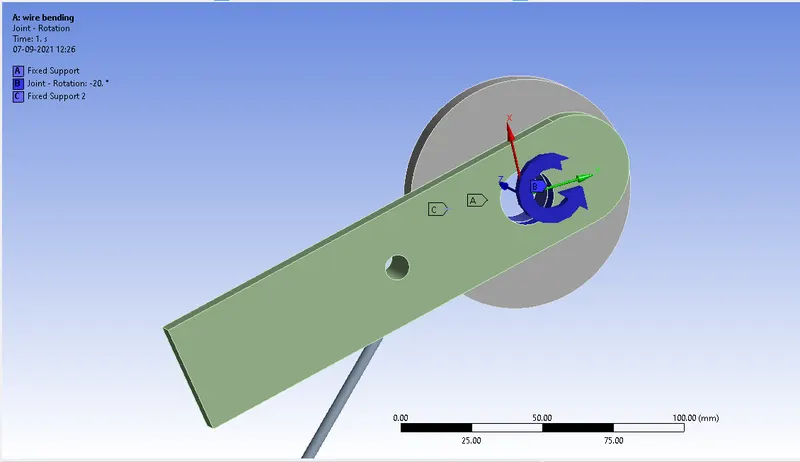

12. Next create the Fixed supports and joint as shown below.
13. Next right click on the solution select the solve the simulation is run.
RESULT OF CASE 1:-
WIRE MATERIAL: Copper Alloy NL
WHEEL AND LEVER MATERIAL:-Structural steel

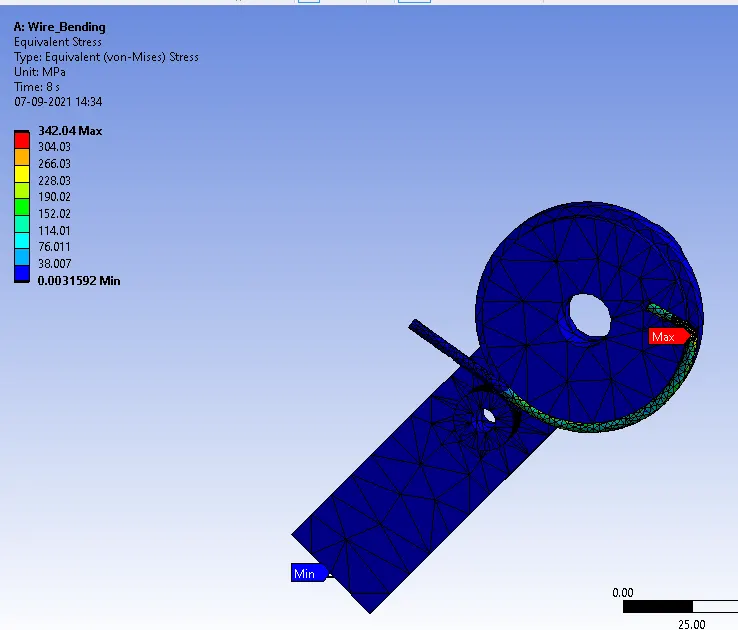

EQUIVALENT STRESS:-

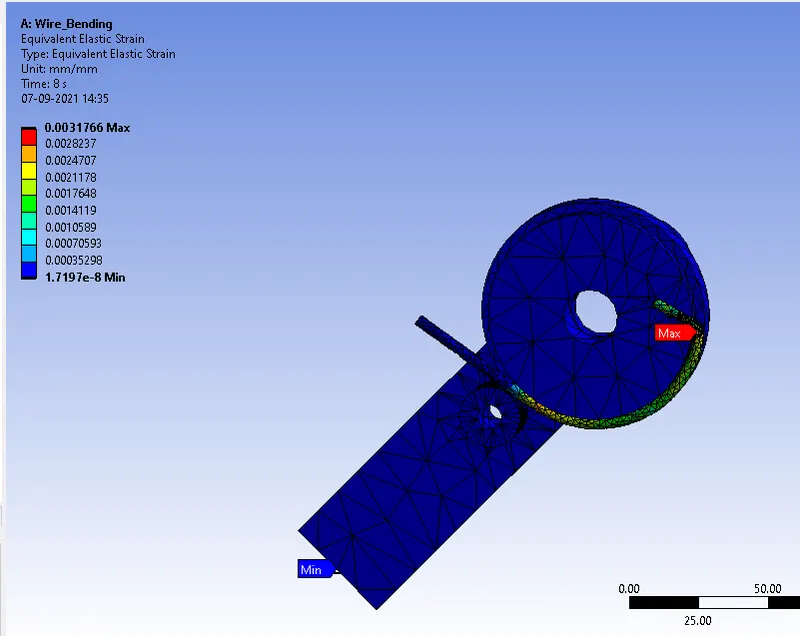

EQUIVALENT ELASTIC STRAIN:-

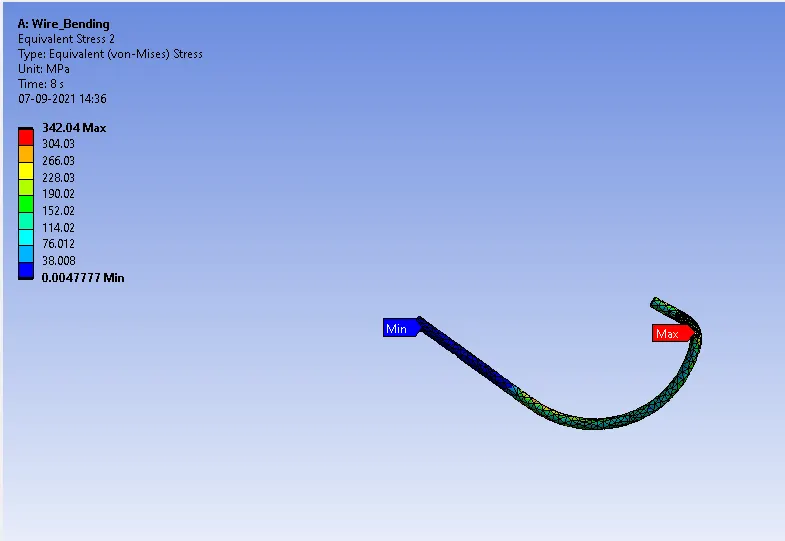

EQUIVALENT STRESS WIRE:-

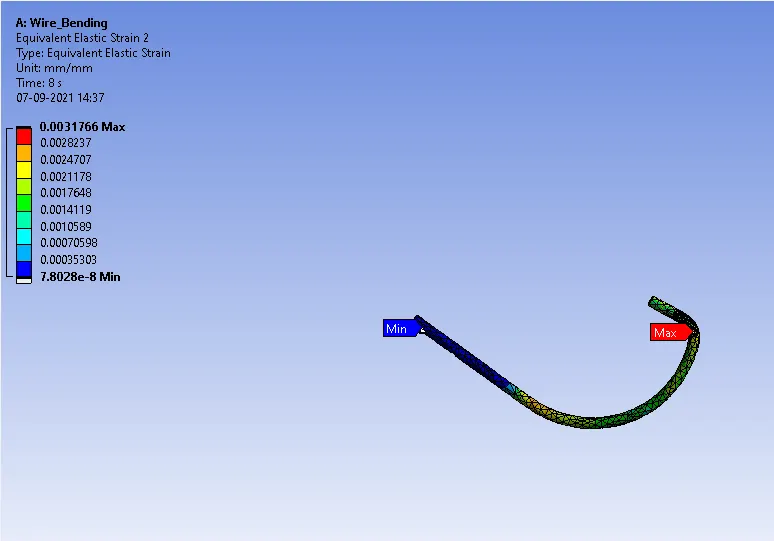

EQUIVALENT ELASTIC STRAIN WIRE:-
RESULT OF CASE 2:-
WHEEL AND LEVER MATERIAL:-Structural steel
WIRE MATERIAL: Aluminium Alloy NL

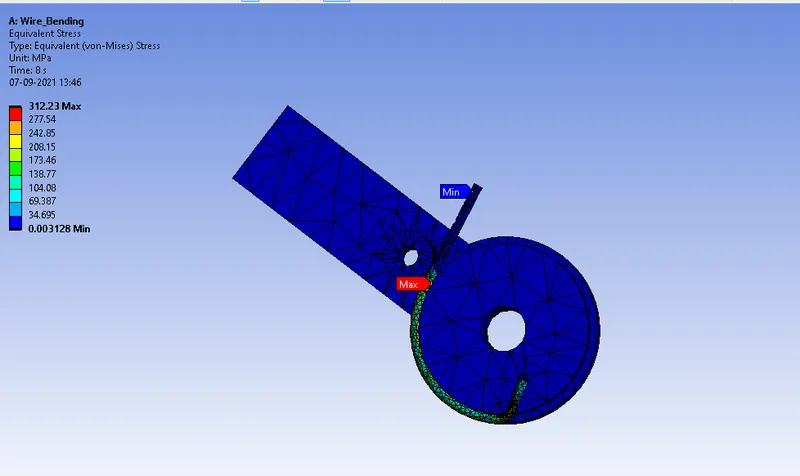

EQUIVALENT STRESS:-

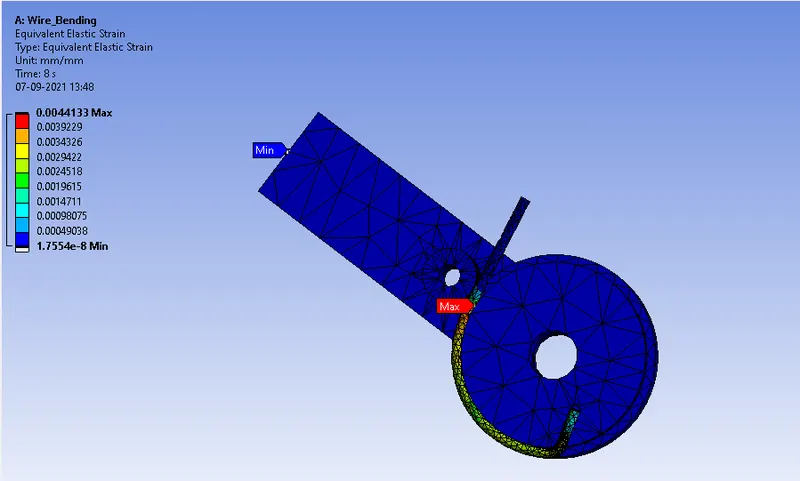

EQUIVALENT ELASTIC STRAIN:-

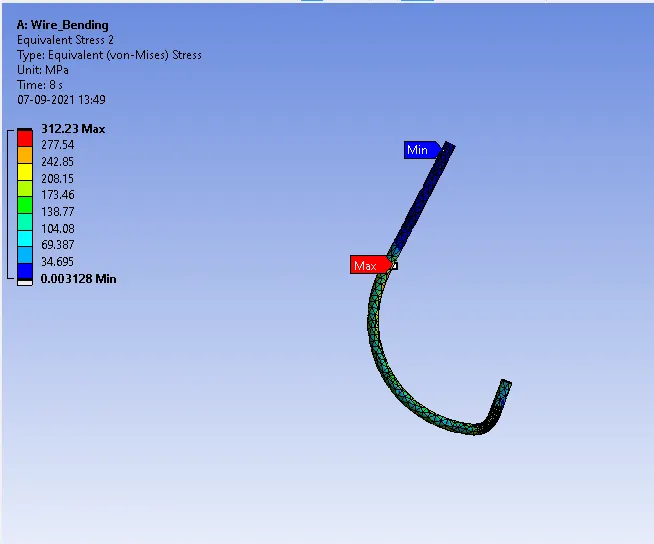

EQUIVALENT STRESS WIRE:-

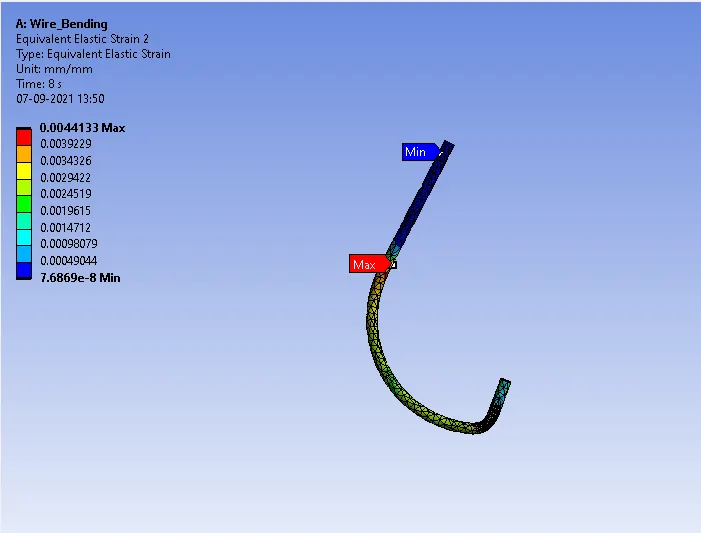

EQUIVALENT ELASTIC STRAIN WIRE:-
RESULT OF CASE 3:-
WHEEL AND LEVER MATERIAL:-Structural steel
WIRE MATERIAL: Magnesium Alloy NL

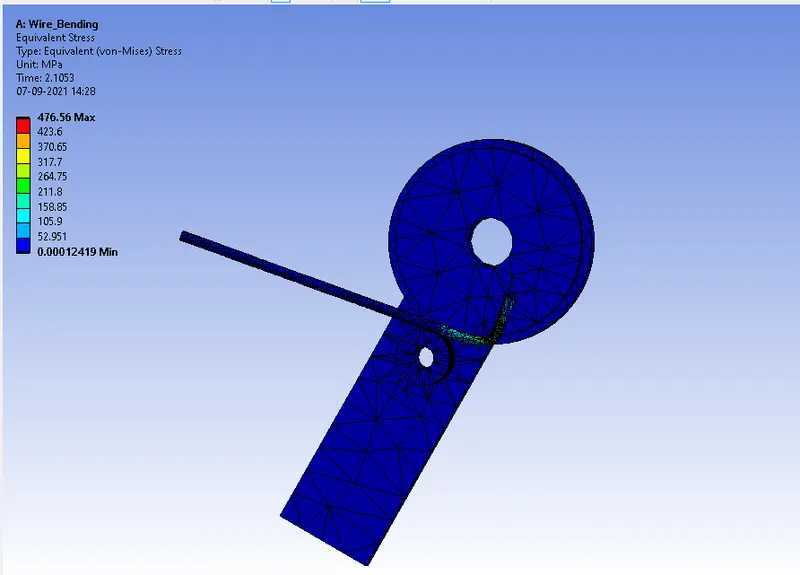

EQUIVALENT STRESS:-

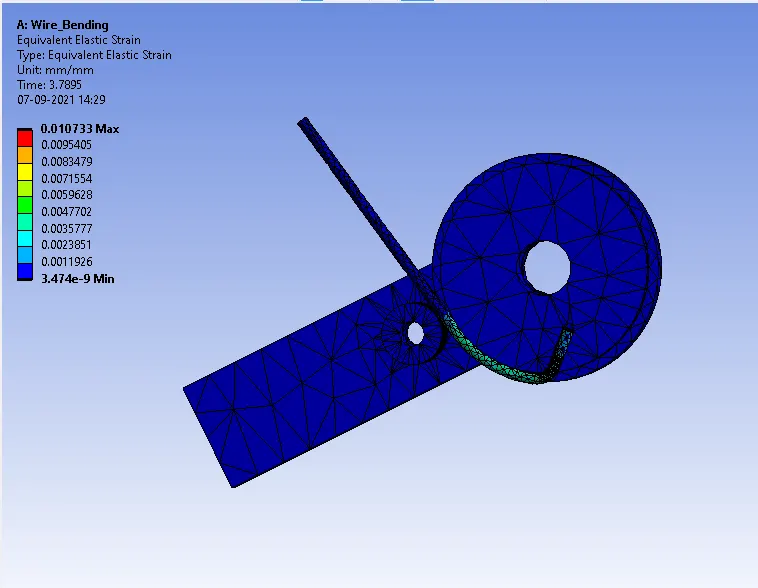

EQUIVALENT ELASTIC STRAIN:-

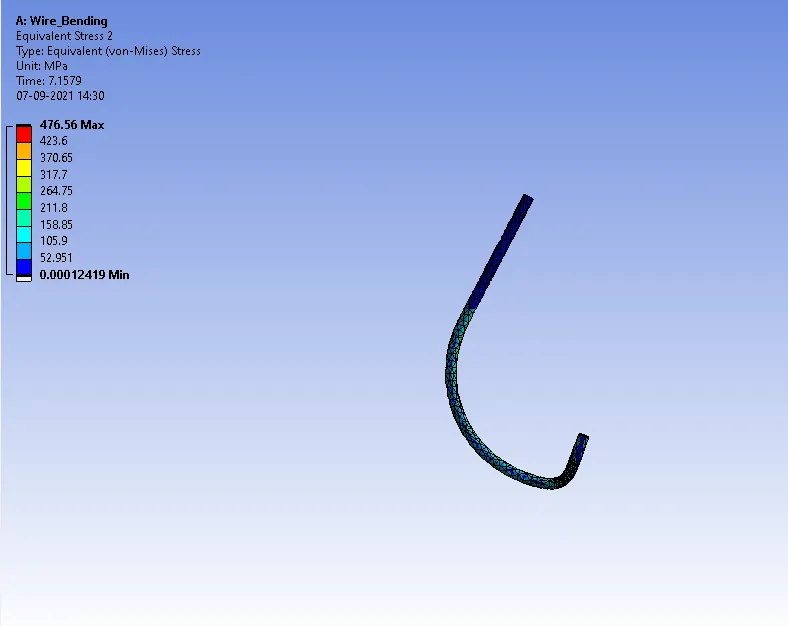

EQUIVALENT STRESS WIRE:-

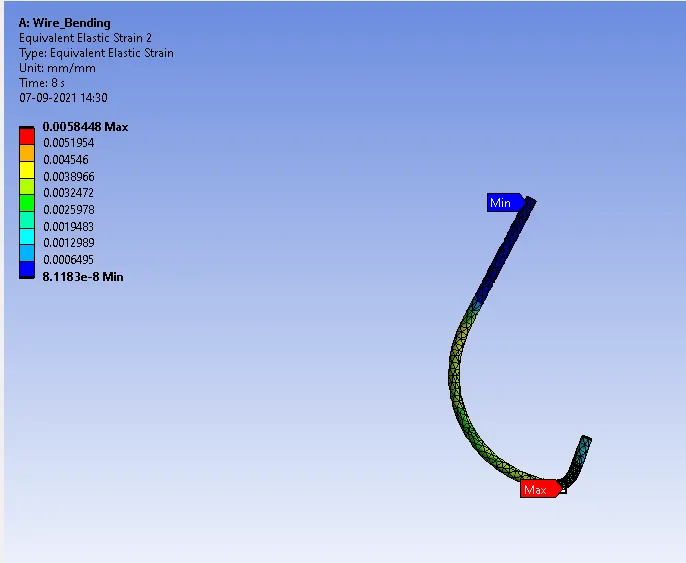

EQUIVALENT ELASTIC STRAIN WIRE:-
COMPARISON:-
| Case | Wire material |
Equivalent stress(Mpa) (MAX) |
Equivalent elastic strain (MAX) |
Equivalent stress for wire(Mpa) (MAX) |
Equivalent elastic strain for wire (MAX) |
| Case1 | Copper NL | 342.04 | 0.0031766 | 342.04 | 0.0031766 |
| Case2 | Aluminium Alloy NL | 312.23 | 0.0044133 | 312.23 | 0.0044133 |
| Case3 | Magnesium Alloy NL | 476.56 | 0.010733 | 476.56 | 0.0058448 |
CONCLUSION:-
Based on the simulation results, magnesium Alloy Non-linear material Equivalent Stress is higher as compared to the remaining two materials
