Week - 11 - Element quality check
OBJECTIVE:- Create element quality check macro for 2D and 3D elements Create a button for each criteria On pressing the button the elements should be highlighted using temp nodes Entry boxes next to the buttons will accept the quality criteria value To Create TCL for checking element quality criteria 2d and 3d elements…
Ammepalle Gangadhara
updated on 23 Nov 2021
OBJECTIVE:-
- Create element quality check macro for 2D and 3D elements
- Create a button for each criteria
- On pressing the button the elements should be highlighted using temp nodes
- Entry boxes next to the buttons will accept the quality criteria value
To Create TCL for checking element quality criteria 2d and 3d elements with user input next to command buttons
PROBLEM STATEMENT:-
Creation of buttons with commands in 2d is absolute but coming to 3d we need to check the options as 2-4 in the *elementtest**** query
*elementtest*variable* elements 1 $::variable 2 2 0 "2D quality"
$::variable 2 2 0
$::variable 2 4 0
for using different things
Code:

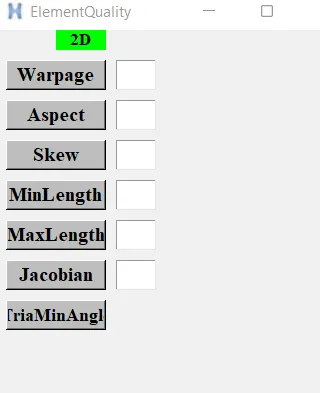

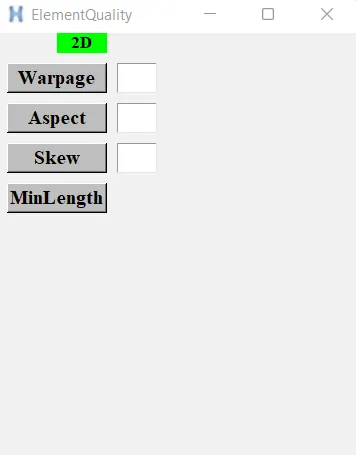

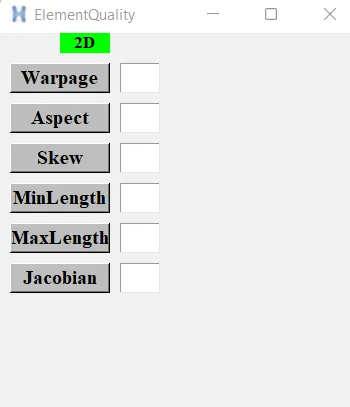

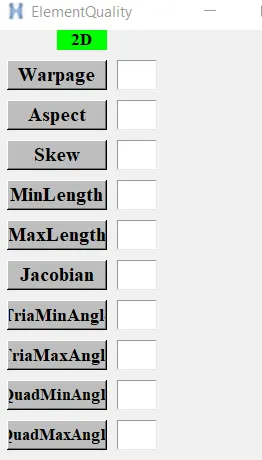

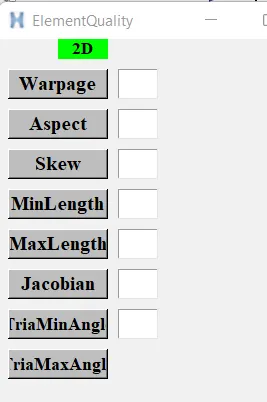

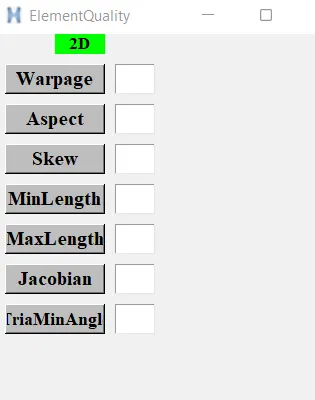

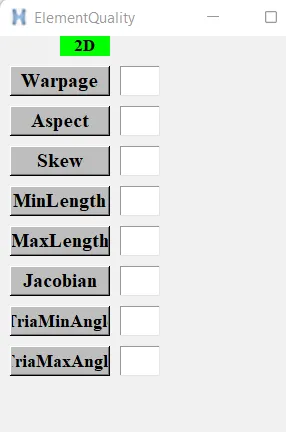

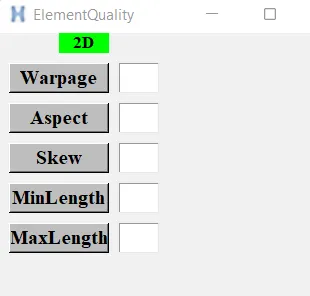

set a .window
catch {destroy $a}
toplevel $a -class toplevel
wm title $a "ElementQuality"
wm geometry $a 360x440+100+200
label $a.21 -text "2D" -bg green -font {times 10 bold}; place $a.21 -x 60 -y 00 -width 50 -height 20

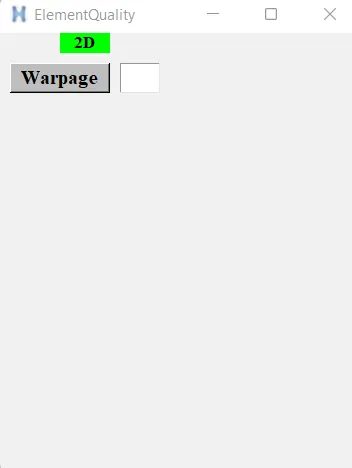

button $a.01 -text "Warpage" -command "Warpage" -bg grey -font {times 12 bold}; place $a.01 -x 10 -y 30 -width 100 -height 30
entry $a.02 -textvariable ::warpage ; place $a.02 -x 120 -y 30 -width 40 -height 30

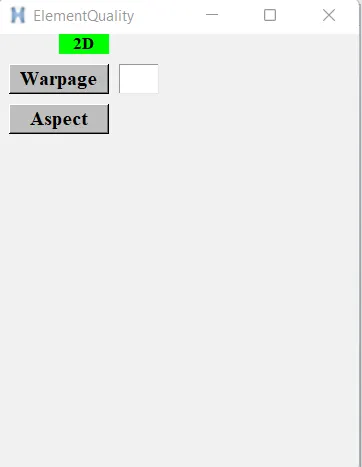

button $a.03 -text "Aspect" -command "Aspect" -bg grey -font {times 12 bold}; place $a.03 -x 10 -y 70 -width 100 -height 30

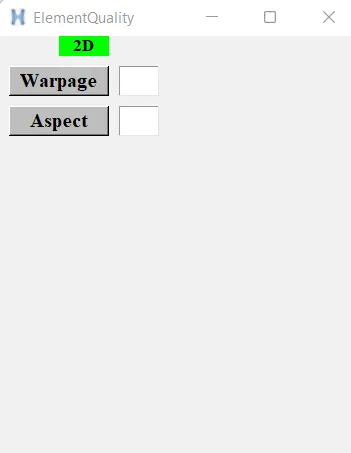

entry $a.04 -textvariable ::aspect ; place $a.04 -x 120 -y 70 -width 40 -height 30
button $a.05 -text "Skew" -command "Skew" -bg grey -font {times 12 bold}; place $a.05 -x 10 -y 110 -width 100 -height 30
entry $a.06 -textvariable ::skew ; place $a.06 -x 120 -y 110 -width 40 -height 30

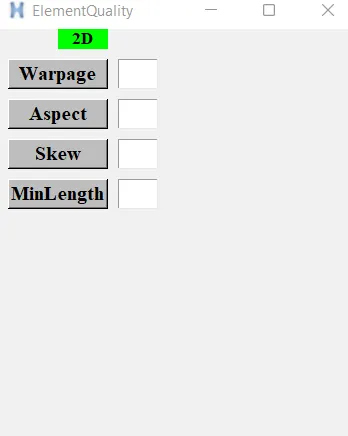

button $a.07 -text "MinLength" -command "MinLength" -bg grey -font {times 12 bold}; place $a.07 -x 10 -y 150 -width 100 -height 30
entry $a.08 -textvariable ::minlength ; place $a.08 -x 120 -y 150 -width 40 -height 30

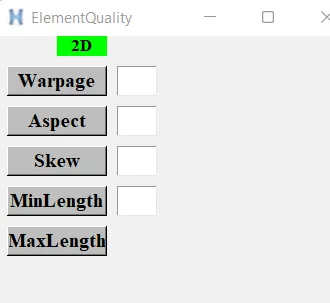

button $a.09 -text "MaxLength" -command "MaxLength" -bg grey -font {times 12 bold}; place $a.09 -x 10 -y 190 -width 100 -height 30
entry $a.10 -textvariable ::maxlength ; place $a.10 -x 120 -y 190 -width 40 -height 30
button $a.11 -text "Jacobian" -command "Jacobian" -bg grey -font {times 12 bold}; place $a.11 -x 10 -y 230 -width 100 -height 30
entry $a.12 -textvariable ::jacobian ; place $a.12 -x 120 -y 230 -width 40 -height 30
button $a.13 -text "TriaMinAngle" -command "TriaMinAngle" -bg grey -font {times 11 bold}; place $a.13 -x 10 -y 270 -width 100 -height 30
entry $a.14 -textvariable ::triaminangle ; place $a.14 -x 120 -y 270 -width 40 -height 30
button $a.15 -text "TriaMaxAngle" -command "TriaMaxAngle" -bg grey -font {times 11 bold}; place $a.15 -x 10 -y 310 -width 100 -height 30
entry $a.16 -textvariable ::triamaxangle ; place $a.16 -x 120 -y 310 -width 40 -height 30

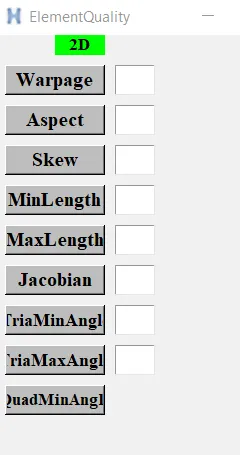

button $a.17 -text "QuadMinAngle" -command "QuadMinAngle" -bg grey -font {times 10 bold}; place $a.17 -x 10 -y 350 -width 100 -height 30
entry $a.18 -textvariable ::quadminangle ; place $a.18 -x 120 -y 350 -width 40 -height 30
button $a.19 -text "QuadMaxAngle" -command "QuadMaxAngle" -bg grey -font {times 10 bold}; place $a.19 -x 10 -y 390 -width 100 -height 30
entry $a.20 -textvariable ::quadmaxangle ; place $a.20 -x 120 -y 390 -width 40 -height 30

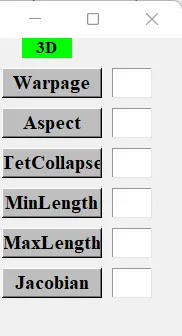

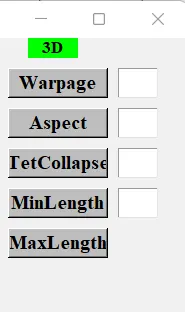

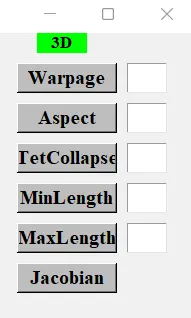

label $a.22 -text "3D" -bg green -font {times 10 bold}; place $a.22 -x 200 -y 00 -width 50 -height 20
button $a.23 -text "Warpage" -command "Warpage3D" -bg grey -font {times 12 bold}; place $a.23 -x 180 -y 30 -width 100 -height 30
entry $a.24 -textvariable ::warpage3d ; place $a.24 -x 290 -y 30 -width 40 -height 30
button $a.27 -text "Aspect" -command "Aspect" -bg grey -font {times 12 bold}; place $a.27 -x 180 -y 70 -width 100 -height 30
entry $a.28 -textvariable ::aspect3d ; place $a.28 -x 290 -y 70 -width 40 -height 30
button $a.29 -text "TetCollapse" -command "TetCollapse" -bg grey -font {times 12 bold}; place $a.29 -x 180 -y 110 -width 100 -height 30
entry $a.30 -textvariable ::tetcollapse ; place $a.30 -x 290 -y 110 -width 40 -height 30
button $a.31 -text "MinLength" -command "MinLength" -bg grey -font {times 12 bold}; place $a.31 -x 180 -y 150 -width 100 -height 30
entry $a.32 -textvariable ::minlength3d ; place $a.32 -x 290 -y 150 -width 40 -height 30
button $a.33 -text "MaxLength" -command "MaxLength" -bg grey -font {times 12 bold}; place $a.33 -x 180 -y 190 -width 100 -height 30
entry $a.34 -textvariable ::maxlength3d ; place $a.34 -x 290 -y 190 -width 40 -height 30
button $a.25 -text "Jacobian" -command "Jacobian" -bg grey -font {times 12 bold}; place $a.25 -x 180 -y 230 -width 100 -height 30
entry $a.26 -textvariable ::jacobian3d ; place $a.26 -x 290 -y 230 -width 40 -height 30
proc Warpage {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestwarpage elements 1 $::warpage 2 2 0 "2D Warpage"
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Warpage3D {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestwarpage elements 1 $::warpage3d 2 4 0 "3D Warpage"
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Aspect {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestaspect elements 1 $::aspect 2 2 0 " 2D Aspect Ratio "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Aspect {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestaspect elements 1 $::aspect3d 2 4 0 " 3D Aspect Ratio "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Skew {} {
*clearmarkall 1
*clearmarkall 2
*createmark elements 1 "displayed"
*elementtestskew elements 1 $::skew 2 2 0 " 2D Skew "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc TetCollapse {} {
*clearmarkall 1
*clearmarkall 2
*createmark elements 1 "displayed"
*elementtesttetracollapse elements 1 $::tetcollapse 2 0 " 3D Tetra Collapse "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MinLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::minlength 2 1 2 0 " 2D Length < "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MaxLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::maxlength 2 0 2 0 " 2D Length > "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MinLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::minlength3d 2 1 4 0 " 3D Length < "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MaxLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::maxlength3d 2 0 4 0 " 3D Length > "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Jacobian {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestjacobian elements 1 $::jacobian 2 2 0 " 2D Jacobian "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Jacobian {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestjacobian elements 1 $::jacobian3d 2 4 0 " 3D Jacobian "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc TriaMinAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::triaminangle 1 2 1 2 0 " 2D Tria Min Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc TriaMaxAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::triamaxangle 1 2 0 2 0 " 2D Tria Max Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc QuadMinAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::quadminangle 0 2 1 2 0 " 2D Quad Min Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc QuadMaxAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::quadmaxangle 0 2 0 2 0 " 2D Quad Max Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
TCL COMMAND EXPLANATION:-

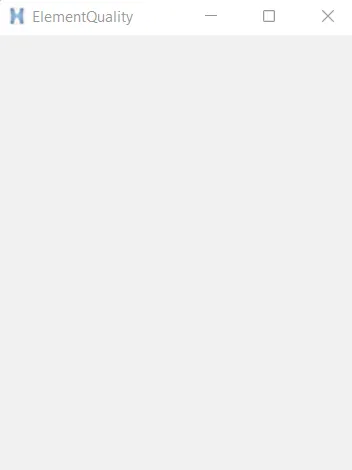

set a .window
catch {destroy $a}
toplevel $a -class toplevel
wm title $a "ElementQuality"
wm geometry $a 360x440+100+200

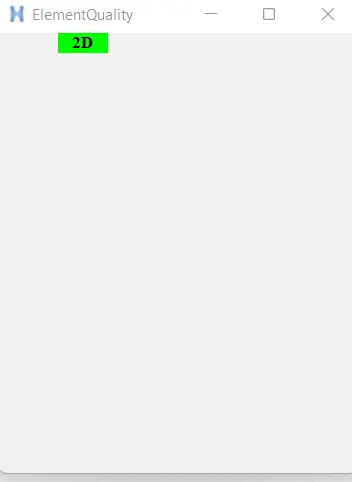

label $a.21 -text "2D" -bg green -font {times 10 bold}; place $a.21 -x 60 -y 00 -width 50 -height 20
button $a.01 -text "Warpage" -command "Warpage" -bg grey -font {times 12 bold}; place $a.01 -x 10 -y 30 -width 100 -height 30
entry $a.02 -textvariable ::warpage ; place $a.02 -x 120 -y 30 -width 40 -height 30
button $a.03 -text "Aspect" -command "Aspect" -bg grey -font {times 12 bold}; place $a.03 -x 10 -y 70 -width 100 -height 30
entry $a.04 -textvariable ::aspect ; place $a.04 -x 120 -y 70 -width 40 -height 30

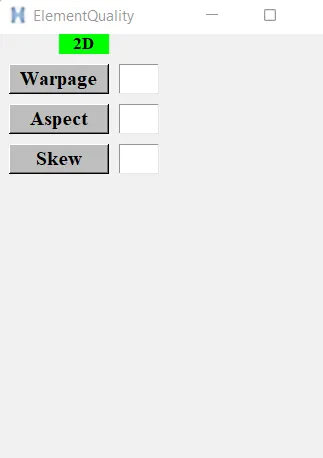

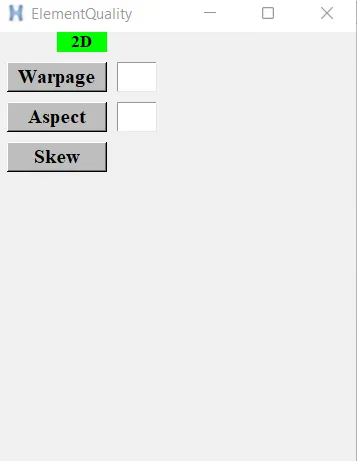

button $a.05 -text "Skew" -command "Skew" -bg grey -font {times 12 bold}; place $a.05 -x 10 -y 110 -width 100 -height 30
entry $a.06 -textvariable ::skew ; place $a.06 -x 120 -y 110 -width 40 -height 30
button $a.07 -text "MinLength" -command "MinLength" -bg grey -font {times 12 bold}; place $a.07 -x 10 -y 150 -width 100 -height 30
entry $a.08 -textvariable ::minlength ; place $a.08 -x 120 -y 150 -width 40 -height 30
button $a.09 -text "MaxLength" -command "MaxLength" -bg grey -font {times 12 bold}; place $a.09 -x 10 -y 190 -width 100 -height 30
entry $a.10 -textvariable ::maxlength ; place $a.10 -x 120 -y 190 -width 40 -height 30

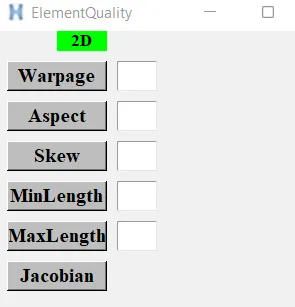

button $a.11 -text "Jacobian" -command "Jacobian" -bg grey -font {times 12 bold}; place $a.11 -x 10 -y 230 -width 100 -height 30
entry $a.12 -textvariable ::jacobian ; place $a.12 -x 120 -y 230 -width 40 -height 30
button $a.13 -text "TriaMinAngle" -command "TriaMinAngle" -bg grey -font {times 11 bold}; place $a.13 -x 10 -y 270 -width 100 -height 30
entry $a.14 -textvariable ::triaminangle ; place $a.14 -x 120 -y 270 -width 40 -height 30
button $a.15 -text "TriaMaxAngle" -command "TriaMaxAngle" -bg grey -font {times 11 bold}; place $a.15 -x 10 -y 310 -width 100 -height 30
entry $a.16 -textvariable ::triamaxangle ; place $a.16 -x 120 -y 310 -width 40 -height 30

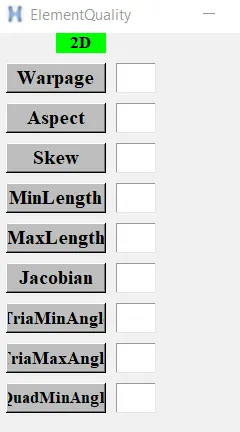

button $a.17 -text "QuadMinAngle" -command "QuadMinAngle" -bg grey -font {times 10 bold}; place $a.17 -x 10 -y 350 -width 100 -height 30
entry $a.18 -textvariable ::quadminangle ; place $a.18 -x 120 -y 350 -width 40 -height 30

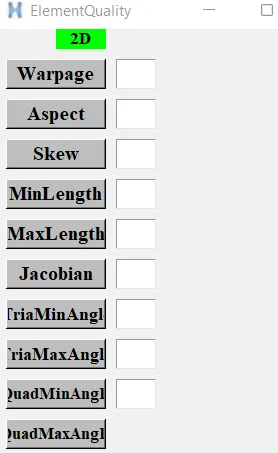

button $a.19 -text "QuadMaxAngle" -command "QuadMaxAngle" -bg grey -font {times 10 bold}; place $a.19 -x 10 -y 390 -width 100 -height 30
entry $a.20 -textvariable ::quadmaxangle ; place $a.20 -x 120 -y 390 -width 40 -height 30

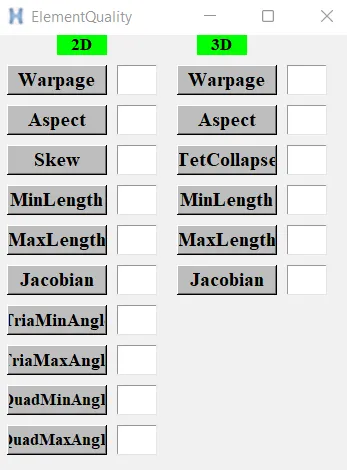

label $a.22 -text "3D" -bg green -font {times 10 bold}; place $a.22 -x 200 -y 00 -width 50 -height 20
button $a.23 -text "Warpage" -command "Warpage3D" -bg grey -font {times 12 bold}; place $a.23 -x 180 -y 30 -width 100 -height 30
entry $a.24 -textvariable ::warpage3d ; place $a.24 -x 290 -y 30 -width 40 -height 30
button $a.27 -text "Aspect" -command "Aspect" -bg grey -font {times 12 bold}; place $a.27 -x 180 -y 70 -width 100 -height 30
entry $a.28 -textvariable ::aspect3d ; place $a.28 -x 290 -y 70 -width 40 -height 30
button $a.29 -text "TetCollapse" -command "TetCollapse" -bg grey -font {times 12 bold}; place $a.29 -x 180 -y 110 -width 100 -height 30
entry $a.30 -textvariable ::tetcollapse ; place $a.30 -x 290 -y 110 -width 40 -height 30
button $a.31 -text "MinLength" -command "MinLength" -bg grey -font {times 12 bold}; place $a.31 -x 180 -y 150 -width 100 -height 30
entry $a.32 -textvariable ::minlength3d ; place $a.32 -x 290 -y 150 -width 40 -height 30
button $a.33 -text "MaxLength" -command "MaxLength" -bg grey -font {times 12 bold}; place $a.33 -x 180 -y 190 -width 100 -height 30
entry $a.34 -textvariable ::maxlength3d ; place $a.34 -x 290 -y 190 -width 40 -height 30
button $a.25 -text "Jacobian" -command "Jacobian" -bg grey -font {times 12 bold}; place $a.25 -x 180 -y 230 -width 100 -height 30
entry $a.26 -textvariable ::jacobian3d ; place $a.26 -x 290 -y 230 -width 40 -height 30
proc Warpage {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestwarpage elements 1 $::warpage 2 2 0 "2D Warpage"
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the warpage of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc Warpage3D {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestwarpage elements 1 $::warpage3d 2 4 0 "3D Warpage"
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the warpage of elements in 3d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc Aspect {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestaspect elements 1 $::aspect 2 2 0 " 2D Aspect Ratio "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the aspect of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc Aspect {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestaspect elements 1 $::aspect3d 2 4 0 " 3D Aspect Ratio "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the aspect of elements in 3d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc Skew {} {
*clearmarkall 1
*clearmarkall 2
*createmark elements 1 "displayed"
*elementtestskew elements 1 $::skew 2 2 0 " 2D Skew "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the skew of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc TetCollapse {} {
*clearmarkall 1
*clearmarkall 2
*createmark elements 1 "displayed"
*elementtesttetracollapse elements 1 $::tetcollapse 2 0 " 3D Tetra Collapse "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the tetcollapse of elements in 3d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc MinLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::minlength 2 1 2 0 " 2D Length < "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the minlength of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc MaxLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::maxlength 2 0 2 0 " 2D Length > "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the maxlength of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc MinLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::minlength3d 2 1 4 0 " 3D Length < "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the minlength of elements in 3d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc MaxLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::maxlength3d 2 0 4 0 " 3D Length > "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the maxlength of elements in 3d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc Jacobian {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestjacobian elements 1 $::jacobian 2 2 0 " 2D Jacobian "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the jacobian of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc Jacobian {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestjacobian elements 1 $::jacobian3d 2 4 0 " 3D Jacobian "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the jacobian of elements in 3d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc TriaMinAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::triaminangle 1 2 1 2 0 " 2D Tria Min Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the mintria angle of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc TriaMaxAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::triamaxangle 1 2 0 2 0 " 2D Tria Max Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the maxtria angle of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc QuadMinAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::quadminangle 0 2 1 2 0 " 2D Quad Min Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the minquad angle of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
proc QuadMaxAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::quadmaxangle 0 2 0 2 0 " 2D Quad Max Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
# Clearing the saved list
# clearing the node list -- temporary nodes
# saving the displayed elements
# checking the max quad angle of elements in 2d elements
# saving the failed elements
# reversing the elements
# creating nodes on the displayed elements
# unmasking the elements
CONCLUSION:-
Finally, the element quality criteria window was created by using Tool Command Language as shown below.
Leave a comment
Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.
Other comments...
Be the first to add a comment
Read more Projects by Ammepalle Gangadhara (61)
Project - 2 - Generating the report for hypermesh file
OBJECTIVE:- This project will test you on the following abilities. Your expertise in the commands that have been taught to you Your ability to research for commands that will do what you intend to do Your skills in excel The final goal is to create an ergonomic and visually appealing excel (.xlsm) report that contains…
25 Nov 2021 10:30 AM IST
Project 1- Building a Master TCL/TK Macro
OBJECTIVE:- Build a master tcl/tk macro It should contain buttons that will call all utilities created as assignments during this course Segregate the buttons as per their utility. Color code the buttons as you see fit. Display labels that indicate an idea of your segregation The design must look ergonomic and clutter…
24 Nov 2021 07:06 AM IST
Week - 12 - Creating the locator, writing and reading the node data
Objective: Connector : Create a macro that builds a GUI containing 4 buttons. Component creator, weld, xloc, yloc, zloc. Upon pressing the buttons corresponding 1D element must be created and moved to the desired collector. Reading nodes from a file : Create a macro that asks a .csv file as input and reads nodes…
24 Nov 2021 03:27 AM IST
Week - 11 - Element quality check
OBJECTIVE:- Create element quality check macro for 2D and 3D elements Create a button for each criteria On pressing the button the elements should be highlighted using temp nodes Entry boxes next to the buttons will accept the quality criteria value To Create TCL for checking element quality criteria 2d and 3d elements…
23 Nov 2021 10:53 AM IST
Related Courses
0 Hours of Content
Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.
Our Company
4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
Top Individual Courses
Top PG Programs
Skill-Lync Plus
Trending Blogs
© 2025 Skill-Lync Inc. All Rights Reserved.
