Creation of geometries by Coordinate system methods using AutoCad
AIM :
To draw a different geometric shape by coordinate system methods using AutoCad.
Introduction :
They are three types,
1. Absolute Coordinate System
2. Relative Coordinate System
3. Polar Coordinate System
In absolute coordinate system, all input points are specified using standard Cartesian coordinates X and Y. Ihe syntax
of absolute coordinate system is [X, Y1.
After locating the first point, your next point can be entered by specifying the next coordinate relative to the first
points. The syntax of relative coordinate system is l@X, Y|.
1. Relative rectangular Coordinate: Rectangular coordinate specify each point in a pair of numerical in x and y axis.In command line it is represented as @X-axis distance,y-axis distance, example @5,10.

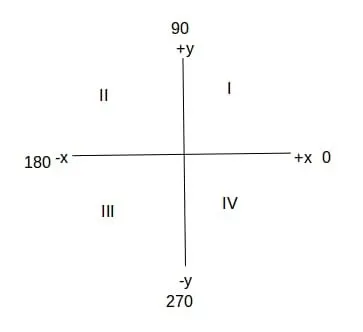

After locating the first point, polar coordinate system can be used when you need to draw the next points at specify
angle. The syntax of polar coordinate system is [@distance<angle].
It is another popular method used for drawing different shapes/geometries in AutoCAD. Direct distance entry method enables the user to draw an object by simply pointing the cursor in the desired direction and entering the required distance in the command line.
PROCEDURE:
Starting AutoCAD software:
# GIVEN GEOMETRY P1 :

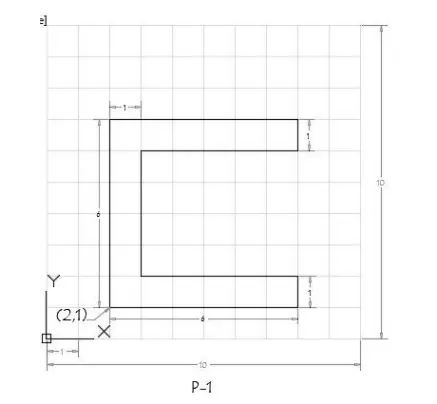

A. Using different coordinate system for P-1 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | ABSOLUTE COORDINATR | RELATIVE RECTANGULAR | RELATIVE POLAR | DIRECT DISTANCE |
1. | 1 as 2,1 | 1 as 2,1 | 1 as 2,1 | 1 as 2,1 |
2. | 2 as 8,1 | 2 as @6,0 | 2 as @6<0 | 2 as 6 (+ve x-axis) |
3. | 3 as 8,2 | 3 as @0,1 | 3 as @1<90 | 3 as 1 (+ve y-axis) |
4. | 4 as 3,2 | 4 as @-5,0 | 4 as @5<180 | 4 as 5 (-ve x-axis) |
5. | 5 as 3,6 | 5 as @0,4 | 5 as @4<90 | 5 as 4 (+ve y-axis) |
6. | 6 as 8,6 | 6 as @5,0 | 6 as @5<0 | 6 as 5 (+ve x-axis) |
7. | 7 as 8,7 | 7 as @0,1 | 7 as @1<90 | 7 as 1 (+ve y-axis) |
8. | 8 as 2,7 | 8 as a-6,0 | 8 as @6<180 | 8 as 6 (-ve x-axis) |
9. | Click 'Close' on the command line. | Click 'Close' on the command line. | Click 'Close' on the command line. | Click 'Close' on the command line. |
RESULT :

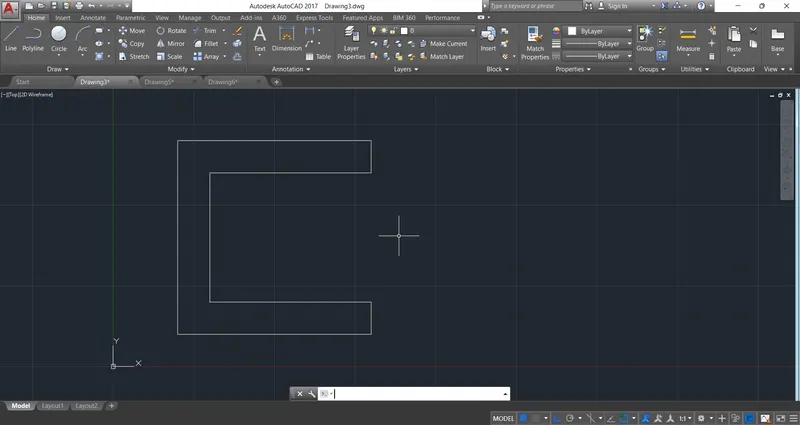

1. Absolute Coordinate System :
2. Relative Coordinate System :
3. Polar Coordinate System :
4. Direct distance entry method :
# GIVEN GEOMETRY P2 :

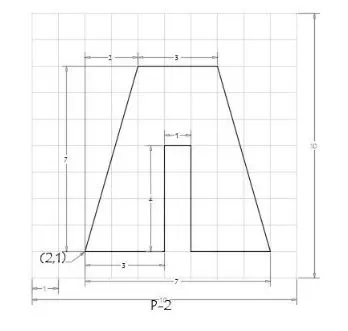

B. Using different coordinate system for P-2 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | ABSOLUTE COORDINATR | RELATIVE RECTANGULAR | RELATIVE POLAR | DIRECT DISTANCE |
1. | 1 as 2,1 | 1 as 2,1 | 1 as 2,1 | 1 as 2,1 |
2. | 2 as 5,1 | 2 as @3,0 | 2 as @3<0 | 2 as 3 (+ve x-axis) |
3. | 3 as 5,5 | 3 as @0,4 | 3 as @4<90 | 3 as 4 (+ve y-axis) |
4. | 4 as 6,5 | 4 as @1,0 | 4 as @1<0 | 4 as 1 (+ve x-axis) |
5. | 5 as 6,1 | 5 as @0,-4 | 5 as @4<270 | 5 as 4 (-ve y-axis) |
6. | 6 as 9,1 | 6 as @3,0 | 6 as @3<0 | 6 as 3 (+ve x-axis) |
7. | 7 as 7,8 | 7 as @-2,7 | 7 as @7<108 | 7 as 7 (+ve X-axis) |
8. | 8 as 4,8 | 8 as @-3,0 | 8 as @6<180 | 8 as 3 (-ve x-axis) |
9. | Click 'Close' on the command line. | Click 'Close' on the command line. | Click 'Close' on the command line. | Click 'Close' on the command line. |
RESULT :

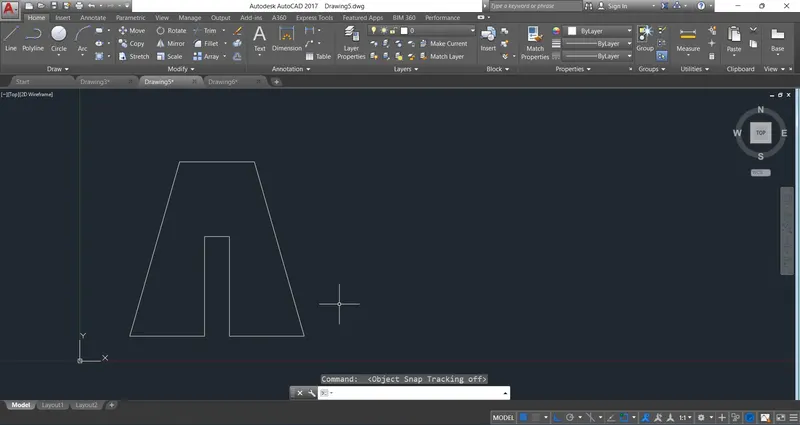

1. Absolute Coordinate System :
2. Relative Coordinate System :
3. Polar Coordinate System :
4. Direct distance entry method :

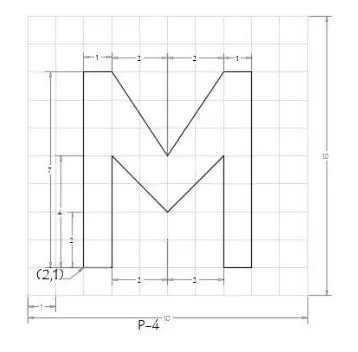

# GIVEN GEOMETRY P4 :
C. Using absolute coordinate system for P-4 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | ABSOLUTE COORDINATR |
1. | 1 as 2,1 |
2. | 2 as 3,1 |
3. | 3 as 3,5 |
4. | 4 as 5,3 |
5. | 5 as 7,5 |
6. | 6 as 7,1 |
7. | 7 as 8,1 |
8. | 8 as 8,8 |
9. | 9 as 7,8 |
10. | 10 as 5,5 |
11. | 11 as 3,8 |
12. | 12 as 2,8 |
13. | Click 'Close' on the command line. |
RESULT :
1. Absolute Coordinate System :

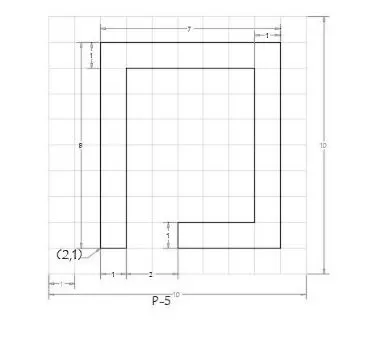

# GIVEN GEOMETRY P5 :
D. Using relative rectangular coordinate system for P-5 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | Relative rectangular |
1. | 1 as 2,1 |
2. | 2 as @1,0 |
3. | 3 as @0,7 |
4. | 4 as @5,0 |
5. | 5 as @0,-6 |
6. | 6 as @-3,0 |
7. | 7 as @0,-1 |
8. | 8 as @4,0 |
9. | 9 as @0,8 |
10. | 10 as @-7,0 |
11. | Click 'Close' on the command line. |
RESULT :

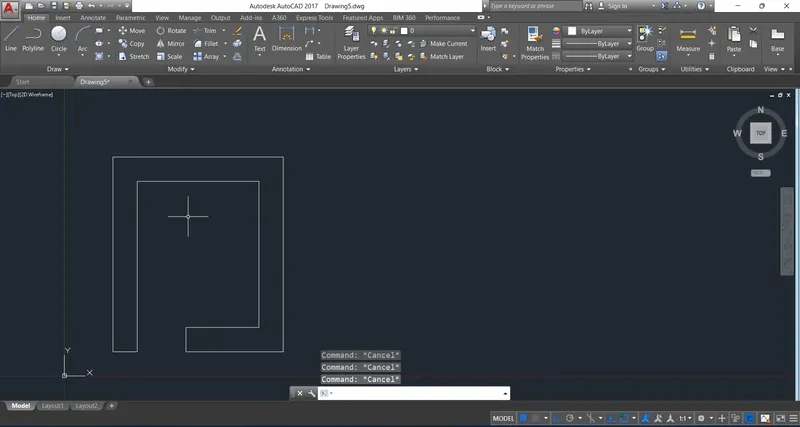

1. relative rectangular Coordinate System :
# GIVEN GEOMETRY P7 :

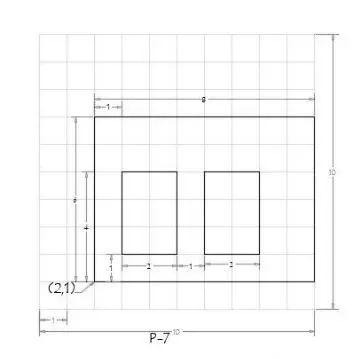

E. Using absolute coordinate system for P-7 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | Absolute coordinate |
1. | 1 as 2,1 |
2. | 2 as 10,1 |
3. | 3 as 10,7 |
4. | 4 as 2,7 |
5. | Click 'Close' on the command line. |
6. | 5 as 3,2 |
7. | 6 as 5,2 |
8. | 7 as 5,5 |
9. | 8 as 3,5 |
10. | Click 'Close' on the command line. |
11. | 9 as 6,2 |
12. | 10 as 8,2 |
13. | 11 as 8,5 |
14. | 12 as 6,5 |
15. | Click 'Close' on the command line. |

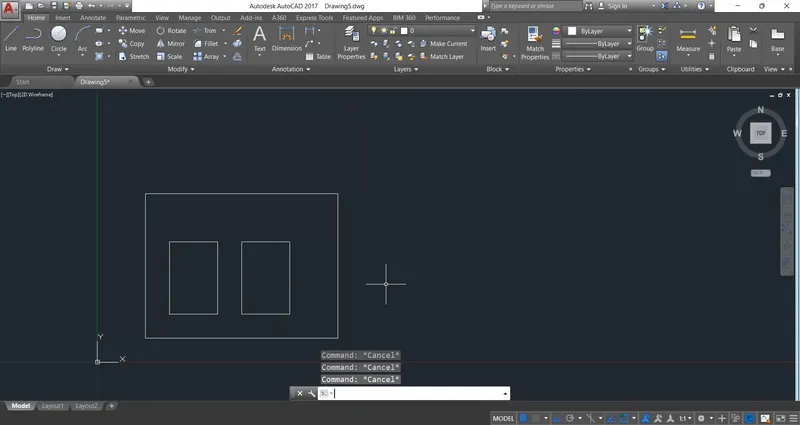

RESULT :
1. Absolute Coordinate System :

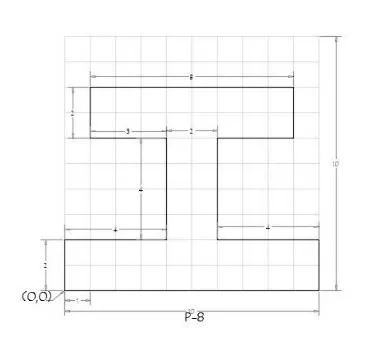

# GIVEN GEOMETRY P8 :
F. Using relative rectangular coordinate system for P-8 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | Relative rectangular |
1. | 1 as 0,0 |
2. | 2 as @10,0 |
3. | 3 as @0,2 |
4. | 4 as @-4,0 |
5. | 5 as @0,4 |
6. | 6 as @3,0 |
7. | 7 as @0,2 |
8. | 8 as @-8,0 |
9. | 9 as @0,-2 |
10. | 10 as @3,0 |
11. | 11 as @0,-4 |
12. | 12 as @4,0 |
13. | Click 'Close' on the command line. |
RESULT :
1. Relative rectangular Coordinate System :
# GIVEN GEOMETRY P9 :

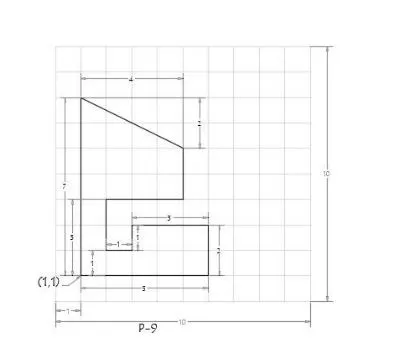

G. Using absolute coordinate system for P-9 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | ABSOLUTE COORDINATR |
1. | 1 as 1,1 |
2. | 2 as 6,1 |
3. | 3 as 6,3 |
4. | 4 as 3,3 |
5. | 5 as 3,2 |
6. | 6 as 2,2 |
7. | 7 as 2,4 |
8. | 8 as 5,4 |
9. | 9 as 5,6 |
10. | 10 as 1,8 |
13. | Click 'Close' on the command line. |
RESULT :

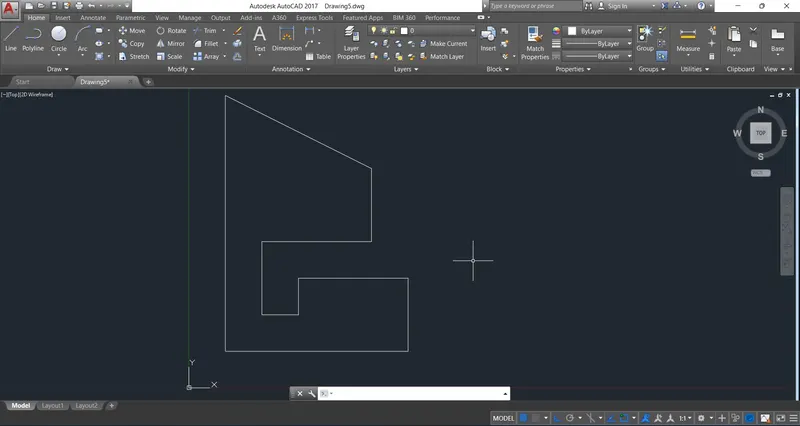

1. Absolute Coordinate System :
# GIVEN GEOMETRY P10 :

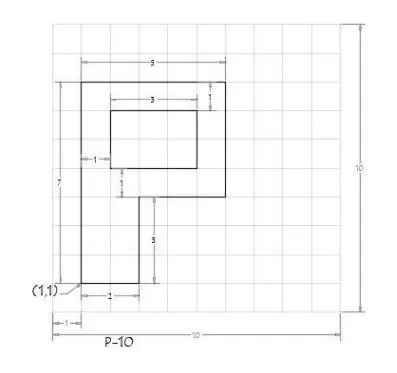

H. Using relative polar coordinate system for P-10 :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | Relative Polar coordinate |
1. | 1 as 1,1 |
2. | 2 as @2<0 |
3. | 3 as @3<90 |
4. | 4 as @3<0 |
5. | 5 as @4<90 |
6. | 6 as @5<180 |
7. | Click 'Close' on the command line. |
8. | 7 as 5,2 |
9. | 8 as @3<0 |
10. | 9 as @2<90 |
11. | 10 as @3<180 |
12. | Click 'Close' on the command line. |
RESULT :
1. Relative rectangular Coordinate System :

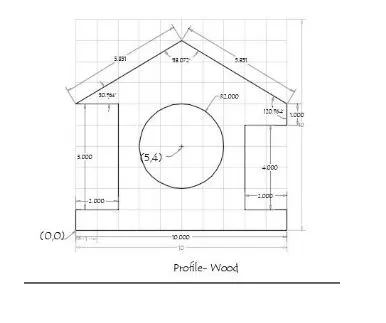

# GIVEN GEOMETRY OF WOOD PROFILE :
I. Using direct distance entry coordinate system for :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN:NO | DIRECT DISTANCE |
1. | 1 as 0,0 |
2. | 2 as 10 (+ve x-axis) |
3. | 3 as 1 (+ve y-axis) |
4. | 4 as 2 (-ve x-axis) |
5. | 5 as 4 (+ve y-axis) |
6. | 6 as 2 (+ve x-axis) |
7. | 7 as 831<149.036 (+ve y-axis) |
8. | 8 as 5.831<210.964 (-ve x-axis) |
9. | 9 as 2 |
10. | 10 as 5 |
11. | 11 as 2 |
12. | Click 'Close' on the command line. |
13. | Select the circle tool by entering the CIRCLE command |
14. | Centre point of circle as 5,4 |
15. | Specify radius of circle 2 |
RESULT :
1. Direct distance entry System :

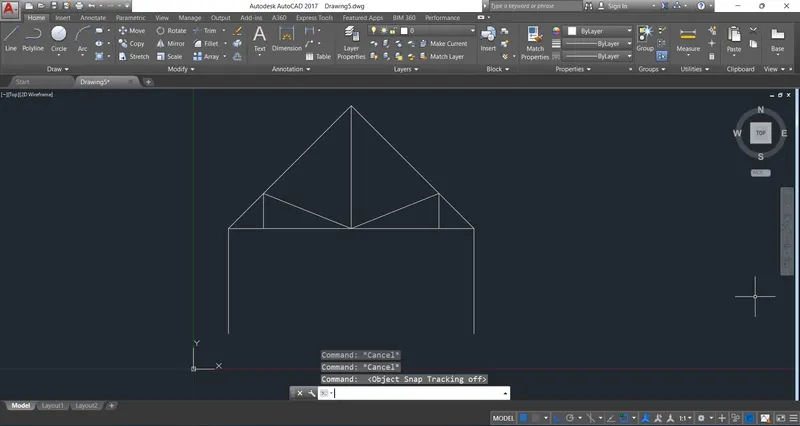

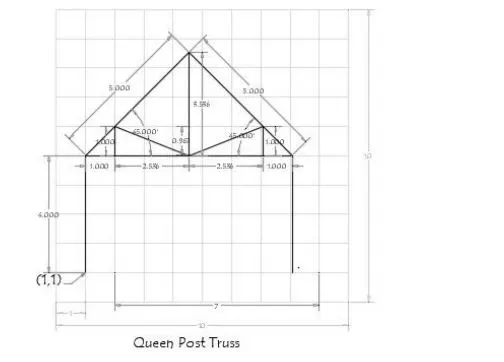

# GIVEN GEOMETRY OF THE QUEEN POST TRUSS :
J. Using relative Rectangular coordinate system for :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | Relative Polar coordinate |
1. | 1 as 1,1 |
2. | 2 as @4,0 |
3. | 3 as @3.536 |
4. | 4 as @3.536,-3.536 |
5. | 5 as @0,-4 |
6. | Press Esc to cancel the line command. |
7. | Select the line tool again by entering line command |
8. | Join the points 2 and 4 |
9. | Press Esc to cancel the line command. |
10. | Select the line tool again by entering line command |
11. | 6 as @4.536,5 |
12. | 7 as @-2.536,1 |
13. | 8 as @0,-1 |
14. | Press Esc to cancel the line command. |
15. | Select the line tool again by entering line command |
16. | 6 as @4.536,5 |
17. | 9 as @2.536,1 |
18. | 10 as @0,-1 |
19. | Press Esc to cancel the line command. |
20. | Select the line tool again by entering line command |
21. | Join points 3 and 6 |
22. | Press Esc to cancel the line command. |
RESULT :
1. Relative rectangular Coordinate System :

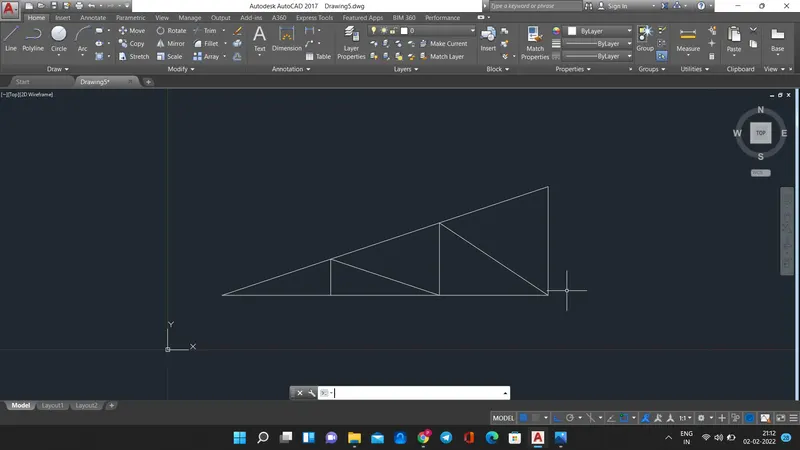

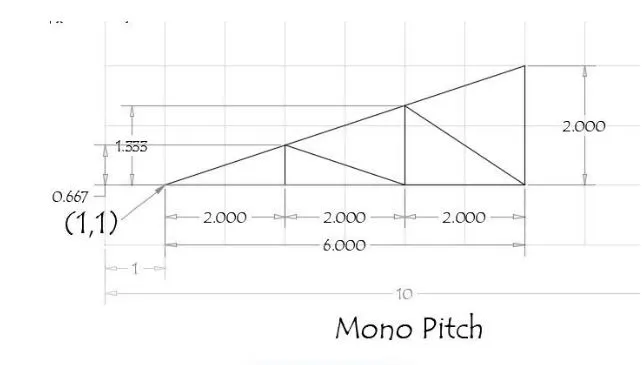

# GIVEN GEOMETRY OF QUEEN MONO PITCH :
K. Using absolute coordinate system for :
# Select the Line tool by entering 'LINE"
# Specify the starting coordinate of point in the command line Given Below
SN.NO | Absolute coordinate |
1. | 1 as 1,1 |
2. | 2 as 7,1 |
3. | 3 as 7,3 |
4. | Click 'Close' on the command line. |
5. | 4 as 3,1 |
6. | 5 as 3,1.667 |
7. | 6 as 5,1 |
8. | 7 as 5,2.333 |
9. | 8 as 7,1 |
10. | Press Esc to cancel the line command. |
RESULT :
1. Absolute Coordinate System :
