Drafting of various geometries using Chamfer, Fillet tool in AutoCad

                                      Drafting of various geometries using Chamfer, Fillet tool in AutoCad

 AIM :

           To determine the drafting of various geometric using chamfer,fillet tool in autocad.

 INTRODUCTION :

• AutoCAD offers various tools to perform different tasks. The various tools which are used for drafting in
• This project are briefly described here.

        These tools include: -

                  Modification tools: Chamfer, Fillet, Offset, Rotate, Object snapping, trim and extend, Lengthen, Mirror, and Join.

  CHAMFER:

    A bevel or chamfer is ;

• An angled line that meets the endpoints of two straight 2D objects.
• A sloped transition between two surfaces or adjacent faces on a 3D solid.

   The distances and angles that you specify are applied in the order that you select the objects.

   Command used: CHAMFER

  FILLET :

• The fillet tool helps form round corners between any two entities that form a sharp vertex.
• A round or fillet can be created between two objects of the same or different object types: 2D polylines, arcs, circles, ellipses, elliptical arcs, lines, rays, splines, xlines.
• If the two selected objects are on the same layer, the arc defined is created on that layer. Otherwise, the arc is created on the current layer. The layer affects object properties including colour and line type.

  OFFSET :

• Creates concentric circles, paralel lines, and parallel Curves.
• Command used: OFFSET.

  ROTATE :

• Used to rotate objects in our drawing around aspecified base point. To determine the angle of rotation, we can enter an angle value, drag using the cursor, or specify a reference angle to align to an absolute angle.
• Command used: ROTATE

  OBJECT SNAP :

• Object snaps provide a way to specify precise locations on objects whenever you are prompted for a point within a command.
• For example, you can use object snaps to create a line from the centre of a circle to the midpoint of another line. The available options are endpoint (end), midpoint (mid), centre (cen), geometric centre (gcen), nearest (nea), quadrant of circle (quad), intersection, perpendicular, tangent, parallel, extension, apparent intersection, nodes, insertion points
• Command used: OS -> Object snap; Shortcut key
• used: F3

  TRIM and EXTENTS :

• Trims objects to meet the edges of other objects.
• Quick Mode. To trim objects, select the objects to be trimmed individually, press and drag to start a freehand selection path, or pick two empty locations to specify a crossing Fence. All objects automatically act as cutting edges. Selected objects that can't be trimmed are deleted instead. Standard Mode. To trim objects, first select the boundaries and press Enter. Then select the objects to be trimmed. To use all objects as boundaries, press Enter at the first Select Objects prompt.
• Command used: TR
• Extends objects to meet the edges of other objects. To extend objects, first select the boundaries. Then press Enter and select the objects that you want to extend. To use all objects as boundaries, press Enter at the first Select Objects prompt.
• Command used: EX

  LENGTHEN :

• Changes the length of objects and the included angle of arcs.
• You can specify changes as a percentage, an
  increment, or as a final length or angle. LENGTHEN is an alternative to using TRIM or ExTEND
• Command used: Lengthen

  MIRROR :

• Create a mirrored copy of selected objects.
• We can create objects that represent half of a drawing,
  select them, and mirror them across a specified line tO create the other half
• Command used: MIRROR

  JOIN :

• Joins the endpoints of linear and curved objects to create a single object. Combines a series of finite linear and open curved objects at their common endpoints to create a single 2D or 3D object. The type of object that results depends on the types of objects selected, the type of object selected first, and whether the objects are coplanar.
• Command used : MIRROR

 PROCEDURE :

  1st drawing :

• Setup the AutoCAD primary units as decimalsas mentioned in the question.
• Invoke the line command by L-> enter
• Use the direct line creation method for straight and direct lines and enter the dimensions given in the question.
• Calculate line angles from the data given in the question.
• Use the relative polar line creation method and give accordant distances and angles that have been calculated.
• Locate the centers of the circles using construction lines.
• Create circles according to the diameters given in the question from the respectively located centers.
• Finish the drawing by running the dimensions and matching them with the one given in the challenge.

RESULT :

  2nd drawing :

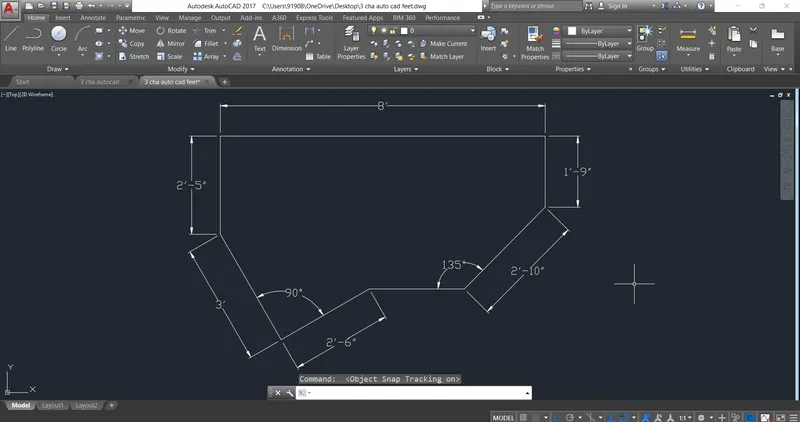

• New sheet -units-architectural-precision-0'0" feet-ok
• slect line tool and draw the lengths statingfrom top line segment of 8' now give linecommand positiong the cursior at 270dgreeswith ortho on 19" enter
• give line command positiong the cursor at 270dgrees with ortho on at first end and draw 2'5" enter.
• Draw the line at 315Sdegrees of 3' at 90 dgree 26" now draw the line 2'10" at 225 dgrees and join the line
  annote and give dimmensions to all the line segments

RESULT :

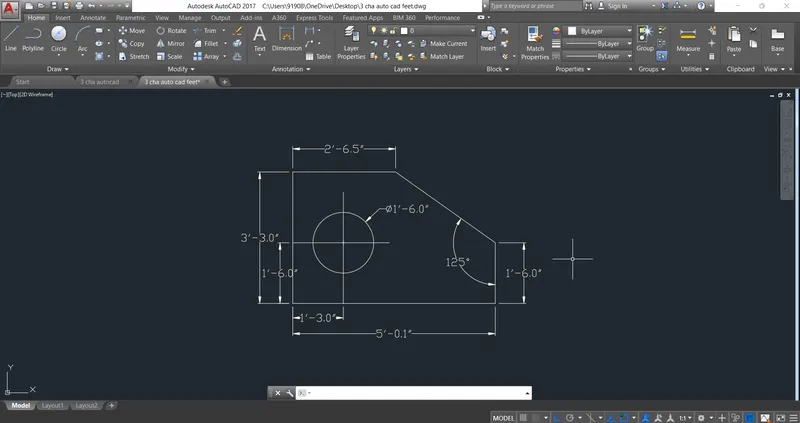

  DRAWING 3:

• Open new file and set engineering and precision to 0-0.0"
• Command line: 2'-6.5" in -ve X-axis, 3-3" in -ve Y- axis, 5-0.1" in +ve X-axis, 1-6.0" in +ve Y-axis and close.
• Command offset: offset 3-3" line at a distanceof 1-3.0" and 5-0.1" at a distance of 1-6.0"
• Command circle: draw a circle of diameter of 1-6.0" from the centre of offsetted lines.
• Command erase: Erase the offsets.

RESULT :

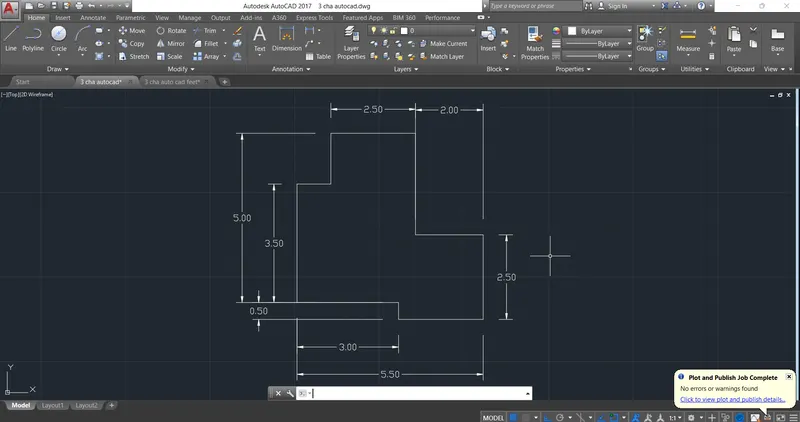

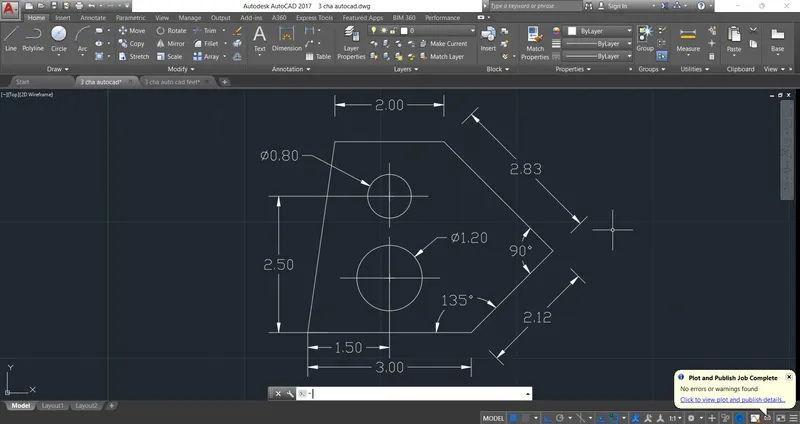

  DRAWING 4:

• New page and select decimals with precision 0.00 while keeping ortho on.
• Command line:Draw 3.00m line in +ve X axis 3.0.50 In -ve Y axis, 2.50m in +ve X axis, 2.50m in +ve Y axis, 2.00m in -ve X axis, 3.0Om in +ve Y axis, 2.5Om in -ve X axis, 2.00m in -ve Y axis, 3.0Om in -ve Y axis and close.

RESULT :

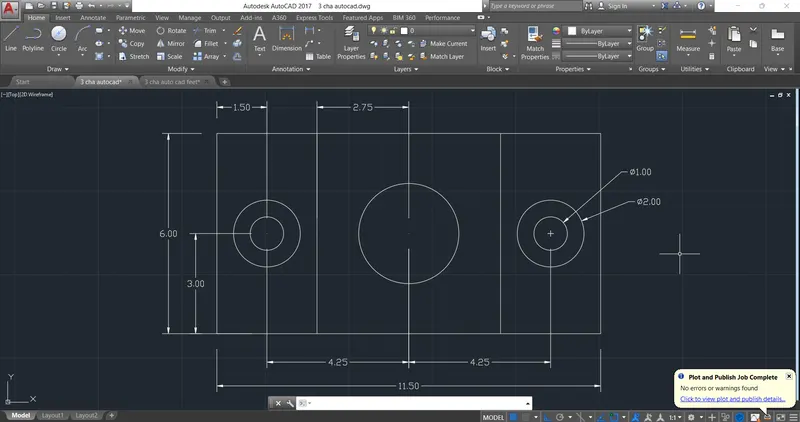

  DRAWING 5:

• New page select decimal and precision 0.00 while keeping ortho on.
• Command line: 6.00m vertical. 11.50m horizontal and 6.00m vertical and 11.5Om horizontal.
• In object snap setting keep midpoint, centre, intersection and geometric centre on.
• Command Circle: Draw circle at the centre with diameter 3.00m
• Command offset: offset 6.00m line at a distance of 3.00m on both sides and offset the 11.5Om line at adistance of 3.00m.
• Command circle: Draw concentric circles at the intersection of the offsetted line of diameter 1.00m and 2.00m on both sides.
• Command erase: Erase the offsets.

RESULT :

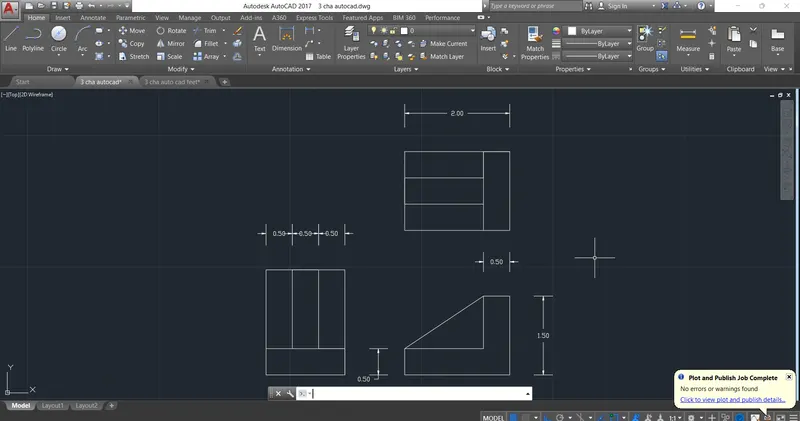

DRAWING 6:

• New page select decimal with precision 0.0.
• Command line:1.Sm horizontal and 1.5m vertical on both sides.
• Command offset offset 1.5m line to O.5m.
• Command divide: Divide 1.5m line into 3 segments.
• Command line-: Join the divided lines.
• In object snap setting keep the Extension On
• COmmand line: Draw 2.0m line and 1.5m line and
• O.5m horizontal on top and In vertical and 1.5m horizontal and O.5m vertical and join the slant line.
• Command line:2.Om horizontal and 1.5m vertical on both sides.
• Command offset: offset 1.5m line to O.5m.
• Command divide: Divide 1.5m line into 3 segments.
• Command line: Join the divided lines.



RESULT :

   DRAWING 7:

• New page and set decimal and precision to 0
• Command line: Drawing 210m horizontal line and 100m vertical line on left side and 75m vertical line on right side, since arc has radius of 35m drawing a line of 70m on left side and has a radius of 25m drawing a line of 5Om on right side.
• Command Arc: From start, end and radius draw an arc of radius 35m on right side and an arc of radius 25m on leh side.
• Command Circle: From midpoint of 7Om line on left side drawa cirle of diameter of 5Om and 30m on right side
• Command offset Offset 21Om line ata distance of 60m.
• Command fillet: Filleting to radius 15m on top right and left and radius of 20m on inner left and radius of 6m on inner right.
• Command offset:offsetting 210m line to !Om and 100m and 75m line to 20m.
• Command rectangle:70m length and width of 30m from off setted line on both sides.
• Command erase: Erasing the otfsetted line and unwanted lines.



RESULT :

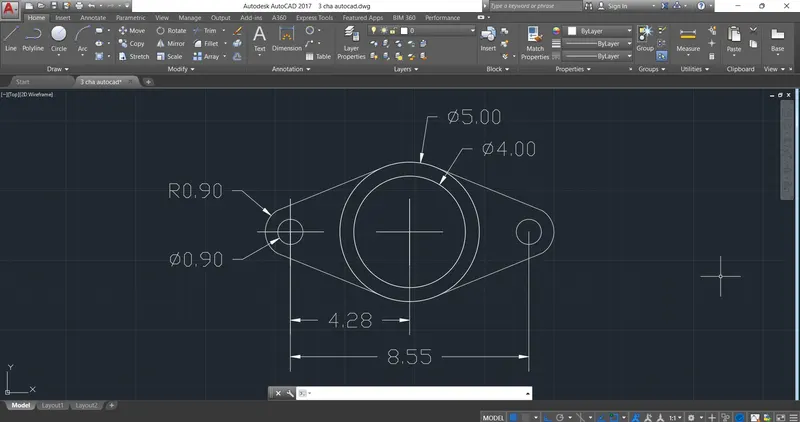

  Drawing 8:

• Open autocad software click on wizard the advance settings and set the units as decimal with precision 0.00 keeping ortho on.
• Set the angle in degree with base angle as east and mark the angle direction in anticlockwise.
• Using circle command: draw concentric circles of diamter 5 units and 4 units.
• Using line command: From the centre point of circle draw 4.275 line on both sides.
• Using circle command: Draw a circle of diameter 0.90 units on both sides.
• Using arc command: from start.end and radius draw an arc of radius 0.90 units on both sides.
• Using command line join the lines to the arc.



RESULT :

  Drawing 9:

• Open autocad software click on wizard the advance settings and set the units as engineering with precision 0.00 keeping ortho on.
• Set the angle in degree with base angle as east and mark the angle direction in anticlockwise.

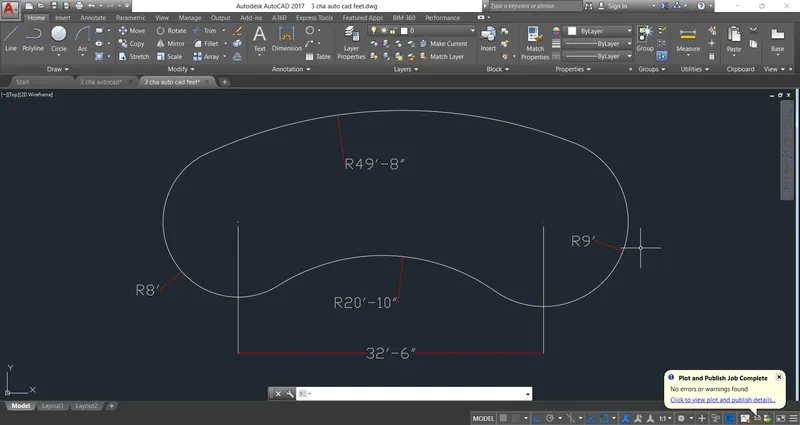

• Using line command: draw a 326" horizontal line.
• Using command circle: draw a circle of radius 8' on left side of line and radius of 9' on right side of line.
• Using arc command: from start,end and radius draw a arc of 418" on top and 2010" on bottom.
• Trim the extra line using trim command.



RESULT :

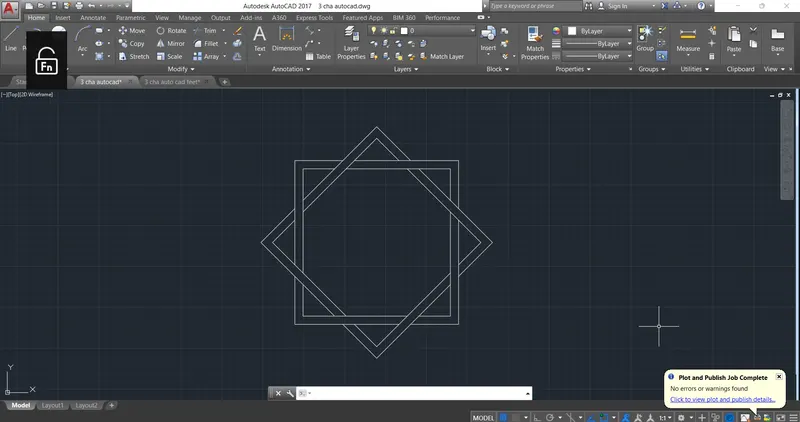

  Drawing 10 :

• Open autocad software click on wizard the advance settings and set the units as engineering with precision 0.00 keeping ortho on.
• Set the angle in degree with base angle as east and mark the angle direction in anticlockwise.
  Using the rectangle command createa rectangle of length =5 units and width-5 units.
  Using offset command: take a offset of 0.2 units outside the rectangle and specify the distance as 0.2 units.
• Create another rectangle of same size as created earlier.
• Using rotate command: rotate the square by specifying the base point and roate it by 45 degree.
• By using object snap place the second square on the centre of first square.



RESULT :

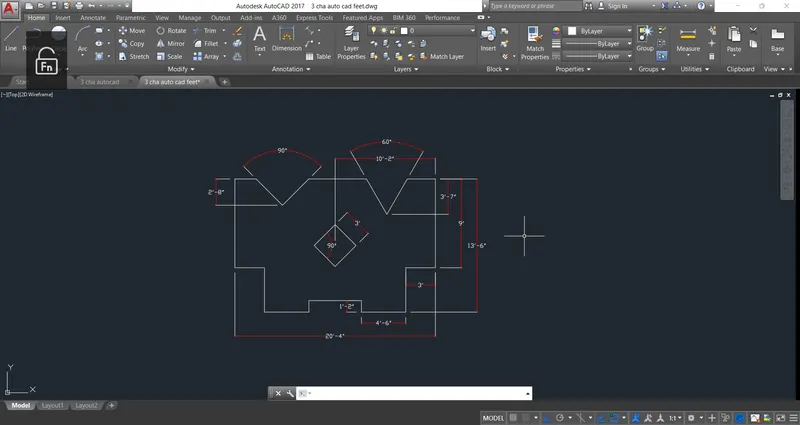

  Drawing 11 :

• Open autocad software click on wizard the advance settings and set the units as engineering with precision 0.00 keeping ortho on.
• Set the angle in degree with base angle as east and mark the angle direction in anticlockwise.
• Using line command: Draw 10'2" horizontal line,9' vertical line,3' horizontal line,4'6" vertical and horizontal line and 12" vertical line.
• Using mirror command: mirror the above lines at center axis.
• Using offset command: offset the 204" to a distance of 6'9" and 13'6" to a distance of 10'2"
• Using rectangle command: draw a rectangle of length and width 23 from the centre of offsetted line.
• Using rotate command: rotate the rectangle by 45 degrees.
• Using offset command: offset 204" line to a distance of 28" with polar tracking on and draw an angle of 90 degrees.Offset 20'4" line to a distance of 37" with polar tracking on draw an angle of 60 degrees.
  Trim the extra lines using trim command.

RESULT :

•
