To Design RC column and beam for RC residential structure using TSD

1.) Based on the analysis design RC column and beam.

AIM :

  To Based on the analysis design RC column and beam.

INTRODUCTION :

An ordinary reinforced concrete beam or the column itself is an inhomogeneous section composed of concrete and reinforcement, whose behavior is totally different.

A reinforced concrete column is a structural member designed to carry compressive loads, composed of concrete with an embedded steel frame to provide reinforcement.

PROCEDURE :

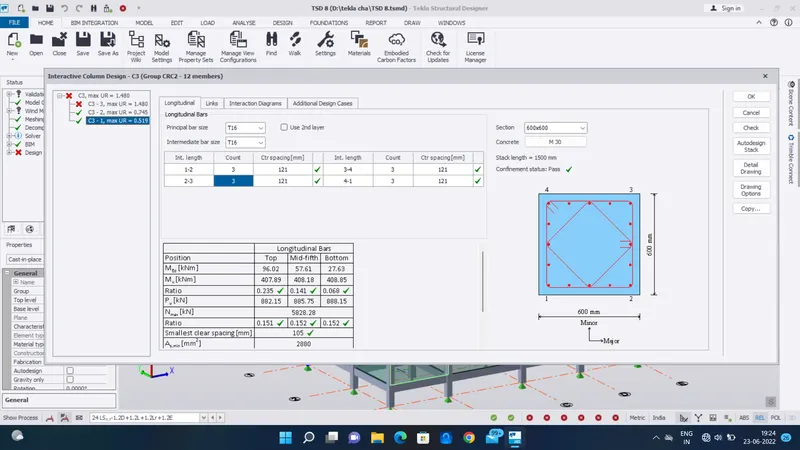

 DESIGN THE COLUMN :

• Open the tekla software and open previous file
• After analysis the model

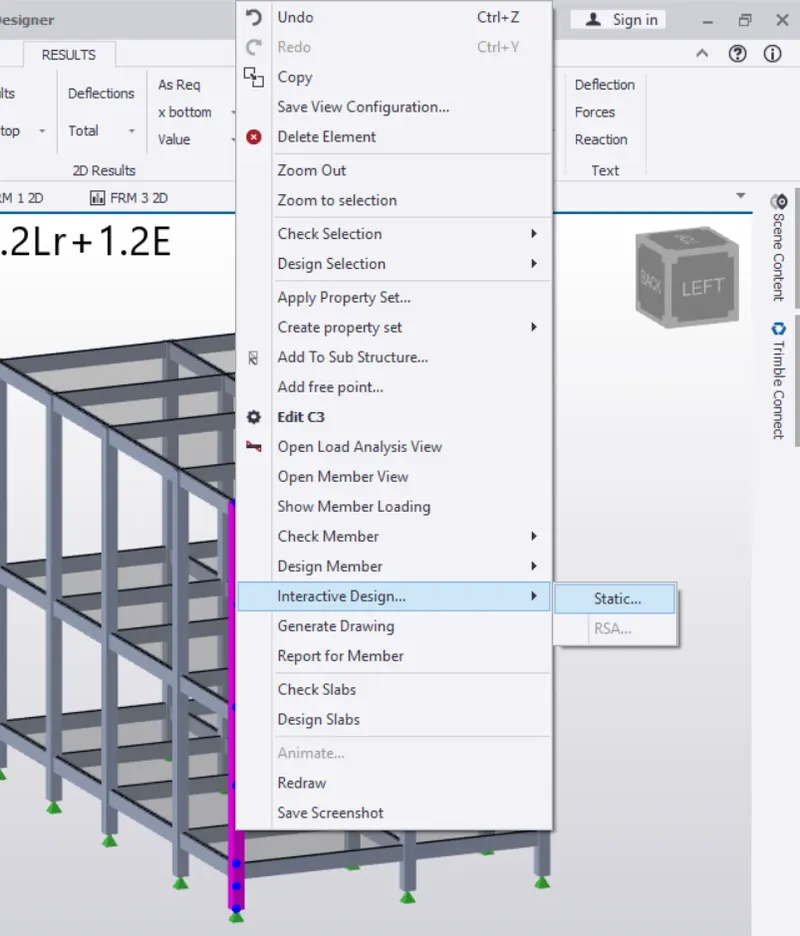

• Select the column and right click

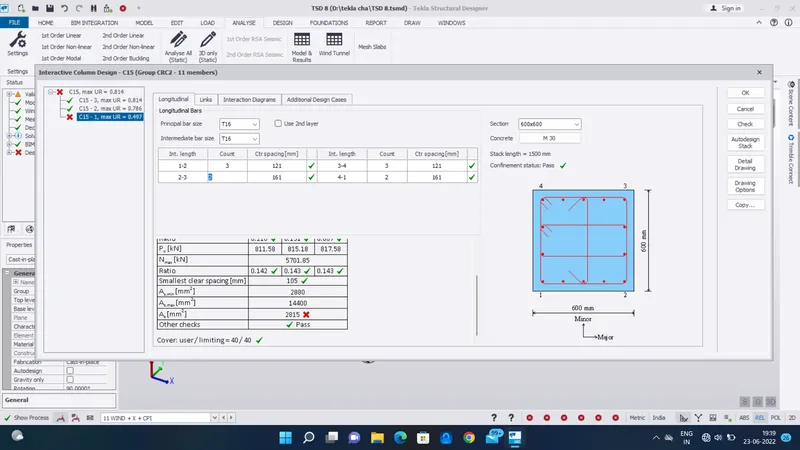

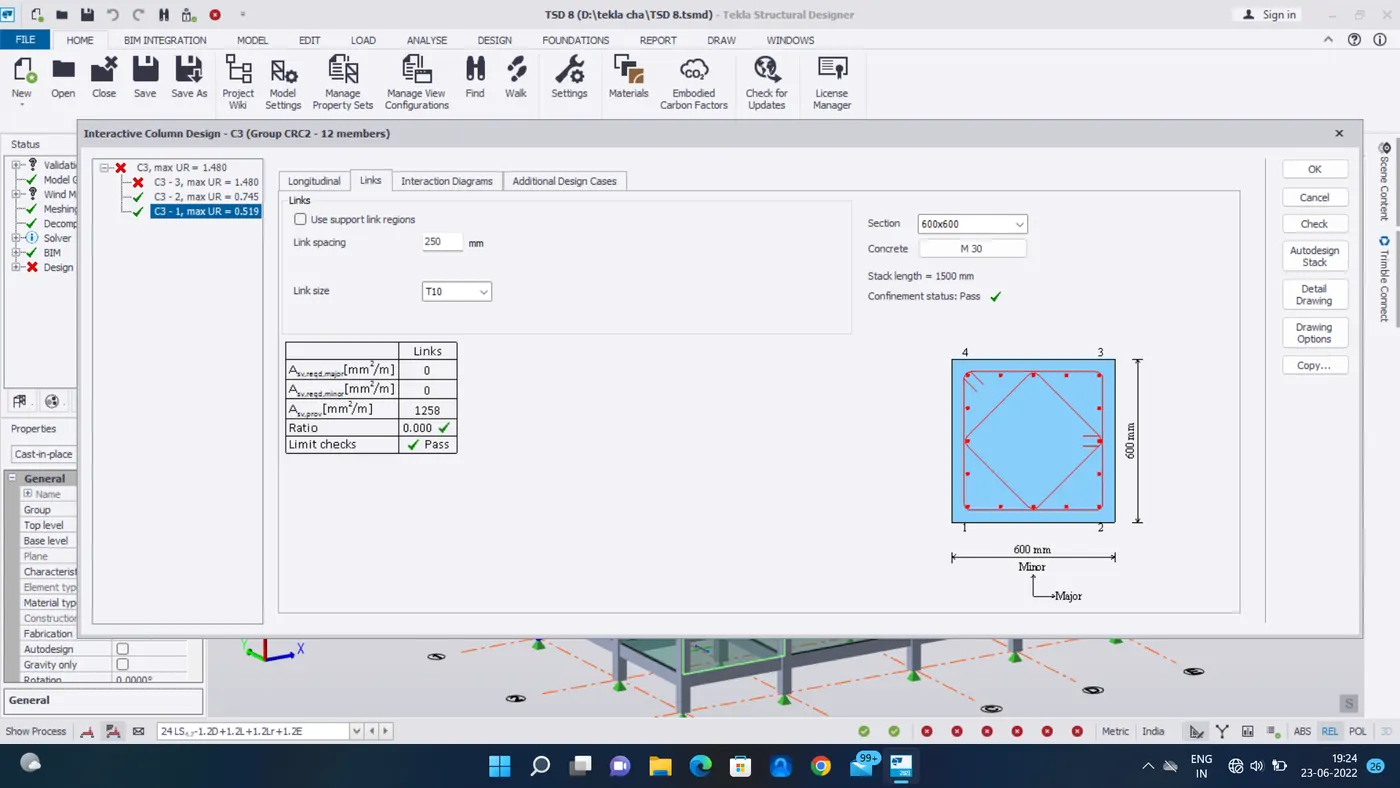

• select the interactive design --> static
• First we want to check the errors
• And they have any errors shown

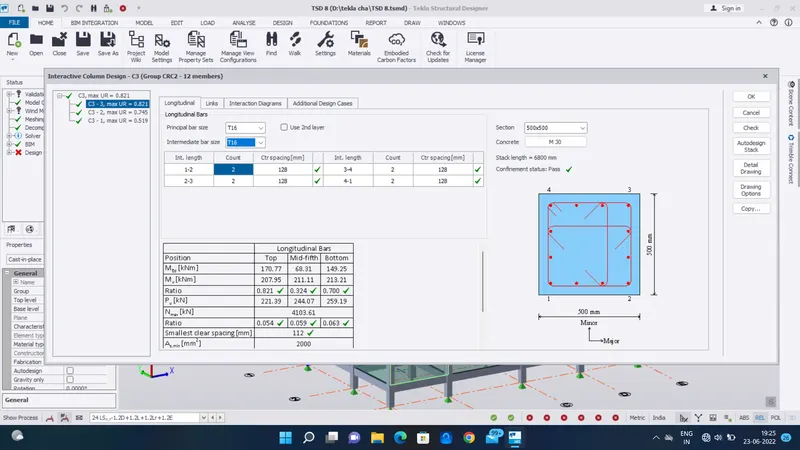

• first change the principle bar size and intermidetate bar size
• Again shows errors means just change the counts

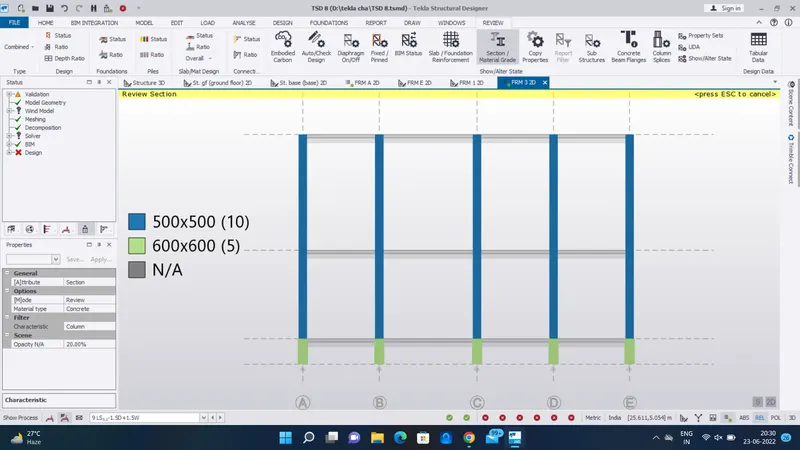

• And again shows errors change the section size
• Repeat the same procedure for all the columns
• The procedure process image as been given below

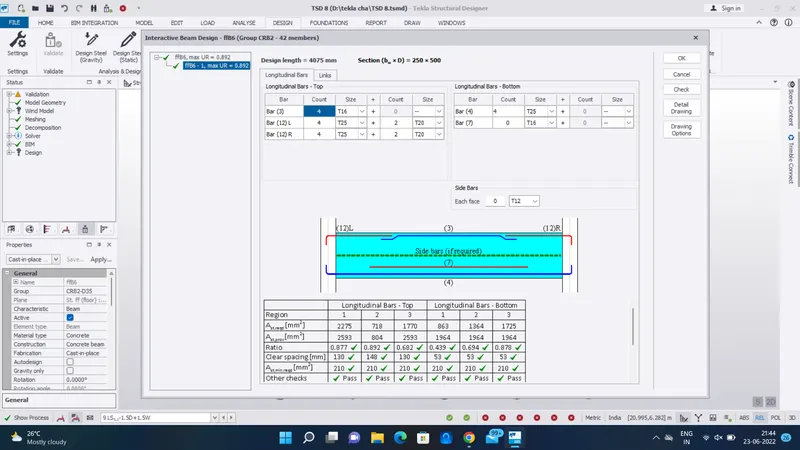

 DESIGN THE BEAM :

• Here we want to adjust the beam designs

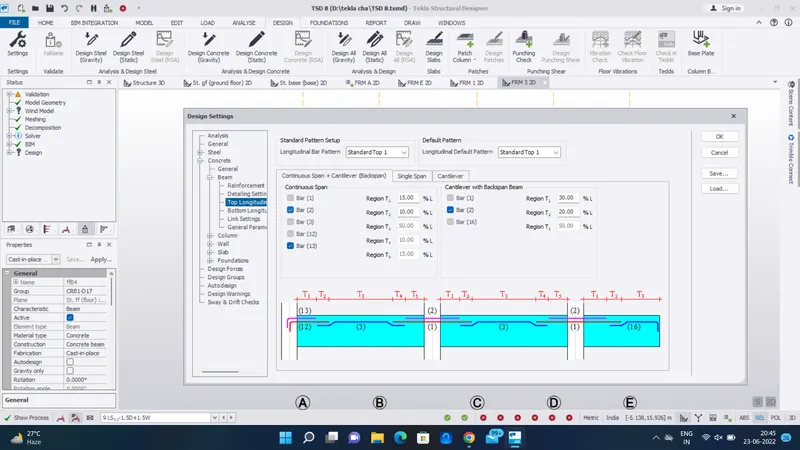

• First go to the design setting under the design tab
• Go to the concrete --> Beam --> Top longitudinal bar --> select the (Bar 2)

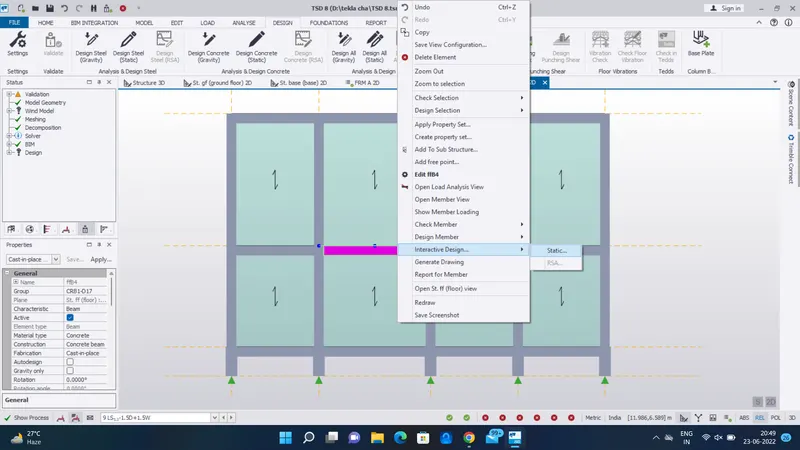

• Select the beam and right click

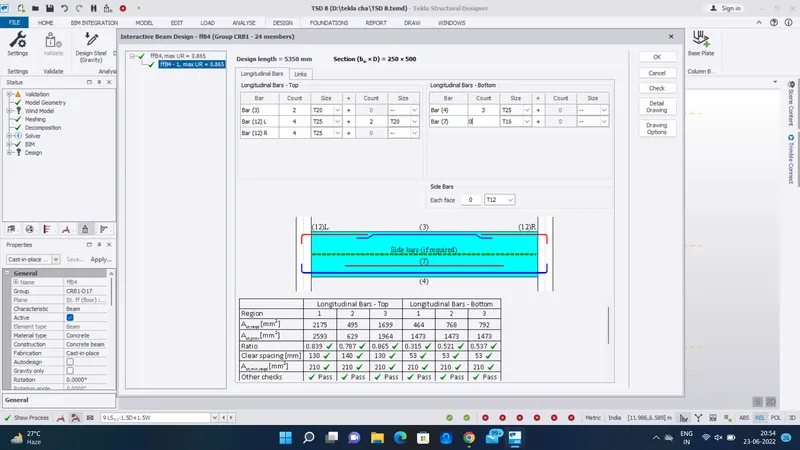

• select the interactive design --> static
• First we want to check the errors
• And they have any errors shown

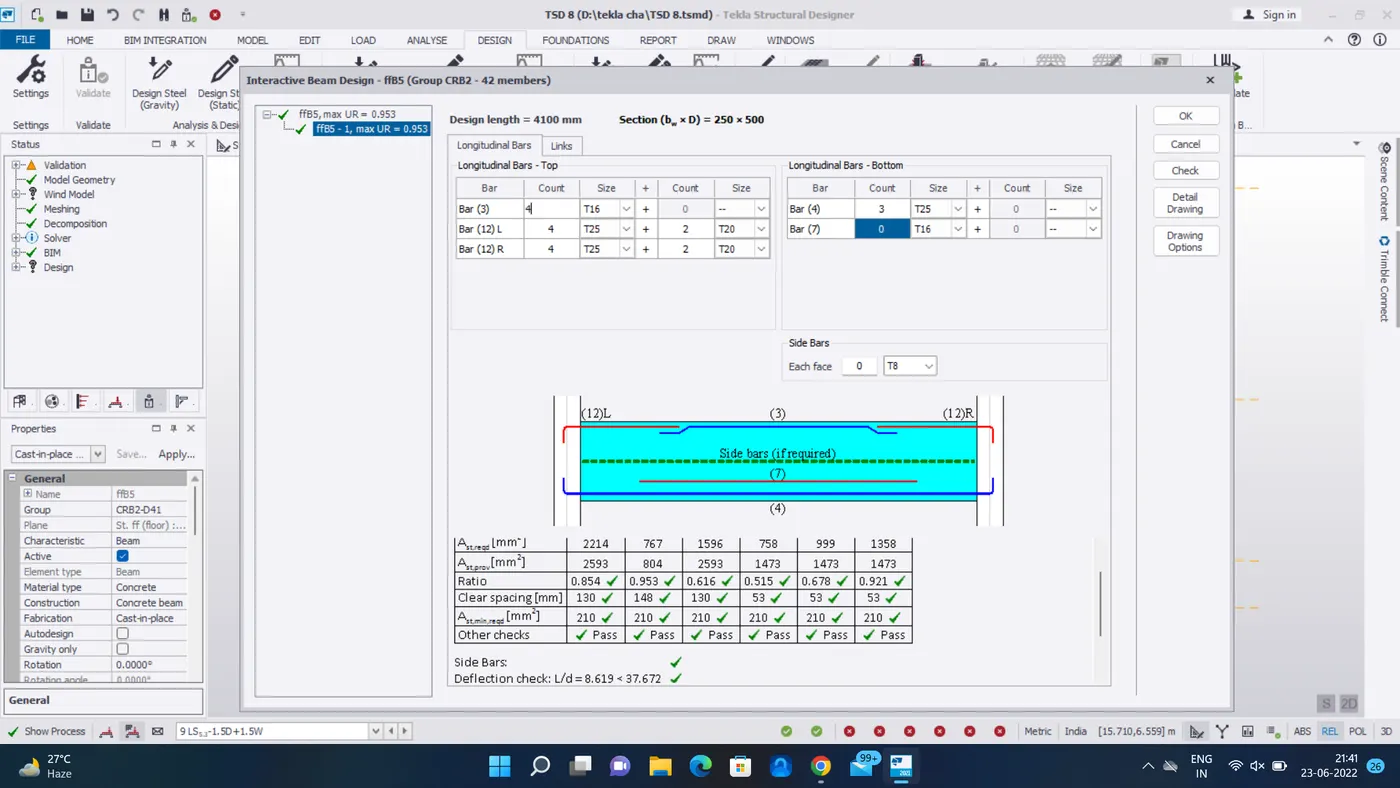

• First adjust the size and count still the beam as been passed
• Repeat the same procedure for all the beams

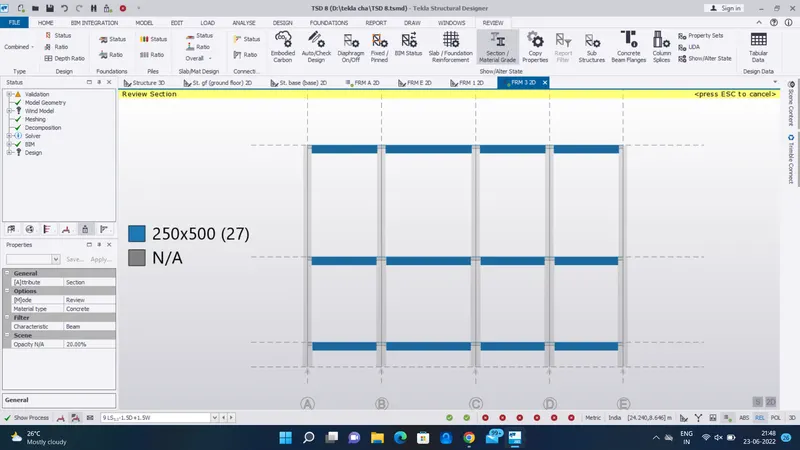

• After finish all the beams we want select the status and we check the member are all passed

RESULT :

 As per the question

 To Based on the analysis design RC column and beam as completed.
