Calculation of Stiffness in Structural elements
Question 1: Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc Question 2: For the following structures: Determine the number of degrees-of-freedom for dynamic analysisEstablish the equation of…
Srinivasa Nataraja
updated on 31 May 2021
Question 1:

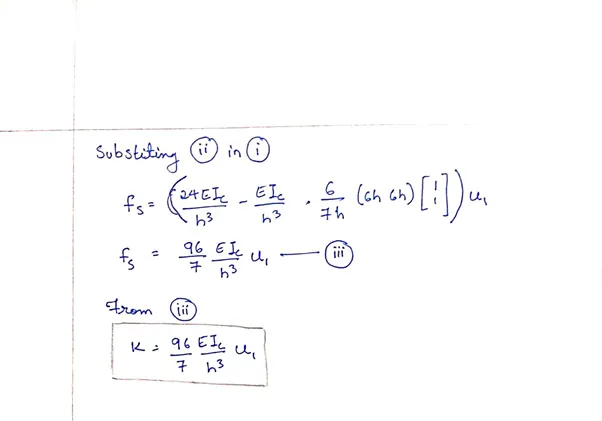

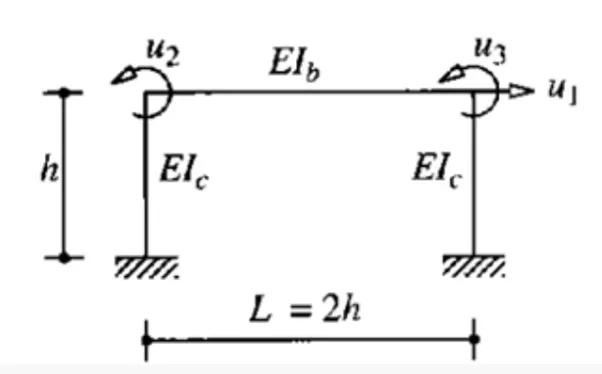

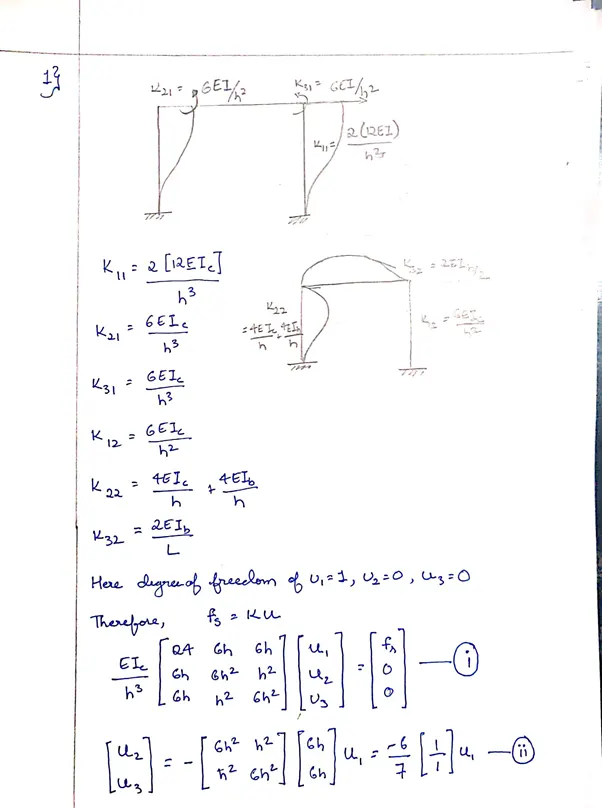

Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc
Question 2:

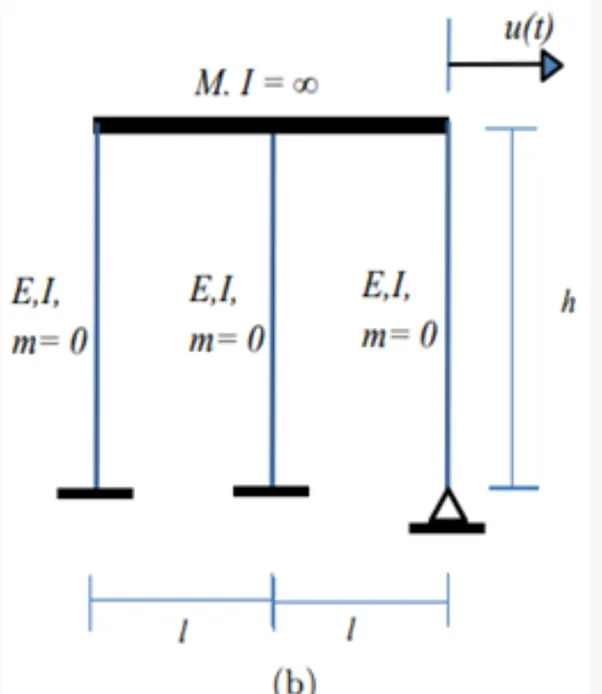

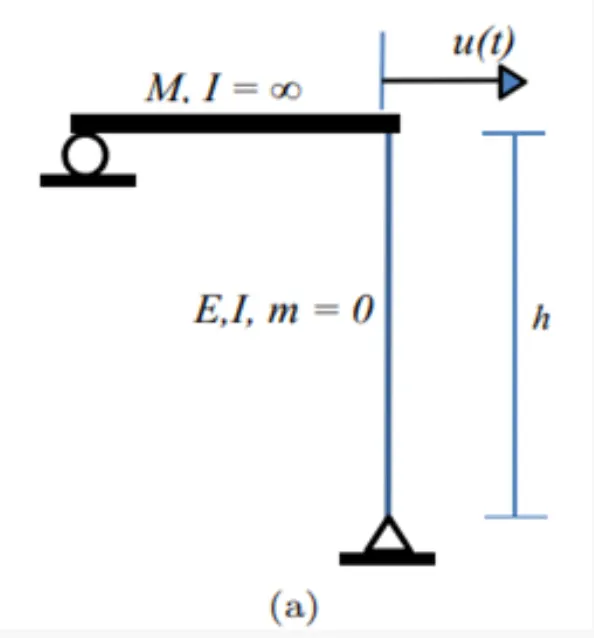

For the following structures:

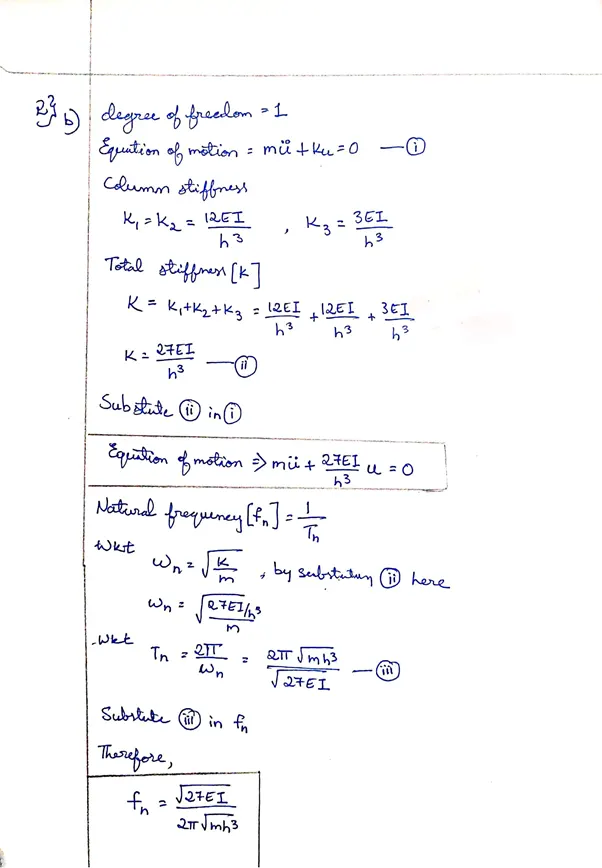

Determine the number of degrees-of-freedom for dynamic analysis

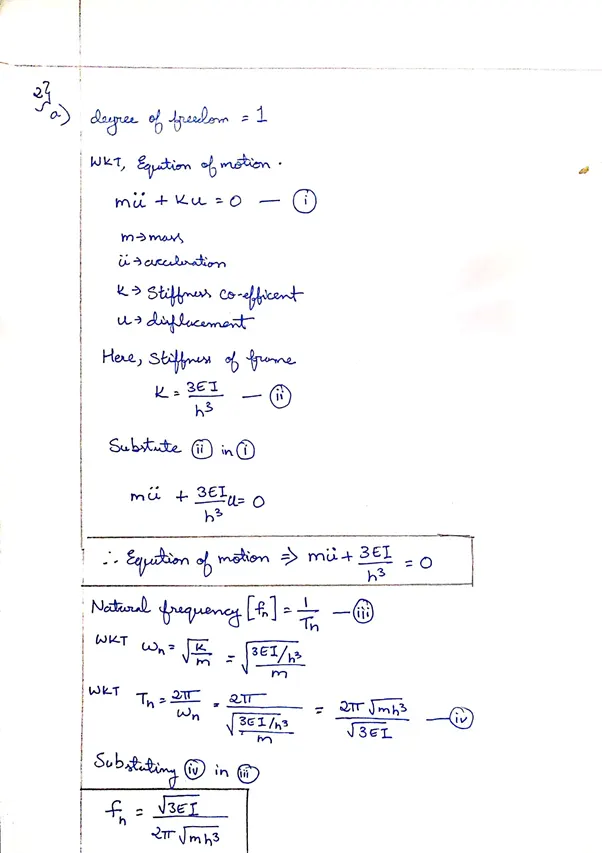

Establish the equation of motion
Calculate their natural frequencies
Question 3:

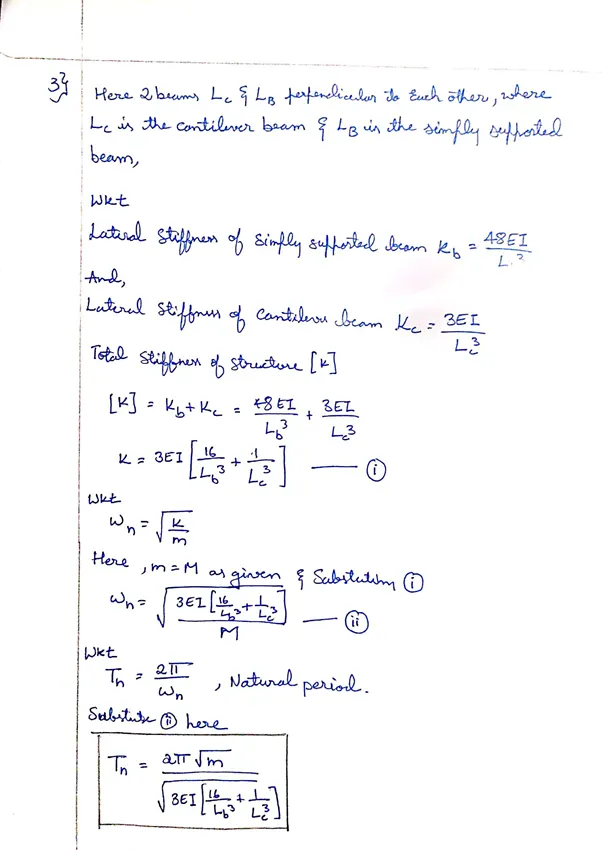

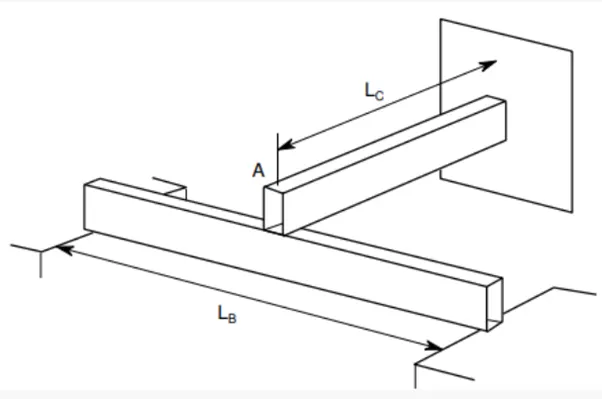

Consider the propped cantilever shown in the figure below. The beams are made from the same steel section and have lengths as shown on the diagram. Determine the natural period of this system if a large mass, M, is placed at the intersection of the beams at point A. The weight of the beams in comparison with the mass M is very small.
Question 4

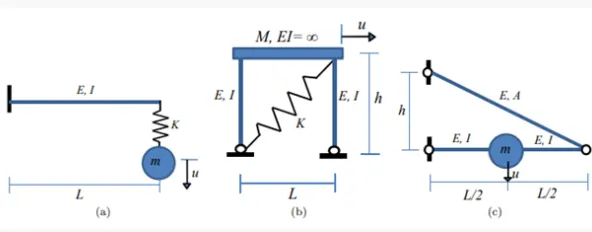

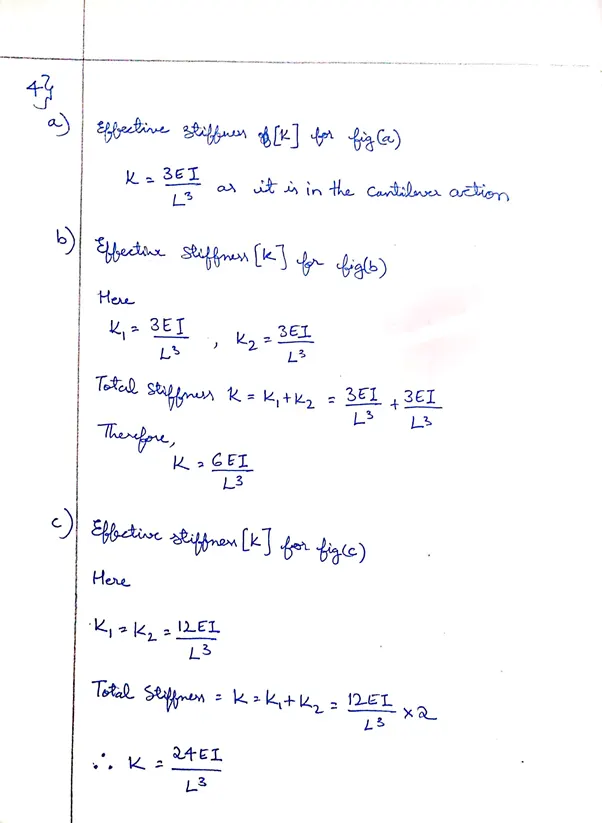

Determine an expression for the effective stiffness of the following systems:
