Week 2 Challenge

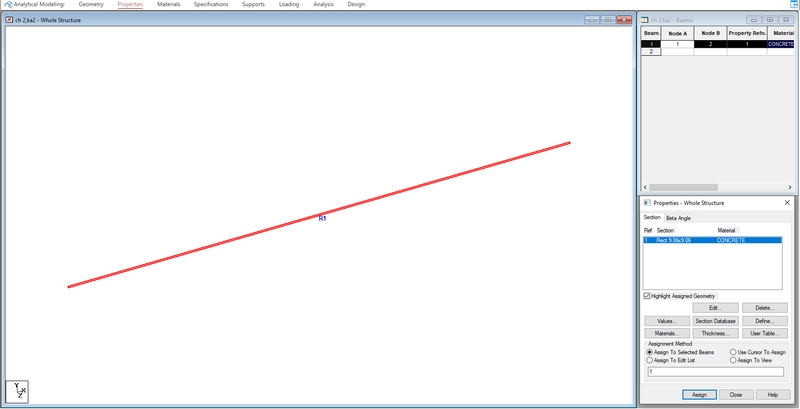

1. 1. How will you assign Circular

section to column?



ans-

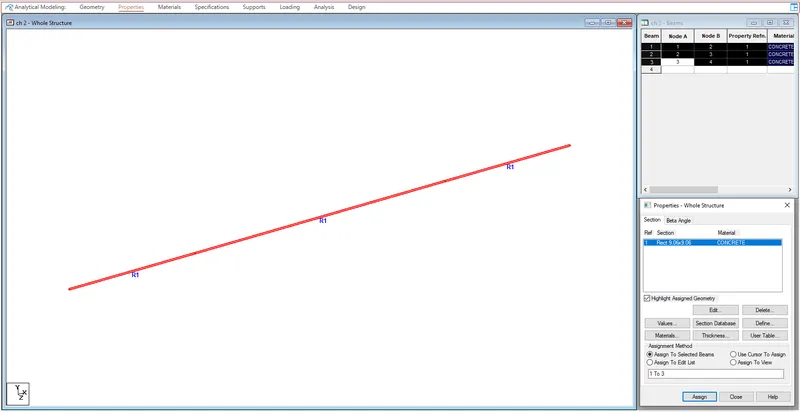

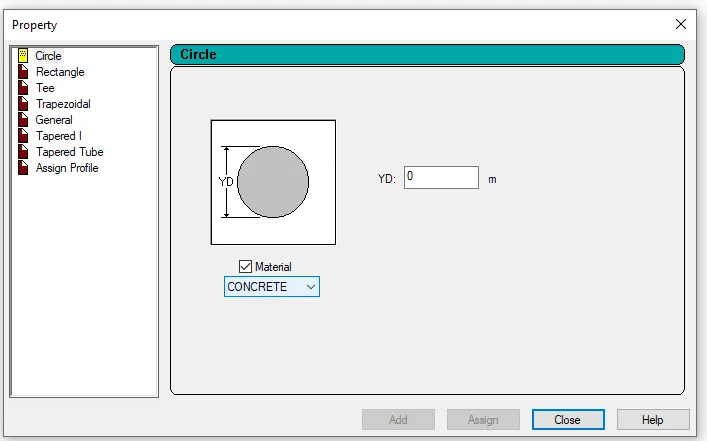

go to properties

assign circular shape of column

next close

RESULT -

CIRCULAR SECTION OF column is assign .

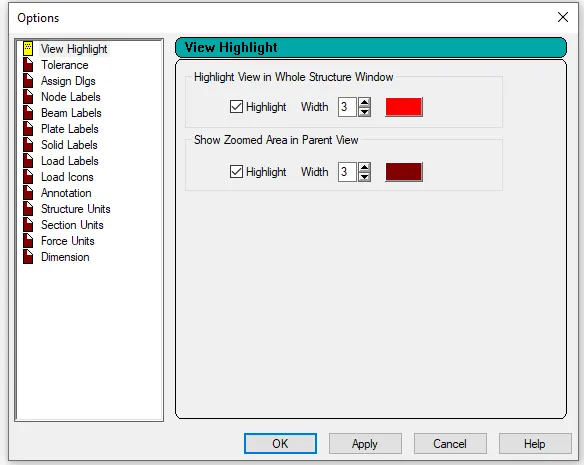

    2. How will you assign Unit

system to a .std model file?



GO to menu > Settings

-open structural seetings

-change in here dimesions



    3. What are the parameters to be

specified while using “Bay Frame” option?



-by clicking structural wizard option

-click frame model and the way frame

-enter parameter like length ,bredth

height ,and  bay frame along length ,

width , and height .





    4. Name few codal standards incorporated

in STAAD Pro software.



IS  456 : 2000

IS 13920-2016

IS 875 -1987

IS 800 -2007

IS 1893 -2016

    5. How will you specify the design

compressive strength for a RCC section?



GO to design option > click define parameter

click Fc . give value - 25000 KNM.







 2. 1. State the “Input” steps involved in RCC design.

ans-

1.GEOMETRY -

Give node location  and spacing



2.properties -

give  properties in here



3.MATERIAL

PROVIDED SPECIFIED MATERIAL AS LIKE CONCERETE .

4. SPECIFICATION .

5.SUPPORT PROVIDED

6.PROVIDED LOADING PATTERN OR LOADING COMBINATION .

7.ANALYSIS AND

8.DESIGN

    2. Explain the difference between Fixed

and Enforced support condition in STAADPro.



 FIXED SUPPORT IN HERE DEGREES OF

FREEDOM IS FULLY RESTRAINED



-ENFORCED CONDITION - degree of

freeedom is free to displace , in

here ends of support free to allow

to move or rotate.

hense all  6  ldegree of freedom

moments are calculated in here .





 3. 1. Explain the steps involved in

analysis of a model using STAAD Pro sequentially.



ans-

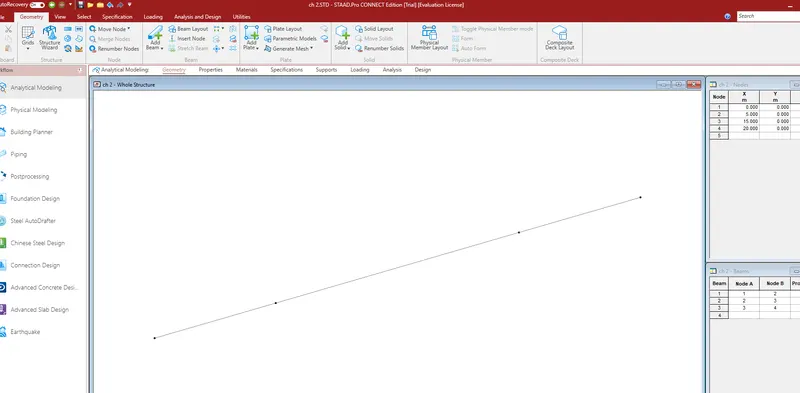

-creat model and add nodes and creat by

structure wizard option .

-add beams .

-choose properties .

-add supports

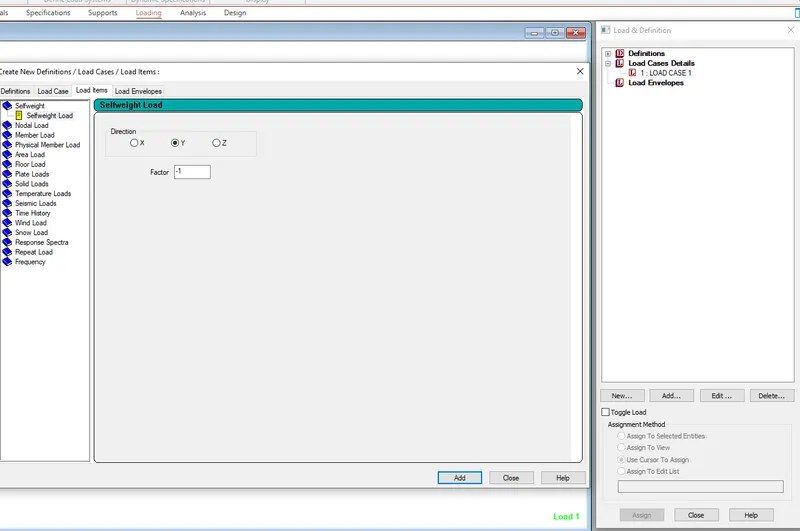

-add specification   ,  loadings  ,

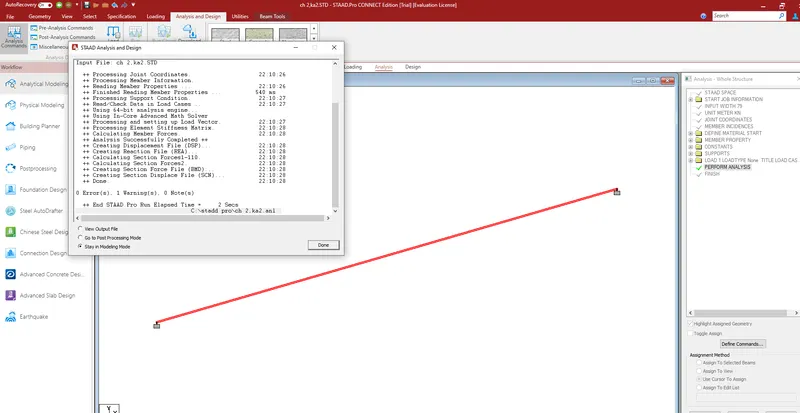

-apply perform analysis

-run model

-go to post processing

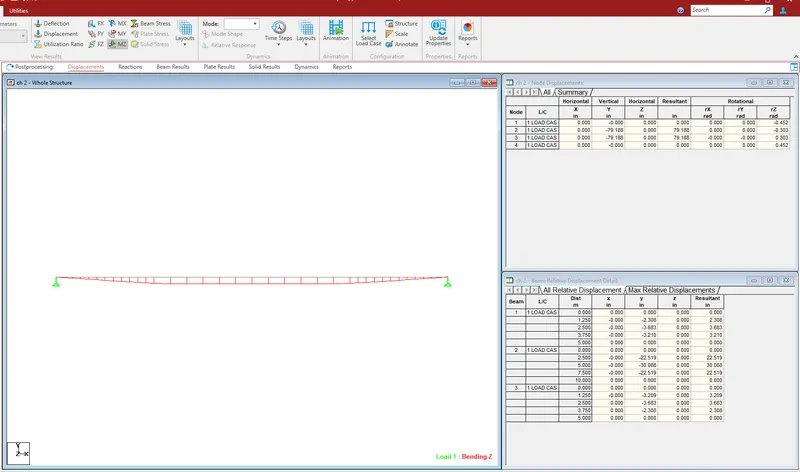

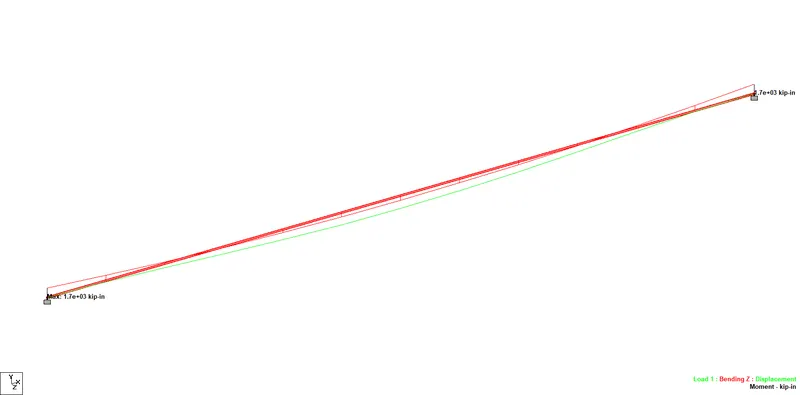

-take displacement , BMD , SHEAR  forces .







    2. Explain the two ways in which a

structural framework/model can be

created in STAAD Pro software.



ans-

1.ANALYTICAL MODEL

2. PHYSICAL MODEL



physical modeler takes advantage of

physical modelling  a structure , which

give more accurate modelling results .

beams and surface are placed in model

on scale of which they would appear

in physical world

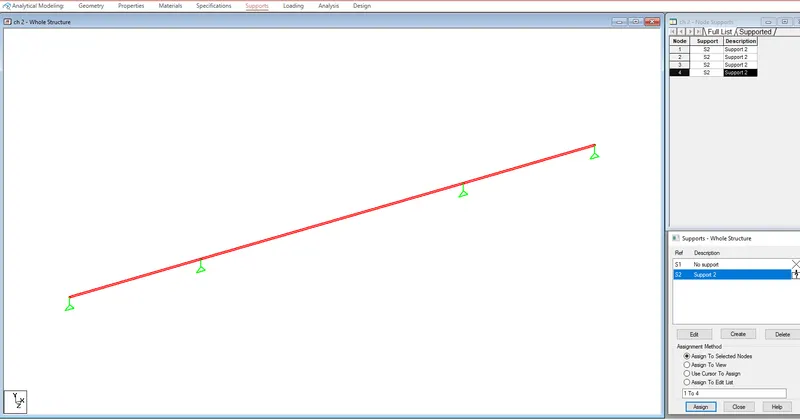

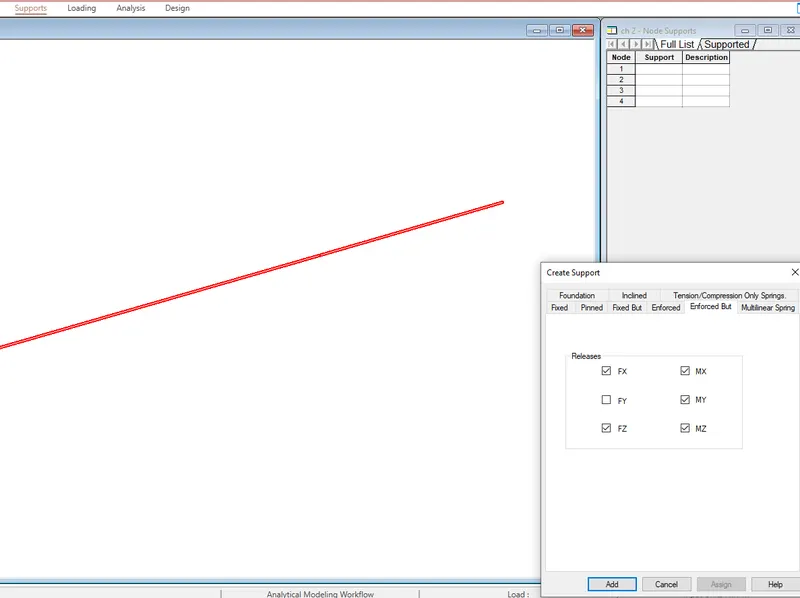

    3. Elaborate the different support conditions in STAAD Pro.

-FIXED SUPPORT -

translational and rotational displacement

are restrained .



-PINNED

traslational displacement are

restrained but rotation are not restrained



FIXED BUT -

fixed but similar to pin support

it allows to degree of freedom to view the

displacement either translational or rotational .



ENFORCEMENT BUT -

SOFTware assign the springs it self

zero stiffness or high stiffness



    4. How will you extract the stress distribution for a staircase slab?

-after analysis go to post processing

-select load combination

-click on plate result

-select plate stress contours

-select load combination

-check  max. absoulate stress

-check major principle stress

-check MX [local]

-

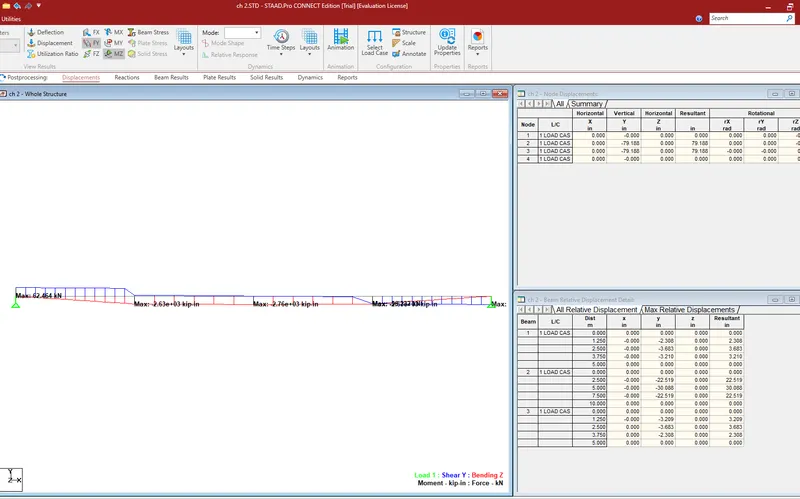

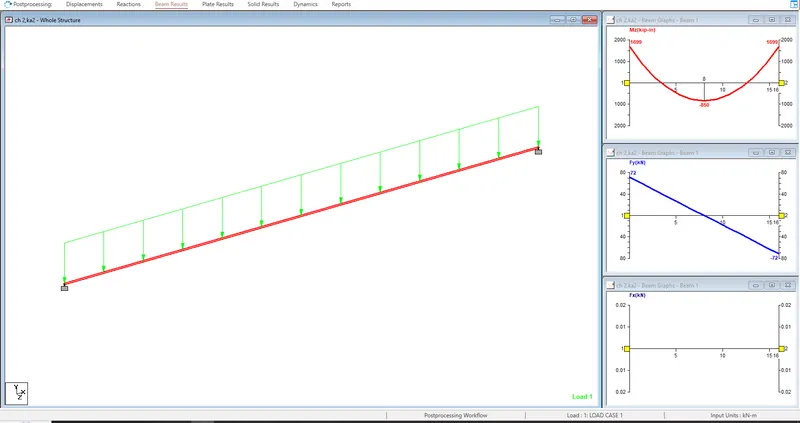

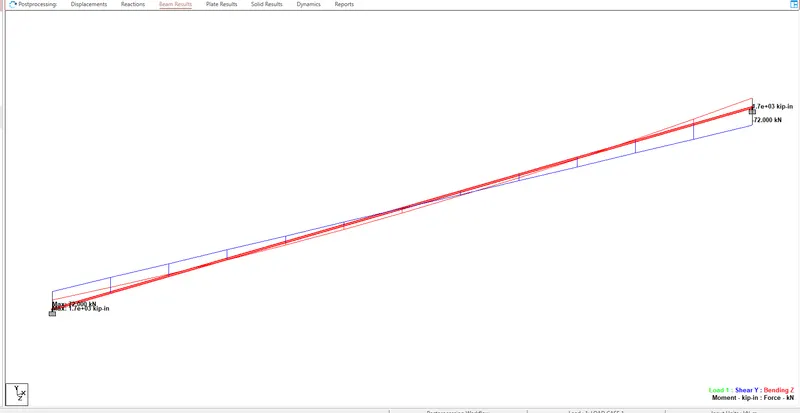

    5. Explain the different ways to view SFD & BMD in STAAD Pro.



 -run and analysis complete

-than goto postprocessing

-click  moment and sfd tool at to

of menu bar shown SFD AND

BMD RESULTS .

-GO TO  GRAPHS  AND check view sfd and

bmd diagrams

-double click for member









Practical
1. Analyze the following structural elements and validate the results

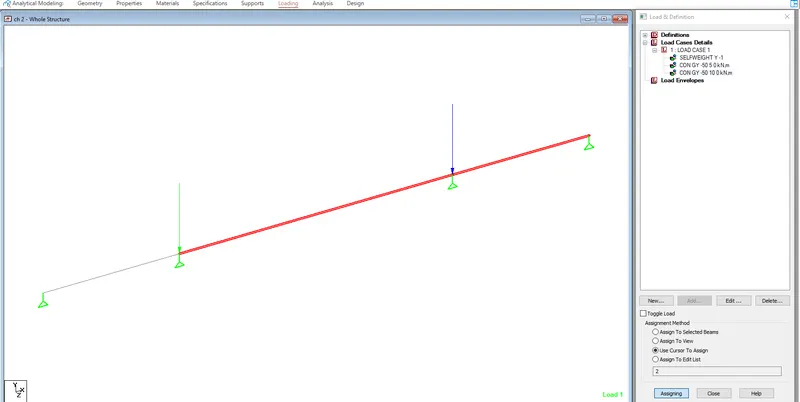

A. Simply Supported Beam
           a. A Simply supported beam with two point loads symmetrically placed
           b. Span L = 20m
           c. Load P = 50kN each
           d. Both P located at 5m from each support

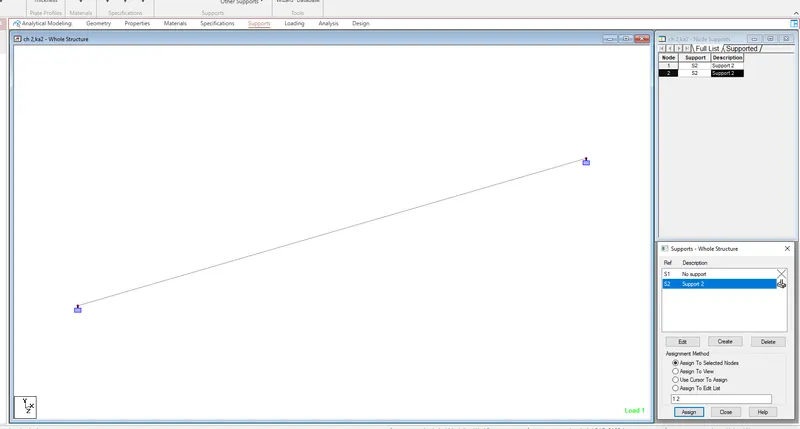

B.Fixed Beam

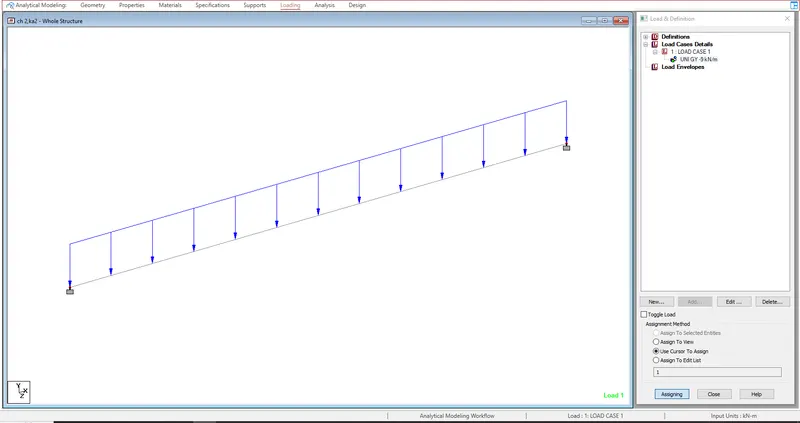

           a. Span L = 16m
           b. Uniformly Distributed Load w=9kN/m
