Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

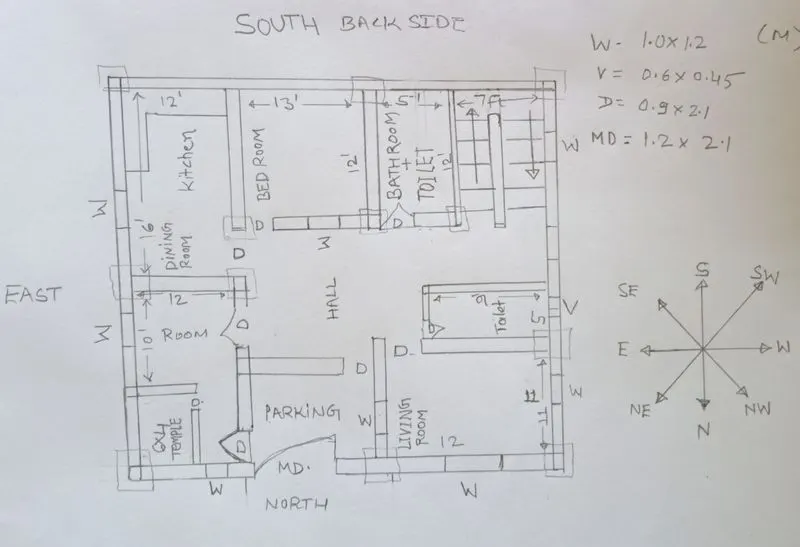

 this is a G+1 residential plan according to Vasthu shastra.

adopt some guideline when we draw a plan according to vaastu shastra .



1. Living room --facing must be north and north west direction.

--   drawn in this type face is north

--Entrance main door face should  be north .



2.Prayer room --



--north or north east is good .

-- facing is east when we will meditate or prayer .

-- light yellow ,green ,white or beige  colour are option.





3. Kitchen --

-South -east direction is very good position for kitchen .

-in here water sink is keep away of gas

--fridge is placed in south west corner of kitchen .



4.mastwr bedroom --

it is position in our home is south -west and south and west south west  direction in our home .

if we provided our  master bedroom in SW than this is good for health and prosperity .

Avoid placing mirror or TV. in front of bed .



5.Guest bed room --

-  North west is best direction for guest room.



6. Study room-

-place study table in north and east or north -east or west direction.

-table should be squre and reactangular shape .

-7. Toilets--

-- west - North -West  direction is best and also south-west -south direction.



8. Staircase --South west is best.

9.center of house should be empty  as it is considered  most powerful and holiest place.



this is a first floor same as a ground floor [according to vaastu shastra G+1 plan ]











B.] name of structural drawing requried to site for construction .---



1. center line drawing .

2.footing and column lay out  with reinforcement details .

3.column schedule with reinforcement .

4.plinth beam layout with reinforcement details .

5.first floor beam layout with reinforcement details .

6.frist floor slab layout with reinforcement details.

7.lift pit and head room reinforcement details .



c  .  Calculation of individual loads ----



 -wall thickness is taken = 230 mm

-floor to floor height = 3 m.

-individual load is acting on a member  is dead load of member .

- it is self weight or permament load acting on a structure  thourgh out the life  span .



Dead load is calculate IS 875 part 1



- DEAD LOAD = QUANTITY OF EACH MATERIAL  WITH THE UNIT WEIGHT OF THIS MATERIAL .



1. COLUMN -  assume size of column= 230 mm x 230mm

                        and height is  = 6m.

  total volume of concerete   =0.23 *.23 * 6  =0.3174 m^3



 Dead load of column  =volume of concerete  x unit weight of RCC

                               =0.3174 * 25  =7. 935 kN





2. Beam ---

   Assuming size of beam = 230mm x450 mm

     unit weight of concerete  = 25 KN/M^3

   dead load of beam =  [.23 m x .45 m] x 25

                              =2.587 KN/M



------LINTEL BEAM    assuming size = 230 mm x 150 mm

  DEAD LOAD = .230 m  x  .150 m x 25 KN/M^3



                        =0.8625 kN/m







3 . Slab ---

- assuming slab thickness = 125 mm

  Dead load of slab = 0.125 * 25 = 3.125 kN/m^2





4.WAll -- assume height is 3 m   ,for 1 sorey   , and thickness is  230 mm.

                       unit weight of brick = 20 KN/M^3





                    dead load of wall = 3m *.230 m* 20 kn/m^3

                                              =13 .8 kn/m







-----Parapet wall = assume height 750mm ,and thickness is  230mm

  so   dead load of parapet wall = 0.75 x0.23 x 20 = 3.45 kn/m





5. STair case -

assume  thread = 300mm ,  riser =150mm  , and Waist slab thickness =150mm

unit weight of concerete = 25 kn/m^3

-- waist slab act as a one way slab

-- Dead load of waist slab = 0.15 *25* `[riser^2+tread^2]^(1/2)`/ tread

                               =       0.15 x 25 x [0.15 ^2  +0.3^2 ]^ (1/2) /0.3



                            =4.185 Kn/m^@





---Dead load of steps = 1/2 *riser thickness *unit weight of concerete

                           =1/2 * 0.15 *25

                         =1.875 kN/m^2





---Dead load of landing slab   ,  assuming thickness = 125 mm .

                                            unit weight of concerete  =25 kn/m^3

                         so dead load of landing slab = 0.125 * 25 = 3.125 kN/m^2





RESULT -- FIND INDIVIDUAL LOAD FOR CORRESPONDING MEMBERS --

1. column = 7.94 kn

2.a beam =2.587 kN/m

   b. lintel beam =0.8625 kN /m

3 . Slab - 3.125 kN/m^2

4. a wall =13 .8 kn/m

   b. parapet wall =3.45 kn /m

5. staircase --a. waist slab =4.185 kn/m^2

                 b. steps       =1.875 kn/m^2

                 c.Landing slab = 3.125 kn/m^2
