AIM: Creat template as per question , take size of title block as per industry. assume it as per paper size . -use text where required , after creat a title block save it and give name custom -1 and custom -2 title block . INTRODUCTION - The main aim to this question is that draw…
Bunti Parashar
updated on 03 Oct 2022

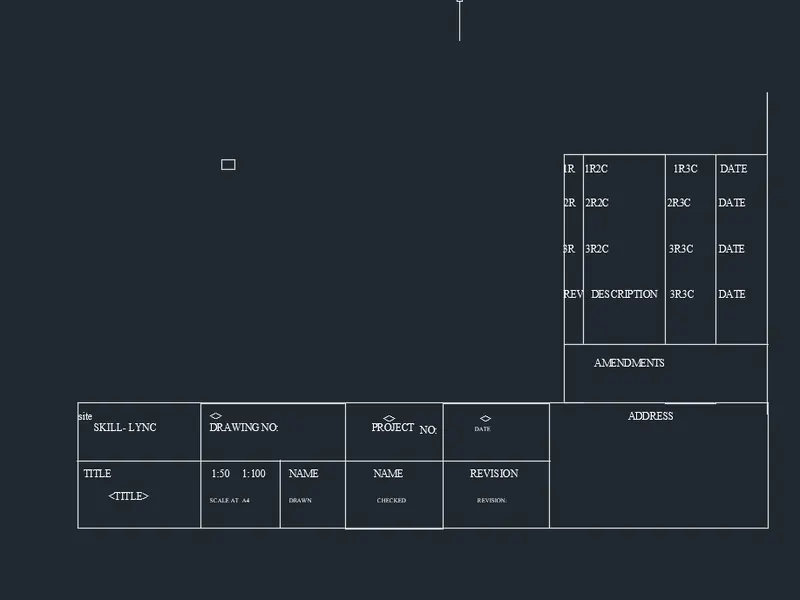

AIM:
Creat template as per question ,
take size of title block as per industry.
assume it as per paper size .
-use text where required , after creat
a title block save it and give name
custom -1 and custom -2 title block .

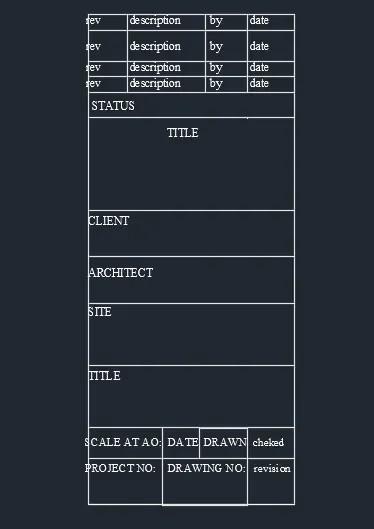

INTRODUCTION -
The main aim to this question is that
draw title sheet and then add
text using attribute command .
once ytext will added than next
whole figure is converted into a
block.
step by step procedure followed ,
it same given below.
PROCEDURE -
.TAKE line command draw outer boundry of sheet .
.now using trim , fillet , offset , and line co.
draw whole sheet .
.now use attribute co.
which is given in insert menu .
give diffrent attribute and add all text
with help of attribute command .
.once all attribute is added change
whole sheet into a
block .
using creat block tool in insert menu.
.creat a block and give name custom -1
title block.
.when block is created , edit attribute table
will popup which will ask all question which
we added in prompt while creating attribute .
.give answers ,creat sheet as per requirement .
.now 2nd sheet follows same procedure .
'as end give name of block of second sheet as
custom -2 title block .
RESULTS -
2 DIFFRENT BLOCKS OF NAME CUSTOM -1 , CUSTOM-2 ,
TITLE SHEET ARE FORMED USING ATTRIBUTE COMMAND .
A2.

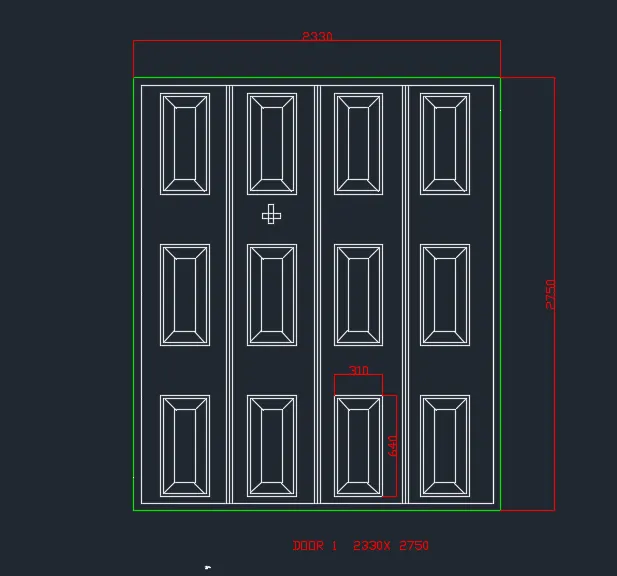

AIM -

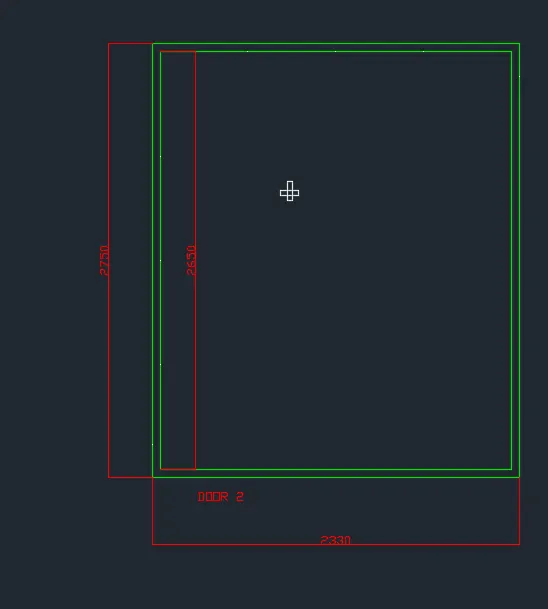

CREAT DOOR TYPES FOR WAREHOUSE IS SHOWN IN FIGURE .
CREAT EVERY DOOR AS PER A STANDARD SIZE .
CREAT BLOCKS .
INTRODUCTION -
MAIN aim of this question is that
draw elevation of diffrent types doors .
-which have designed panels ,and normal flush
types of doors.
and next converted into block .
PROCEDURE -
.TAke a rectangle command ,
next draw a reactangle of size 2330x2750.
.explode reactangle and take offset
50mm as a frame .
take div co. for division in 4 parts
and take offset 25 mm in both sides
of every lines so in this way we make
shutters of doors .
.next creat a small reactangle which shown
panels .offset 20mm form 1st reactangle
and next offset 100mm to 2nd reactangle .
.Draw lines and joined corners of reactangle .
.creat block so we will make easy to copy
and next copy .creat lock by reactangle co.
fillet corners radius 5mm .
-for second door same procedure will be followed .
.all frmes are copied next .
.creating blocks -
give co. B FOR block
give name door 1 , and door 2 ,
pick point .-select corner point .
select object -select full object
select scale uniformly and allow exploding.
RESULTS -
DIFFRENT TYPES DOORS OF BLOCK IS SHOWN
BELOW.
A3]

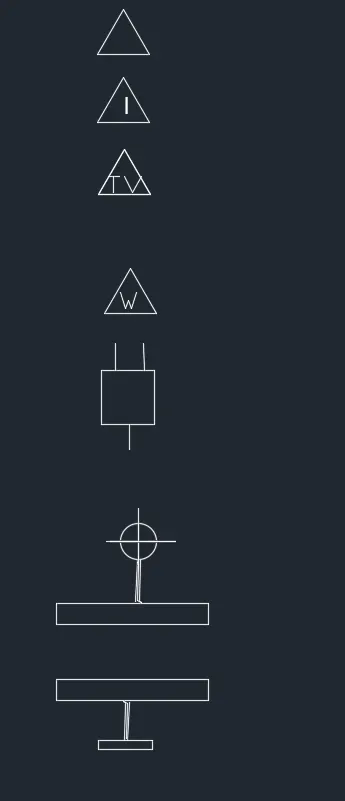

AIM -
CREAT EACH SYMBOL AS A BLOCK WITH NAME
GIVEN IN LEGEND ,AND ARRANGE THEM AS SHOWN IN FIGURE .
INTRODUCTION -
-MAIN AIM TO DRAW A TABLE IS CALLED SYMBOL LEGENDS .
-IN THIS TABLE DIFFRENT TYPES OF SYMBOLS
WHICH ARE COMMONLY USED IN PLOTTING
DRAWING ON SHEET .AND CONVERTED IN TO
A BLOCK .
PROCEDURE:
-IN use of line co.
draw a outer bounddry of table .
-now using line and offset ,trim drw a
whole table .

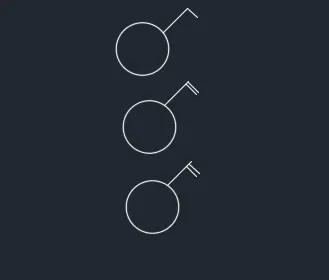

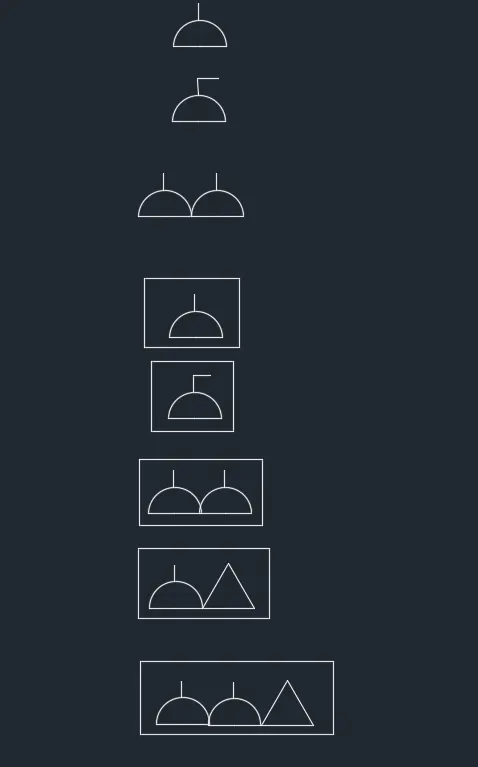

-once table is drawn start drawing off diffrent types of symbols .
-once draw all symbols ,make each symbol as block
and give name as per specified in code .
and save them as a block .
-next we added name of each symbols .
-next click on insert menu and go to field tool
-as tool start , it ask to select a option from
drop down list .
-selt an option on both list than select block
, we want to added the name .
-once select object , list will ask
what you want to add .click on name option,
-name will be than added once .
you click in where you type name.
-added name of each symbols .

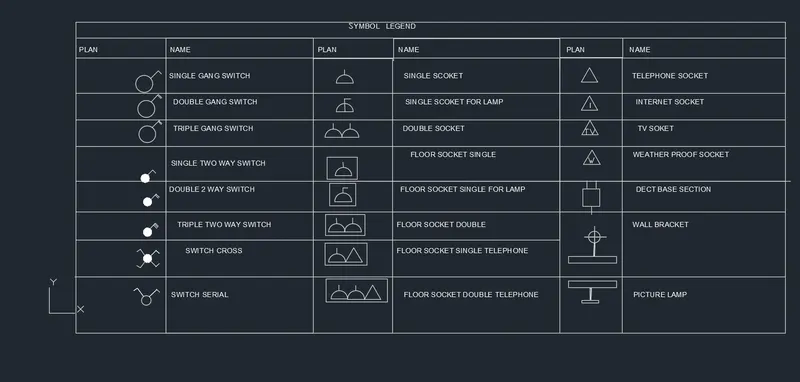

results -
a symbol legend table is formed ,
where all symbols are blocks
that are name according to is standard .
a4]

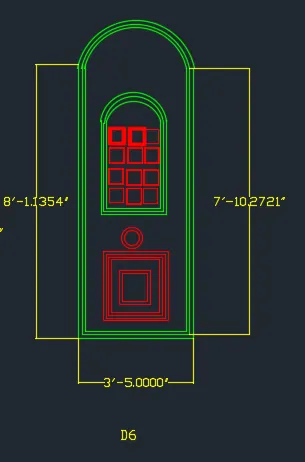

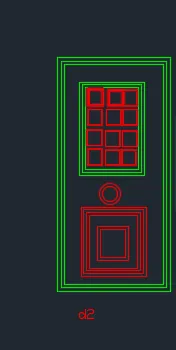

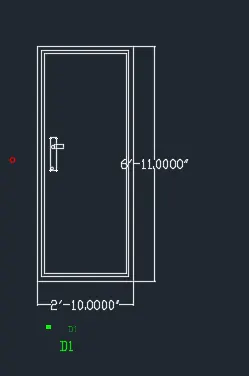

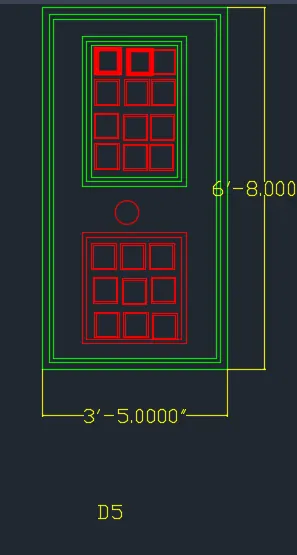

AIM

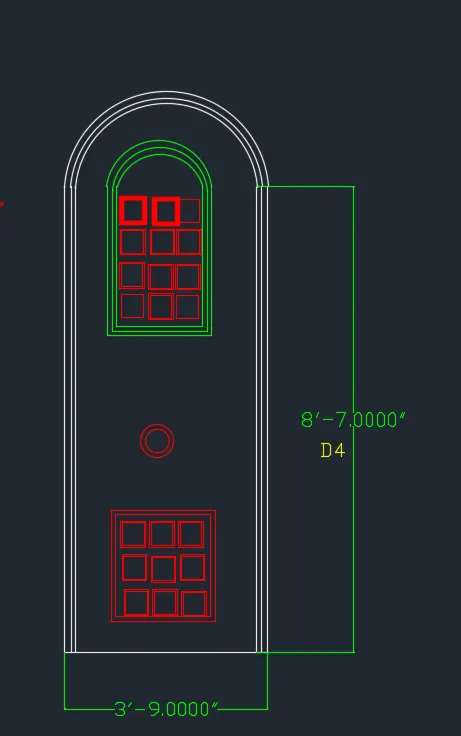

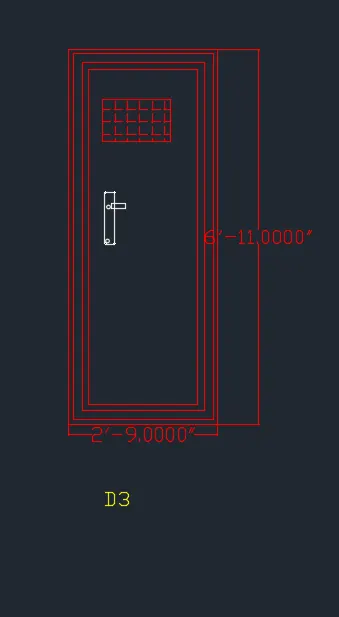

Creat door types for a residential building as a blocks
save name of block as type .
use given or assume dimensions as per
industry standard .
INTRODUCTION -
FOLLOWING Question main aim to draw a
elevation of diffrent types door ,
which some has designed panels
and some are normal flush door and
all six doors are drawn and converted into a block .
PROCEDURE -
-Take a reactangle co. and draw
a reactangle .
-take offset 2" and 1.5" to draw the frame of door
'
-now draw design of panels by use of line ,
fillet , offset ,trim commands.
-next door nob is created.
-whole doors is ready is converted in to
a block .using block B COMMAND
and choosing creat block section in insert menu .
-for all door are followed same procedure
to start to end use extra commands like arc etc,
RESULTS-
WE CAN GET 6 DIFFRENT TYPES OF BLOCKSOF DOORS
USE OF BLOCK COMMAND . WHICH CAN BE USED
WHERE EVER REQUIRED IN FUTURE PROJECT.
A5]
AIM-
CREAT EACH SHAPE AS A BLOCK AS SHOWN IN FIGURE
SAVE BLOCK AND INSERT THEM INTO THE TABLE
AS SHOWN IN FIGURE .
INTRODUCTION -

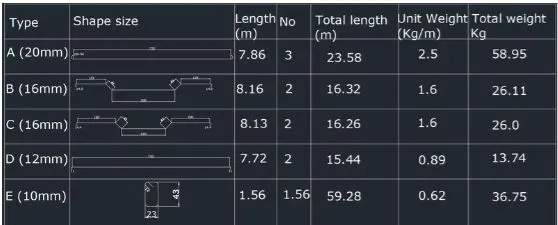

-MAIN AIM TO DRAW SCHEDULE A BENT UP BAR .
-PLAN OF BAR IS CONVERTED INTO BLOCKS
AND WHOLE DATA IS ADDED IN TO A TABLE .
PROCEDURE -
-take reactangle co . draw outer boundry of
table .
-explode reactangle using explode tool
-now using offset co. draw whole table .
-next start drawing of diffrent
types of bent up bars .
-once all bars are drawn
than next makeing each of a block
as specified in code and save them block .
--now bars are formed as block but
still the data is yet to be added to
table for all.
-use attribute co. given
insert menu .
-diffrent attributes shown in sheet and
thus added text using attributew co.
-once text is added , then next change
whole sheet into a block using creat blocks tool
from insert menu.
-creat blocks.
-when blocks is created , added attribute table is pop up.
-which will ask all questions which you added in prompt
while creating attribute .
-give answers ,creat sheet as per required by we .
RESULTS-WHOLE SHEET IS DRAWING USING
ATTRIBUTE STYLE OF ADDING TEXT .
BARS ARE ALSO FORMED AS THE BLOCKS .
-
,
-
