Design of Shallow Foundation (Isolated Footings)

  Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load,…

    • Bunti Parashar

      updated on 28 Dec 2022

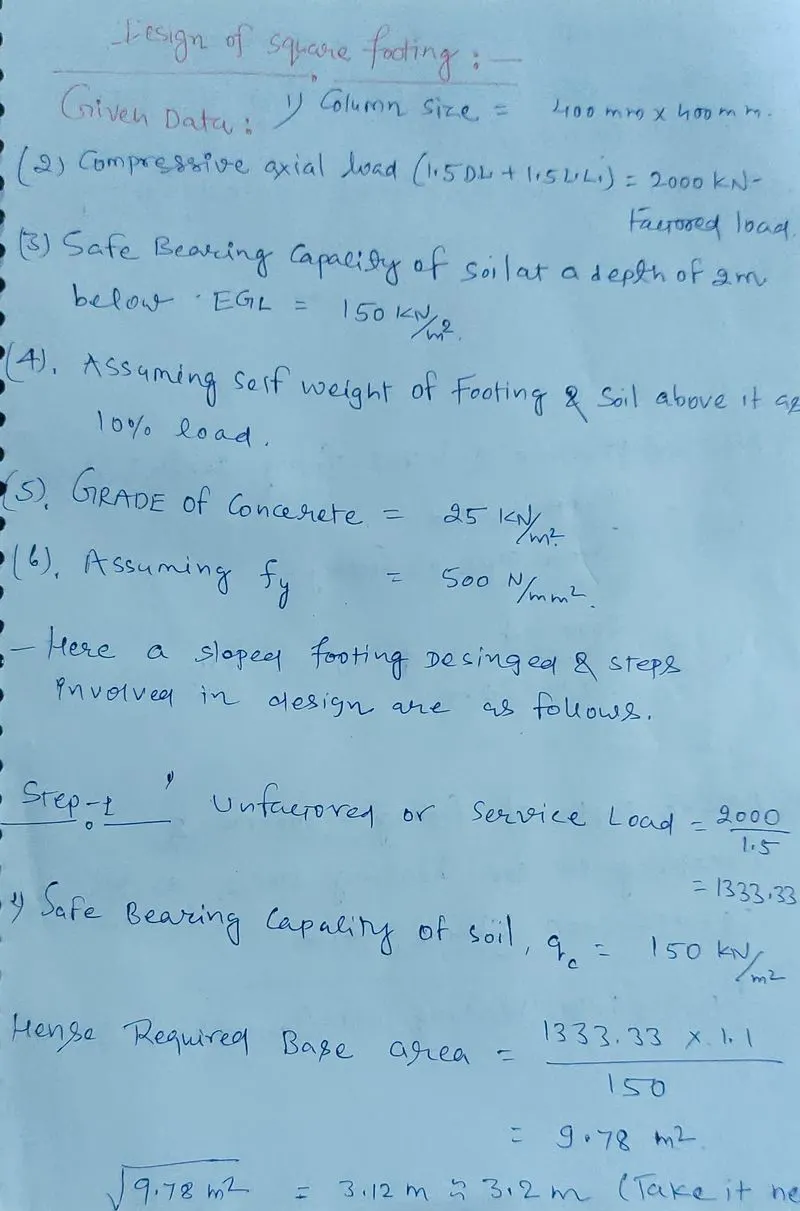

    Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load, also account for the self-weight of the footing and soil above it. Assume M25 concrete grade. Do the following checks:

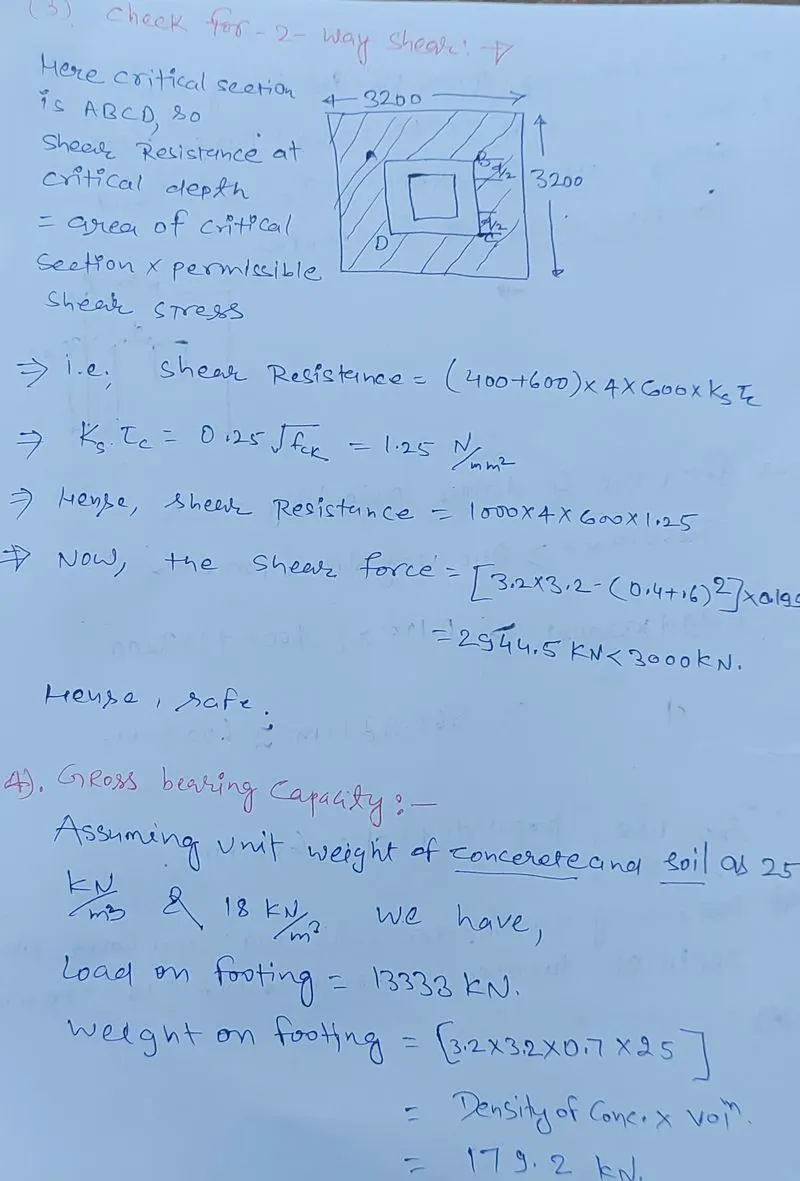

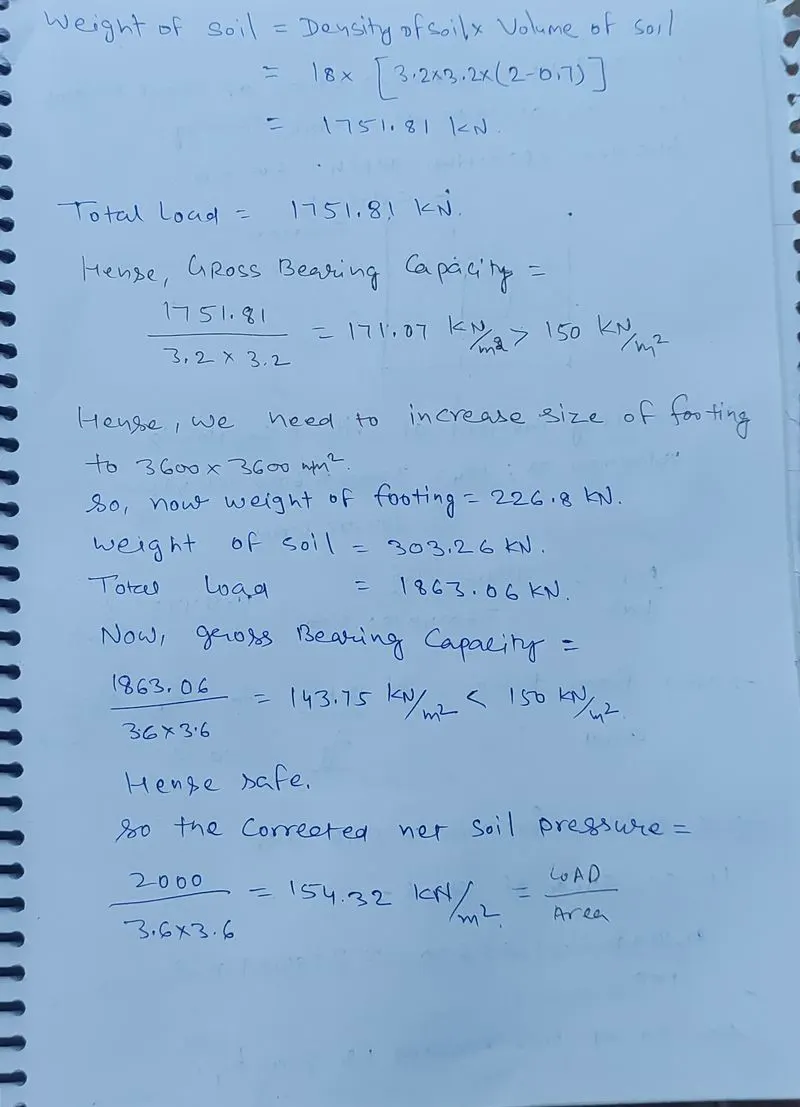

    • If the gross bearing pressure under the footing is within safe bearing capacity

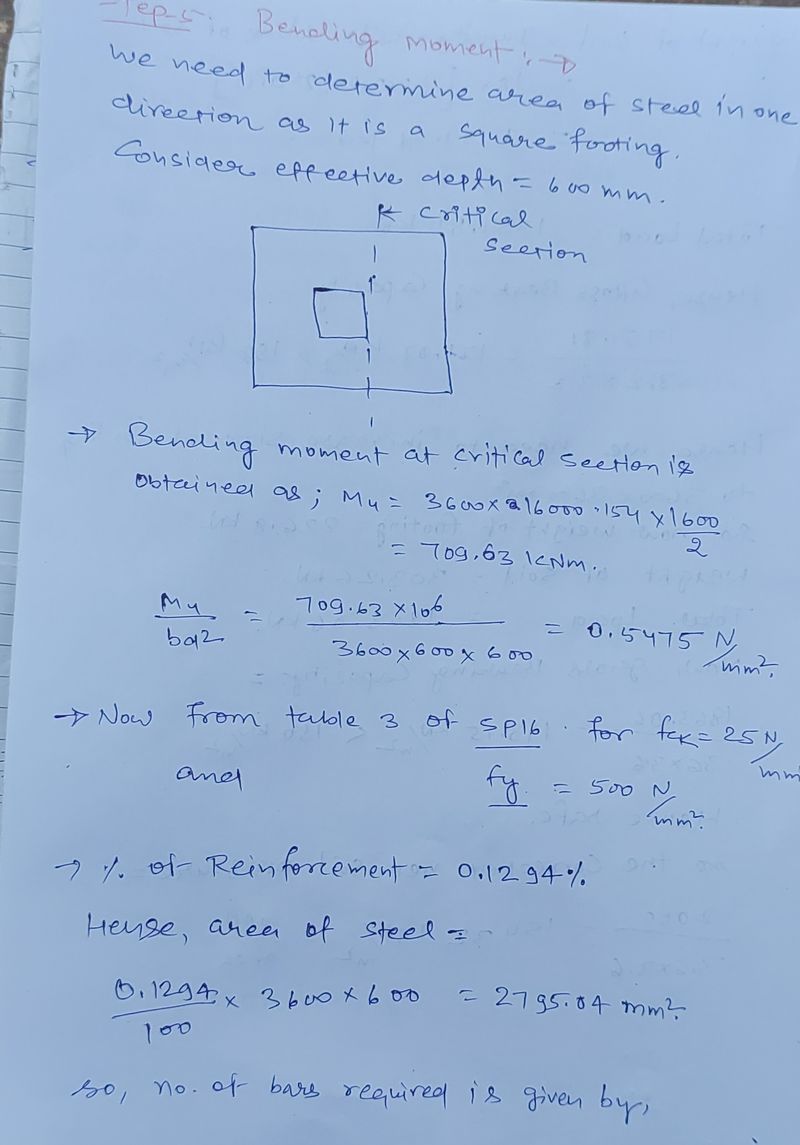

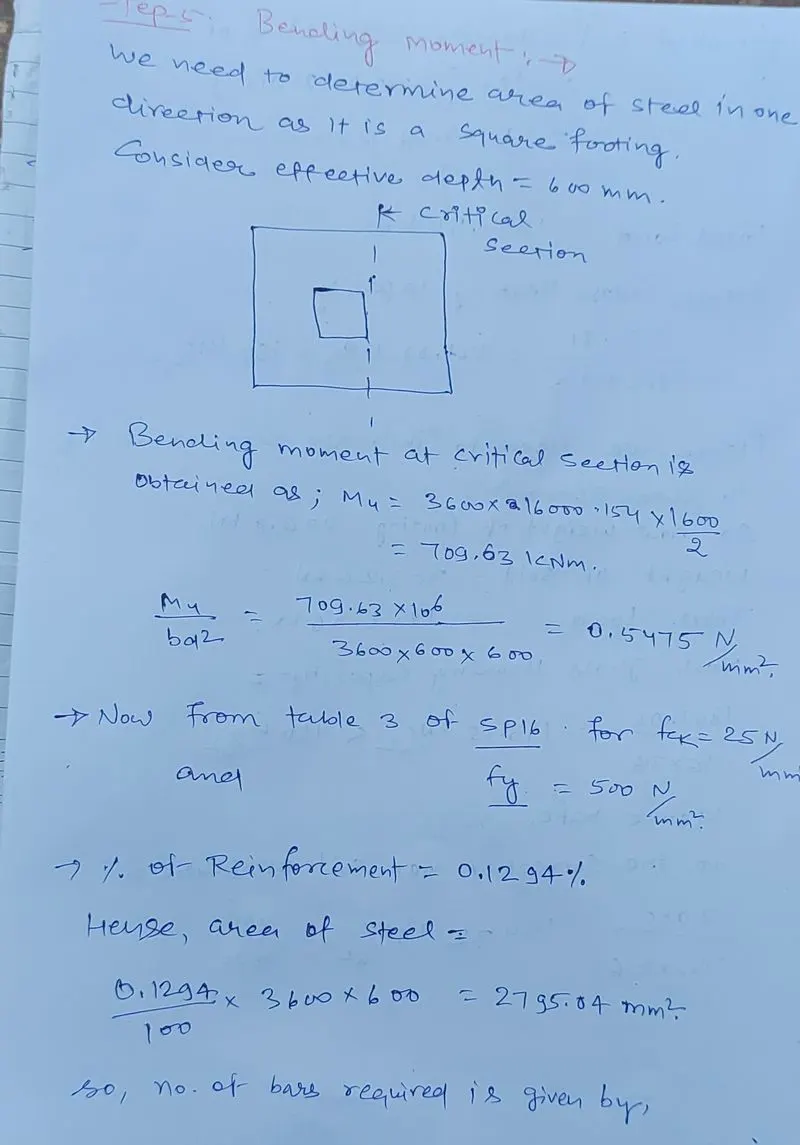

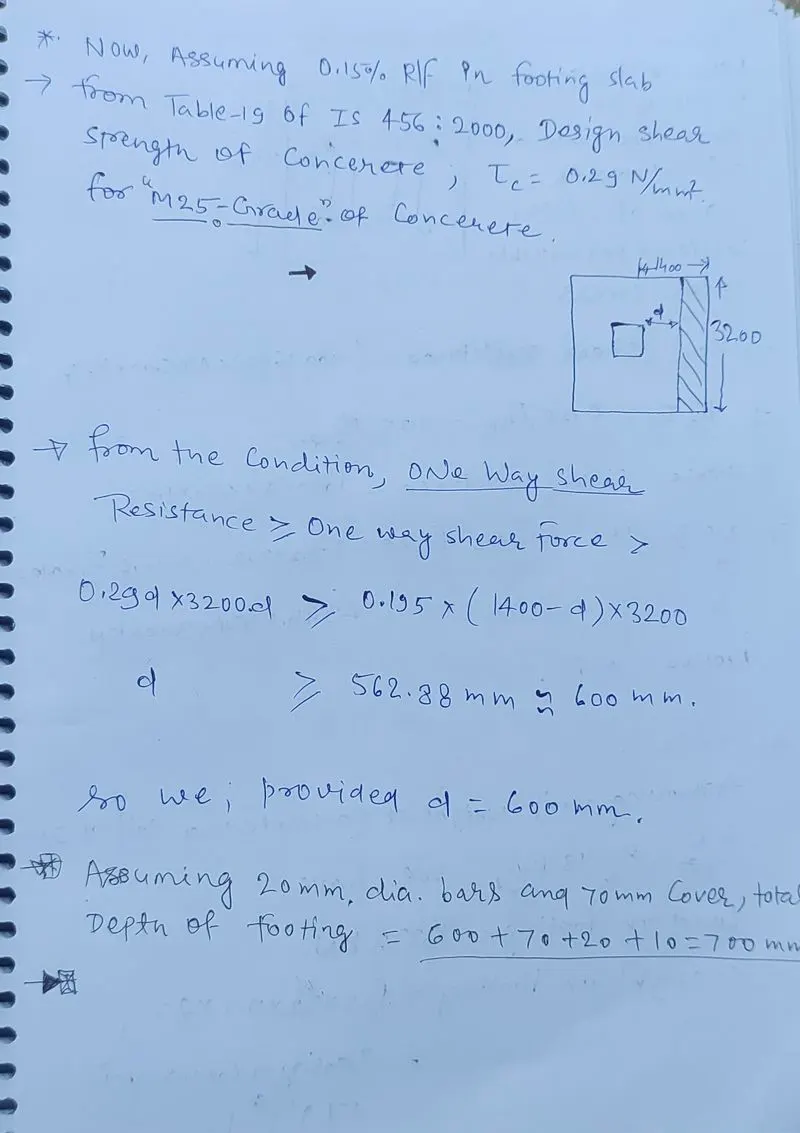

    • Provide sufficient depth and longitudinal steel for resisting bending and shear

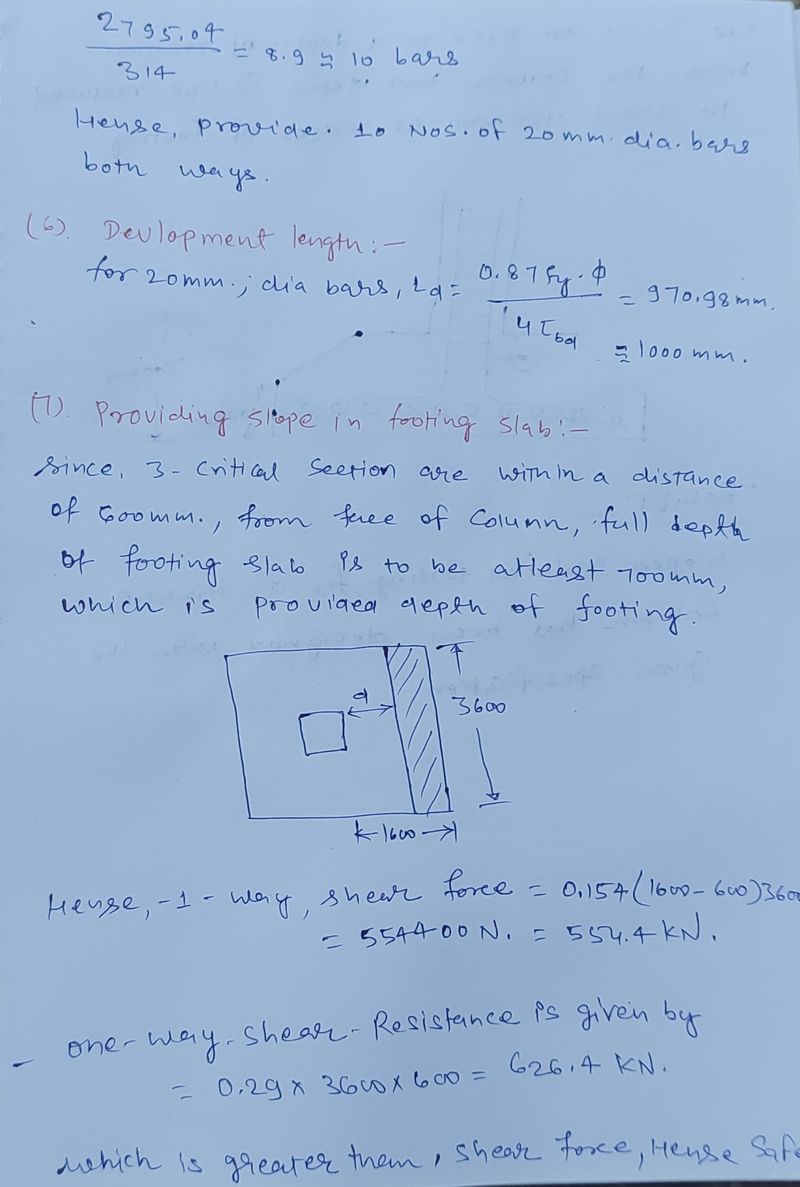

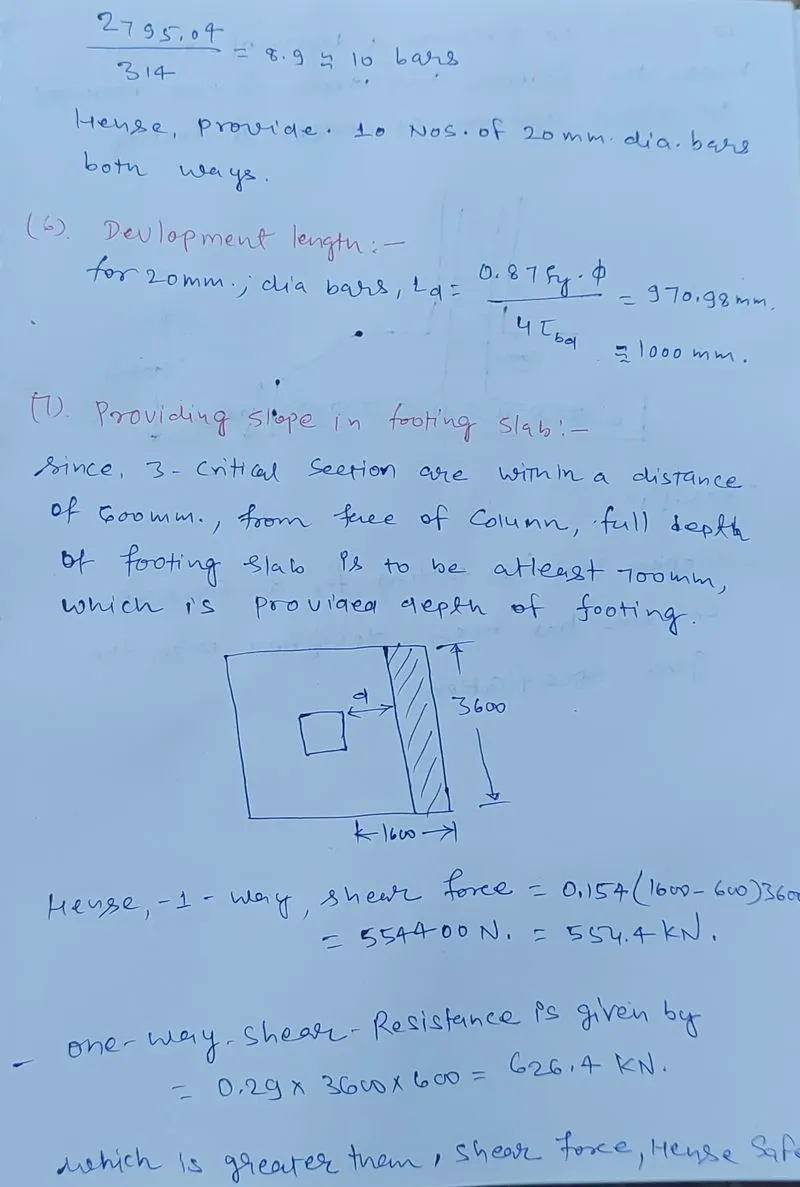

    • Sufficient anchorage for column steel into the footing

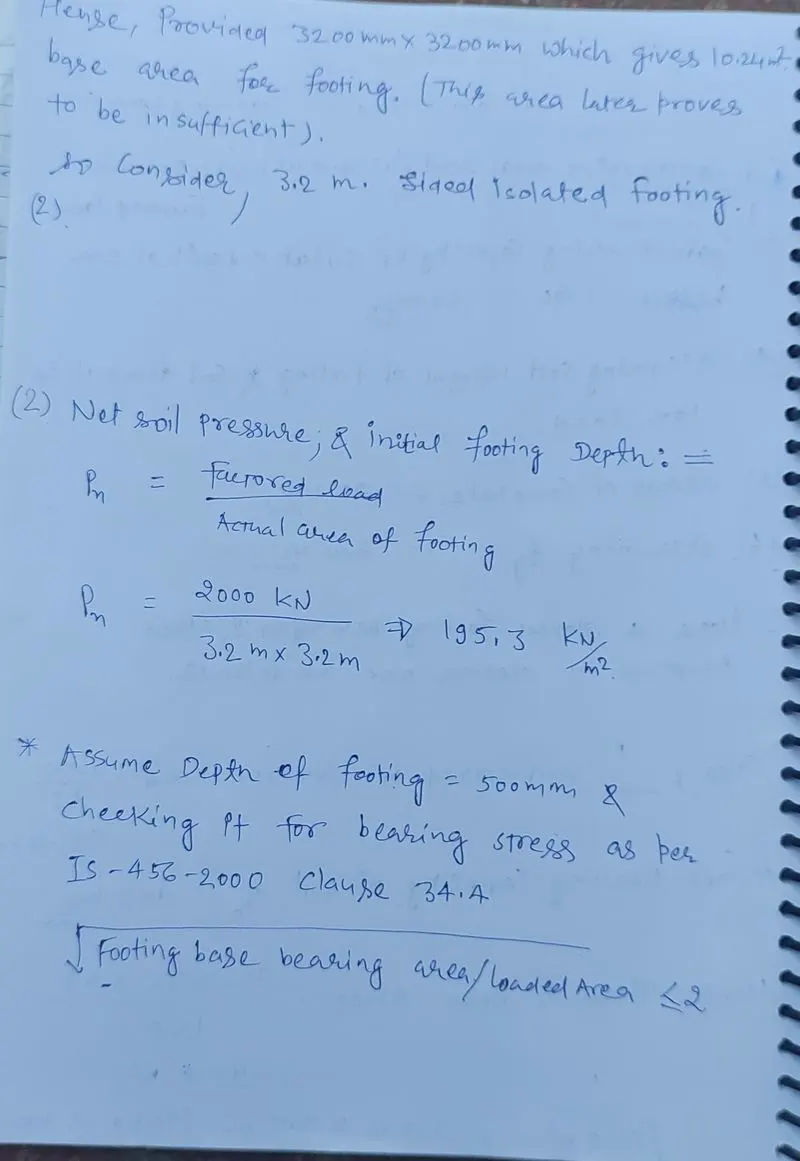

    • If the bearing pressure at column-footing joint is within 0.45 times the maximum concrete compressive strength

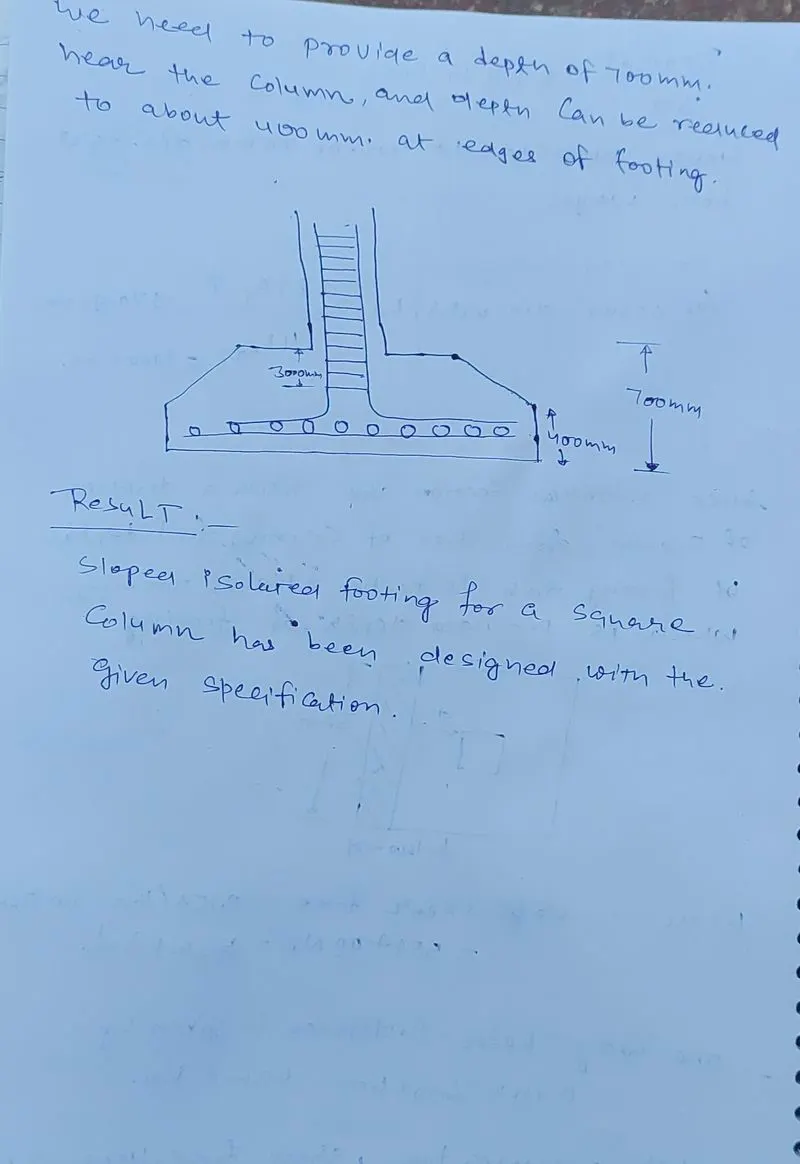

    Provide a simple sketch showing the size of the footing, maximum and minimum depth of the section, flexural reinforcement in both directions and anchorage of column steel.

    Please do go through the solved examples in the document provided with the challenge.





    ANSWER-
