Creating 3D Isometric view of various structural elements in AutoCAD

1.AIM -

TO CREAT ISOMETRIC VIEW OF THE BUILDING

WITH PLAN AND ELEVATION GIVEN .

INTRODUCTION -

MAIN AIM OF THIS QUESTION

IS THAT CREAT A ISOMETRIC

VIEW OF BUILDING WITH PLAN

AND ELEVATION '



PROCEDURE -

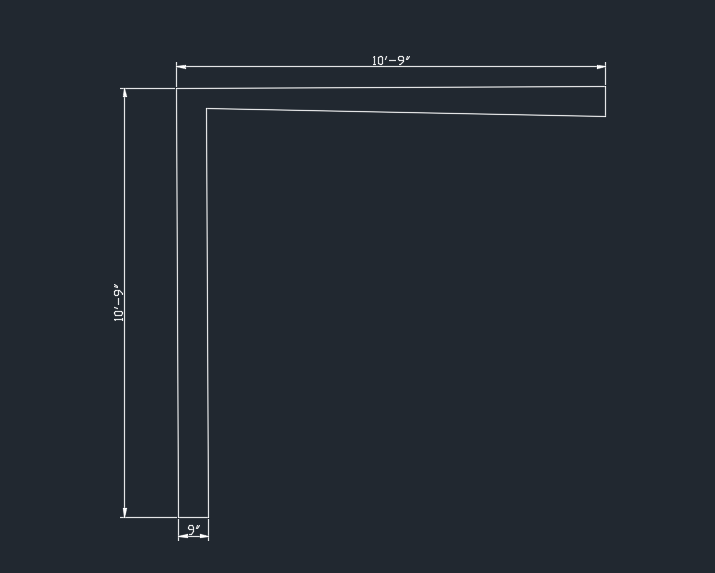

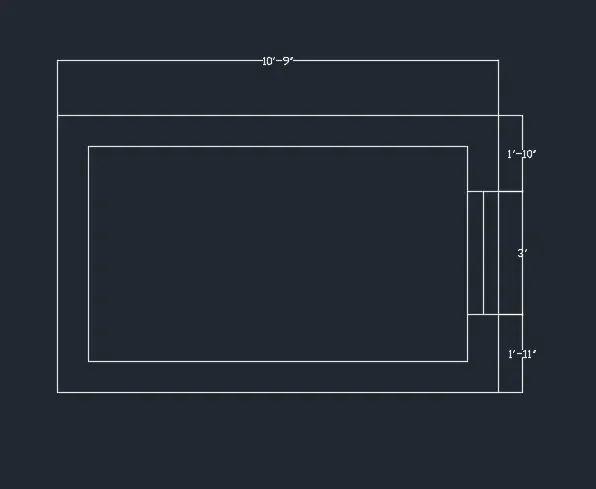

-TO creat a plan of building

and convert into a region .

-extrude region to given height .

-give sill and lintel  by using UCS

AND REACTANGLE co. and than

presspull or extrude it .

-now change ucs and draw

floor and ceiling at given point

height as per question and also take region.

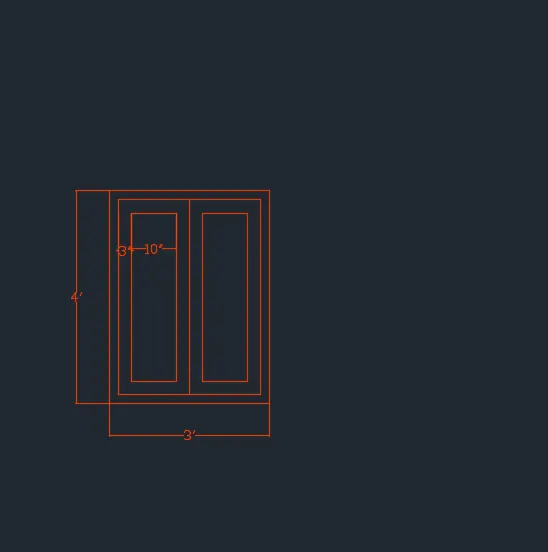

-now start draw elevation

of window

creat frame ,mullion ,and glass

and give depth by extrude as

per wall sige .

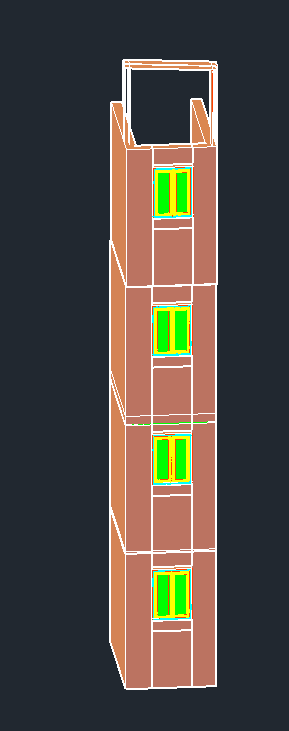

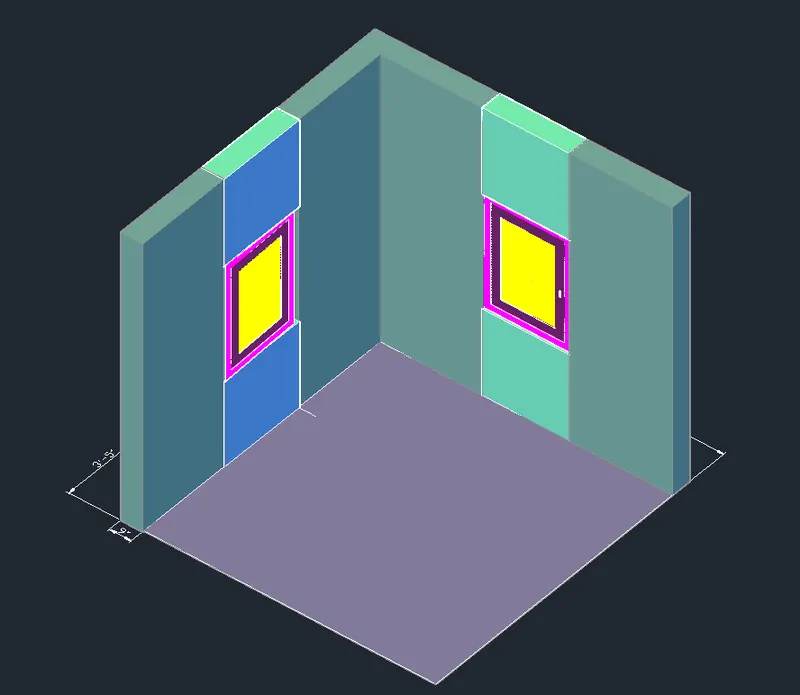

-isometric view of building

is created .



RESULT -

COMMANDS LIKE PRESSPULL,

EXTRUDE ,SUBTRACT ,REGION

REACTANGLE ,OFFSET ,UCS ,

MOVE ,COPY IS USED TO CREAT  THIS

GEOMETRY .

FOR MORE CLEARITY GIVEN

SOME SNIPS BELOW.



SNIPS -











2.AIM -

Creat 3d view of building

facade as given in plan

and elevation .also

see details of window.

INTRODUCTION -

Main aim to this question

is to draw 3d elevation of

building facade with window .



PROCEDURE -

Draw  plan of building .

-creat plan into region .

-now presspull whole region

at required height .

-keep in mind window space

is also left .

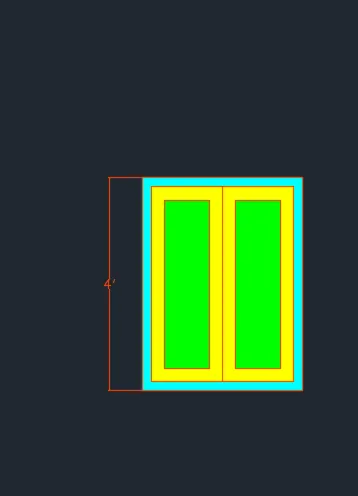

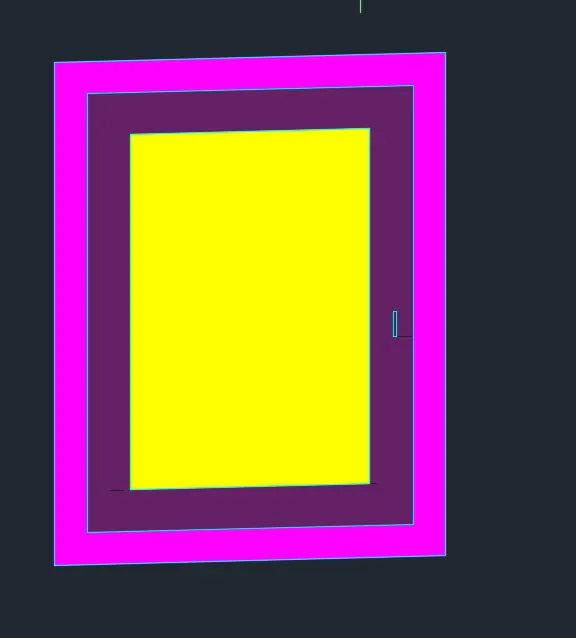

-creat window make window

frame ,mullion ,and glass .

and give depth effect by extrude .

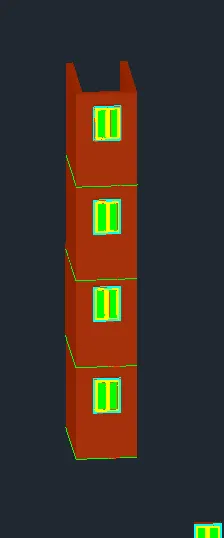

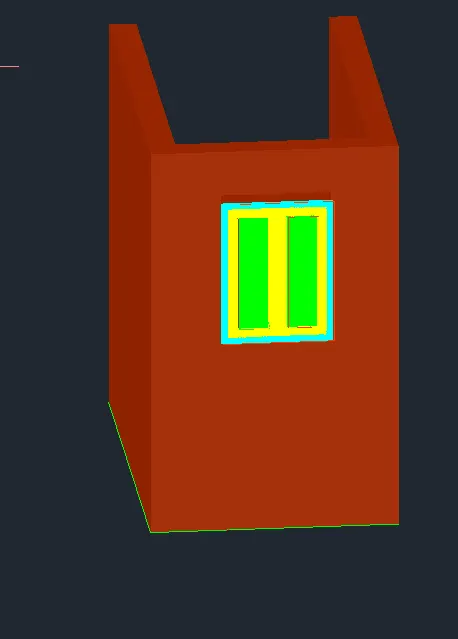

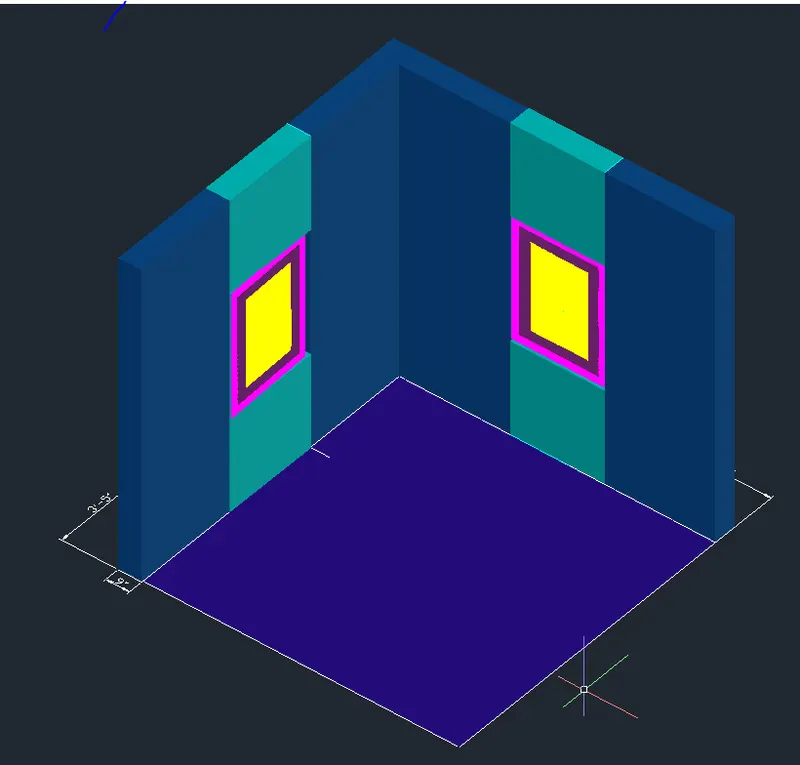

-thus isometric view of

building facade is created .

-

RESULT -

COMMANDS LIKE PRESSPULL,

EXTRUDE ,SUBTRACT ,REGION

REACTANGLE ,OFFSET ,UCS ,

MOVE ,COPY IS USED TO CREAT

BUILDING FACADE.

FOR MORE CLEARITY GIVEN

SOME SNIPS BELOW.



SNIPS -























3.AIM -

CREAT ISOMETRIC 3D VIEW OF

STAIR WITH A RAILING AS

SHOWN IN PLAN .ASSUME

SIZE OF BLUSTER AND HAND RAIL.



-INTRDUCTION-

MAIN AIM OF THIS QUESTION

TO CREAT 3D ISOMETRIC VIEW

OF  STAIR WITH RAILING .

-PROCEDURE -

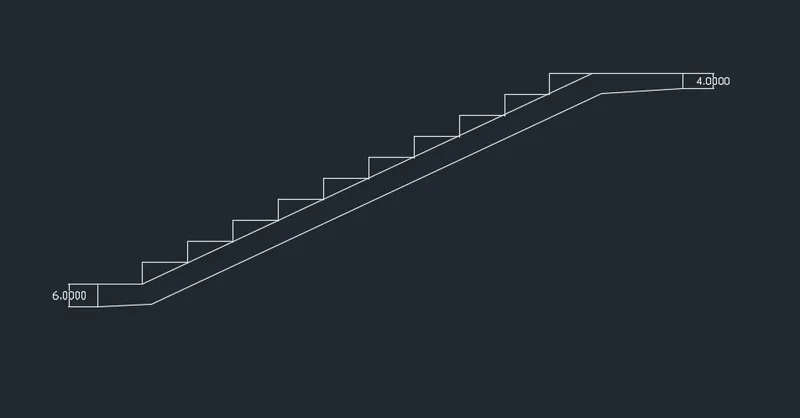

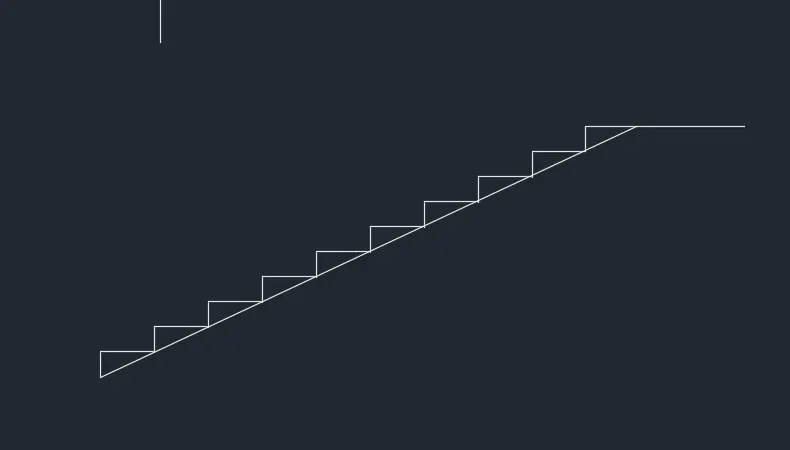

Draw side view 2d geometry of

stair .

-creat geometry into region .

-press pull and extrude it

-thus stair is created .

-now creat a cylinder at

required height 3'2"on

the stair and

copy it  to all .

-now creat a circle and make

it region.

-and creat a path with help

of polyline at above  of bluster

and give the path of railing.

thus stair case railing is created

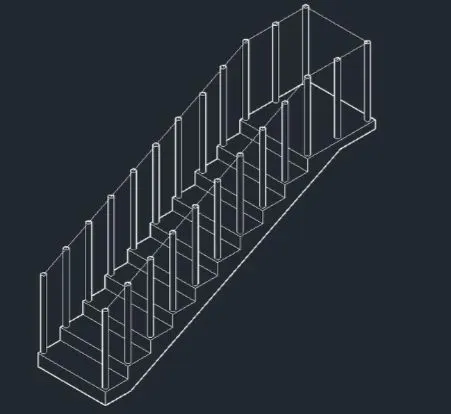

RESULT -

COMMANDS LIKE PRESSPULL,

EXTRUDE ,SUBTRACT ,REGION

REACTANGLE ,OFFSET ,UCS ,

MOVE LAYER ,POLYLINE

,COPY IS USED TO CREAT  THIS

GEOMETRY OF STAIRCASE.

FOR MORE CLEARITY GIVEN

SOME SNIPS BELOW.

SNIPS -











4.AIM -

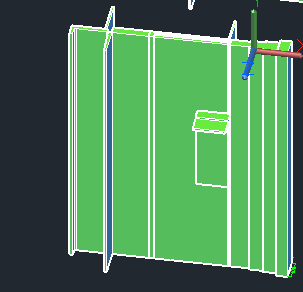

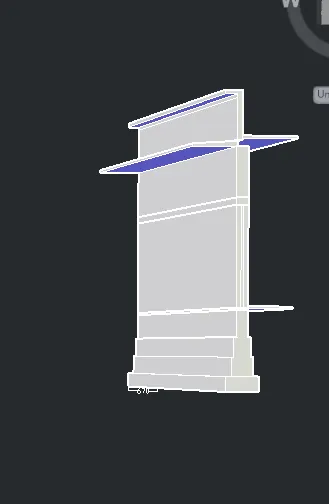

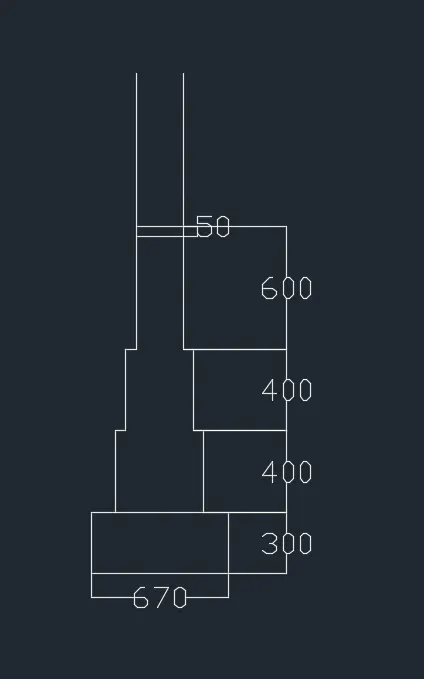

TOCREAT 3D VIEW OF A WALL

WITH SPREAD FOOTING .

CREAT DOOR OPENING

ASSUME SIGE OF PARAPET

AND COPING.

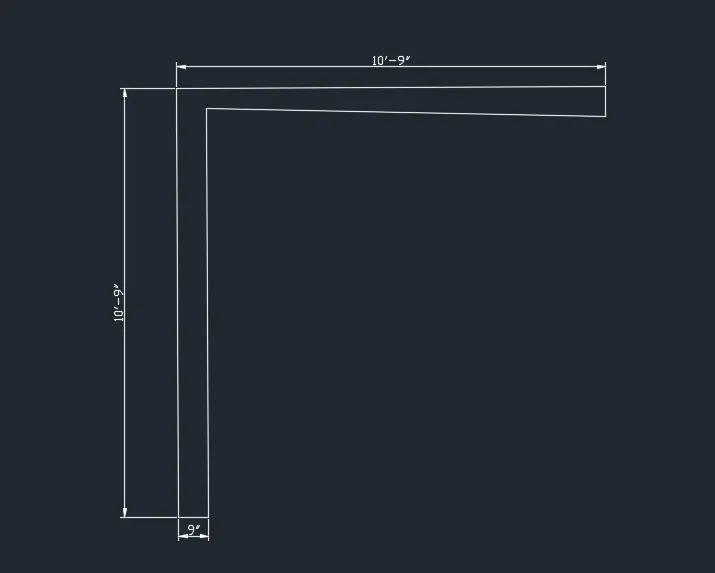

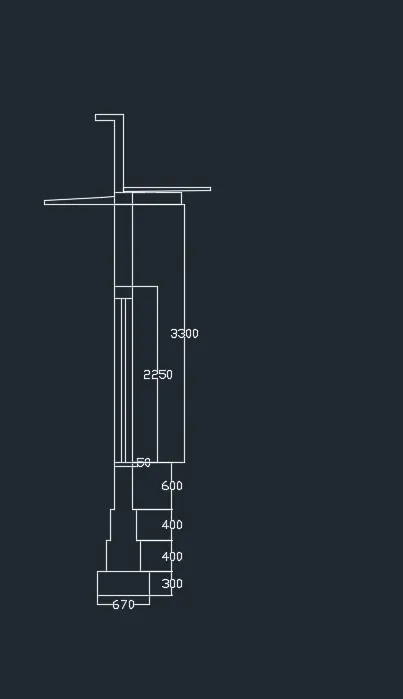

SEE PLAN AND ELEVATION FOR DETAILS

ALSO CREAT RENDERD VIEW

OF MODEL WITH MATERIAL WITH

YOUR CHOICE .



INTRODUCTION -

THE MAIN AIM TO THIS

QUESTION IS THAT CREAT A

3D VIEW OF LOAD BEARING

WALL WITH FOUNDATION

AND GIVE RENDERD VIEW OF

MODEL .



-PROCEDURE-

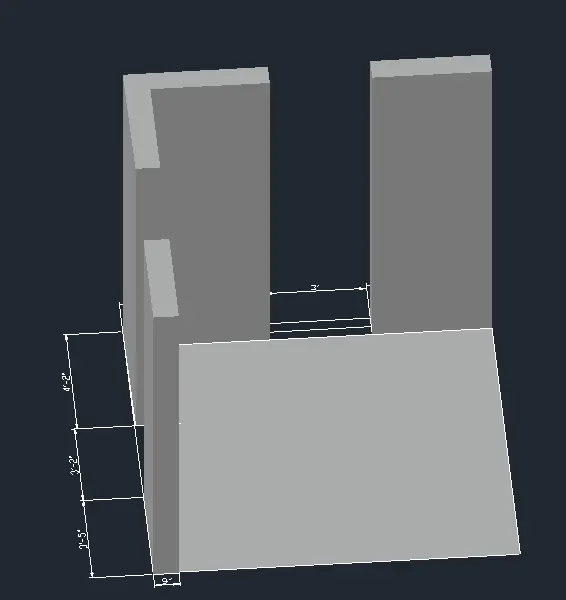

-CREAT GEOMETRY IN  XY

plane and convert into a region.

-now extrude this region as per

given length .

-now creat a reactangle box

andsubtract it from the

wall to

creat an opening for door .

-now using wedge tool creat a chajja .

-once all components are drawn

give material to it .

-once material are added

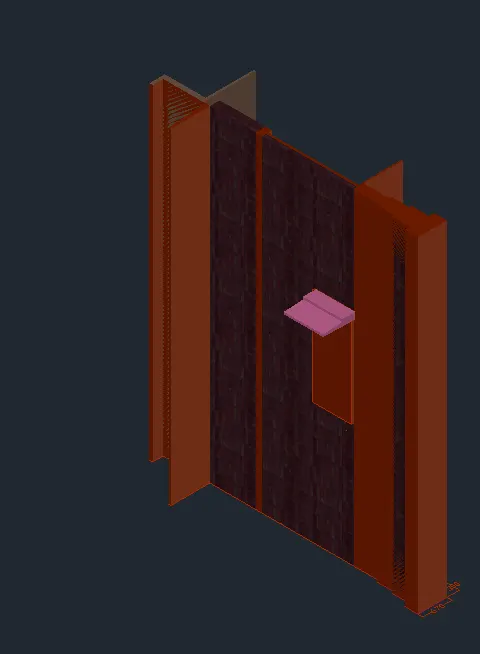

creat render of wall using

RR COMMANDS .

-

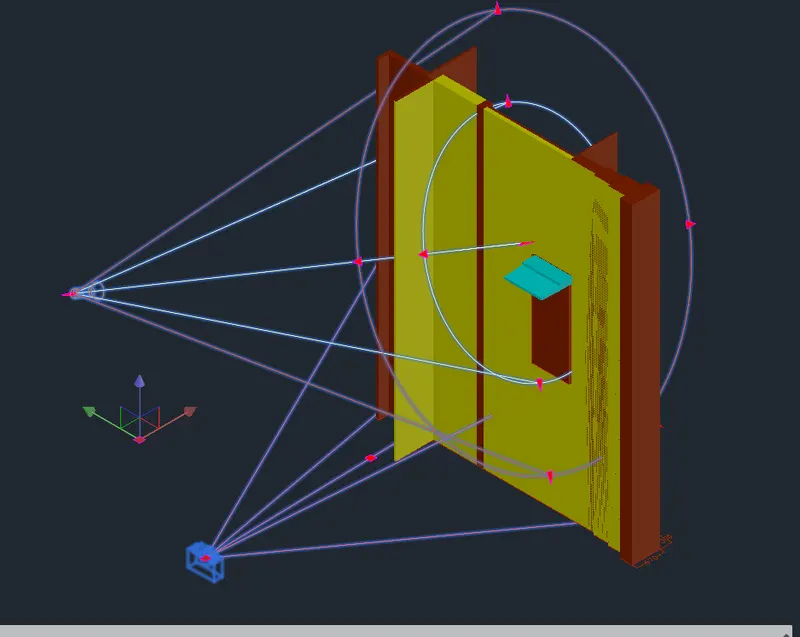

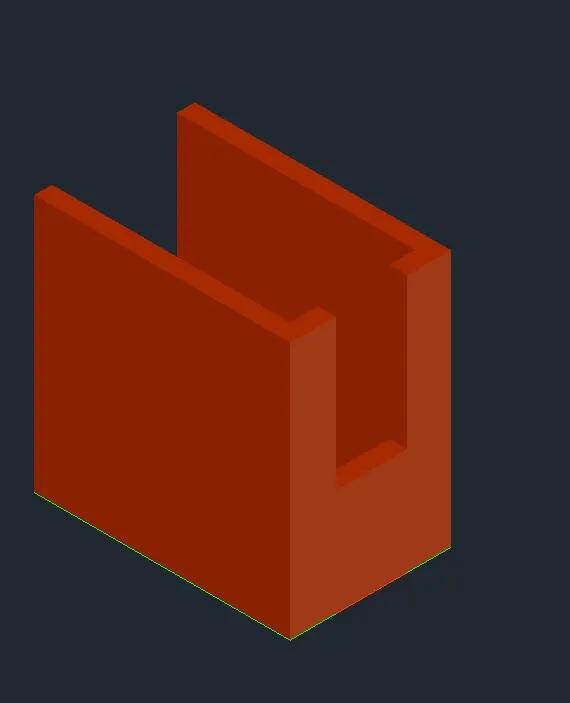

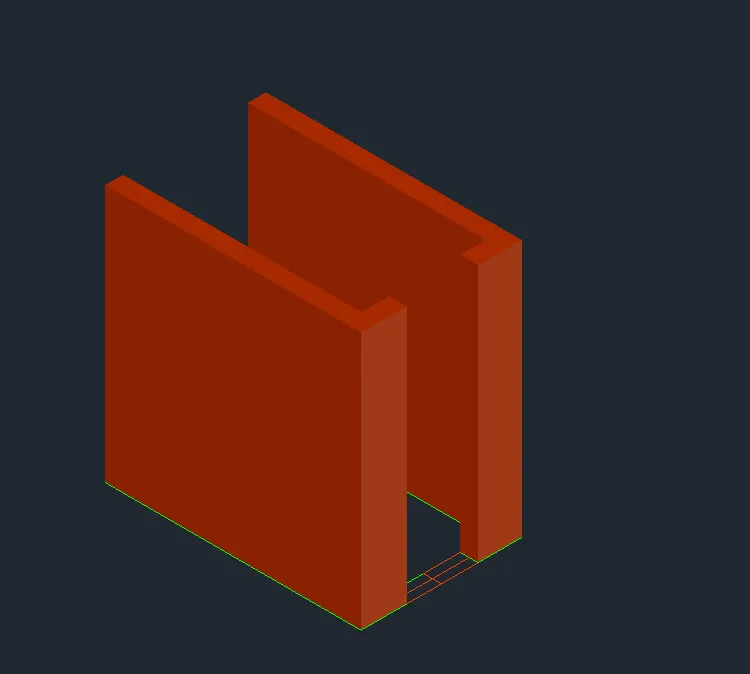

RESULT -

COMMANDS LIKE PRESSPULL,

EXTRUDE ,SUBTRACT ,REGION

REACTANGLE ,OFFSET ,UCS ,LAYER

CYLINDER  ,MATERIAL ,RENDERR[RR]

MOVE ,COPY IS USED TO CREAT

THE 3D VIEW OF WALLWITH

SPREAD FOOTING  .PLEASE HAVE

A LOOK FOR MORE CLEARITY GIVEN

SOME SNIPS BELOW.



SNIPS -
