Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM-

TO CREAT 3D MODEL OF

RESIDENTIAL BUILDING

WITH A RENDERED VIEW .

-INTRODUCTION -

MAIN AIM TO THIS

QUESTION IS THAT

TO CREAT A 3D  MODEL OF

RESIDENTIAL BUILDING

USING AUTO CAD 3D.SOFTWARE.

-:PROCEDURE :

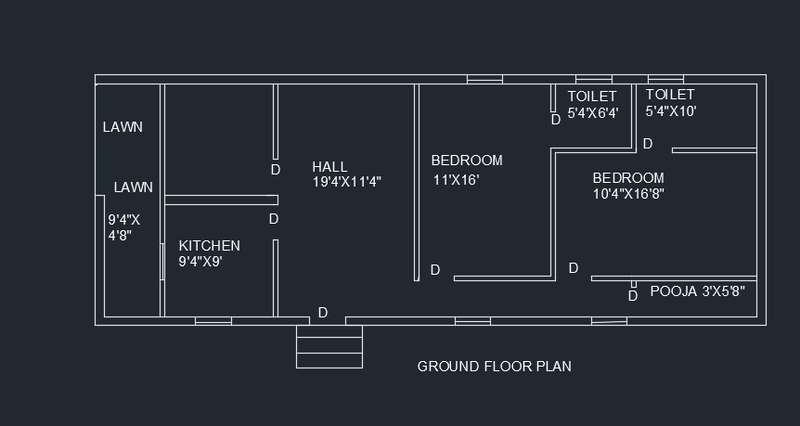

-Creat a plan of building

and convert it into

a region by region command .

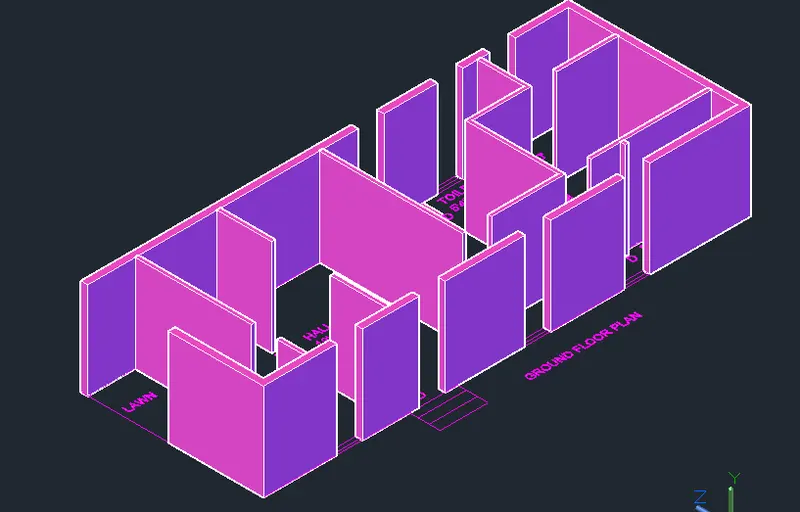

-extrude building it required height

in here 11' by using of extrude command .

-creat plinth level below the building .

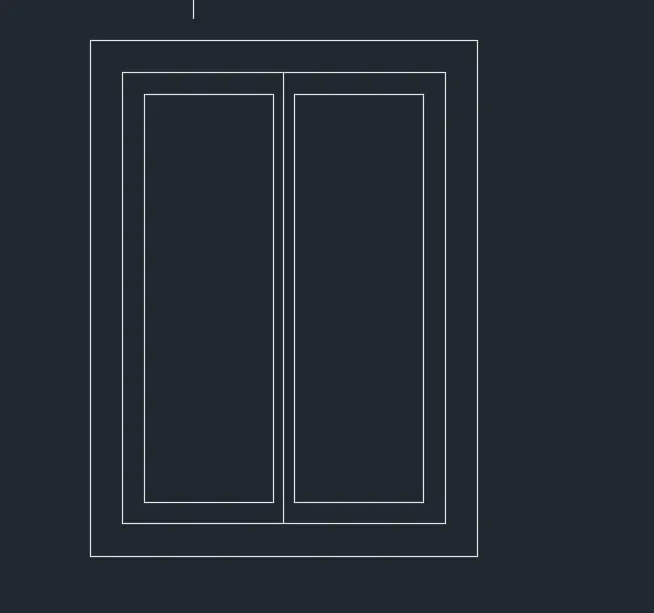

-creat doors and windows

1st door and window will be created

in 2d or top view give colours hatch co.

or layers .

next extrude it and  rotate

by 3drotate co in 90 degree

angle so it easily placed .

-select a corner point of windows and

doors and placed windows or door

by copy or move commands

at required position of walls .

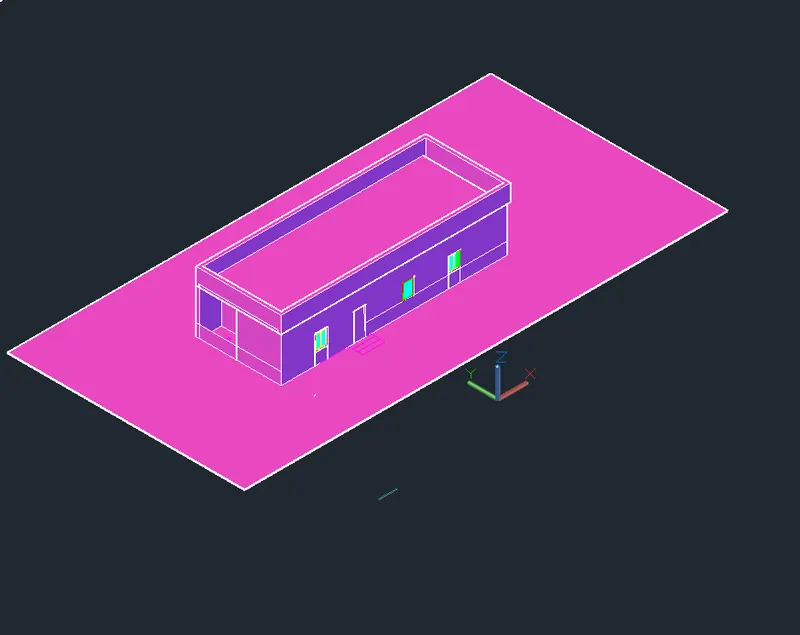

-once whole building is created

than strart  makaing  floor and

ceilings using box commands .

-creat a roof   make 1st plith wall

in here we make

a reactangle above of walls at top

walls and make copy ofthis reactangle

and in the  copy reactangle

give a offset of 9" equlto  walls

and give region to these two

reactangles

-next sbtract inner reactangle to

outer reactangle . , during

subtraction , inner reactangle

subtract when  click outer surface

of screen of auto cad  to inner

surface of small reactangle .

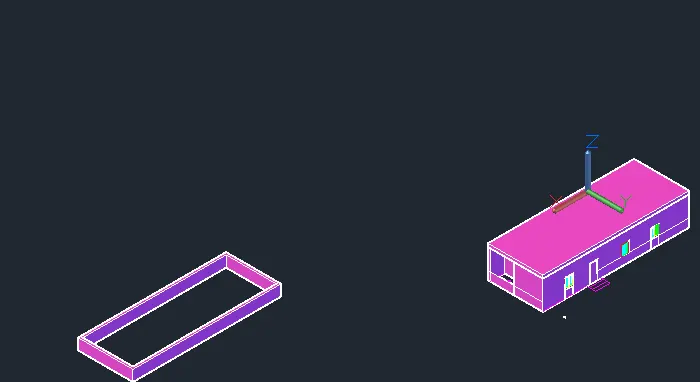

-next we extrude thest region  at

required height 3to 4' for plinthwall .

-now plith wall is created  go to

top surface of wall where we creat a

reactangle and extrude it and slab is created .

-now we apply created plith wall at top of

walls by move command .

-now we apply material to RMAT

OR MATERIAL COMMANDS .

-NOW  marerial is applied all parts of building

start putting on light .

-after putting lights created the

rendered view using RR COMMANDS .

OR directly selecting tool  in

visualitization tab in menu bar .

RESULTS -

THE MODEL OF 3D RESIDENTIAL

BUILDING IS CREATED .

MOSTLY DIFFRENT DIFFRENT

COMMANDS ARE USED TO

CREATED THIS MODEL .

-FOR MORE CLAIRTY  PLEASE

REFER TO  BELOW SOME

SNIPS .

SNIPS :

IN HERE , WHEN  I AM  GIVE RR RENDER COMMANDS THAN AUTO CAD SCREEN IS COMPLETLY  HANGED

AND SCREEN STARTED ROTATING IN CIRCULAR MOTION , AND NOW IT IS TURNED OFF  AUTOMATICALLY

 AFTER 15TO 20 MINUTES .AND  NOT SAVE FILE , ONLY 2D HOME MAP WAS OPENING

AND SAME THING HAPPENED  TO ME IN MORNING .

SO COULD NOT  TAKE SCREEN SHOT .
