To model columns for industrial steel structure using TSD

1. Create column properties for different typesof pedestal members and model in the grid AS created as per the assignment 1

 ANS-1

STEP-1.

OPEN Tekla designer >new project workspace will be open .> go to model tab

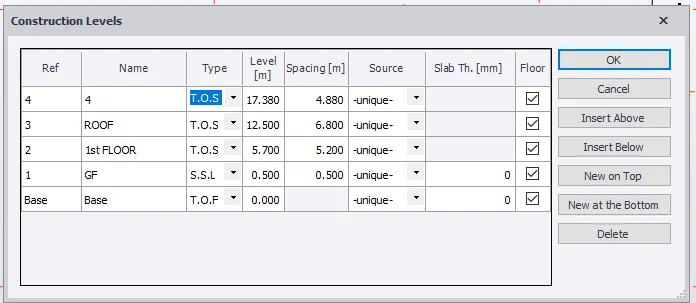

>construction level > creats level as per given file .

-

STEP-2 .

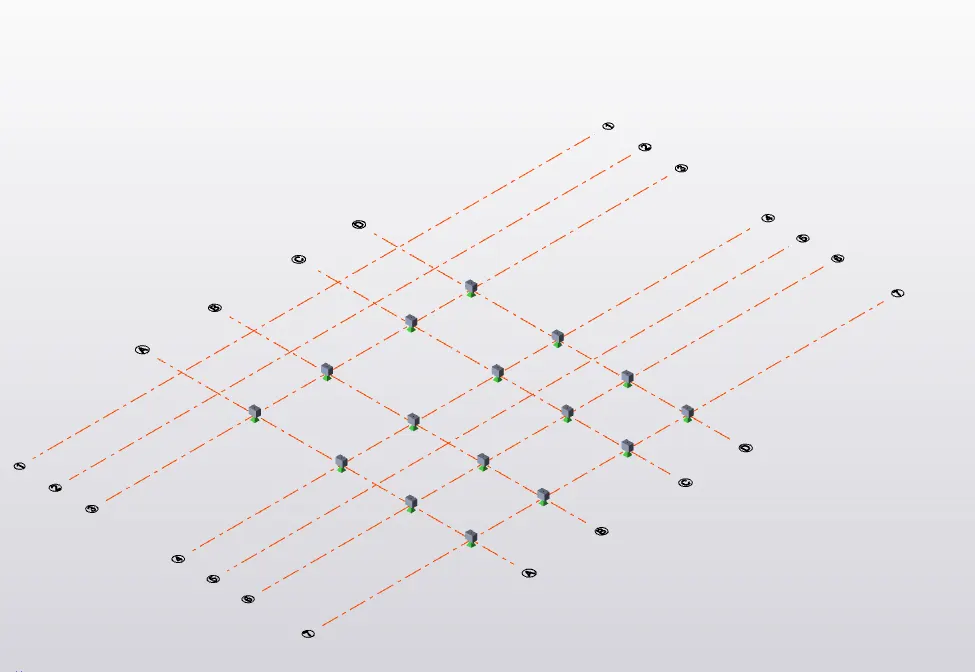

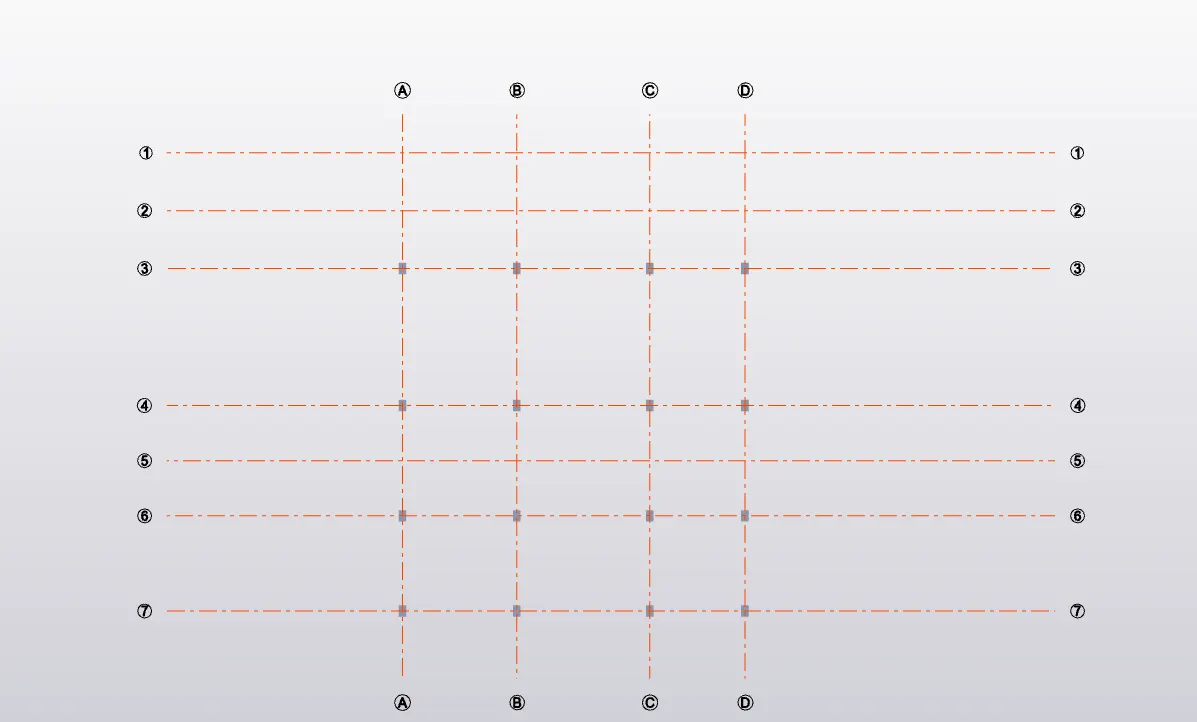

MODEL TAB . > GRID LINES . > DRAW LINES AS PER GIVEN FILE .

STEP-3.

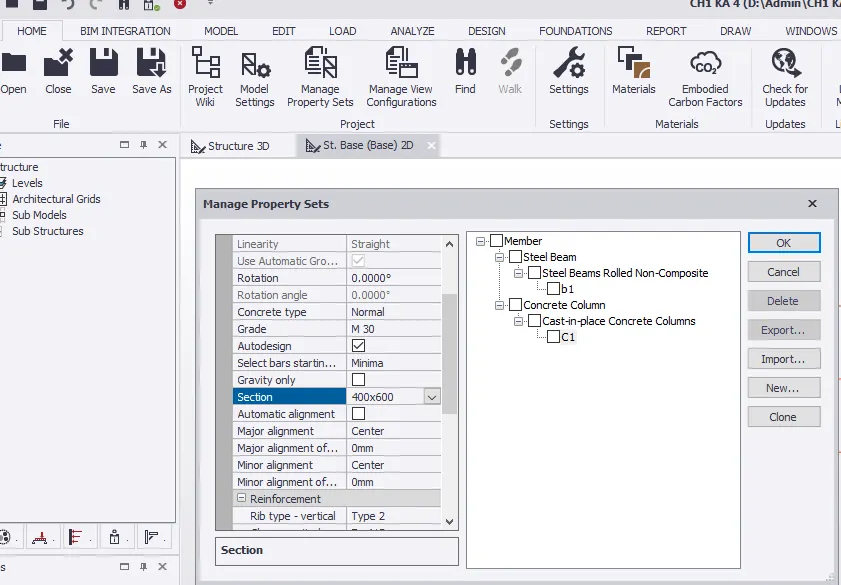

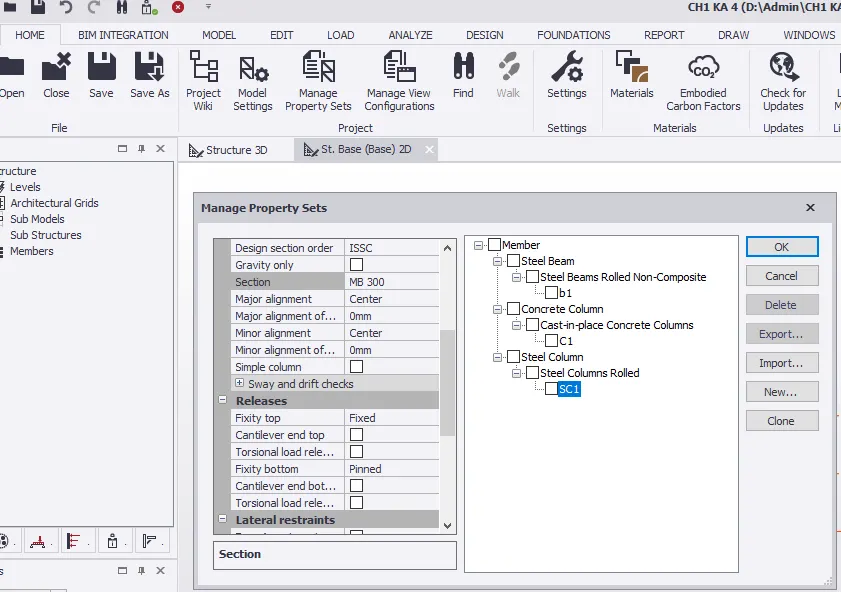

Manage proerty in home > manage property sets > new > concerete cloumn > section size , 400x600 , . M30 Grade .

1. Create column properties for steel columns and model columns in the grid created as per assignment 1.

ans  2.

home > manage property sets > new >members . steel column .

now open ground floor plan in structure >set top restraint at top of roof .

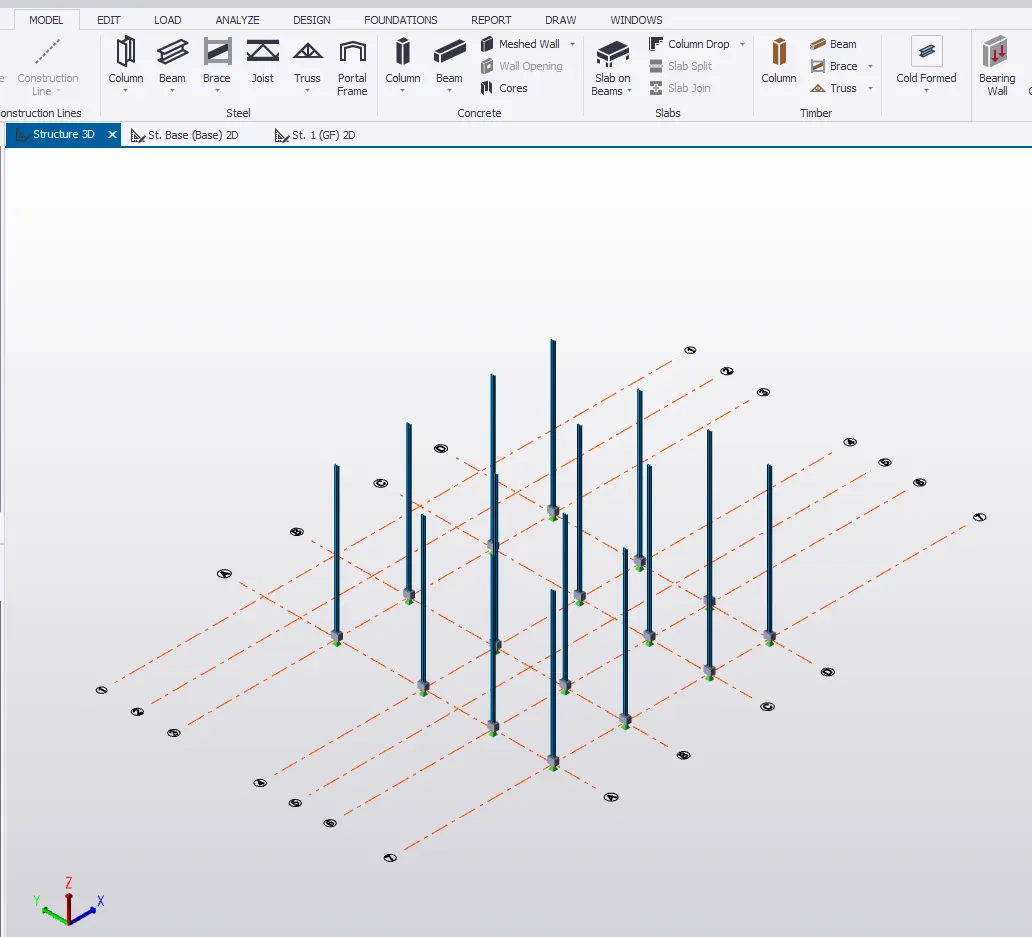

now go to model tab > click  steel column >check properties in left side > SC1>

apply coloumn to grids .

1. Create beam properties and model primary and secondary beams on the ground floor

ans-3.

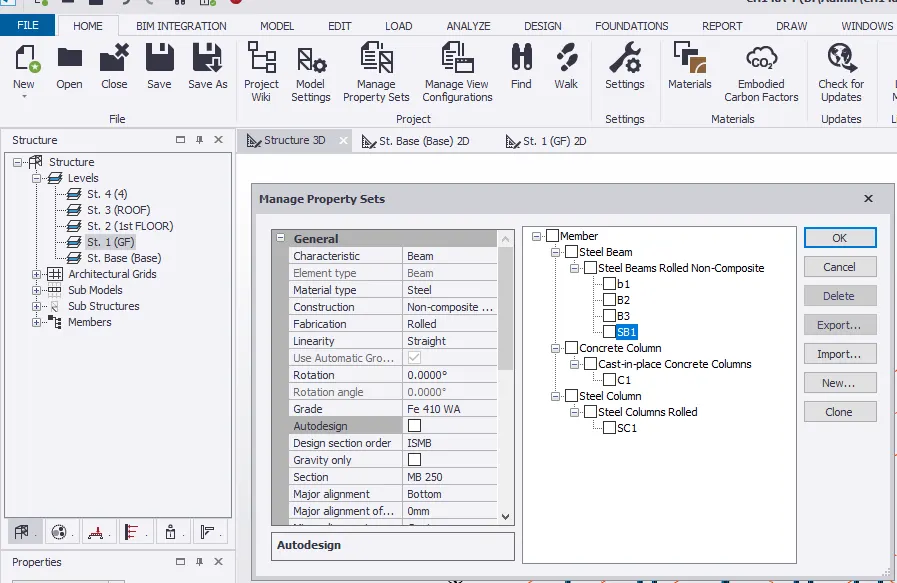

home > manage property sets .> new > members > steel beam >give diffrent sets of name >

b2 [300] ,B3 [,400] , SB1[250]

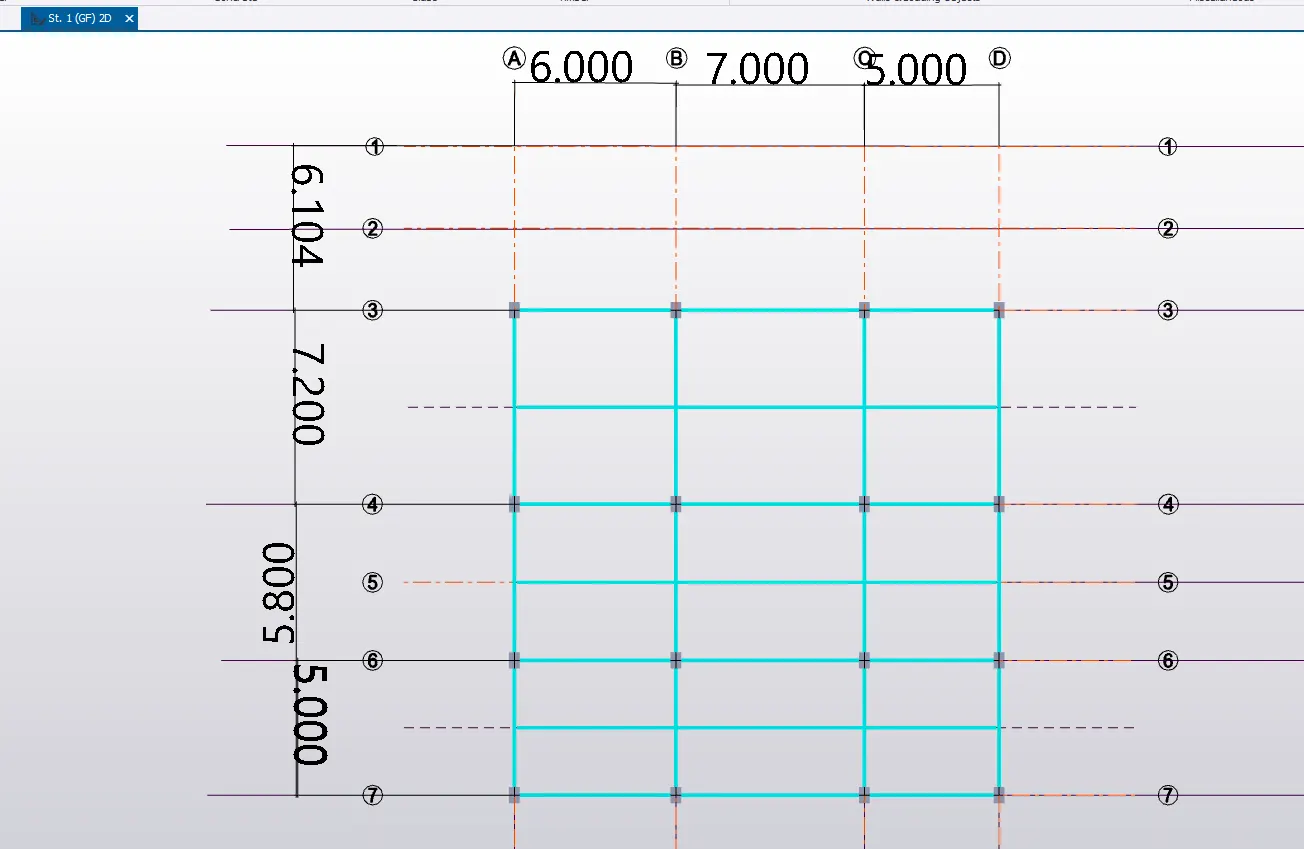

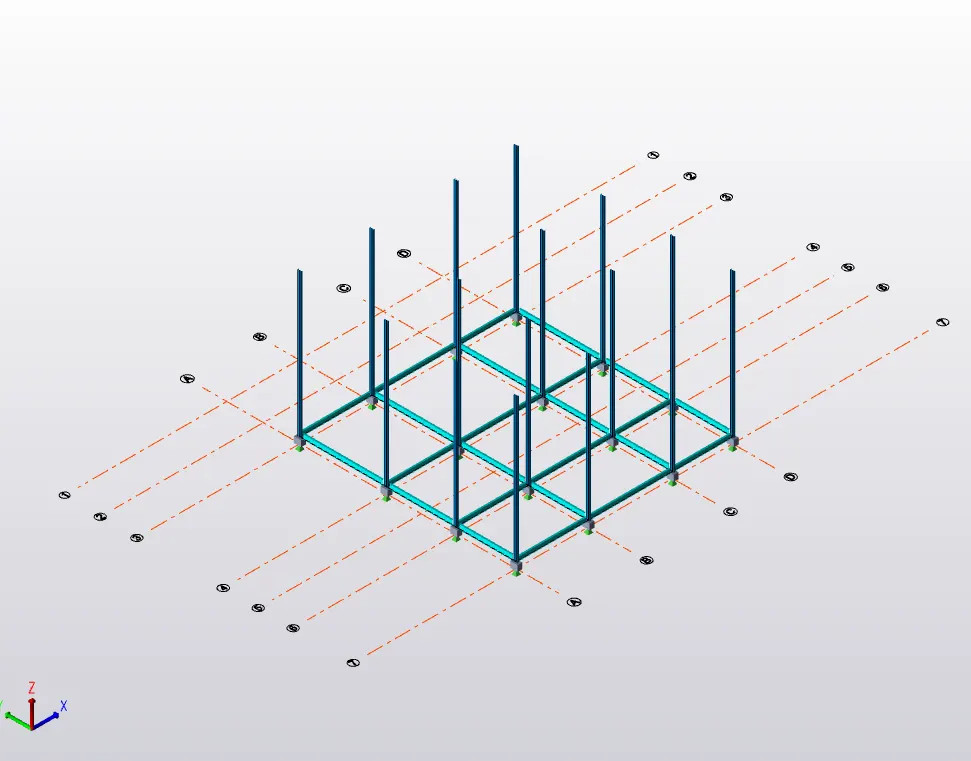

-GROUND FLOOR PLAN > MODEL TAB > STEEL BEAM SELECT

-SELECT BEAM AS PER REQUIREMENT ,DRAW .

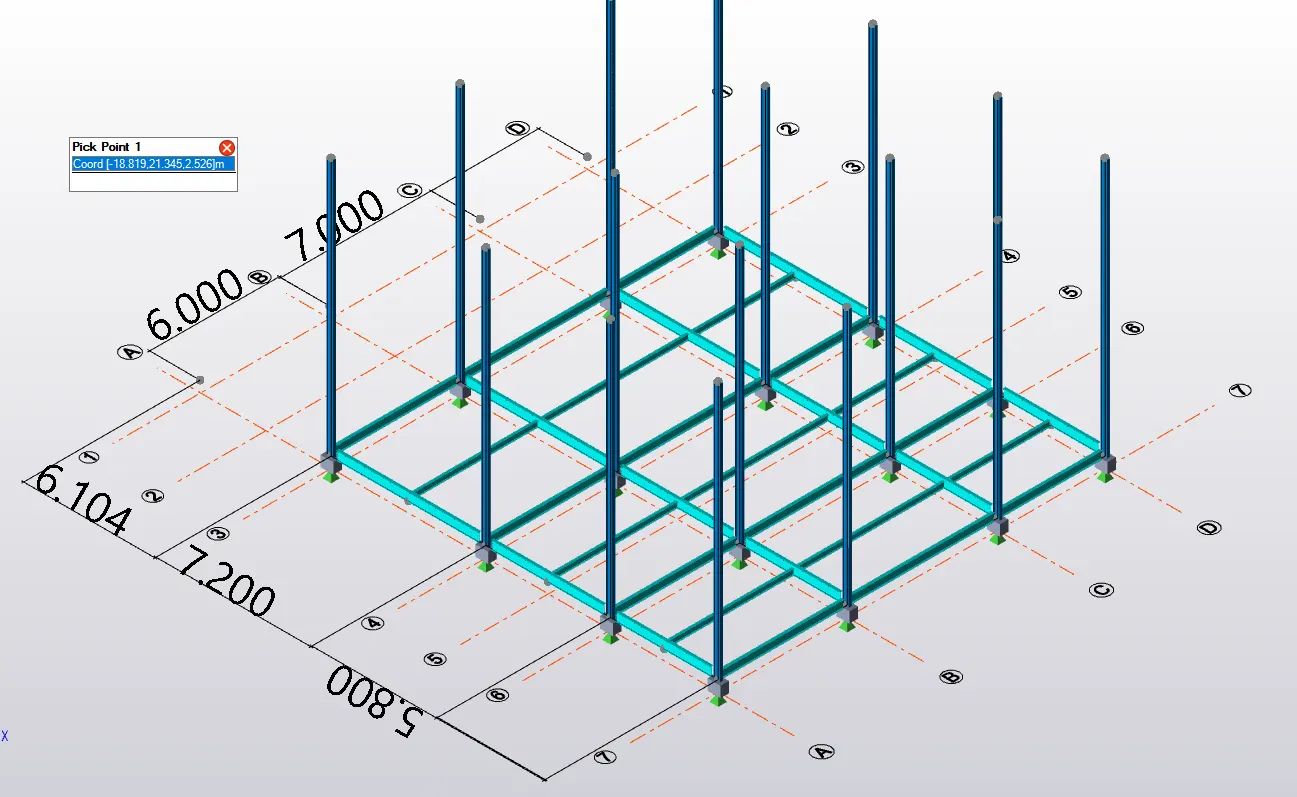

-DRAW BEAM GRID TO GRID

-

-FOR SECONDARY BEAM WE DIVIDE DISTANCE NOT MORE THAN 4METER .

-BY HELP OF CONSTRUCTION LINES .> BE DRAW LINES FOR SECONDARY BEAM .

-MODEL > STEEL BEAM . > SELECT SB1 FROM PROPERTY PANEL .> DRAW SECONDARY BEAM .
