Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

1.AIM-

1.TO DRAW ARCHITECTURAL DRAWING OF A RESIDENTIAL BUILDING ;

DRAW IN HERE

a. Plan

b.Elevation

c.Section

of a residential building .

2.structural drawing --

-column , fotting , beam plan layout of a building .



PROCEDURE-

-STEP1

select units in metric , and  drawing in meter .

select limits

and zoom all .

ARCHITECTURAL DRAWING

Plan of residential building---

STEP2

Drawing a plot is size is 18.3mx6m, with help of recangle command  , also mark direction .



sTEP3

Draw wall offsets .25m , for wall thickness .



sTEP4

DRAWING LIVING ROOM

As the orientation is east ,so main door should

face east and given offset  3m  in west

room size is 3mx4m

-for opening is createted  by offseting 1.5m from the wall

and trim also.

 As per vasstu shastra  north -east is  favouurable for living

room  and

entrance should be North or east .



DRAWING DINING  ROOM -

give an offset  3m , in living room wall

and a offset is also give  4.5 m is main wall

creat dining room size is  4.5x3m

and door opening of 1m is provide  north wall

of living .



DRAWING KITCHEN

-offset 2m horizontally from dinning wall and

4m vertically

size = 2x4m

trim 1m door opening .

ACCORDING to vaastu shastra  soutch east is  ideal place

for cooking ,and facing east .



STEP7-DRawing master bedroom and toilet -

from south wall give a offset 4m ,

widh is 4m ,joining kitchen .

size =4x4m

opening .80m

for toilet draw a offset in horizontally 2m

and 1.5 m in dining wall .

size =1.5x2m

-N-E Should  be avoided for toilet aacording to vasstu

-according to vaastu shastra ideal position of bed room

is soutch west .





step8

PUJA ROOM

im master bed room offset 1m and

toilet offset

1.5m  draw puja room size is 1.5 x 1m

NORTH  EAST  SHOULD BE GOOD FOR PUJA

ACCORDING TO VAASTU SHASTRA .



STEP9

DRAWING BED ROOM WITH TOILET

 livining room offset 3m and dining room offsetr

2.5 m  size =3x2.5m

toilet 1.5 x1.5m  inside bed room .

trim excess lines and fillet corners .

STEP10

inserting text

give DT CO. , FOR Seeting st co.

text size .15m



STEP11

places door and windows in respective places.

 use of layers we will provide any colour .

ELEVATION -



 PROjecting lines todraw elevation .

project wall lines at top top .



--DRaw horizontal line offset  1m  for plinth  level .

--offset 2.1m for lintel level .

--offset 3.5m for floor level .

--offset .6m for parapet wall .





trim all excess lines and extension lines .



make shutters and panels for doors or window.

-creat some hatches.



SECTION

SECTION AA

Project lines from elevation  for height  from section line of plan  for Hori. members .



Drawing windows , doors ,  stairs in this section.



trim all unwanted lines .

hatch if necessary .

SECTION BB

project lines  from elevation for height

and from section line of plan  for hori. members .



-in here drawing  windows ,doors and stairs  in section.

if provide  use layers







2].



STRUCTURAL DRAWING

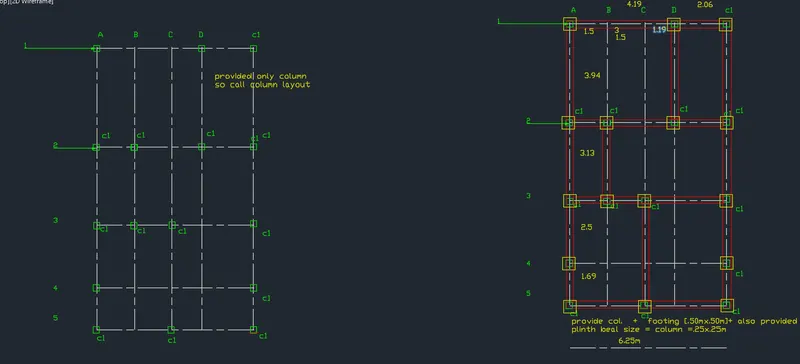

1.COLUMN LAYOUT

PLACING COLUMN  of size .25x.25mm ,

placed in all corners  and intersection of walls

whereever required .



draw center lines ,in annotab tab .



-mark grd lines 1,2--in y dir.

and a,b c,d ,e f in x direction.

make a layer for column and place column .



2 FOOTING LAYOUT -

MAke isolate footing of size .50x.50m  and creat rec.

and place it centers of column.



3.PLINGTH BEAM LAYOUT

PLINTH BEAM IS PROVIDED BELOW ALL THE BEAM

1st connect columns by beams is width  .25m

and thickness is .25m

-creat a layers for beam  and put plinth beam

in that layers.









RESULT

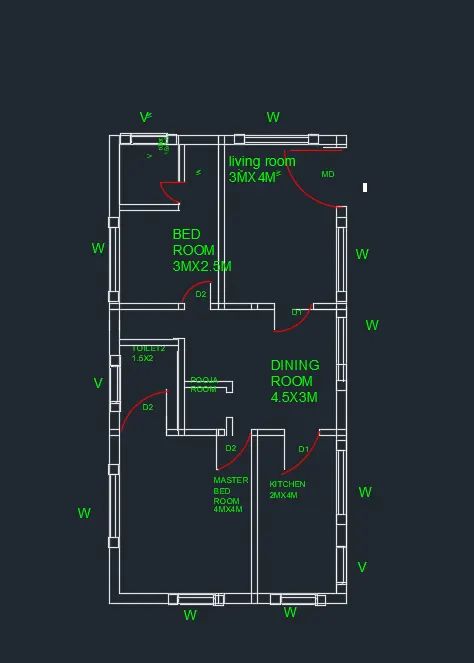

PLAN

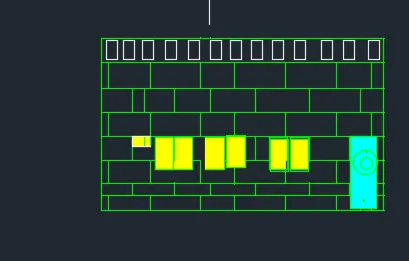

ELEVATION

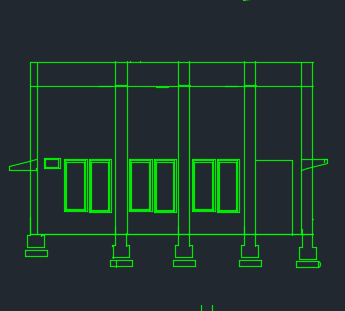

SECTION AA-

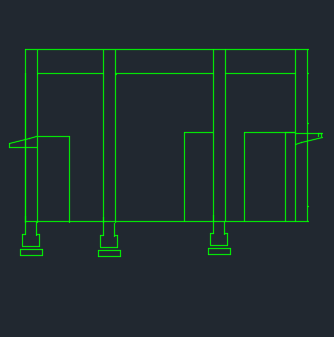

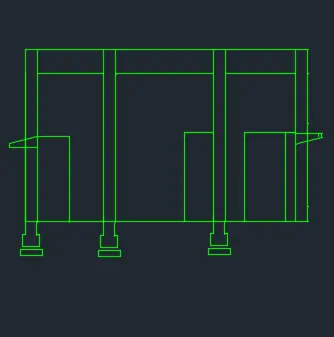

SECTIONBB

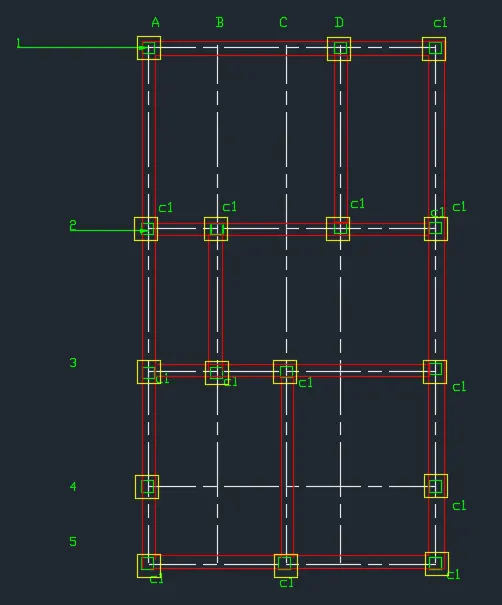

2B.FOOTING LAYOUT

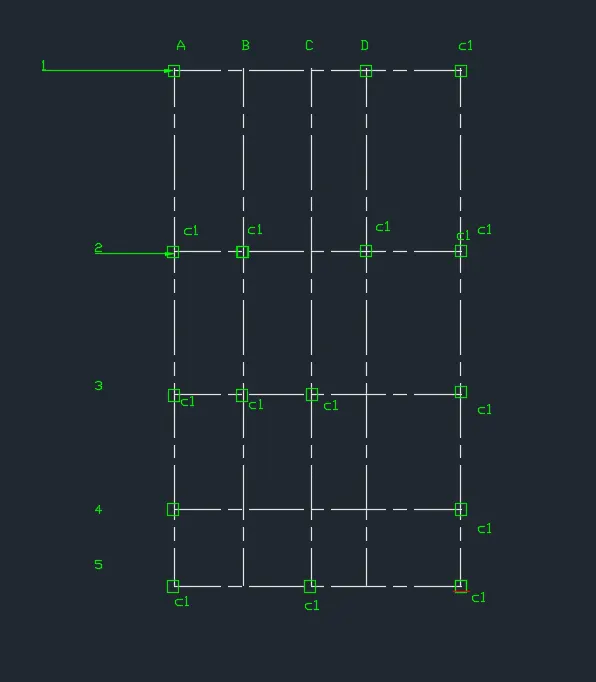

2.A- COLUMN LAYOUT

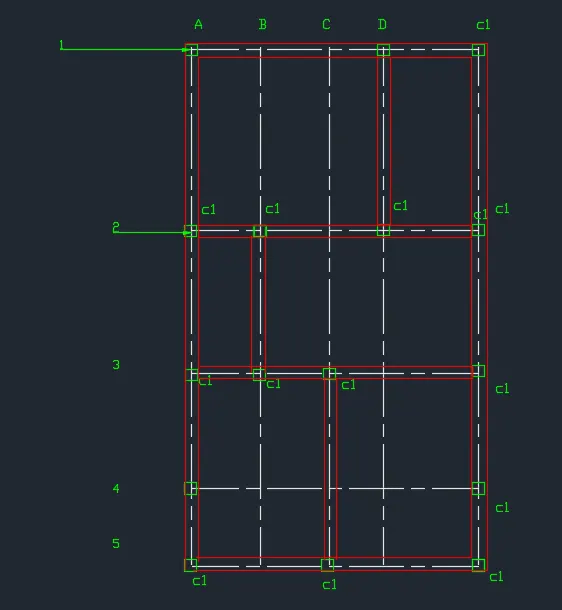

C.PLITH BEAM LAYOUT
