To model beams and bracings for industrial steel structures using TSD

1. Create beam properties for First floor and model the beams

 ANS-

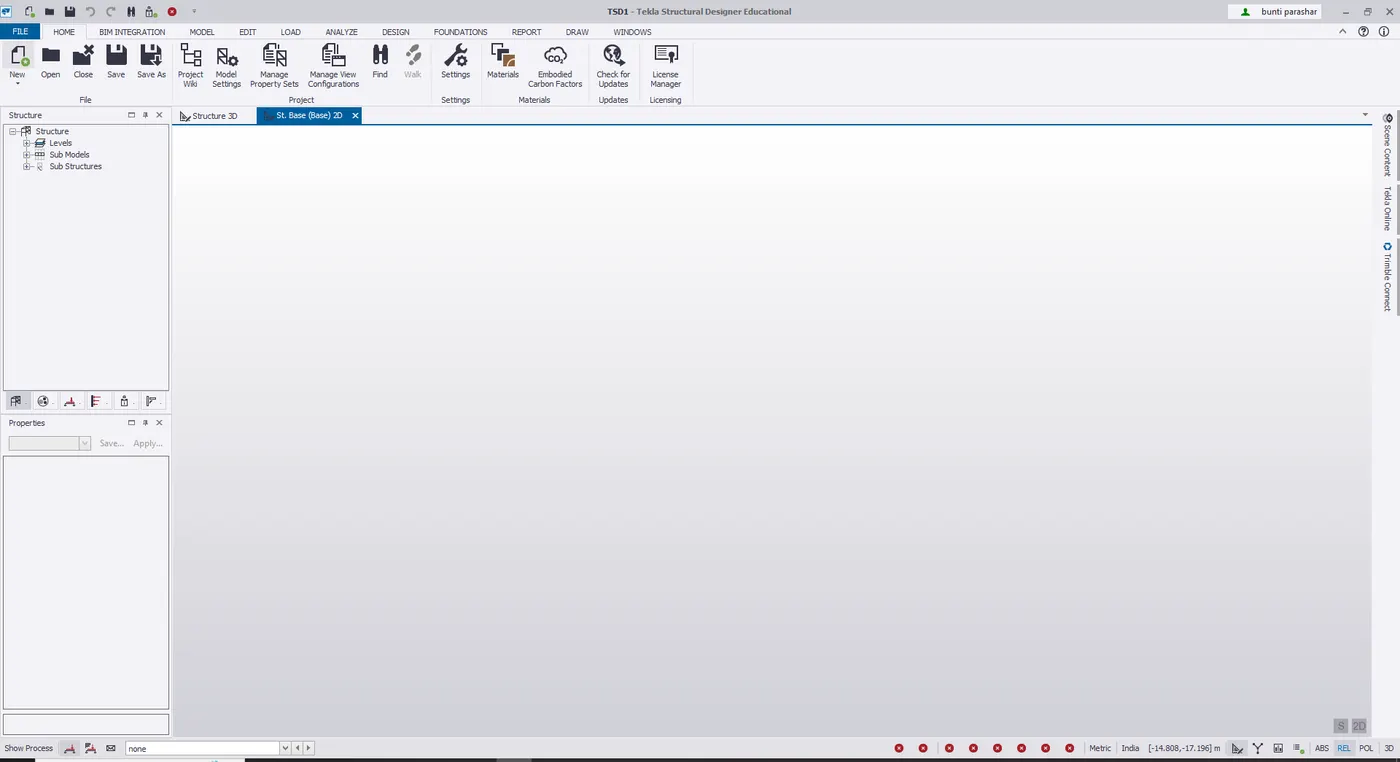

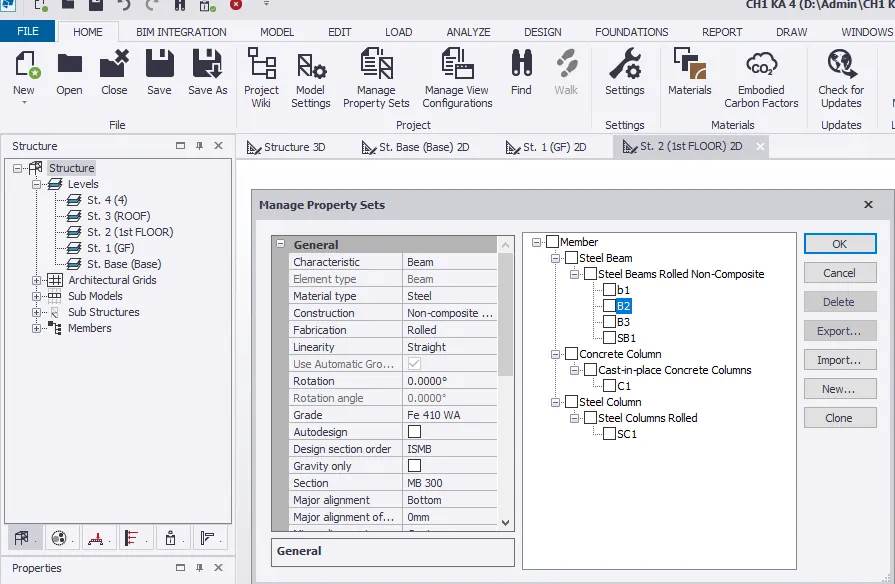

open file inTSD >home>manage propwrty set

>click new> members>steel beam >off autodesign option

>select MB350>OK

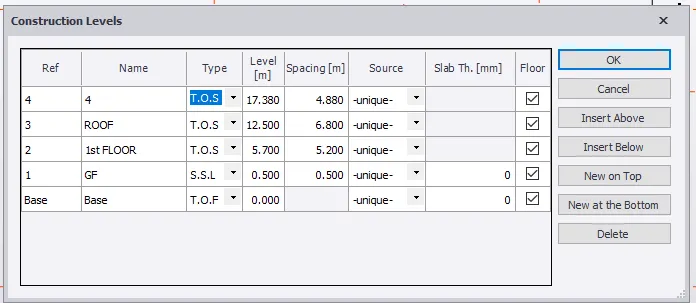

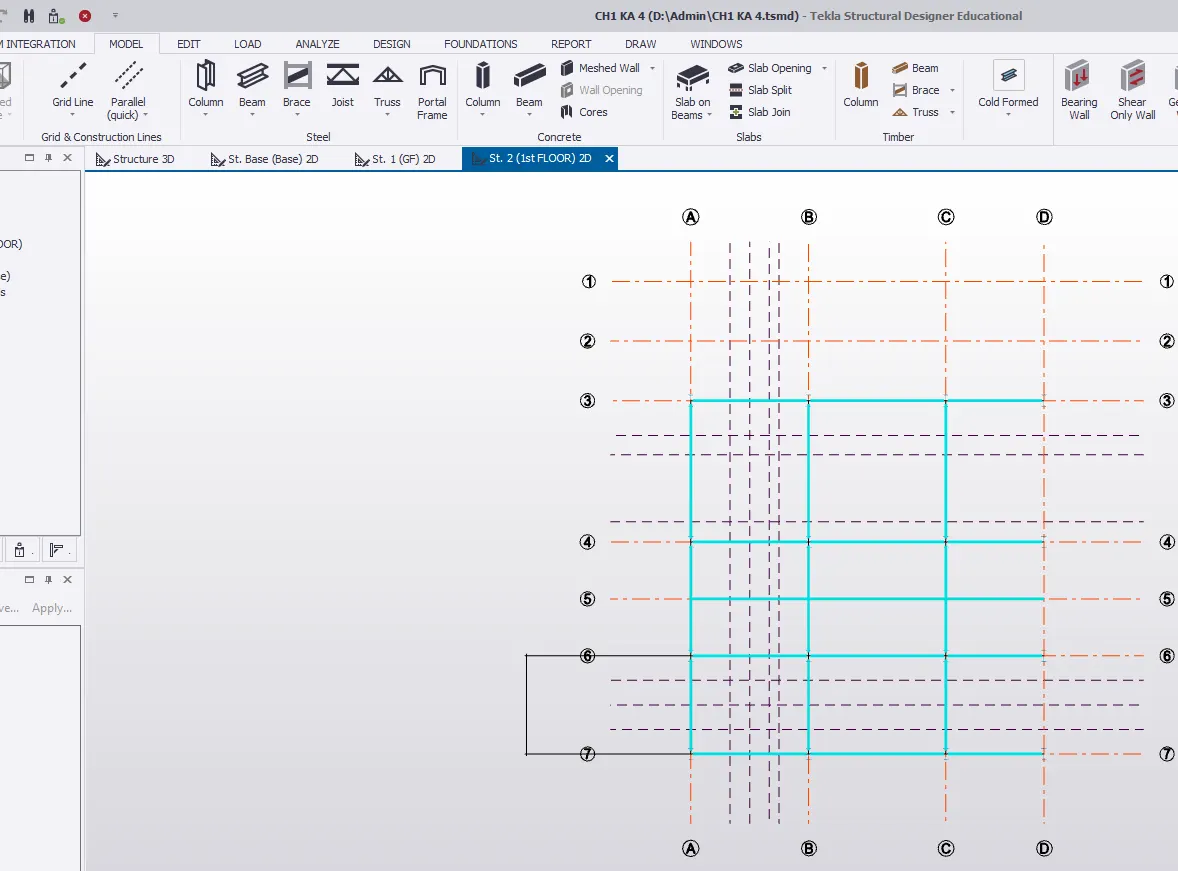

.structure >level option >under level >select 1st floor

1.select intermidiate level

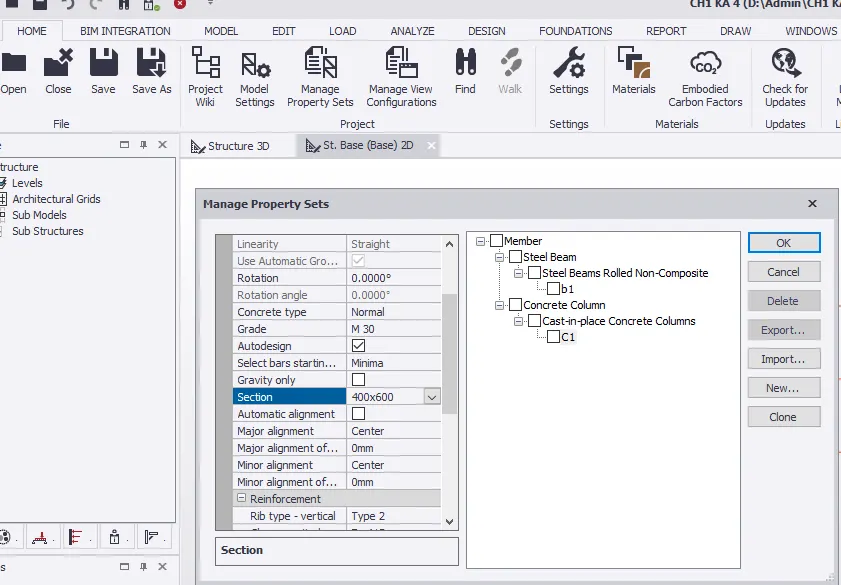

now go to manage property.>new beam >

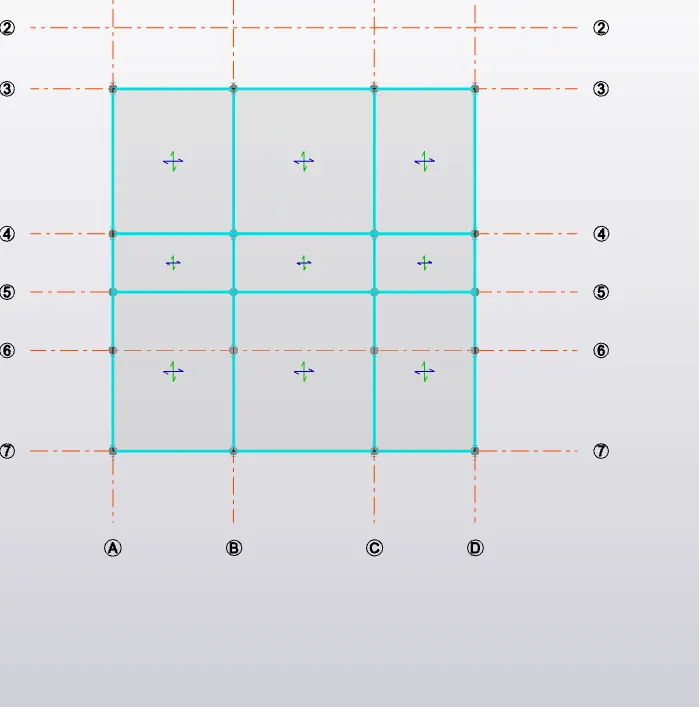

 with help of beam draw beams .

-     make  constructin for staircase

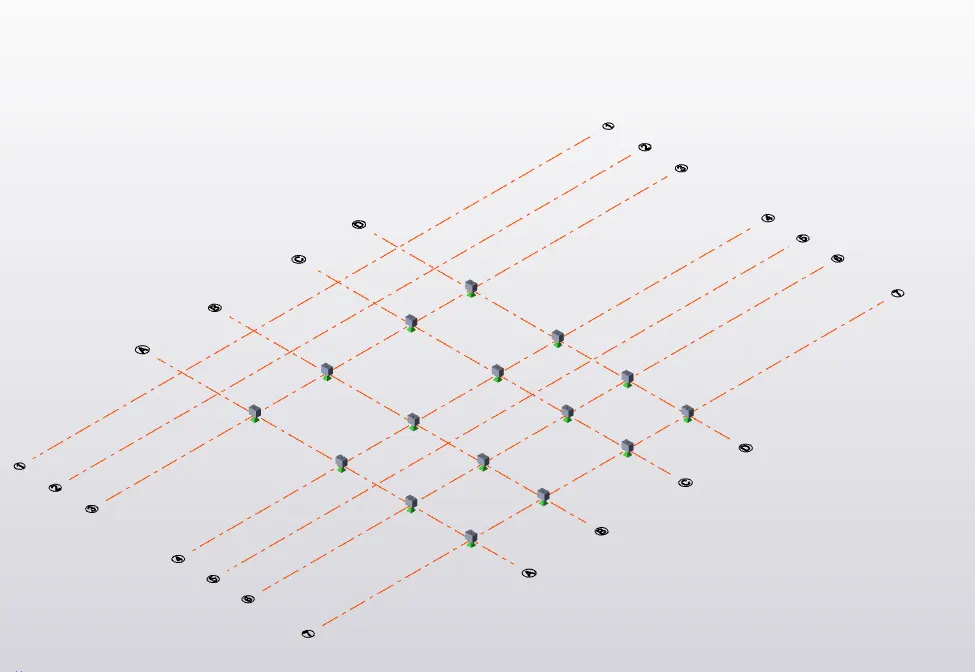

 -3D VIEW ,seen our  new beams on 1 st floor

ans-2

 2. Create rafter beam on second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent

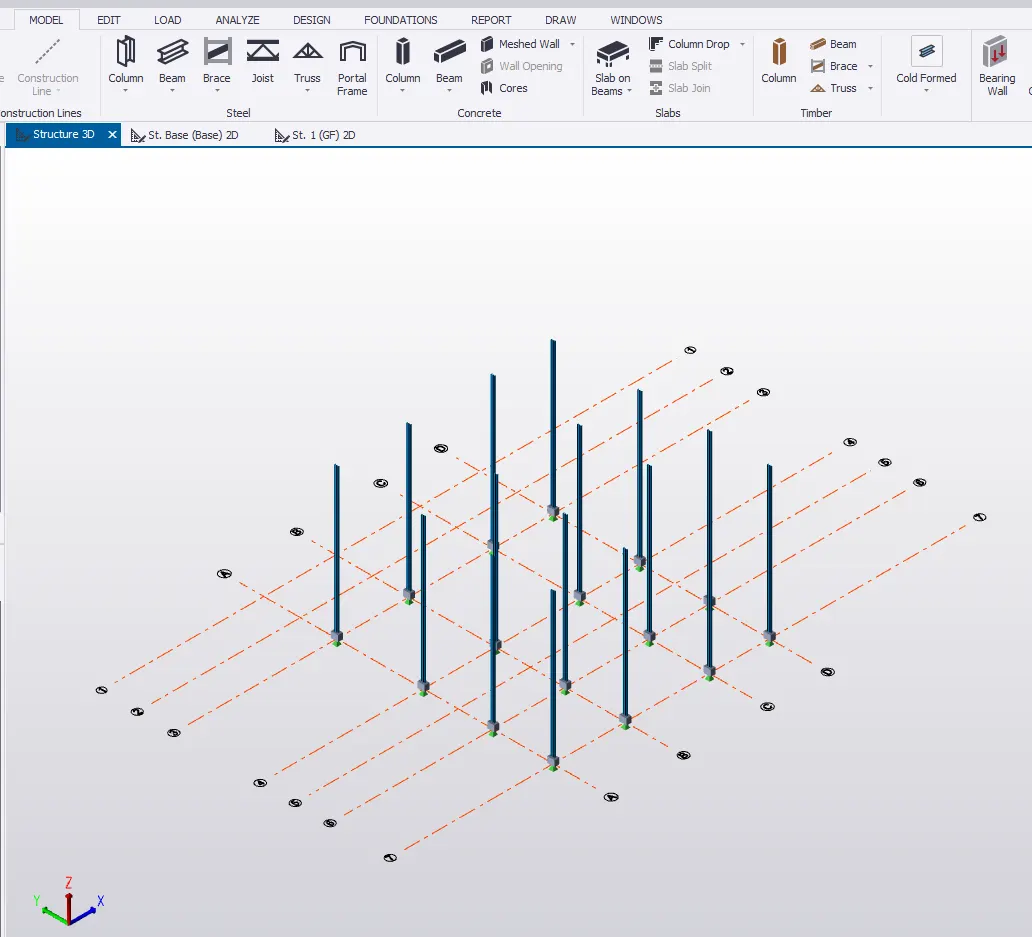

 ans2-3D VIEW>MODEL >FRAME TOOL BAR CLICK IN HERE>

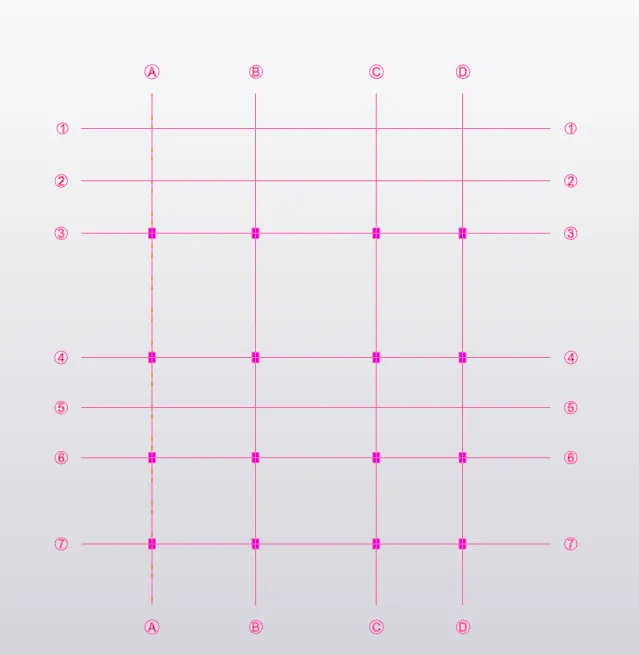

-select all grid lines apply frames on every grid than esc.

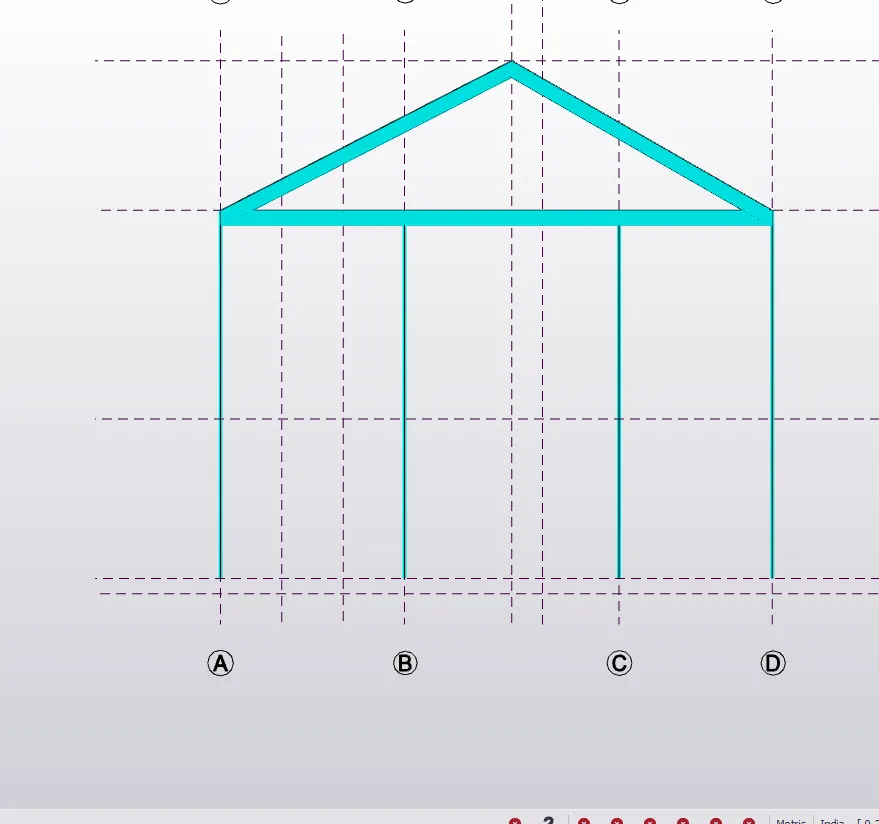

 open any 1 frame leys say A.

-draw requre construction for placement on rafter

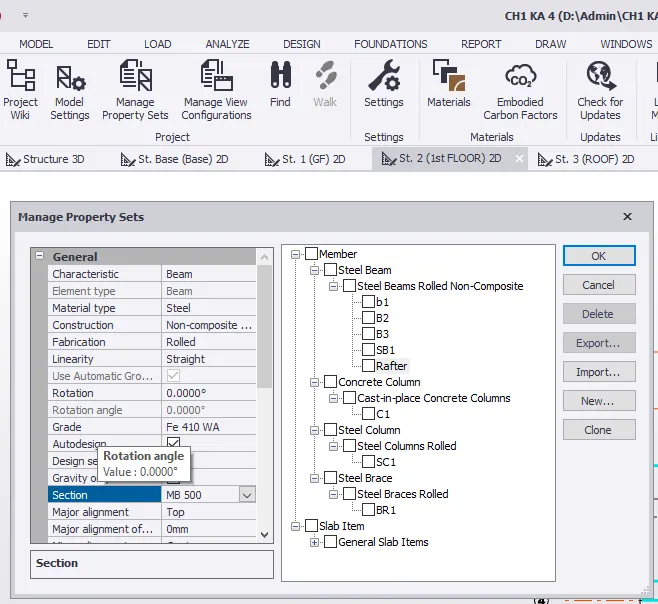

-goto manage property sets >new >members>

>creat steel beam  for MB500

-DRAWrafter using steel beam mb 500

>go to 3D view > select all rafters >copy it >

>specify base point > and paste all other required position

-with help of steel beam join all mid points of adjent rafter .

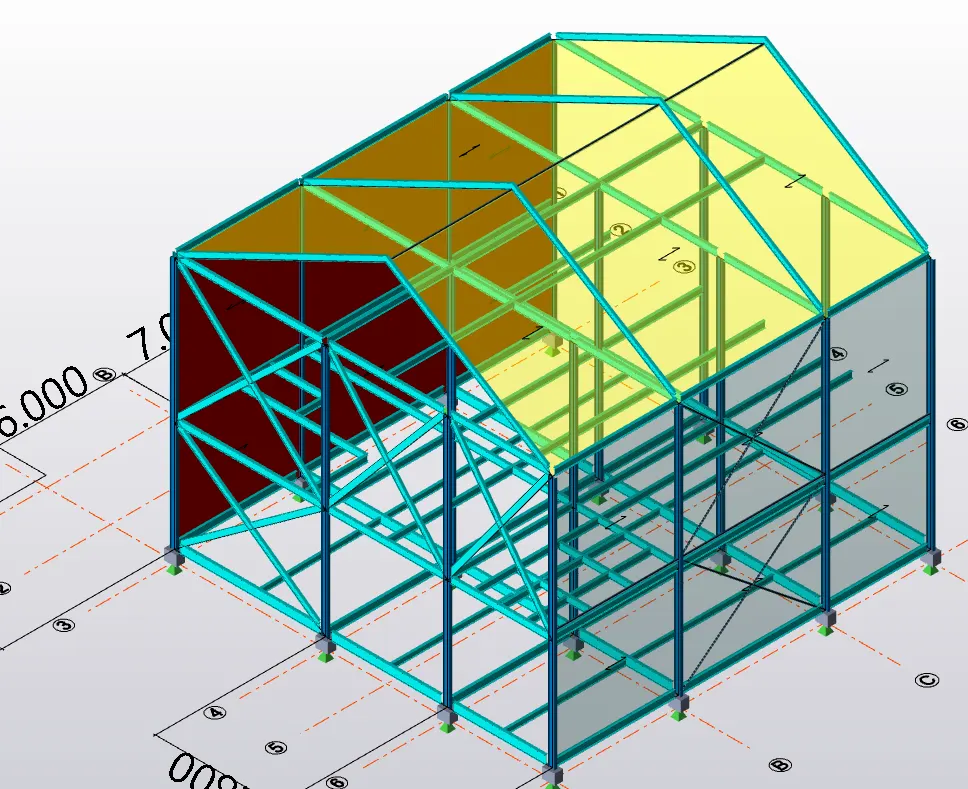

creat  X braceas on  either ends of structure on both and front side and back side

-than repeat same process roof also

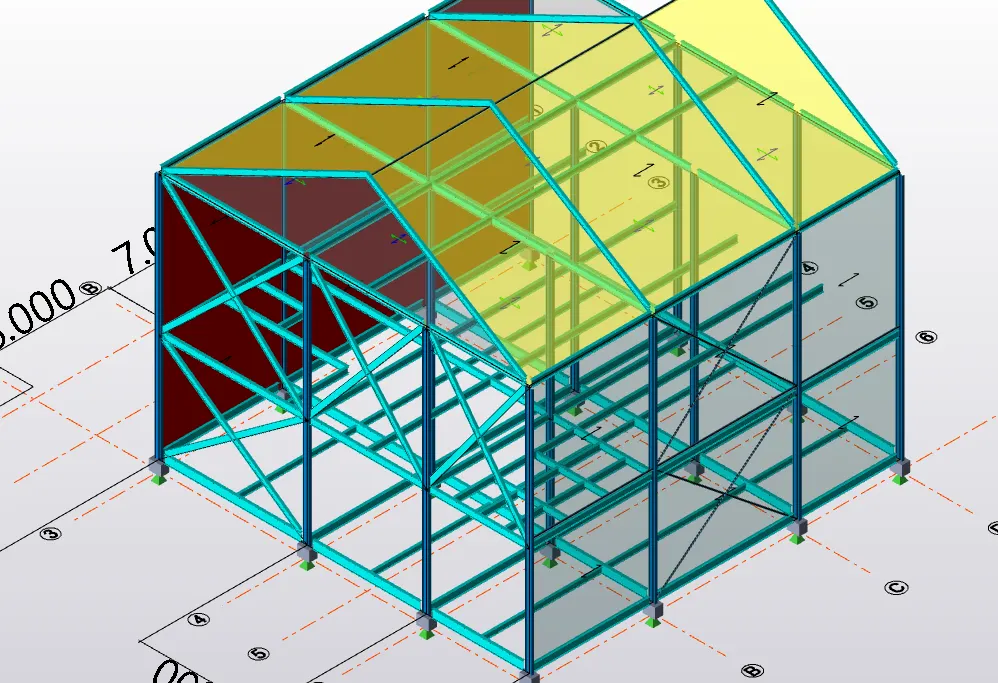

-than select wall panel toolunder model tab and construct wall panelsat place  where we created X races .,

-select  roof panels and constructed them on roof where we constructed X braces on roof .

sucessfully completed to creat rafter beam on 2 floor as

roof and moment frame action one direction and add bracing at location as per the design intend.
