Challenge

Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

AIM-

CREAT A LAYOUT OF KITCHEN AND PROVIDE HATCH PATTERN ,

ALSO USE BLOCKS WHERE EVER REQUIRED.

PROVIDED DIMESIONS ,ASSUME SIZE OF DOORS ,APPLIANCES,

AND OTHER AS PER STANDARD.

PROCEDURE -

-import while layout of kitchen challange

6 -

-now imported file do hatch .

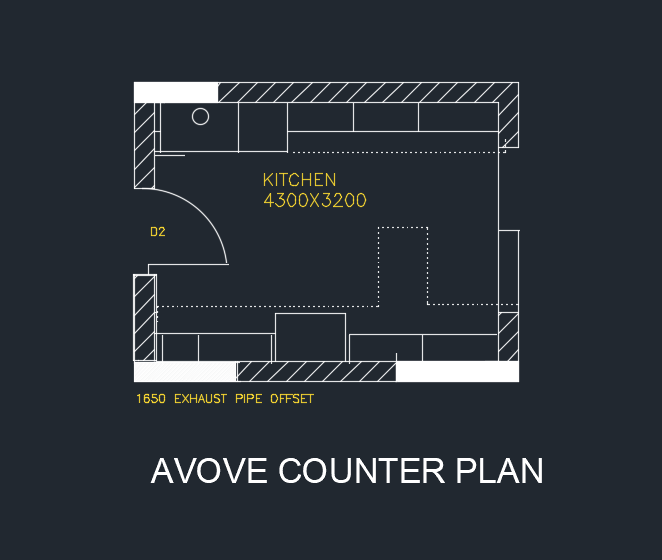

walls hatched line ,

column hatched solid colour

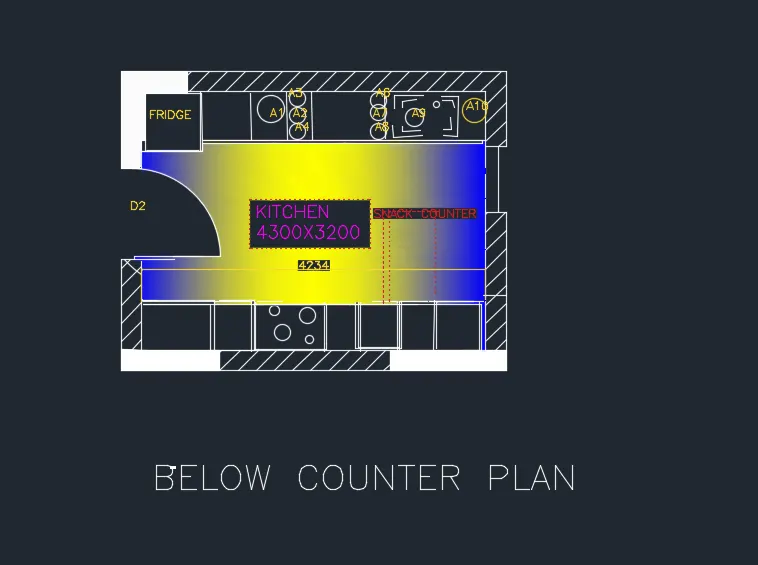

-floor of kitchen give 2 diffrent

hatched other name is gridiant

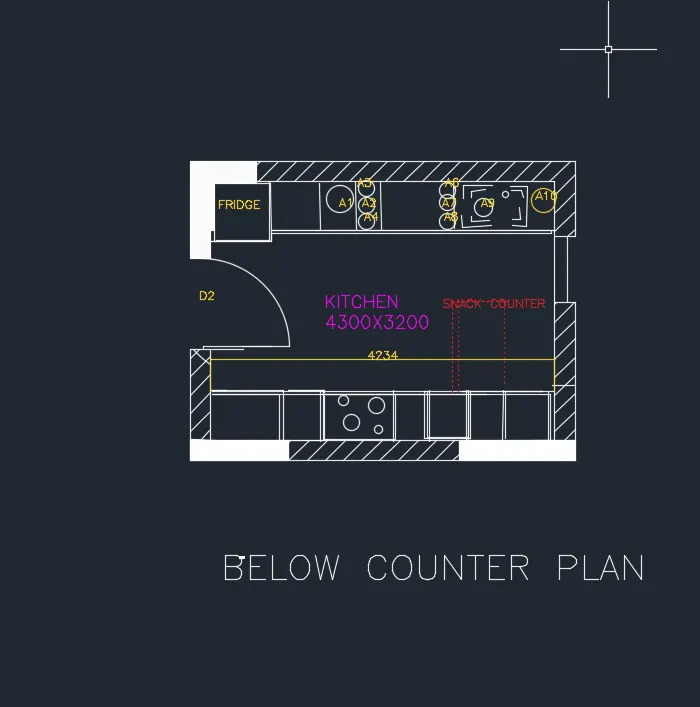

-snip of whole procedure shown below.

RESULTS-

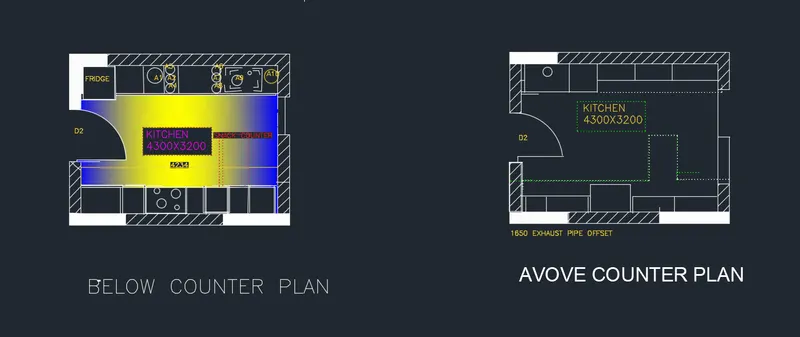

LAYOUT OF ABOVE AND BELOW KITCHEN PARTS

IS SHOWN AND LAYOUT IS THEN HATCHED ADVANCED

HATCHING TOOL OF AUTO CAD .

SNIPS:

2.AIM -

CREAT ELEVATION OF PLAN CREAT IN

CHALLANGE 7 AND APPLY PROPER

  • HATCH IN WALLS , DOORS , WINDOWS AND

OTHERS , ARCHITECTURAL ELEMENTS

INTRODUCTION-

CHALLANGE 7 DONE , TO MAKE

STUDENTS AWARE OF ARCHITECTURAL IMPORTANCE

OF ELEVATION OF A BUILDING .

-WHOLE ELEVATION DRAWING IS BASED CHALLANGE 7 .

PROCEDURE -

.-U nits is set in mm

-Limits and lim max are also set

-zoom command is also used .

-use COMMADS

XL- DRAW VERTICAL AND HORIZONTAL LINES

-OFFSETS

-TRIM

-ARC

-LINE

-HATCH

-DIMESIONS

-LAYERS

-M TEXT

ACCORDING TO CHALLANGE 7

A LINE DIAGRAM IS DRAWN .

. NOw use of line , trim , offset , extend co.

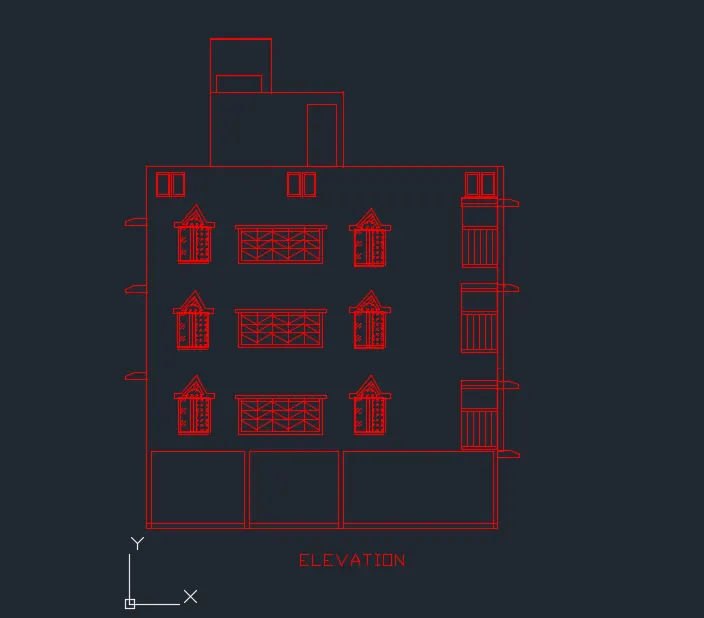

a elevation of building is created.

.next we comes in architectural editing.

.chajjas and railing

windows and balconies

are drawn.

.with help of line ,trim , offset , trim co.

.once all elements of elevation are drawn

next hatching are done .

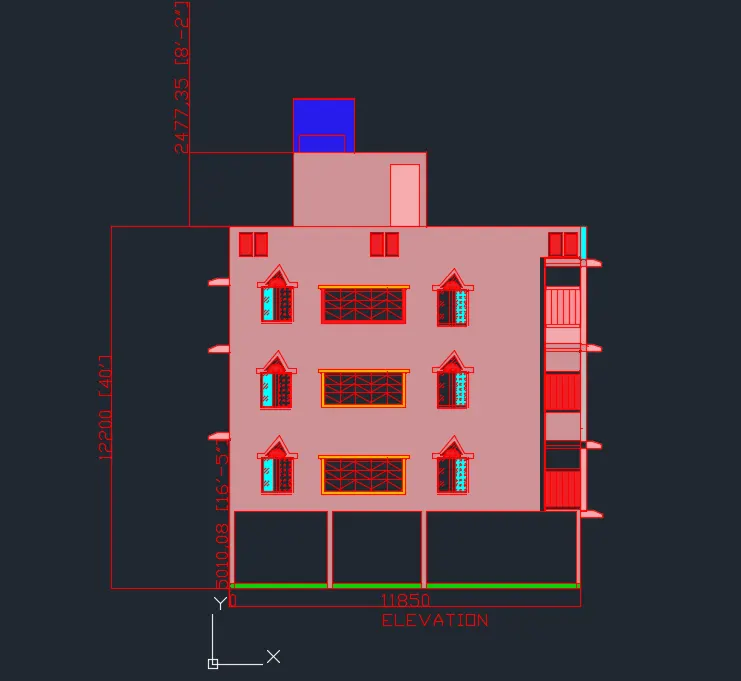

next dimension are given by

use of DIM , DIMLIN , DIM CONTINUE CO.

.GIVEN SNIPS BELOW

.

RESULTS-

THE ELEVATION OF BUILDING IS FORMED

3.

AIM -

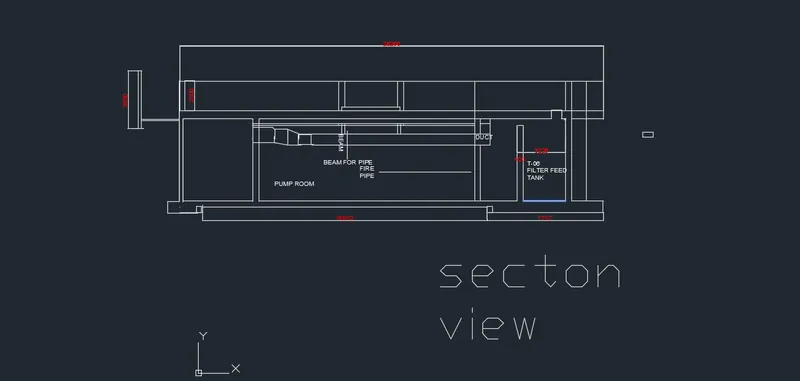

-CREAT SECTIONAL VIEW OF INDUSTRIAL BUILDING .

AS PER QUESTION

-PROVIDE DIMESIONS , AND PROVODE ANNOTATION OF BUILDING.

INTRODUCTION -

main aim of this question

is that draw sectional view of building .

PROCEDURE -

.A center to center line diagram is drawn

as per given dimesions in question are center to center .

-now offets of 225 mm given

to center line .

-to draw columns and pipes .

-All components are drawn and

and diffrentiate at diffrent layers .

-next hatching is done where required.

-annotations are given .

-dimesions are given .

-thus sectional view of instustrial

building is complete.

results -

the sectional view of industrial building is drawn

with dimesions, annotations .
