1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level INTRODUCTION- In this question main aim to creating a ceiling plan of diffrent level of building . PROCEDURE - Open file week 3 challange …
Bunti Parashar
updated on 03 Nov 2022

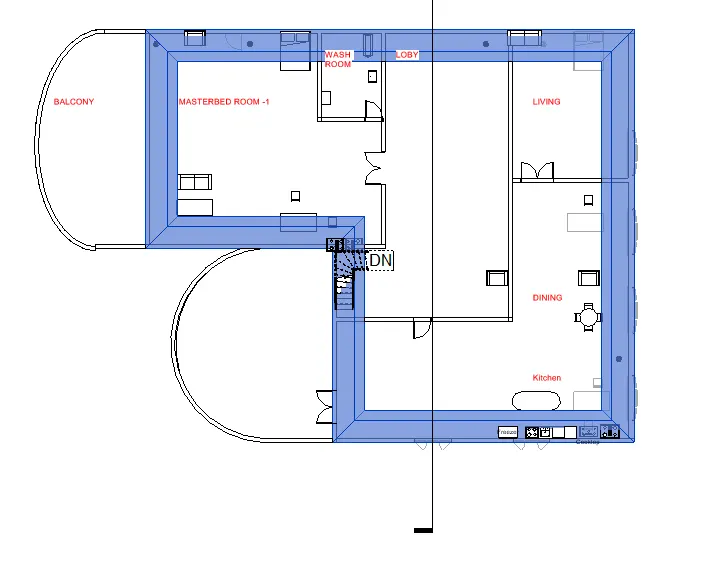

1) Based on the project saved from Week 3,
proceed from the First Floor Level.
Model a Ceiling from the architecture tab above the walls at the first-floor level
INTRODUCTION-
In this question main aim
to creating a ceiling plan of diffrent
level of building .
PROCEDURE -
Open file week 3 challange
-go to architectural menu click on
ceiling , just besides of floor creation icon .
-now creat boundry
-press enter ceiling is created .
-now follow same steps and creat
ceiling whereever required .
-please have a look of snips is given below
for more clearity .
RESULTS -
ceiling is created at desired level .
SNIPS -

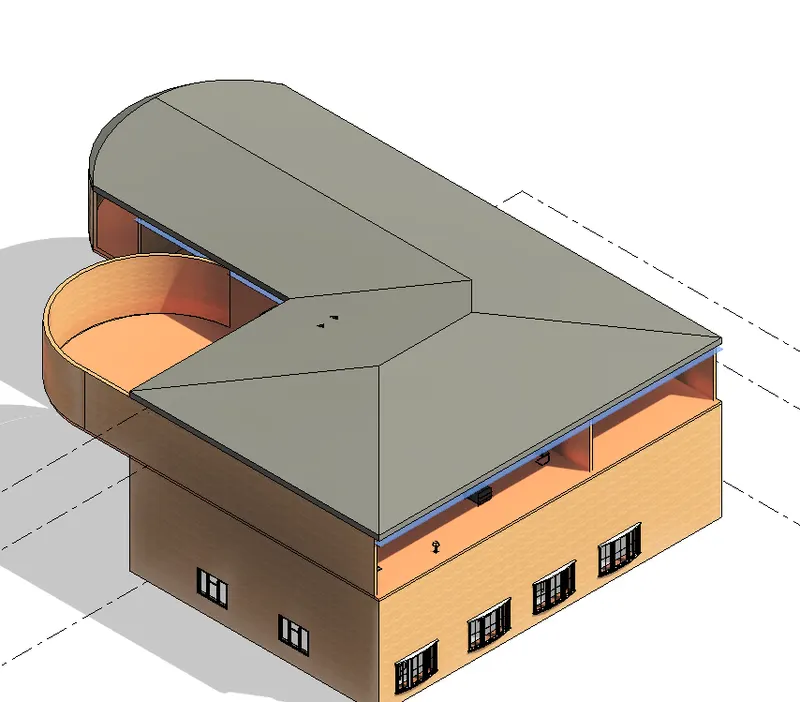

2) Model a roof above the ceiling by selecting the footprints of the ceiling.
Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
INTRODUCTION -
MAIN AIM OF THIS QUESTION
CREAT A ROOF ON FOOT PRINT
OF CEILING .
PROCEDURE -
-Open second floor plan .
-go to architectural tab and click
on roof icon .
-creat a boundry for roof .
-click on green tick roof is created .

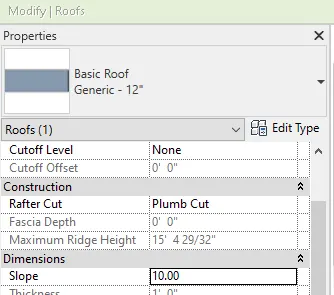

-change properities of roof
go to properties bar .
-change roof type generic 4' roof .
-next change degree of slope of
roof take help of unit command for
inches convert to degree of slope .
-
RESULT -
A roof with 10 degree slope is created
on the foot print of ceiling .
snips -
3.
AIM -

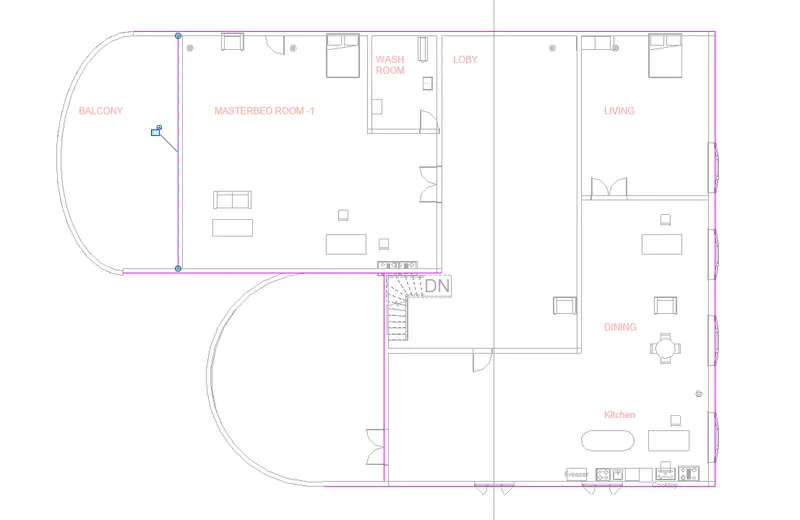

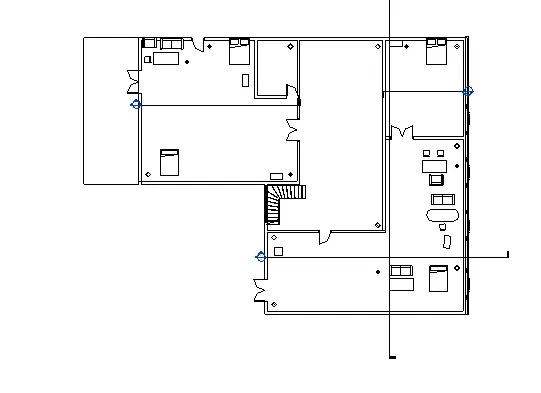

3) Using the file saved from weeks 2 to 4, create plan views for
ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
INTRODUCTION -
THE main of this question creating
plan views of architectural and
structural floor plan of residential unit .

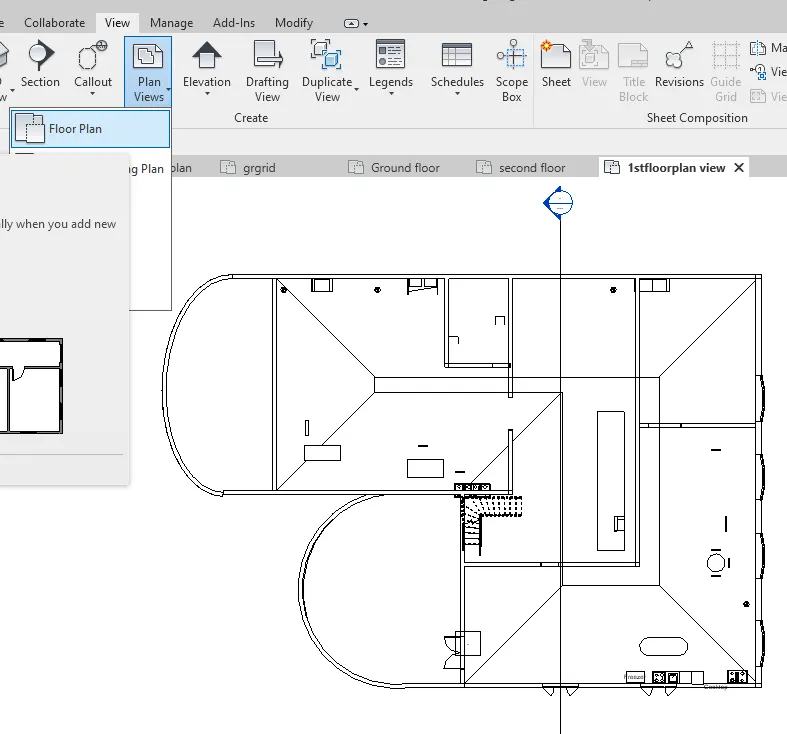

PROCEDURE -
-IN this existing file , open view tab .
-click on plan view
than select floor plan '
-asked in here creat or load a new template
-select standard template than dialouge box
pops up .
-in that select floor plan ' you like to
creat .
-its creat floor plan automatic
-for structual floor plan
same procedure will be followed .
-open plan view , select structural plan
-creat duplicate , give name structural
plan .
in this way we created diffrent plans for
all floors ,roofs .
-
Result-
we created diffrent architectural and
structural floor plan views of all floor
and roof .
SNIPS -
4.AIM -

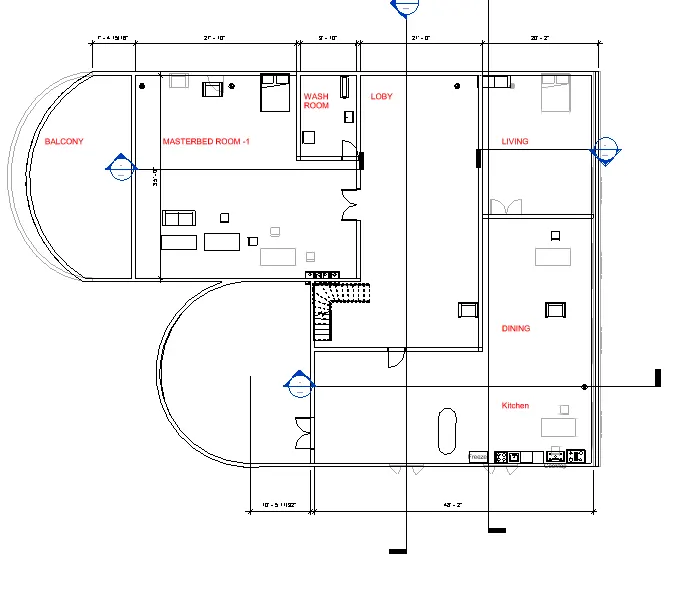

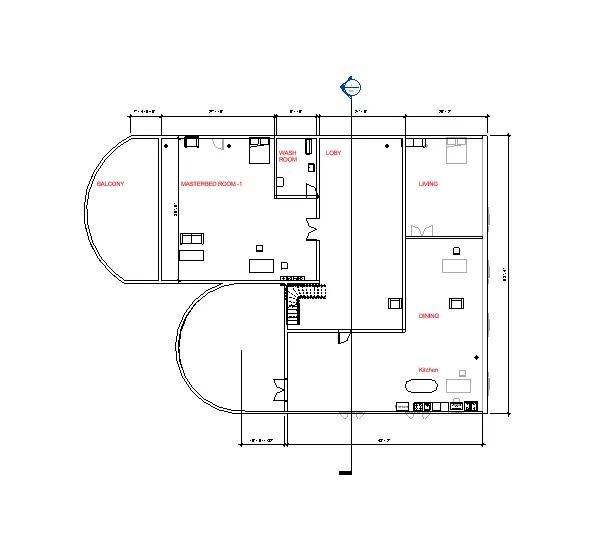

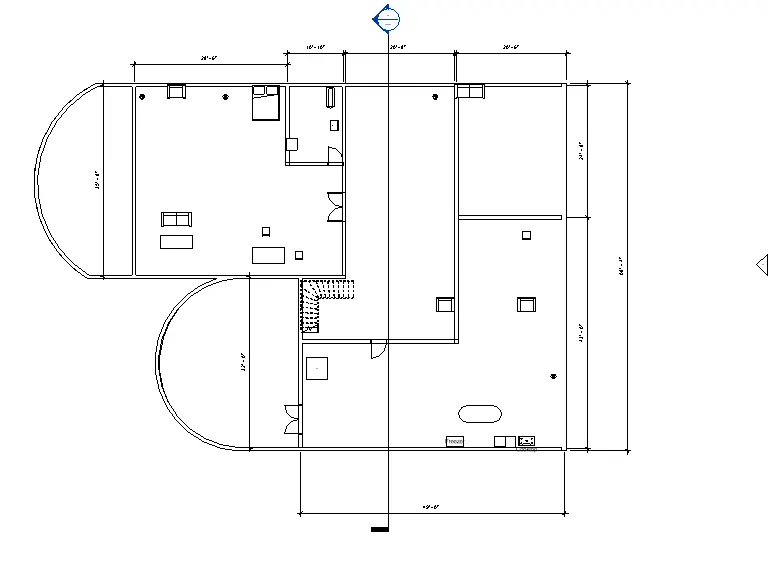

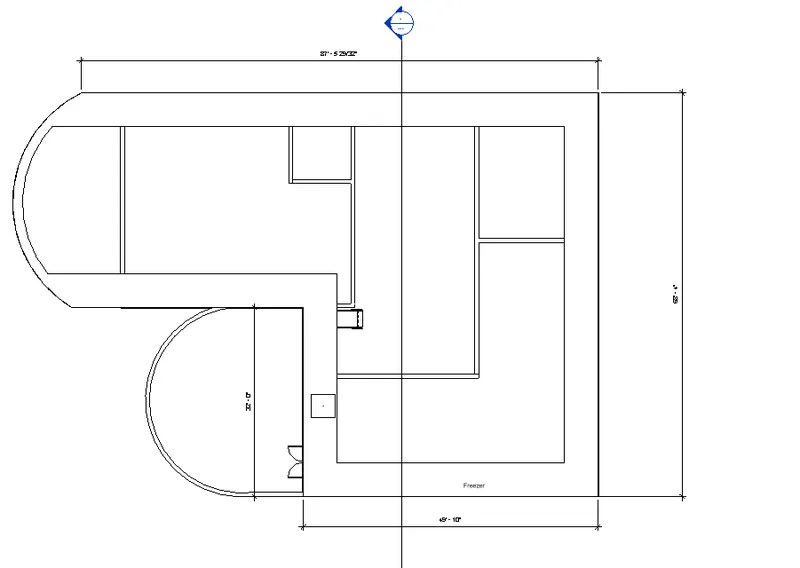

4) Using annotate toolbar add dimensions to all the walls and floors
with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components
are placed within the buildings with relation to grids. Overall dimensions are
sufficient for architecture plans
b. The Structure plan dimensions must include details on the
position of all the walls and interior walls with reference to grids.
Locate all the framing components of the building with reference to a fixed point using Structural plans
INTRODUCTION -
Main aim in here that add annotations
to both architectural and structural plan views
w.r.t. grids .
-PROCEDURE -
OPEN architectural and structural floor plan
-type DI FOR DIMESIONING .
-now give dimesions for all sheets ,
whereever required .
RESULTS -
DIMESION WERE ADDED TO ALL
STRUCTURAL AND ARCHITECTURAL PLAN .
SNIPS -
5.AIM -5) Create a sheet template from the view tab and
adjust the parameters on the sheet to add appropriate views
INTRODUCTION -
main aim of this question
creating a sheet template .
-and adjust its parameter on sheet '
-add appropriate view .
PROCEDURE -
-1st we open diffrent plan views
and in here creat camera view
for diffrent rooms and 3D view
-make realitis
-save its diffrent names in browser .
-now open view tab ,
click on sheet option .
-than sheet will be open .
-add parameter , edit double click
-drag views you want on this sheet .
-for adjusment click view ,
go to scale change scale or
-also open a option edit sheet at menu
bar when you select view in here
open this , go scale and adjust according to sheet ,.
-
RESULT
-Parameter of sheet were adjusted and
a sheet was formed having diffrent
views .
SNIPS
6.

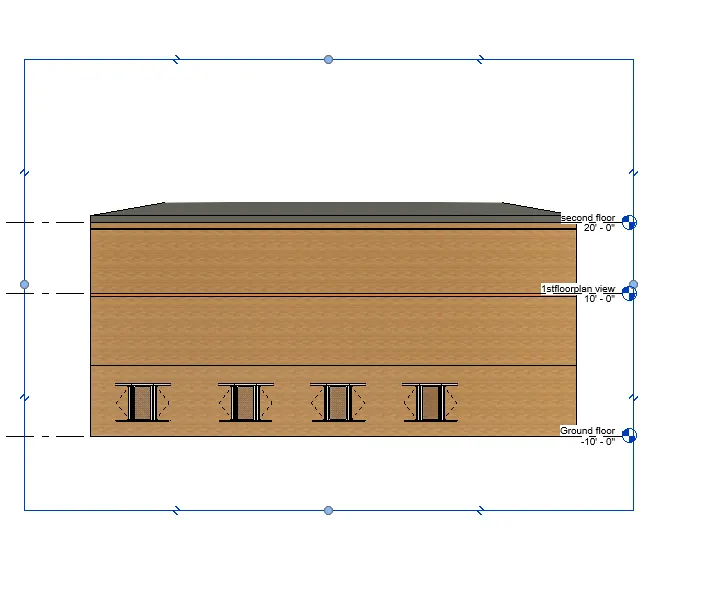

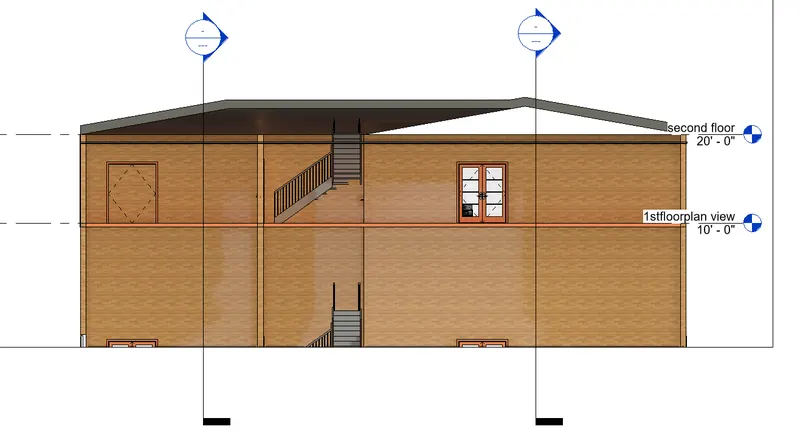

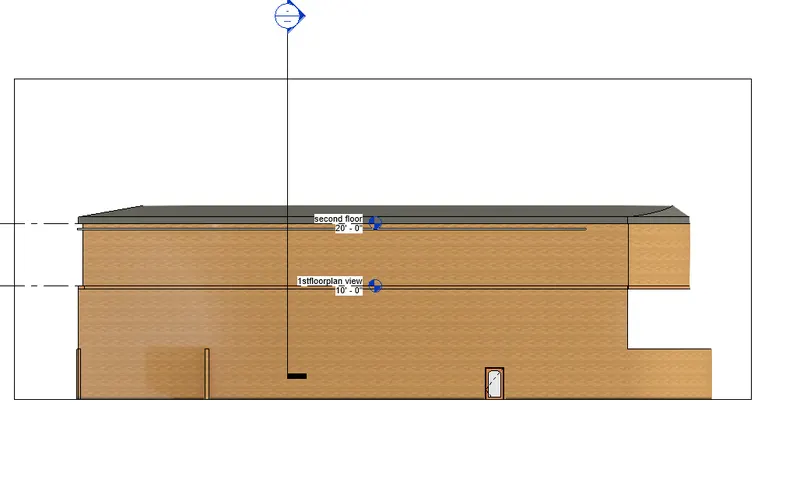

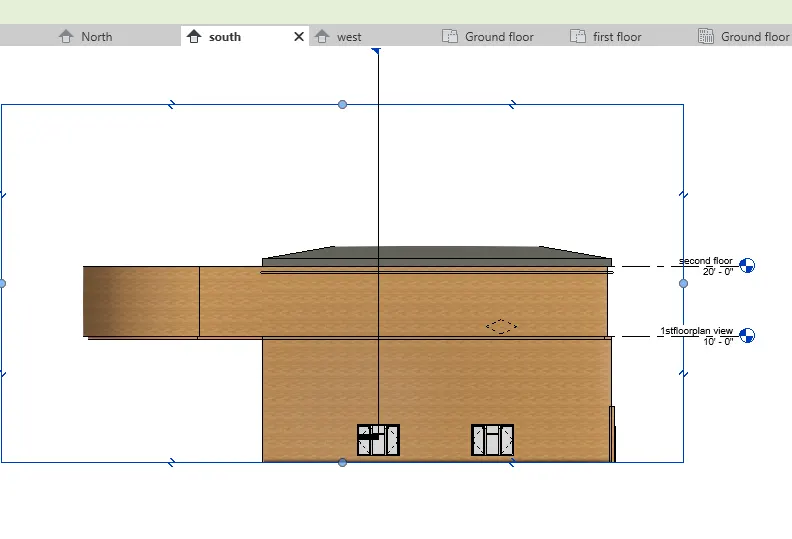

AIM -6) Using the elevation tab create the elevation views,
looking at your building from East, North, South, and West
INTRODUCTION -
MAIN AIM OF THIS QUESTION
CREAT ELEVATION VIEWS IN
EAST ,WEST ,NORTH ,SOUTH
DIRECTION .
PROCEDURE -
-basicllay revit has priority created
4 vies of elevation in project browser .

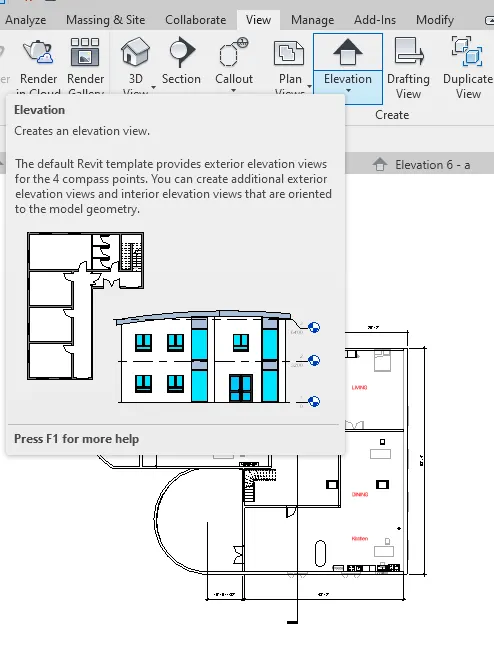

-but they are not there than one can
can creat it from view tab , clicking
on elevation option .
-click elevation option , a box will
appear
-that that box at place from where
the user want to see elevation .
-creat diffrent elevation all 4 directions .
-
RESULTS -
DIFFRENT ELEVATIONS WERE CREATED
IN 4 DIFFRENT DIRECTIONS .
SNIPS -
7

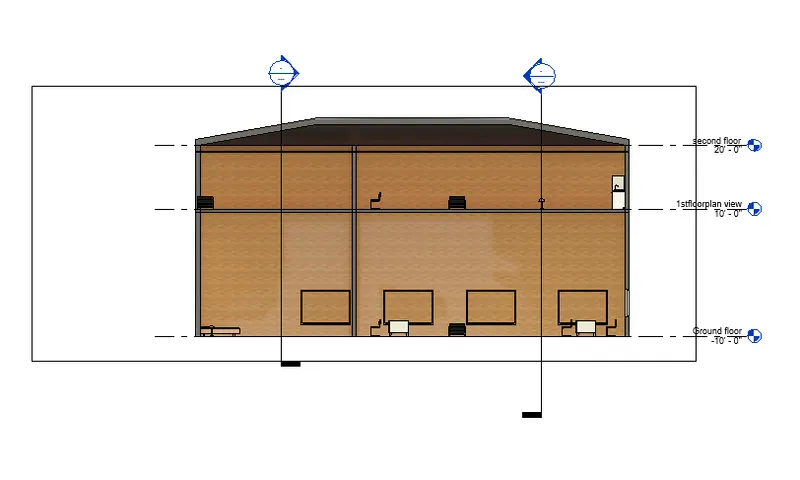

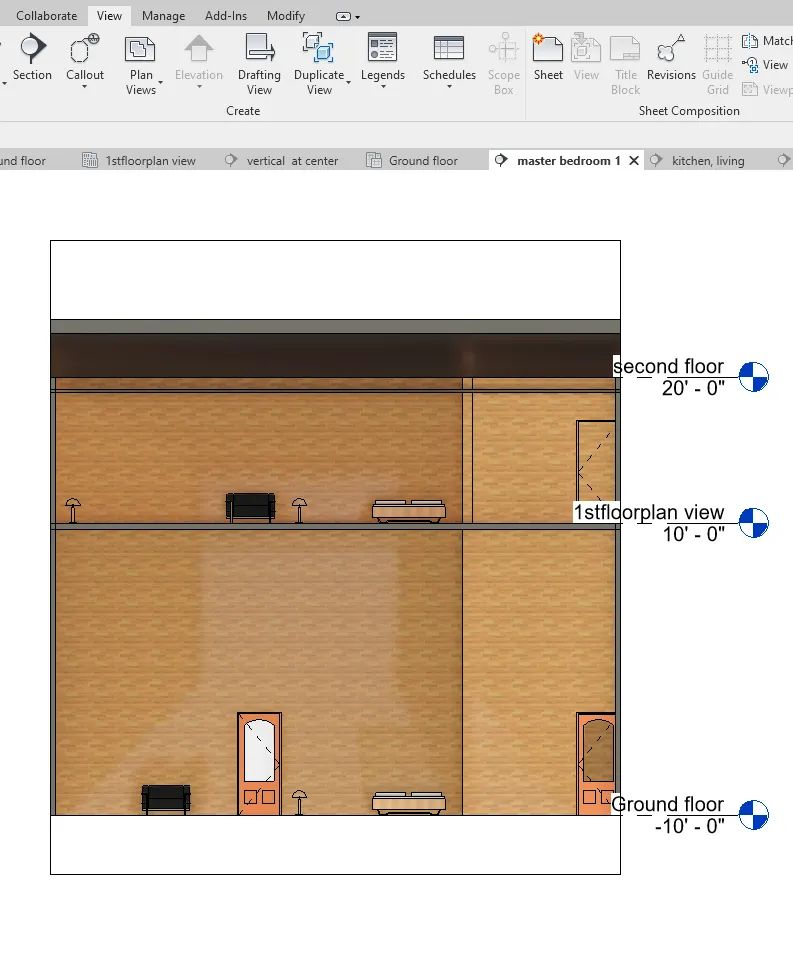

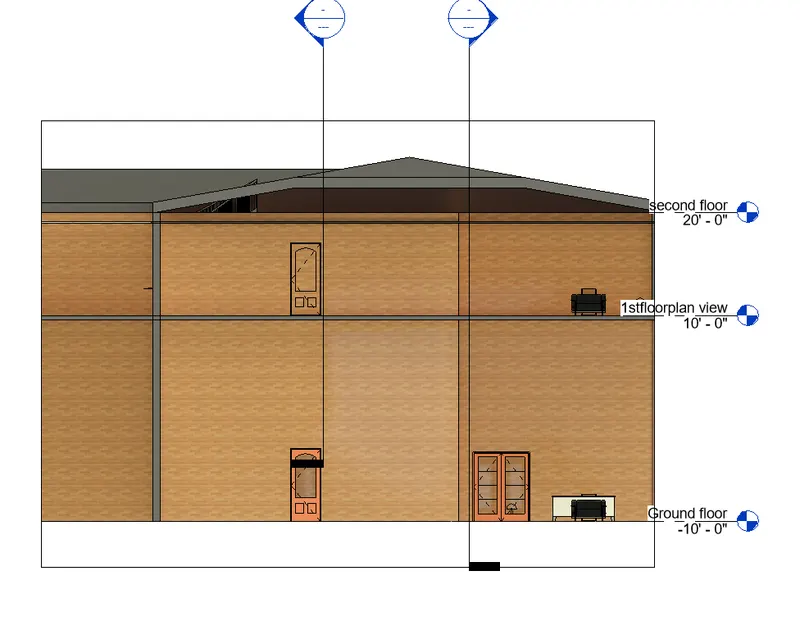

AIM -7) Produce section cut through each room
either cutting across longitudinally or in a transverse direction
INTRODUCTION -
MAIN AIM IN HERE CREAT SECTION OF
EACH ROOM .
PROCEDURE -
IN view tab click on section tool icon .
-now placed section according to
user wants .
-creat diffrent section and rename this .
-and adjust lenth and height of
section and save it .
RESULTS -
SECTIONS OF DIFFRENT ROOMS WERE
CREATED .
SNIPS -
8
AIM -8) Classify the views, Plan Views, Section Views, and
Elevation views to either Design or Documentation category using Properties browser
INTRODUCTION -
THE main of this question in here just
clearify and diffrentiating diffrent section .
in project browser .

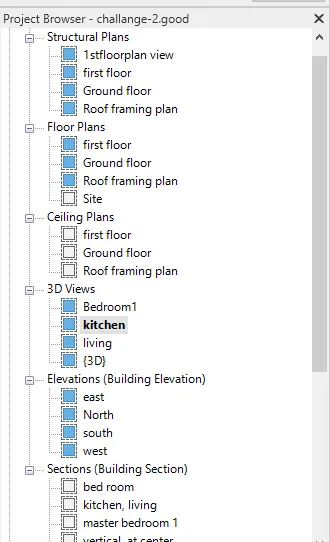

PROCEDURE -
-IN ongoing project , there are a
project browser on left side of
screen /.
there are diffrent section of all
-click snips of all diffrent section
such as floor plan ,structural plan
elevations ,views , etc .
9
aim -
9) Using the sheet template produced create multiple sheets as follows

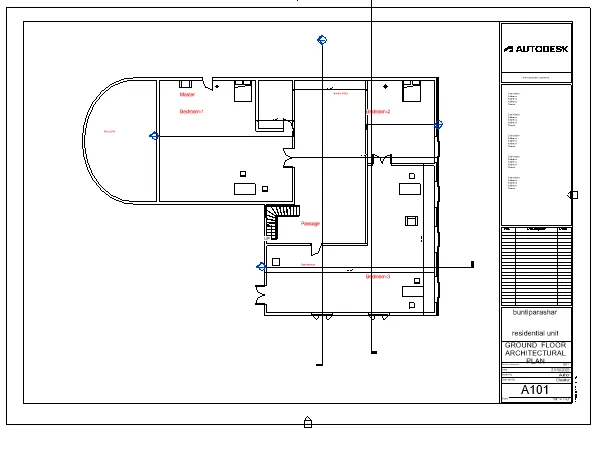

a. A 101- Ground Floor Architecture Plan

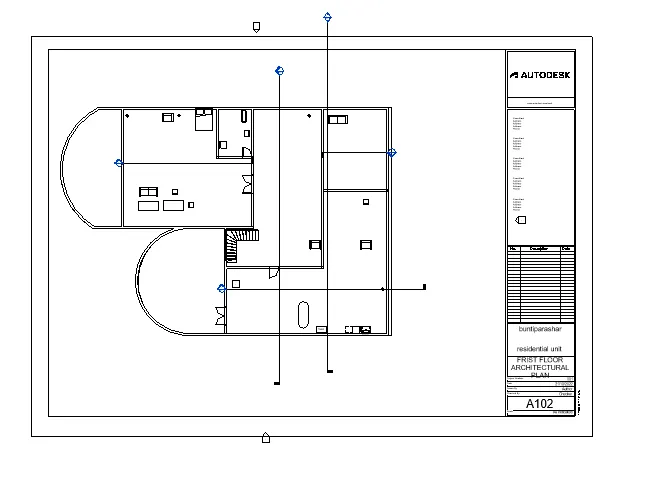

b. A 102- First Floor Architecture Plan

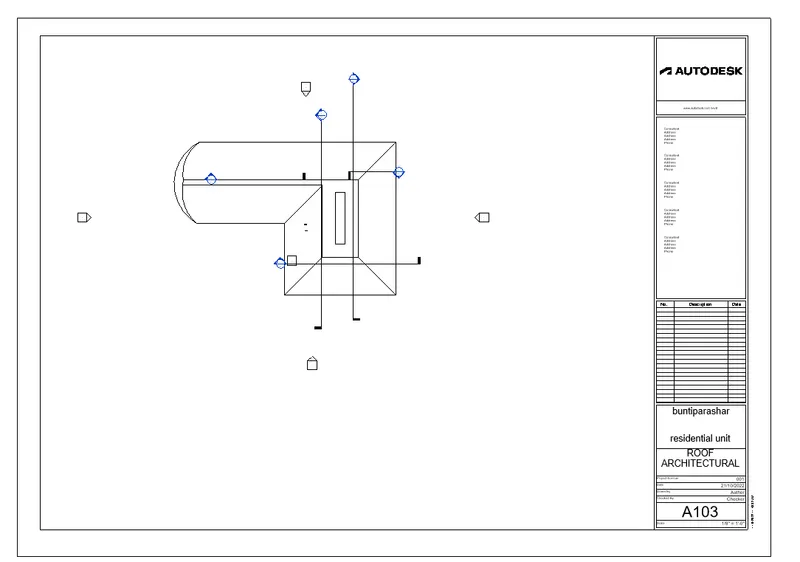

c. A 103- Roof Plan

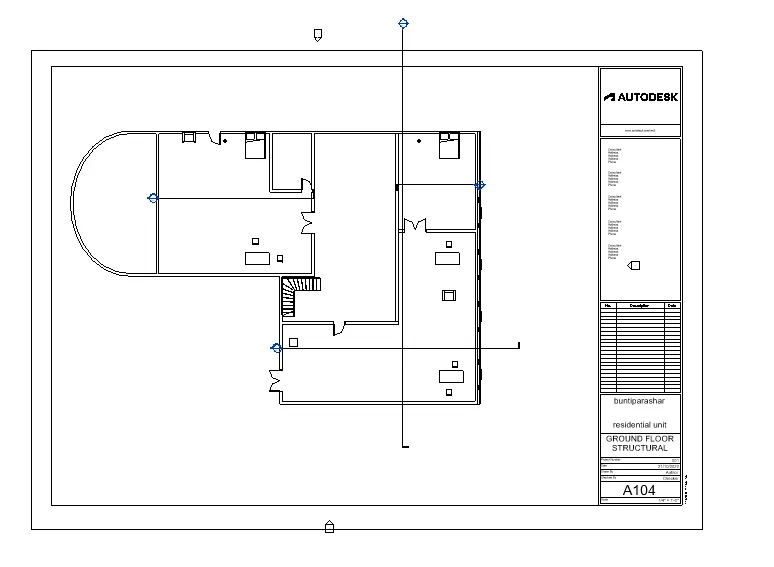

d. S 101- Ground Floor Structural Plan

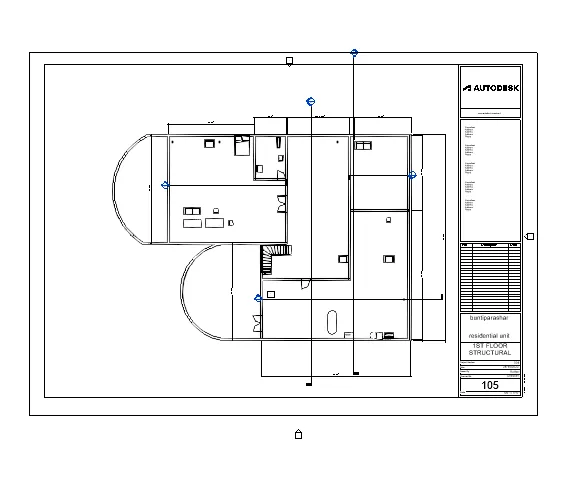

e. S 102- First Floor Structural Plan

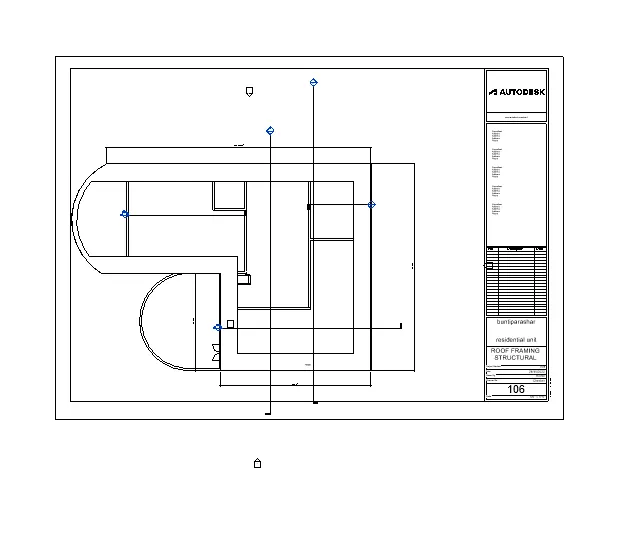

f. S 103- Roof Framing Plan

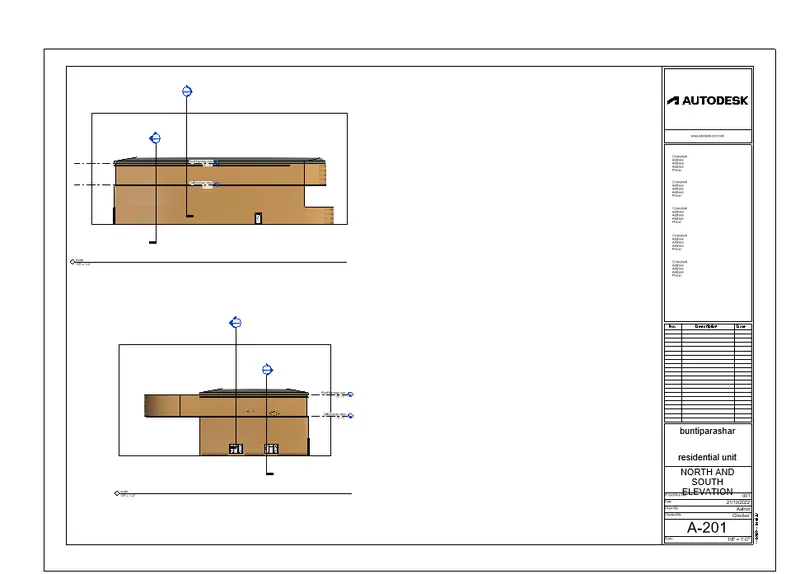

g. A-201- North-South Elevations

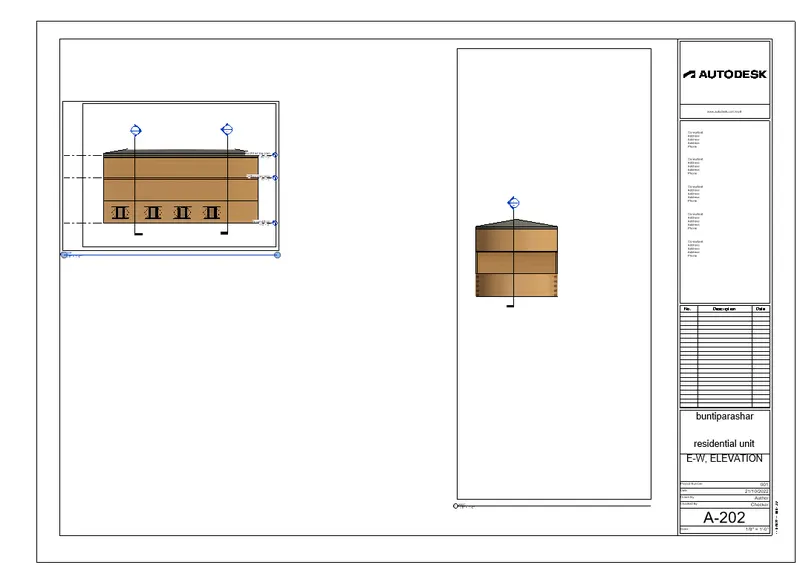

h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
INTRODUCTION -
IN HERE CREAT DIFFRENT SHEET
OF ALL FLOORS PLAN ,STRUCTURAL
PLAN ,ELEVATION ,SECTION AND VIEWS .
PROCEDURE -
CLick on view tab
-click on sheet
-rename sheet as asked in question .
-for example rename frist sheet is A-101
Ground floor architectural plan .
-now drag plan view in floor plan section
in project browser to this sheet .
-adjust scale of view and thus creat
sheet .
-follow same procedure , creat diffrent
sheets and draw all views as like
architectural and structural plan
,3D VIEWS ,ELEVATION ,in project
browser , adjust scale in properties browser.
-
RESULTS -
DIFFRENT TYPES OF SHEET WERE
CREATED .
STRUCTURAL SHEETS
10

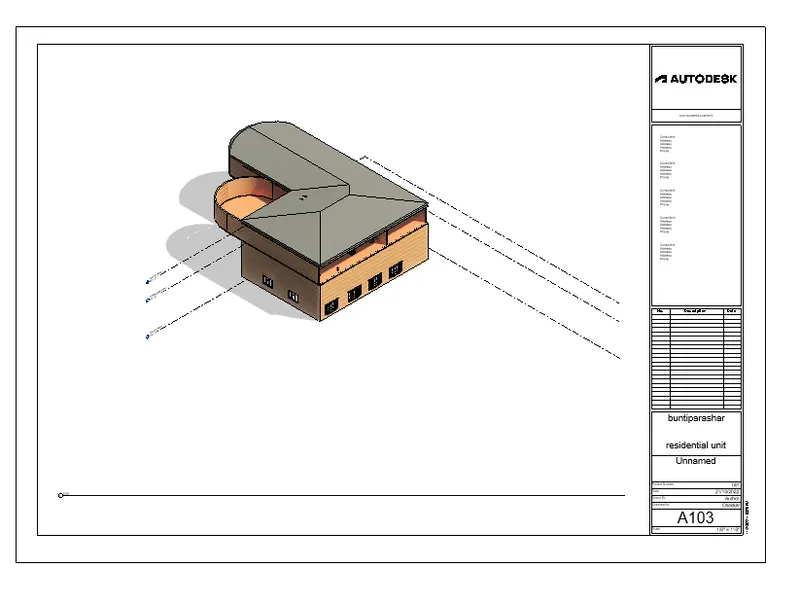

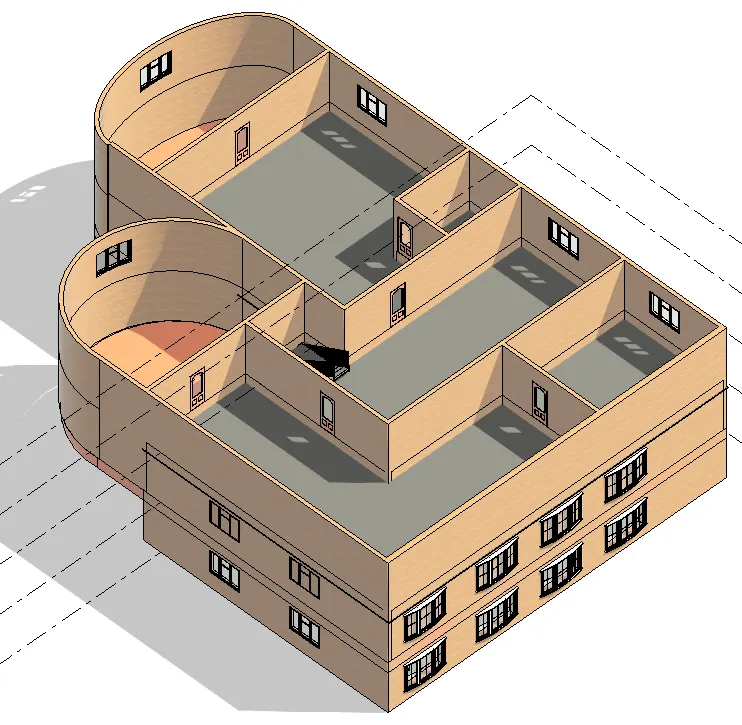

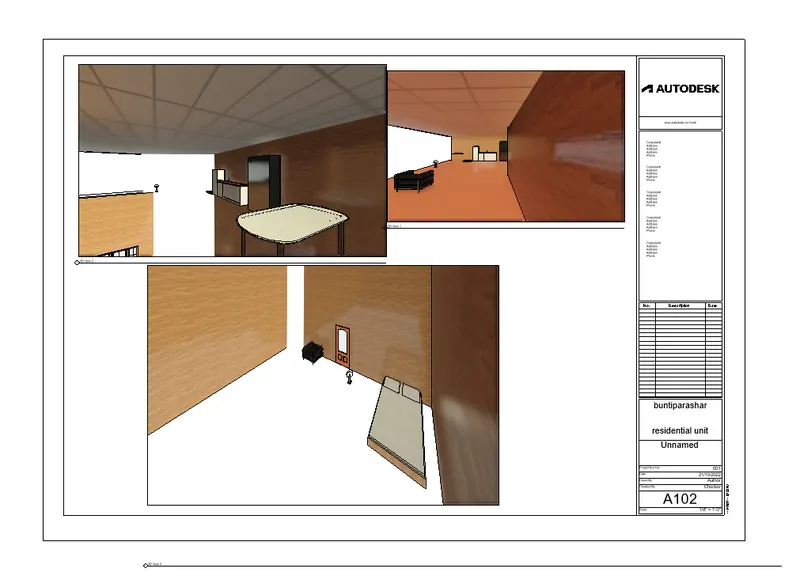

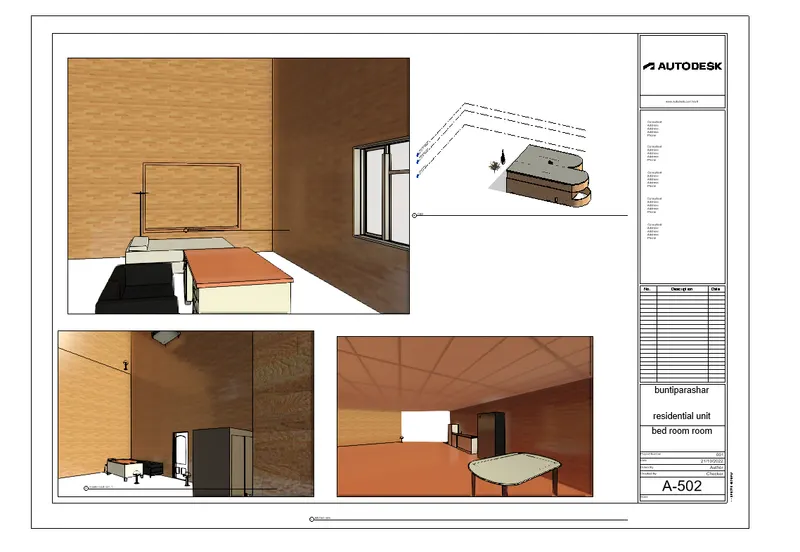

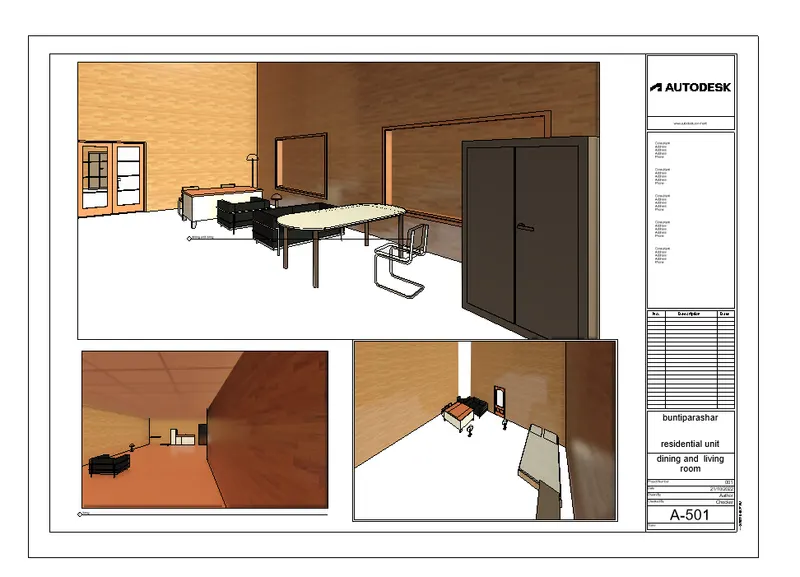

AIM-10) Create a camera-specific view or a 3D
view in each room ( living, dining, bedroom).
Based on the views create a new set of sheets starting A-501
(you can add as many sheets after, 502, 503.. n)to place
the 3D view images. Produce the sheets as a part of project drafting.
INTRODUCTION-
IN HERE MAIN AIM PLACED CAMERA SPECIFIC
3D VIEW OF EACH ROOM AND DRAG ON SHEETS .
PROCEDURE -
-Open view tab go to camera view
creat camera view of each rooms
like bedroom ,living room , kitchen etc.
-give rename in project browser use
of right click .and save it .
-now creat sheets go to
view tab , open sheets , drag these
camera views in sheets
-same procedure will be followed by
another sheets open and drag
camera view in sheet and also adjust
scale .
-
RESULTS -
PARAMETER OF SHEET WERE ADJUSTED AND
SHEET WAS FORMED DIFFRENT VIEWS OF
RESIDENTIAL UNIT .
SNIPS -
