Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below:
        a. Multi-Unit Residential Apartment
        b. Office Buildings
        c. School



RESULT

- I will go with multi unit residential

apartment.



2) Assume reasonable assumptions for geographic

and location details for your project modeling.

Based on assumptions and type of structure

selected identify the modeling requirements from NBC



RESULT

-As above mention this building

comes in RESIDENTIAL category .

-and it can be suitable for city areas ,.

-Height , Area  limitations ,and saftey

measure are followed by NBC 2016.

-widh of road is  19m

-height of building is 45'.

-Height of building is not exceeding

1.5 times of widh of road.



3) Using the structural model,

include the following components based on the type of structure selected
        a. Foundation – Isolated / Wall/Matt Foundation
        b. Columns
        c. Beams Connected to Columns
        d. Roof Framing/ Truss
        e. Floor / Decks
        f. Floor Openings for Elevators and Stairs



AIM -

TAKE USE OF STRUCTURAL MODEL  INCLUDE

COMPONENTS LIKE FOUNDATION ,COLUMN ,

BEAM , FLOOR  ,ROOFFRAMING etc.

INTRODUCTION -





PROCEDURE -

-OPEN 1ST ARCHITECTURAL TEMPLATE .

-Manage tab> coordinates > specify coordinates

at a point

-enter amount 0

-next for base point

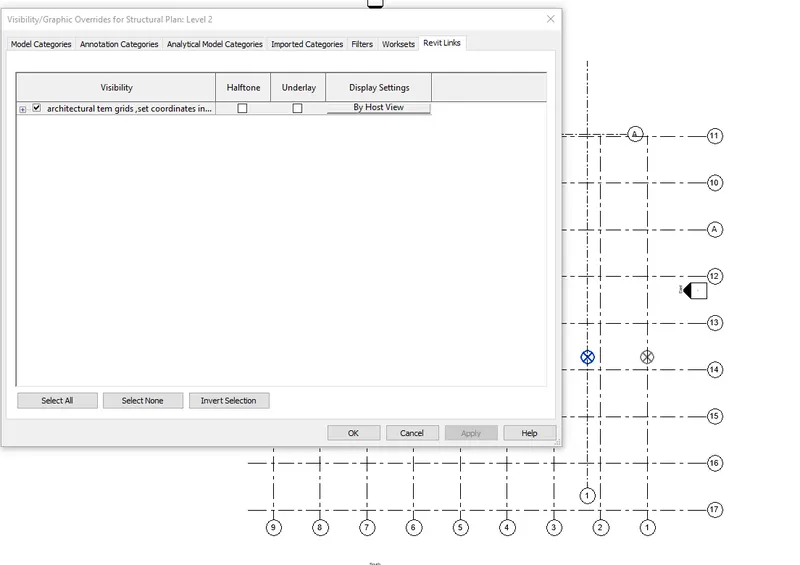

-we go visibility graphicks VG > site >

project base point

-click on base point circle .

-insert 0 to all parameters .

-save file as ARCHITECTURAL .



-open  structural template .

-using manage tab , we set

coordinates and project base point .

same as Architectural template ,.



-re open architectural model

-goto collaborate tab

-select collaborate with in

your network .

-click file tab > Save as[ project] .



-do same procedure in structural template .



--Creat another new file with a architectural

template .

-save this new file as central model .

under Manage tab , click manage

link to link  both architectural

and structural files .



-After  collaborating both files ,

link structural file to Architectural

file

-creat local file and start working

in structural local file .



-creat levels at foundation ,

gound floor , frist floor , second

floor , 3rd floor , and roof level .

at the distance of 12' .

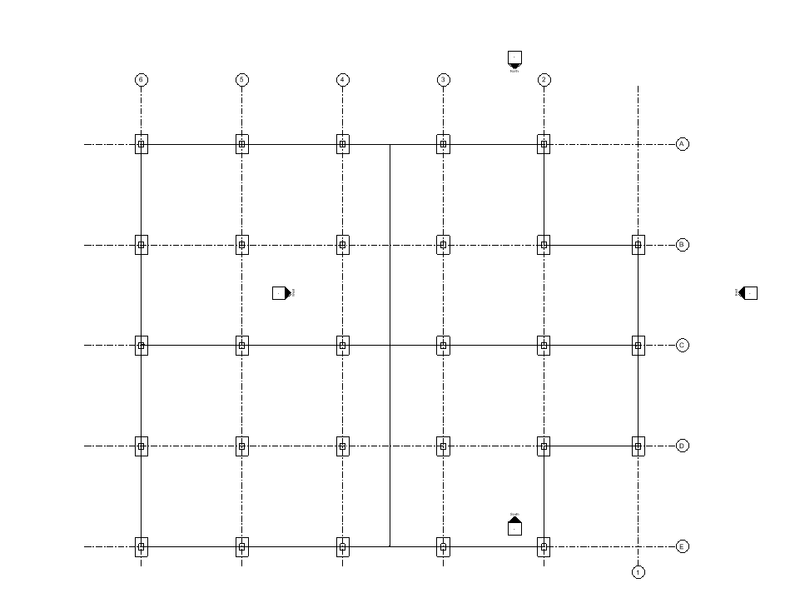

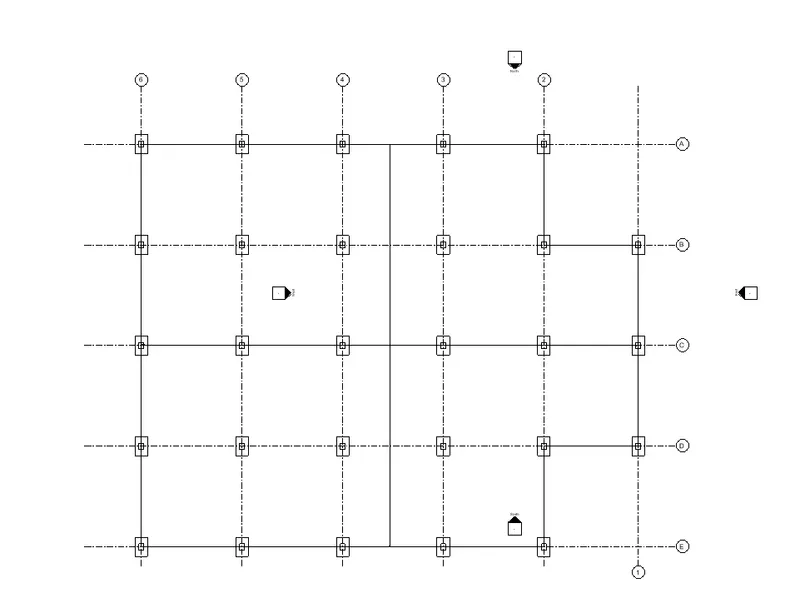

-creat grids  horizontally  and

vertically at a paricular distance

as per building requirement

-give names all the grids .





-NOW  SELECT COLUMN >grids at top right

>and select all grids

AND place it all the grids .



- now place foundation at foundation

level .

-now placed BEAMS AND  FLOORS

AT  every floor



-placed ROOF AT ROOF LEVEL .

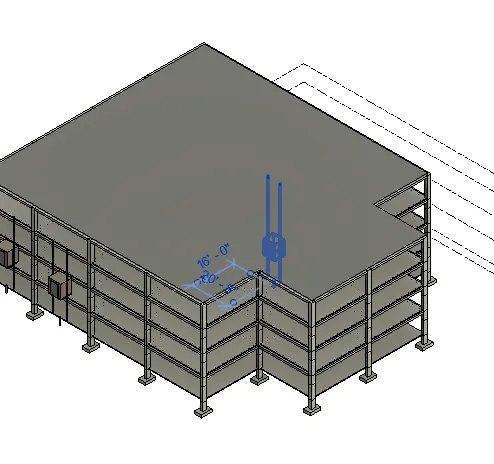

-now placed  FLOOR OPENING

FOR ELEVATORS AND STAIR.

-For more clearity some snips

are given below , please have a look .



RESULT -

WE have completed structural

model , placing foundation ,

column , beam connected

to column , roof framing /

truss , floor /desk  and floor

openings .

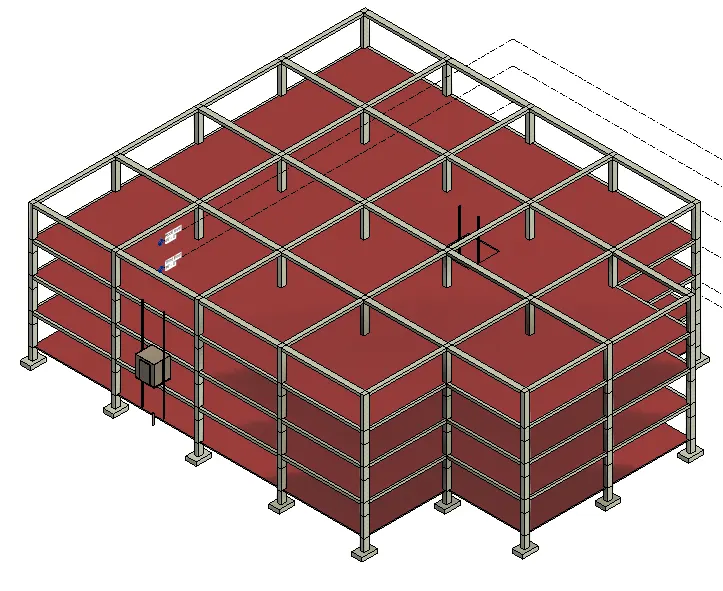

SNIPS-



























 4) Using the architectural model, include the following components based on the type of structure selected
        a. Wall Layout with appropriate material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms
        d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
        e. Add components such as stairs Elevators
        f. Have at-least one side of the building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures
        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model





 *AIM-

Creat components based on the

type of structure using architectural

model .



PROCEDURE -

 In architectural template creat the

walls around building .

-place boundry  at top of roof

-place a curtain wall

--give wall opening at wall opening

option

-place components in building .

-there are provided a elevator and

and a common stair case in building .

-interior and exterior lighting fixture

are added in here .

-placed proper topographycal

components like trees ,parking

plants etc.



RESULT -

Created components based on

type on structure using

architectural.



SNIPS -















5) Provide a set of drawings in an architectural

and structural model to list the following

details with categories and appropriate

sheet templates included
        a. Floor Plans with Annotations
        b. Elevations
        c. Sections





AIM -

to provide a set of drawing in

an architectural and structural

model to list details with categories

and appropriate sheet template .





PROCEDURE -

To creat a sheet view for each sheet

in construction document set .

-now placed diffrent types of floor

drawing , elevation as per question .



RESULT -

Provide a set of drawings in an architectural

and structural model to list the following

details with categories and appropriate

sheet templates

SNIPS-

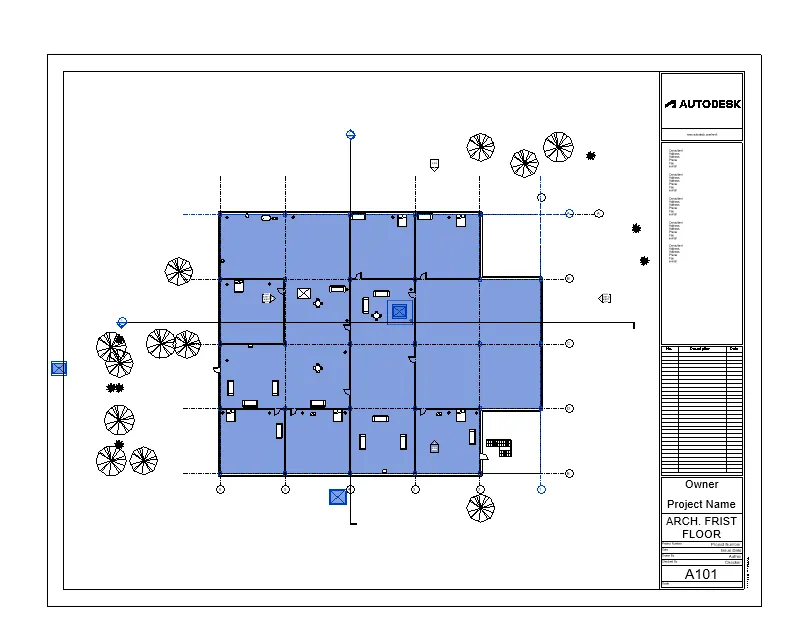

A.FRIST FLOOR PLAN

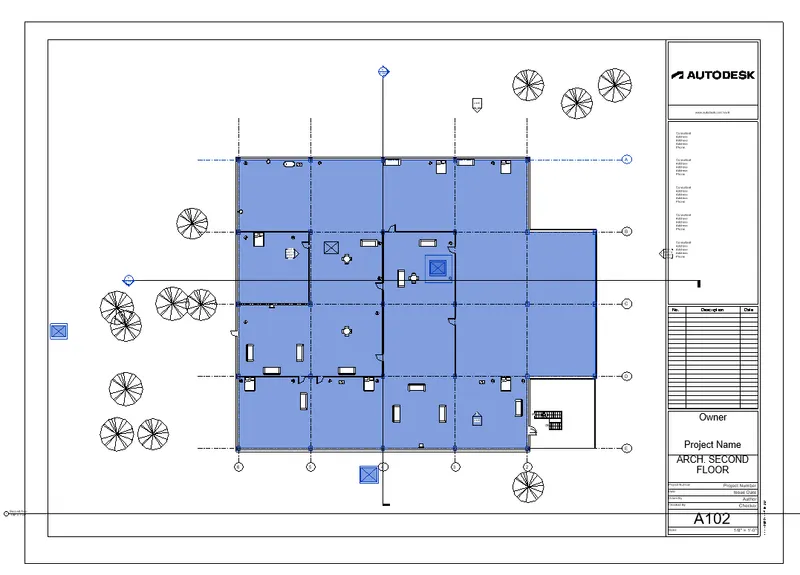

 2ND FLOOR PLAN

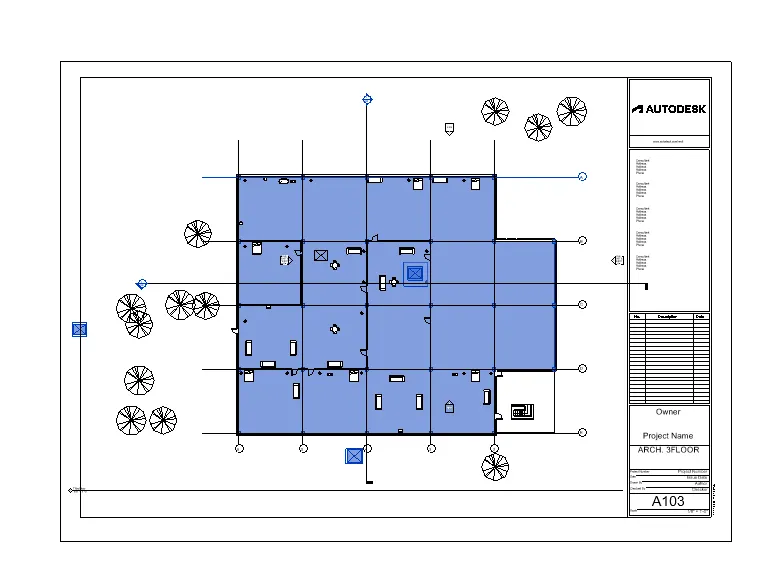

 3RD FLOOR PLAN

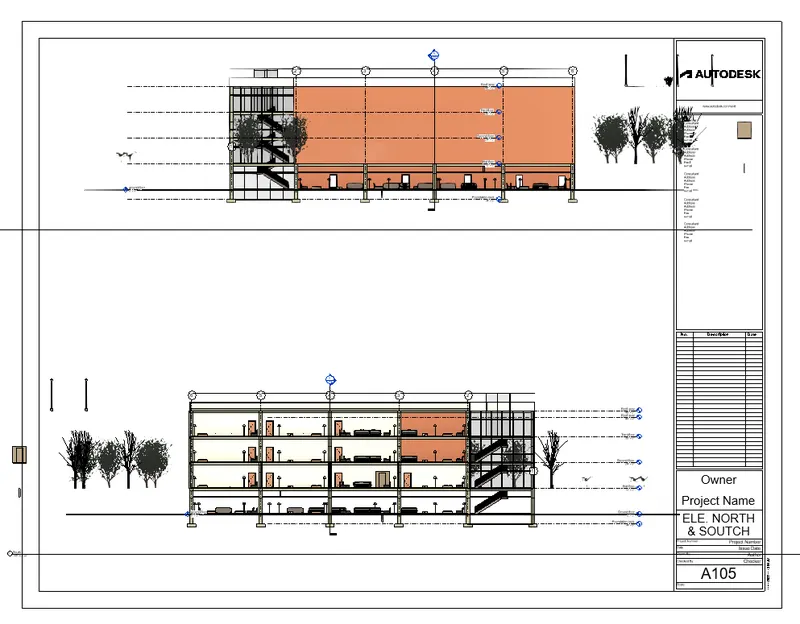

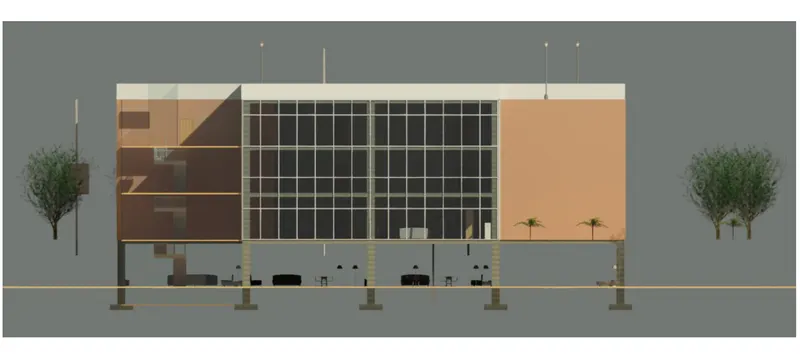

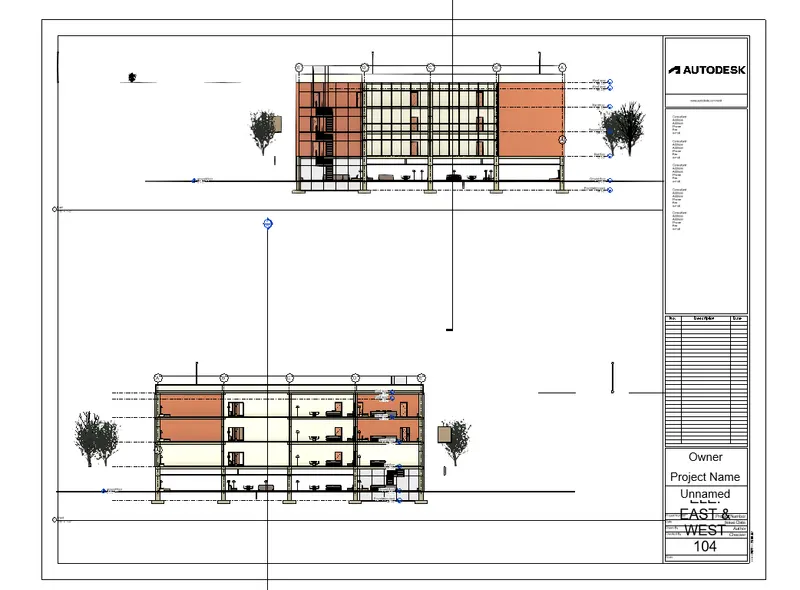

B . ELEVATIONS



ELEVATIONS   NORTH AND SOUTH

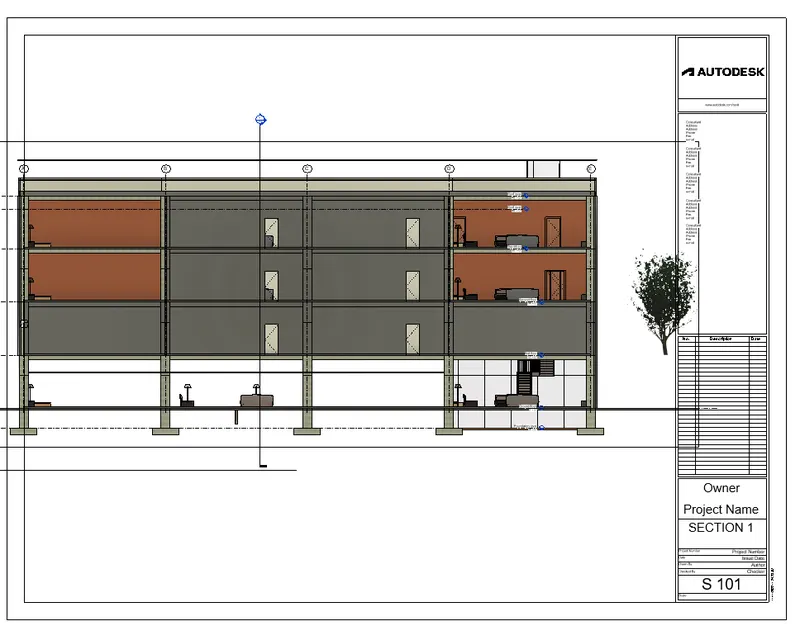

C   SECTION 1

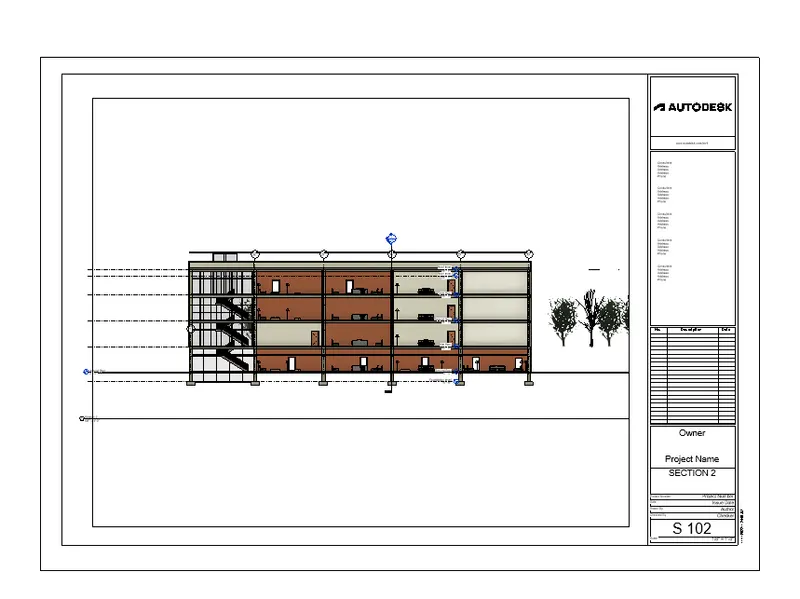

SECTION VIEW 2







6) Using the Rendering settings,

Render images of the 3D mode

l produced and include the rendered

images to the drawing sheets
        a. Rendering from interior rooms
        b. Rendering from out showing topographic features
        c. Rendering through structural framing

PROCEDURE -

-ONCE every thing is complete

like camera view than comes to

rendering .

-goto view tab > render

-define the setting of quality

,lighting ,etc than click render .

-creat render of diffrent view .



RESULT -DIFFRENT

RENDER VIEWS IS CREATED



SNIPS -

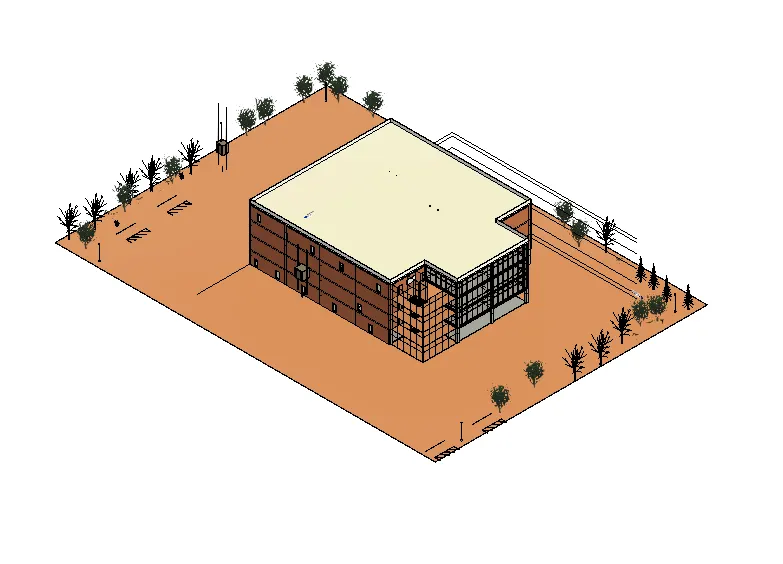

ARCHITECTURAL MODEL



VIEW -1

RENDERED VIEW1

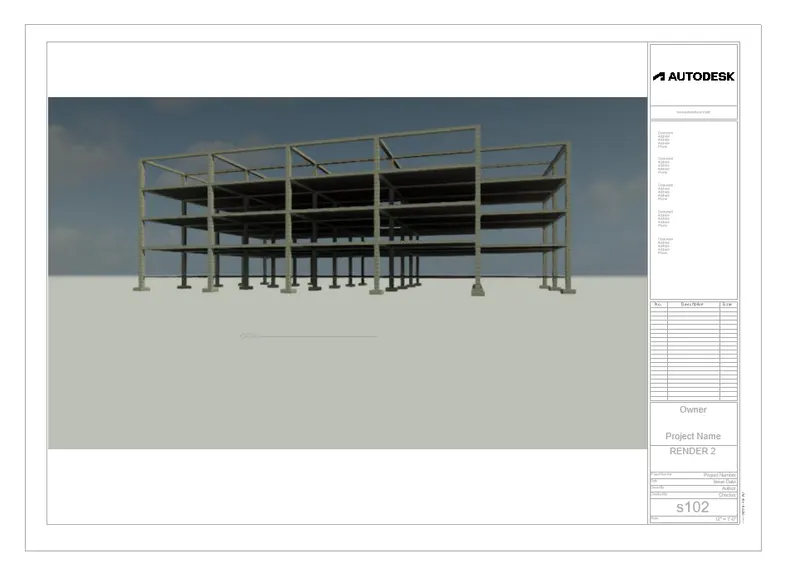

VIEW 2

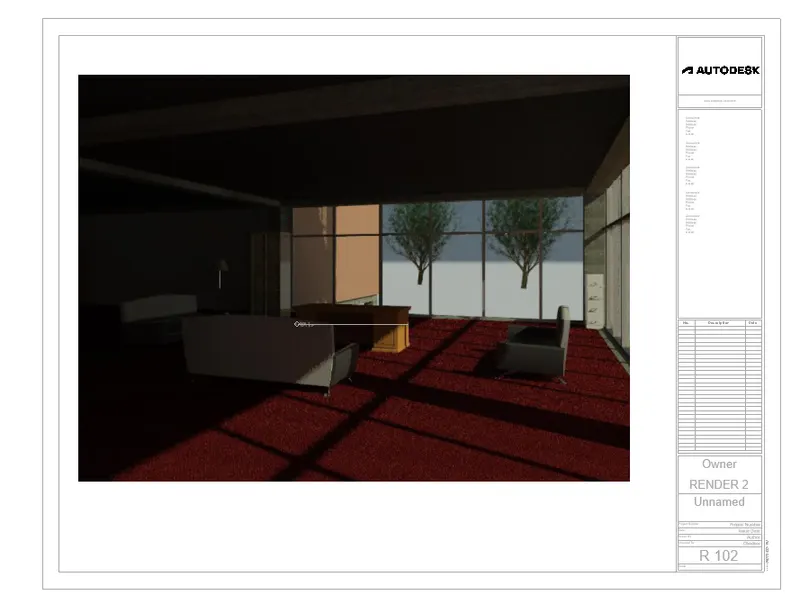

RENDERED VIEW 2

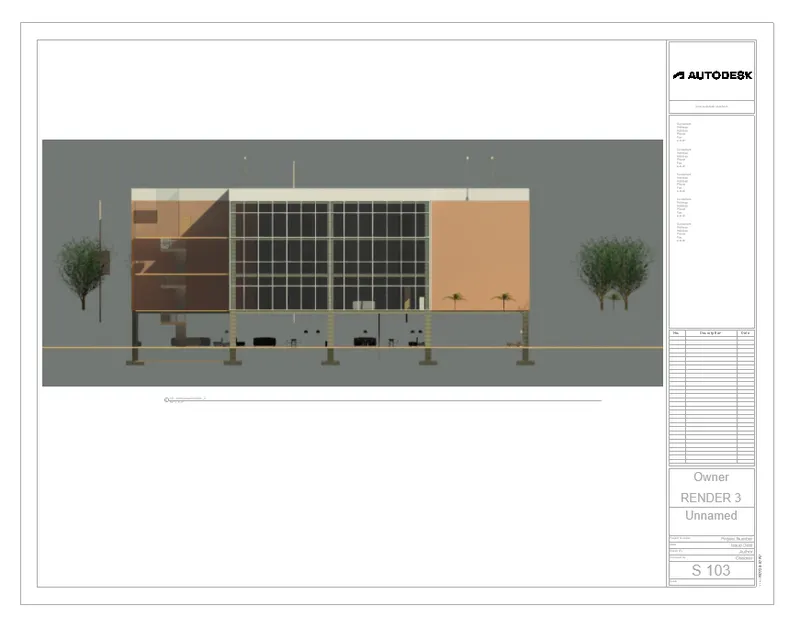

VIEW 3









RENDERED VIEW 3

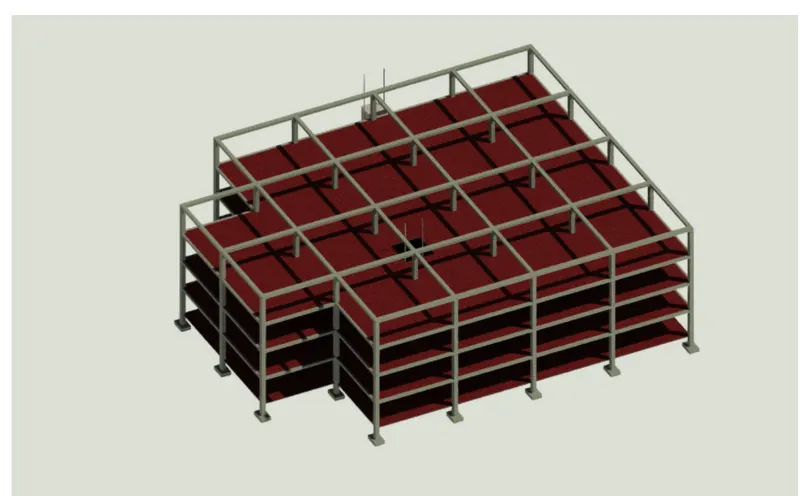

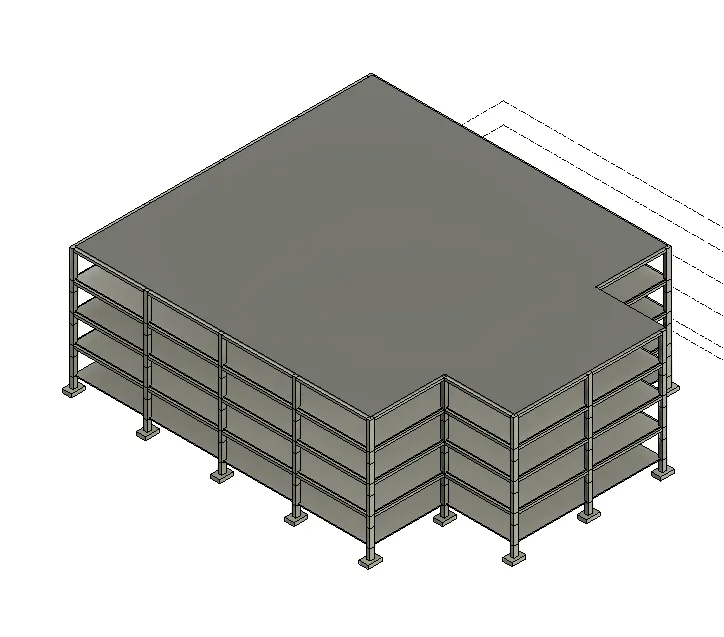

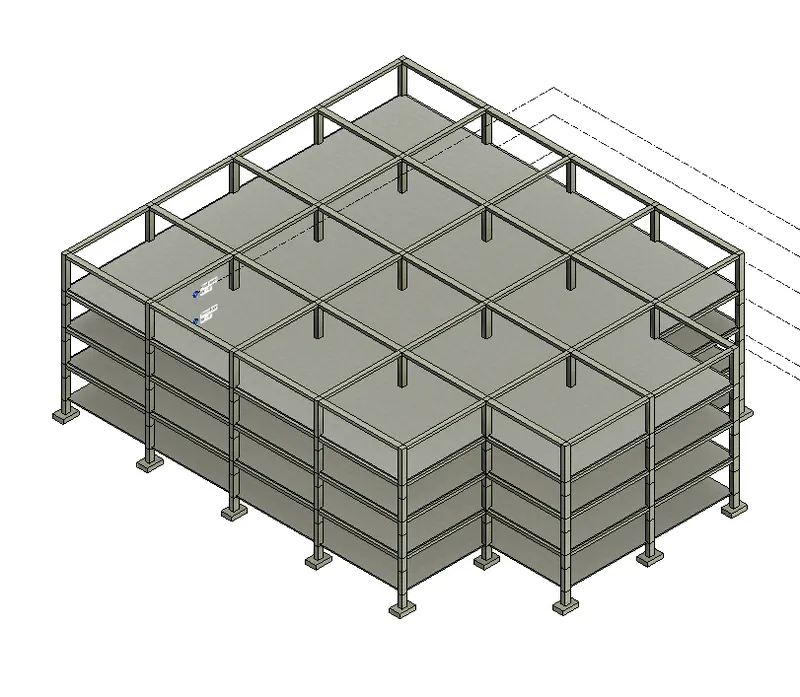

STRUCTURAL MODEL

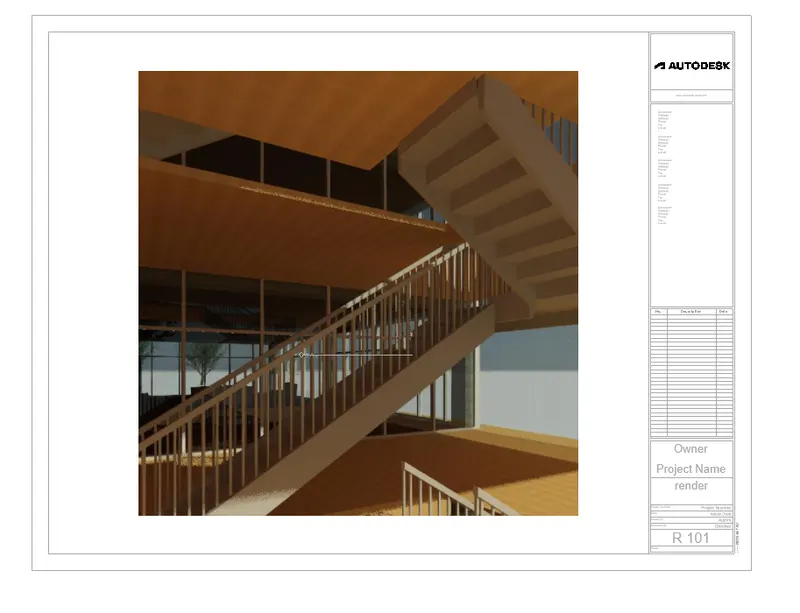

7) Print the set of drawing sheets

created and submit the drawings

from the architecture and structure model



PROCEDURE -

Once whole project complete

than sheet is created .

-1st open the sheet than

click ctrl +p on keyboard .



-select option all sheet .

-select option microsoft

to pdf in printer section .

-than click ok .

-pdf is created .



RESULT -

THE PRINTOUT OF DRAWING SHEET

IS CREATED .

this is print
