Structural Modelling using Etabs 2018



To model and analysis G+7 storey building

using ETABS with application of proper

load cases and load combination

for given typical floor plan

drawing .









STEP-1:

Open ETABS  software .

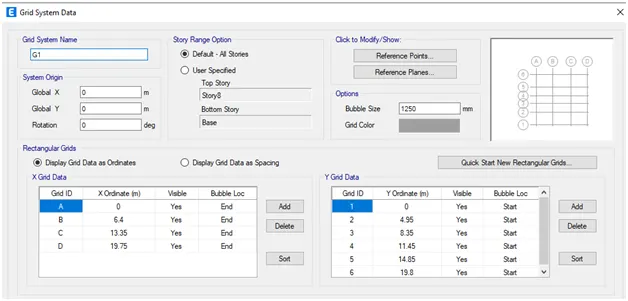

setgrids and storey details using editing option .

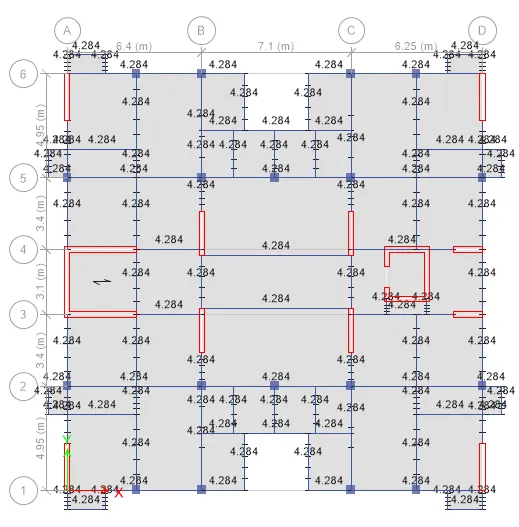

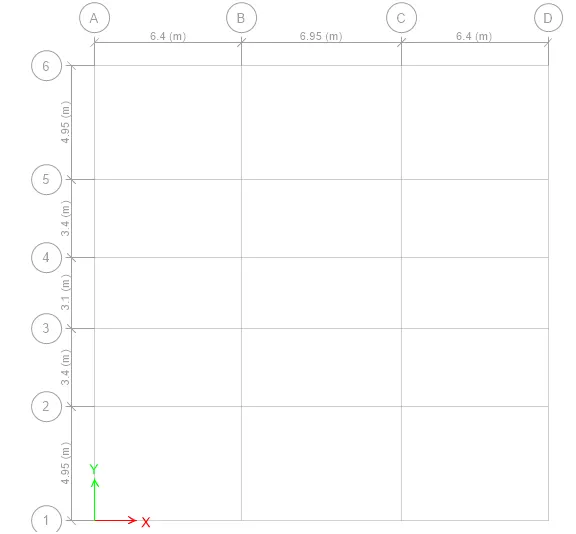

provide 4 grid in  X direction and 6 grid in

y direction with proper spacing .









STEP2":

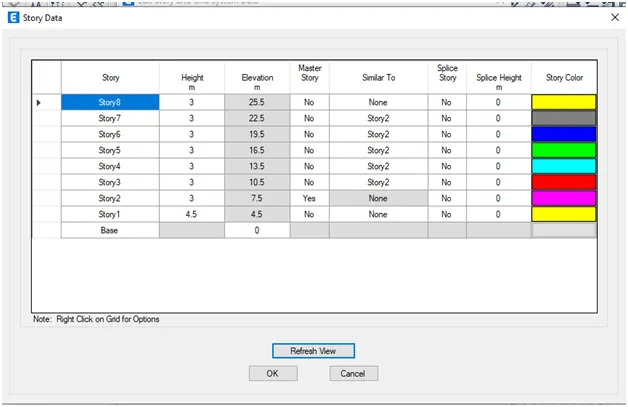

Now define each storey and storey height .



STEP3;

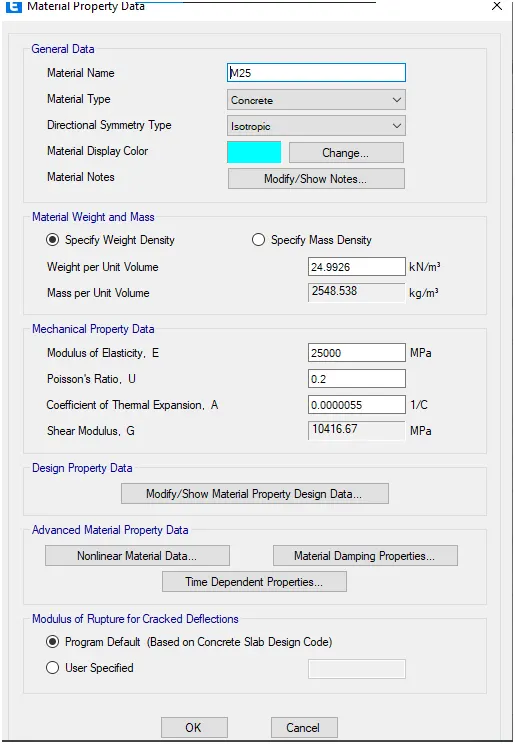

click define tab and select material .

chosse material  such as  m25 concerete .

SREP4;

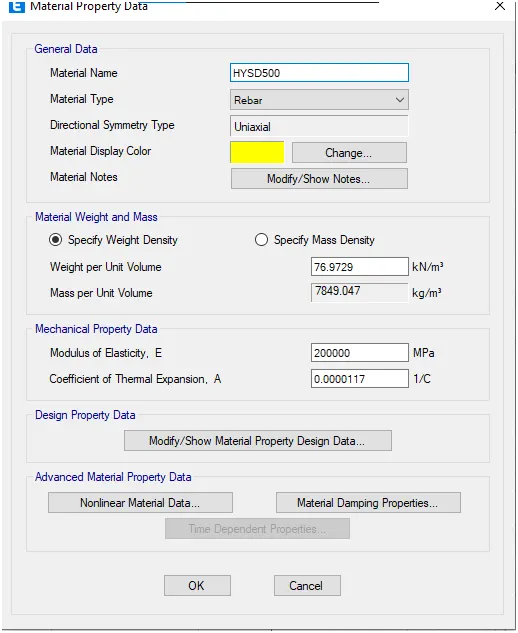

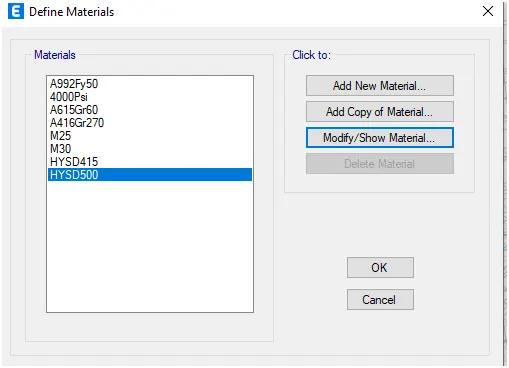

Similar rebar material , click define select add new material

option and choose type as rebar grade as HYSD GRADE 500





STEP5;

Click define tab .select frame section property .

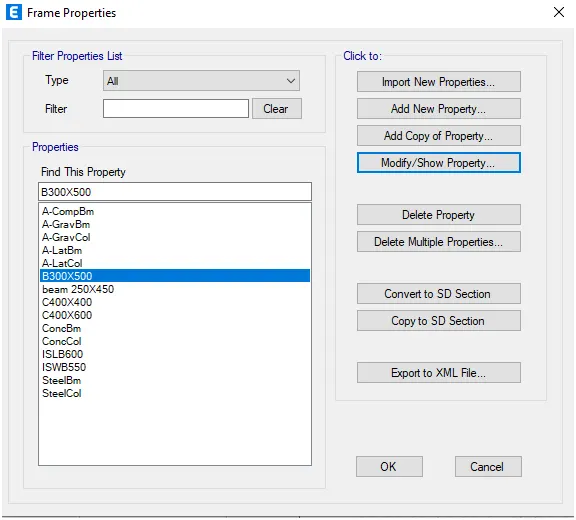

provide beam dimesion as 350 x 550 . then modify rebar details .





STEP6;

Click define  tab .

select frame section property .

provide column dimesion as 400x600 , then modify rebar details





step7;

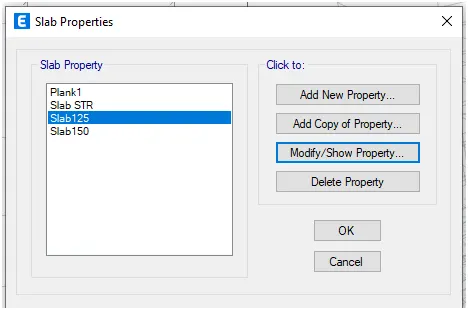

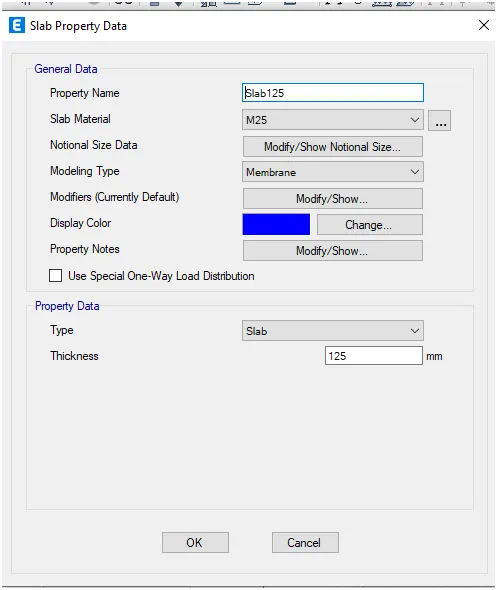

click define . select section property , click on slab section.

provide thickness of frame as 150mm



STEP 8;

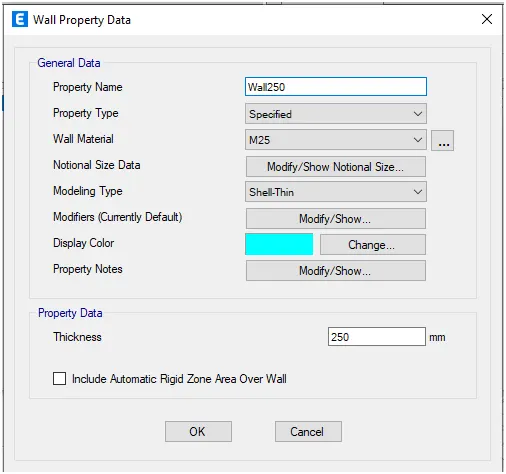

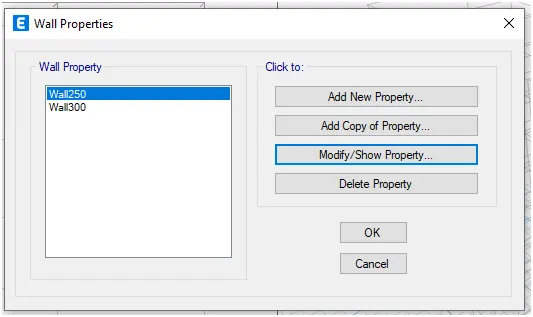

CLICK define . section section property . click on wall section.

set thickness of wall as 250mm.







STEP 9;

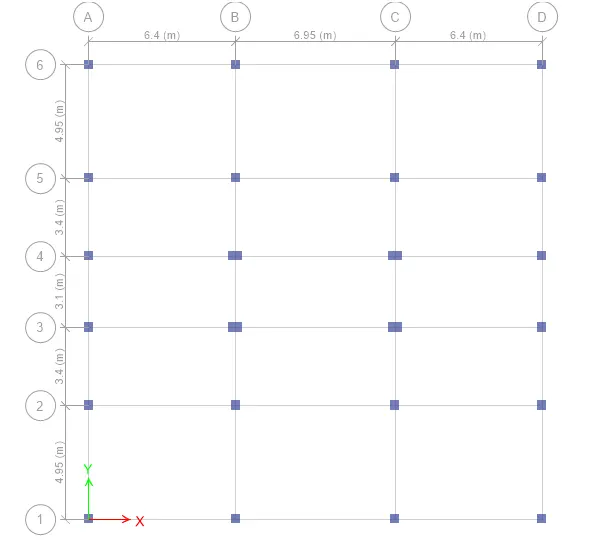

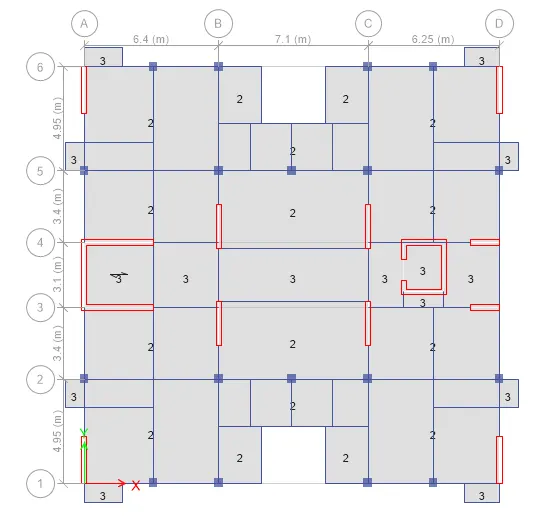

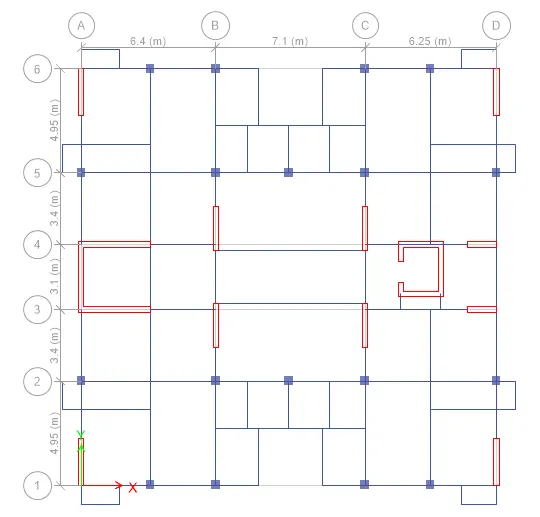

BY using quick draw column / beam option place the column in floor plan  at each grid intersection

select all storey option .





STEP 10 ;

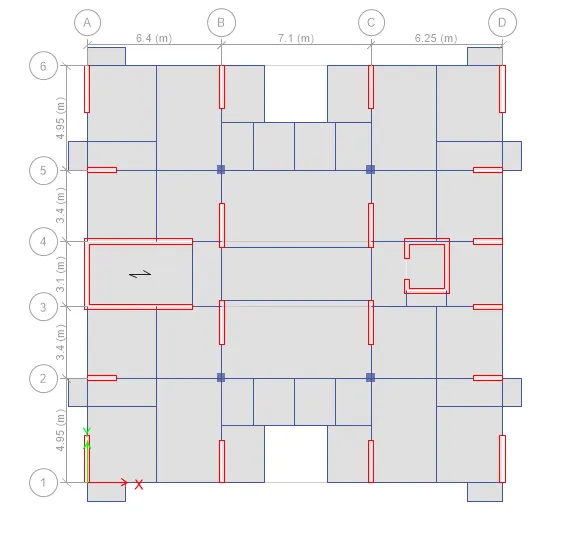

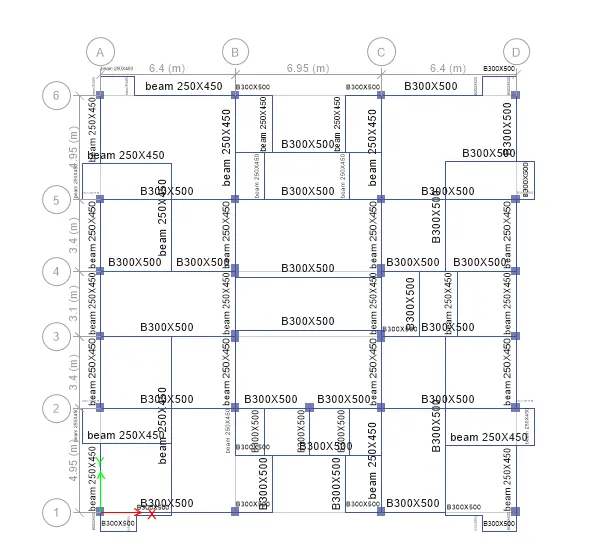

Similarly draw beam as per floor plan .

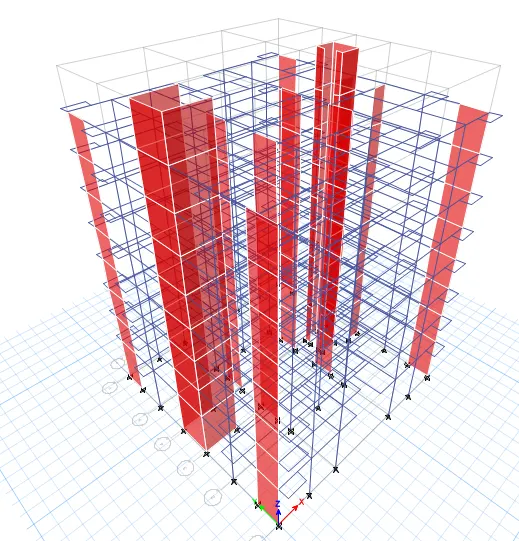

draw shear walls ,as required places



STEP 11';

Click  on plan and select base .

select one storey .

select all column base .

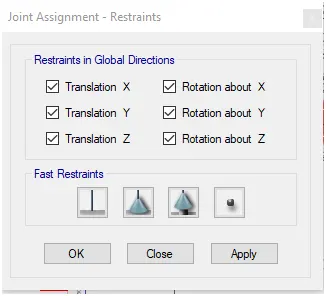

click on assign . select joint . select joints as fixed .



STEP 12

BY using quick draw floor / draw reactangur floor plan option place floors .

select all storey  option .







step 13

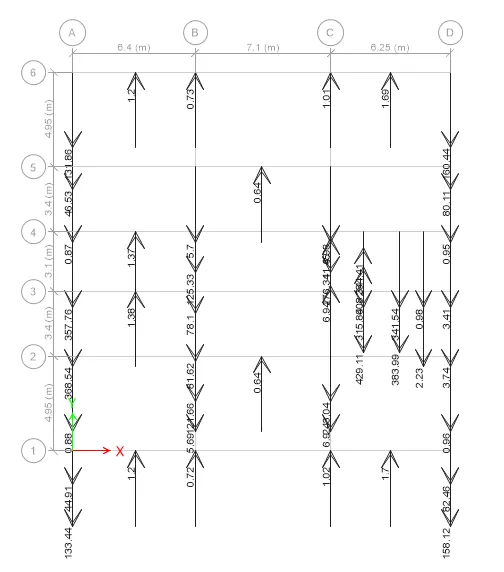

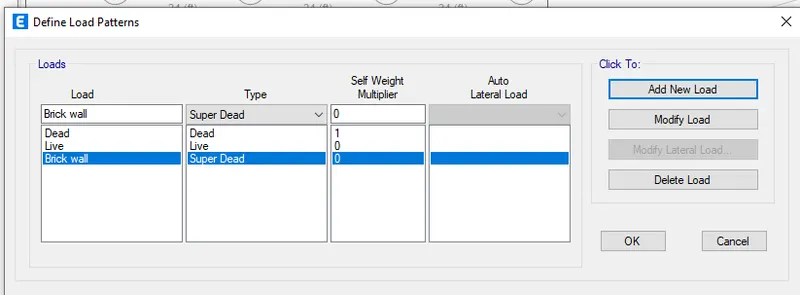

click on load patterns and define dead , brick wall and live load .





step 14 ;

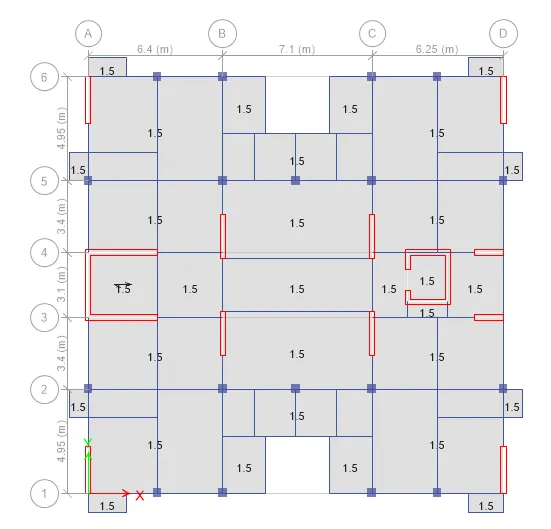

apply brick wall load in all beam components .





step 15 ;

apply live load as per  is 875

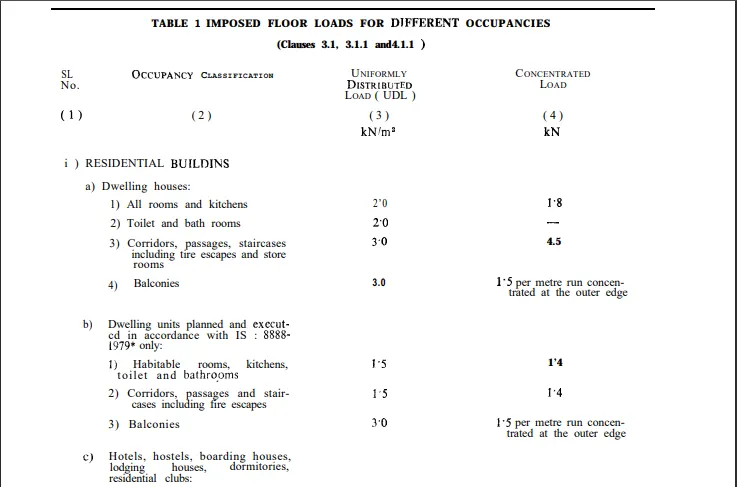

L.LOAD = 2 KN/M^2 [AS PER TABLE 1 IS 875 PART 2]

LIVE LOAD =3KN /M^2 [AS PER TABLE 1 FROM IS 875 PART 2] FOR BALCONIES , WALKWAY ,AND LIFT AREA.







AT roof we take only 50% of live load .







step 16

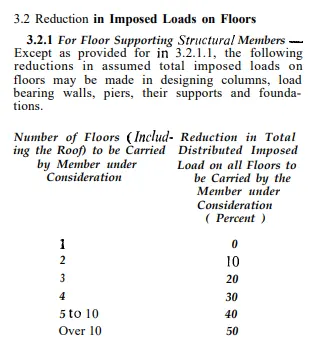

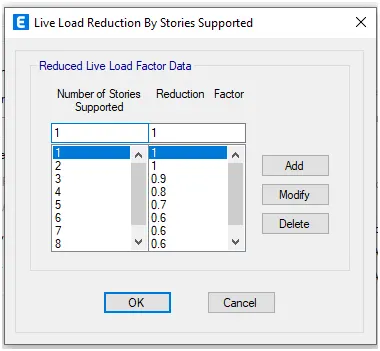

similary reduction factor has been taken from clause 3.2.1 in is 875 part 2 .





step 16;

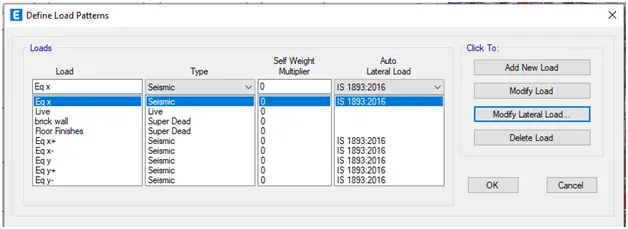

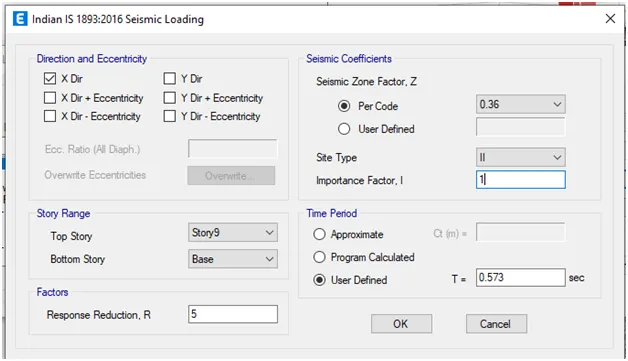

click on load pattern and define the sesmic loads.



calculate time period T value from IS 139220 CLAUSE NO 7.6.2





STEP 17

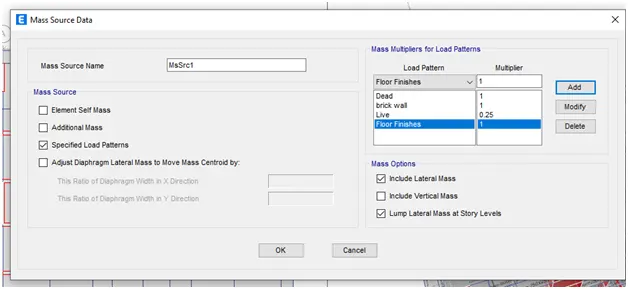

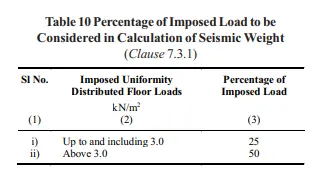

Define mass source .





step18;

select on all story option .

goto select objective type  floor .

select all floors.

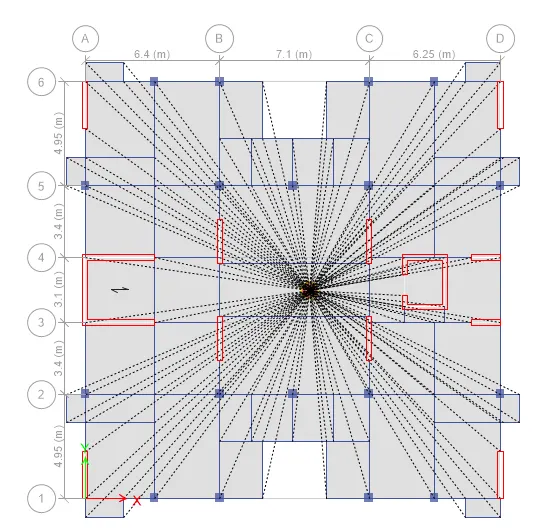

-go assign , click on shell , click on diaframe .

assign diaframes to all floors .



step 19



goto define ,

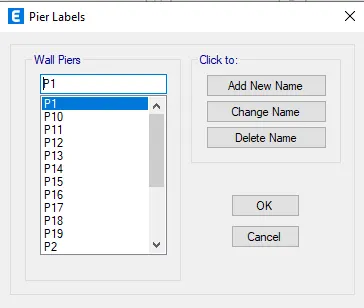

click on pier  labels and  pier labels .

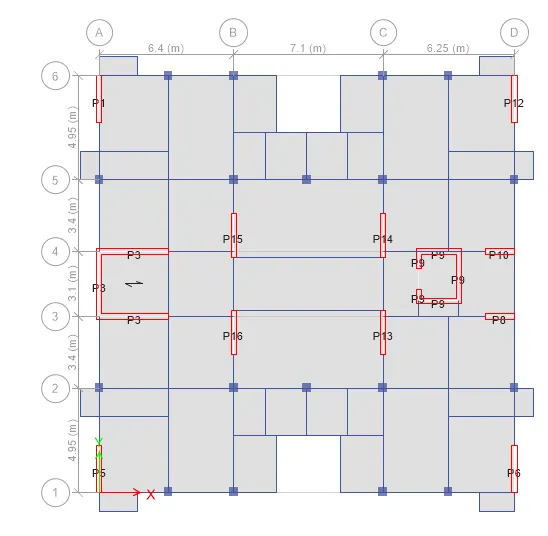

select shear walls one by one and assign pier labels .





step 20

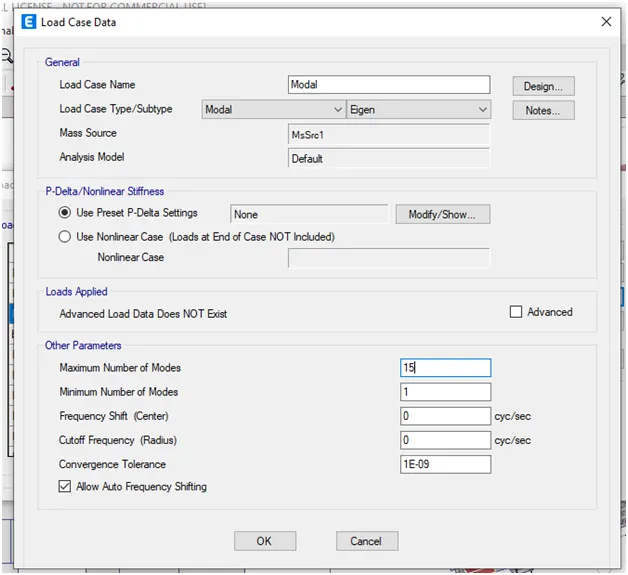

click on load cases and define no. of modes .





step 21 ;

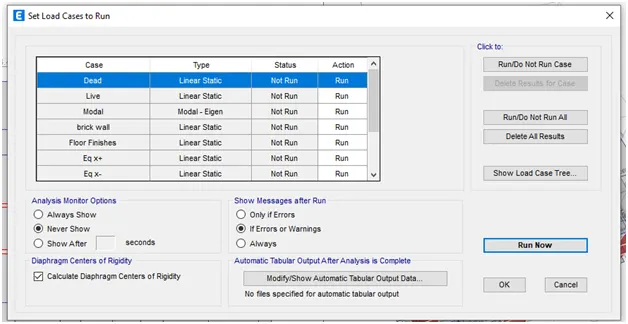

click on analysis , click on load  cases to run .tick mark calculate diaphrams center of rigidity .







step 22 ;

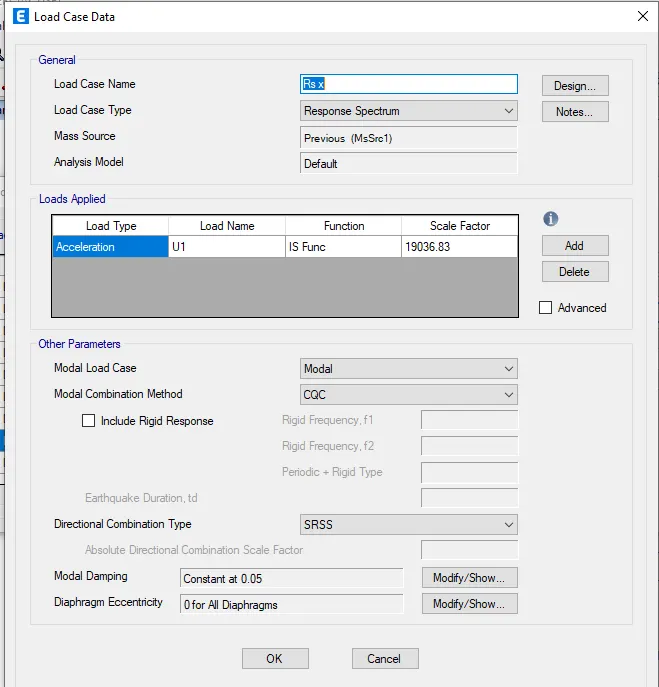

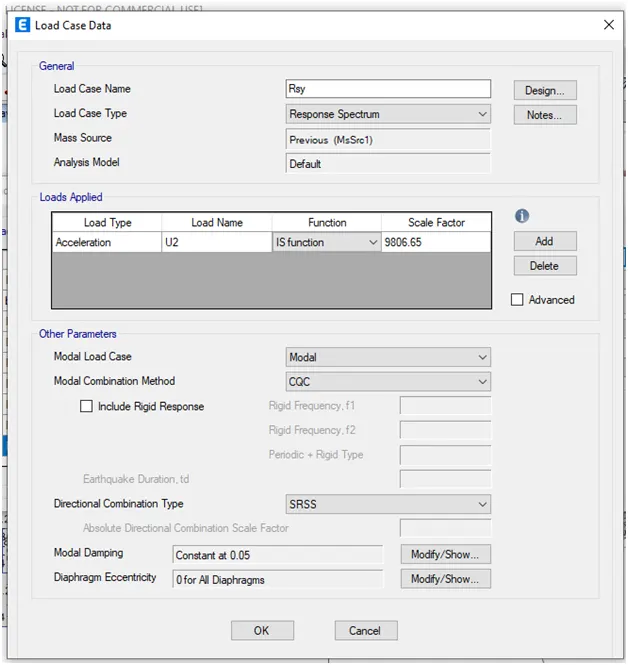

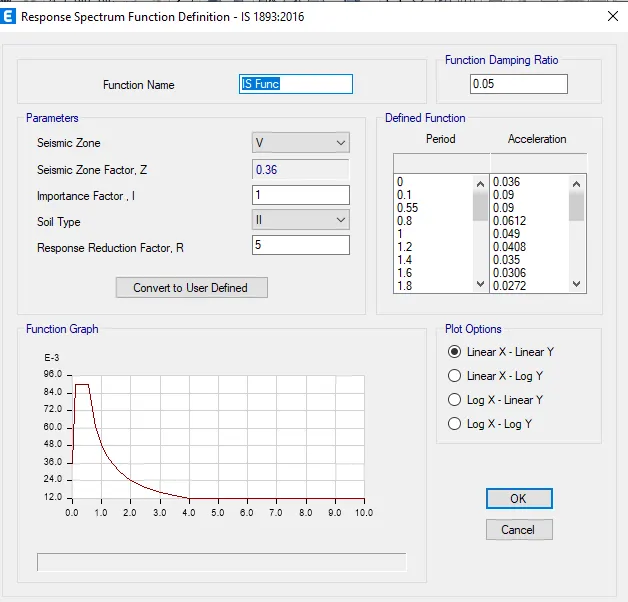

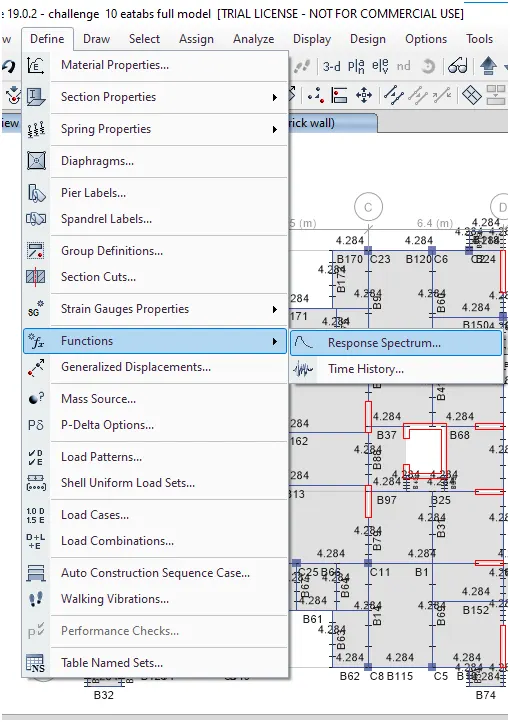

click on define ,select function and select on responese spectrum .

.define response spectrum in  x and  y  direction .



step23

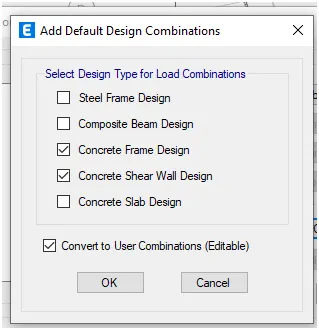

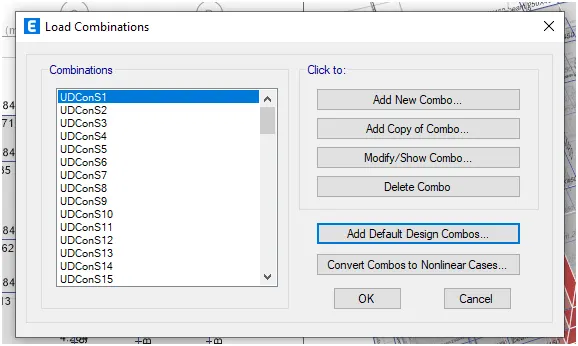

.select load combination , click on default design combinations .





step 24 ;

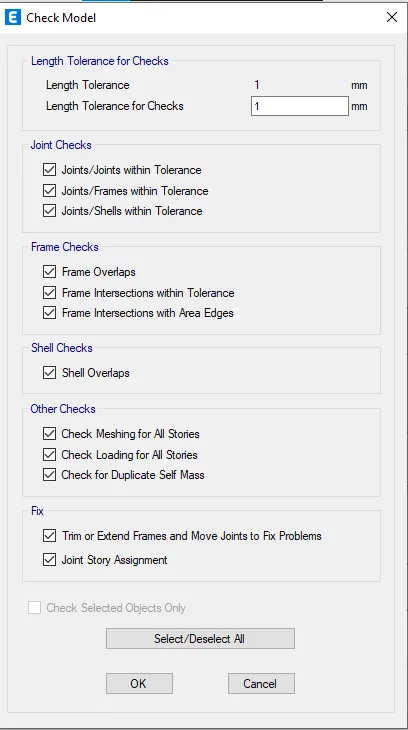

select analysis and click on check model .

after  model checking click on run analysis .





select display and click on show table .

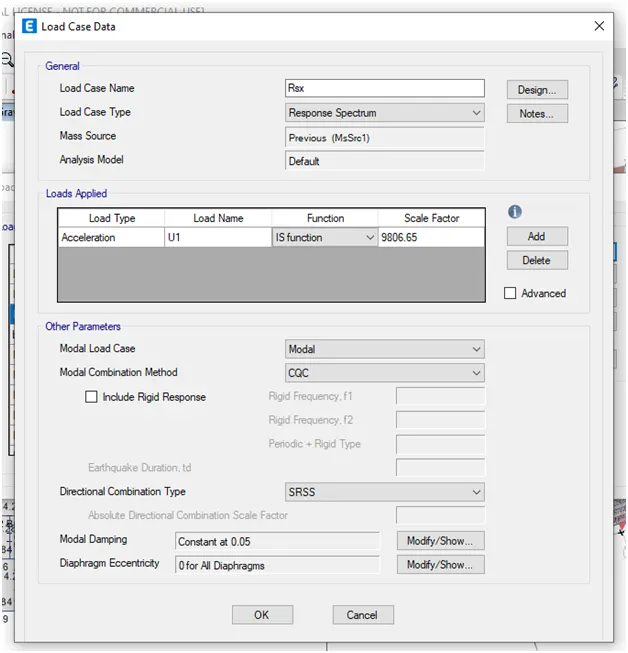

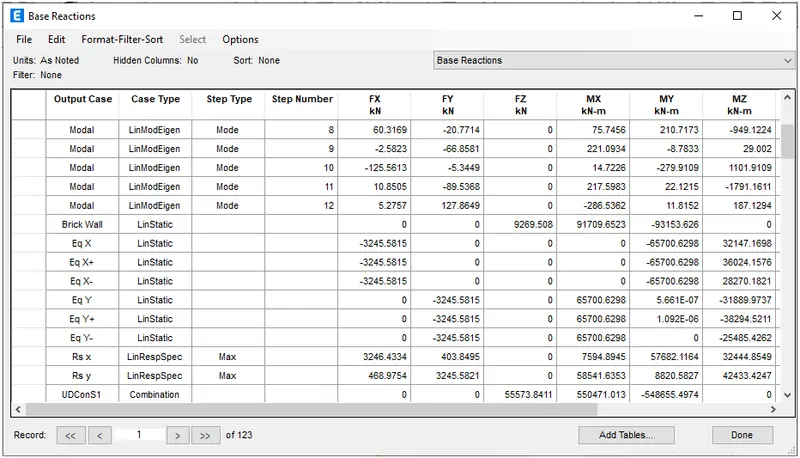

unlock model . by using base raction adjust the scale factor in response spectrum .

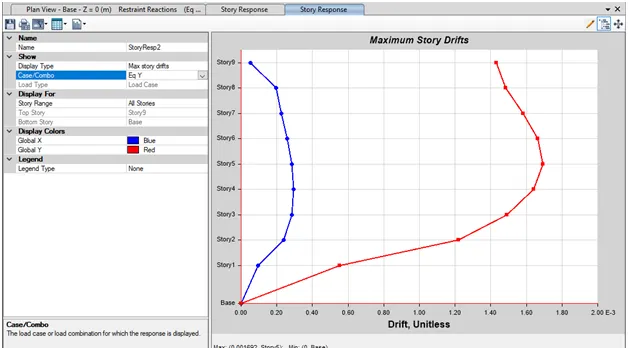

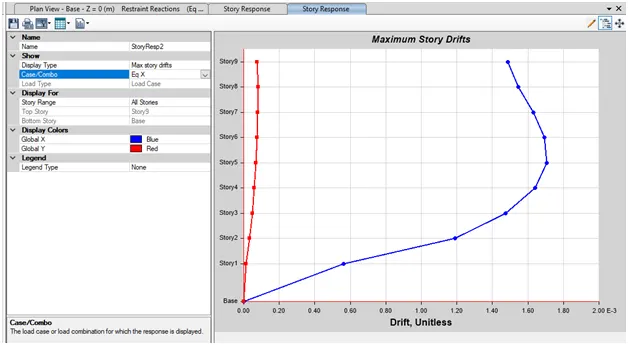

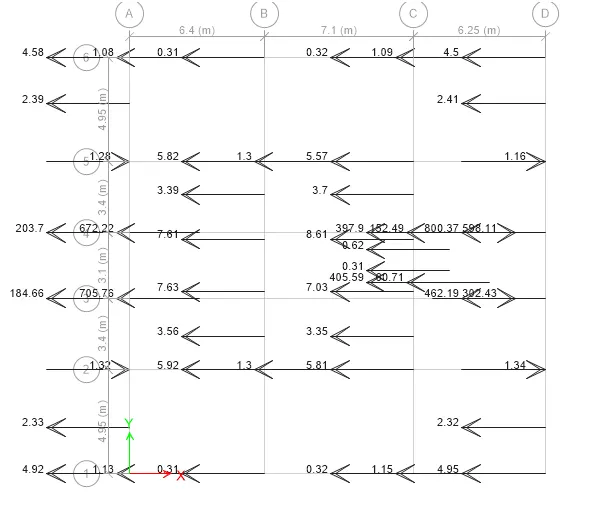

after run and analysis and see inter storey

drift the details should shouls be with in 4 %.



base shear is > 80%



than next analysis is completed .
