1) AIM: Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the…
Vaibhav Patil
updated on 12 Apr 2022
1) AIM: Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.
Introduction: we use MV, PLOT and LAYOUT command for creating a layout with required paper size and required part of dwg

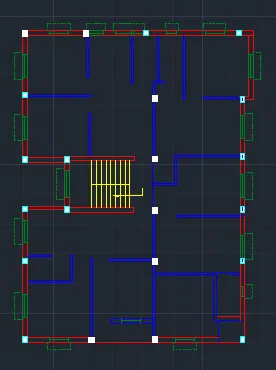

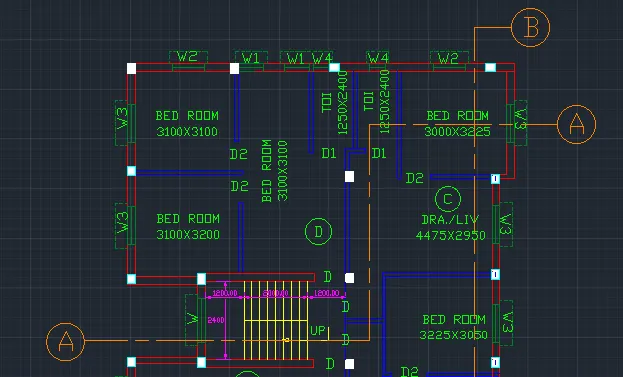

Procedure:( For Floor Plan )
Step 1)
unit & scale setting
open the auto cad as imperical setup
set unit as Decimal and all units in mm
now set scale from directly tool bar or type SCALE in dialog box
set scale as 1:100 means 1 unit on paper is 100 unit on ground or field
Step 2)

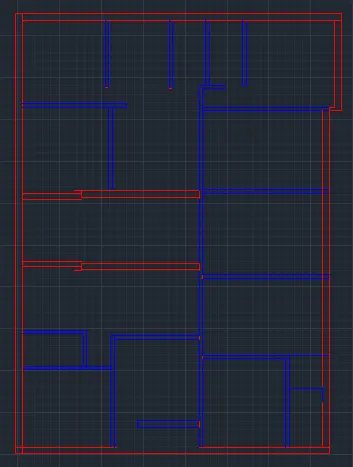

making floor plan ( Devlopment )
choose a construction line from draw bar
draw verticle and horizontal line ( construction line )
then take offset command ( OFFSET )
and offset both construction line ( horizontal, verticle ) at a distance of 250mm as a wall thickness,
then go to horizontal axis and take offset command
and offset at a distance of 2888 for first room from last line
then offset at 125 mm as wall thickness
and then offset at 1225mm with 125mm wall thickness 125mm
angain offset at a distance of 3200mm with 125mm wall thickness
and offset at a distance of 3100mm with wall thickness 250mm as external wall thickness
now go to verticle axis and offset at 3100mm from last line with 125mm internal wall thickness
then again offset of 2550mm with 125mm wall thickness
now two times(repeat for twise) offset with 1250mm with 125mm internal wall thickness
and finnally offset with 3000mm with 250mm external wall thickness
now from top horizontal side take offsets upward on 250mm wall thickness
then from previous line take downward offset on 3225mm with 125mm wall thickness
then again offset of 2950mm with 125mm internal wall thickness
then again offset of 3050mm with 125mm internal wall thickness
then again offset of 2863mm with 125mm internal wall thickness
then again offset of 3300mm with 125mm internal wall thickness
and on bottom last room(master bed) corner make toilet of 1250X2150mm with internal wall 125mm and external wall 250mm
trim extra lines using (TRIM) command
Step 3) doors, columns, windows and staircase
provide doors and window of following dimensions
window,
W = 1400 X 1200mm
W1 = 800 X 900mm
W2 = 1000 X 1200mm
W3 = 1200 X 1200mm
W4 = 500 X 900mm
chajja 100mm projection of each side with 400mm length
&
Door
D = 1100mm
D1 = 1000mm
D2 = 900mm
Column of size 250 X 300mm
by using line command, set line from layer property and set layer with green colour draw windows according to assume size with inner panel line of 25mm thick
now, by using line command, set dash line from layer property and set layer with green colour and draw chajja with 100mm projection and 400 length
by using line command, set line from layer property and set layer with sky colour, draw colums of size 250mm X 300mm as shown in fig
then use hatch command ( HATCH )
and take solid hatch with wite colour and draw over all columns
and Trim extra lines by using TRIM command
staircase;
add layer for stair case from line property and gives yellow colour
take offset command (OFFSET) and take 250mm as a tread
and gives 8 offset of 250mm you get flight now divide it horizontally to make 2 flight
and by using multi leadre command gives direction leader to stair

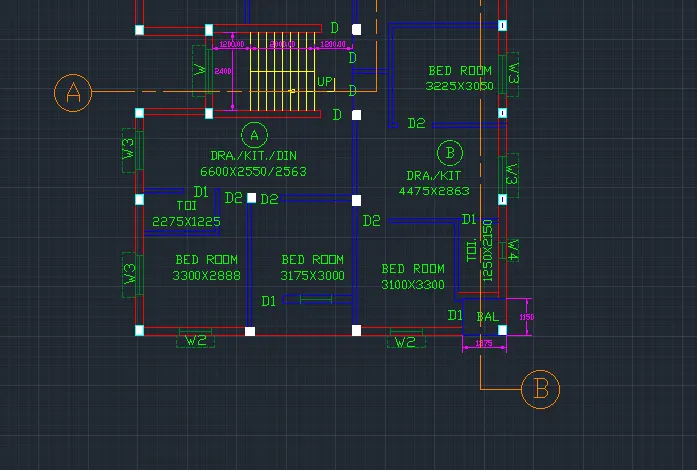

step 4) naming and detailing with dimensions and also section line
Go to the text command or DTEXT set the dimensions(Scale )
and from line property gives it a colout as text line
and gives names ( text as shown in fig )
now select layer for dimension and gives it diffrent colour
then gives dimensior where it required and modify by if required
then draw section line AA and Section line BB, select line from line layer ( short dash long dash line )
and draw it as shoen in fig with diffrent colour layer

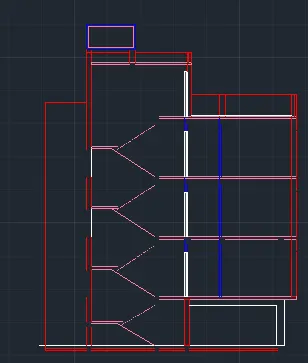

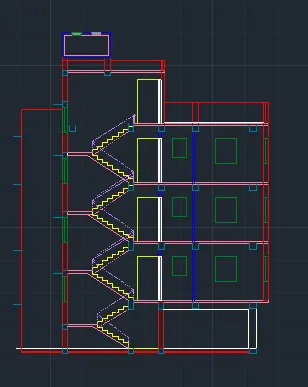

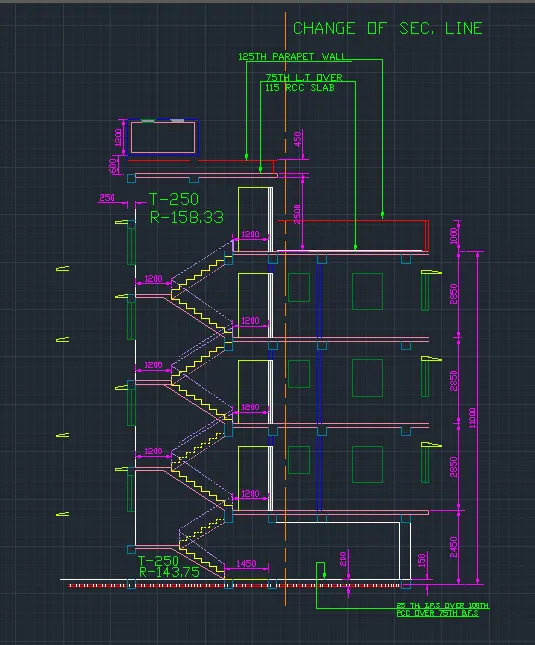

Procedure: for section AA
step5 )
choose construction line from draw command
extend all refrence line from devlope plan which are comes in section a by using verticle line
draw this all line using external line and internal line layer from layer propert (red & blue )
then take offset command OFFSET
and offset all elevation( height as per dwg )

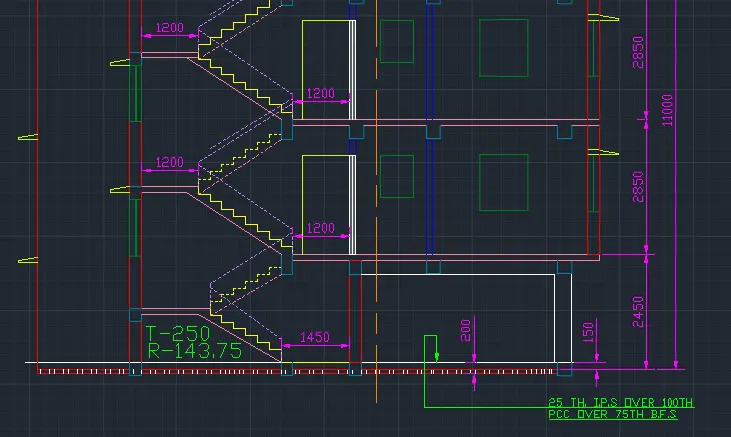

choose line command and draw horizontal line between end verticle line
then offst it 200mm for base
then 2450mm for first floor with 115mm slab thickness
now again offset of 2850mm with 115mm slab thickness
now again offset of 2850mm with 115mm slab thickness
now again offset of 2850mm with 115mm slab thickness
now again offset of 1000mm with 115mm slab thickness for parapet wall
now agin offset of 2550 with 125mm wall thickness for head room
then again 450 for parapet wall
now draw a over height water tank by offseting 1200mm from previous line
ang goves 115mm slab thickness over all tank from inner side
now by using TRIM command trim extra lines as shown in fig and make it as frame
step 6) stair case with grill and landing and window, door and beams
take ortho on
choose stair line layer command from line layer
choose a line, and go for first floor steps
draw a atep from GF line with tread- 250mm and riser- 143.75mm
then make 9 trad and 8 riser according dimension
then draw flight on front of last step with 115mm slab thick
and draw west beam for staircase by providing 250X275mm beam
and same do for next flight
now go for second floor stair
here take Tread- 250 and Riser is-158.33
draw it from first floor slab level and make 9 trad and 8 rised according to dimension
then on last line draw flight of length 1200mm with slab height 115mm
and draw west slab on bottom wich is resting on 250X275mm beam
same do for second flight wich starting from landing to second fllor
then copy the whole staircase section of FF and copy it for second and third floor
now draw stair case grill by using dash dash line layer from home tab
by choosing line command take 500mm height at every starting stair
and connect it by same layer and fillet it at junction with 5mm radius
draw samw grill overall stair section
now draw window of 1200mm height below from lintel with thick as wall thickness
draw below every flight beam with pannels of thick 20mm
create 2 opening for OHT of 1000mm width
then draw beam by using beam layer command from layer property
with depth of beam is 275mm and width is 250mm
draw all over where we cut the section and beam are visible
now same draw room windows by refrencing section lines from plans
draw it by 1200 mm depth for room window and 900mm depth for WC windows
then door
take door line layer from layer property and draw doors of 2100mm height from following refrence lines
and also draw all window projection for last wall, below the lintel with 20mm middle pannel

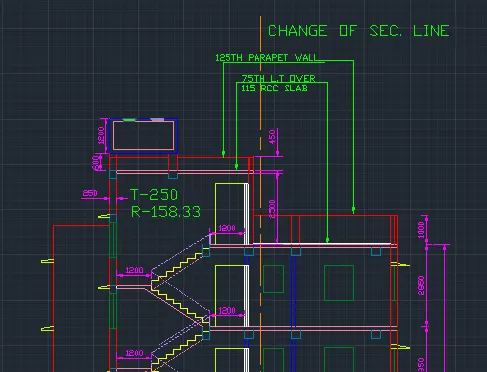

step 7) chajja, text, dimension, GL, and leader & section line
take chajja layer property and gives it colour from layer property
and draw all chajjas of 400mm length with 1:75 slope
then by using array path command (ARRY)
first draw 1 line and acoording to that array line with path for bottom of GL as filling material
then use multileader go to setting make on proportinal schale and modify it
then draw multileder with right justify and text above the underline
and gives all specification as shown in fig using multileader
now select line layer for dimenssion
type DIM on dialog box modify setting make it text is along the line and change scale ( also from annotation )
then take linear dimension and take first base dimension then by using continue dimension and base dimension draw all the dimension
after that final stage is text
type DTEXT on dialog box go eith text setting fit scale with over all proper dimension
then using multi line text write all text required for dwg
and gives layer colour as purpol
draw section line using long dash short dash layer line from home tab
and gives it orange colour with proper proportinal scale

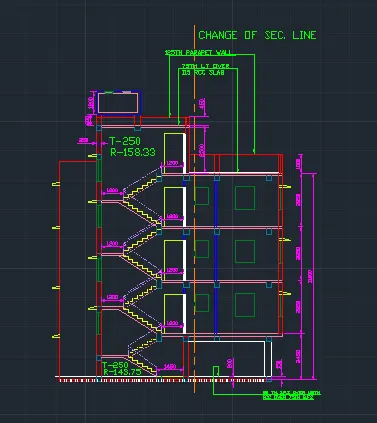

step 8) final section AA dwg
mearged all the stage make a final section AA dwg

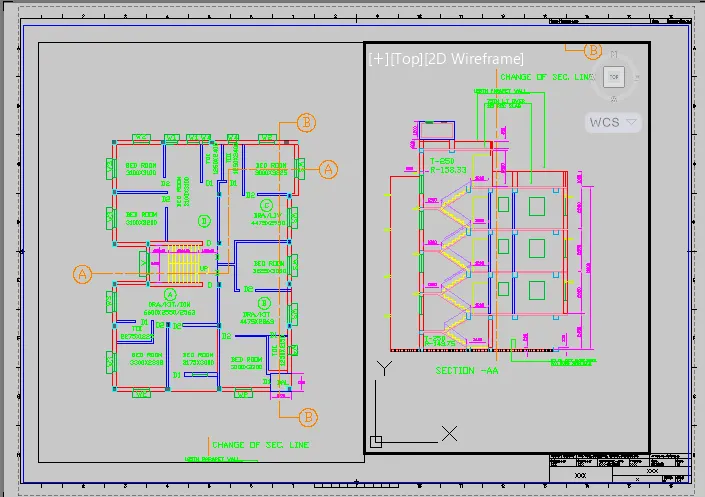

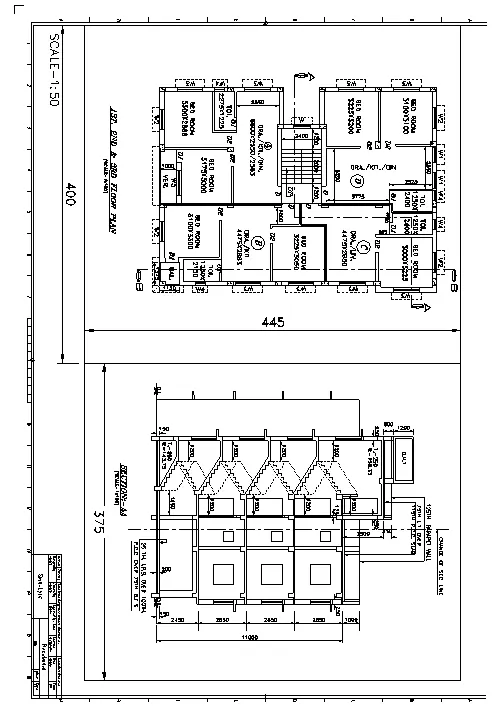

step9) create layout

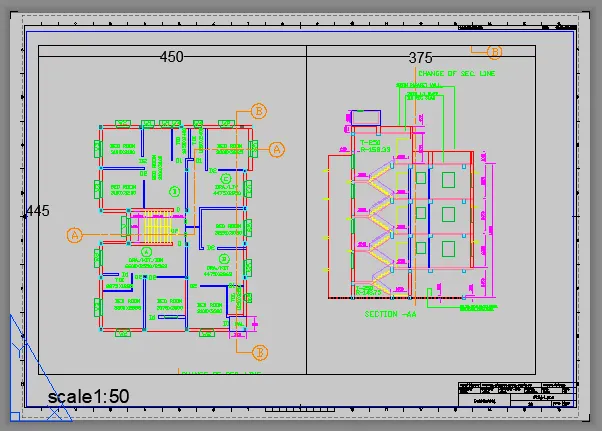

click on layout tab and rename the tab by right clicking as plan layout and section, delete the current viewport displayed in layout
no crate a templete, use layout command then slect templet > select mArch from the options now press ok for ISO A1 layout and rename it as plan layout and section
now MS for activation of model space

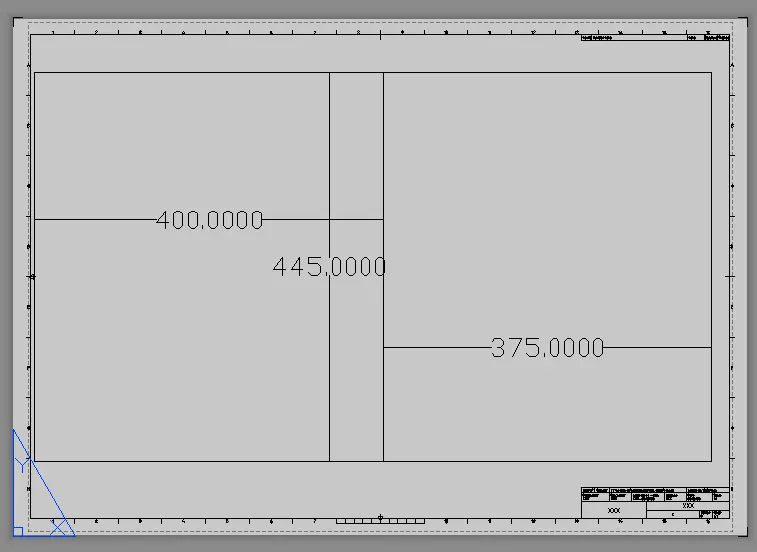

now for viewport draw two rectangles of size 400X445 & 375X445 respectively
step10)
now put opject in rectangular box
srelect MV command > then object and press on rectangles there are object comes on rectangles
do same for second rectnagle and by using MS command zoom the object and zoom plan and section respectively for both the box
and lock the object from MV commnad > lock option> on

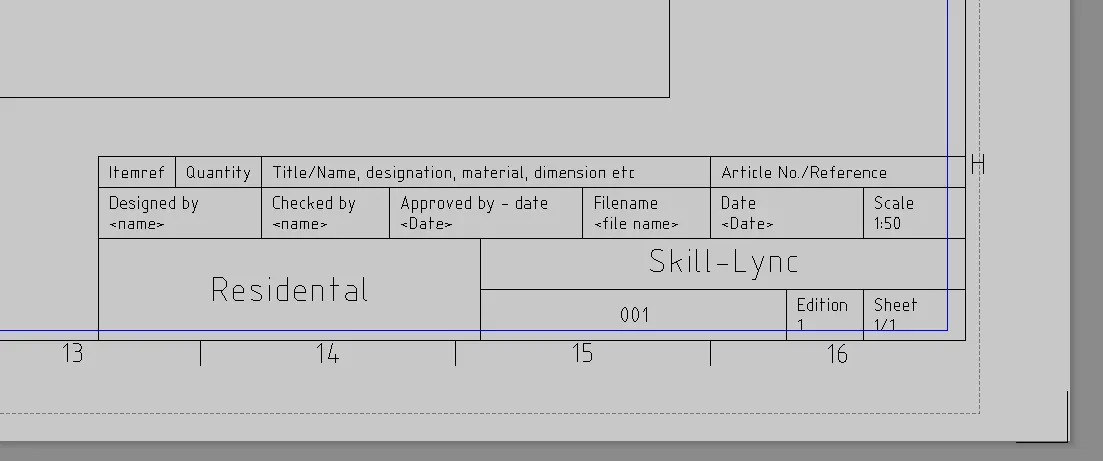

step11) Editing Attributes
go to paper space by using PS command and go for templet block, click on attribute and edit the attributre or
double tab the attribute text or from also command box type ATTEDIT the attribute dialogue box appears
and change the value as name,mdate, scale etc
and by using DTEXT command text the scale 1:50
step12) take paper size as A1 sheet

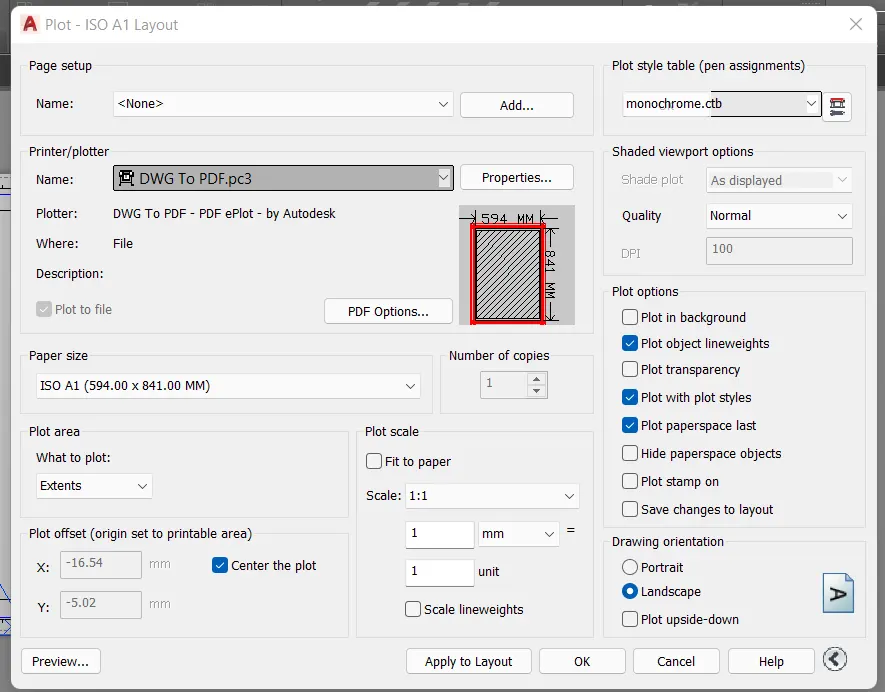

use command plot or use print give the name as DWG to PDF
set paper size as A1( 594X841mm)
select plot as layout scale is given as 1:1 and set landscape orientation
now for black colur pdf select pen assignment as MONOCHROME
and after that preview the section and > applyto layout > ok then save the file
Result: Layout is created using template m.Arch dwt viewport is creating using MVIEW command of size 400X445 and 375X445 mm and the scale of view port is set to be 1:50 attributes in the templete are edited and plot is taken using A1 size
note: pdf file of above plan is attatch to challenge for refrence as plan section layout

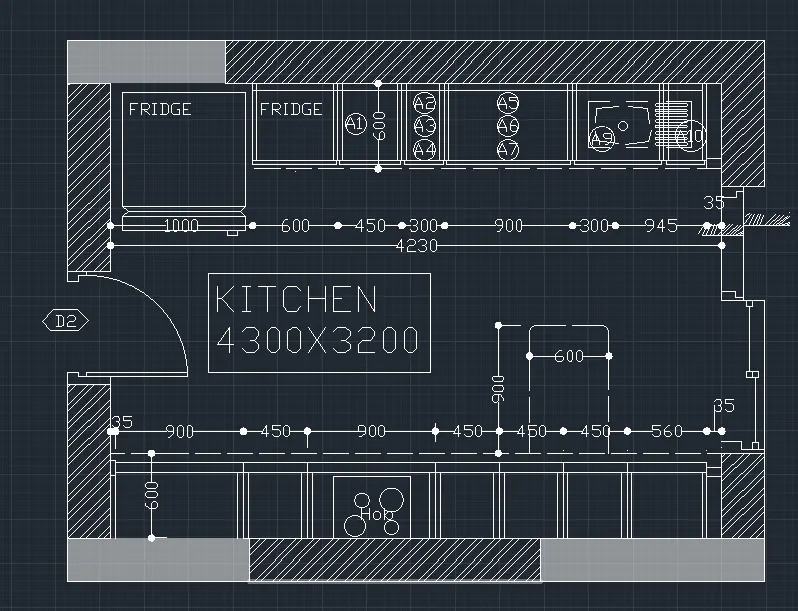

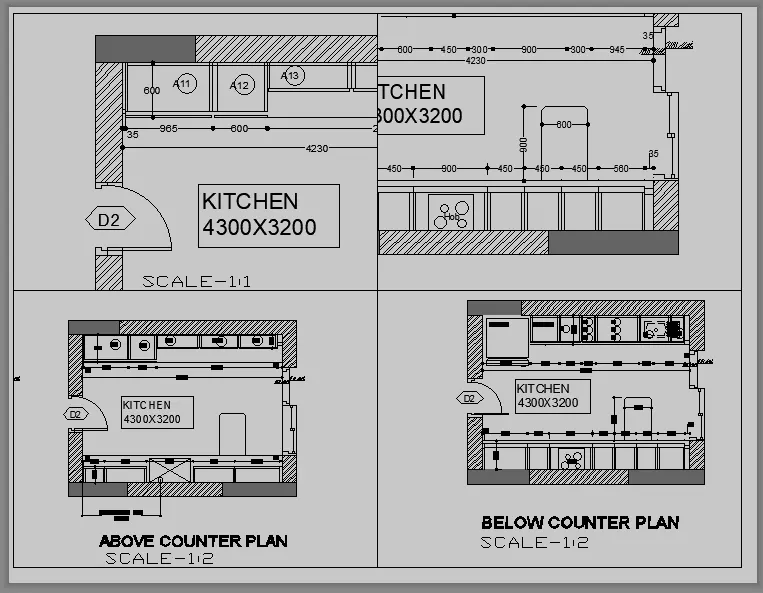

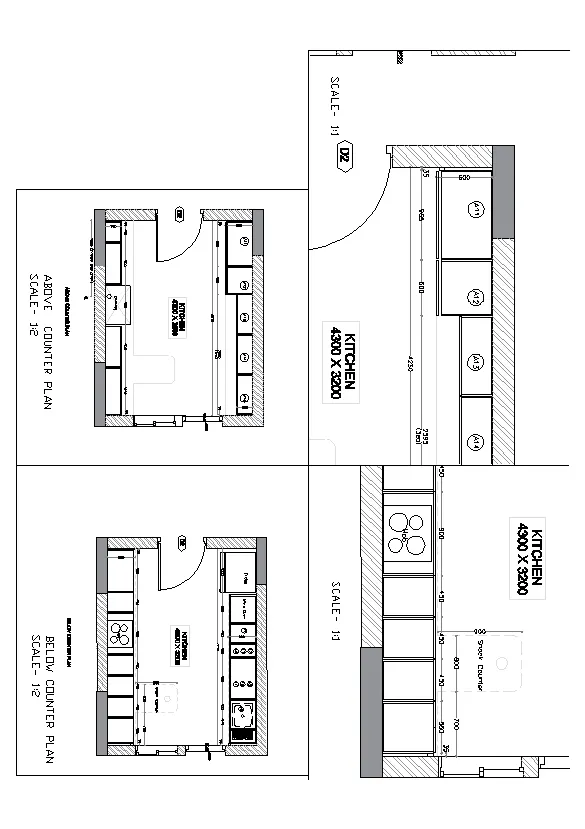

2) AIM: Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.
Introduction: we creat a layout by using viweport and scaling the required dimension and paper size to dwg using MV,LAYOUT and plot ommand
#Procedure:

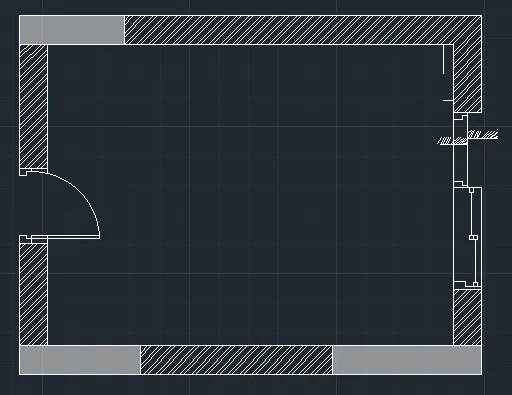

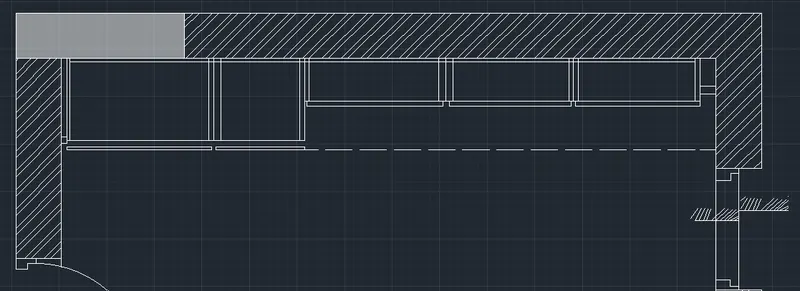

step1) make a outer boundry or external walls
choose line command
or choose a rectangle and from toolbar
draw a rectangle of size 4300,3200mm
take offset from OFFSET command
and give outer side offset of 300mm both sides as a wall thickness
draw a blocks betwwn walls
and take masonary hatch from HATCH command
with proper size
and also take solid hatch for concrete work and gives layer
and draw door using circle of opening 900mm
from circle command and line command
and also draw other side door op 800mm opening size with 200mm width
and draw door with hingeds showing and draw 1 horizontal line at diffrent elevation at door
and draw random lines for making lock
showing bottom of that door in wall as opening mechanism of door with the help of rectangle and line command

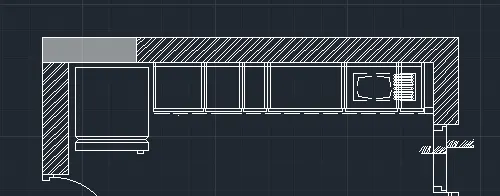

step2) internal partition
for top p[artition
take offset with horizonatal axis from top horizontal line as 35mm
by using OFFSET command
then take other offset on 490mm and then other at 20mm as partition
then draw at 600mm from top horizontral line as section line
then take offset for fridge 800mm from top
then for bottom stand take 200m depth rectangle and draw stand with 1 support leg
now go for verticle axis and take offset from verticle line at 35mm trhen 965mm for fridge
then again 20mm then 600 for micro oven then again offset of 450mm as A1
then take offset of 300mm for A2, A3, A4
again offset of a distance 900mm as A5, A6, A7
and now take offset of 300 and 945 mm as A9, and a10 respectively
in all between give 20, 20 mm bracket as partition
and draw design on A9 and A10 by using line,circle and fillet
step 3)
bottom partition
go for horizontal lines (axis) and take OFFSET command
offset from bottom hoeizontal inner line to uipward at a distance of 20mm
then another offset of 490mm and other offset of last line as 20mm
and take offset of first horizontal line at 600mm as section line
then go for vertical line [left side]
take first offset of 35mm then take offset of 900mm
now take offset of 450mm and another offset of 900mm from last line
then again 450mm offset for 3 times
then last offset of 560mm and 35 mm at end
in all between give 20, 20 mm bracket as partition
then draw horizontal section line at 600mm from selecting section line from line layer
then draw snackes counter of 600mm X 900mm with section line from 700mm from right side

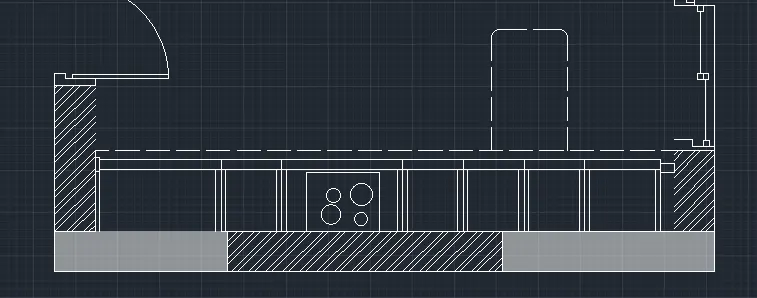

then draw circle on hob by using circle command draw circle of diffrent diameters
step4)
dimensions and text

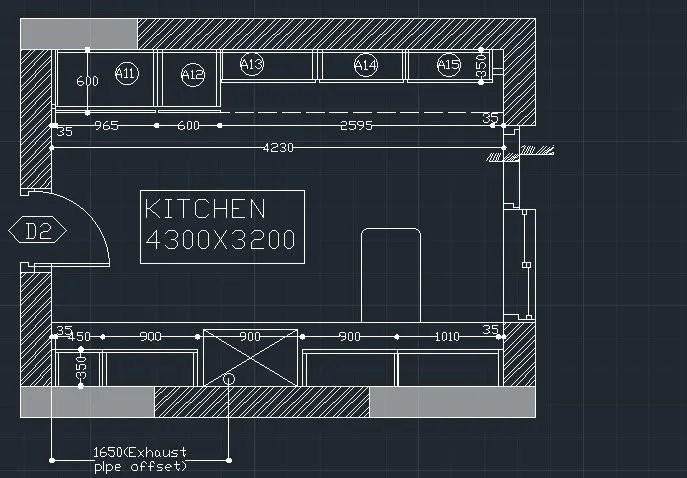

give dimension and text to architectural plan
text
by using DTEXT command or from annotation bar
edit the text by edittext and go for modify option
take scale as 300mm for text height and standard fond
after modifying setting give all required text by using single and multi text
now dimension
go for dimension command typing DIM
or from annotation bar
modify setting as D enter and set fit
and overall height as 250mm and primery unit as decimal
and set proper precious
and showing all linear dimension using continue dimension command
#Procedure: for second kitchen
step5) make a outer boundry or external walls
choose line command
or choose a rectangle and from toolbar
draw a rectangle of size 4300,3200mm
take offset from OFFSET command
and give outer side offset of 300mm both sides as a wall thickness
draw a blocks betwwn walls
and take masonary hatch from HATCH command
with proper size
and also take solid hatch for concrete work and gives layer
and draw door using circle of opening 900mm
from circle command and line command
and also draw other side door op 800mm opening size with 200mm width
and draw door with hingeds showing and draw 1 horizontal line at diffrent elevation at door
and draw random lines for making lock
showing bottom of that door in wall as opening mechanism of door with the help of rectangle and line command
step6) internal partition
for top p[artition
take offset with horizonatal axis from top horizontal line as 35mm
by using OFFSET command
then take other offset on 490mm and then other at 20mm as partition
then draw at 600mm from top horizontral line as section line
then take offset for A13,A14 and A15 350mm from top
now go for verticle axis and take offset from verticle line at 35mm trhen 965mm for A11
then again 20mm then 600 for A12 then
then take offset of 834mm for A13, A15, A15
in all between give 20, 20 mm bracket as partition
step 7)
bottom partition
go for horizontal lines (axis) and take OFFSET command
offset from bottom hoeizontal inner line to uipward at a distance of 20mm
then another offset of 350mm and other offset of last line as 20mm
then go for vertical line [left side]
take first offset of 35mm then take offset of 450mm
now take offset of 900mm and another offset of 900mm from last line as chimney with 600mm height
then again 900mm offset for
then last offset of 1010mm and 35 mm at end
in all between give 20, 20 mm bracket as partition

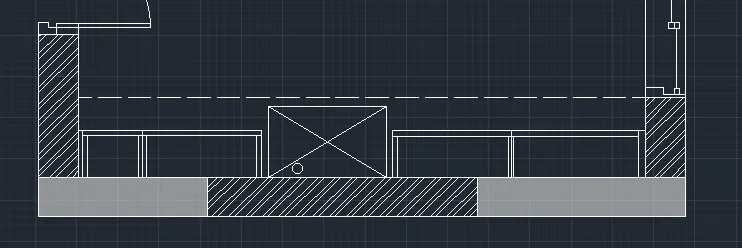

then draw chimney of 900mm X 600mm with cross lines
then draw circle on botoom side 1650 from first left vertical line as exhaust pipe offset
step 8)
dimensions and text
give dimension and text to architectural plan
text
by using DTEXT command or from annotation bar
edit the text by edittext and go for modify option
take scale as 300mm for text height and standard fond
after modifying setting give all required text by using single and multi text
now dimension
go for dimension command typing DIM
or from annotation bar
modify setting as D enter and set fit
and overall height as 250mm and primery unit as decimal
and set proper precious
and showing all linear dimension using continue dimension command
step9)
go for layout

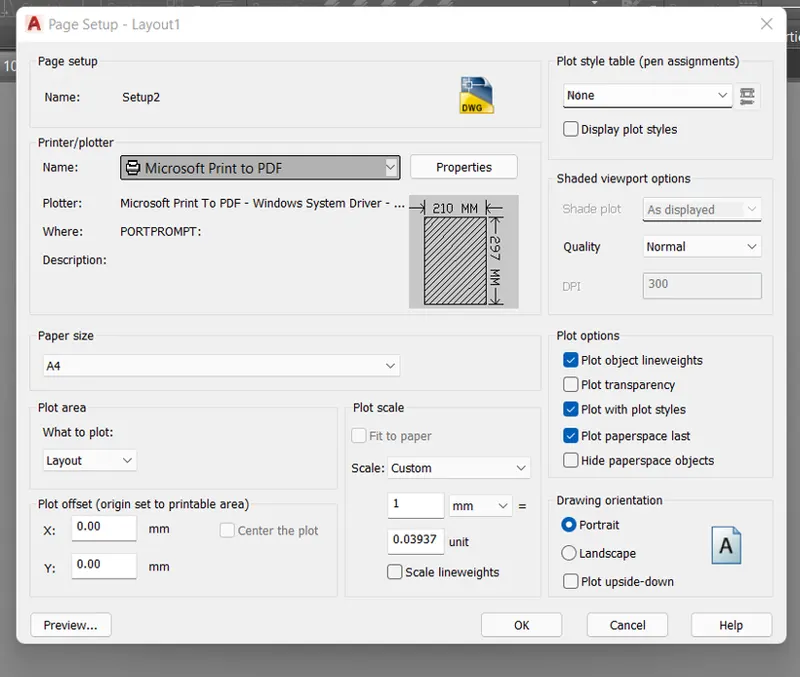

set a paper size by using pageset command
take new name as setup2
then take paper size as A4
and drawing orientation is portrait and set it for layout
step10) take layout and draw plot
now go for MV command
select 4 qudarnt from MV command
now from MVIEW command object on each box
and zoom in required portion in apropriate box by taking MS command for object zooming
and set a scale as per given like 1:2 and 1:1
then lock the object from MV command
now using DTEXT command text the scale
Result: we create a kitchen layout on A4 size paper and locate at 4 quadarant from layout sheet, by using VPORT commands and drafting commands.
note: pdf file attach as refrence to challeng as name kitchen layout 11

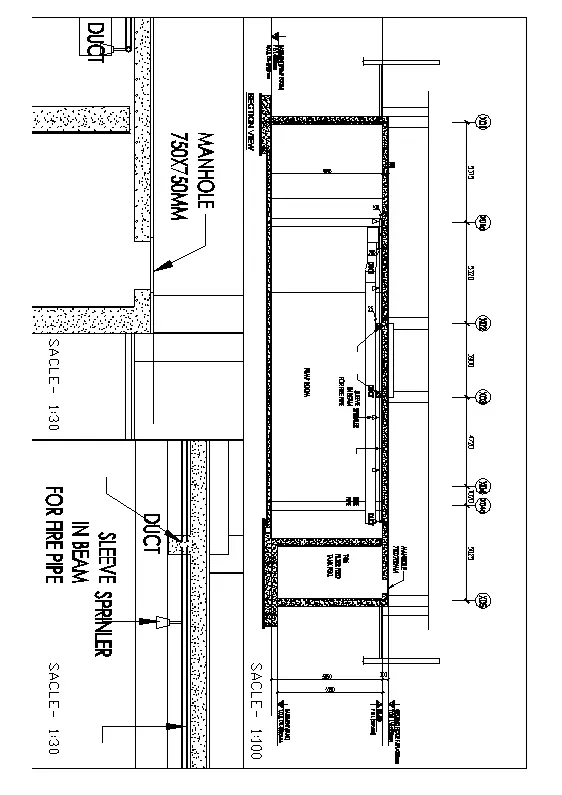

3) AIM: Create a layout of the section created in Challenges 9. Use scale as mentioned in the Figure. Use MV command create multiple viewports and Take a plot.
Introduction: we create a plot with 1:100 & 1:30 scale with 3 quadarnts by using MV, LAYOUT and PLOT command
Procedure:

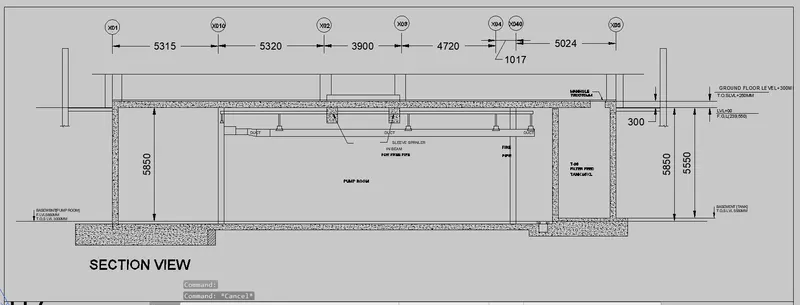

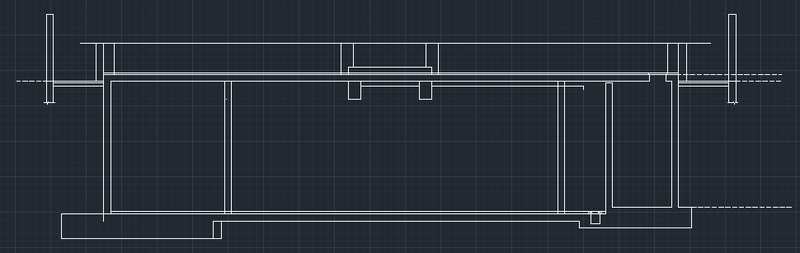

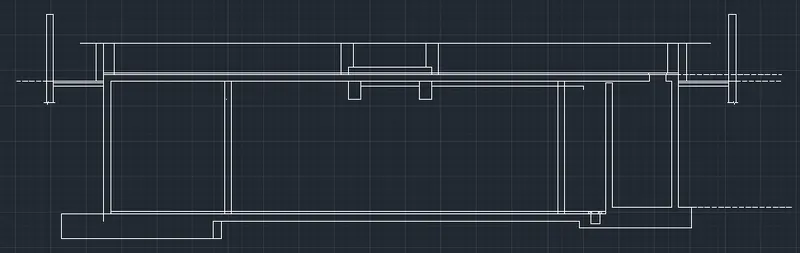

step1) make a wall layout and projections
set all dimension in mm (decimal unit)
choose line command from ribbon
draw horizontal line of sixe 5315,5320,3900,4720,1020,5025mm external to external
then offset upward at a distance of 300 mm as wall thickness
then take offset by using OFFSET command 5850mm then again offset of 300mm at last wall thickness
then go for vertical left side 300mm wall thickness same from opposite side 300mm wall thickness
then from right take 2500mm man hole with 300mm width
and draw all projection as shown in fig with proper dimension and distance
by using line, rectangle and offset command

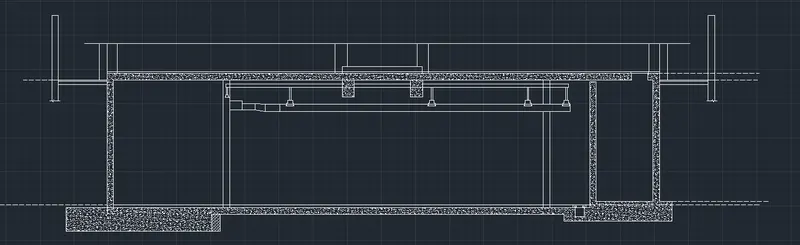

step2) duct, hatch and foundation
draw duct of 350 size with bent 200mm at left corner
with 300 mm wall at both end of duct
then hatch by using HATCH command
take concrete hatch from hatch option with 50scale
and draw foundation 400 mm deep with 1500mm width
also draw duct holder by using rectangle command
and hatch on foundation also

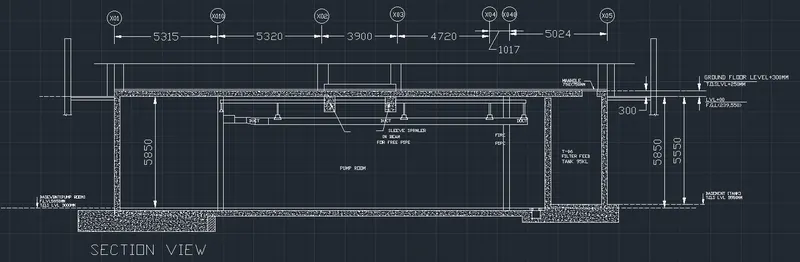

step3)
dimensions and text
give dimension and text to architectural plan
text
by using DTEXT command or from annotation bar
edit the text by edittext and go for modify option
take scale as 300mm for text height and standard fond
after modifying setting give all required text by using single and multi text
now dimension
go for dimension command typing DIM
or from annotation bar
modify setting as D enter and set fit
and overall height as 250mm and primery unit as decimal
and set proper precious
and showing all linear dimension using continue dimension command
step4)
go for layout and add new layout, and rename it by section layout
set a paper size by using pageset command
take new name as setup2
then take paper size as A4
and drawing orientation is portrait and set it for layout

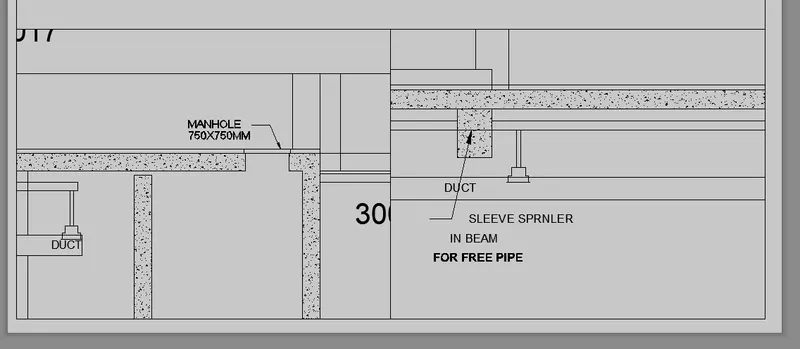

step 5) take layout and draw plot
now go for MV command

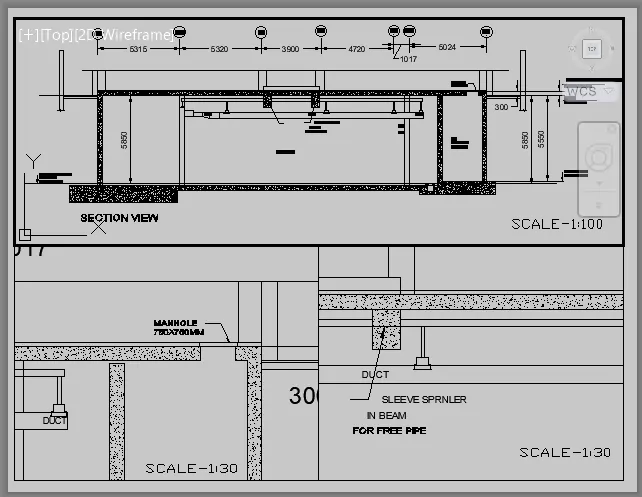

select 3 qudarnt from MV command ( one horizontal and below that 2 verticle)
now from MVIEW command object on each box
and zoom in required portion in apropriate box by taking MS command for object zooming
and set a scale as per given like 1:100 and 1:30
then lock the object from MV command
now using DTEXT command text the scale
result: we create a section layout on A4 size paper and locate at 3 quadarant that showing diffrent part of section from layout sheet, by using VPORT commands and drafting commands. and fit a scale on it 1:100 and 1:30 respectively
note: pdf file attach as reference to challenge as name section layout 11
Leave a comment
Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.
Other comments...
To plan a structural layout and to create grids using TSD
Summarize the user interface in TSD with the for the following items: - Aim :To summarize the user interface in Tekla Structural Designer. The following items need to be summarized: Project Workspace Scene Content Create two scene views Loading drop list Properties windows Introduction: Tekla Structural Designer…
20 Dec 2022 05:09 AM IST
Project 2_Design & Analysis of a Hostel building at Guwahati, Assam
Project 2_Design & Analysis of a Hostel building at Guwahati, Assam In this project, participants will get to experience the entire design process from modelling, analysis, design, and preparation of construction drawings. The architectural drawings of a G+3 RCC building is provided. The following information…
19 Oct 2022 11:22 AM IST
Foundation Design using SAFE
Foundation Design using SAFE 1. Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. 2. A column of size 600x600 carrying an unfactored gravity load (DL+LL) of 1175 KN is to be supported on pile cap, which ultimately…
02 Oct 2022 07:09 AM IST
Design of Shallow Foundation (Isolated Footings)
Design of Shallow Foundation (Isolated Footings) Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered…
27 Sep 2022 09:17 AM IST
Related Courses
127 Hours of Content
Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.
© 2025 Skill-Lync Inc. All Rights Reserved.
