Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

Project: Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

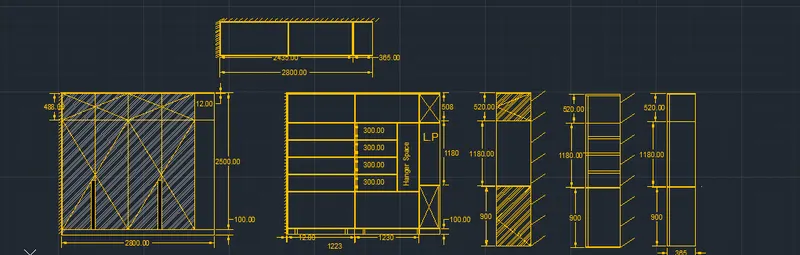

1) AIM: Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers. Use proper text                       styles and dimension methods to document it. Also, assume dimensions, wherever needed.



Introduction: we draw drawing like Wardrobe detailed drawing using Autocad by using commands Draw and Modify commands like LINE, CIRCLE, OFFSET, ARRAY, DIMENSIONS & TEXT



[Note: All dimensions are in mm.]

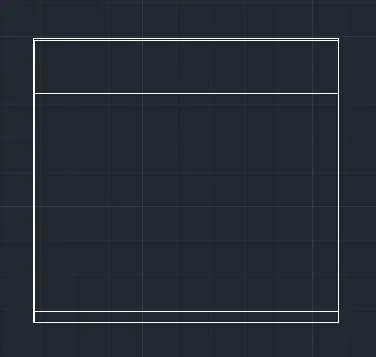

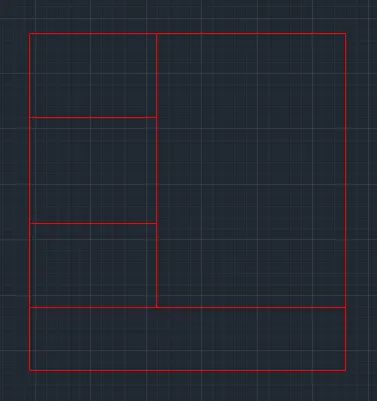

#Procedure: making section 1 box

Unit are set in mm (Enginnering Unit)

By UNIT command

take a rectangle from command or you also taking from typing RECTANGLE on dialog box

and Draw a rectangle of size 2800,2600

then from top side offset 12mm as thickness and also left side 12mm thckness ( take offset command OFFSET)

again offset from last point on 488mm bottom and

also offset from bottom as 100mm

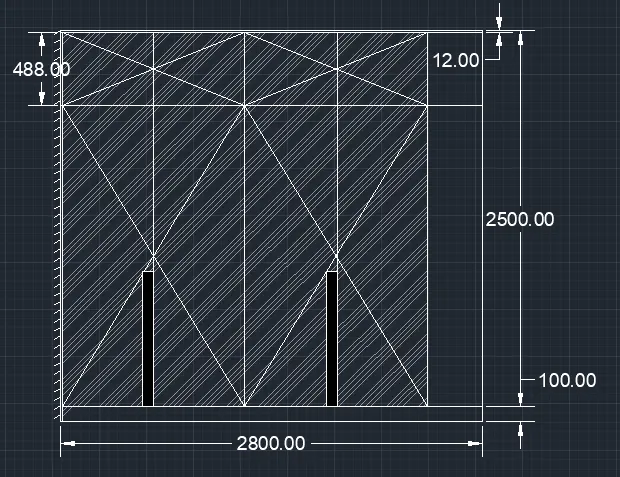

#Procedure: offsets and hatching with dimensions

draw horizontal offset by using offset command

on 350.75,530.75,530.75,530.75 and 365 from thickness of wall

choose line command from tool bar

draw a 900X75mm doors as shown in fig

then use hatch command(HATCH)

and give hatch as per following

hatch: ANS134

size of hatch 100

and then from DTEXT command

give dimension by setting proper size

by using various text

and using array command draw the wall surface

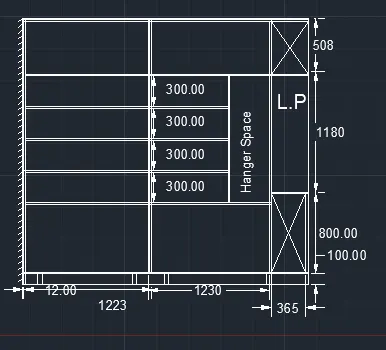

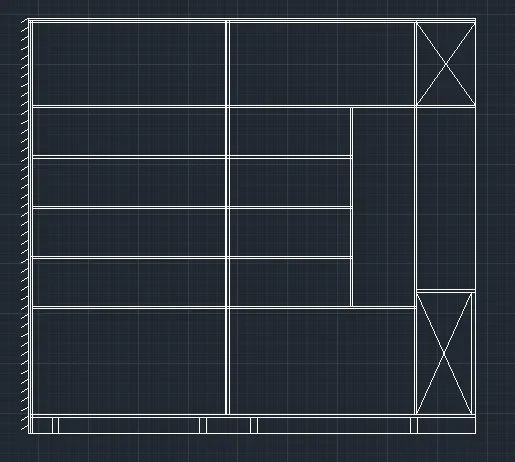

#Procedur: Carcase Elevation

choose a line command

and draw a 2800, 2600 rectangle

OR from rectangle command you can also draw rectangle of size 2800,2500 (RECTANGLE)

draw wall surface line on lrft verticle wall

from verticle line gives offset on 12mm wall thickness again 15mm by using offset command

from previous point offset at 1223, 15, 1200,15,365 respectively

and offset from bottom horizontal line

on 100,15,680,15,300,20,300,20,300,20 and 508mm distance

trim a extra line by using trim command

and add cross line in end 2 boxes as shown in fig



#Procedure:

select DETEX command

and give naming where required

usin dimensions command

set dimensions size by pressing D enter

give all dimensions using continue, linear and quick setting command

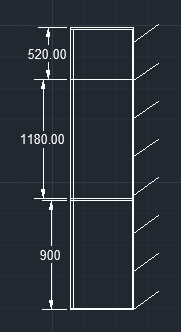

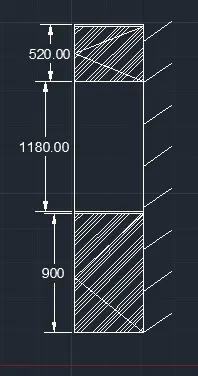

#Procedure:

choose a line command from tool bar

and draw a vericle line of 2600mm

and 630 mm horizontal base

then take offset command and offset it at distance

of 900 towards top, 20mm

1180mm and 520 mm

give 12 mm thicness to all side

and cross line by using line tool on upper and lower box

use hatch command (HATCH) enter

and take ANS134 hatch at 100 scale

and put on upper and lower box

then give open space between middle portion

using array command draw wall sarface throughout the right side vertical wall

and usin DIMENSION commands gives all dimension as per drawing

2



#Procedure:

choose a line command from tool bar

and draw a vericle line of 2600mm

and 630 mm horizontal base

then take offset command and offset it at distance

of 900 towards top, 20mm

1180mm and 520 mm

give 12 mm thicness to all side

use offset command ( offset)

and from bottom side give offset on

900,20mm thickness

and make 3 boxes on 300mm each with 20mm wall thickness

and give the dimensions

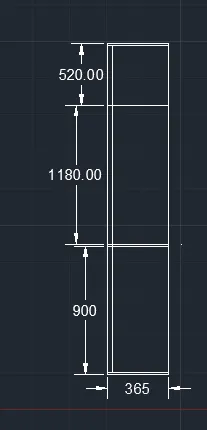

#Procedure

choose a line command from tool bar

and draw a vericle line of 2600mm

and 365 mm horizontal base

then take offset command and offset it at distance

of 900 towards top, 20mm

1180mm and 520 mm with 20mm thick

give 12 mm thicness to all side

and give diminsion

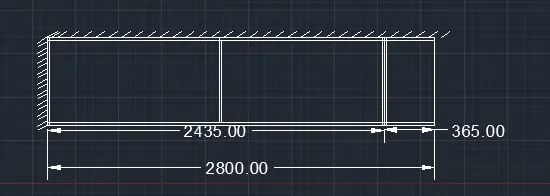

#Procedure:

choose a line command from tool bar

draw a horizontal line of 2800mm

and verticle line of 630mm

and give thickness of 15mm throughout the section using OFFSET & FILLET command

now come to verticle axis or line and choose OFFSET command

and give OFFSET on 1217.5mm from left to right with thickness 12mm

and again same offset given from previous offset with thicknes 12mm

then draw wall surface first ortho off

draw one line along wall and using ARRY comand

select path and draw over all section of the drawing



#Result: we draw elevation and details of a wardrobe as shown in the Figure by using dimension, text command and using various drawing and editing commands.

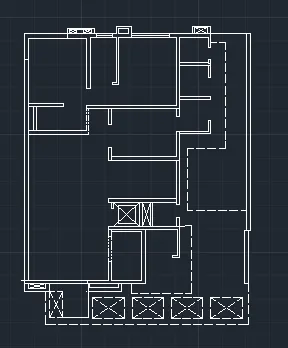

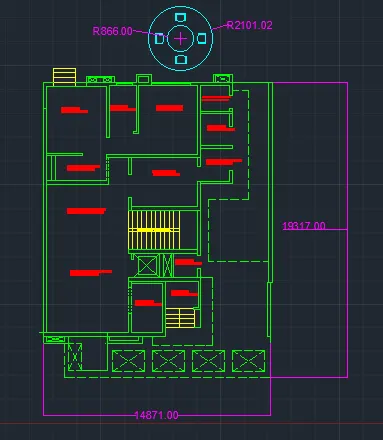

2) AIM: Draw the floor plan as shown in the Figure. Use the proper drafting tools to sketch the plan. Do not hatch or draw the furniture.



Introduction: we draw drawing of floor plan using Autocad by using commands Draw and Modify commands like LINE, CIRCLE, OFFSET, ARRAY, DIMENSIONS, TEXT, COPY, ARRY & LAYER



Note: You can also import the Floor_Plan.pdf into your current drawing and start working on the project. You need to scale the imported pdf file using reference option. All dimensions are in mm.

1. Walls (Exterior and Interior)

               Wall Thickness: Exterior Wall- 230mm, Interior Wall: 150 mm (Wherever Required)

2. Doors and Windows: Assume the size of the doors and window.

    2.1 Stairs: Tread-300mm, Riser-150mm

3. Insert Text wherever required
4. Insert the dimensions using proper dimension techniques

#Procedure: basic floor plan

set unit as decimal

draw a horizontal and vertical line using constructuion lane ( by using construction line command )

go to horizontal axis

take offset command ( OFFSET enter in dialog box)

take offset 230mm as wall thickness

again offset at 3220mm and 150mm as internal wall thickness

then offset 230mm as external wall thickness for lift

then offset of 1600mm for lumber room then take offset of 230mm  for staircase wall

then take offset for staircase romm with 230mm wall thickness

again 3200mm offset for kitchen room with 230mm wall thickness

then 4500mm bor guest bed room

and take 230offset for last external wall

now come to the verticle axis

choose offset command

take first offset of 230mm as wall thickness

again at 4350mm for family room and wall thickness offset at 230mm

then offset 1750 for toilet and 150mm offset for wall thickness

then take offset on 3850mm with 230mm wall

now making rooms by trimming all lines or adding some lines

Living room 5310X9710

power ram room 1800X1650

then family room 3880X 4350

toilet-01= 1750X3000

then bedroom-1= 3830X4500

kitchen 4300X3200

Lumber room 1570X1600mm

Patio=2150X2100

Foyer 2000X3250

then draw right upper corner rooms

choose line command and draw horizontal line of 1900m

and verticle line with 1700mm

and draw the D.H toilet with 150mm wall thickness

now, choose line command and draw horizontal line of 1900m

and verticle line with 2100 mm

and draw the Utility room with 150mm wall thickness

then,

choose line command and draw horizontal line of 1900m

and verticle line with 2150mm

and draw the Dishwasher with 150mm wall thickness

make all doors and window with proper proportion

now select line layer as ACAD ISo line command from layer

and draw sanitaeries line

and also draw cross lines of shafts with 100mm scale size

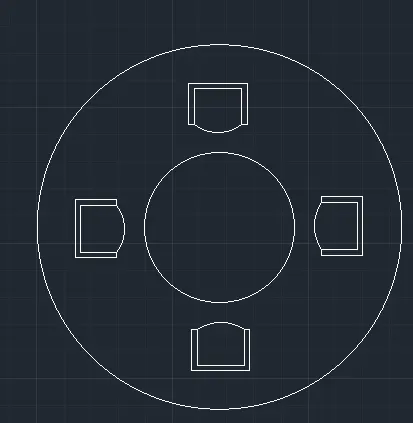

#Procedure: outdoor seating with cancopy

choose a circle command

draw external circle on prportional

draw internal circle by same refrence center point

and make one chair using arc and line command

and by using ARRY command>parth

and set 4 we get on 4 side chairs

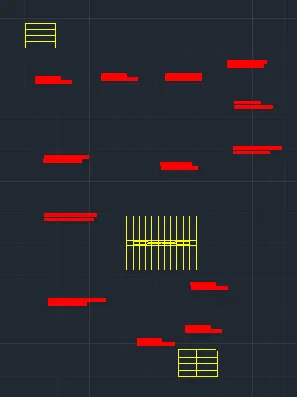

#Procedure:

choose line command from tool bar

draw staircase at a trade of 300mm

draw all entry stairs and lift stairs

using yellow colour layer

and give naming to all over objects

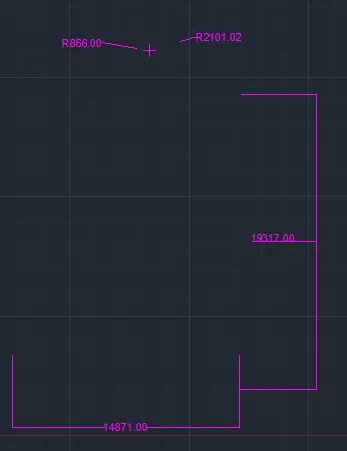

#Proceder: naming

select layer as a name of dimensions

give the colour of that layer

type in command box DIMLINE enter

and take a lined dimension

again take DIMRADIUS command

and give cicular dimensions



#Result: we draw the floor plan using various commands like line, layer, circle arc, dimensions, fillet and trim etc, and text all plan, external wall trhickness=230mm & internal wall thickness =15mm

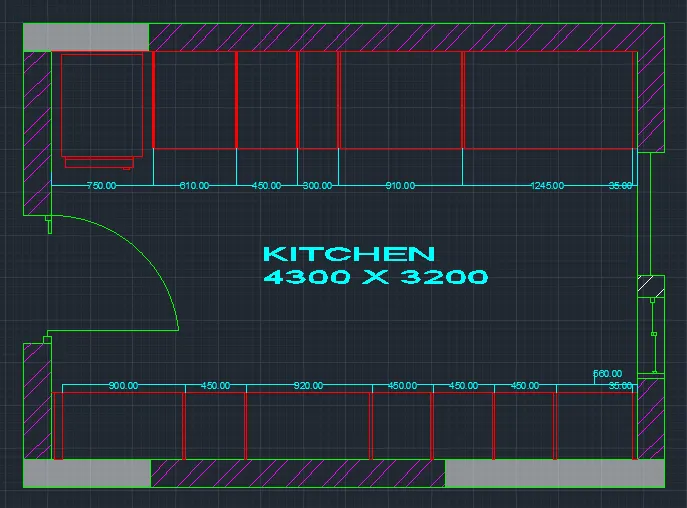

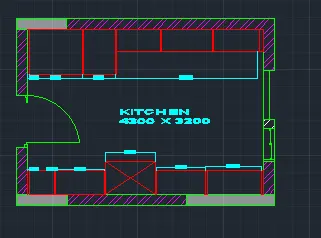

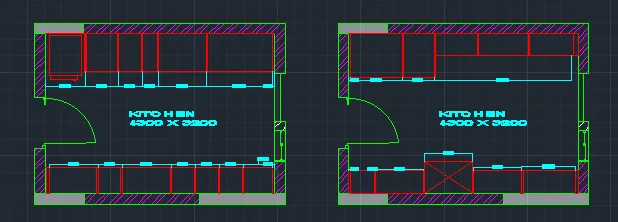

3) AIM : Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions                are in mm.



Introduction: we draw kitchen layout using Autocad by using commands Draw and Modify commands like LINE, CIRCLE, OFFSET, ARRAY, DIMENSIONS, TEXT, COPY, ARRY, LAYER & RECTANGLE command

#Procedure: make a block

choose line command

or choose a rectangle and from toolbar

draw a rectangle of size 4300,3200mm

take offset from OFFSET command

and give outer side offset of 200mm both sides as a wall thickness

draw a blocks betwwn walls

and take masonary hatch from HATCH command

with proper size

and also take solid hatch for concrete work and gives layer

and draw door using circle

from circle command



#Procedure:

go to layer properies

add 3 layers again

for text, dimensions and internal lines

so first draw lines ( internal lines )

draw horizontally as per dimensions with 20mm wall thickness

and also draw verticles lines

and take OFFSET command and offset at perticular intervals

with 20mm wall thickness each

after that change layer

and type DTEXT on dialog box

go to text setting set the dimensions as per proper size

and gives name or text

and again change layer from property

and give dimensions also change dimenstion size according to proportion and draw it



# Procedure: make a box

choose line command

or choose a rectangle and from toolbar

draw a rectangle of size 4300,3200mm

take offset from OFFSET command

and give outer side offset of 200mm both sides as a wall thickness

draw a blocks betwwn walls

and take masonary hatch from HATCH command

with proper size

and also take solid hatch for concrete work and gives layer

and draw door using circle

from circle command



#Procedure :

go to layer properies

add 3 layers again

for text, dimensions and internal lines

so first draw lines ( internal lines )

draw horizontally as per dimensions with 20mm wall thickness

and also draw verticles lines

and take OFFSET command and offset at perticular intervals

with 20mm wall thickness each

after that change layer

and type DTEXT on dialog box

go to text setting set the dimensions as per proper size

and gives name or text

and again change layer from property

and give dimensions also change dimenstion size according to proportion and draw it

#Result: we create a kitchen layout various commands like line, layer, circle arc, dimensions, fillet and trim etc, and text all plan

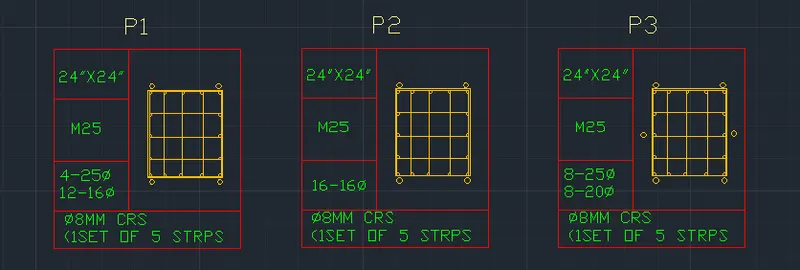

4) AIM: Sketch the column details as shown in Figure. Insert dimensions and text in the figure. Refer to the bar sizes from the schedule.



Introduction: we draw column details using Autocad by using commands Draw and Modify commands like LINE, CIRCLE, OFFSET, ARRAY, DIMENSIONS, COPY, ARRY, LAYER & RECTANGLE, TEXT command



8mm ---- 0.31 Inches

25mm--- 1 inches

16mm—0.62 inches

#Procedure: for P1

first draw a schedule table

choose a line command from toolbar or from dialog box L enter

draw a table of 450mmX 450mm

also we can use rectangle command for it

then take offset from bottom horizontal line

take as OFFSET command from dialog box

and take offset of 100mm brom bottom

then take 150mm,150mm and 150mm offset from preiviosus points

and from verticle axis take offset as 200 mm towards right  side

and trim extra lines using TR command



#Procedure for bar bending & Text

choose rectangle command

from ribbon or directly from command box

and draw 175mm X 175mm rectangle for bar bending schedule

and by using offset command offset 20mm from every side on inner side as thickness

then take at same distance, 3 offset from verticle as well as horizontal axis for showing bars

and then draw circles on every edge corner as bars ( by using circle command )

and agin give circles on evry 4 sides as shown in fig

and then finall it

then, teke a text for text the schedule

DTEXT on dialog box or

directly from annotation commands

use single line or multiline text and give all text to schedule with proper size and complete it



#Procedure: for P2

first draw a schedule table

choose a line command from toolbar or from dialog box L enter

draw a table of 450mmX 450mm

also we can use rectangle command for it

then take offset from bottom horizontal line

take as OFFSET command from dialog box

and take offset of 100mm brom bottom

then take 150mm,150mm and 150mm offset from preiviosus points

and from verticle axis take offset as 200 mm towards right  side

and trim extra lines using TR command





#Procedure for bar bending & Text

choose rectangle command

from ribbon or directly from command box

and draw 175mm X 175mm rectangle for bar bending schedule

and by using offset command offset 20mm from every side on inner side as thickness

then take at same distance, 3 offset from verticle as well as horizontal axis for showing bars

and then draw circles on every edge corner as bars ( by using circle command )

and agin give circles on evry 4 sides as shown in fig

and then finall it

then, teke a text for text the schedule

DTEXT on dialog box or

directly from annotation commands

use single line or multiline text and give all text to schedule with proper size and complete it



#Procedure: for P3

first draw a schedule table

choose a line command from toolbar or from dialog box L enter

draw a table of 450mmX 450mm

also we can use rectangle command for it

then take offset from bottom horizontal line

take as OFFSET command from dialog box

and take offset of 100mm brom bottom

then take 150mm,150mm and 150mm offset from preiviosus points

and from verticle axis take offset as 200 mm towards right  side

and trim extra lines using TR command





#Procedure for bar bending & Text

choose rectangle command

from ribbon or directly from command box

and draw 175mm X 175mm rectangle for bar bending schedule

and by using offset command offset 20mm from every side on inner side as thickness

then take at same distance, 3 offset from verticle as well as horizontal axis for showing bars

and then draw circles on every edge corner as bars ( by using circle command )

and agin give circles on evry 4 sides as shown in fig

and then finall it

then, teke a text for text the schedule

DTEXT on dialog box or

directly from annotation commands

use single line or multiline text and give all text to schedule with proper size and complete it



#Result: we design Sketch the column details as shown in Figure. using text command, text and circle command and complete drawing using layer



5) AIM: Draw the Raft Layout as shown in the Figure. Assume the column size as per your knowledge. You can take the sizes as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the               raft_foundation.pdf  to ensure the missing dimensions.



Introduction: we draw column details using Autocad by using commands Draw and Modify commands like LINE, CIRCLE, OFFSET, ARRAY, DIMENSIONS, COPY, ARRY, LAYER & RECTANGLE, TEXT, EXTENSION                              command



#Procedure :

srt unit as feet and iches

from using UNIT command to dialog box

set engineering on unit

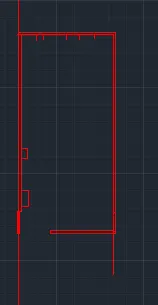

 draw a construction line as horizontal and vertical direction ( by using construction line )

and from layer propery add layer as line and give red colour to it

after that select OFFSET command from dialog box and take offset from bottom hoeizontal axis

as 9" as wall thickness and also at verticle axis 9" wall thickness

and draw it as follows

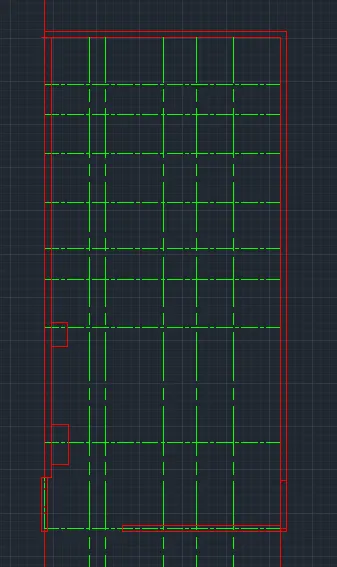

#Procedure: making center line

go to line layer command

and select short dash long dash line layer

and set 8" scale for it and from property layer command select layer for centerline

and choose line command from tool bar

and draw a verticle line at a distance of 5'9" from left side of verticle wall

take offset from OFFSET command and offset it at following distances from last line towards right side

offset at a distance of 2', 7',4',4'6",5'7.5" and take enter

now go to horizontal side

draw a horizontal line using long dash short dash line

by choosing line command draw horizontal line from bottom towards up at a distance of 10'4.5" towards up

then select OFFSET command offset it by following distances from last slected line towards up

offset it by distance of 13'10.5",5'9",3'9",5'7.5",5'10.5",4'9",3'7.5",5'7.5"

and entered

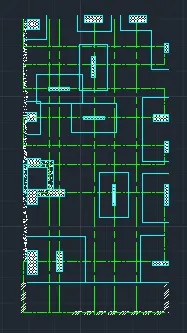

#Procedure: making foundation boxes and locating columns also with concrete portions

choose a line commands from tool bar

make sure ortho is on

and from polar coordinate on the end and mid poinds

and draw the all columns and footing showing in fig footing to column size is 2'6" at every side

with proper dimensions and give it or show it by diffrent layer

and hatch the parts by using HATCH command ( put HATCH on dialog box )

then give proper hatch at diffrent locations like concrete hatch or lines hatch with proper size or scale

and showing all the details

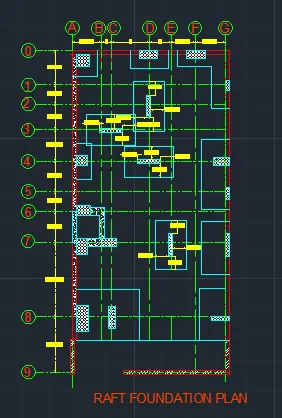

#Procedure: text and naming with dimensions

go to layer property command from ribbon

add layer as text and give its 61no colour

and also add layer as dimension gives it as 102no colour

now use extend command ( EXTEND enter )

and extend the centerlines for naming by refrecing adjustance line

by using circle command draw circle every end of centerline

now using text command select proper size and gives all text for all lines

now select layer for dimension tool

go to annotation command and select dimension command

and draw all required dimension by using linear and continue dimensions

now, trim the over extra lines

by using trim command ( TRIM>dialog box)

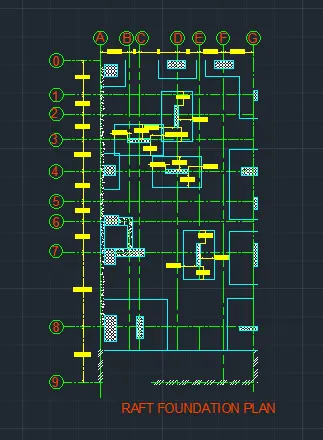

#Result : We Draft Raft Layout as shown in the Figure. Assume the column size as per our knowledge. by using various command like extend, line, circle, line, layers, text, dimensions.
