Creating Walls, Partition walls and Floors for a residential layout using REVIT

Q1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate                   material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2



AIM: creat a floor to our week 2 residential unit



Introduction: create a floor using floor from architecture



Procedure:

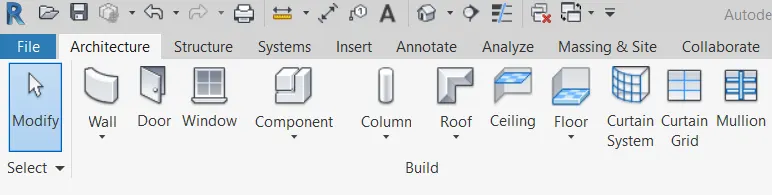

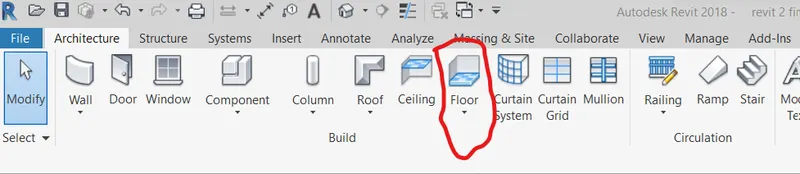

step 1) go to architectural tab click on tab

           then choose floor from that in that select floor architectural

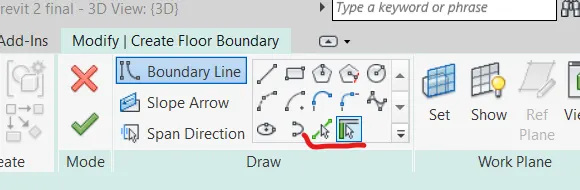

step 2) then serlect pick line option from modify/floor

          from various drg option, like rectangle





step3) then select level 1 from property browser

          and select external pick lines

          by clicking on them with cursor

          as like this

          then press enter and click on true green sign for assigning



step 4) your floor is attach to plan

           like that shown in image





step6) change material and thickness of floor

          select a floor

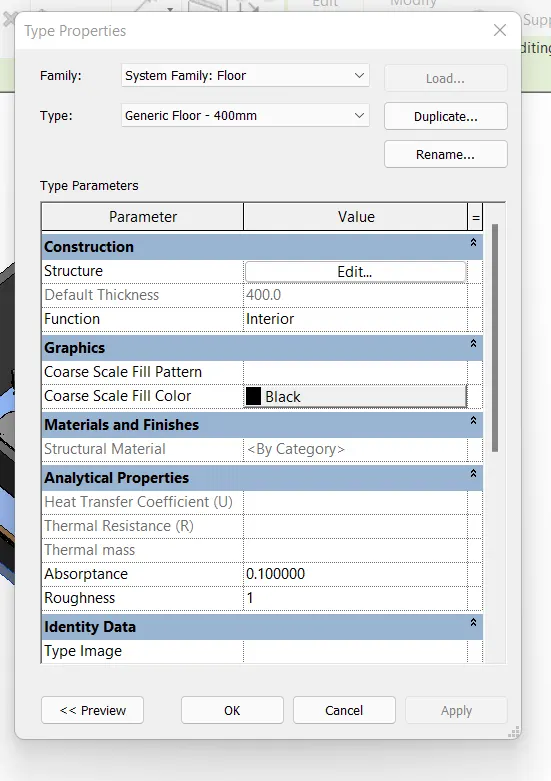

         then go to property and choose edit type option from that

         then TYPE PROPERTIES are open in front of us





step7) select duplicate option

         and rename it as 200mm

         and then press on edit

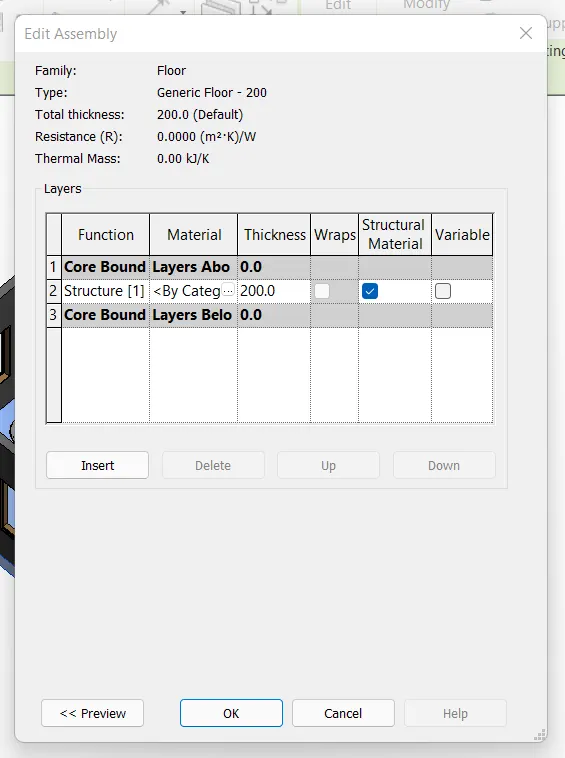

         and change thickness from 400 to 200mm





step 8) then go  to material column

           then in row 2 click on 3dots in material

           for changing a material of roof

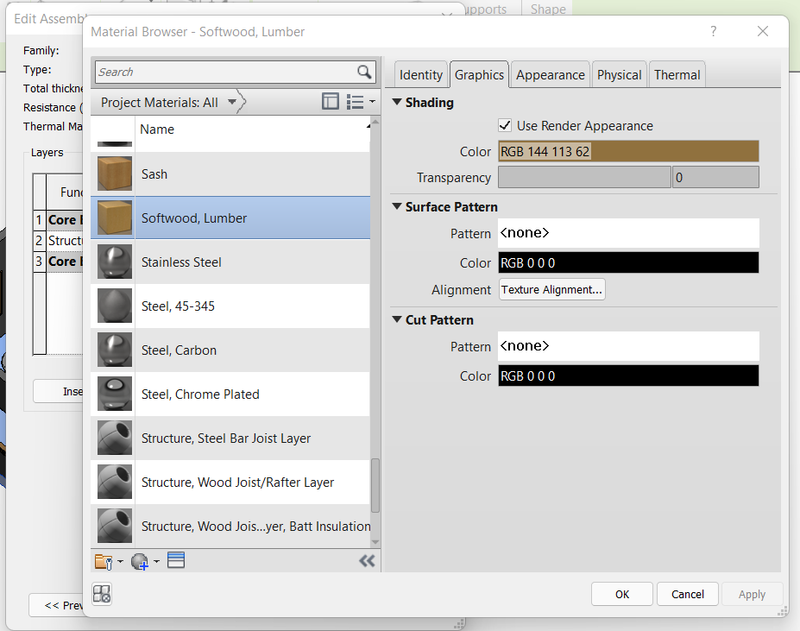

step9) then choose material as softwood,Lumber

         and press ok, then apply and ok

        then we seen our floor is change with 200mm thick and softwood material





Result: creation of floor with difreent thicknes and material are done successfully











Q2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls.                 After creating the walls  verify using the property browser to see if the top and bottom of the walls are constrained.

        a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
        b. Which option is convenient for modeling walls, By Height or By Depth?



AIM: make a wall using pick line tool in modify tab based on the floor layout



Introduction: walls are arguably one of the most important element of any building

                      As such the wall tool is a prominet function of autodesk revit architecture



Procedure:

 step1) draw a residential layout

    select floor plan from property

    click on wall and select architectural wall option

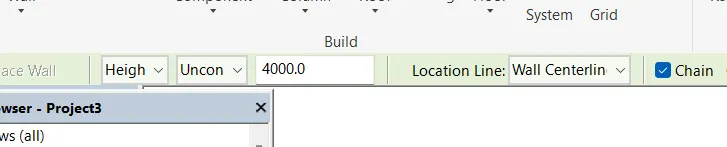

    then go to height and take height as 400mm

    and selct wall type as generic 200mm

    and draw a layout of approx 7000mmX 8000mm





  and selct wall type as generic 200mm

  and draw a layout of approx 9000mmX 8000mm

Step 2) material & thickness

           select the wall layout

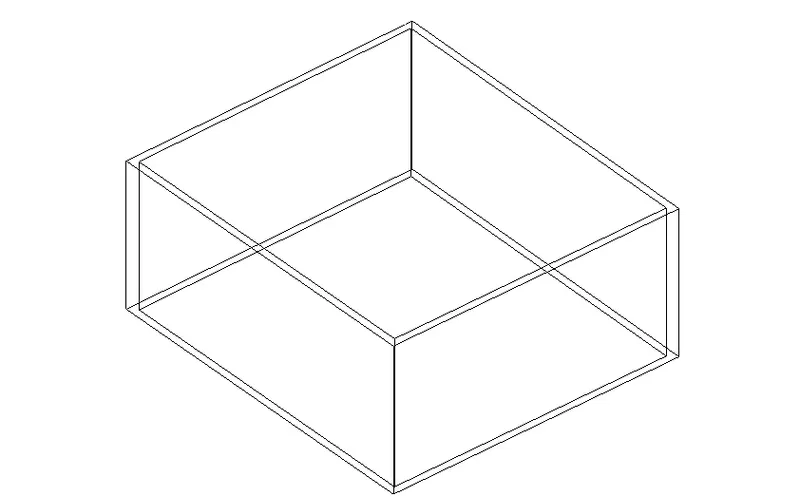

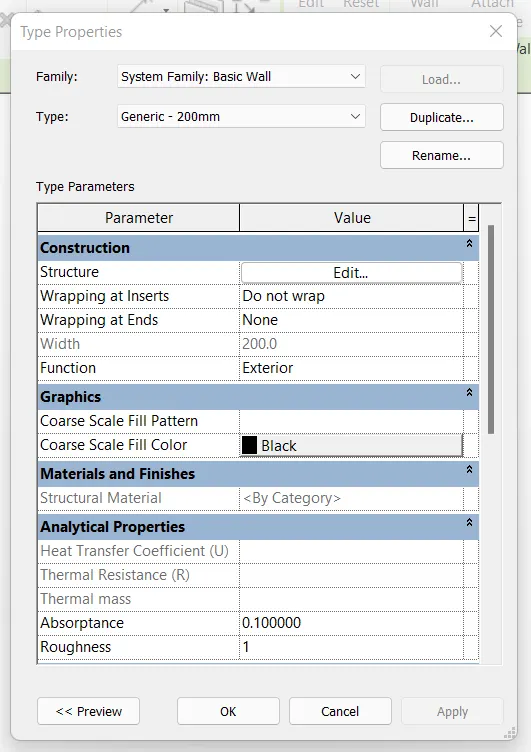

           then go to property and choose edit type option from that

           then TYPE PROPERTIES are open in front of us





step3) select duplicate option

         and rename it as new wall

         and then press on edit

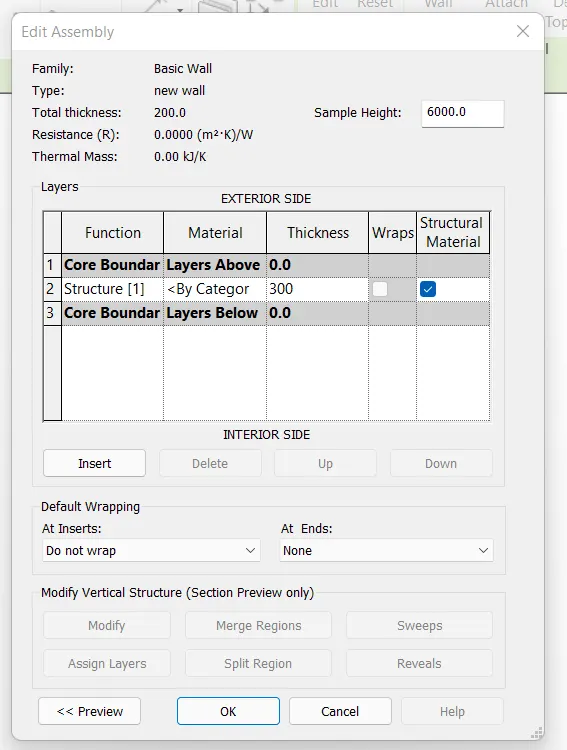

         and change thickness from 200 to 300mm





step 4) then go  to material column

           then in row 2 click on 3dots in material

           for changing a material of roof

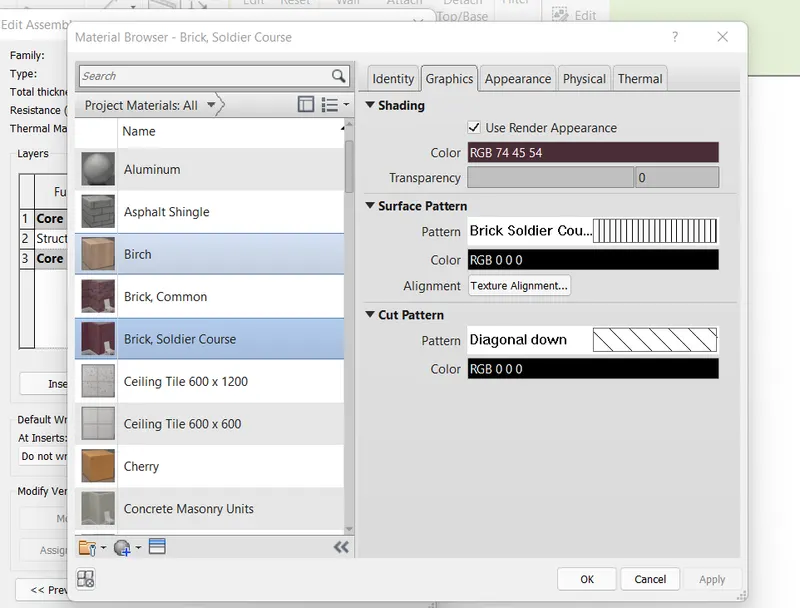

step 5) then choose material as brick soldier course

         and press ok, then apply and ok

        then we seen our floor is change with 30mm thick and brick soldier course

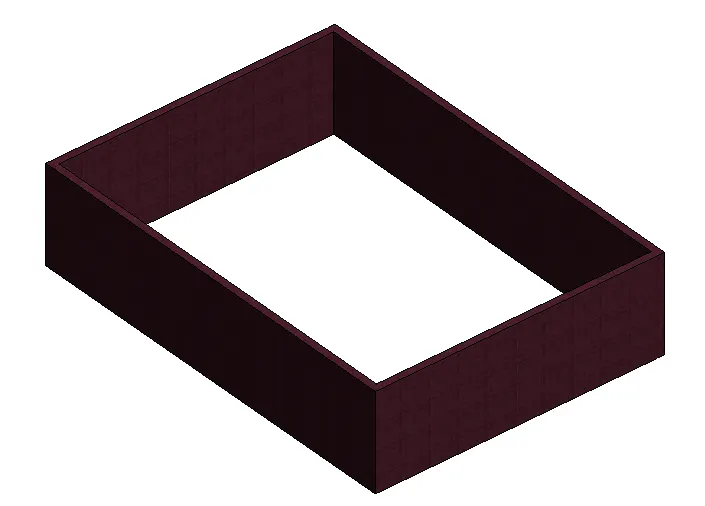

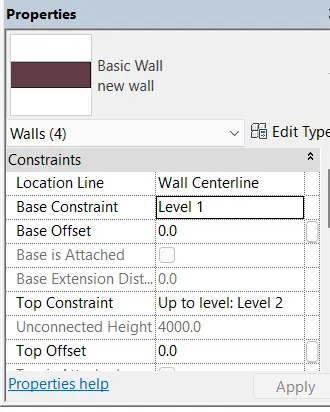

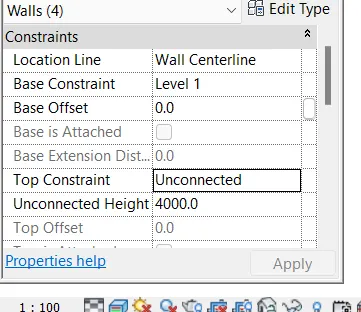

step 6) verify using the property browser to see if the top and bottom of the walls are constrained

           select all walls and go to property

          then choose base constraint option



  after choosing base contaraint

  select it as level 1

  and top constraint is upto level 2





step 7)

 Q,a ) Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected

 Ans)  1) if we are wish to change the level of wall or height of building during the drawing thats time connecting walls associated level is very helpfull

          2) if you associate wall with level then whenever you change the level then our wall heigh also change with level

          3) and if you not associate wall with level (unconnected) then if you are changing level then the height of wall remains same or any element like floor,roof etc



Q.b)  Which option is convenient for modeling walls, By Height or By Depth?

Ans)1) when we select the height option for the wall, the wall be created above the level,

       2) when we select the depth option wall will be created below the level

       3) so height option is convenient for modelling wall



Result: Successfully applied material to wall

           the top and bottom of the wall are constrained to wall









3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
    elements to a different level



AIM: Use modify tab to utilize copy and paste options to align elements to a different level



Introduction: for making multi storey building that option is more convinent



Procedure:

 step1) rename the level

           rename the level as ground floor to level 1

           and first floor for level 2

           by clicking on level and click right tab on cursor for rename the level







step 2) go to groun floor

          select the whole layout using cursor

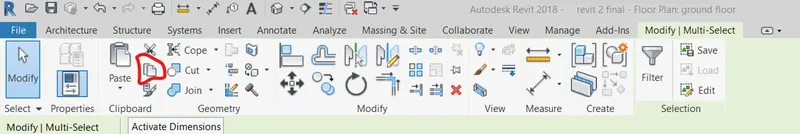

step 3) go to modify

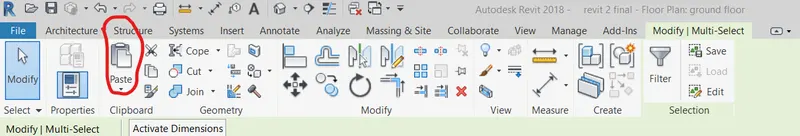

           and from clipboard

           and choose on copy to clipboard option



step 4) paste

          then choose paste clipboard option after copy clipboard

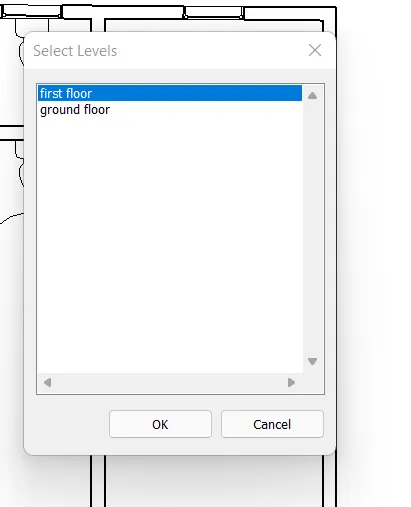

         then choose aligned to level option from it





step 5)  then choose aligned to level option from it

            in that selct level as first floor



step  6)  and press ok

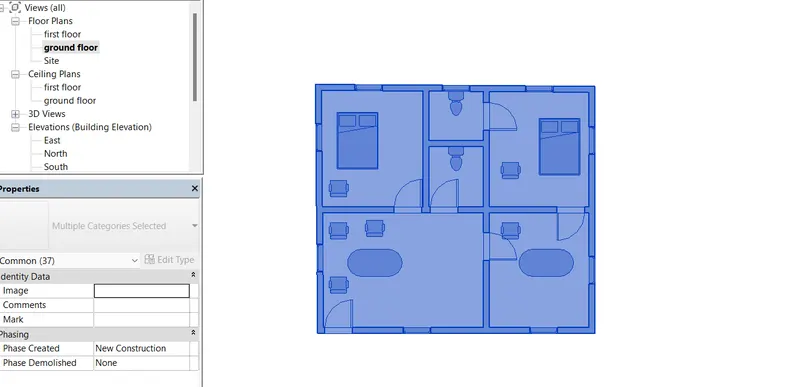

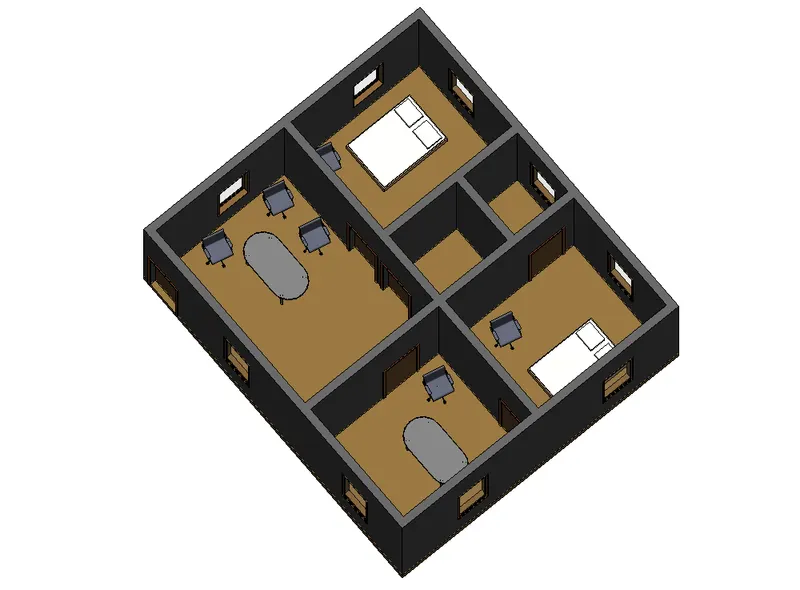

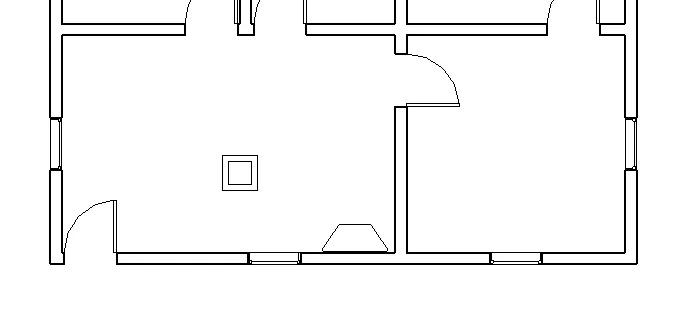

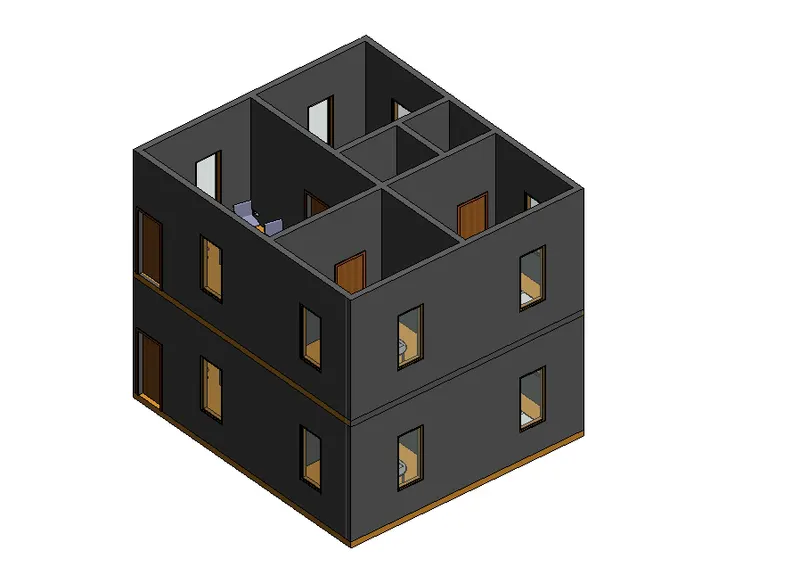

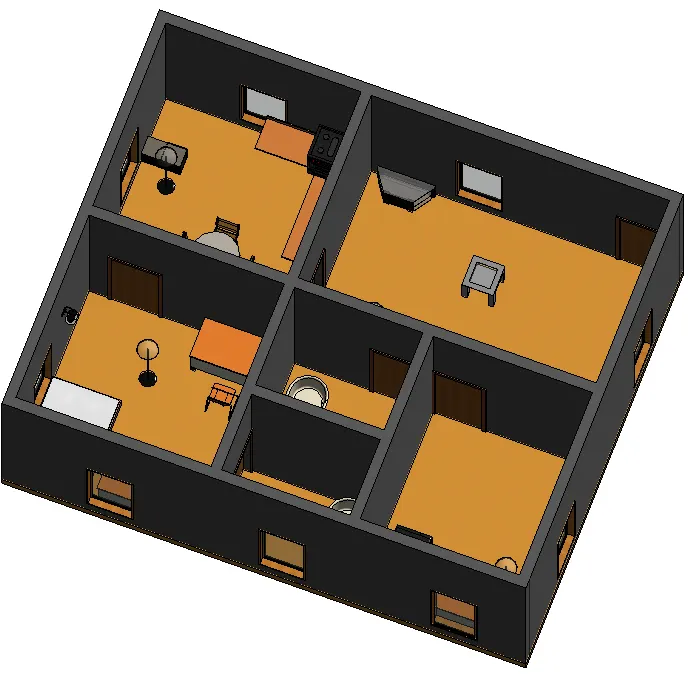

             then go to 3D view you see the first floor is ready

             same as ground floor



Result: copy and paste ground floor to first floor with all object and families using clipboard from modified are successful

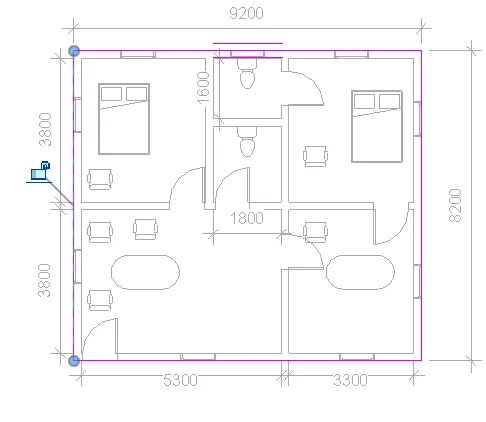

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

 a. Living Room/ Drawing Room ( 15’ X 18’)
 b. Dining Room (9’ X 11’)
 c. Bed Room ( 9’ X 12’ and 15’ X 11’)
 d. Rest Room ( 10’ X 12’ )
 e. Kitchen (8’ X 10’)

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system



AIM: Use interior partition walls to create separate rooms within your residential unit.



Introduction: the walls that make for division or privacy in the interior portion of a building



Procedure:

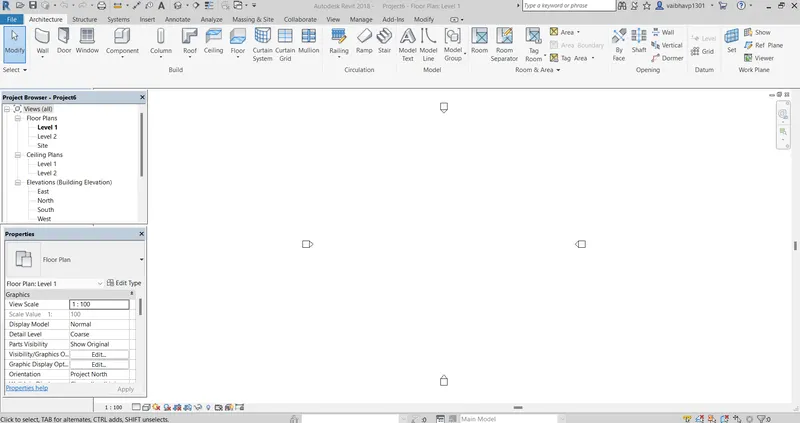

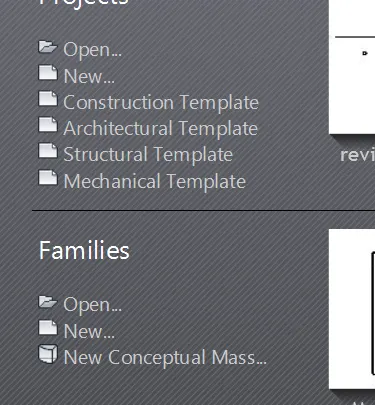

 step1) oprn the revit 2018 and select new project

           select Architectural Templet

            thats type of window are open on screen



    then select architectural templet

    so the project scape in architectural template are open on screen like that

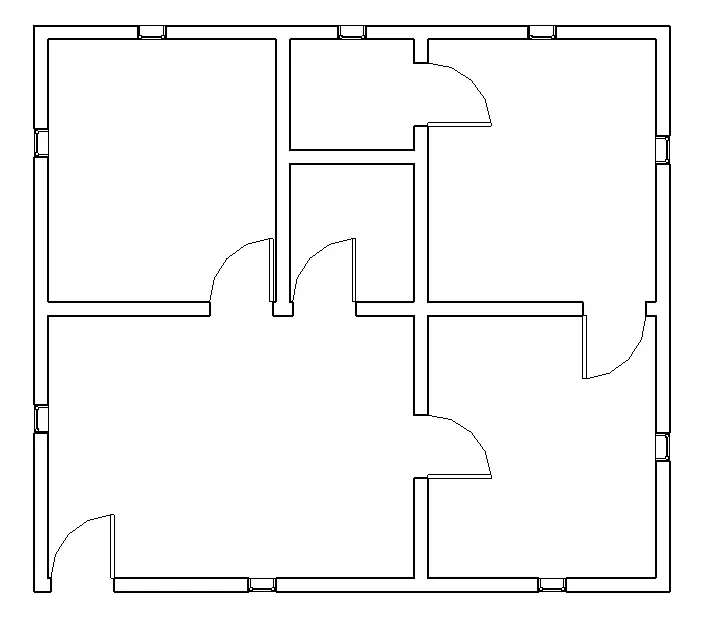

step2) draw a residential layout

          select floor plan from property

          click on wall and select architectural wall option

          then go to height and take height as 400mm

          and selct wall type as generic 200mm

          and draw a layout of approx 7000mmX 8000mm





step 3)  and selct wall type as generic 200mm

  and draw a layout of approx 9000mmX 8000mm

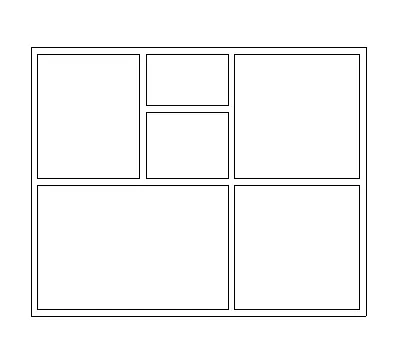

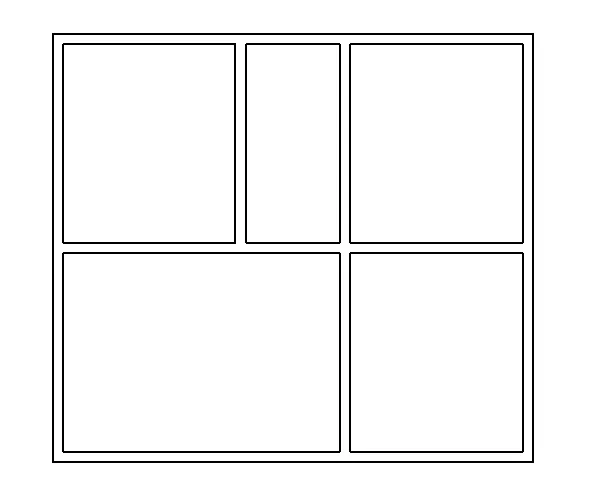

step4) make a interior wall

         by using same wall material and thickness

         make a

 a. Living Room/ Drawing Room ( 15’ X 18’)
 b. Dining Room + Kitchen (8’ X 10’)
 c. Bed Room ( 9’ X 12’ and 15’ X 11’)
 d. Rest Room ( 10’ X 12’ )

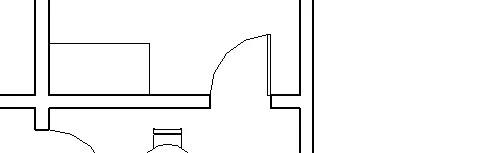

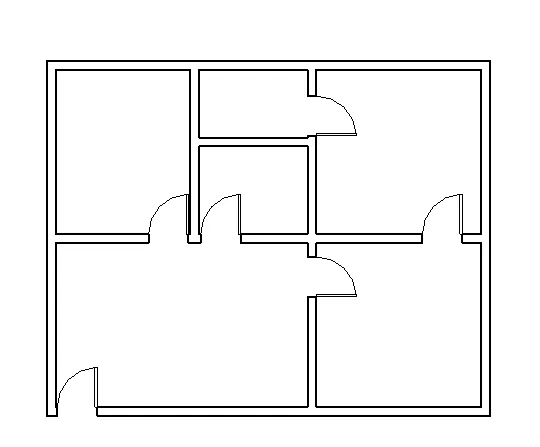

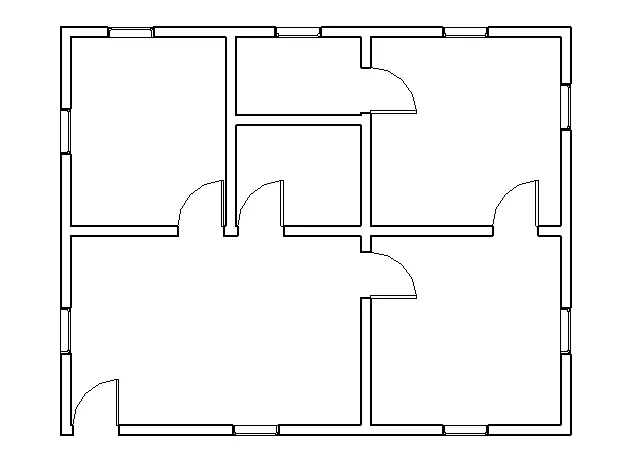

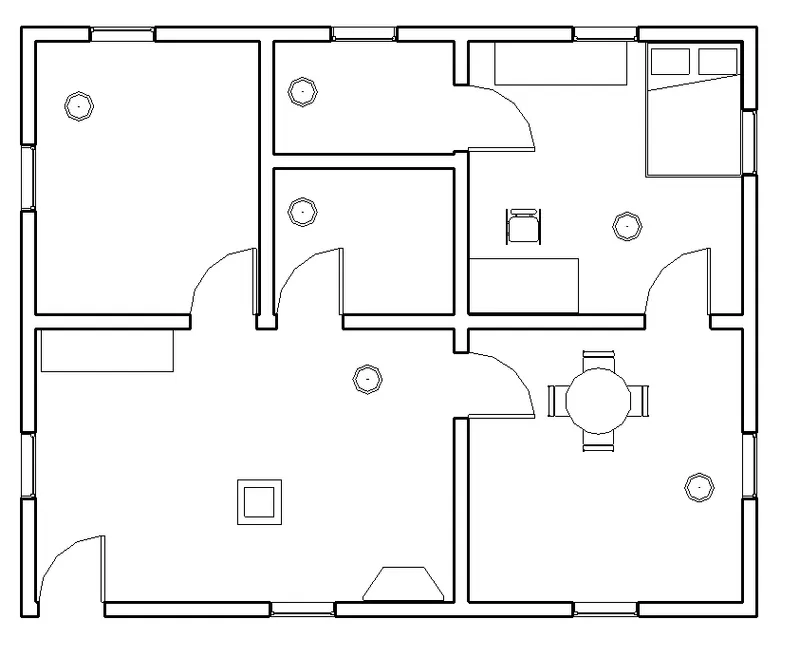

step5) then from architecture select door and window option

         and put door window where it needed

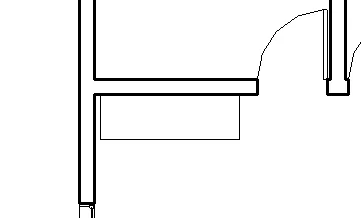

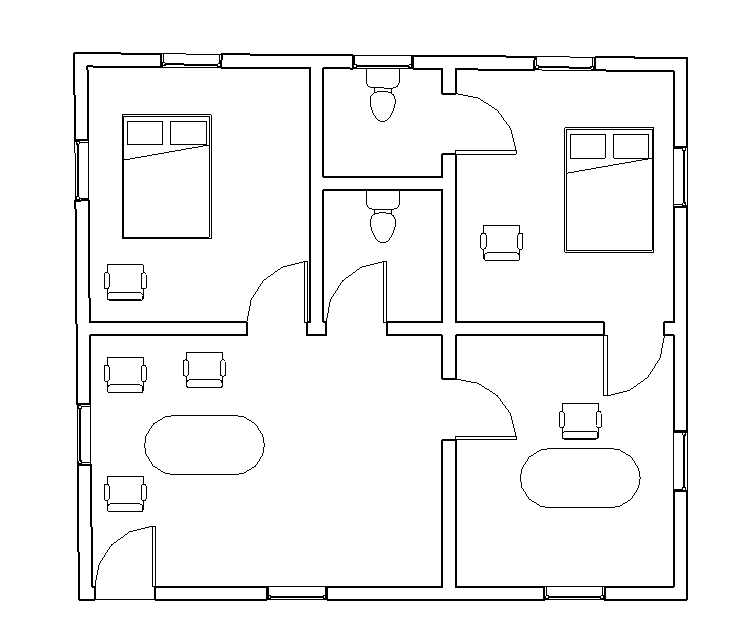

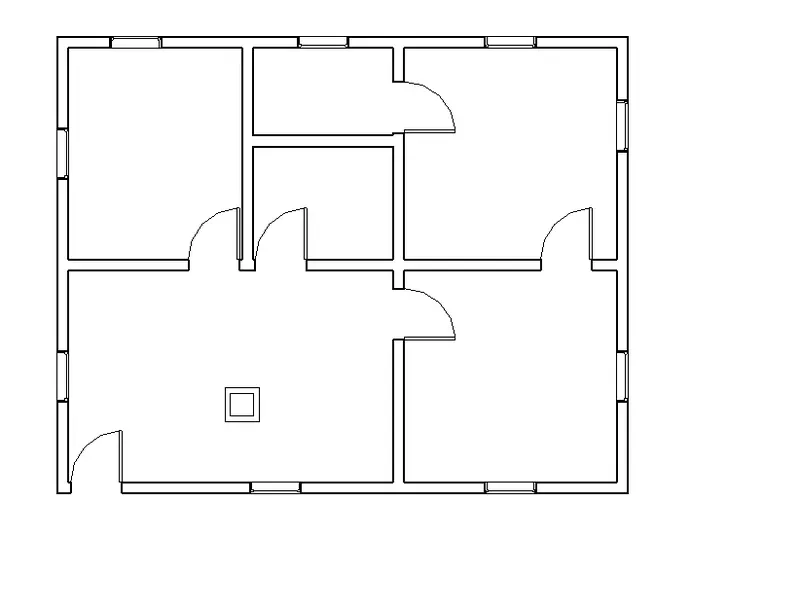

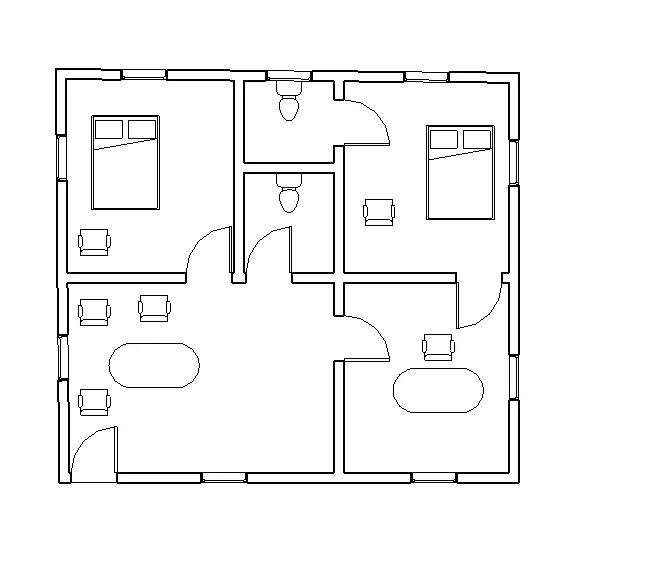

         as shown in fig



step 6) add residential unit

           add residential unit from load family

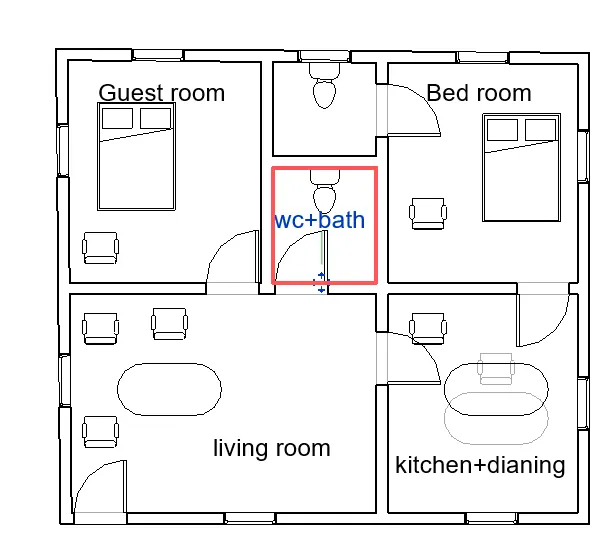

step 7) tag the room

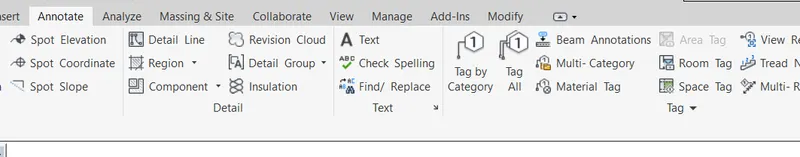

          go to annotation tab

          selct room tag from tag option





         using cursor just go on room and click

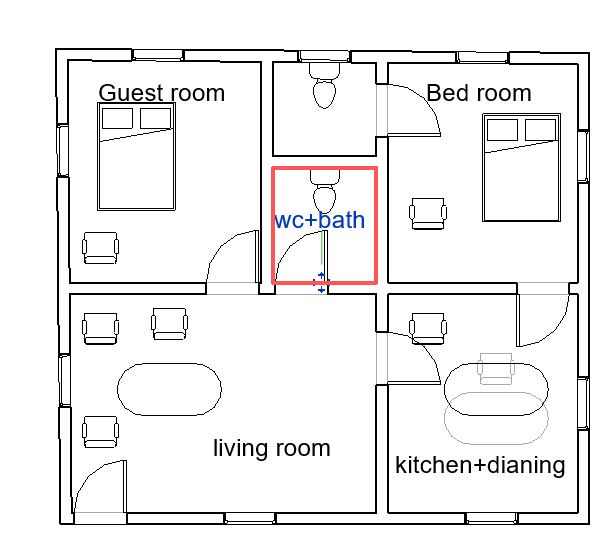

         for room taging



Step 8) then rename tag

            then rename tag with room name

            by clicking on tag number and rename all the rooms with function

            and edit with none number showing from property browser

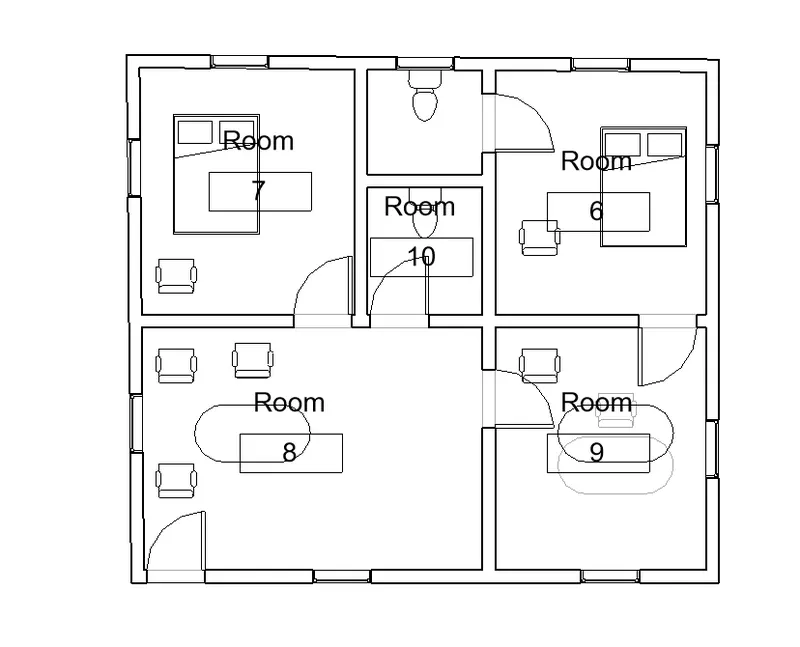

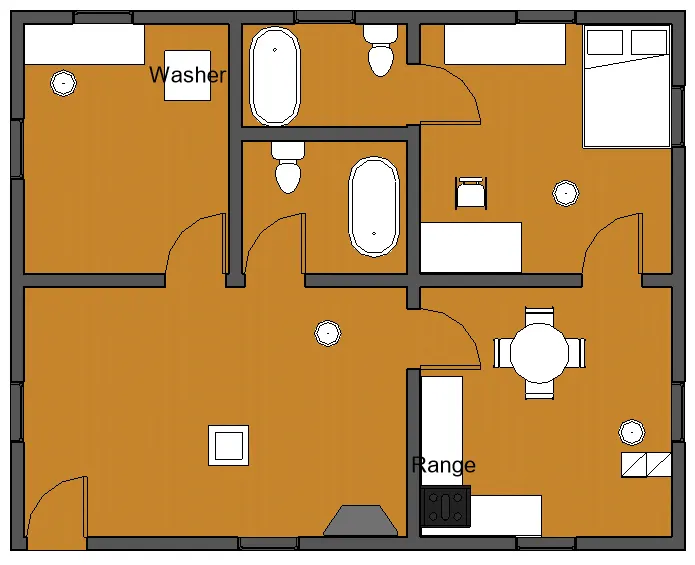

Result: creating room with proper size and taging is done successfully

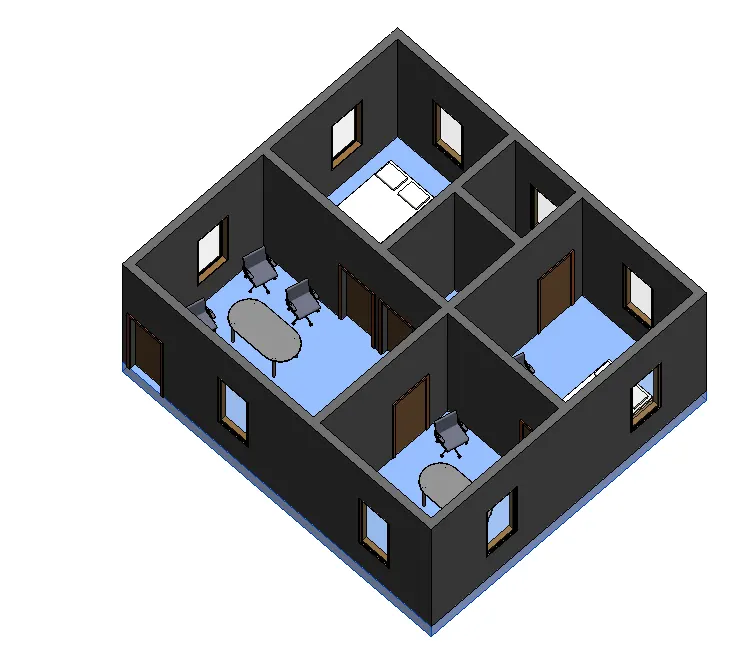

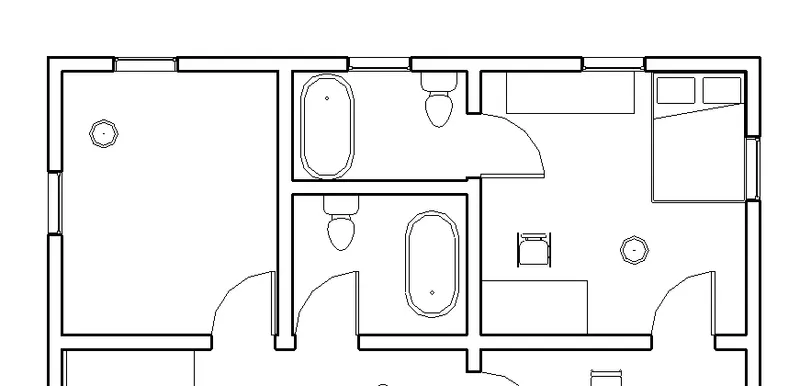

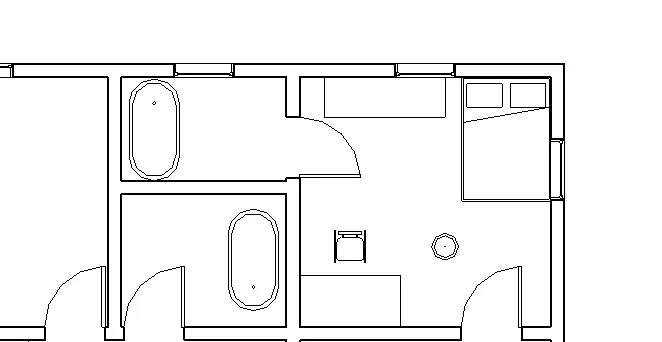

5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair

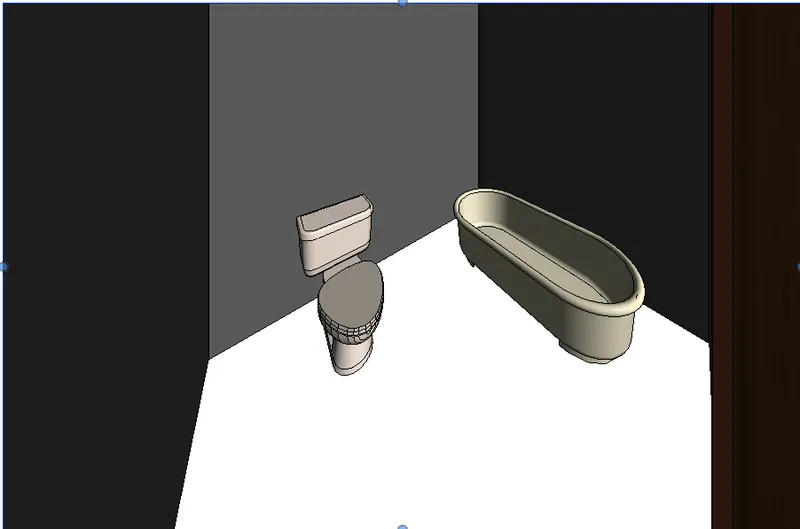

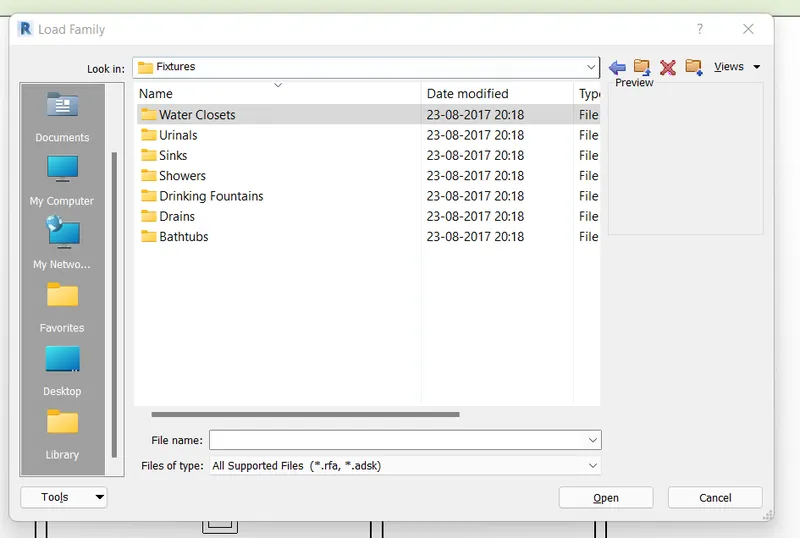

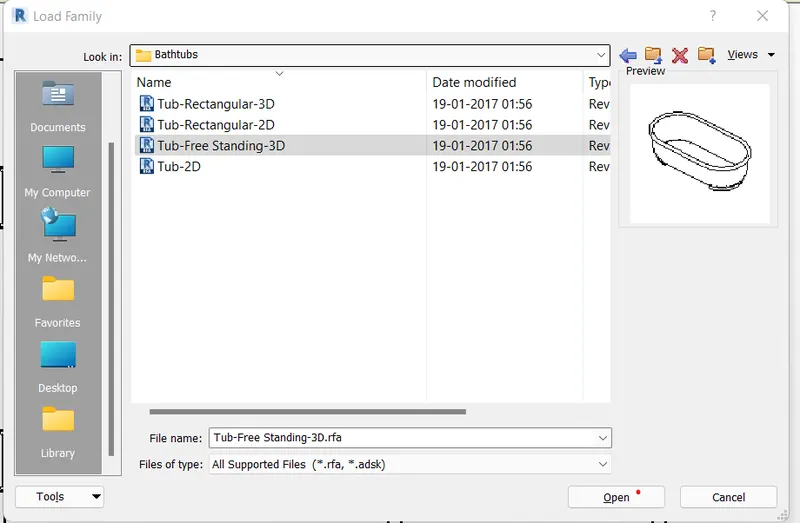

e. Rest room should include bath tub and plumbing fixtures discussed in class

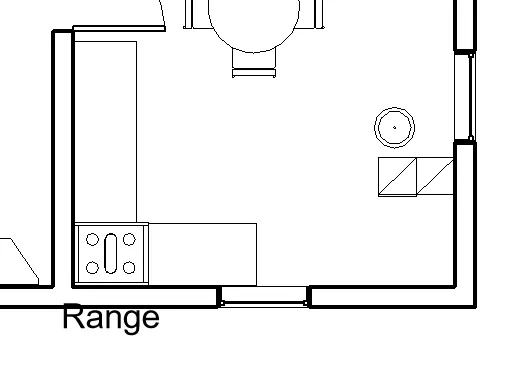

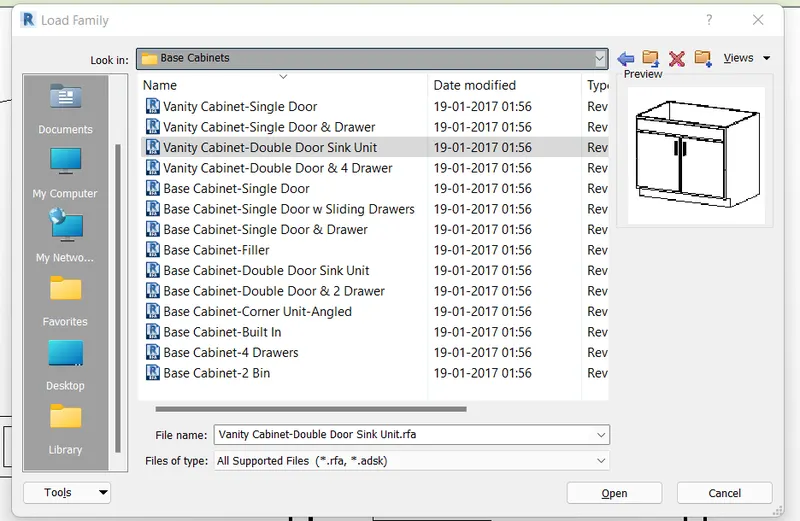

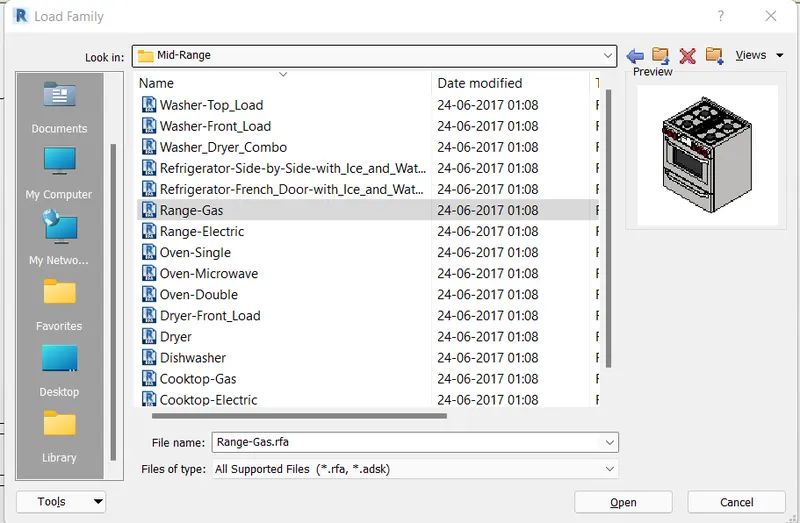

f. Kitchen should include countertops, gas stove cabinet and shelves to store food items

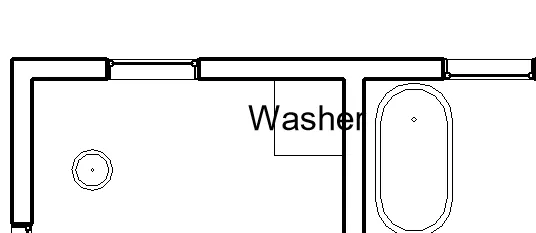

g. The wash/storage room can include washing machines and shelves to store clothes

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model





AIM: Place these components in appropriate locations to add details to your residential model



Introduction: the residental model component families are load from revit 2018 content





Procedure:

 step1) week 2 assignement

           in that i already inseted family so i delete that all families and make it repeat for week 3

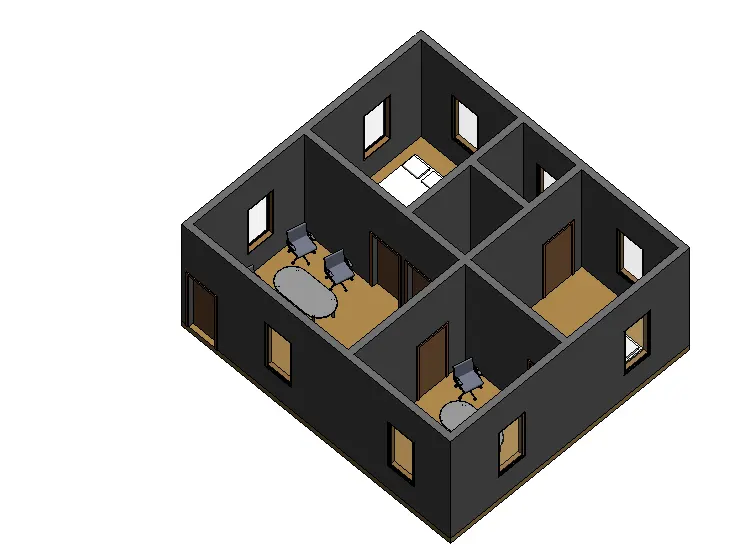

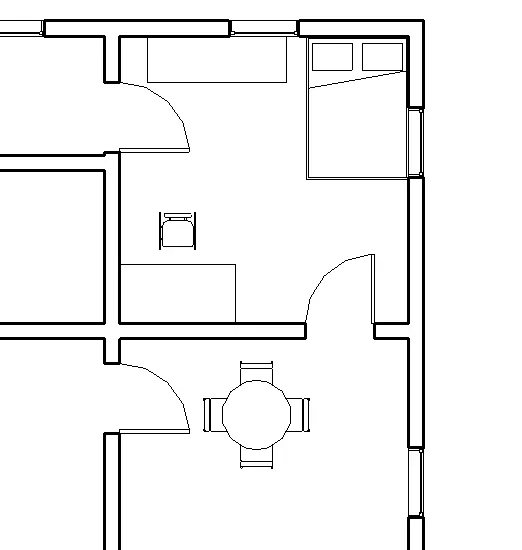

step 2) Place Doors and windows in the wall at appropriate locations

           go to architectural layout

           select doors from it and place door with essential for convey



        then place windows

        go on architectural tab select window option from that

        and place window where the max interaction with nature

        by choosing M fixed window 0915X1830 from propery browser

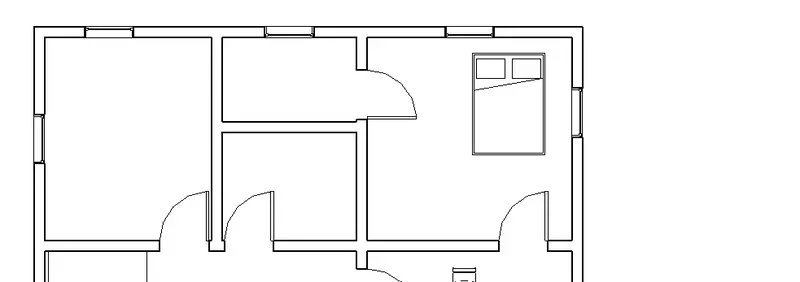

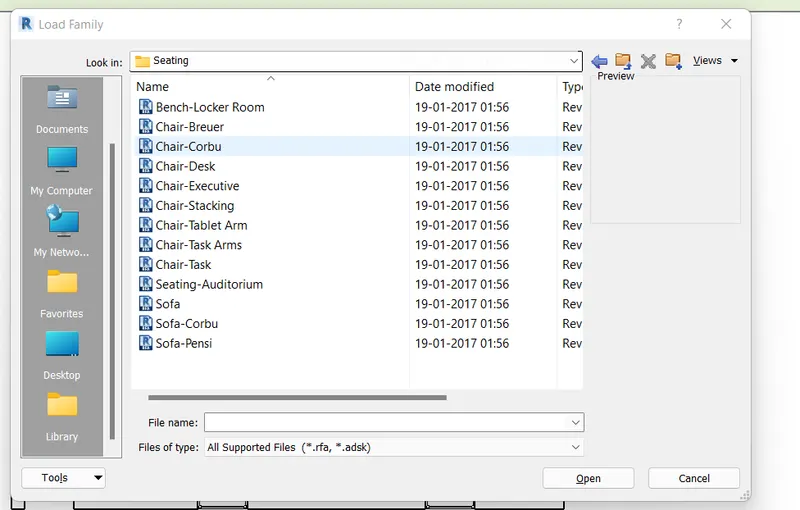

step 3) The Living Room must include furniture set, couch table and TV desk and shelf cabinets

          * coatch table

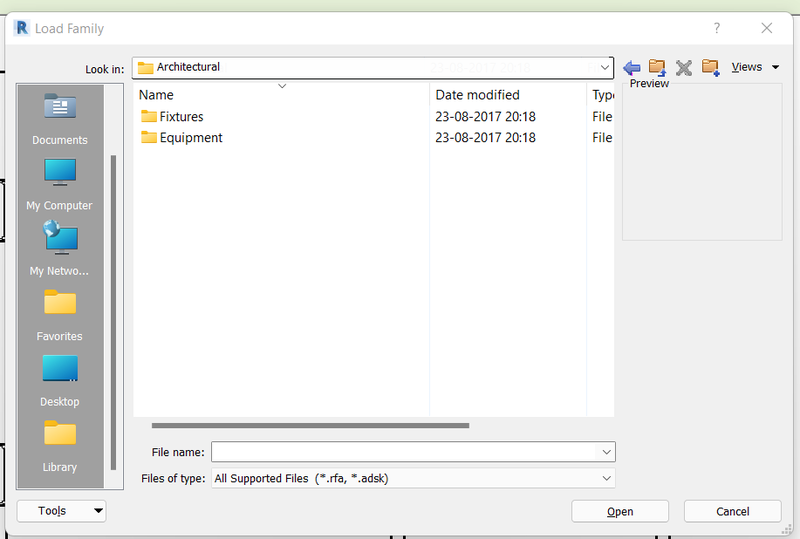

          go to architectural

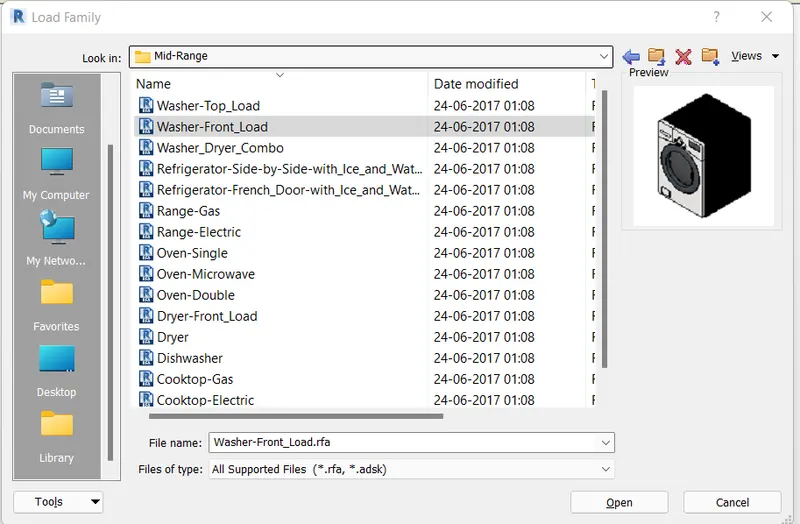

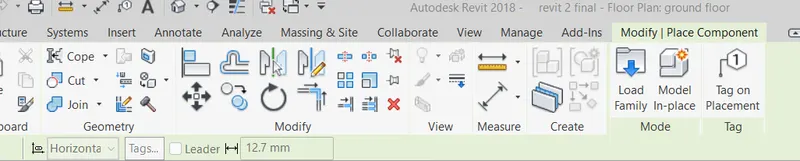

          selct component and choose placed component option from that

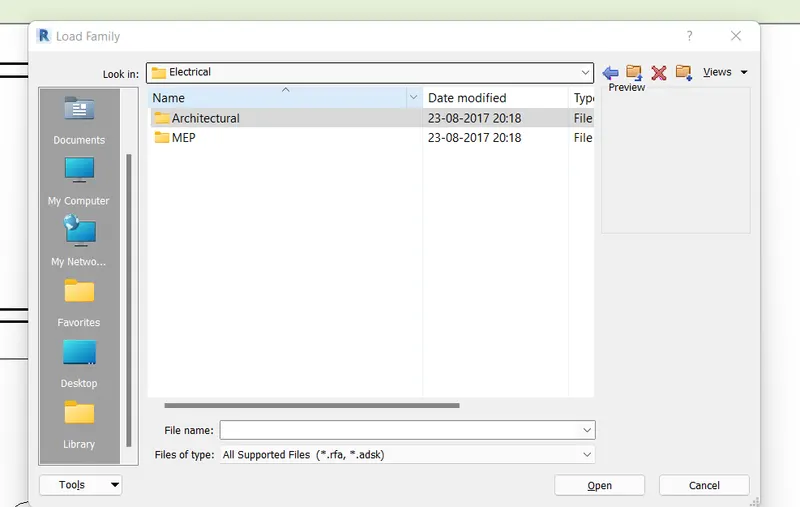

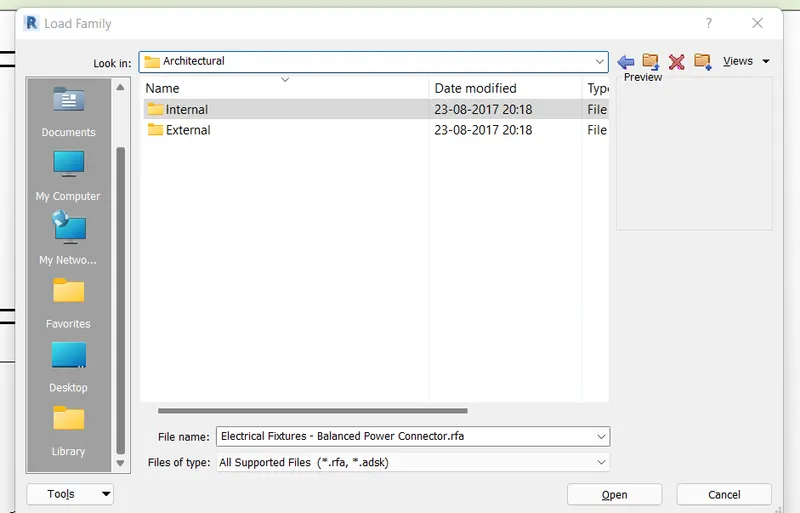

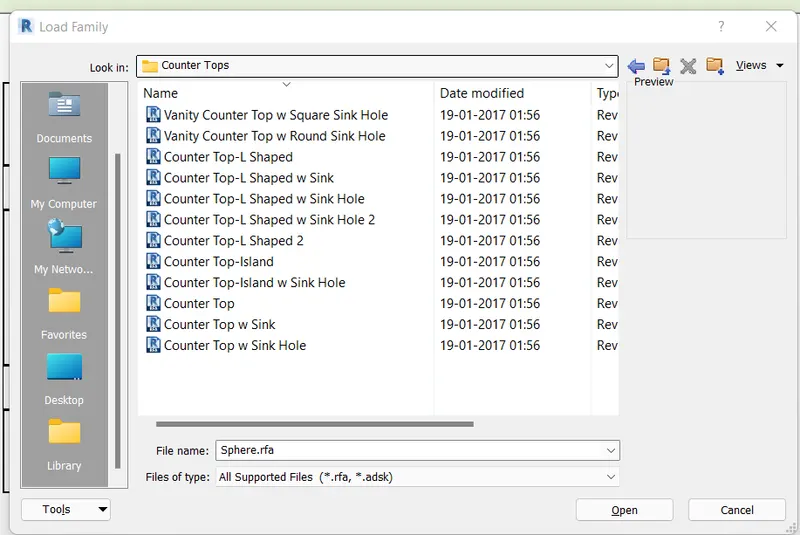

        then go to load family option from modify/place component

        and click on them to insert furniture unit

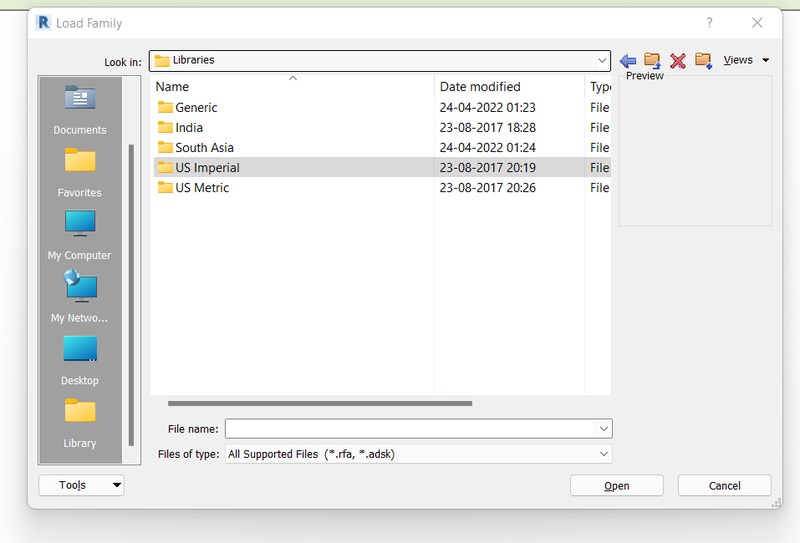

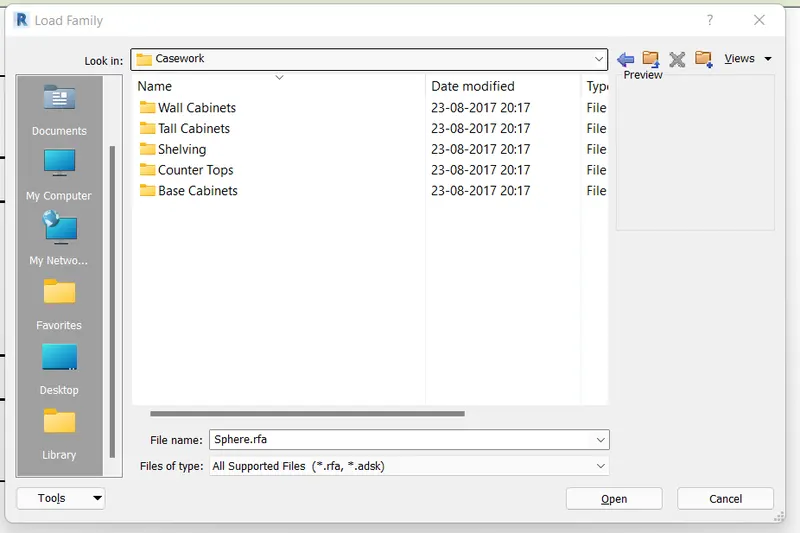

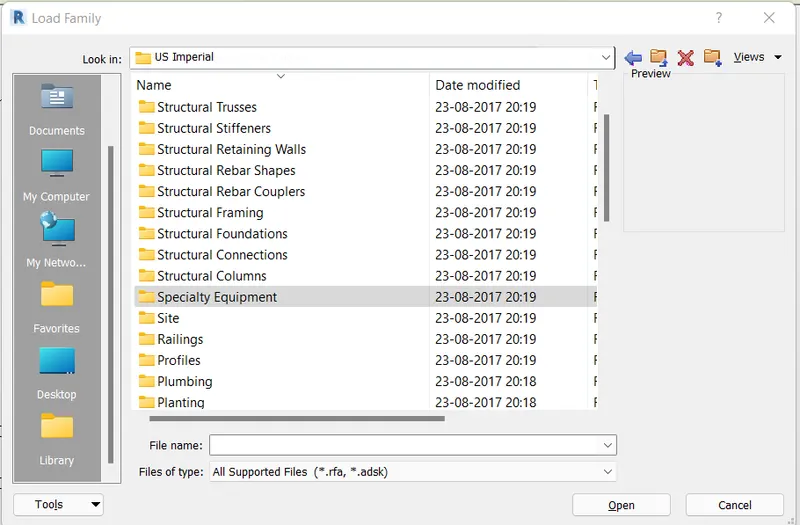

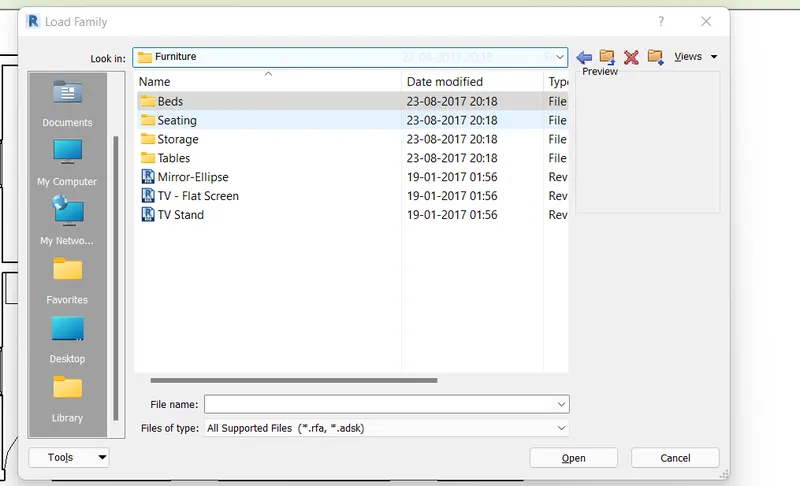

         then go to US american and open the file by click on them



      then select furniture option from that

      and open the file using open tab

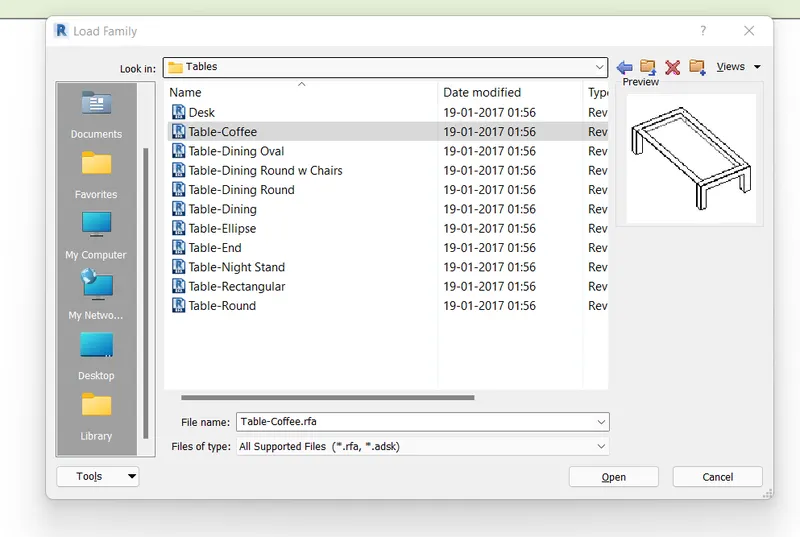

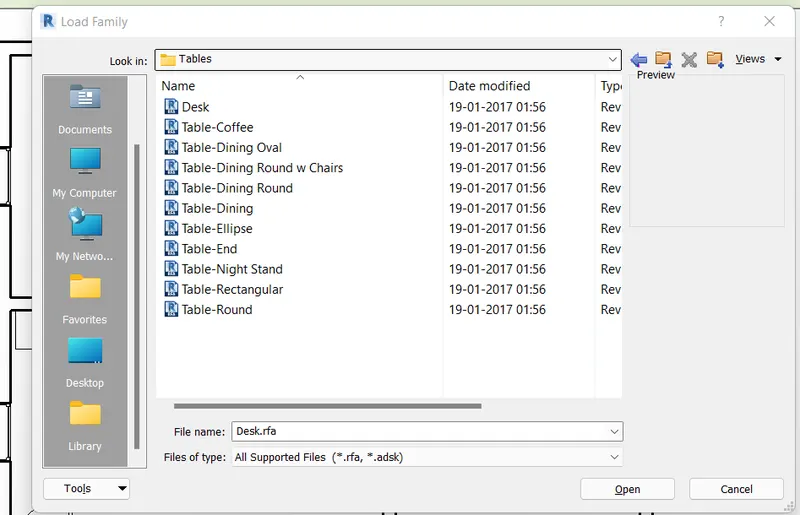

       then go to table

      and select coffe table and press open



        and place the table

        on living room like that



       * then same do for TV desk

              go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select furniture option from that

      and open the file using open tab

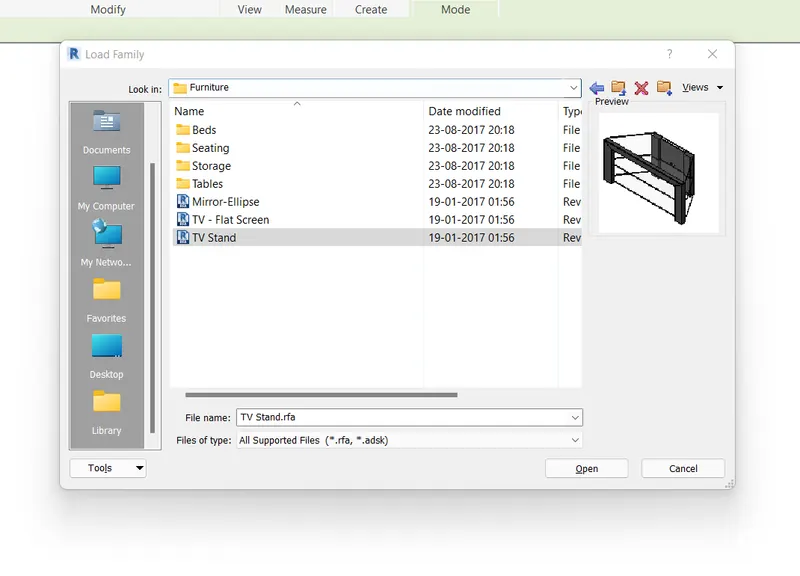

       then choose a TV stand and open it



       and palce it on corner of living room with help of cursor



 *then for add shelf cabinate

            go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select furniture option from that

      and open the file using open tab

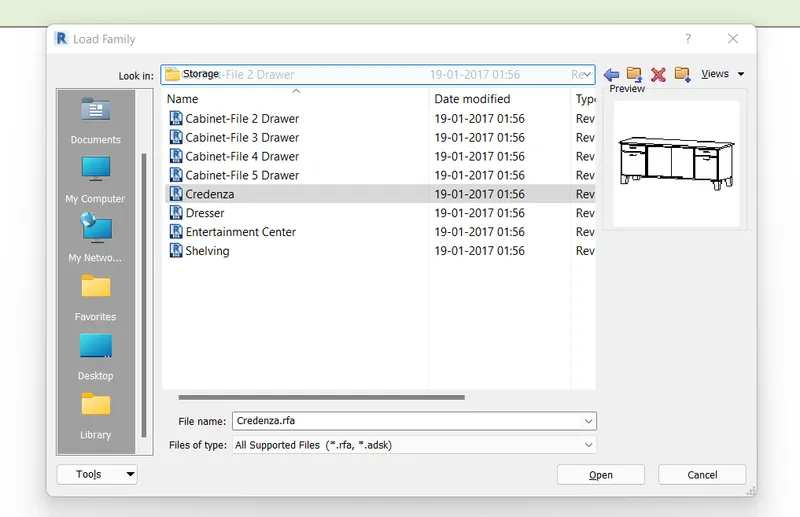

       then choose a storage and open it in that selct Credenza



 finally palced on living room

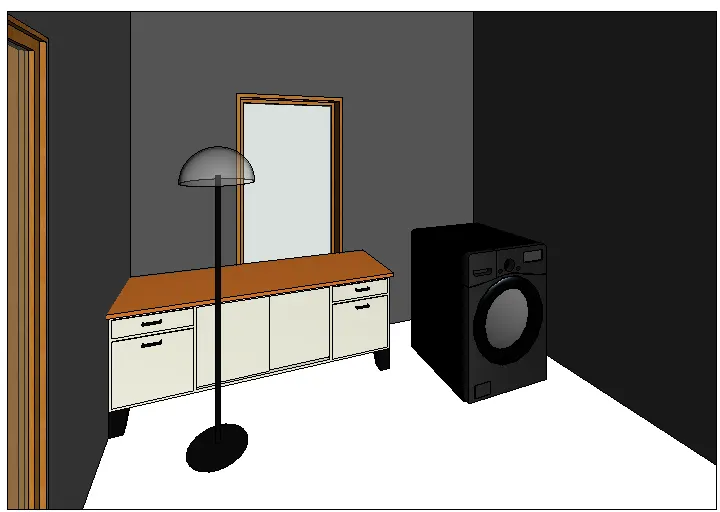

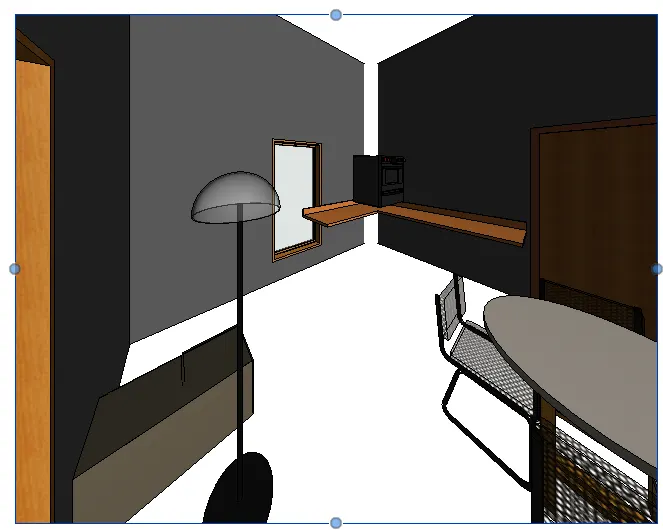

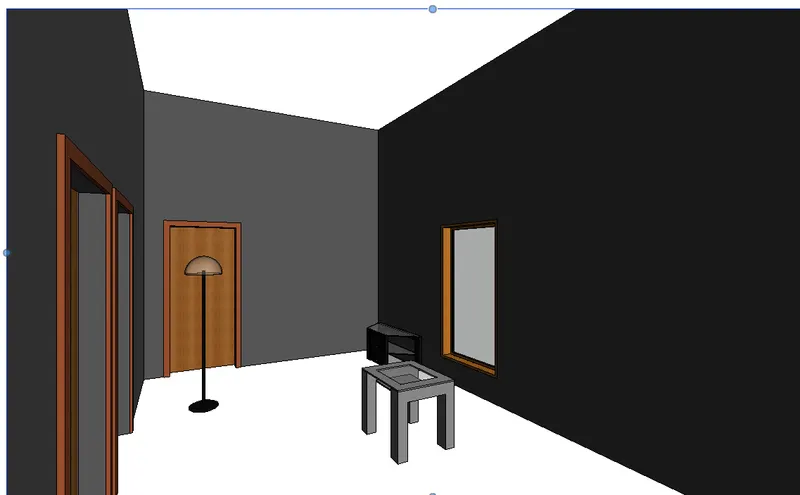

camera view for living room





step 4) The Dining Room must include a table and chairs serving the purpose of eating

       * table and chairs

         go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



        then select furniture option from that

       and open the file using open tab

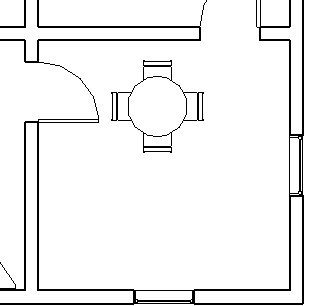

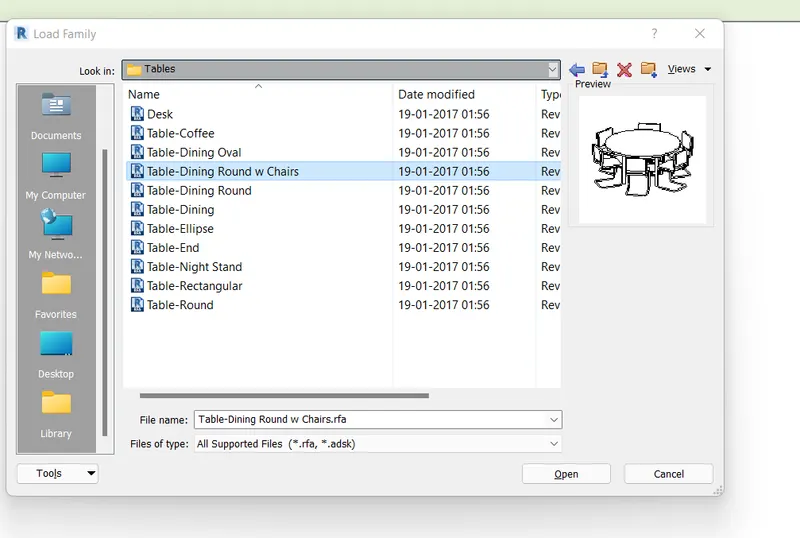

       then choose a storage and open it in that selct table dining round w chairs option



     and palced in dining + kitchen room

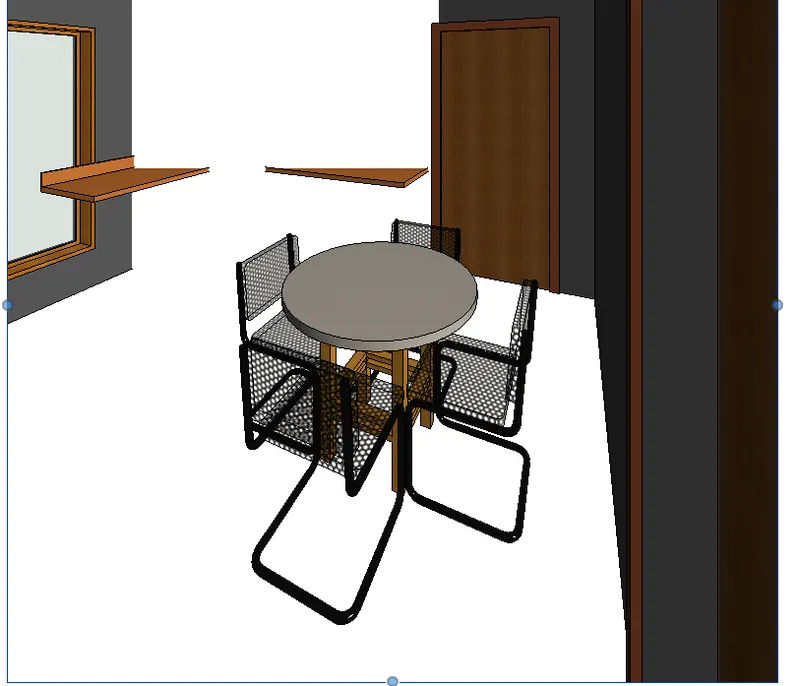

camera view for dianing room

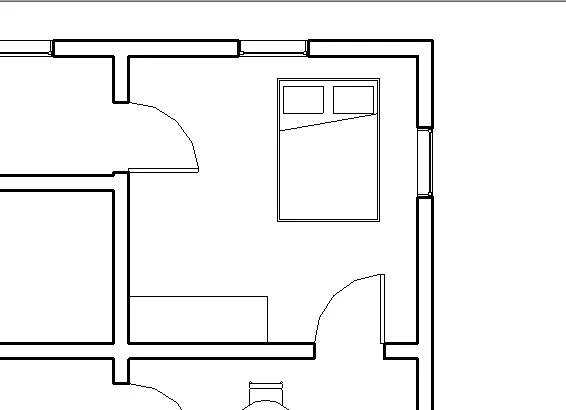

step 5)  Bed Room must include a bed set, shelf, lighting and individual study desk and chair

         * bed set

          go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



       then select furniture option from that

       and open the file using open tab

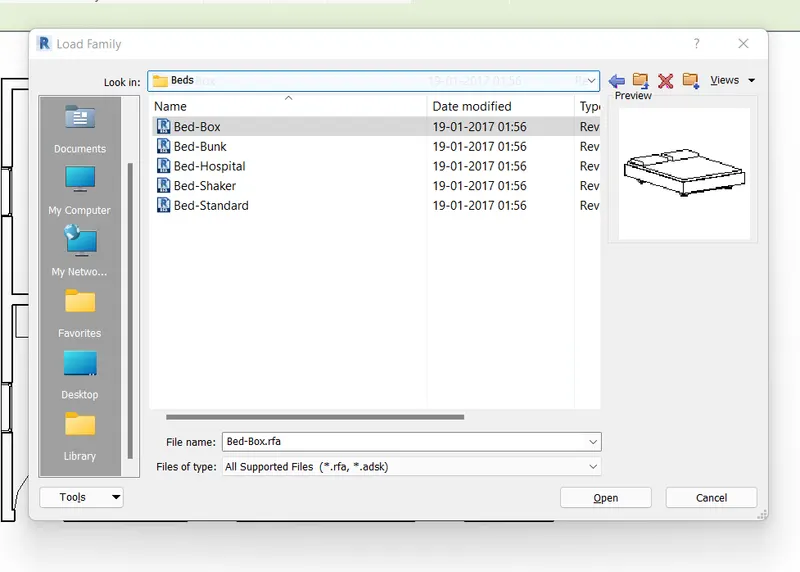

       then choose a Bed and open it





then in bed open Bed-Box

then place bed on bed room with approprite corner





 * self for bed room

          go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select furniture option from that

      and open the file using open tab

       then choose a storage and open it in that selct Credenza



 finally palced on Bed room

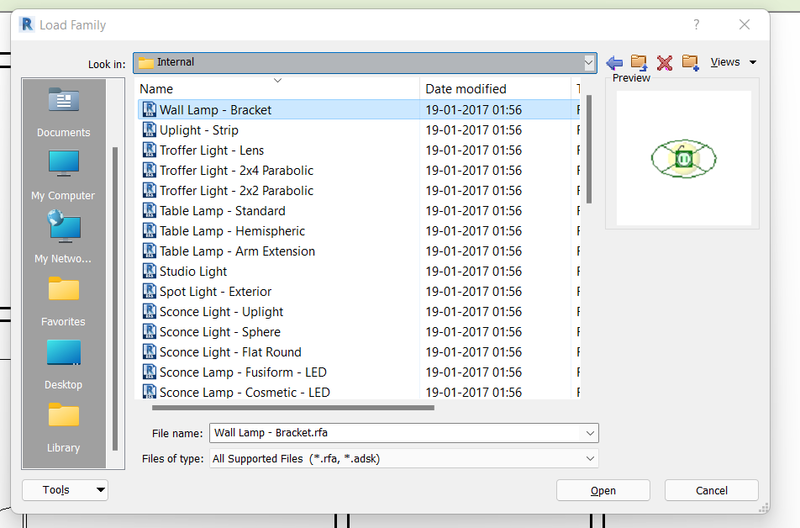

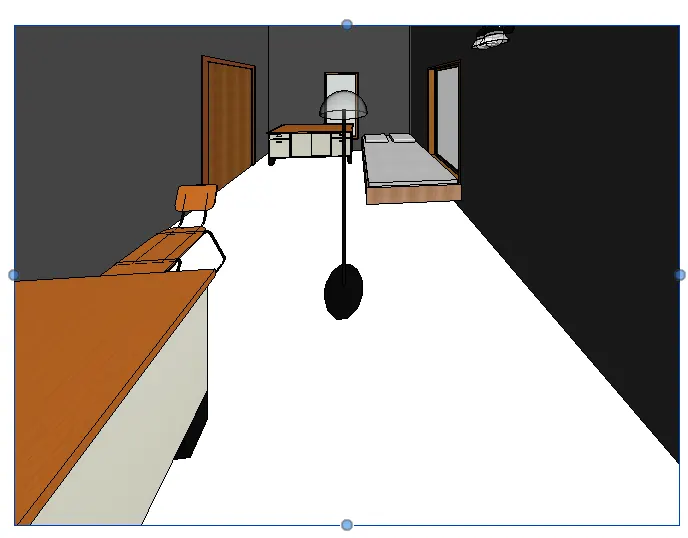

* lighting and individual study

          go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select furniture option from that

      and open the file using open tab

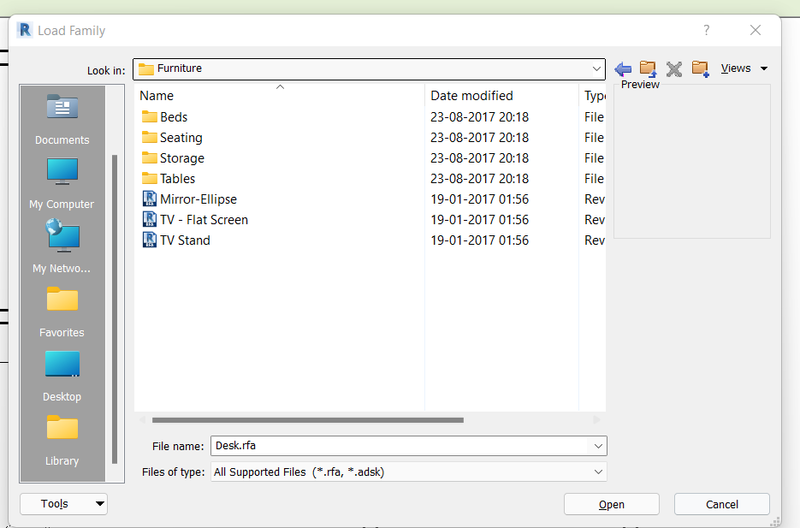

       select furniture from that





   then choose table option and open the file

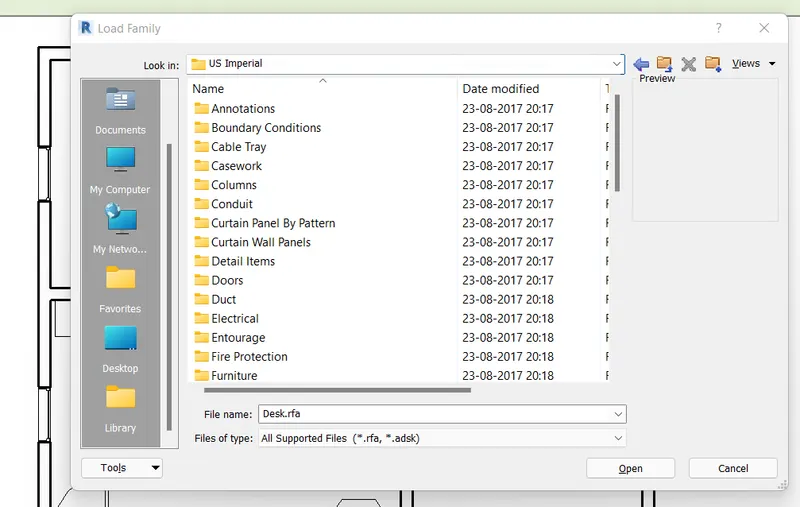

then go for desk option and open



now palce the study desk on bed room with help of cursor





* chair

        go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select furniture option from that

      and open the file using open tab

       select furniture from that





      then choose seating option and open the file





    then go for Chair-stacking option and open





  now palce the chair near study desk on bed room with help of cursor







* Lighting

         go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit

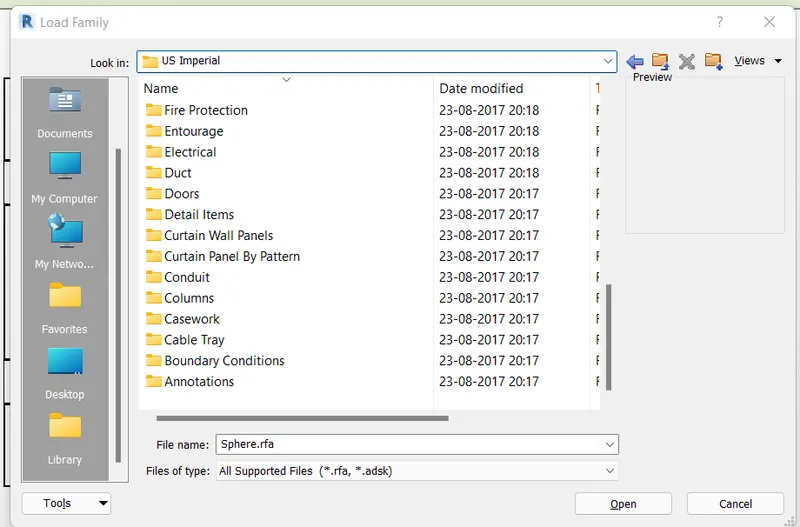

         then go to US american and open the file by click on them



      then select Electrical option from that

      and open the file using open tab





      then choose architectural option and open the file





    then go for internal option and open





then select wall lamp-Bracket and open the file



  now palce the wall lamp for all room with help of cursor



camera view of bed room





step6) Rest room should include bath tub and plumbing fixtures discussed in class

          go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them

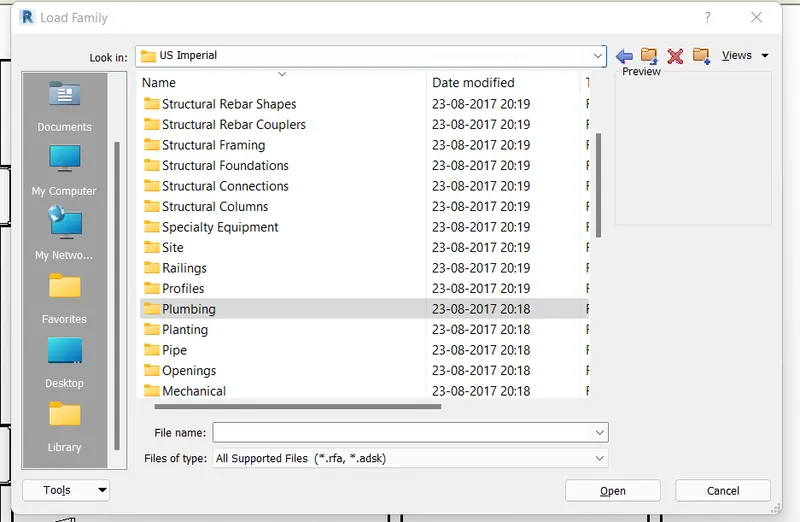

          then go for pumbling option and open it



       then choose architectural option and open the file

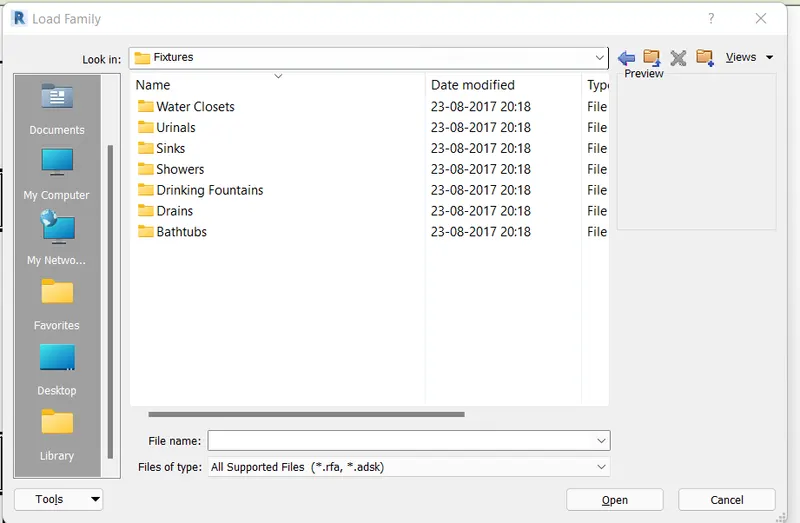

       then select fixtures option ans open it





     then choose bathtubes option and open it





    then choose Tub-Free Standing-3D and open the file





  now finally place the file to rest room







* Water Closets

          go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



          then go for pumbling option and open it



       then choose architectural option and open the file





       then select fixtures option ans open it

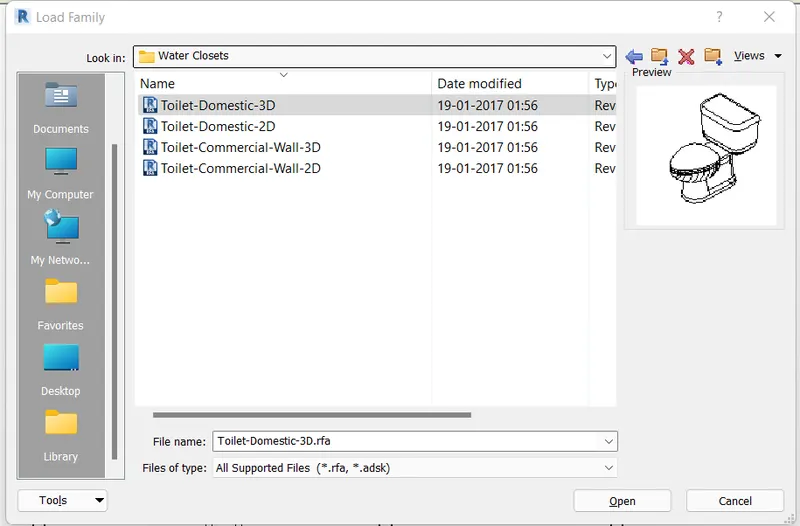

     then choose Water Closets option and open it





    then choose Toilet-Domestric-3D and open the file





  now finally place the file to rest room





camera view for rest room





Step 8) Kitchen should include countertops, gas stove cabinet and shelves to store food items

       * cabinate and shalves

         go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select casework system option from that

      and open the file using open tab

      select casework from that



      then choose Counter top option and open the file





    then go for vanity carbinet option and open





  now palce cabinate and shalves  on kitchen room with help of cursor





* countertops

         go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select casework system option from that

      and open the file using open tab

      select casework from that



      then choose Counter top option and open the file

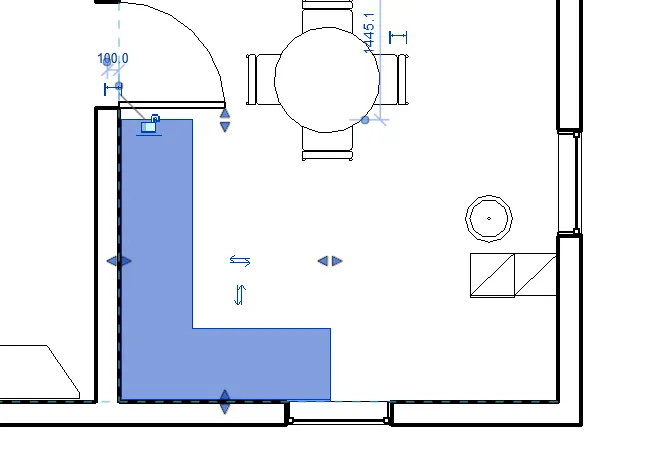

    then go for counter Top L shaped option and open





  now palce counter top on kitchen room with help of cursor





* gas stove:

         go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select special equipments option from that

      and open the file using open tab

      select special equipments from that

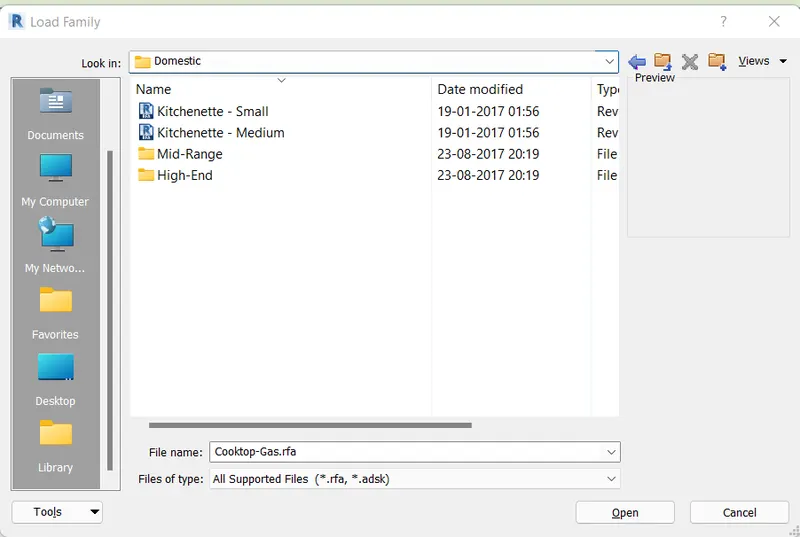

      then choose mid range option and open the file





    then go for range gas option and open





  now palce gas stove on kitchen room with help of cursor



camera view for kitchen room





step 9)  The wash/storage room can include washing machines and shelves to store clothes

*washing machine

         go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select special equipments option from that

      and open the file using open tab

      select special equipments from that



      then choose mid range option and open the file





    then go Washer Front load and open





  now palce gas stove on kitchen room with help of cursor







*shelves to store clothes:



*then for add shelf cabinate

            go to architectural

          selct component and choose placed component option from that



        then go to load family option from modify/place component

        and click on them to insert furniture unit





         then go to US american and open the file by click on them



      then select furniture option from that

      and open the file using open tab

       then choose a storage and open it in that selct Credenza



 finally palced on washing room





camera view for washing room



Result: the all component are inserted successfully from the library in the proper manner
