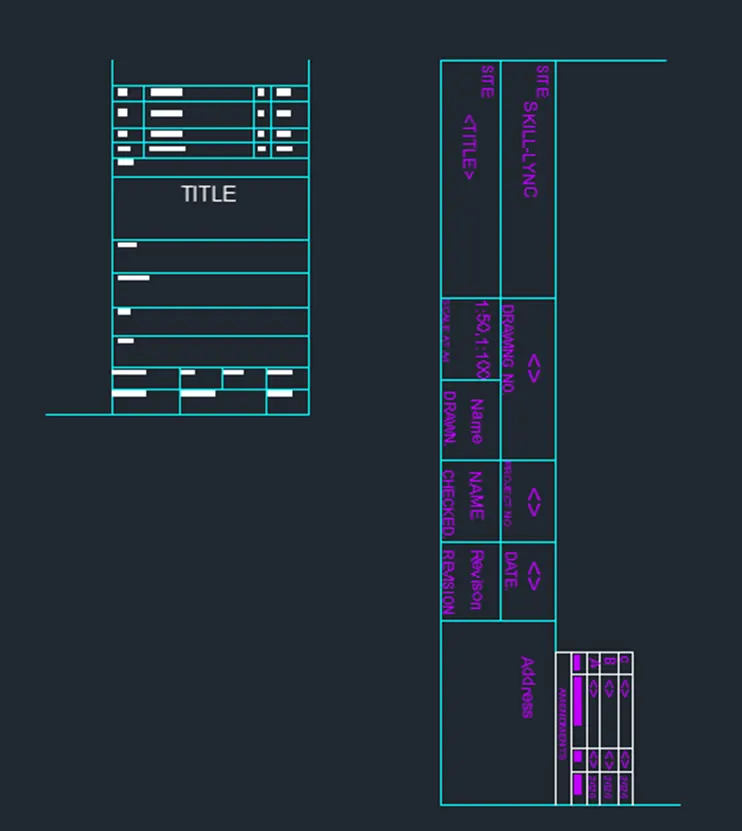

AIM: Create the templates as shown in Figures. by using blocks and attributes commands



Introduction: Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save                        it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.





Procedure:

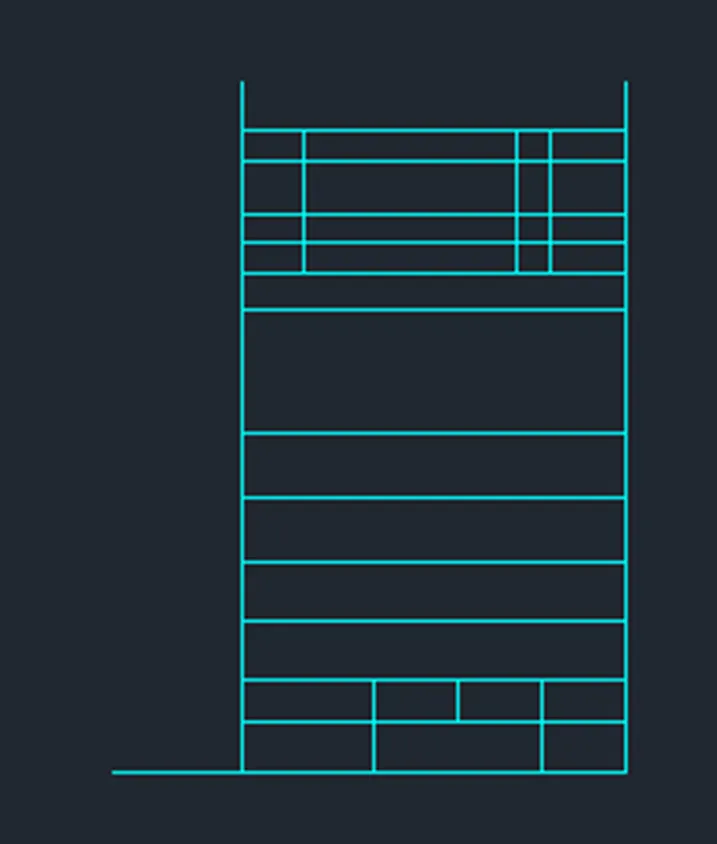

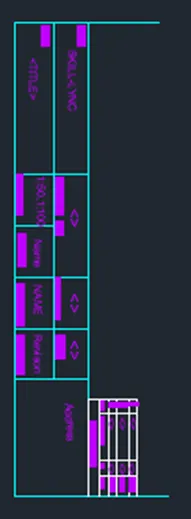

step 1) for first templet

go to layer property add layer as line layer for table and gives it cyan colour

the add one more layer as text layer for text and shown it by white colour

then select table line command from layer property

then select the line command

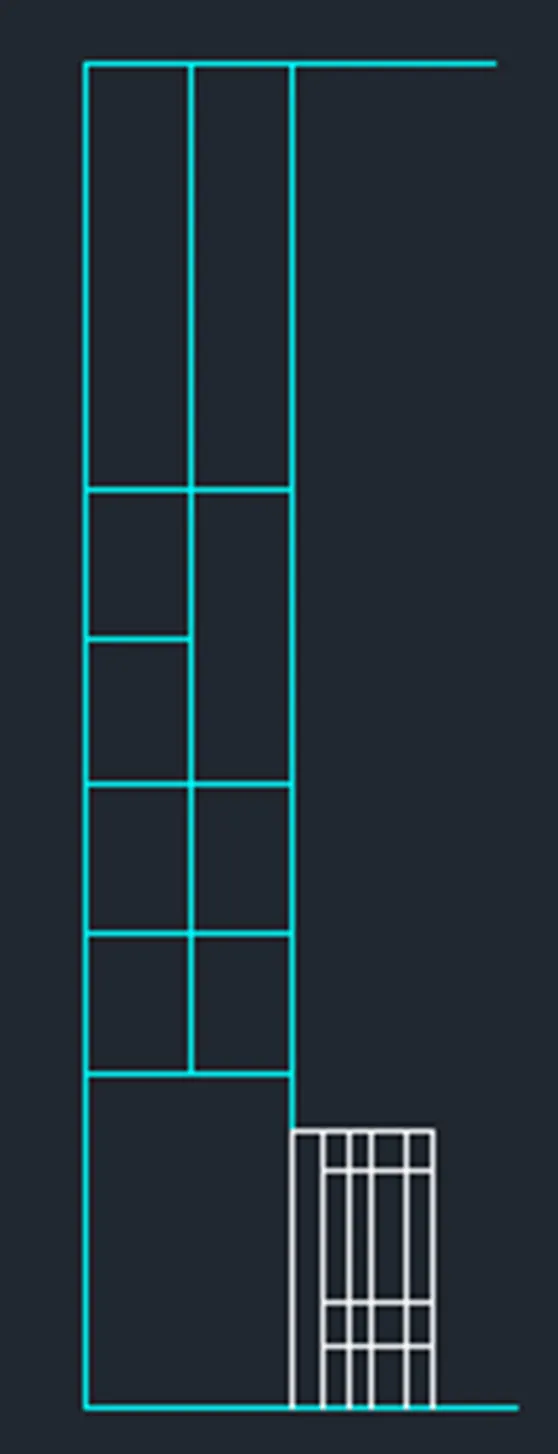

and draw a table as showing below with imperial standard size

by using line, offset and trim command

we draw the table of size 8'X20' size

and gives 100mm width line layer for external walls ( which is visible in printing only )

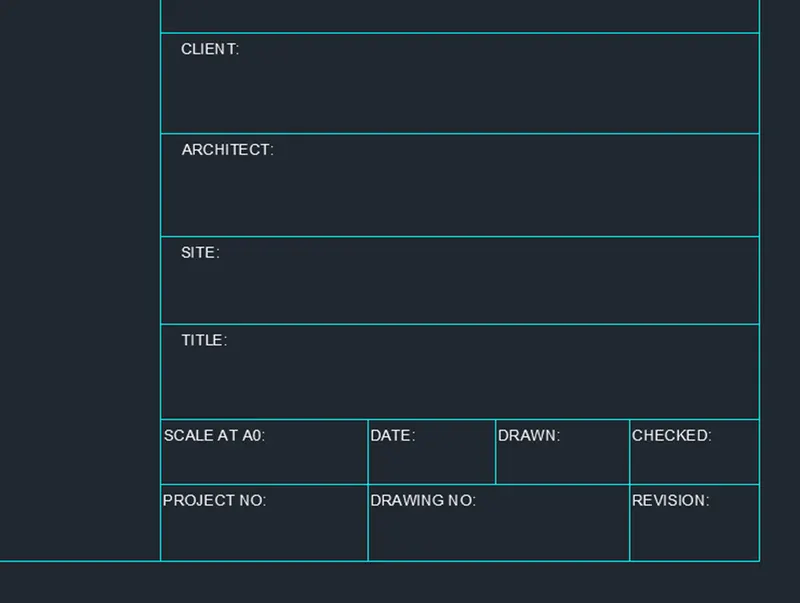

step 2) text

select text line layer from layer property

and use DTEX command for text

or also taken from annotation>text

and select proper size of text

and give naming as per dwg.

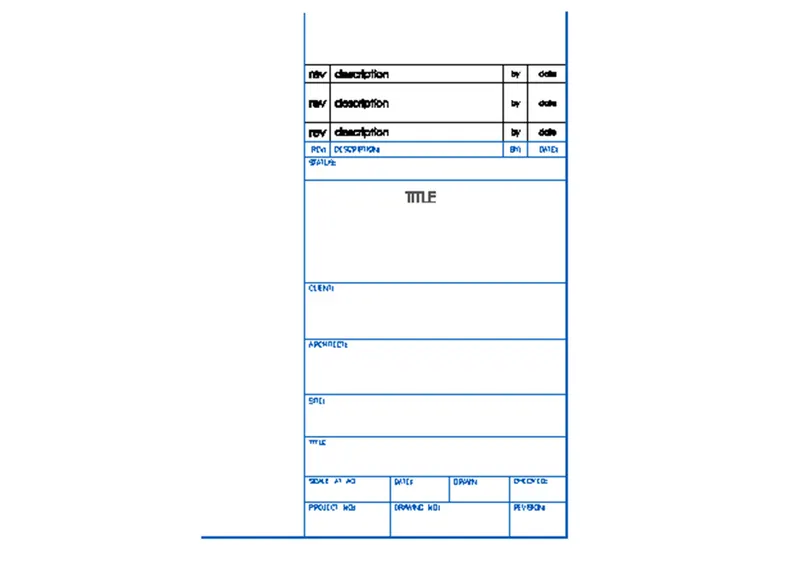

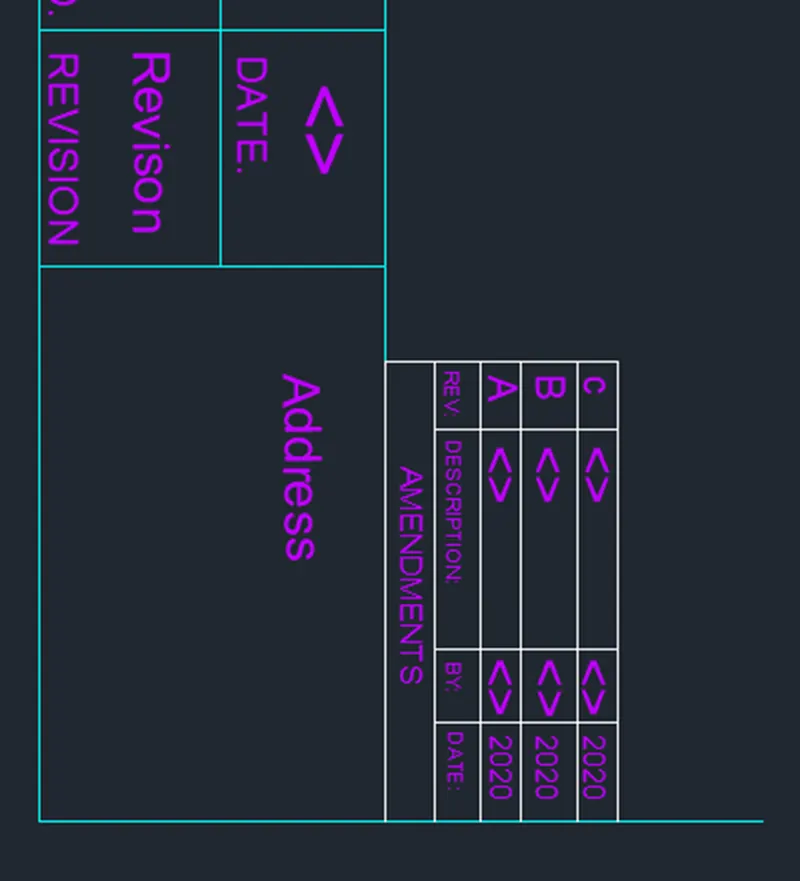

step3) save it as a block with names: Custom1_titleblock

after creating templet

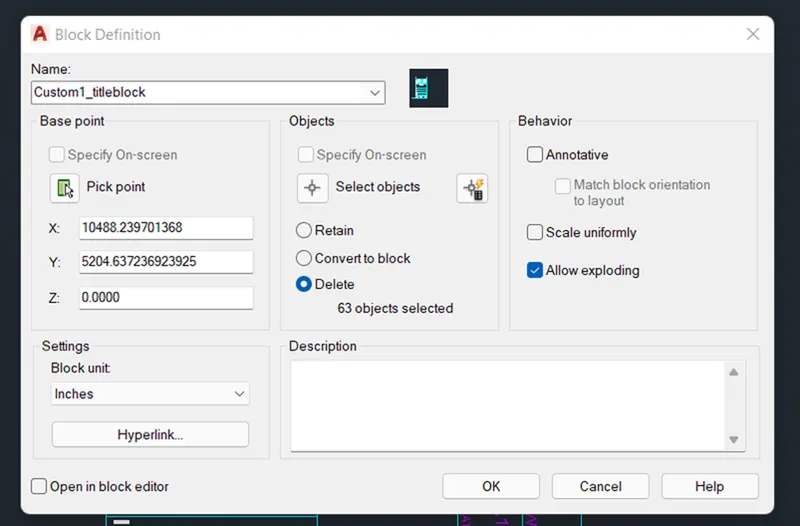

go for block command (BLOCK)

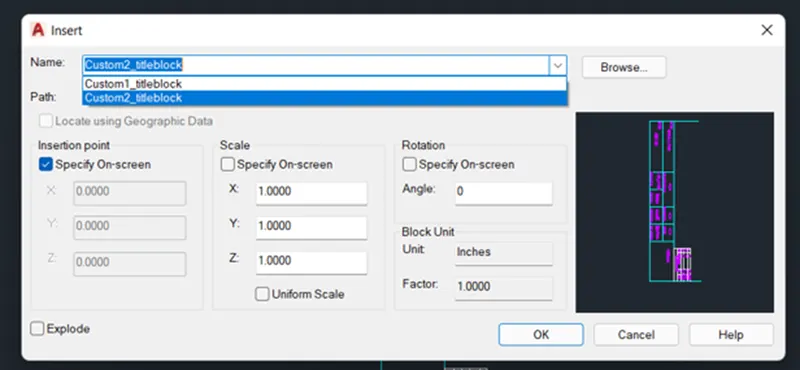

on that we take name as Custom1_titleblock

then go for pic point and select interaction point and enter

then go for select object

and by using cross window or selecting window then entered

and go for delete and finally click on ok, now we create a block





Procedure: for second templet

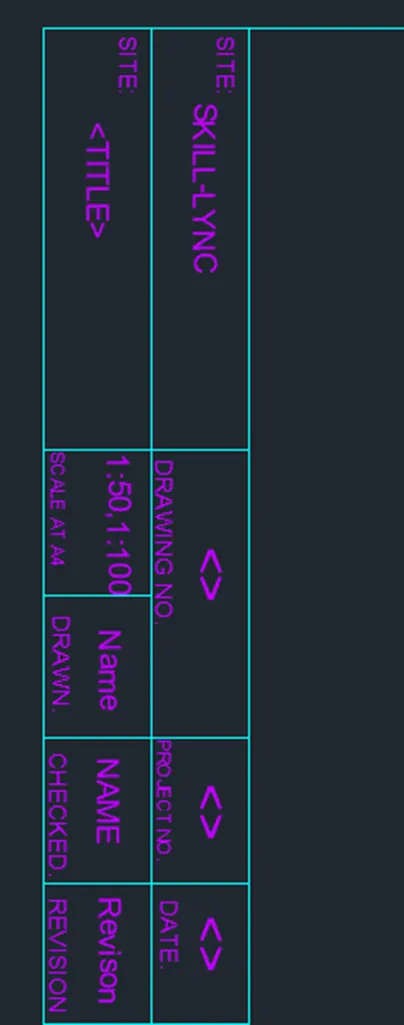

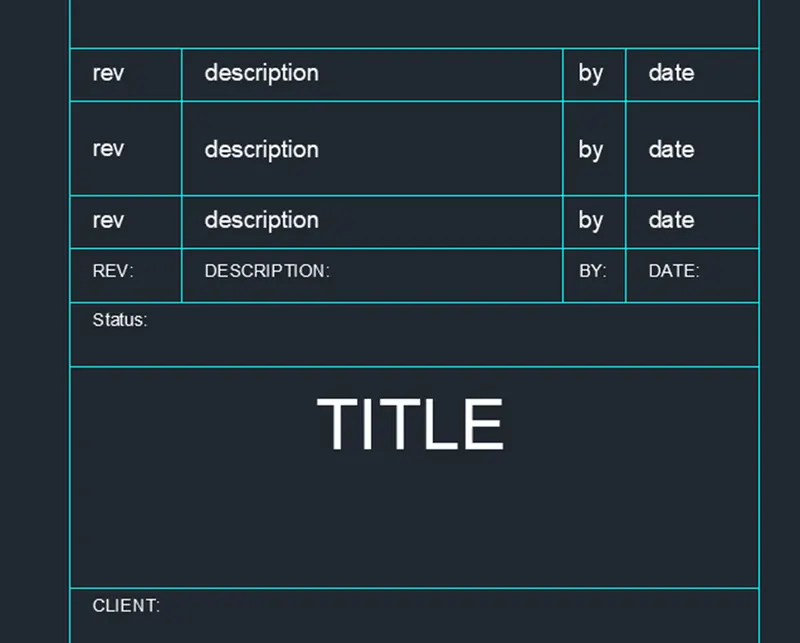

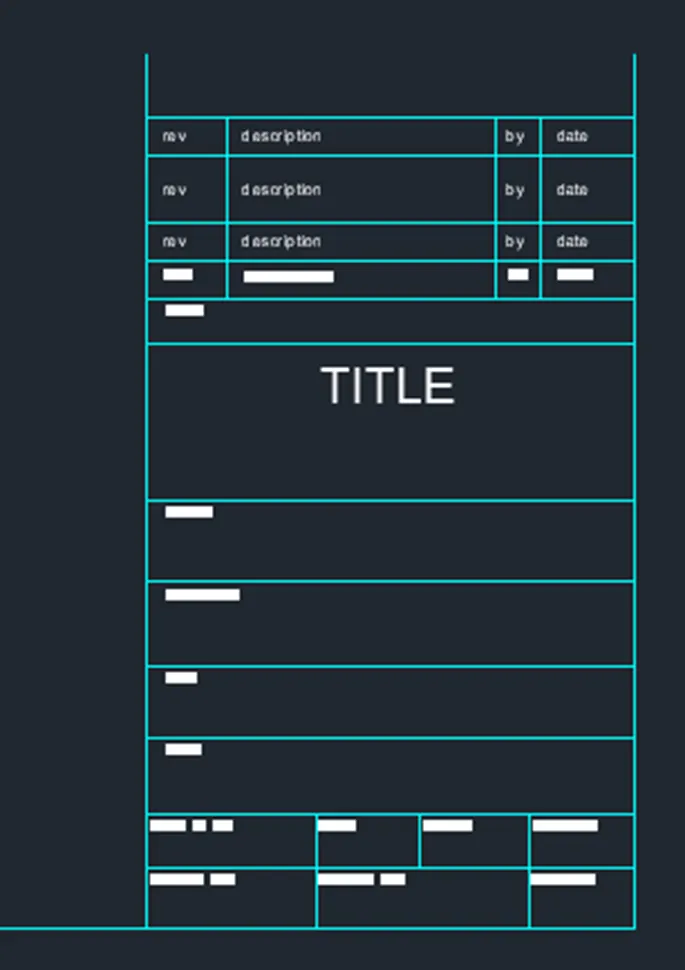

step 1) draw a table

go to layer property add layer as line layer for table and gives it cyan colour

the add one more layer as text layer for text and shown it by white colour

then select table line command from layer property

then select the line command

and draw a table as showing below with imperial standard size

by using line, offset and trim command

we draw the table of size12'X35' size



step 2) text

select text line layer from layer property

and use DTEX command for text

or also taken from annotation>text

and select proper size of text

and give naming as per dwg.





step3) save it as a block with names: Custom1_titleblock

after creating templet

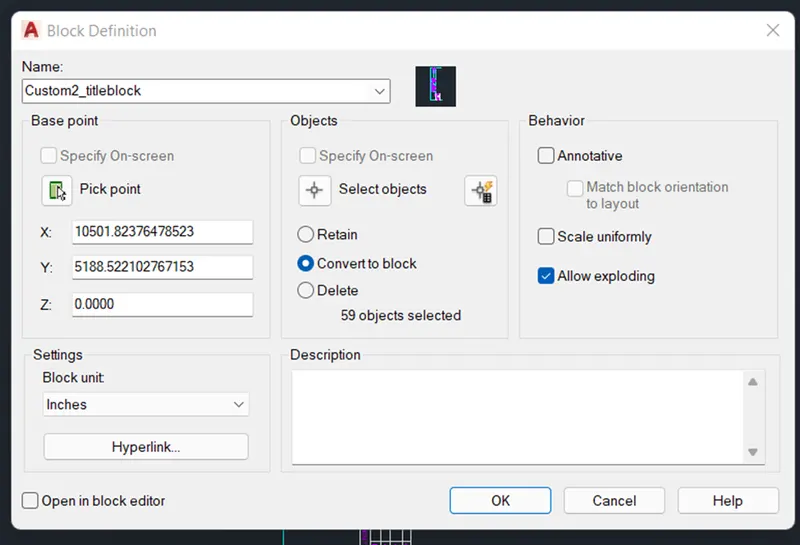

go for block command (BLOCK)

on that we take name as Custom2_titleblock

then go for pic point and select interaction point and enter

then go for select object

and by using cross window or selecting window then entered

and go for delete and finally click on ok, now we create a block





Result:  we draw a templets by using auto cad 2019 using modify & design commands and after that, create the title block to save it as a block with names: Custom1_titleblock and Custom2_titleblock,                             respectively

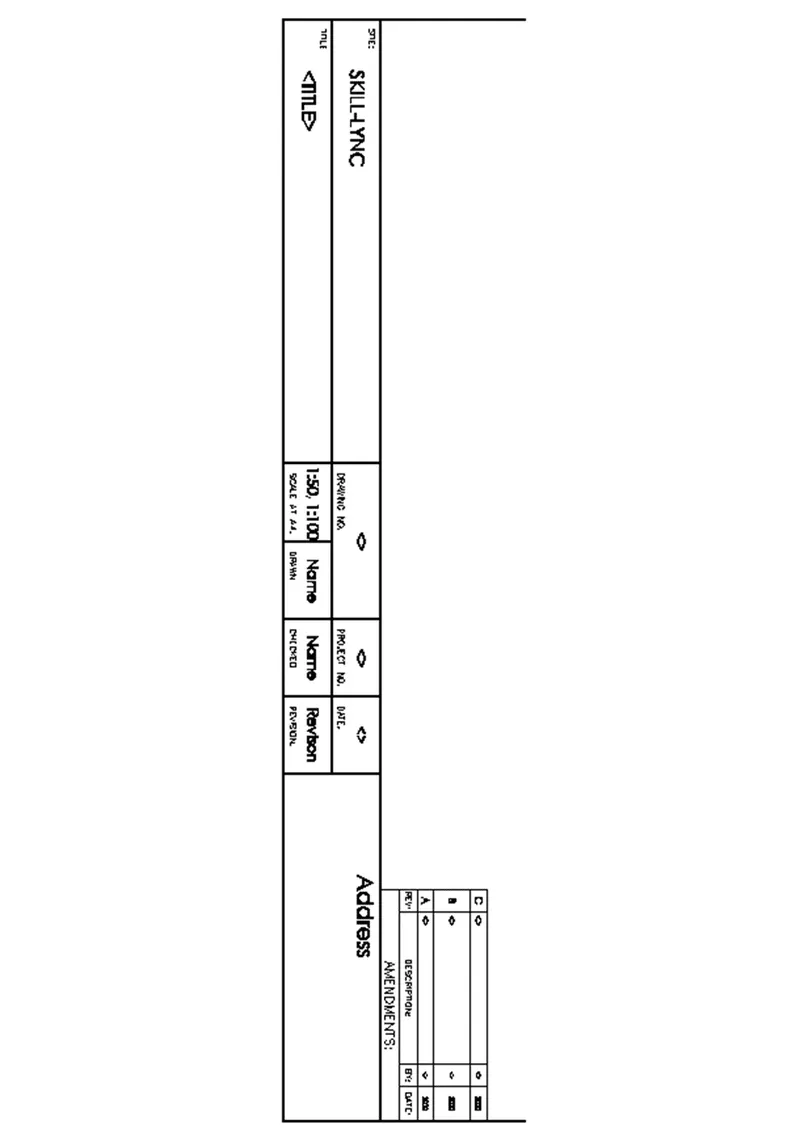

note: above templets are attach to challenge in pdf format as Templets 1 pdf





2) AIM: Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after                     creating them.



Introduction: create a door as per standard size, using line command, offset and internal frame(draft command) and crate a block as door elevation



Procedure: for door 1

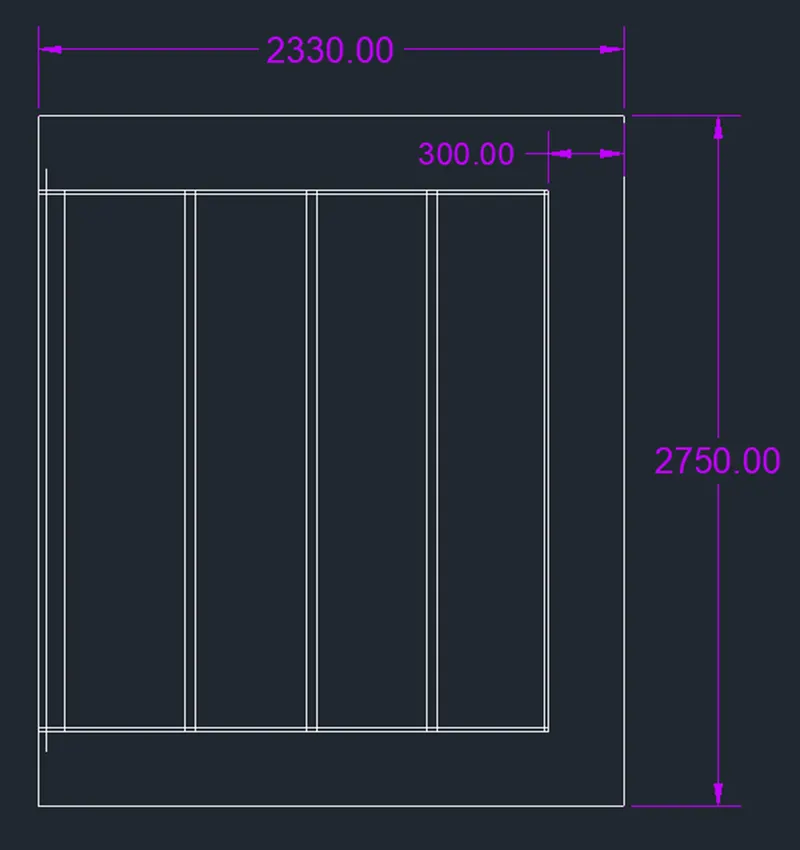

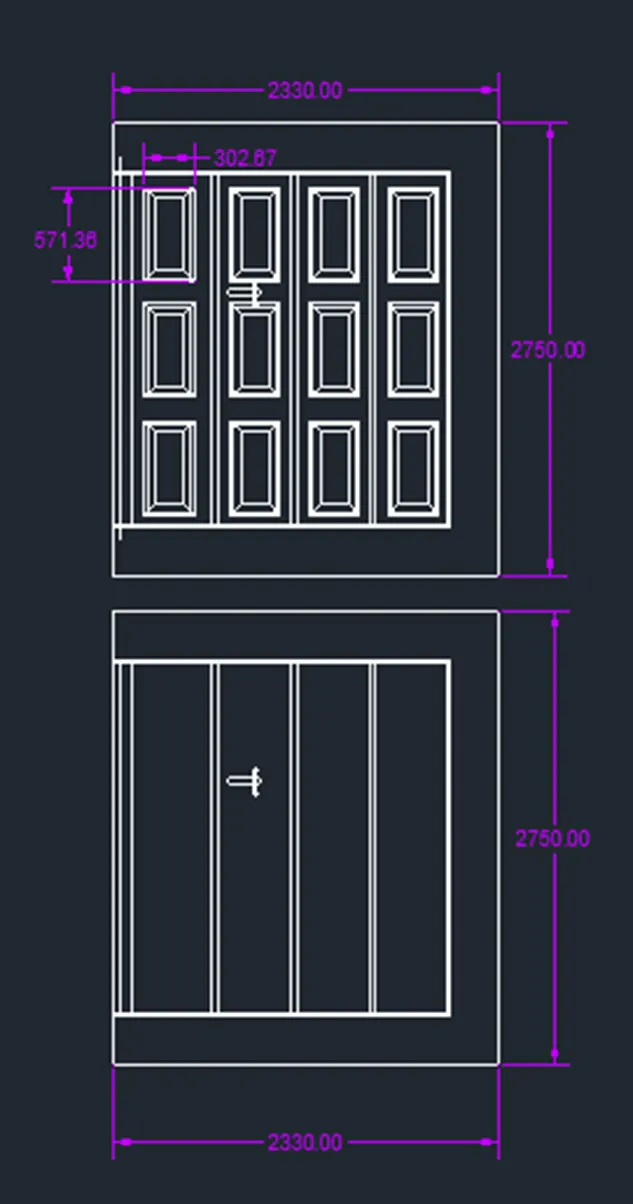

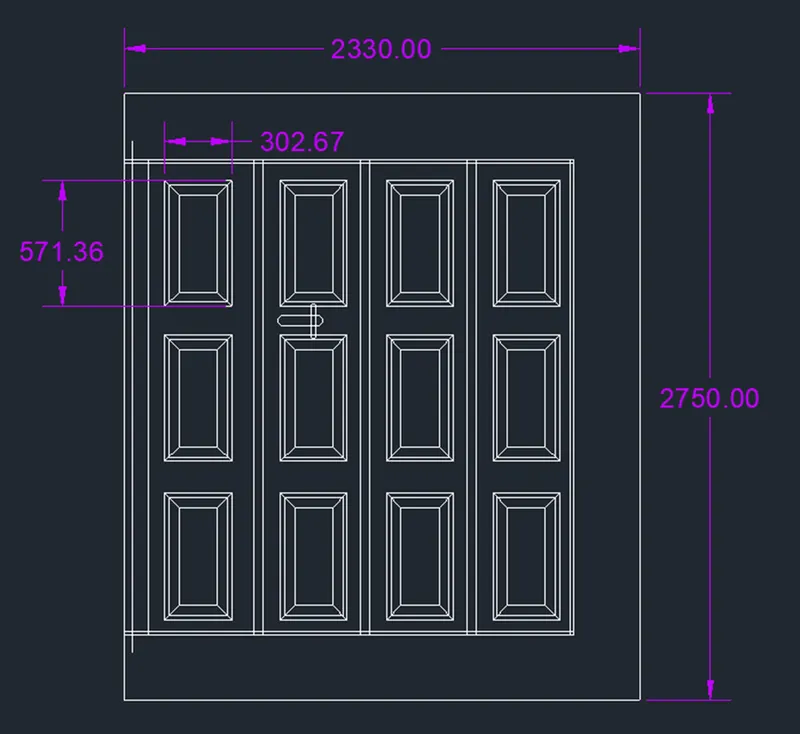

1 step) draw frame of door

take a rectangle from ribbon

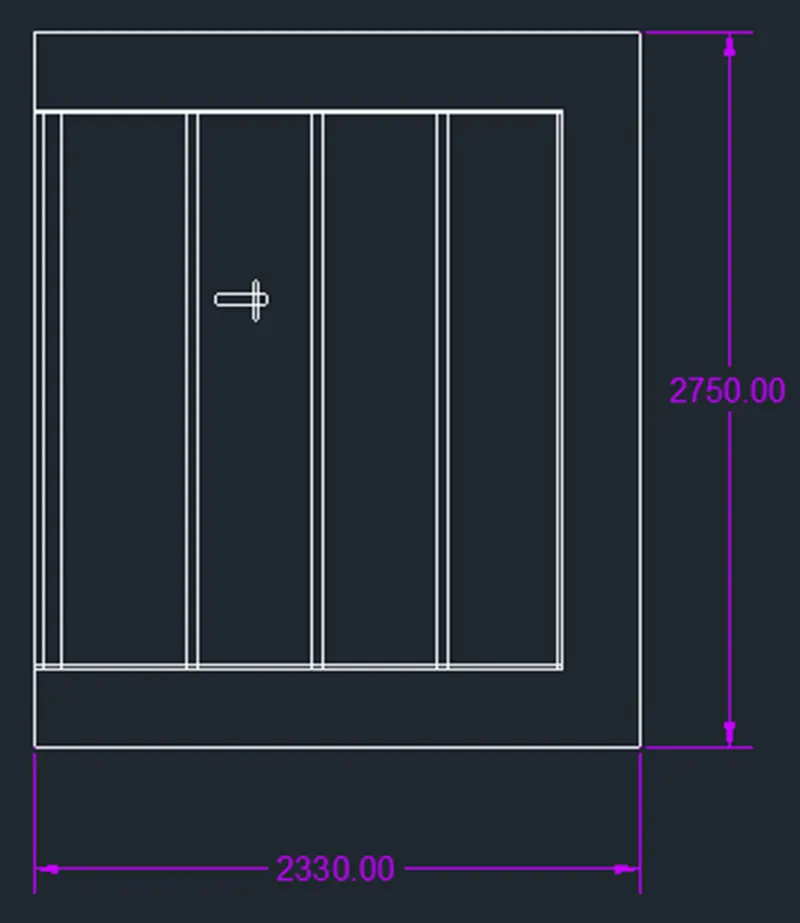

and draw it by @2330mmX2750mm as door size

then take offset of 300mm from three sides excluding one vertical side

then again take offset pf 15mm as panel

then take offset on same distance menace of 1950/3 mm

and offset every line at distance of 8" on both sides

then same do for vertical axis and offset it





2nd step) Internal panel design

take offset of 25 from external lines

and make rectangle

again offset of 15mm then last offset of 35mm

then draw intersecting lines on corner

and copy it as row of 3 and having 4 columns



Procedure: for door 2 with handle lock

draw frame of door

take a rectangle from ribbon

and draw it by @2330mmX2750mm as door size

then take offset of 300mm from three sides excluding one vertical side

then again take offset pf 15mm as panel

then take offset on same distance

and offset every line at distance of 8" on both sides

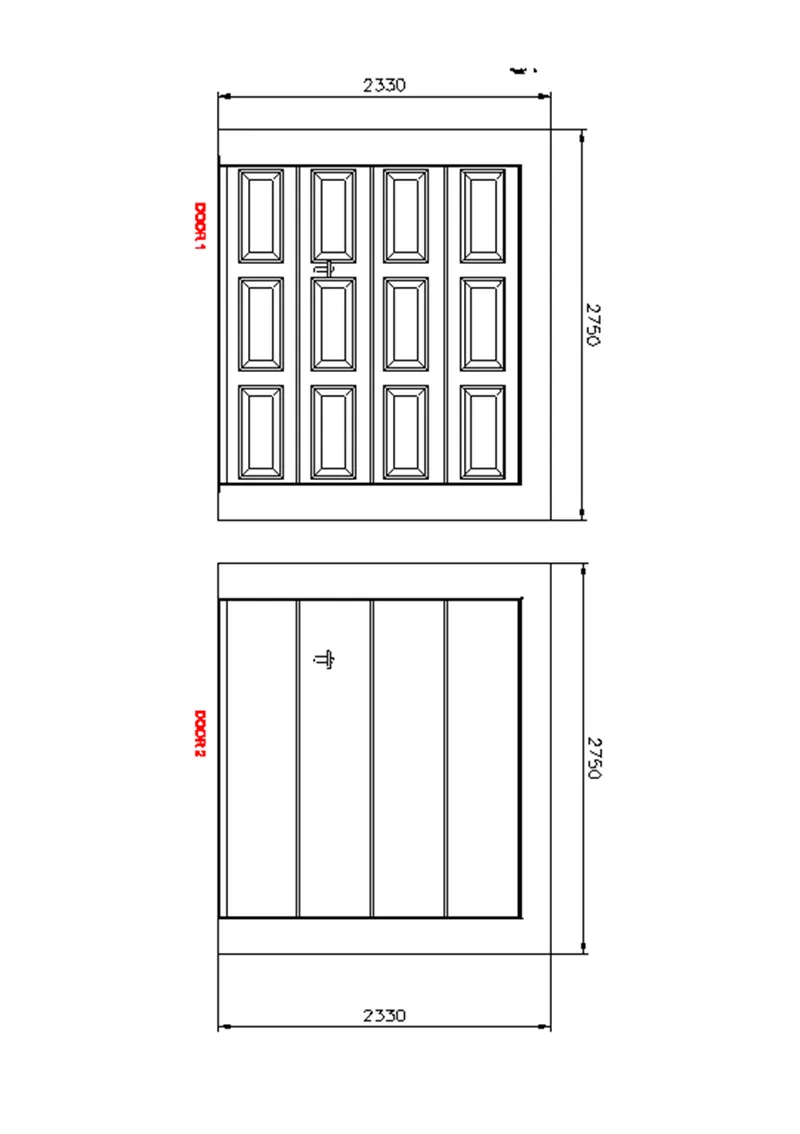

final drawing





final step

 save it as a block with names: door elevation

after creating door

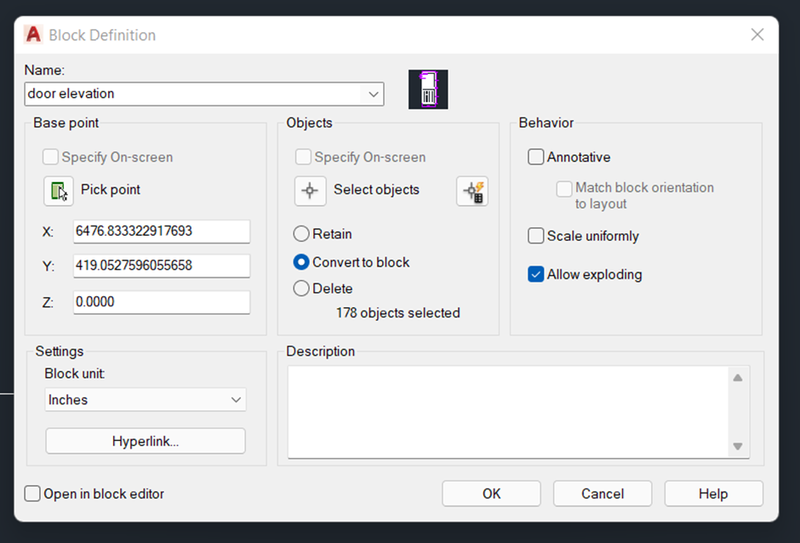

go for block command (BLOCK)

on that we take name as door elevation

then go for pic point and select interaction point and enter

then go for select object

and by using cross window or selecting window then entered

and go bor delete and finally click on ok, now we create a block



result: we draw a door frames of 2330X1750mm size, and draw panels design and all

          and then make as block of name door elevation



Note: attach above pdf files as name challenge 9, 2 for reference

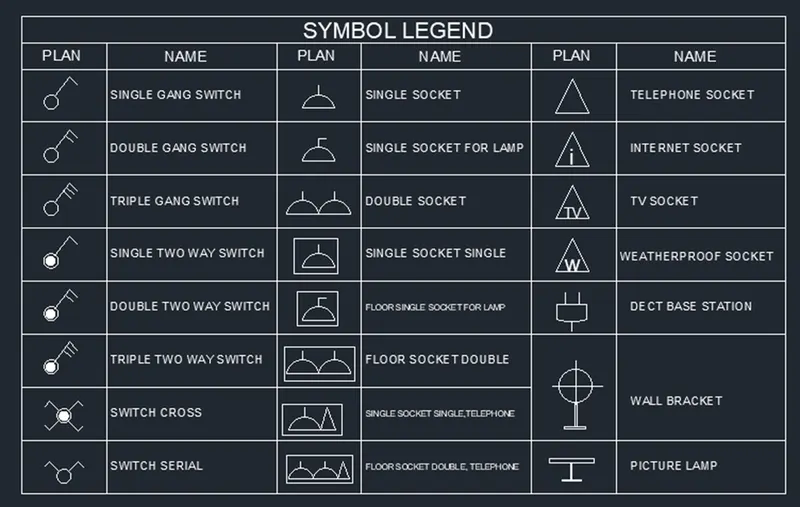

3) AIM: Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.



Introduction: draw a table(legend) after crating individual symbol block and gives it naming of block by using BLOCK command



Procedure

 step1) draw a symbol and create it as block

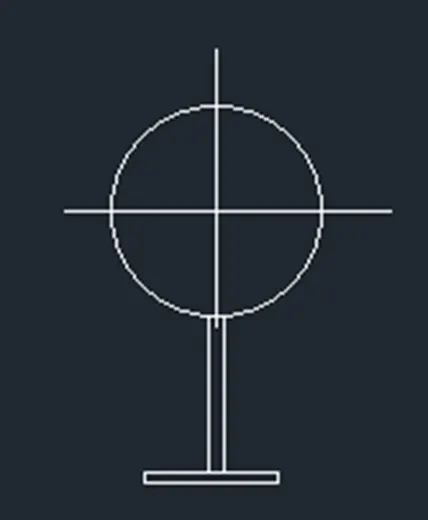

example, symbol of wall bracket  by using line command from ribbon

or using drawing command

draw a circle of - radius by using circle command

draw the intersection perpendicular line through circle

and then draw bottom stand by using line command



step2) then create block

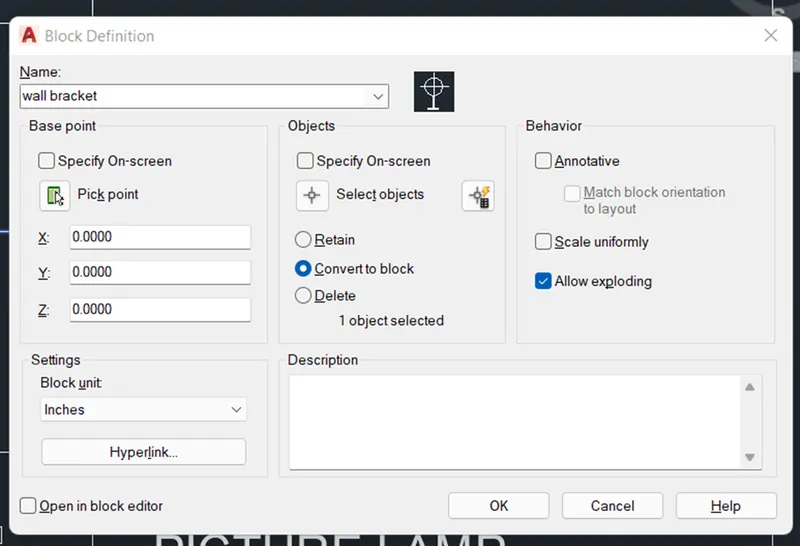

by using block command

give name as symbol name like wall bracket

then pick point after that select object and make convert to block

then ok



same do for all symbols



step3) create legend

draw a table by using line command with proper size and make 11 rows and 6 columns

and insert the blocks one by one

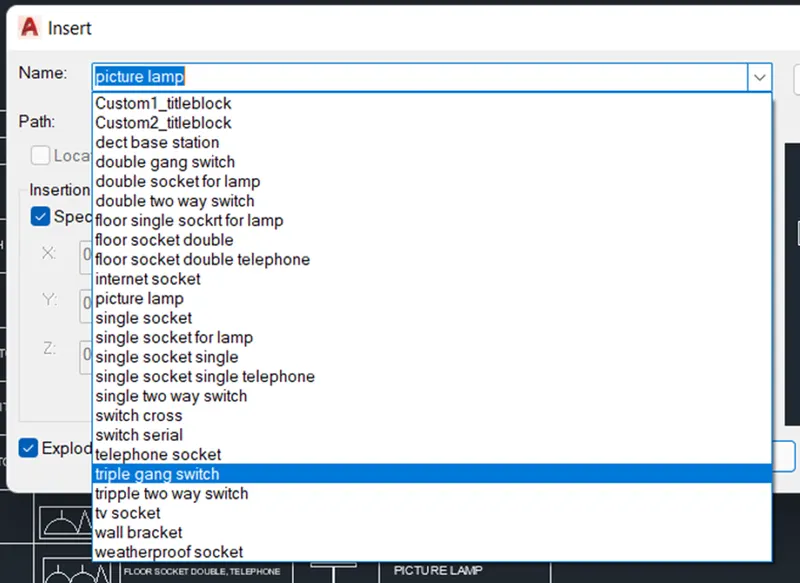

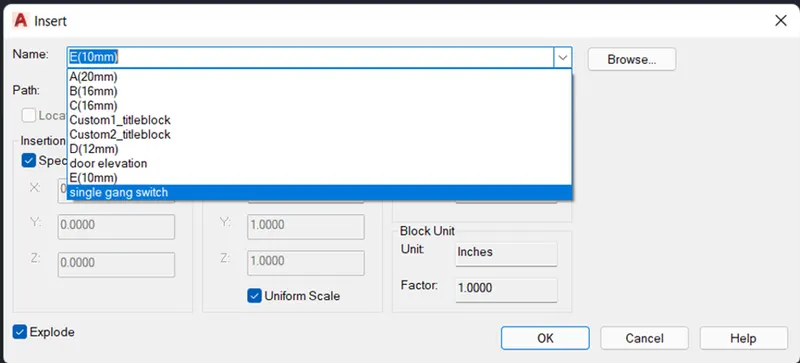

from insert>block definition>block

by name insert it and give name front of that do it for all symbols

and make it as final



result: we create symbol legend by using drawing command and block it with name by block command



Note: attach above pdf files as name challenge 9, 4 for reference







4) AIM: Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.



Introduction: create a door as per standard size, using line command, offset and internal frame(draft command) and crate a block as type



Procedure:

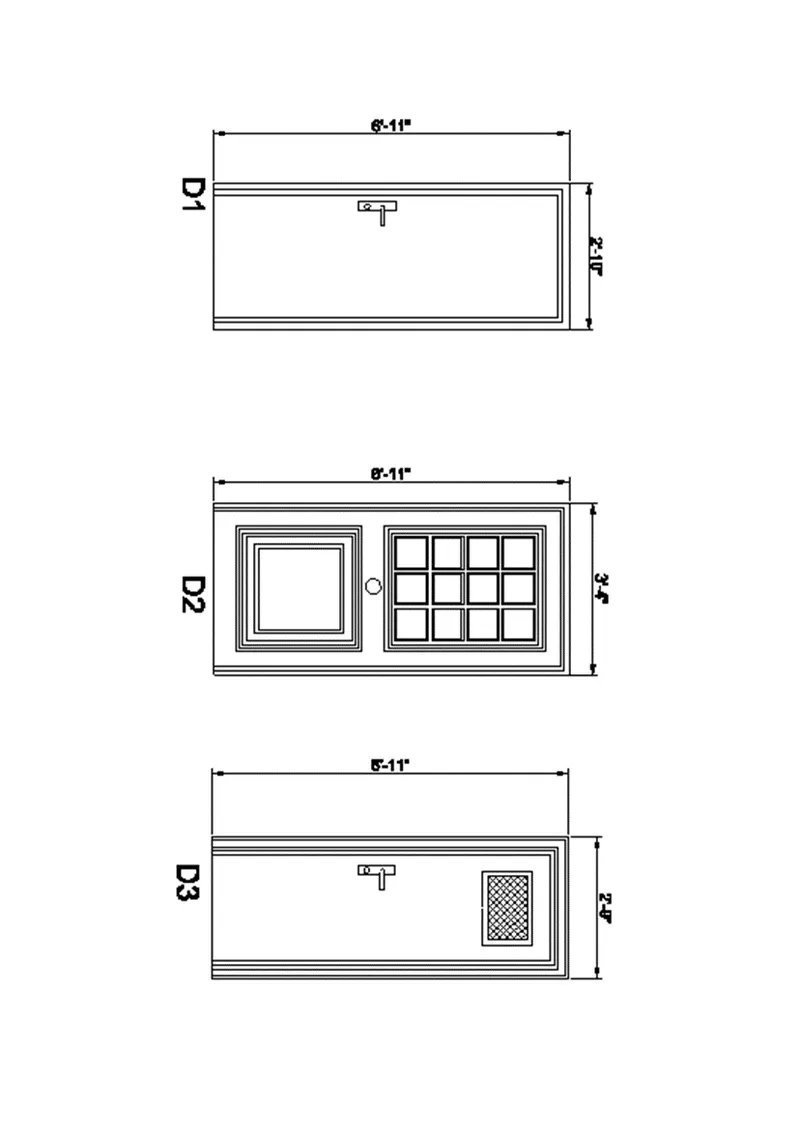

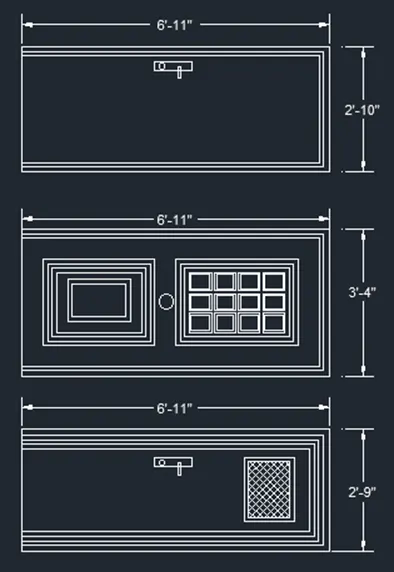

step1) draw a door frame of D1, D2 and D3

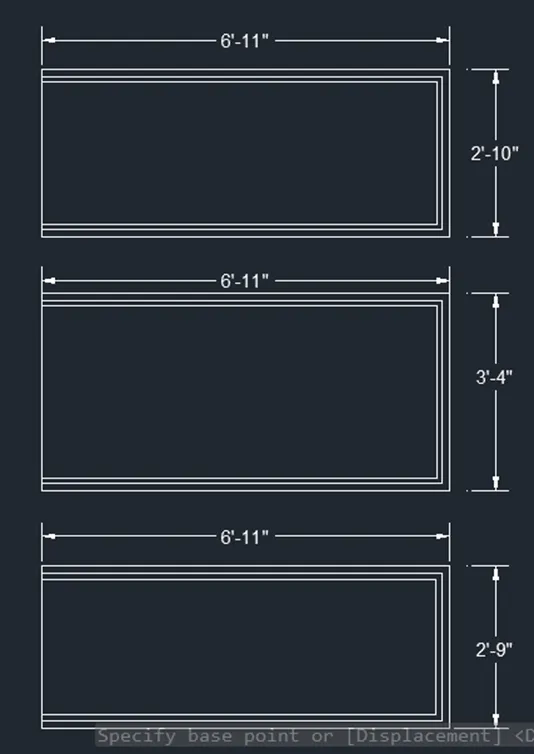

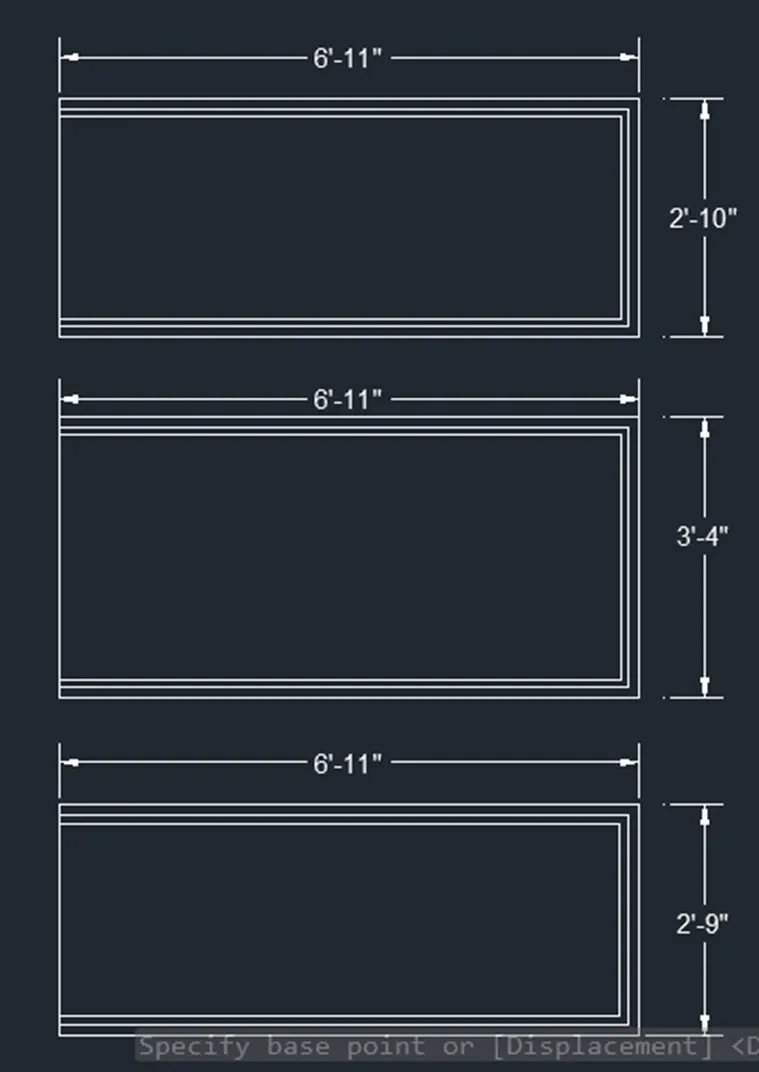

draw a door frame by selecting a rectangle option from ribbon

make unit on ft, inches (engineering)

draw rectangle of @6'11"X2'10" @6'11"X3'4" and @6'11"X2'9" for D1,D2, and D3 respectively

then take offset of 1" on three sides excluding one vertical size

again take same offset on same distance using OFFSET command



step 2) internal panel design for D1,D2, and D3

for D1

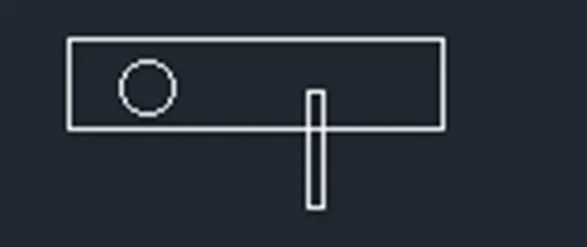

make lock handle

by using line command, select line command from ribbon

and draw handle and also circle by using circle command



for D2

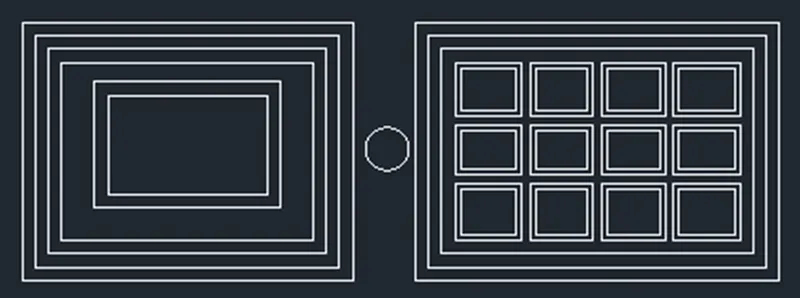

draw a double panel door of different design

first for left side panel

make a rectangle of size @2'8"X 11"

and then take internal offset of 1" for 4 times  by using OFFSET command

then take offset of 2" and last offset with 1" distance

now, right side panel

make a rectangle of size @2'8"X 2'5"

and then take internal offset of 1" for 4 times  by using OFFSET command

and make uniform divide for 3rows and 4 columns

and make small rectangle on 1" gap

and take offset on that small rectangle with 0.8" ices

and trim extra lines using trim command

then draw circle of radius by using circle command from ribbon





for D3

take 1" offset for 2 times from last line

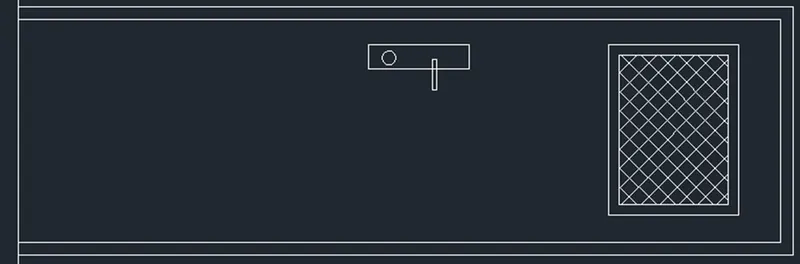

then draw lock handle

or copy lock handle from 1st door frame and paste here

then draw rectangle of size

2'X2'5" by selecting rectangle option

then take offset of 1"

and draw hatch between that

by using HATCH command with 45 scale

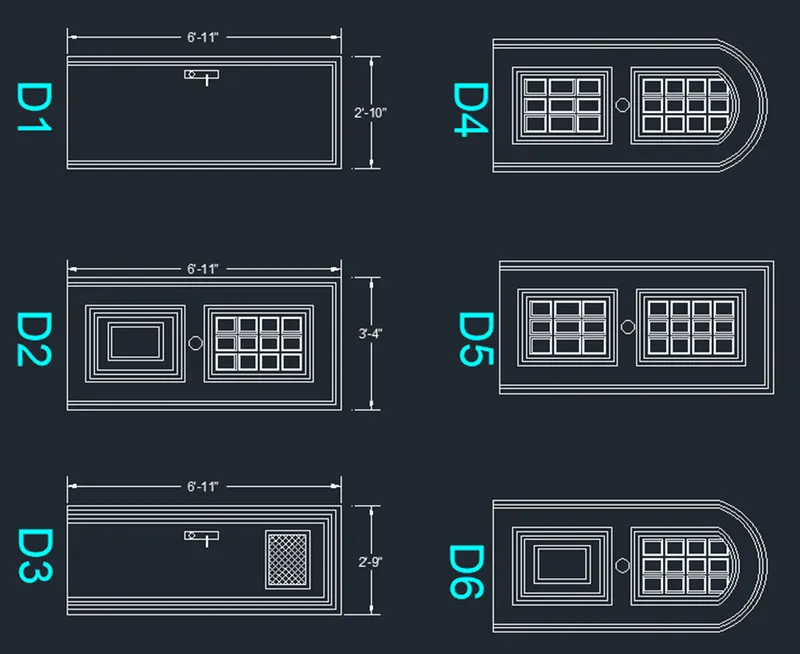

D1,D2 and D3 are



now Procedure for D4,D5 and D6

step 1) draw a door frame of D4, D5 and D6

draw a door frame by selecting a rectangle option from ribbon

make unit on ft, inches (engineering)

draw rectangle of @6'11"X3'4" for D4,D5, and D6

then take offset of 1" on three sides excluding one vertical size

again take same offset on same distance using OFFSET command



2 step) internal frame for D4,D5 and D6

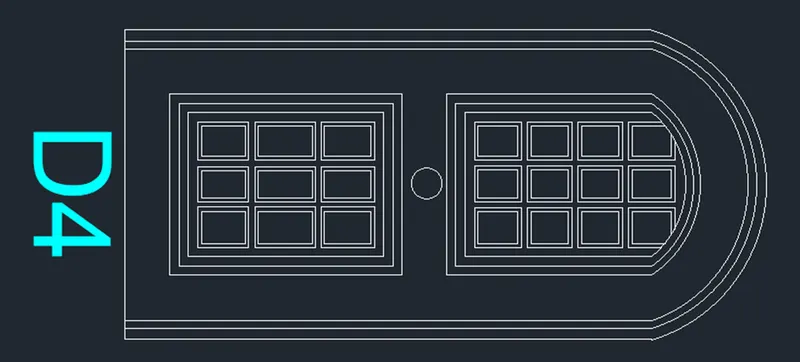

copy the D2 internal frame and

for D4,D5 and D6

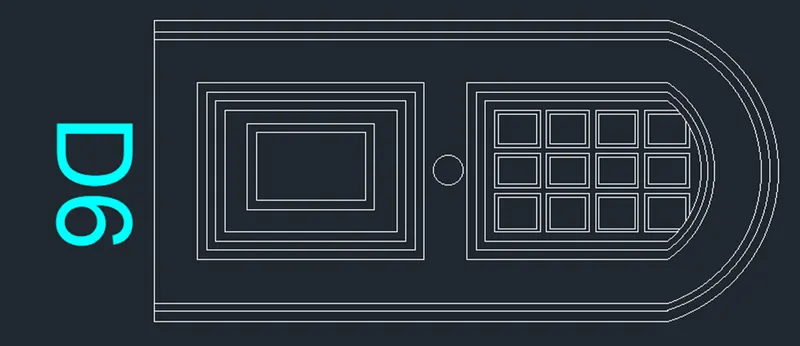

now for D6 make a rounded at top portion by using arc command at uniform offset of arc height

and trim extra lines using TRIM command



now,

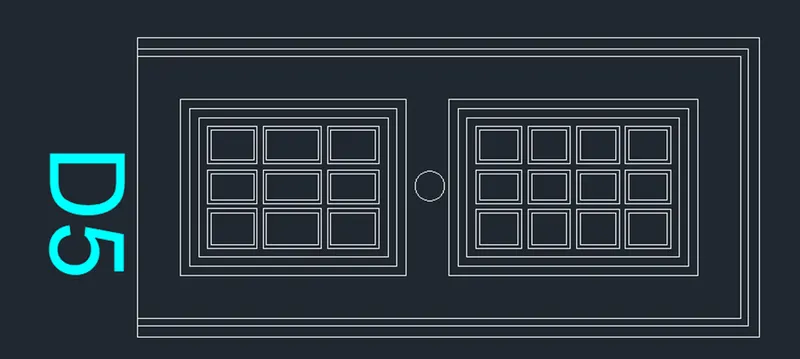

door 5 frame

copy door internal of D2

and draw same rectangles panels for left side pannels as same as right side pannel

with uniform size by using line,OFFSET and rectangle command



now for door 4 frame

copy internal frame of D5

make a rounded at top portion by using arc command at uniform offset of arc height

and trim extra lines using TRIM command

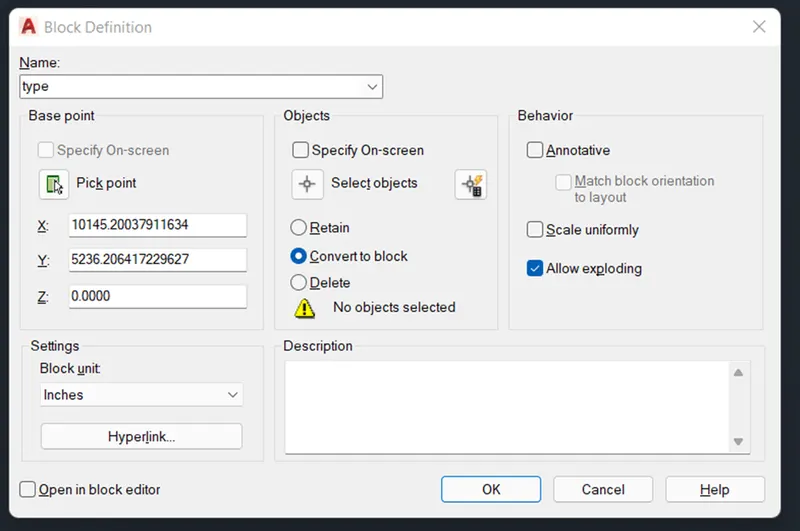

now create a block of TYPE name

by using block command

give name as symbol name TYPE

then pick point after that select object and make convert to block

then ok



Result : we crate door frames of D1, D2, D3, D4, D5 and D6 doors, by using auto cad in that use modify and edit commands with step by step, brief details are mansion with procedure

Note: attach above pdf files as name challenge 9, 4 for reference

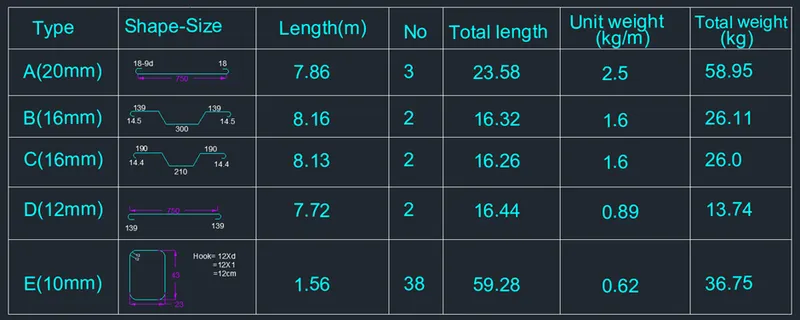

5) AIM: Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.



Introduction: draw a table(legend) after crating individual symbol block and gives it naming of block by using BLOCK command and make a table





Procedure

 step1) draw a symbol and create it as block

example, symbol of bar

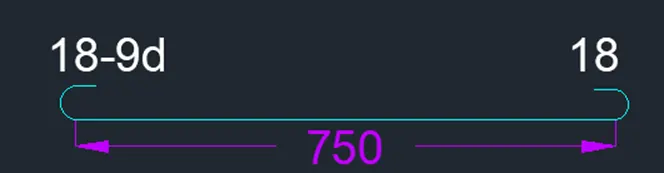

draw a horizontal bar of length 750mm

using line command

then draw hook by using arc or circle with proportion

and gives detail by using text command

by using DTEXT with modify size

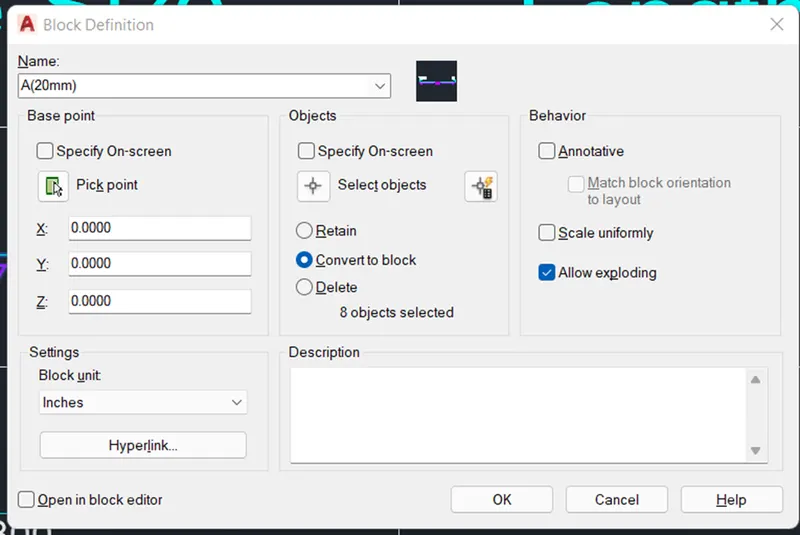

step2) then create block

by using block command

give name as symbol name like A(20mm)

then pick point after that select object and make convert to block

then ok



do for all symbols, draw and create block with name



step3) create legend

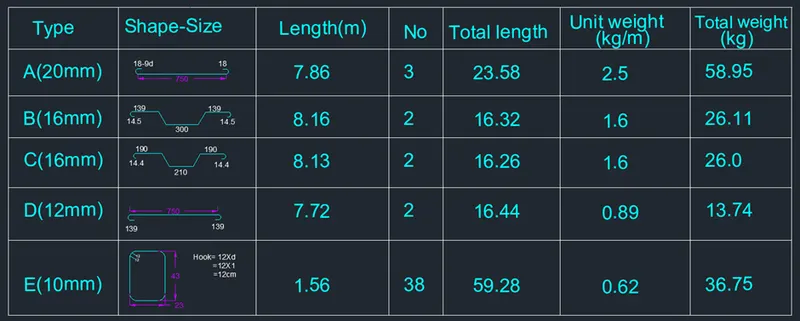

draw a table by using line command with proper size and make 11 rows and 6 columns

and insert the blocks one by one

from insert>block definition>block

by name insert it and give name front of that do it for all symbols

and make it as final



result: we create symbol legend by using drawing command and block it with name by block command



Note: attach above pdf files as name challenge 9, 5 for reference
