Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork

Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork



Q1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class



AIM: Export the Revit architecture and structure model to Navisworks Cache file



Introduction: naviswork help you to detect clash by clash detactive test and resovle it, also help to overview



Procedure:

step 1) open revit software

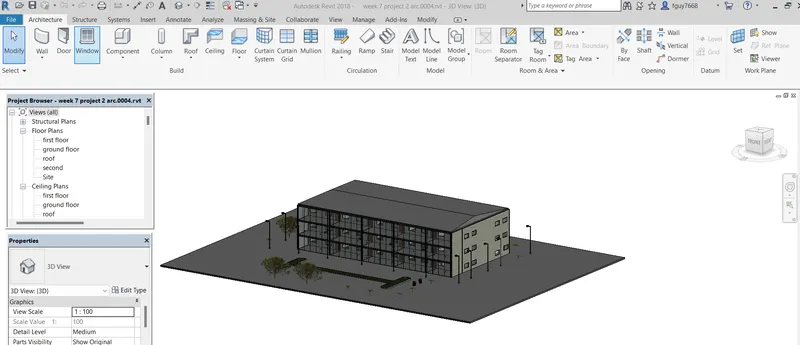

           then open project of week 7 for export to naviswork





step 2) then click on file menu

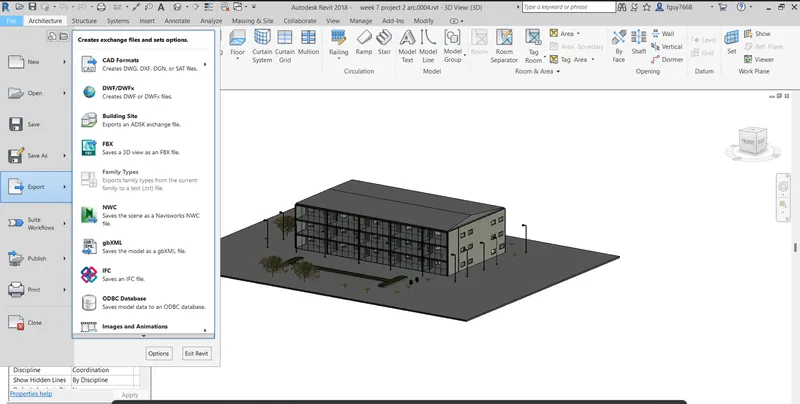

           and go on export option

           then select NWC option from export to export revit file to architecturer

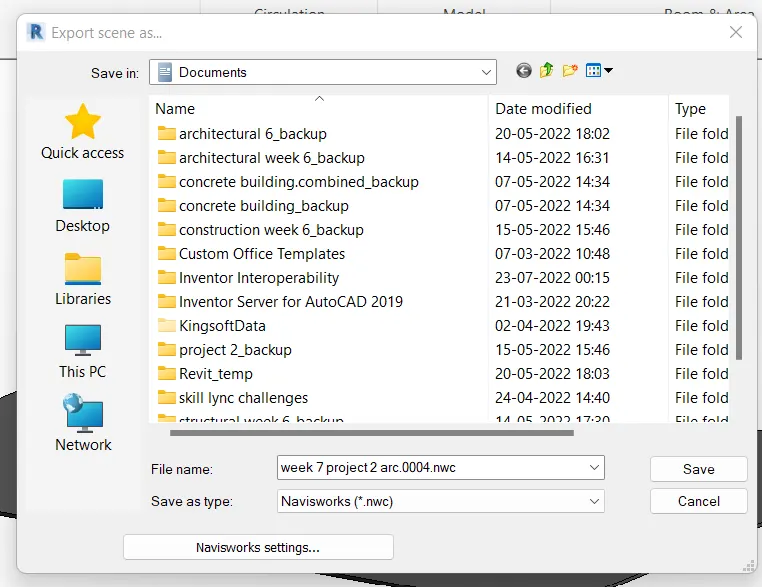

step 3) and then save the file on path

          our file is ready to export from revit to navisworks





Result: naviswork file export successfully done from revit file









Q2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file



AIM: walk through the rooms created and record your moving as animation in your Navisworks file



Introduction: walk through is helpful for imagination and for better brief understanding to know whole details



Procedure:

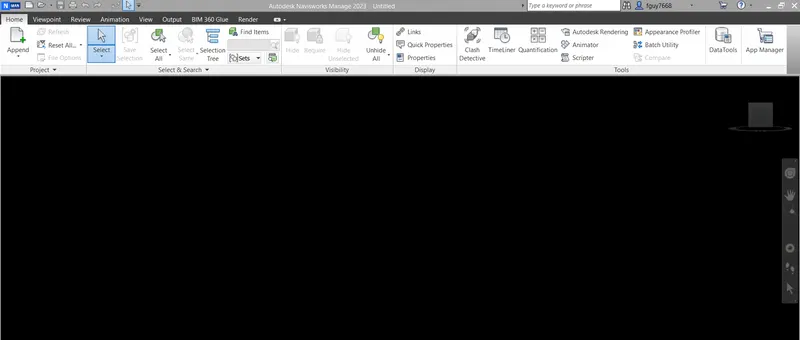

step 1) open naviswork software i have 2023 version

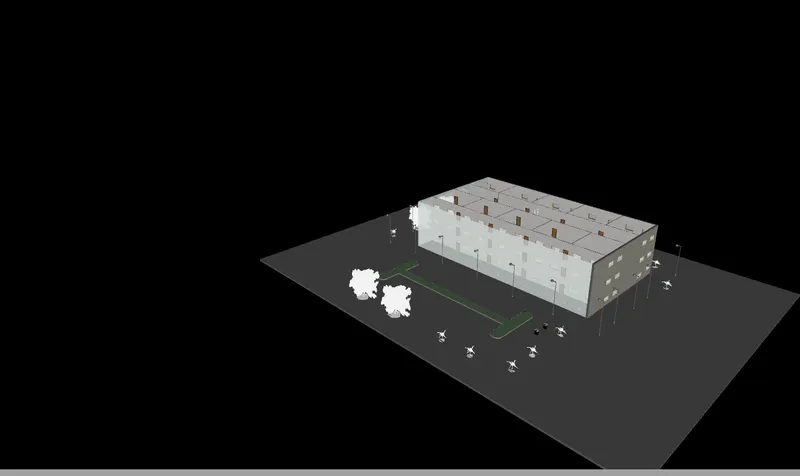

step 2) then open the file we exported on ast question from revit

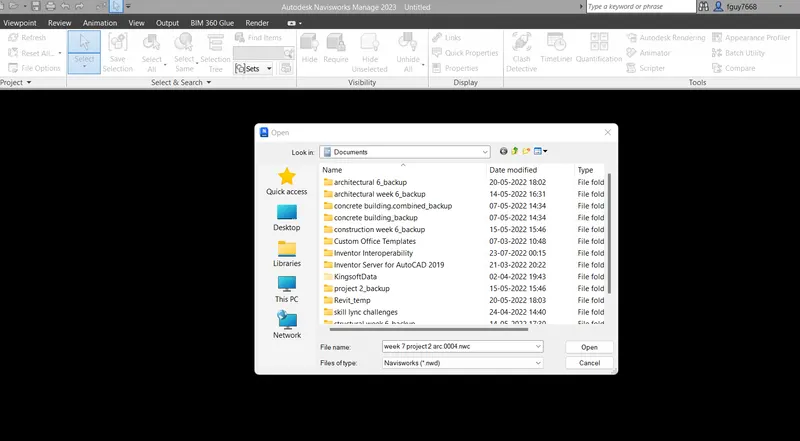

           from file tab

           and serch the file which we save



          after selection of nws file press on open button

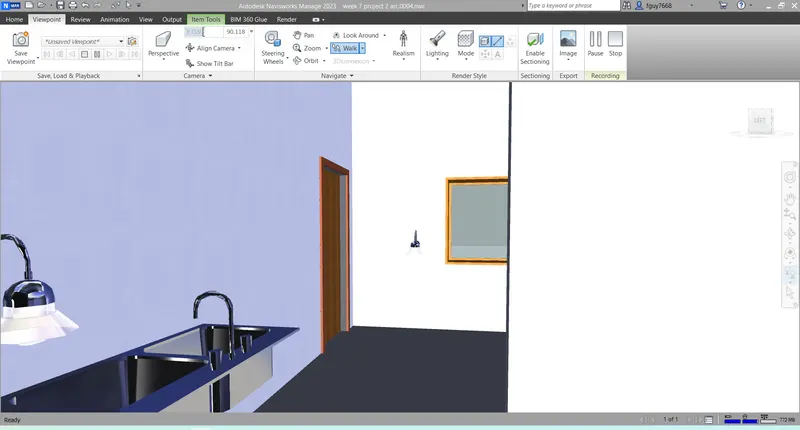

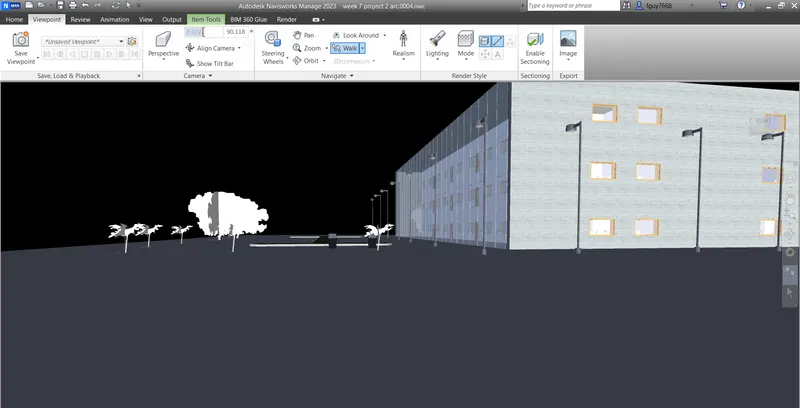

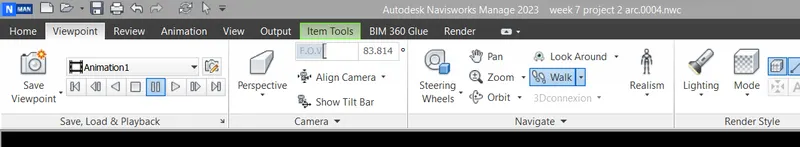

step 3) go to walk option

           click on viewpoint option from  ribbon

           then click on walk option from navigate section

           and adjust our view from zoom in and zoom out

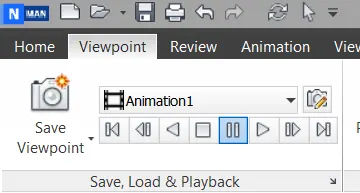

step 4) recored our navigate file

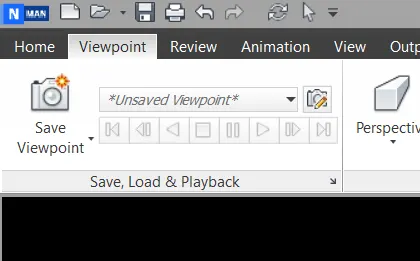

          drop down save view point option

          and click on record option



        and walk through building just by using cursor

       we can control pause on and stop video from here





step 5) after stoping recording our video is save automatically

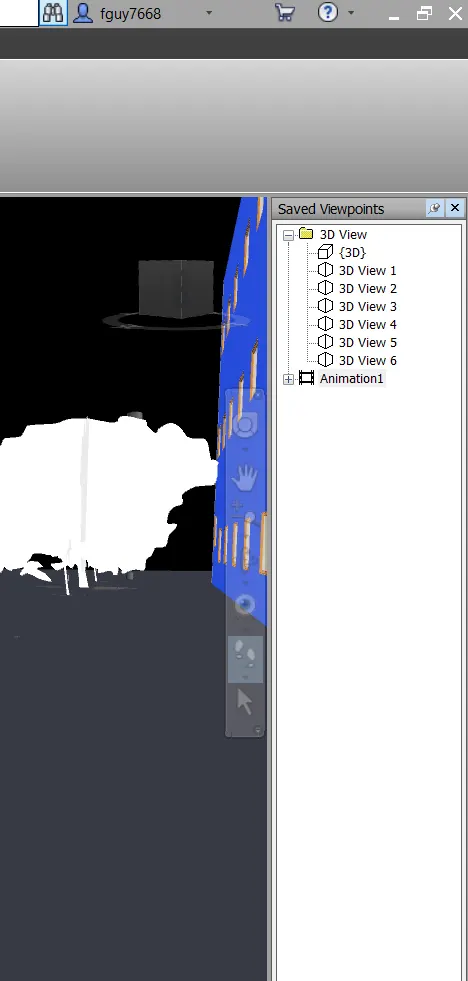

           we can see video from saved viewpoint







Result: our walk through record video saved successfully from viewpoint









Q3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file



AIM: use Realism feature to walk through the model and record your moving as animation in Navisworks file



Introduction: realism option for real person view simulation



Procedure:

step 1) open naviswork software i have 2023 version



step 2) then open the file we exported on ast question from revit

           from file tab

           and serch the file which we save



          after selection of nws file press on open button

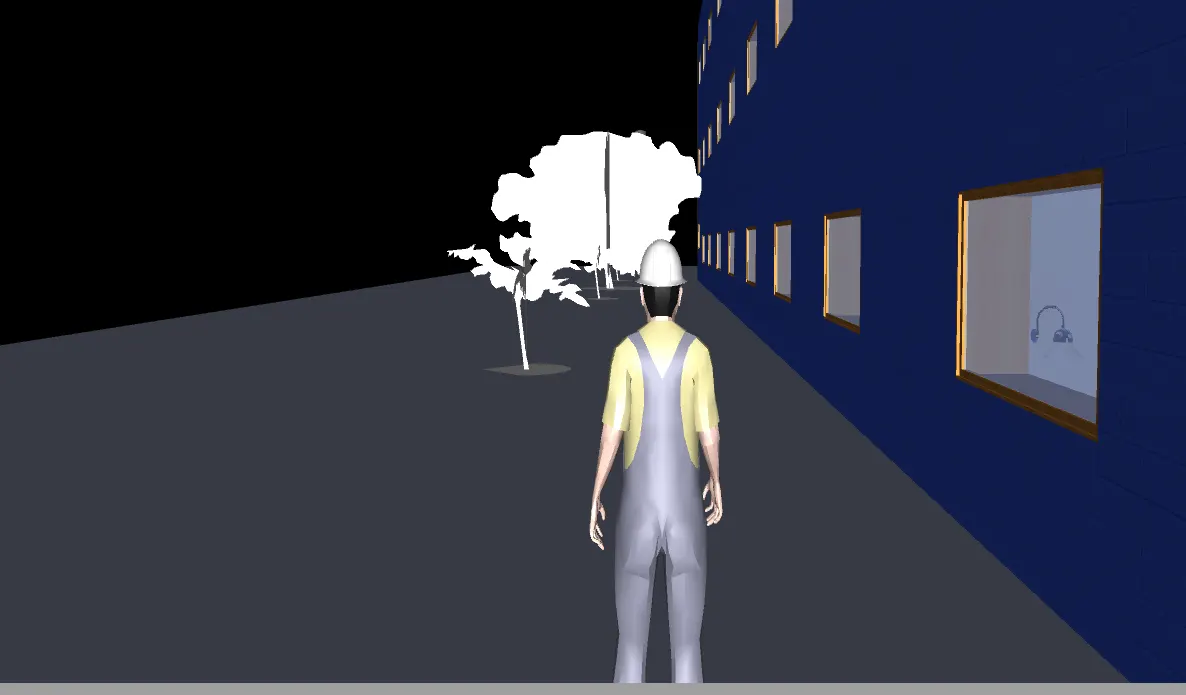

Step 3) go to realism option from vievpoint navigation



           and by using cursor move the third person arround the building

          also use pan and zoom for view setup







step 4) recored our navigate file

          drop down save view point option

          and click on record option



        and walk through building just by using cursor

       we can control pause on and stop video from here





step 5) after stoping recording our video is save automatically

           we can see video from saved viewpoint







Result: our walk through record video saved successfully from viewpoint of realism move through building









Q4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
              a. Run the Clash Detection Test
              b. Study the clashes between the two models
              c. List which of the clashes could be approved
              d. List which of the clashes could be neglected ( will be taken care later)
              e. List which of the clashes can be resolved
              f. Save the results after color coding the clashes to the Navisworks file
              g. In case of resolution annotate the clash and save the view to defined views in Navisworks



AIM: Create a clash detection test between the two models



Introduction: clash detaction test is to find out any clast between structure and accordingle resolve it



Procedure:

step 1) export structural and architectural file from revit

            open revit software

           then open project of week 7 for export to naviswork





           then click on file menu

           and go on export option

           then select NWC option from export to export revit file to architecturer



           and then save the file on path

          our file is ready to export from revit to navisworks





step 2) append both architectural and structural file by adding

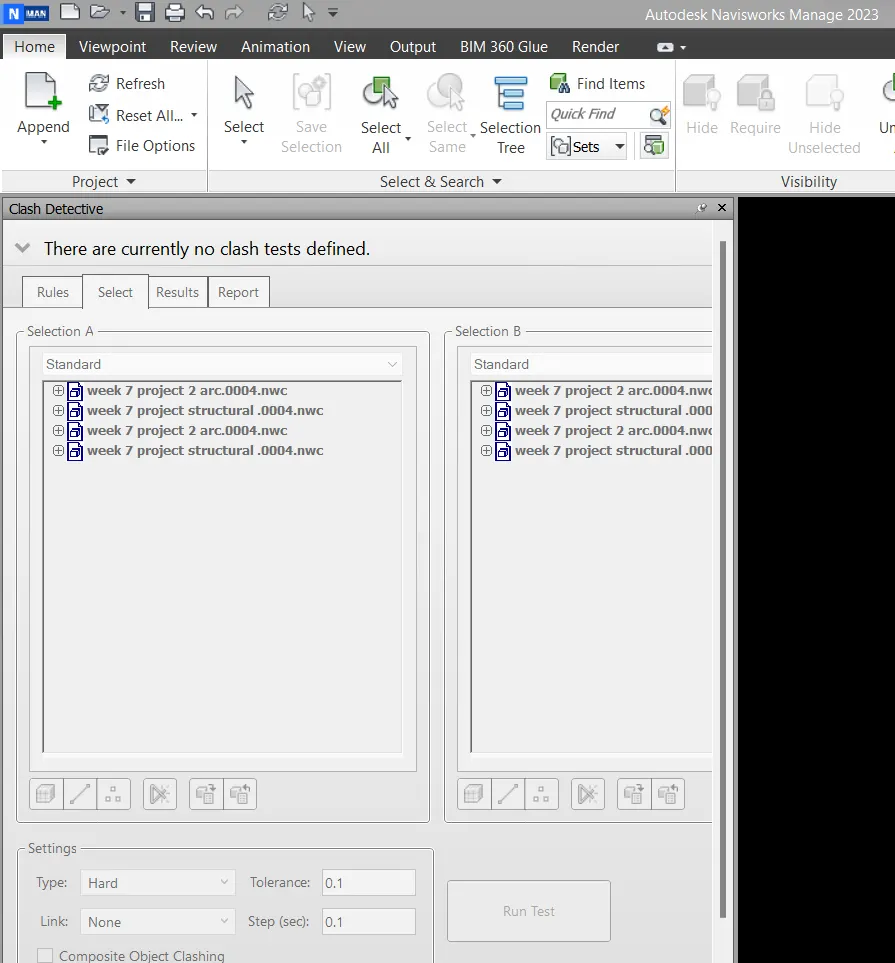

step 3) then go for clash detactive test

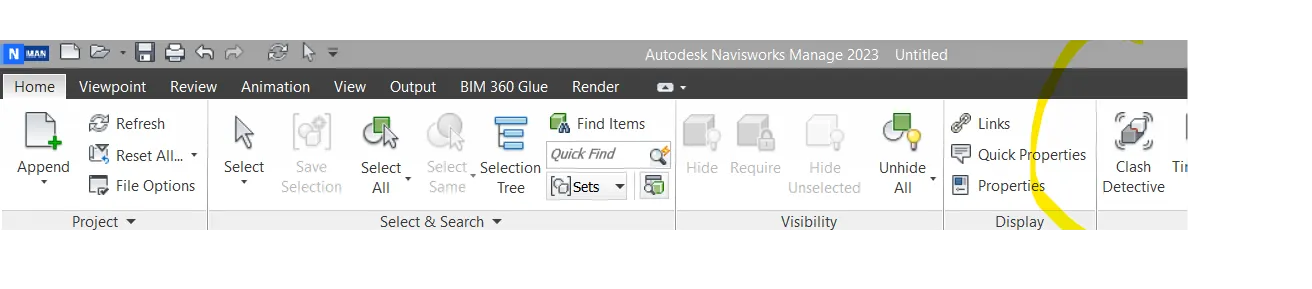

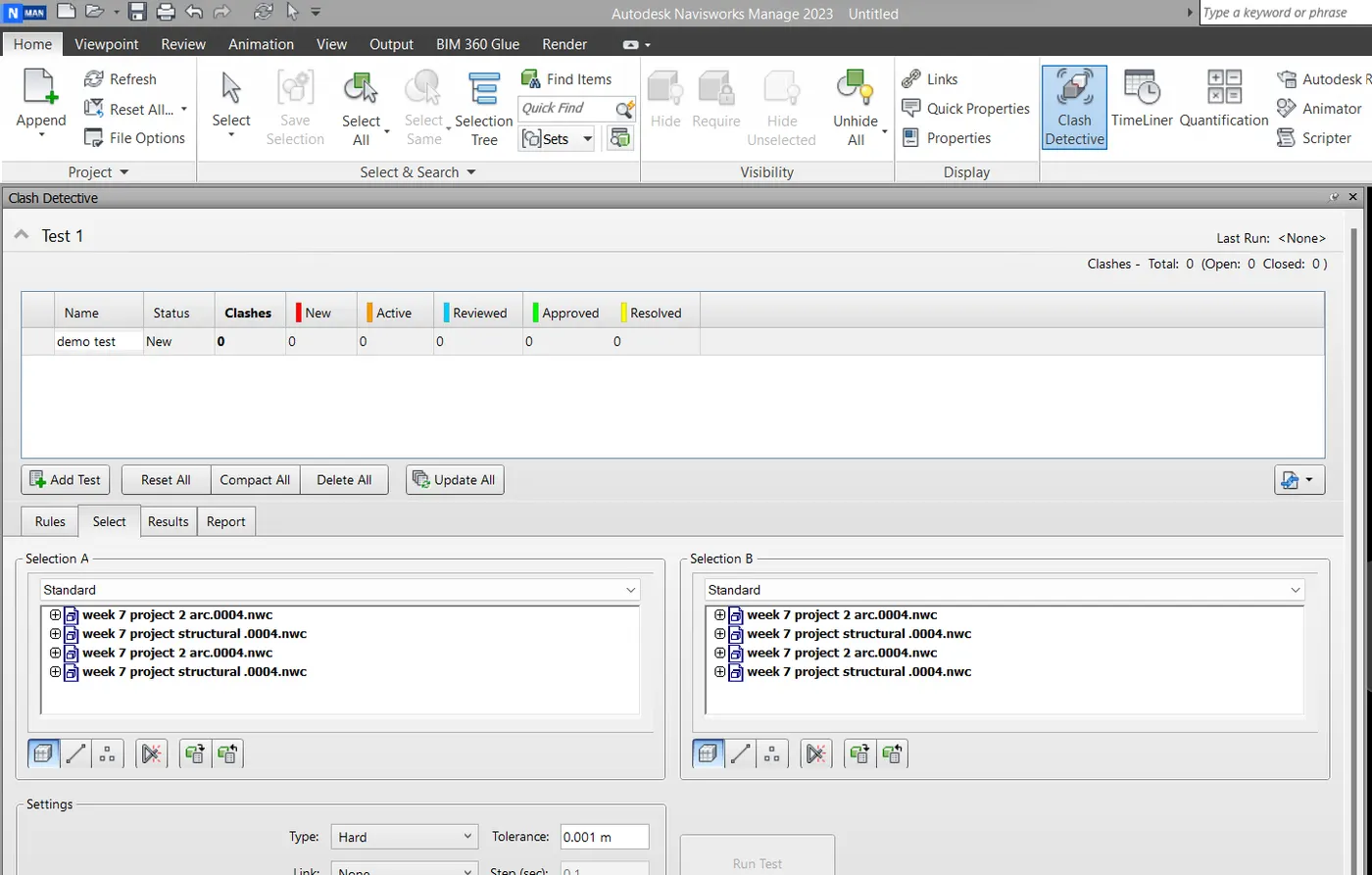

           click on clash detactive test available in home tab



        then dialog box will apear

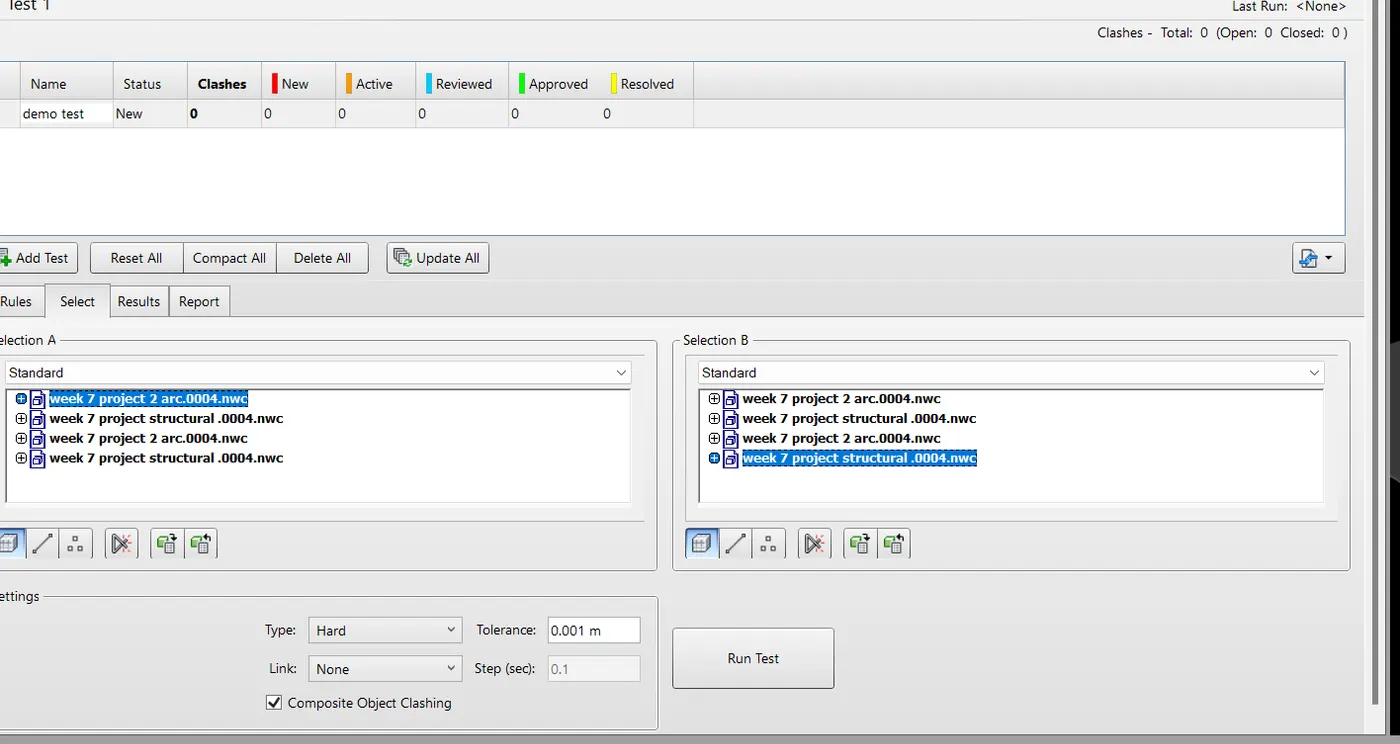

step 4) then click the add test option

           and rename the test name as demo test



           then select architecture from section A and structural from section B because we conduct test between arc and stru.

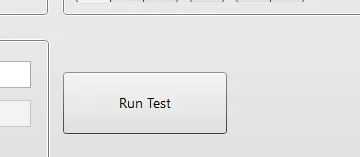

         and selcet surface option and click on run test option





       our clashesh will see on screen

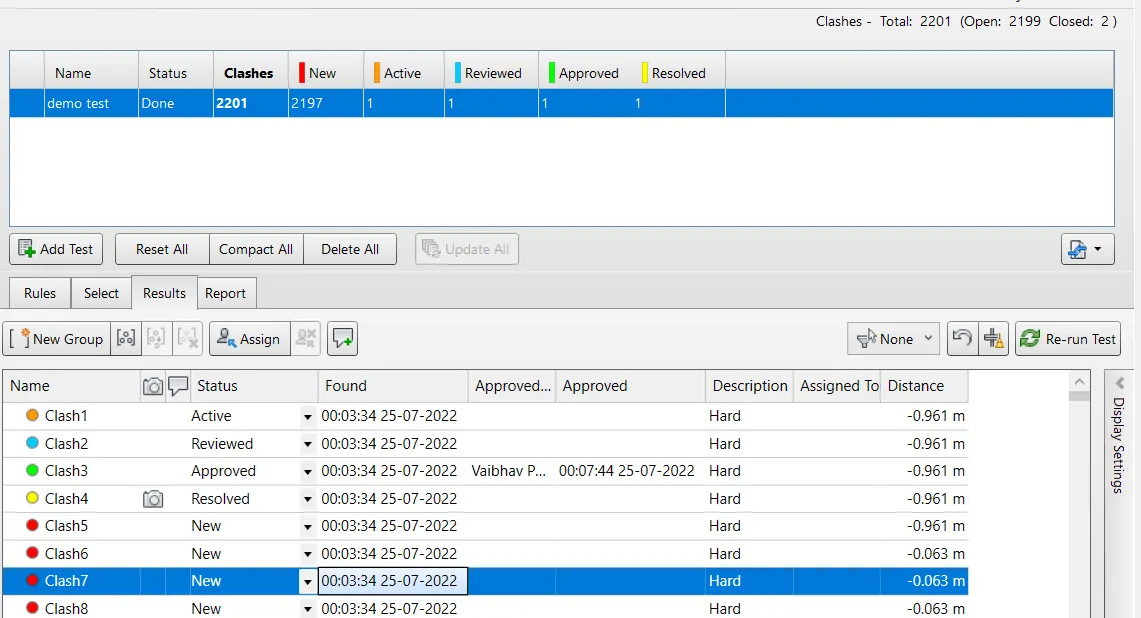

step 5) then change status like active, approved,resolved and reviewed accordingly





Result: clash detactive test done successfully using navisworks 2023











Q5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file



AIM: Using the Timeliner feature in Navisworks prepare a schedule for the project



Introduction: timeliner gives us simulation of tast accordingly date and time, also helps us to know progress of work



Procedure:

step 1) export structural and architectural file from revit

            open revit software

           then open project of week 7 for export to naviswork





           then click on file menu

           and go on export option

           then select NWC option from export to export revit file to architecturer



           and then save the file on path

          our file is ready to export from revit to navisworks





step 2) append both architectural and structural file by adding







step 3) timeliner

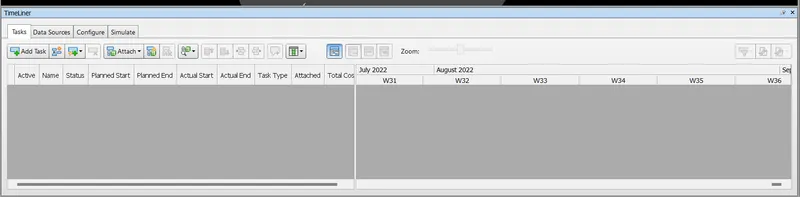

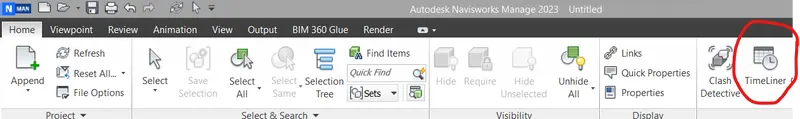

           click on timeliner option from home tab





         then it shows timeliner tool





step 5) before add  task option, enable the selction

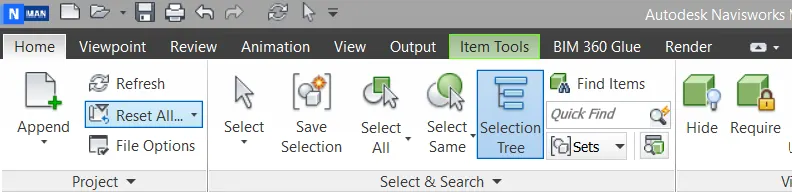

          so go to selection tree option from selection in home tab





        n just select curtain wall from ground gloor

       then go for add task optionn

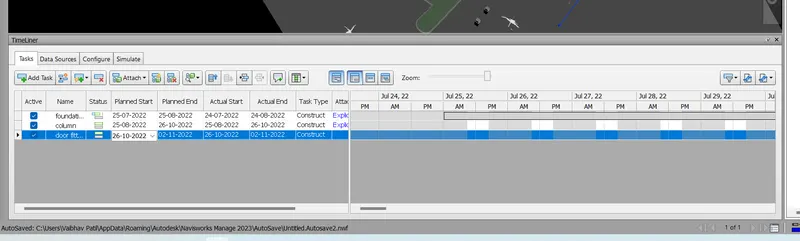

  step 6) fill the task bar with proper date time

             and attatch same



            similarly add all task

            with start date and end date with attactch

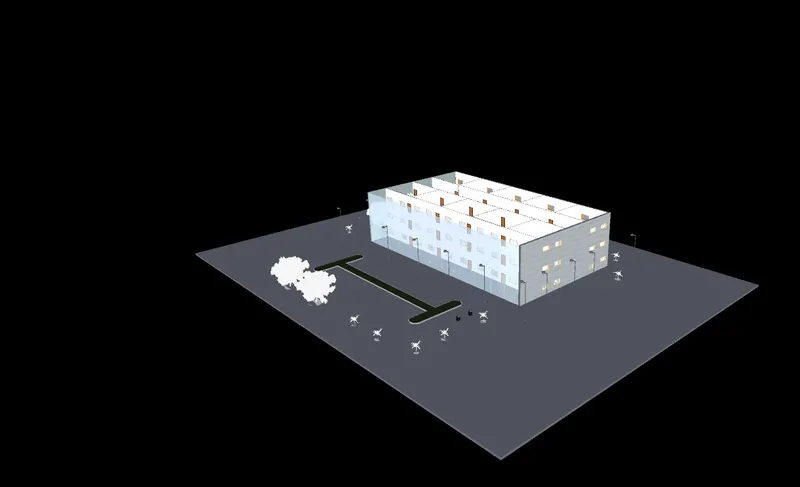

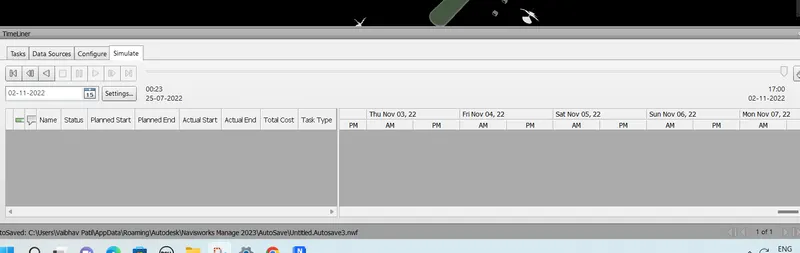

step 7) video will see on simulate tab

           we can also save on local desk

           thats vdeo co tain actuall day by day progrss of building





Result: task schedule prepared successfull by using timeliner
