3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT





1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level



AIM: Model a ceiling from the architectural tab. above the walls at the first floor level



Introduction: the creation of ceilling with revit is a very similar process to that of floor and roof, only take care is to be in the correct ceilling plan view before you start



Procedure:

step 1) take a week 3 project

             from save file and open the project

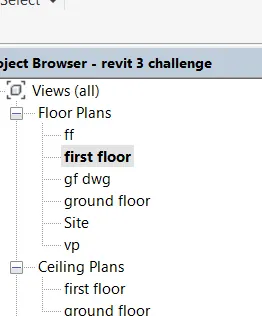

step 2) select first floor from property browser

            for add ceiling on first floor ( as floor plan view )

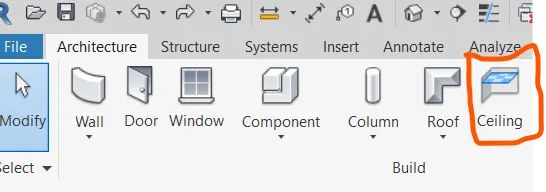

step 4) ceiling

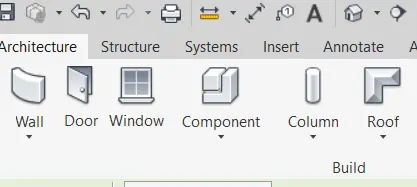

           go to architecture tab and click on

           then choose ceiling option from Build

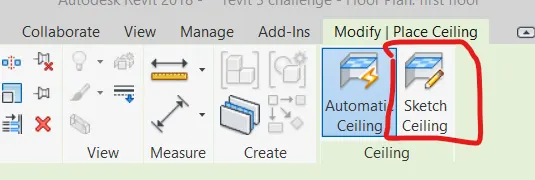

step 5) Modify

          then select sketch Ceiling for build a sketch

          from place ceiling option

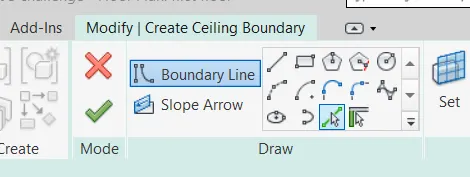

step 6) Ceiling Boundary

          select Boundary line option

          and pick line option for decide boundary of the layout

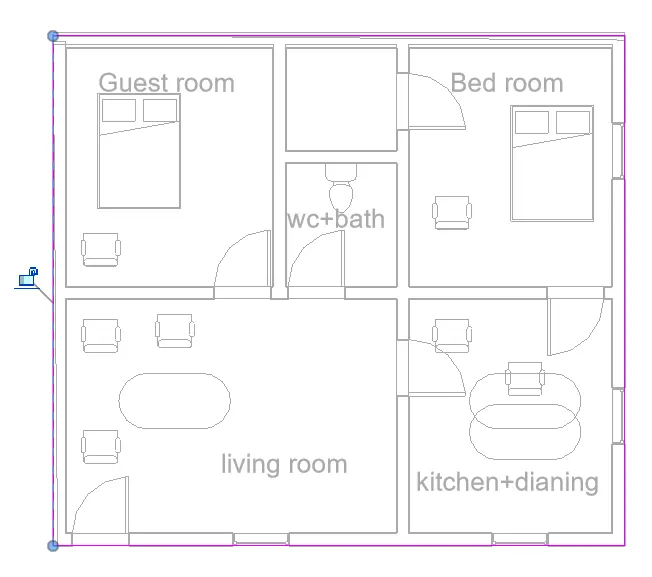

step 7) selection of Boundary

            select Boundary by using outer lines of walls

            as shown in below fig

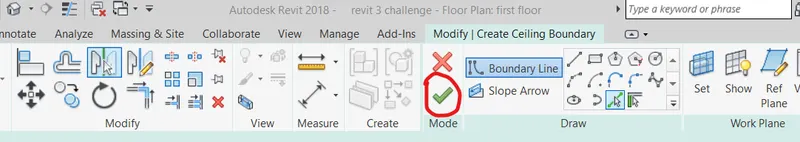

step 8) assin ceiling

           click on right sign from modify tab

            for assigning the ceiling to object

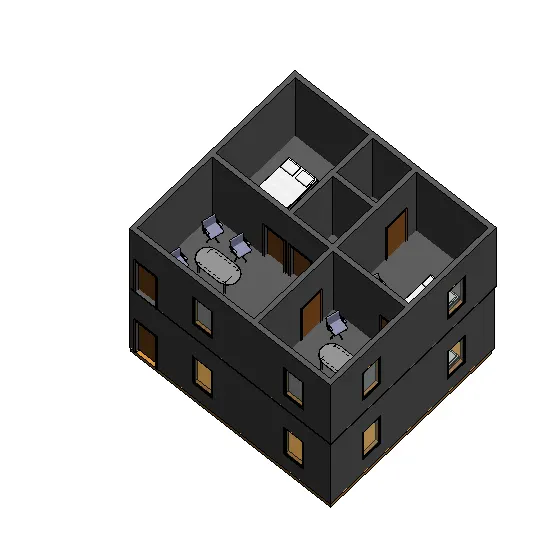

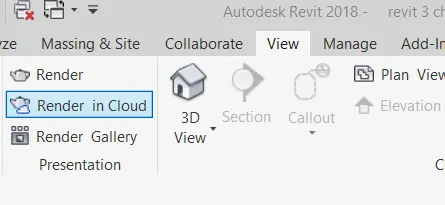

step 9) 3D view

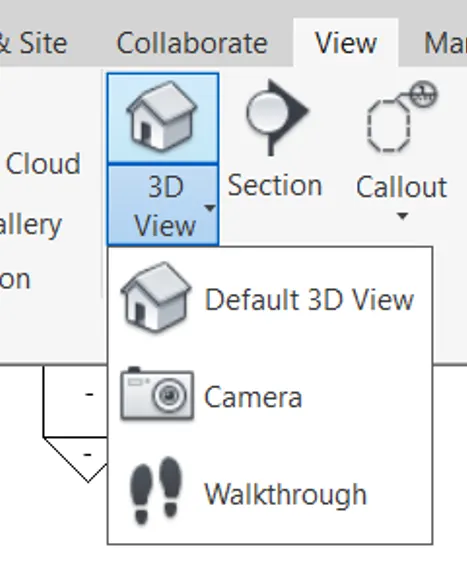

           go to view tab

            and select 3D view for viewing ceil



Result: add ceiling to first floor by using architectural tab is done successfully







2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees



AIM: Model a roof above the ceiling by selecting the footprints of the ceiling.



Introduction: roof is a covering material of building, also roof gives to plateform to convinence



Procedure:

step 1) take a week 3 project

             from save file and open the project





step 2) select first floor from property browser

            for add ceiling on first floor ( as floor plan view )





step 4) Roof

           go to architecture tab and click on

           then choose Roof option from Build

          and choose roof by footprint option

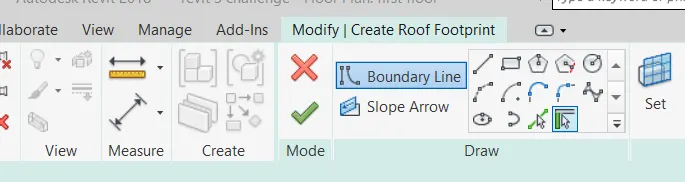

step 6) create toof footprint Boundary

          select Boundary line option

          and pick line option for decide boundary of the layout





step 7) selection of Boundary

            select Boundary by using outer lines of walls

            as shown in below fig





step 8) assin roof

           click on right sign from modify tab

            for assigning the roof to object

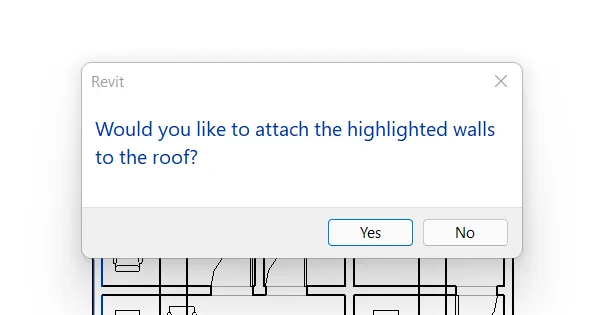

Step 9) for attach the wall to roof

             then press on yes tab

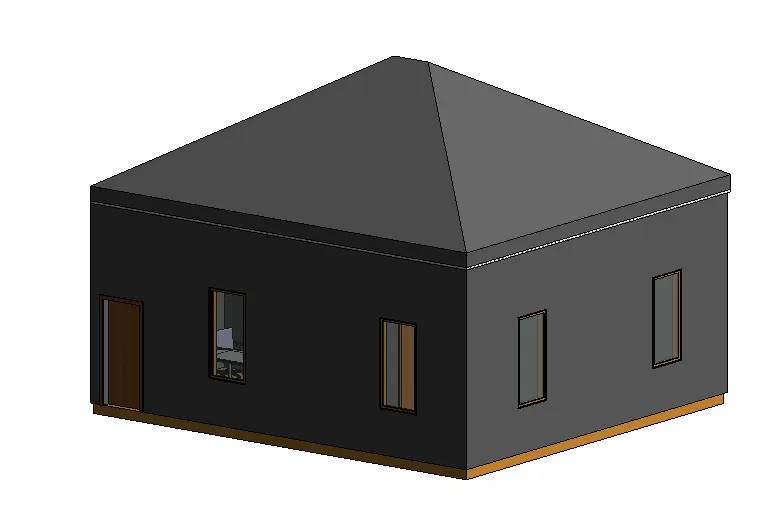

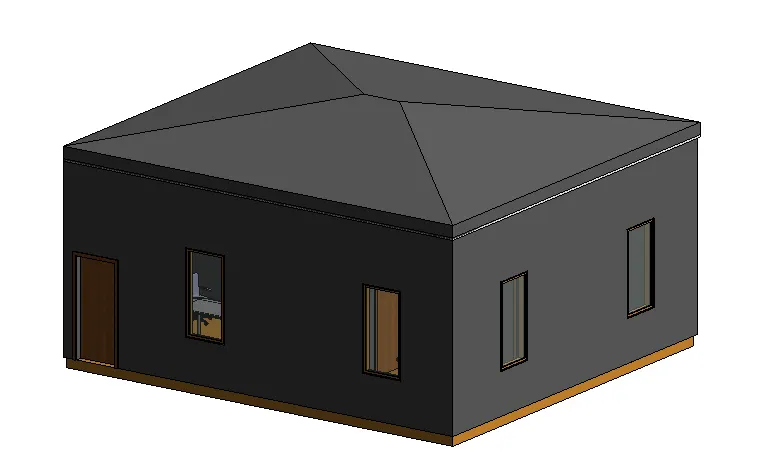

step 10 )  go to 3d view for cheiking roof

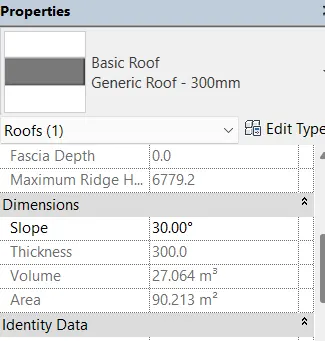

Step 10) slope of roof

            select the roof

            select slope option from property browser





Step 11) slope of roof

            then take slope as 10 degree

            so type 10 in slope box

            by changing slope unit from feet to degree form unit command

            and press on aplly, our slope get changed



Result: creating 10 degree slope to first floor from architecture roof is done successfully







3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns



 AIM: create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans



Introduction:  the structural plan view is the default view when you start a new project using a structural templet

                        & th floor plan view is a default view in a architectural templet



Procedure :

 A. Architecture plan must have walls, floors, and all the components placed within the building

step 1) take a week 3 project

             from save file and open the project





step 2) select first floor from property browser

            for add ceiling on first floor ( as floor plan view )

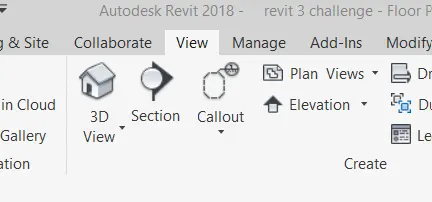

step 3) view option

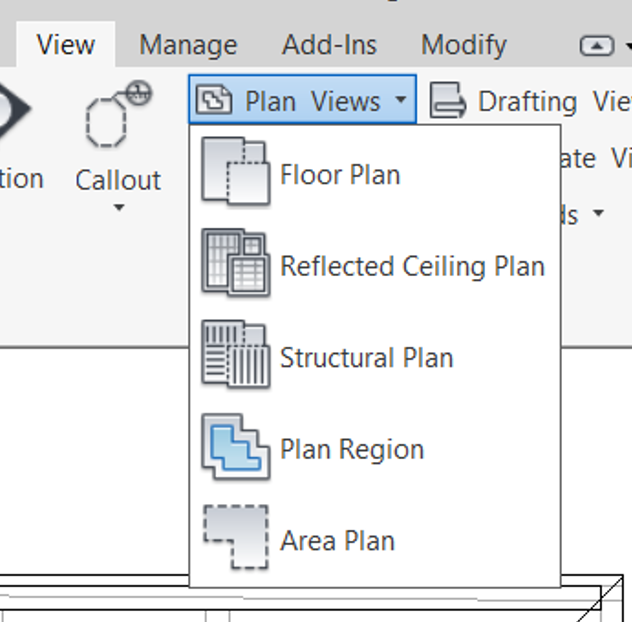

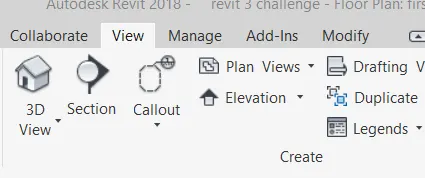

           go to view tab and click on

           then choose plan view option from create





step 4) architectural plan

           drawp down the plan view option

           and choose floor plan option and click on it









step 5) architectural plan

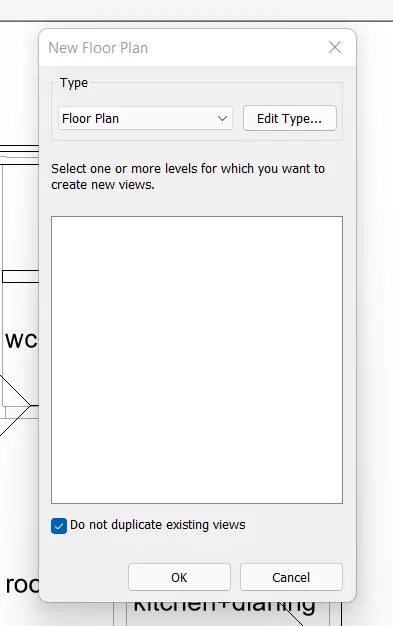

           then nwe floor plan screen is open for view

           then press ok

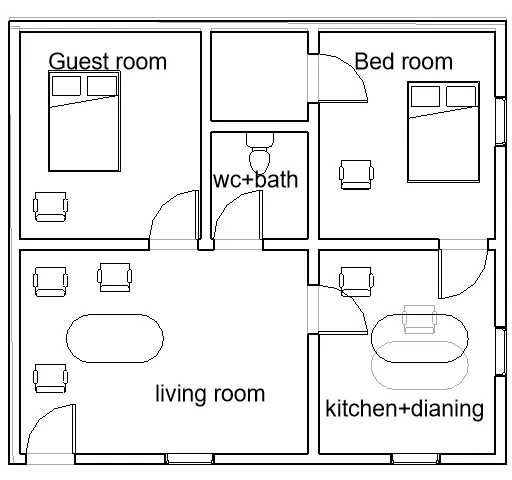

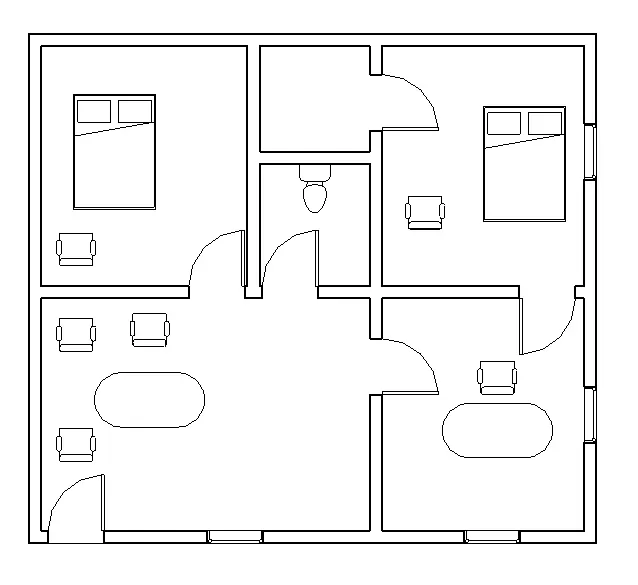

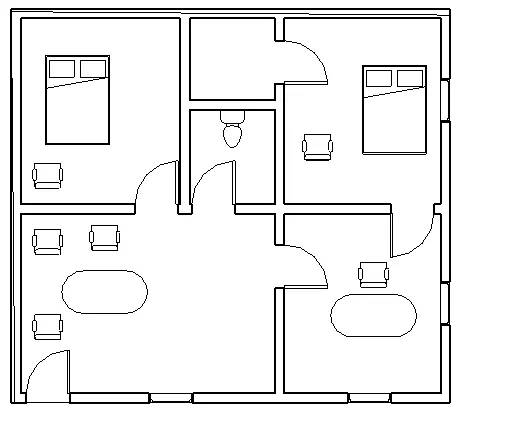

step 6) you see the architectural floor plan





B. Structure plan must have details of only walls, floors, and columns

step 1) take a week 3 project

             from save file and open the project





step 2) select first floor from property browser

            for add ceiling on first floor ( as floor plan view )





step 3) view option

           go to view tab and click on

           then choose plan view option from create

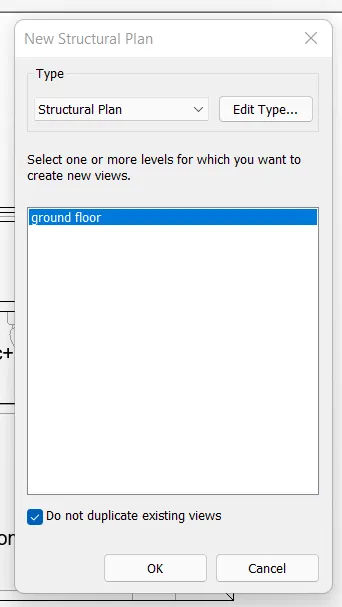

step 4) Structural Plan

           drawp down the plan view option

           and choose Structural Plan option and click on it







step 5) structural plan

           then nwe floor plan screen is open for view

           then press ok

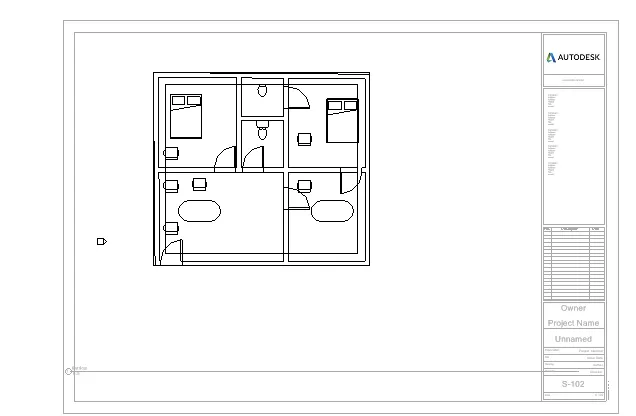

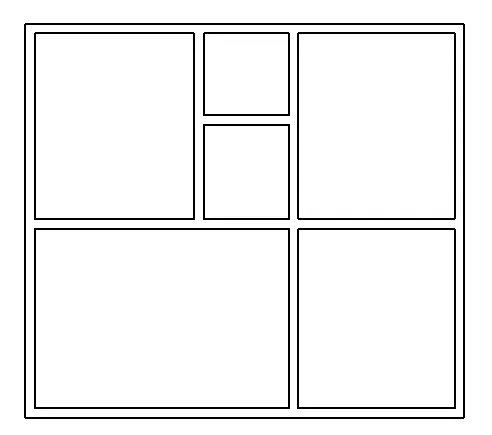

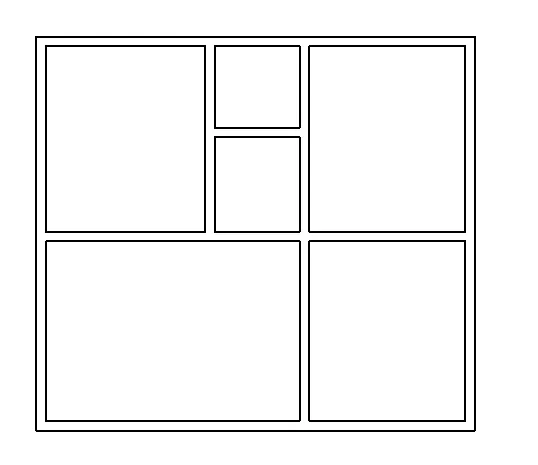

step 6) you see the structural floor plan





Result: architectural and structural floor plan are make successful using plan view option









4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans



AIM: Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file



Introduction: annotation plays very important role for understanding drawing, during estimation, execution etc etc



Procedure: Dimension to Architectural plan

step 1) go to archtectural view

           from property browser

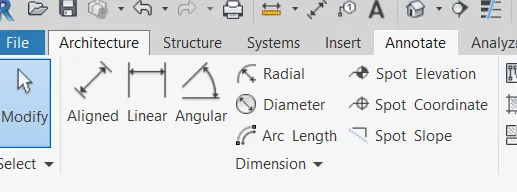

step 2) go to annotate tab

           select alined option or linear option from dimension

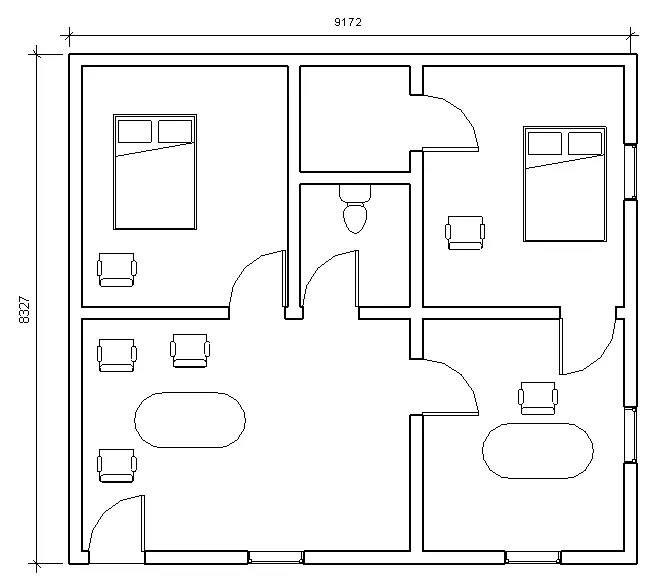

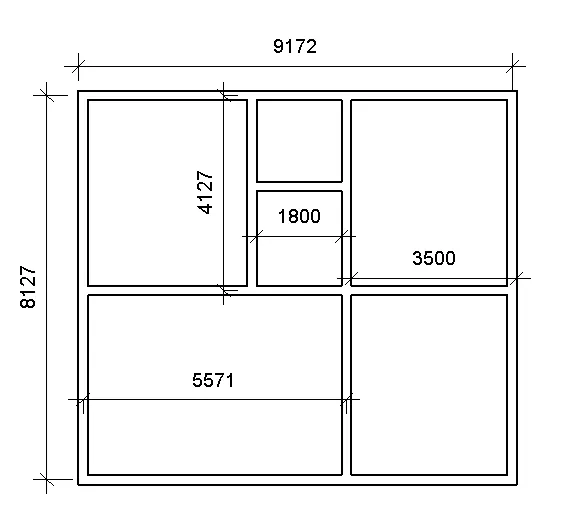

step 3) select the outer of wall where we want to dimensioned

           and dimension the plan





Dimension for structural plan

step 1) go to archtectural view

           from property browser





step 2) go to annotate tab

           select alined option or linear option from dimension





step 3) select the outer of wall where we want to dimensioned

           and dimension the plan





Result: annotate dimension to architectural and structural plan are done successfully









5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views



AIM: Create a sheet template from the view tab



Introduction: creat view on a project templet before you start a building the model to streamline the project documentation process



Procedure: make a sheet

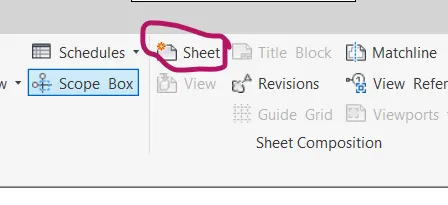

Step 1) go to view tab

             then choose sheet icon and click on sheet

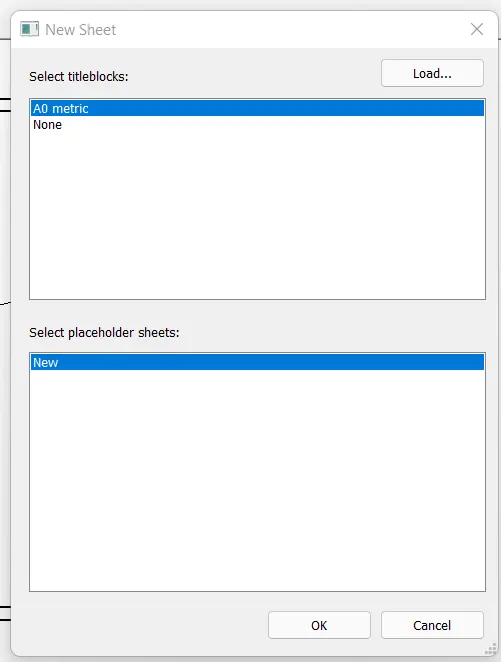

Step 2) choose paper size

             here showing variou type of paper sizes

             so choose A0 metric paper size

             and press ok

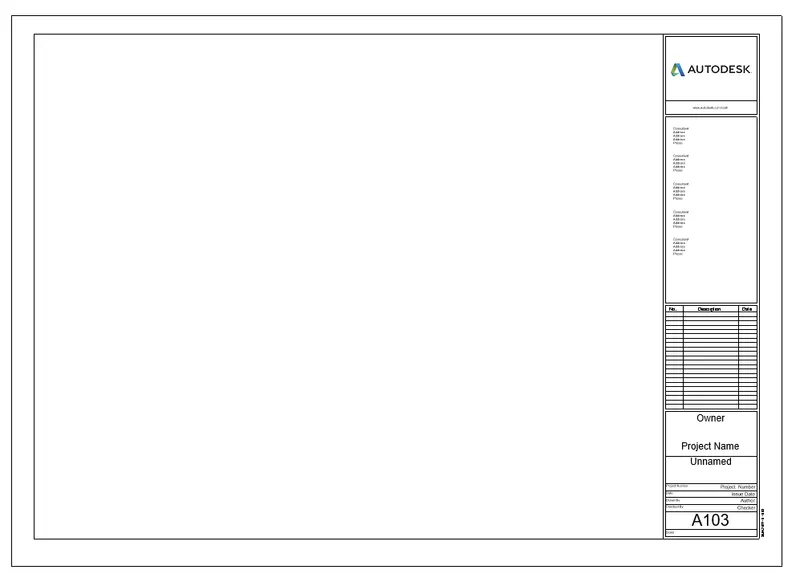

Step 3) immediatly sheet will be created

             after chooseing a paper size

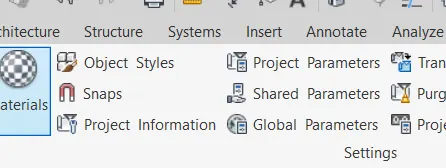

Step 4) rename the sheet ( project information )

            or fill project information to sheet

            from project information from manage tab

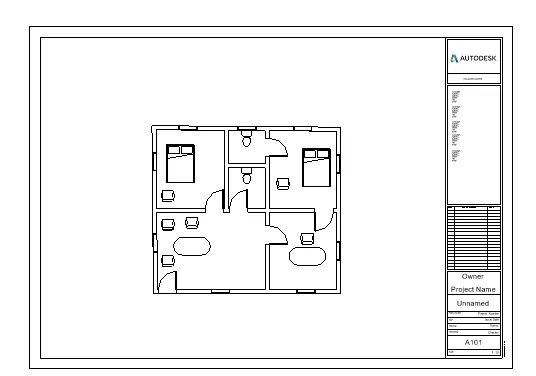

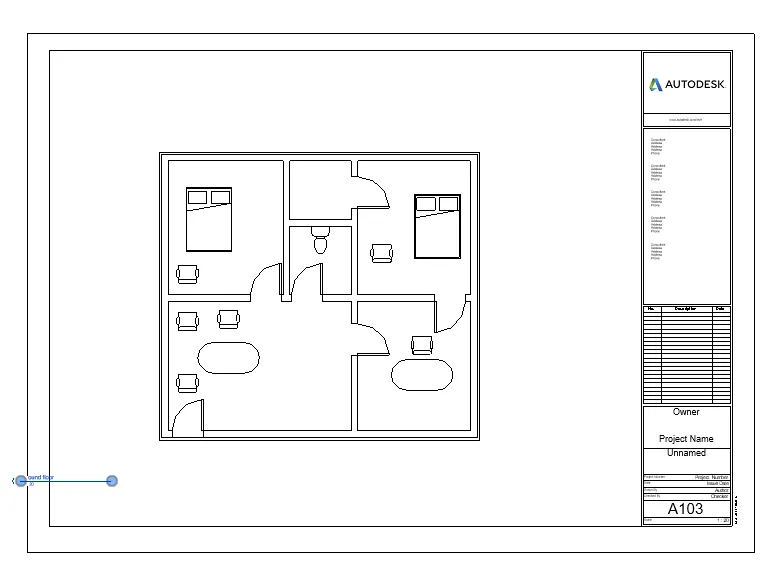

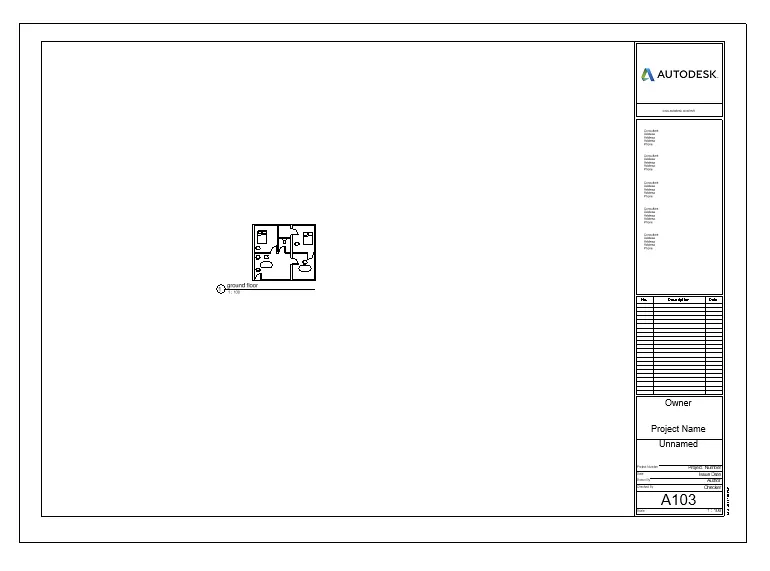

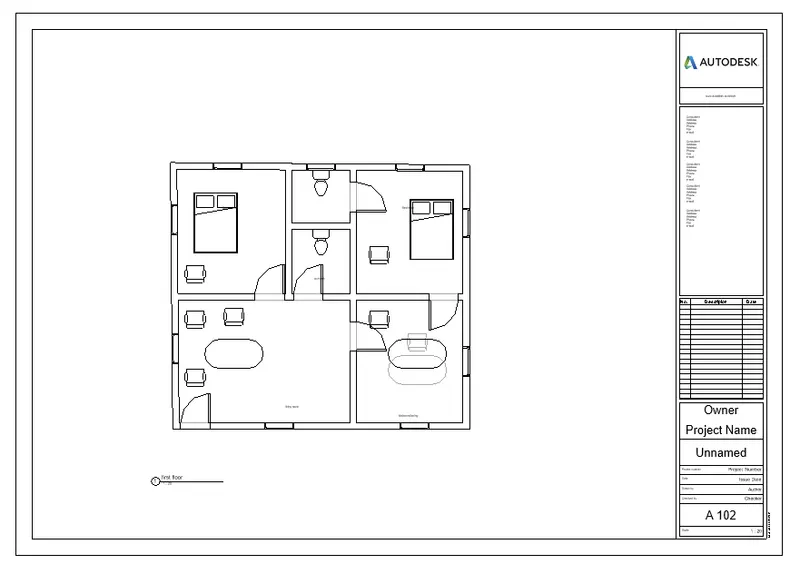

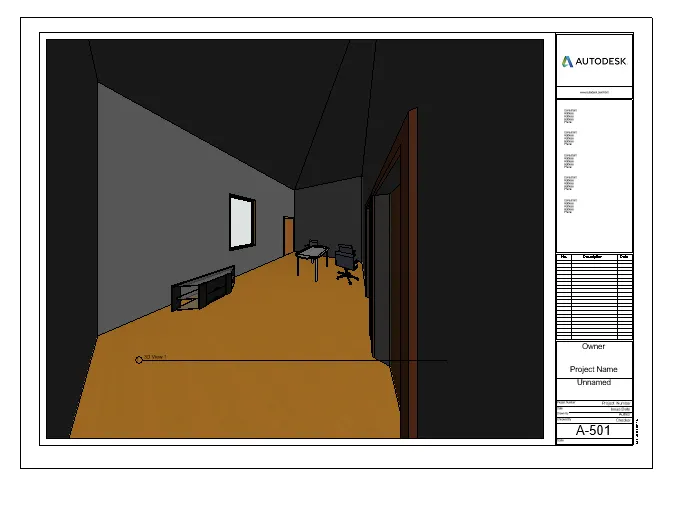

Step 5) adjust the parameters on the sheet to add appropriate views

            go on sheet from property browser

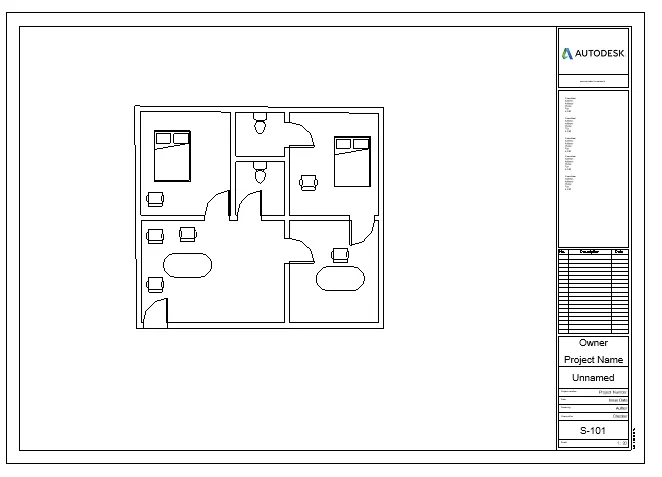

            then click and drag the ground floor plan on sheet





Step 6) adjust the scale

            go to scale on property browser

           set the proper scale for clear visible

           set scale as 1:20





Result: make a sheet of A0 metric size is done with adjusting parameter for view are successfully by sheet tab







6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West



AIM: create the elevation views, looking at your building from East, North, South, and West



Introduction: A elevation is a view of building seen from one side a flat representation of one view



Procedure:

Step 1) for making elevation we need or use elevation tab

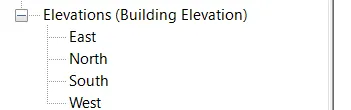

             in my project defalt elevation with north,south,east and west elevation are made

             in project browser, If that are not availabl default to our project

             so just go on view tab and choose elevation option

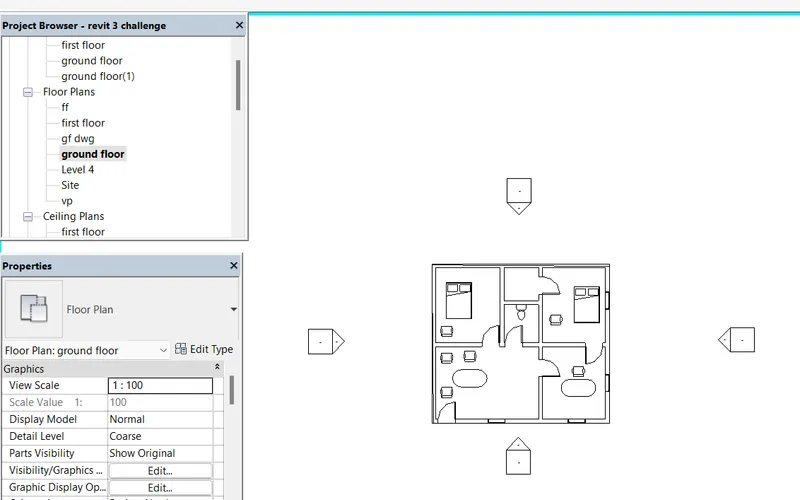

             then put the elvation ball to all four side of opject and rename it as

             north south east and west respectively

            t



            *we have to plan and we make elevation for that plan

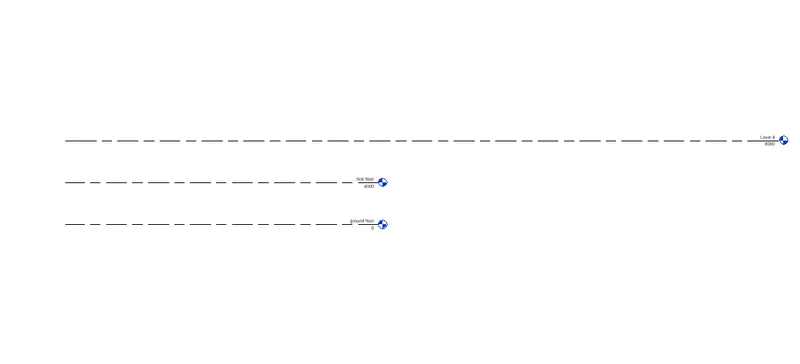

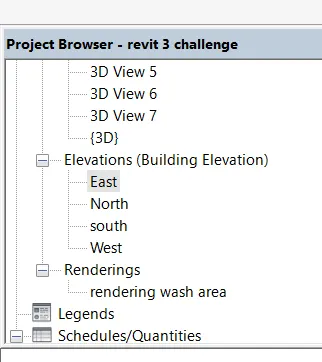

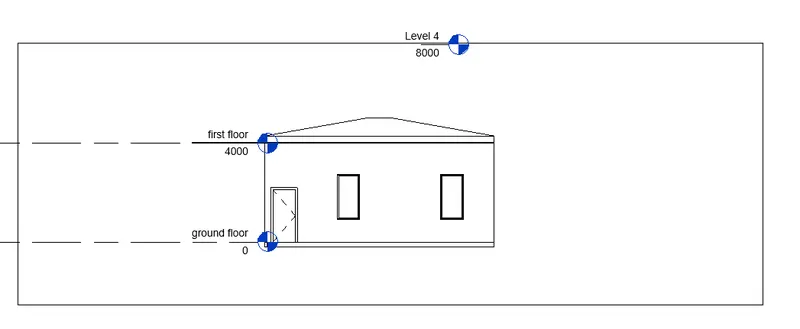

Step 2) East Elevation

            go to project browser



            then click on elevation view and press on east

           we got elevation of east

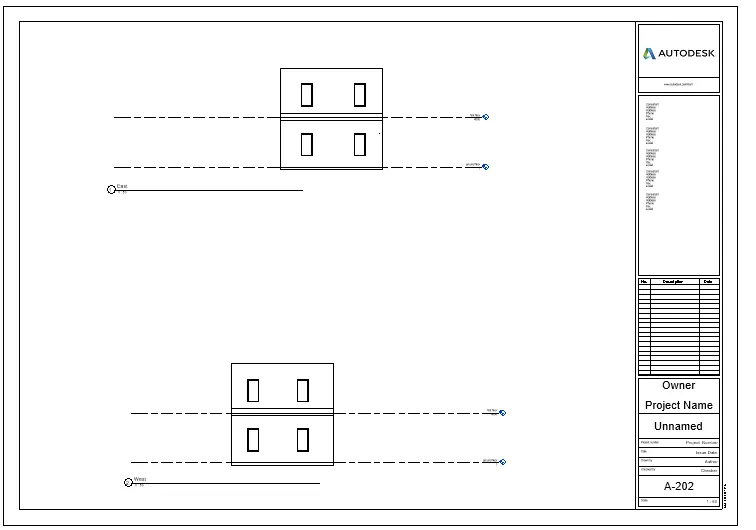

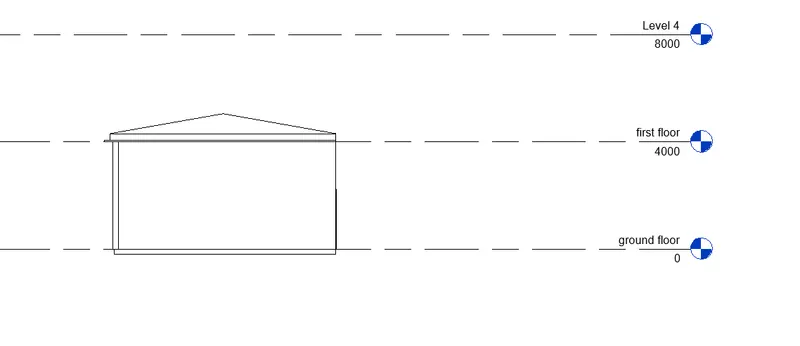

Step 3) West Elevation

            go to project browser



            then click on elevation view and press on West

            we got elevation of west





Step 4) North Elevation

            go to project browser



            then click on elevation view and press on North

            we got elevation of North





Step 5) South Elevation

            go to project browser



            then click on elevation view and press on South

            we got elevation of South





Result: elevation view for all 4 direction are done successfully













7) Produce section cut through each room either cutting across longitudinally or in a transverse direction



AIM: Produce section cut through each room either cutting across longitudinally or in a transverse direction



Introduction: sectional views reveal hidden details in a drawing



Procedure:

           A. Bed room section

step 1) go to the ground floor plan

            select from project browser

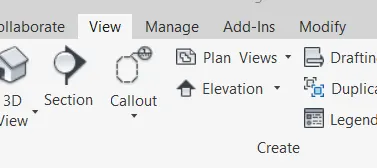

step 2) go to view tab

            then just click on section icon

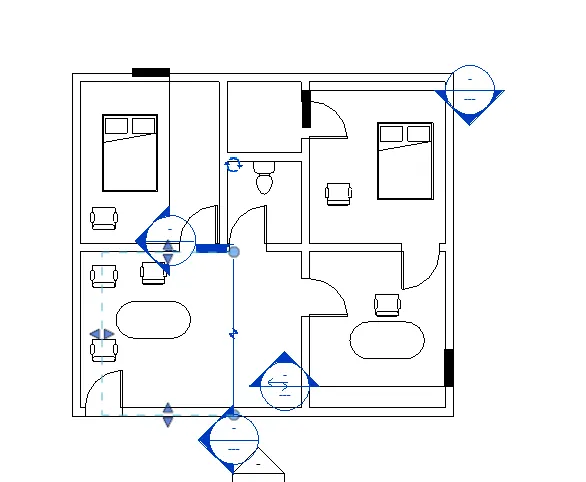

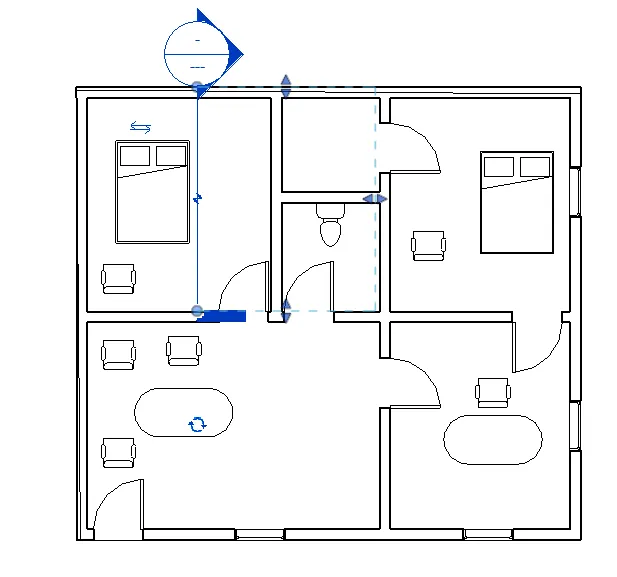

step 3) draw section line

           draw section line on bed room

           by just click on outer edge of wall of room

           and select second corner of wall where we wish to section

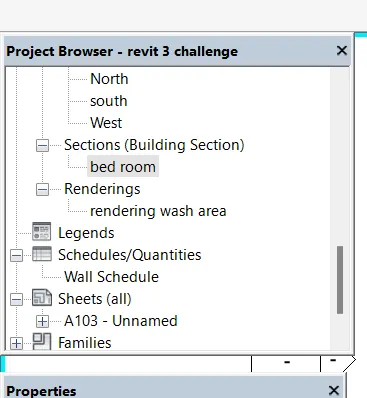

step 4) rename the section

           go to project browser

           draw down the section option

           and rename the section 1 as bed room

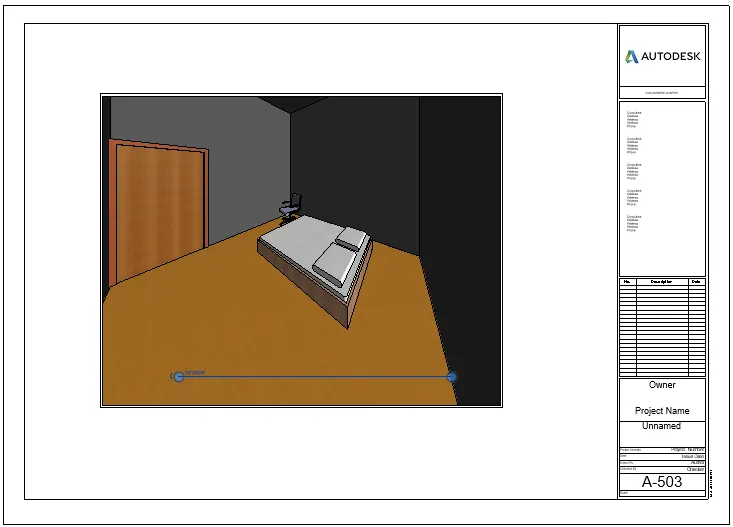

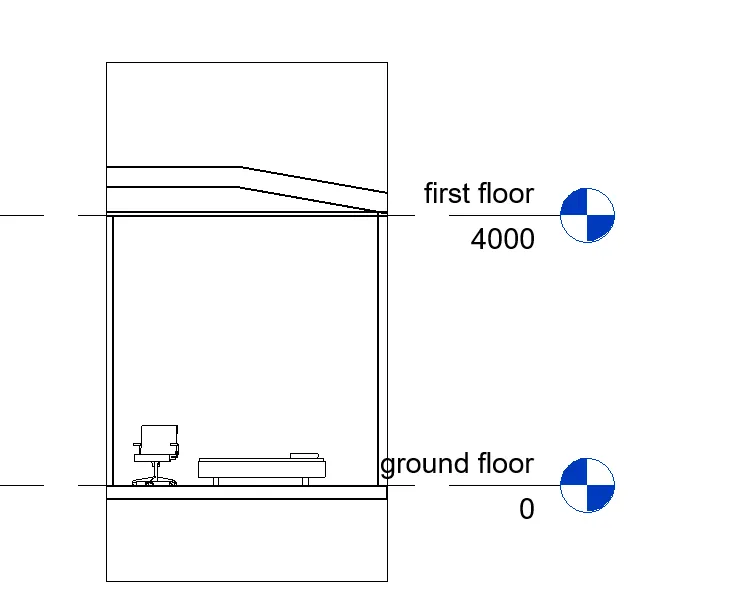

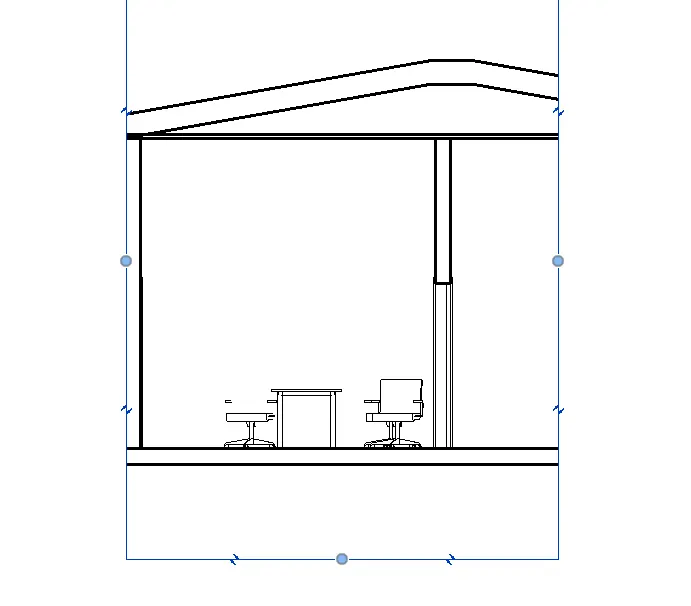

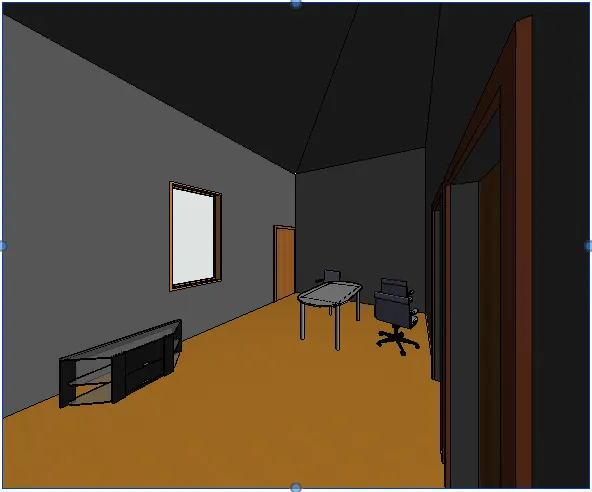

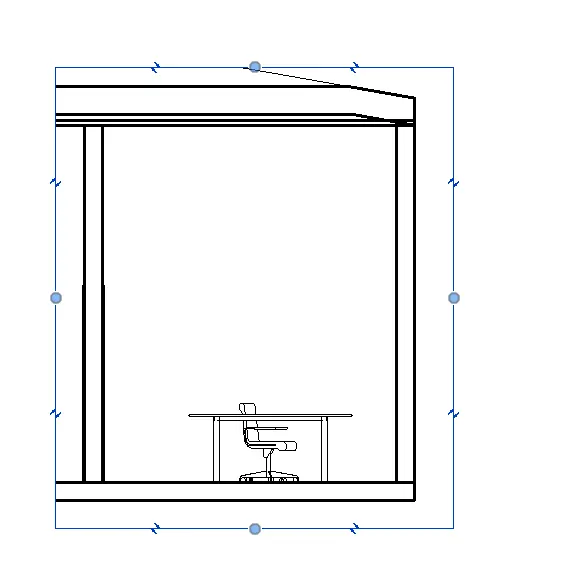

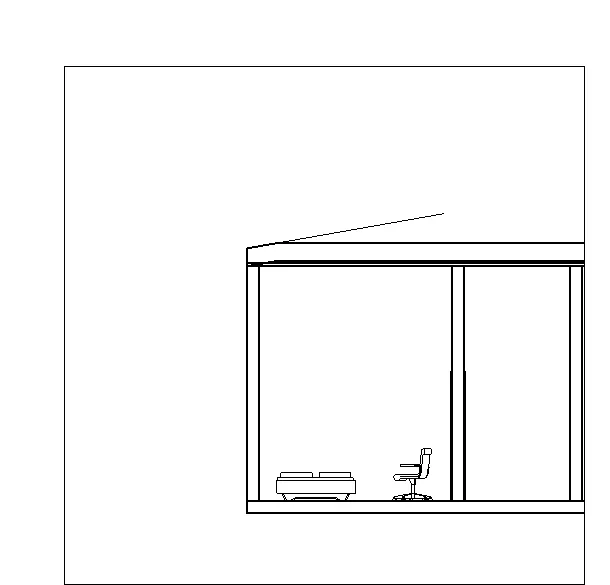

step 5) view bed section

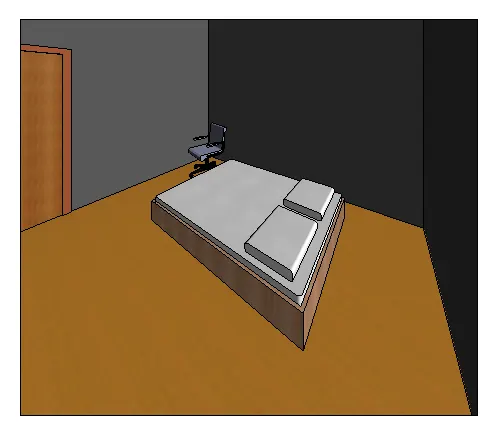

           click on bed room in section we see the section of bed

           like that, and select the region for clear view





         A. Master Bed room section

step 1) go to the ground floor plan

            select from project browser





step 2) go to view tab

            then just click on section icon

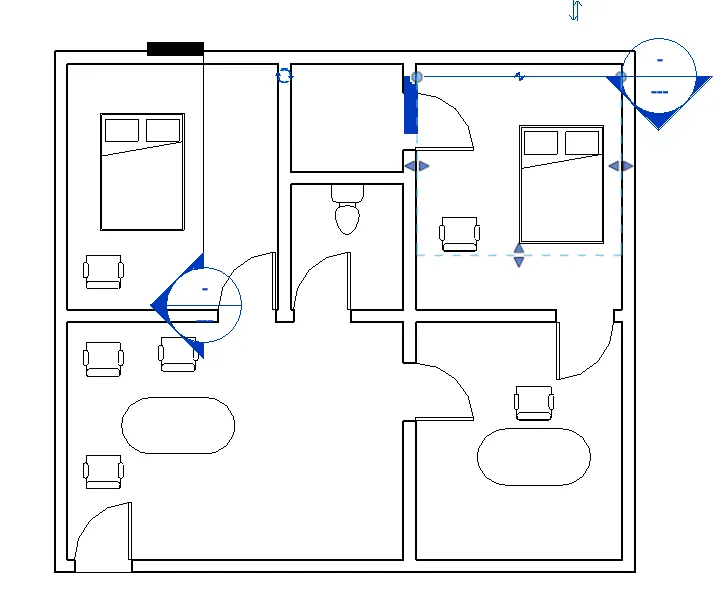

step 3) draw section line

           draw section line on master bed room

           by just click on outer edge of wall of room

           and select second corner of wall where we wish to section





step 4) rename the section

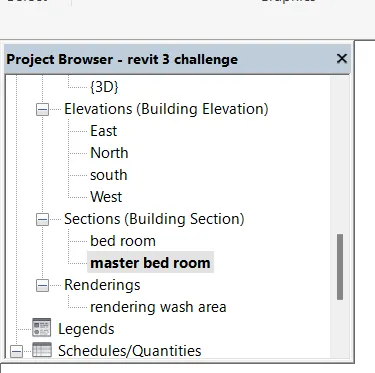

           go to project browser

           draw down the section option

           and rename the section 2 as master bed room





step 5) view master bed section

           click on master bed room in section we see the section of bed

           like that, and select the region for clear view





         C. kitchen section

step 1) go to the ground floor plan

            select from project browser





step 2) go to view tab

            then just click on section icon

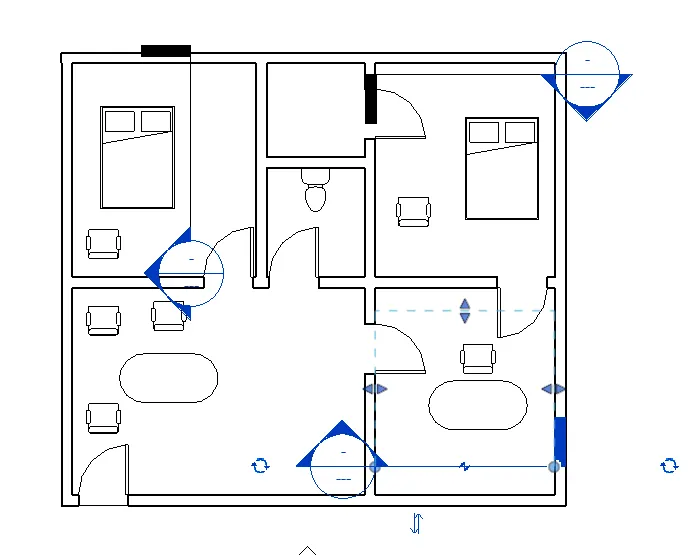

step 3) draw section line

           draw section line on kitchen

           by just click on outer edge of wall of room

           and select second corner of wall where we wish to section

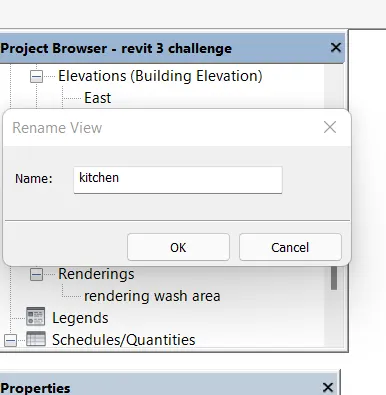

step 4) rename the section

           go to project browser

           draw down the section option

           and rename the section 1 as kitchen

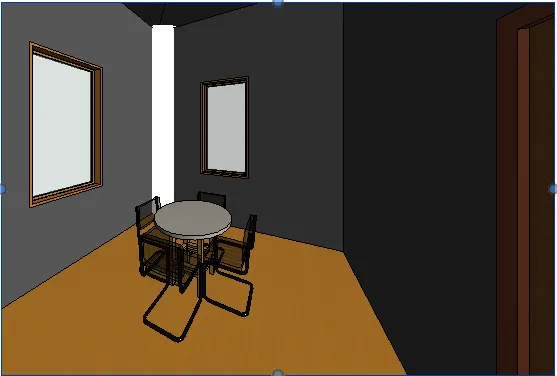

step 5)  kitchen section

           click on kitchen in section we see the section of kitchen

           like that, and select the proper region for clear view





        D. Living room section

step 1) go to the ground floor plan

            select from project browser





step 2) go to view tab

            then just click on section icon





step 3) draw section line

           draw section line on living room

           by just click on outer edge of wall of room

           and select second corner of wall where we wish to section

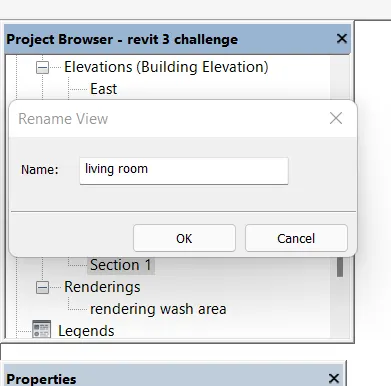

step 4) rename the section

           go to project browser

           draw down the section option

           and rename the section 1 as living room

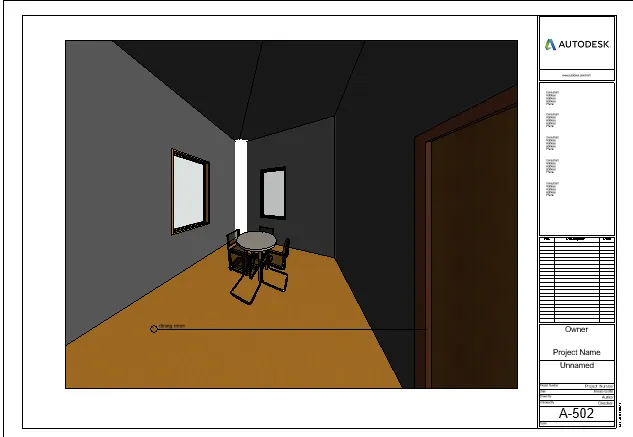

step 5)kitchen room section

           click on bed room in section we see the section of bed

           like that, and select the proper region for clear view



Result: section for bed room, master bed room , kitchen and living room are done successfully using section tab









8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browse



AIM: Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browse



Introduction: views of building or project are classified with levels, view, section and elevation etc etc, for easy work and visuall ascpect



Procedure:

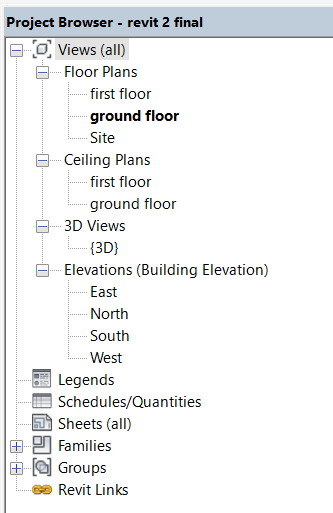

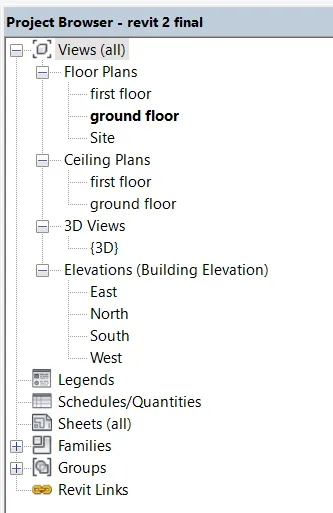

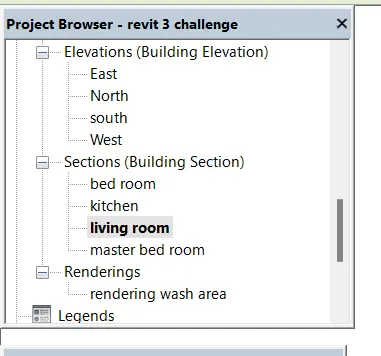

Step1 ) first we open the project browser, theviews, plan views, section views and elevation views are visible in that project browser as shown in fig

             we insert these plans one by one in the sheet separately





Step 2) plan view:

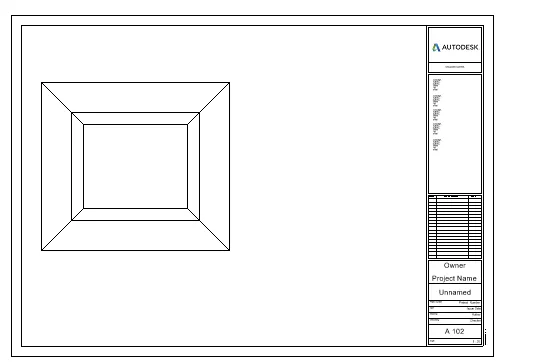

            plan view consist of floor plan, ground floor plan, roof means it consist all level of our project

            in help of floor plan we able to work on perticular space or level

            with the help of floor plan we can open any floor level whenever we required

            it is actually top view of building or plan



          that is floor plan for first floor







step 3) section views

            section view is cut/ break view of building from perticular position/site of the object

           section view is help to actual visuallization of building after cutting any face of building

           with the help of section view we can able to see various room or building unit from any side of the room

           we create diffrent section for diffrent units

           here we create section for all the rooms





          that is the section view for kitchen rooom

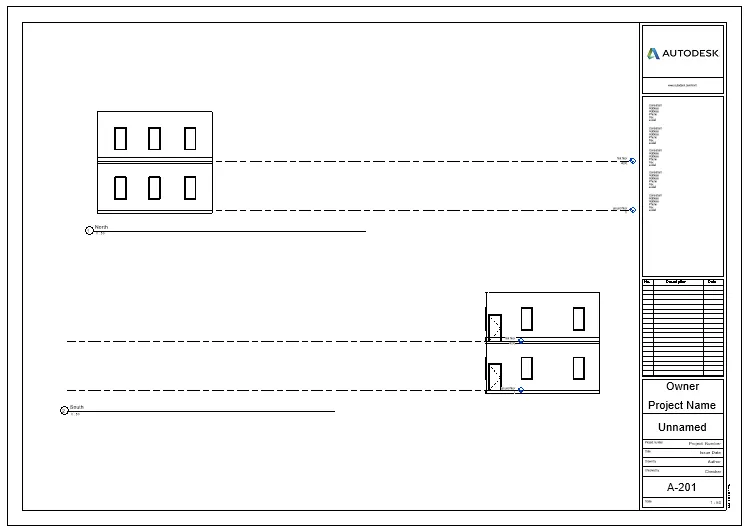

step 4) Eleavtion view

            elevation view of building is actually a front view or exterial appearance of building from any corner of building

            elevation helps to visualised actual apearance of exterior view

           elevation are difrent from diffrent views

           we present our drawing using the eleavtion view

           here we create elevation for all 4th side

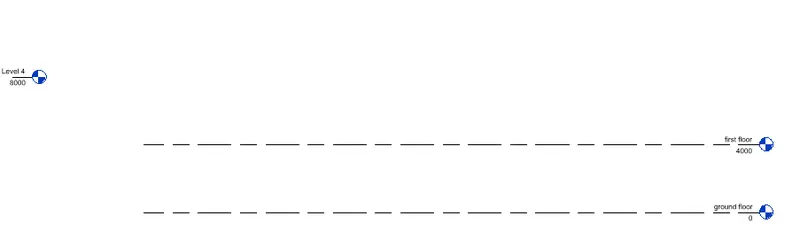

           That is the south section view of building





Result:  we classified views accourding to function and purpose,. that views gives help to working as well as for visuallisation of view











9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations



AIM: To create the multiple sheets and produce the drawing in the sheet



Introduction: when creating a project templet you can include sheets in the templet. start with the blank project file, and creat the standard view and level that each project should include





Procedure: make a sheet

Step 1) go to view tab

             then choose sheet icon and click on sheet





Step 2) choose paper size

             here showing variou type of paper sizes

             so choose A0 metric paper size

             and press ok





Step 3) immediatly sheet will be created

             after chooseing a paper size





Step 4) rename the sheet ( project information )

            or fill project information to sheet

            from project information from manage tab





now using sheettemplet produced create multiple sheet as follows

Step 1) first we produced the ground floor architectural plan in the sheet templet A-101, as shown in the below figure





Step 2) first we produced the first floor architectural plan in the sheet templet A-102, as shown in the below figure





Step 3) first we produced the roof plan in the sheet templet A-103, as shown in the below figure





Step 4) first we produced the ground floor structural plan in the sheet templet S-101, as shown in the below figure





Step 5) first we produced the first floor structural plan in the sheet templet S-102, as shown in the below figure

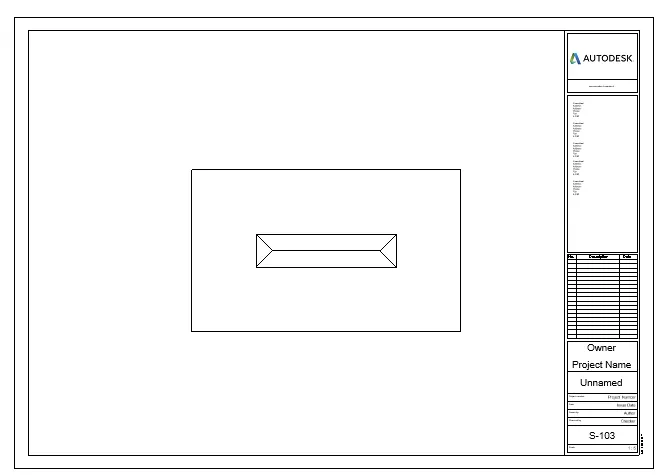

Step 6) first we produced the roof framing plan in the sheet templet S-103, as shown in the below figure





Step 7)next we produced the north and south elevation view in the sheet templet A-201, as shown in the below figure





Step 8)next we produced the East and west elevation view in the sheet templet A-202, as shown in the below figure





Result: created the multiple sheets and produced are drawing in the sheet, from the given drawing









10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting



AIM: To create a camera specific view or a 3D view in living room, dining room and bedroom in the sheet



Introduction: camera view are really useful in revit, they allow us to view what we would actually see if we were standing at any given location in our design



Procedure: make camera view

step 1) make camera view for bed room

            select ground floor plan from property browser

            selct camera from 3D view>view tab





step 2) set camera for bed room

            then set camera on bedroom

            and adjust the window for viewing whole bedroom with proper manner

           and rename view as bedroom





step 3) set camera for dining room

            then set camera on dining room

            and adjust the window for viewing whole bedroom with proper manner

            and rename view as dining room





step 4) set camera for living room

            then set camera on living room

            and adjust the window for viewing whole bedroom with proper manner

            and rename view as living room





   create A sheet

Step 1) go to view tab

             then choose sheet icon and click on sheet





Step 2) choose paper size

             here showing variou type of paper sizes

             so choose A0 metric paper size

             and press ok





Step 3) immediatly sheet will be created

             after chooseing a paper size





Step 4) rename the sheet ( project information )

            or fill project information to sheet

            from project information from manage tab



step 5) create sheet as name with

             A-501, A-502, A-503





Step 6) take sheet A-501 from property browser

             and add living room on sheet

             just put cursor on living 3D view and just drag the cursor on sheet

             and adjust the object window on sheet





Step 7) take sheet A-502 from property browser

             and add dining room on sheet

             just put cursor on dining room 3D view and just drag the cursor on sheet

             and adjust the object window on sheet





Step 8) take sheet A-503 from property browser

             and add bed room on sheet

             just put cursor on bed room 3D view and just drag the cursor on sheet

             and adjust the object window on sheet





Result: creat sheet with camera views of various room are done successfully
