Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo



Q1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.



AIM: create a set of sinusoidal points and curve using dynamo



Introduction: dynamo is usfull to draw parametric model, which can not be possible in revit



Procedure:

step 1) open dynamo

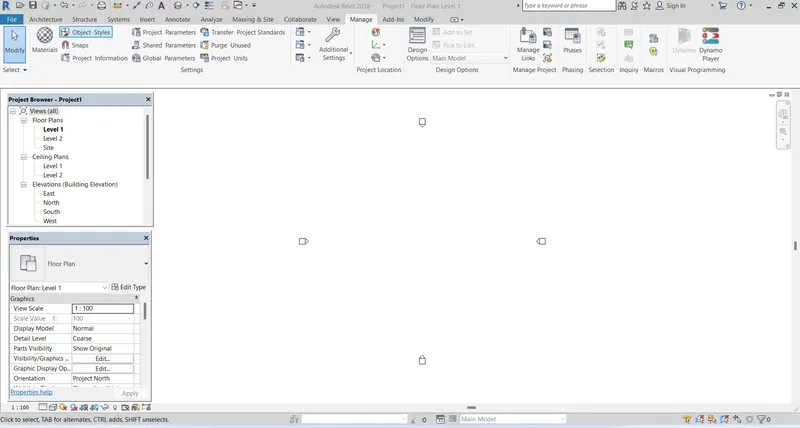

open revit 2018 with architecture project

then go to manage tab from ribbon

and click on dynamo option

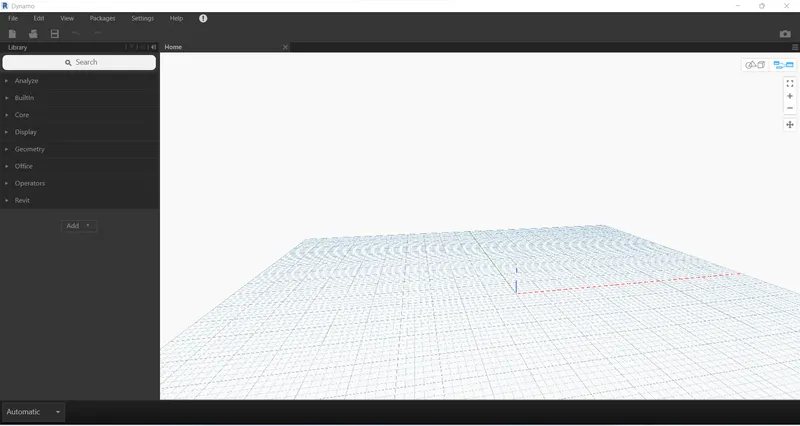

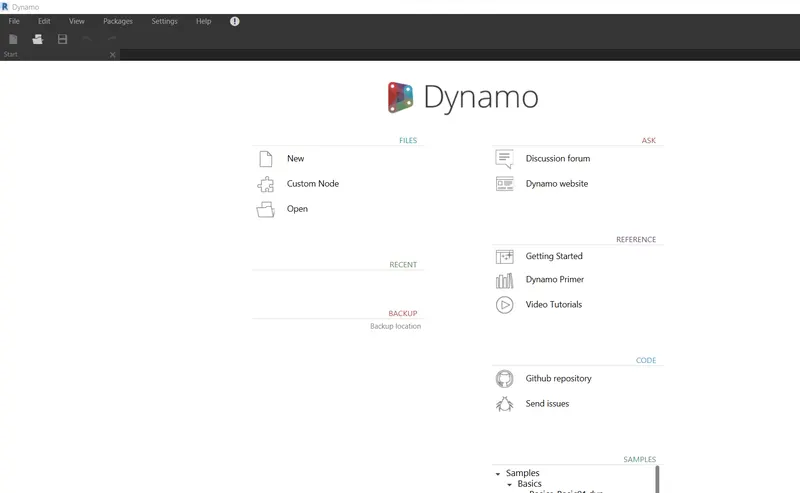

suddenly new window is opened

click on new option for opening new workspace sheet

like this

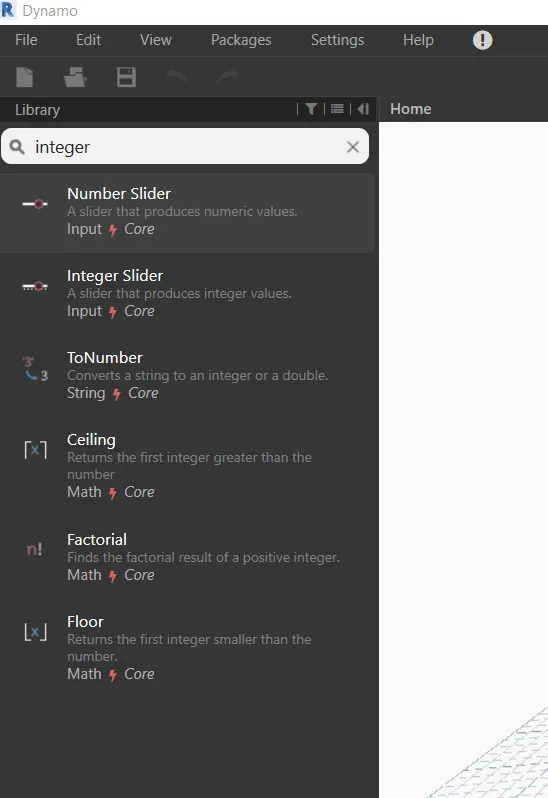

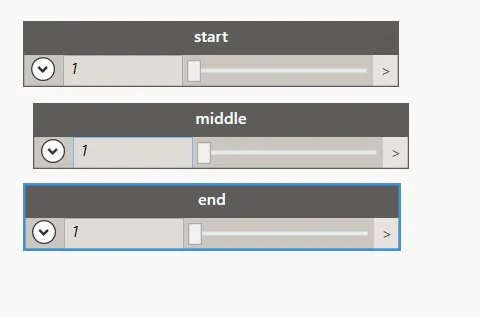

step 2) insert integer slider to dynamo

           go to serch tab

and serch integer slider then press ok on that



and copy it by 2 times cause we need 3 integer slider

for start point, middle and end point

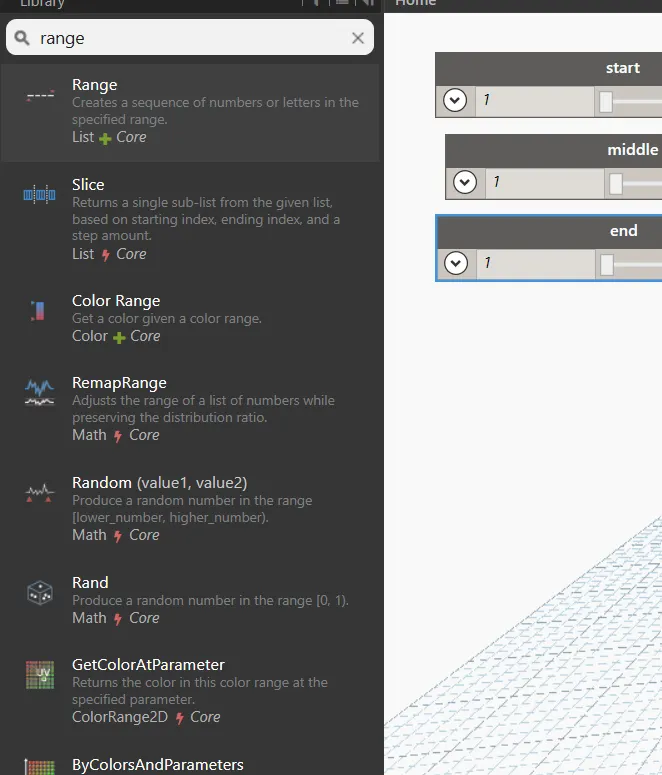

then add range option as procedure



then add slider integer to range

as start to strart, end to end and middle to middle

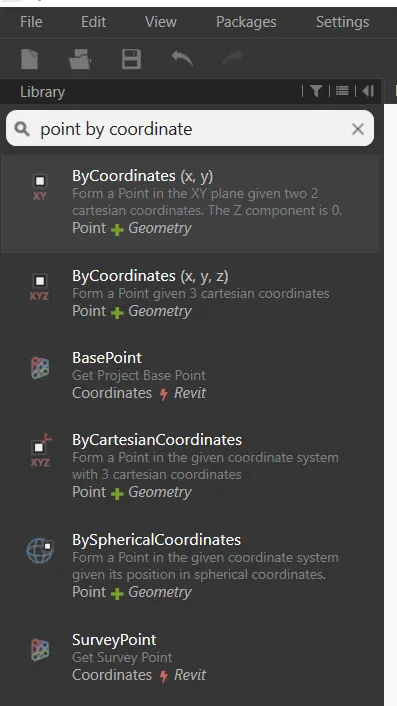

then add point by coordinate with x,y,z axis

from search bar

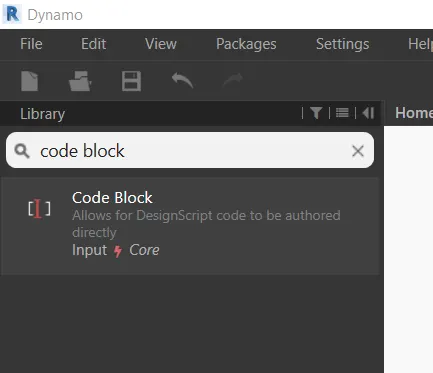

now add code block from search bar by searching code block



again add point by coordinate with x,y,z axis

from search bar

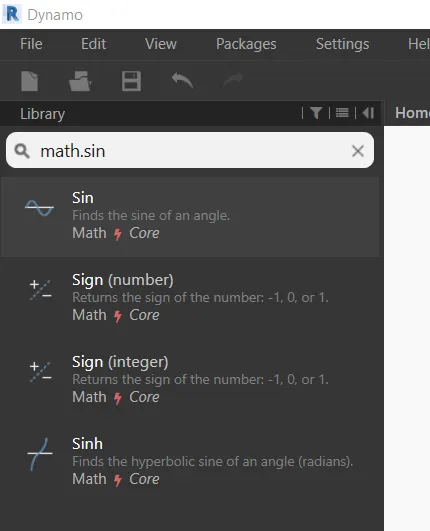

for making sinusodal point we need to add math.sin from search bar

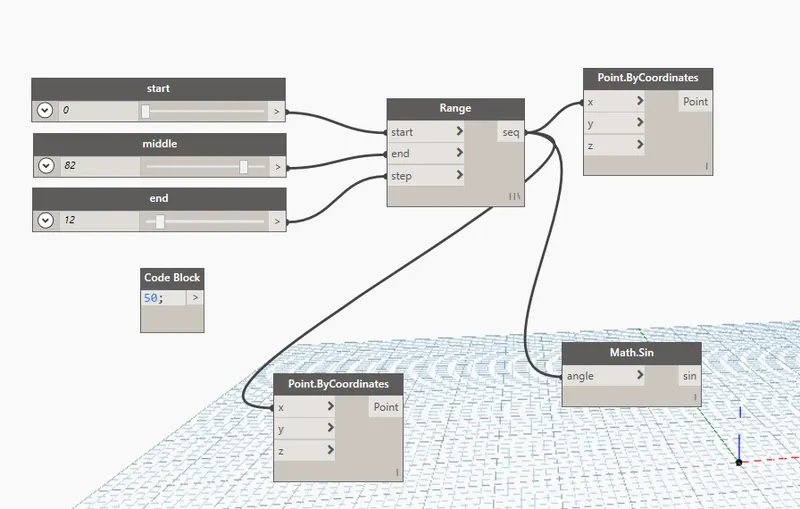

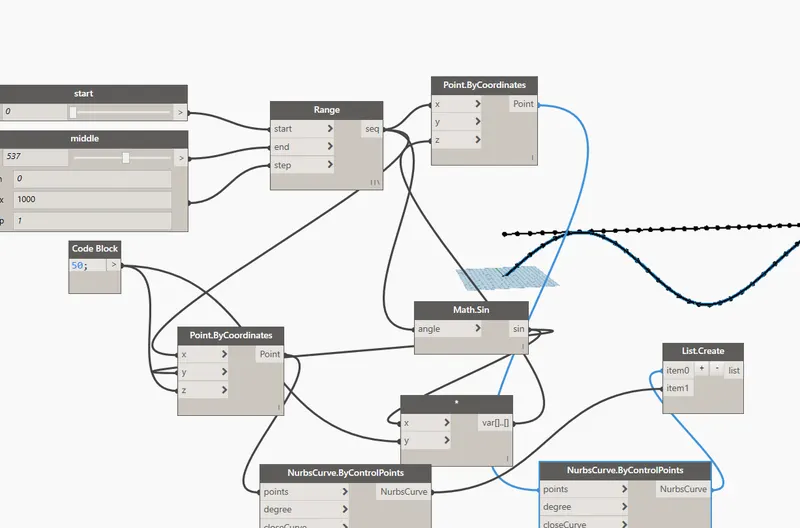

step 3) connect all the parameters with proper connection to make frame

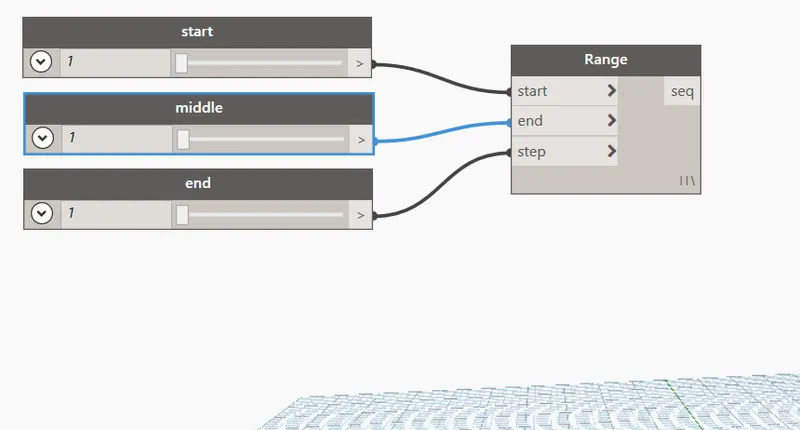

           first connect integers to range

           then connect range to point by coordinates and math.sin and second point by coordinate X axis

           like that

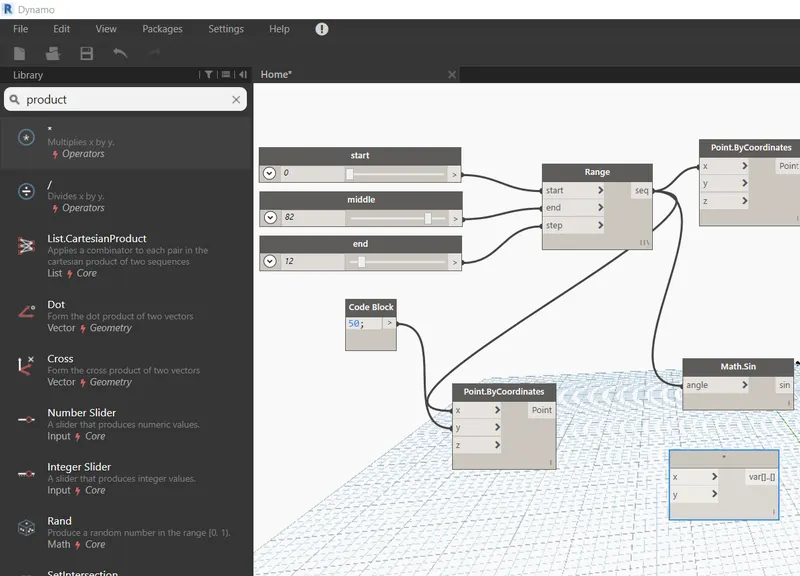

then we need to product from serch bar



for making second sinusodal line add code block to 2nd point by coordinate to z axis

and math sin to y axis and product x

and code block to product y

then product varient to z of first point of coordinate

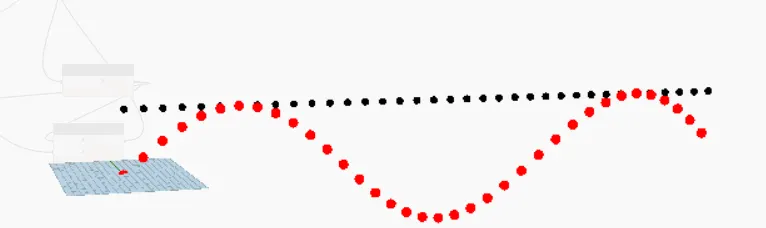

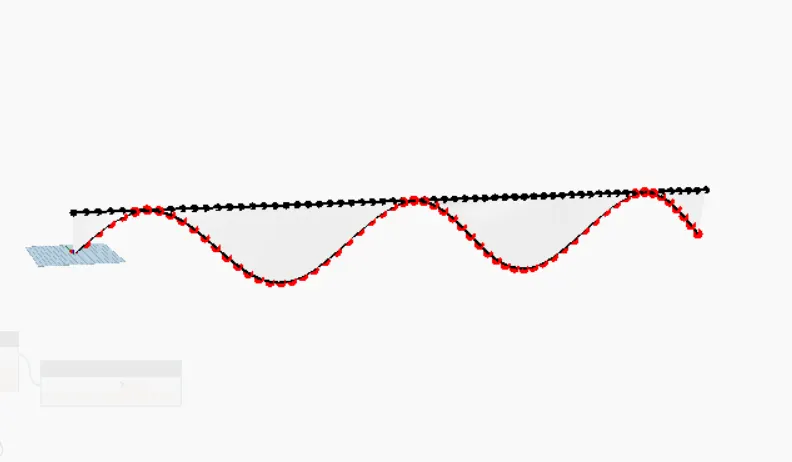

we create th sinusodal point like this



step 4) make a sinusodal curve

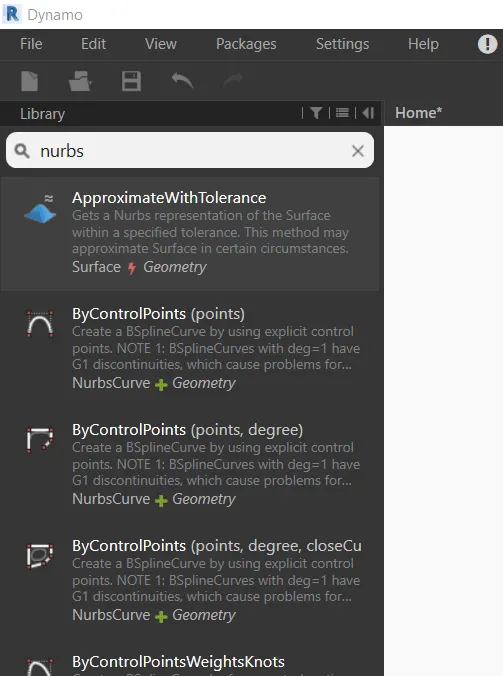

then add nurbs by control point from search option

to make curve

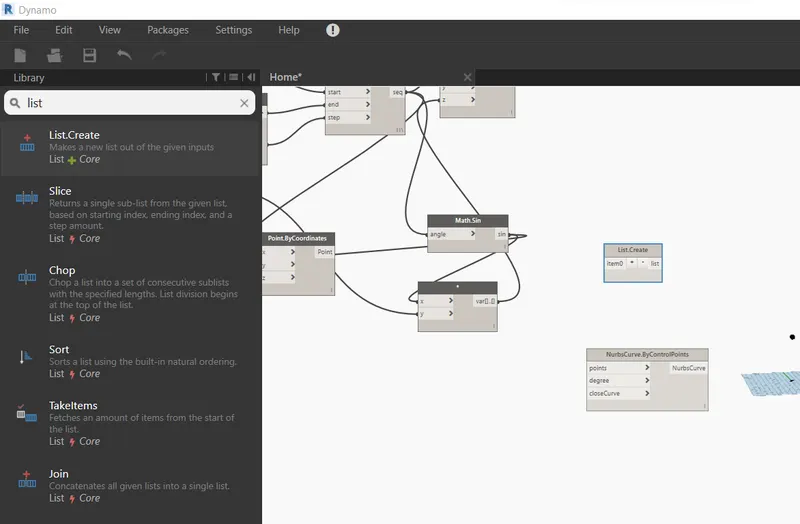

similarly we need list option

 so for list option search list



again add 2nd nurbs by control point from search option

to make curve



step 5) connection for curve

fist connect 1st point by coordinate to points of 1st nurbs curve

then same 2nd point by coordinate to points of 2nd nurbs curve we get line over dotes

then press plus button on list button we get 2 items

then connect nurb curve 1 to item 0

and nurb curve 2 to item 1



step 6) surface

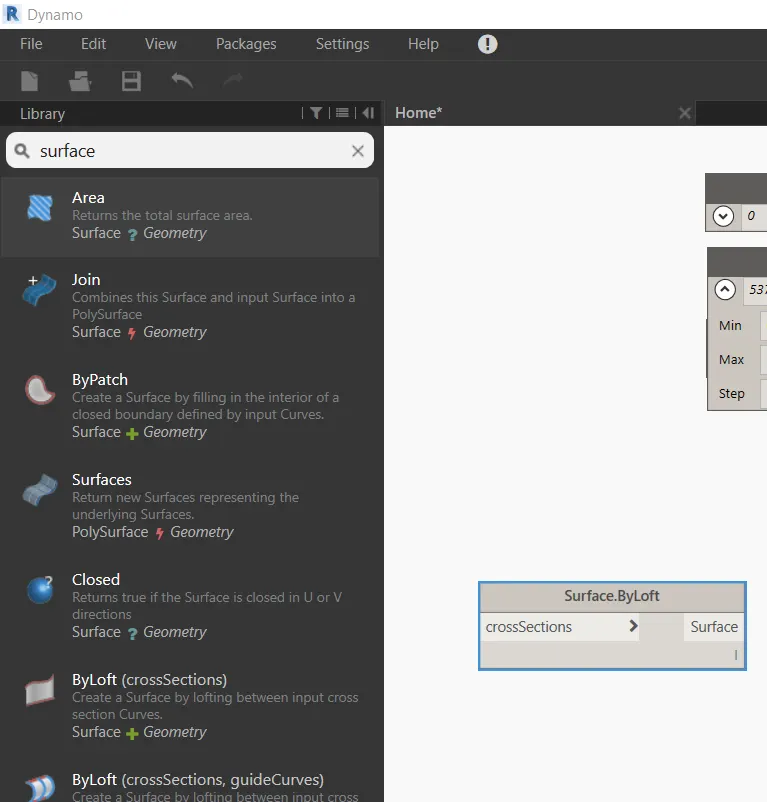

type surface by loft option on serch bar for surface

just click loft option



and connect the list to cross section

so we will get the surface

Result:  we create sinusoidal curve by creatin point in dynamo is successfull







2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall                       parameters. Make use of the sliders to slide through the height of the wall and length of the wall.



AIM: Create a conceptual layout of floor plan in dynamo



Introduction:



Procedure:



Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo



Q1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.



AIM: create a set of sinusoidal points and curve using dynamo



Introduction:



Procedure:

step 1) open dynamo

open revit 2018 with architecture project



then go to manage tab from ribbon

and click on dynamo option



suddenly new window is opened



click on new option for opening new workspace sheet

like this





step 2) insert integer slider to dynamo

           go to serch tab

and serch integer slider then press ok on that





and copy it by 2 times cause we need 3 integer slider

for start point, middle and end point



then add range option as procedure





then add slider integer to range

as start to strart, end to end and middle to middle



then add point by coordinate with x,y,z axis

from search bar





now add code block from search bar by searching code block





again add point by coordinate with x,y,z axis

from search bar





for making sinusodal point we need to add math.sin from search bar





step 3) connect all the parameters with proper connection to make frame

           first connect integers to range

           then connect range to point by coordinates and math.sin and second point by coordinate X axis

           like that





then we need to product from serch bar





for making second sinusodal line add code block to 2nd point by coordinate to z axis

and math sin to y axis and product x

and code block to product y

then product varient to z of first point of coordinate

we create th sinusodal point like this





step 4) make a sinusodal curve

then add nurbs by control point from search option

to make curve



similarly we need list option

 so for list option search list





again add 2nd nurbs by control point from search option

to make curve





step 5) connection for curve

fist connect 1st point by coordinate to points of 1st nurbs curve

then same 2nd point by coordinate to points of 2nd nurbs curve we get line over dotes

then press plus button on list button we get 2 items

then connect nurb curve 1 to item 0

and nurb curve 2 to item 1





step 6) surface

type surface by loft option on serch bar for surface

just click loft option





and connect the list to cross section

so we will get the surface



Result:  we create sinusoidal curve by creatin point in dynamo is successfull











2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall                       parameters. Make use of the sliders to slide through the height of the wall and length of the wall.



AIM: Create a conceptual layout of floor plan in dynamo



Introduction:



Procedure:



step 1) open dynamo

open revit 2018 with architecture project



then go to manage tab from ribbon

and click on dynamo option



suddenly new window is opened



click on new option for opening new workspace sheet

like this





step 2) insert integer slider to dynamo

           go to serch tab

          and serch integer slider then press ok on that





 and copy it by 1 times cause we need 2 integer slider

 for start point, middle and end point



then add point by coordinate with x,y,z axis

from search bar



we need 4 point by coordinate





then connect 1st integer slider to x of 1st point by coordinate and y of 2nd point by coordinate

and 2nd integer slider to x of 2nd point by coordinate and y of 3rd point of coordinate



step 3)

add line by start point and end point from search bar by 4 times



then connect the points

1st by coordinate connected with start point of 1st line by start point and end point of 4th line

2nd by coordinate connected with start point of 2nd line by start point and end point of 1st line

3rd by coordinate connected with start point of 3rd line by start point and end point of 2nd line

4rd by coordinate connected with start point of 4th line by start point and end point of 3rd line



our bouder line are created



step 4)

insert the list option from serch bar to connect all the line

we have 4 point so drop down by 3 times to make 4 items





connect line point to item 1,2,3 and 0 respectively to create wall







step 5) add one level, wall type and integer slider from search bar





and set the level as level 1

then wall type as generic 150mm

and integer slider at 10

then add wall by curve and height option





and connect list to curve

level to level

wall type to wall type and integer to height





then add floor type and floor by outline and level option





then connect list create to online curve

levle to level

and floor type to floor type







Result: create wall and floor with type are done successfully









Q3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block



AIM: Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block



Introduction: arrey mence copy element along the path



Procedure:

step 1) open revit

open revit 2018 with architectural tab





step 2) draw any element from archirecture tab

            suppose we draw column element and place

           4 column like that



step 3)

open dynamo from mange tab





step 4)

add multimle model element from search bar





then also add rotation set and integer slider





then click on select option

and select component from back out to revit

then change integer slider as 45

and connect element to familyinstance

and integer slider to degree



then cross check in revit





Result: array successfull using dynamo









Q4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column



AIM: Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling.



Introduction:



Procedure:

step 1) open the revit software

            click on conceptual mass option




NOTE: in my family no option as metric mass, so i am not able to do this question

SOFTWARE ISSUE





5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.



ANS : Use Dynamo to work on developing a Parametric Stadium.



Introduction:



PRocedure:

step 1) open dynamo

open revit 2018 with architecture project



then go to manage tab from ribbon

and click on dynamo option



suddenly new window is opened



click on new option for opening new workspace sheet

like this





step 2) add 2 integer slider from search bar



 then rename it as no of level and floor height

and set level as 5 and floor height as 10





then add code block from search bar

and mannually rename as 0..#level..floorheight

and then connect level to level

floor height to floorheight





step 3)

add by orgine coordinate





then connect code block to Z of coordinate by origine

and add 4 integer slider for length,width, top rotation and bottom rotation respectively

and rename it





then add rectangle by width length with cs system





then connect coordinate to coordinate

width set as 10th and connect to width

same length set 10th and connect with length

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo



Q1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.



AIM: create a set of sinusoidal points and curve using dynamo



Introduction:



Procedure:

step 1) open dynamo

open revit 2018 with architecture project



then go to manage tab from ribbon

and click on dynamo option



suddenly new window is opened



click on new option for opening new workspace sheet

like this





step 2) insert integer slider to dynamo

           go to serch tab

and serch integer slider then press ok on that





and copy it by 2 times cause we need 3 integer slider

for start point, middle and end point



then add range option as procedure





then add slider integer to range

as start to strart, end to end and middle to middle



then add point by coordinate with x,y,z axis

from search bar





now add code block from search bar by searching code block





again add point by coordinate with x,y,z axis

from search bar





for making sinusodal point we need to add math.sin from search bar





step 3) connect all the parameters with proper connection to make frame

           first connect integers to range

           then connect range to point by coordinates and math.sin and second point by coordinate X axis

           like that





then we need to product from serch bar





for making second sinusodal line add code block to 2nd point by coordinate to z axis

and math sin to y axis and product x

and code block to product y

then product varient to z of first point of coordinate

we create th sinusodal point like this





step 4) make a sinusodal curve

then add nurbs by control point from search option

to make curve



similarly we need list option

 so for list option search list





again add 2nd nurbs by control point from search option

to make curve





step 5) connection for curve

fist connect 1st point by coordinate to points of 1st nurbs curve

then same 2nd point by coordinate to points of 2nd nurbs curve we get line over dotes

then press plus button on list button we get 2 items

then connect nurb curve 1 to item 0

and nurb curve 2 to item 1





step 6) surface

type surface by loft option on serch bar for surface

just click loft option





and connect the list to cross section

so we will get the surface



Result:  we create sinusoidal curve by creatin point in dynamo is successfull











2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall                       parameters. Make use of the sliders to slide through the height of the wall and length of the wall.



AIM: Create a conceptual layout of floor plan in dynamo



Introduction:



Procedure:



step 1) open dynamo

open revit 2018 with architecture project



then go to manage tab from ribbon

and click on dynamo option



suddenly new window is opened



click on new option for opening new workspace sheet

like this





step 2) insert integer slider to dynamo

           go to serch tab

          and serch integer slider then press ok on that





 and copy it by 1 times cause we need 2 integer slider

 for start point, middle and end point



then add point by coordinate with x,y,z axis

from search bar



we need 4 point by coordinate





then connect 1st integer slider to x of 1st point by coordinate and y of 2nd point by coordinate

and 2nd integer slider to x of 2nd point by coordinate and y of 3rd point of coordinate



step 3)

add line by start point and end point from search bar by 4 times



then connect the points

1st by coordinate connected with start point of 1st line by start point and end point of 4th line

2nd by coordinate connected with start point of 2nd line by start point and end point of 1st line

3rd by coordinate connected with start point of 3rd line by start point and end point of 2nd line

4rd by coordinate connected with start point of 4th line by start point and end point of 3rd line



our bouder line are created



step 4)

insert the list option from serch bar to connect all the line

we have 4 point so drop down by 3 times to make 4 items





connect line point to item 1,2,3 and 0 respectively to create wall







step 5) add one level, wall type and integer slider from search bar





and set the level as level 1

then wall type as generic 150mm

and integer slider at 10

then add wall by curve and height option





and connect list to curve

level to level

wall type to wall type and integer to height





then add floor type and floor by outline and level option





then connect list create to online curve

levle to level

and floor type to floor type







Result: create wall and floor with type are done successfully









Q3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block



AIM: Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block



Introduction: arrey mence copy element along the path



Procedure:

step 1) open revit

open revit 2018 with architectural tab





step 2) draw any element from archirecture tab

            suppose we draw column element and place

           4 column like that





step 3)

open dynamo from mange tab





step 4)

add multimle model element from search bar





then also add rotation set and integer slider





then click on select option

and select component from back out to revit

then change integer slider as 45

and connect element to familyinstance

and integer slider to degree



then cross check in revit





Result: array successfull using dynamo









Q4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column



AIM: Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling.



Introduction:



Procedure:

step 1) open the revit software

            click on conceptual mass option





NOTE: in my family no option as metric mass, so i am not able to do this question

SOFTWARE ISSUE





5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.



ANS : Use Dynamo to work on developing a Parametric Stadium.



Introduction:



PRocedure:

step 1) open dynamo

open revit 2018 with architecture project



then go to manage tab from ribbon

and click on dynamo option



suddenly new window is opened



click on new option for opening new workspace sheet

like this





step 2) add 2 integer slider from search bar



 then rename it as no of level and floor height

and set level as 5 and floor height as 10





then add code block from search bar

and mannually rename as 0..#level..floorheight

and then connect level to level

floor height to floorheight





step 3)

add by orgine coordinate





then connect code block to Z of coordinate by origine

and add 4 integer slider for length,width, top rotation and bottom rotation respectively

and rename it





then add rectangle by width length with cs system





then connect coordinate to coordinate

width set as 10th and connect to width

same length set 10th and connect with length





step 4)

add code block for rotation from search bar





and manually edit code block like this



and add bottom for bottom

top for top

and level to level



and add point by coordinate system



and connect code block to Z of coordinate



step 5)

add 4 integer slider for length, width and top,bottom rotation and rename it





then add rectangle by width length with cs





and connect respectively

like this





and add code block from search bar

and rename like





now add for gementry

point origin and vector z axis





then add geometry rotate





connect it like that with approprite parameters





then finally for surface creation

add poly surface by loft





and connect with the cross section





Result: parametric stadium using dynamo is create successfully















Due to technical issue arrived, I am not able to save and submitt the whole completed answers file, even i complete total solutin with aim, Introduction, procedure and result, so i loss my some data, i was save back file to note pad, but there unfortunately only text are saved no single image are save which i attatched to answers, so i will upload only text, I also talk with technical assistance regarding same.
