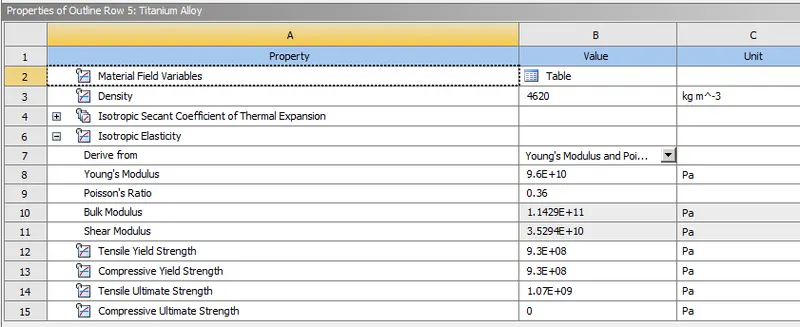

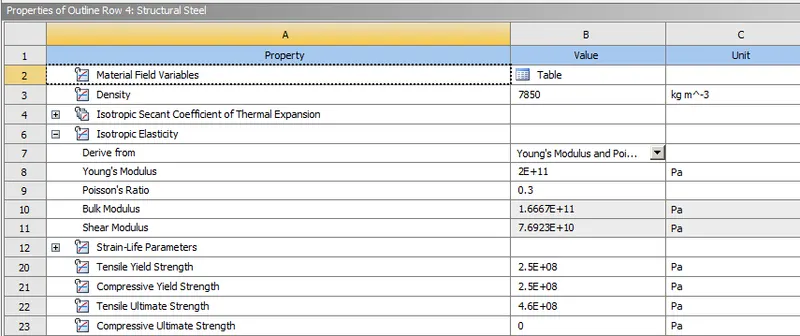

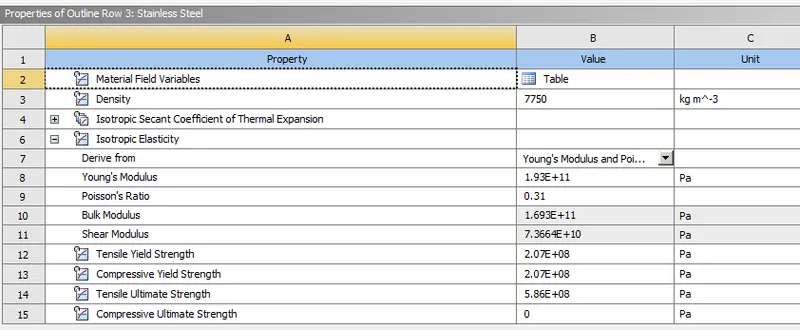

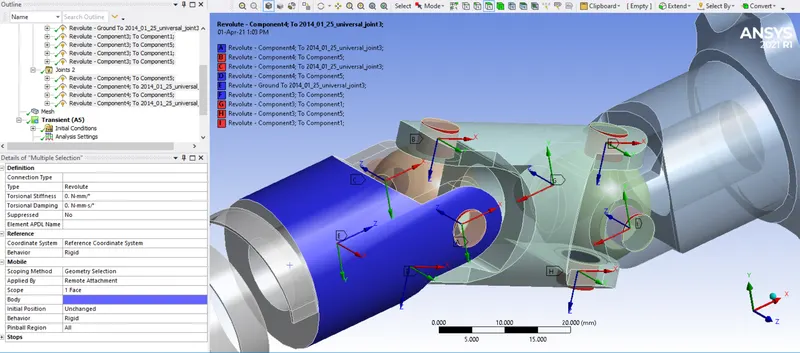

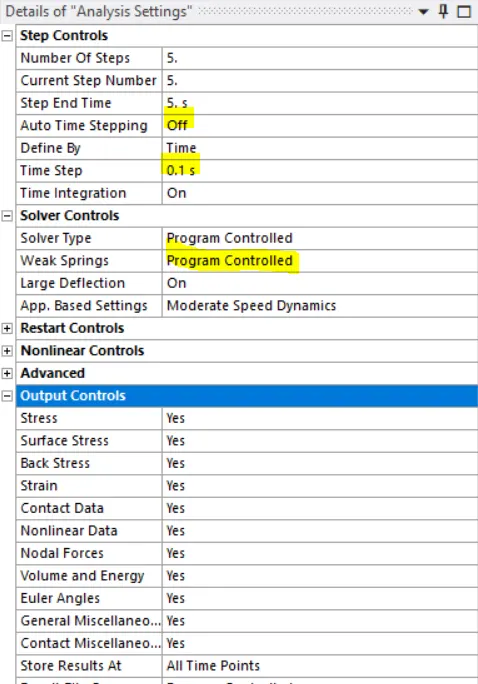

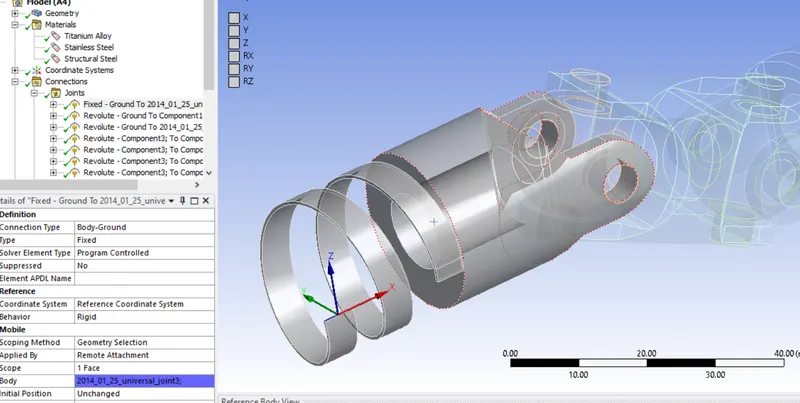

Aim : To perform transient structural analysis on a universal joint with spring for three different given materials and obtain the Equivalent stress and Total Deformation using Ansys Workbench. FILE : UNIVERSAL_JOINT Materials Used : Structural Steel : Stainless Steel : Titanium Alloy : Procedure : Open Ansys…
Ashwin Deepak
updated on 08 Apr 2021

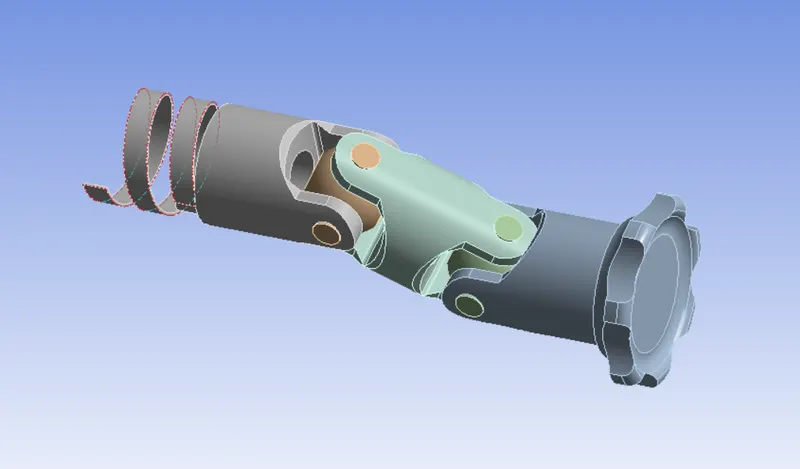

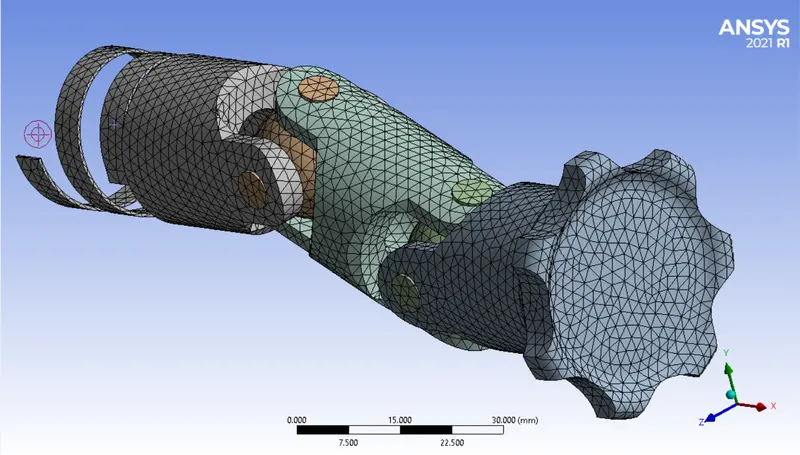

To perform transient structural analysis on a universal joint with spring for three different given materials and obtain the Equivalent stress and Total Deformation using Ansys Workbench.
Equivalent Stress | |

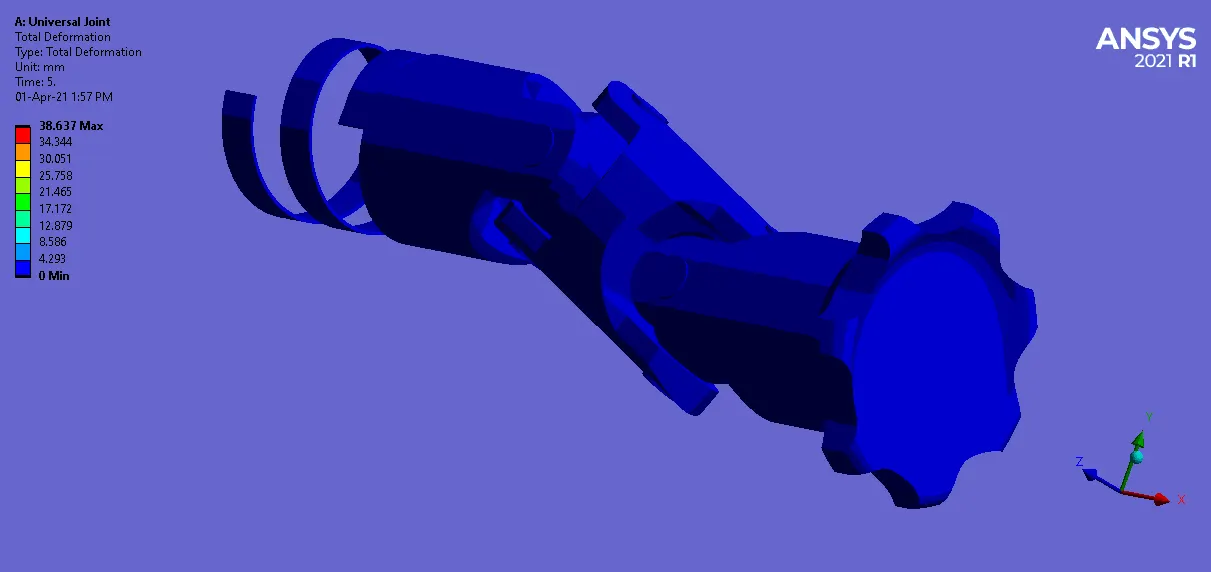

Total Deformation |
Equivalent Stress | |

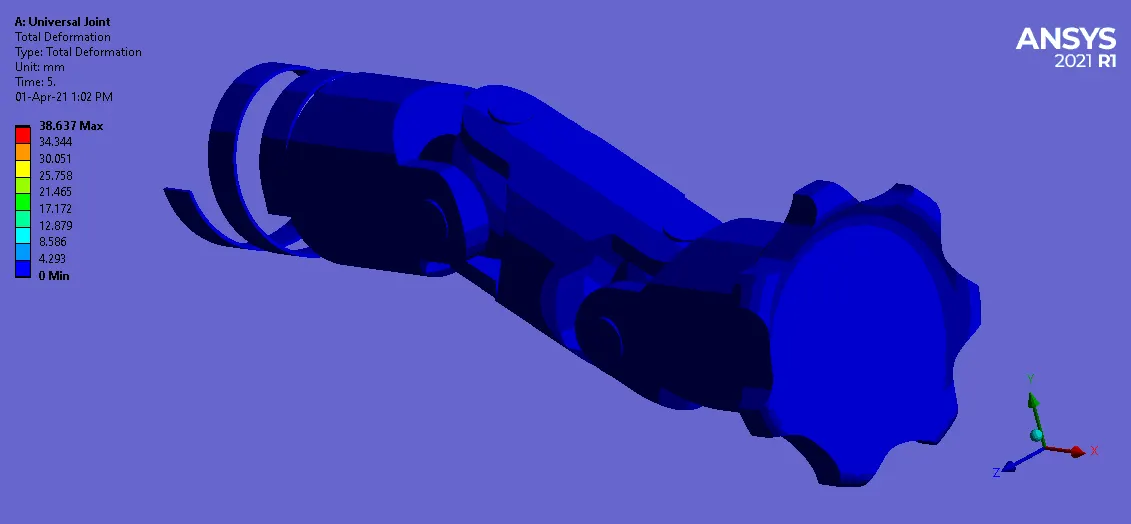

Total Deformation |
Equivalent Stress | |

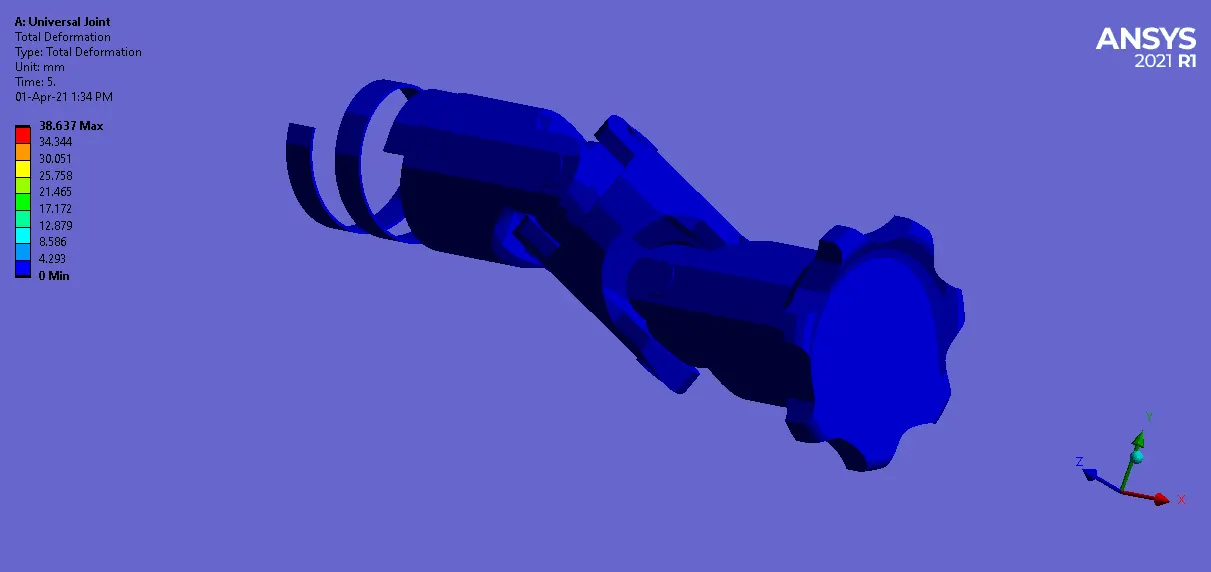

Total Deformation |
Material | Equivalent Stress (MPa) | Total Deformation(mm) |
Structural Steel | 1354.6 | 38.637 |
Stainless Steel | 1311.6 | 38.637 |
Titanium Alloy | 663.85 | 38.637 |
It can be observed that the max total deformation experienced is the same for all the 3 different material while the max equivalent stress is higher in the case of Structural Steel Universal Joint and the lowest for the Titanium Alloy Universal Joint.
