Project 2

Aim- to model and design a proposed PEB warehouse using STAAD.Pro

Introduction- Here we model and design the PEB warehouse buidling.As per given description,material data,specification we can design it.

• PEB- Pre engineered buildings are factory built buildings shipped to site and assembled by bolting together.
• The columns and beams are custom fabricated I sections with end plate and holes for bolting at both ends.
• I sections are made by cutting steel plates of desired thickness and welding them together.
• Engineering is done specifically for that buildig to satisfy structural and asthetic requirements.
• To optimize the structural efficiency the shape of beams can be tailored.

Procedure:

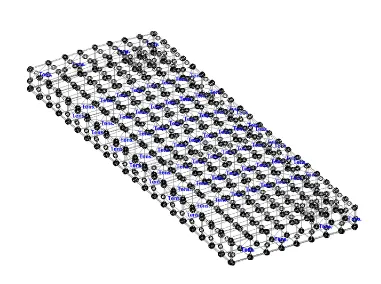

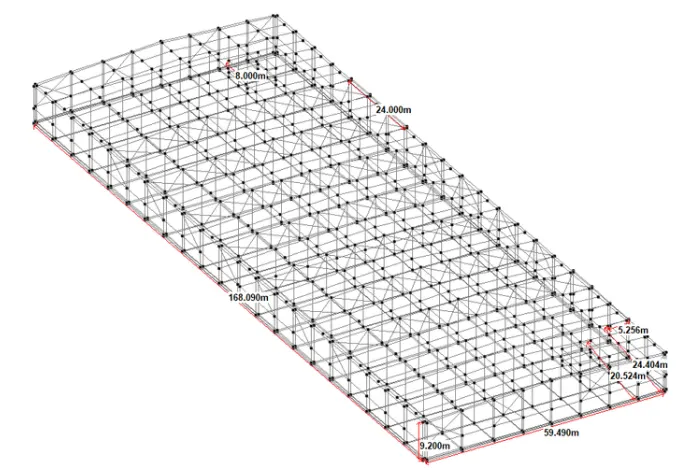

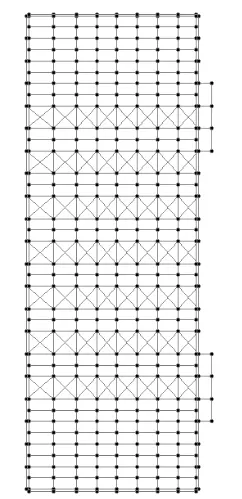

• Open Staad>then define nodes and beams as per given data> draw beams and columns > draw bracings, purlins,girts,walls and canopy.

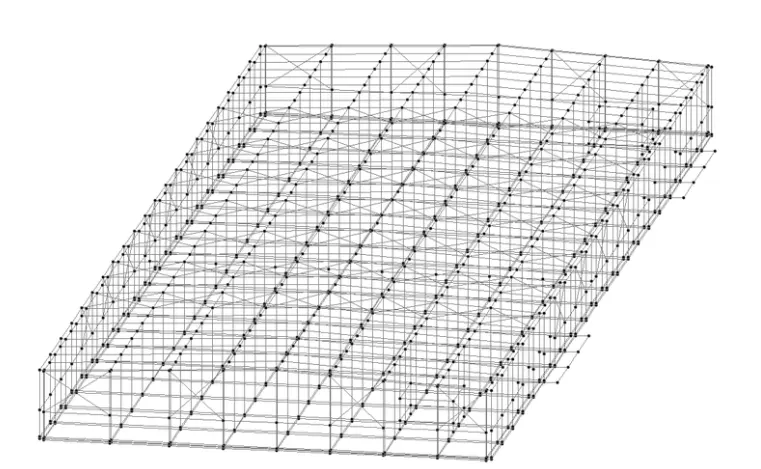

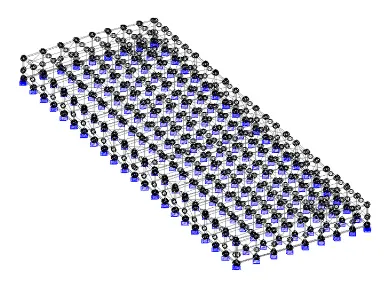

• Complete the model of pre engineered building structure.









To create groups for assign of properties and loads.

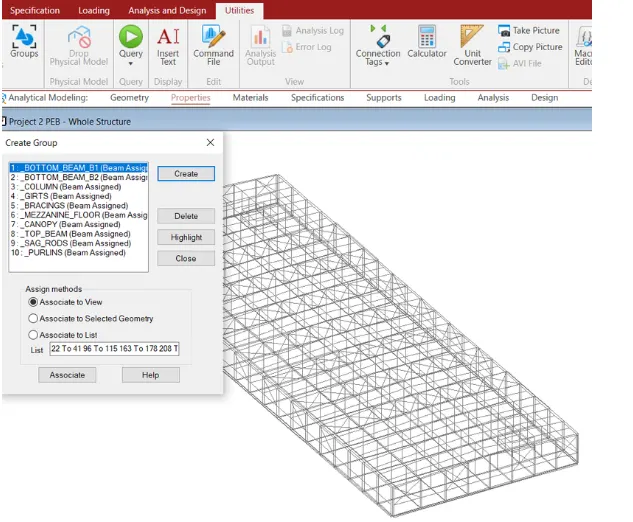

Go to utilities > groups > create groups as per names and select the section of structure.

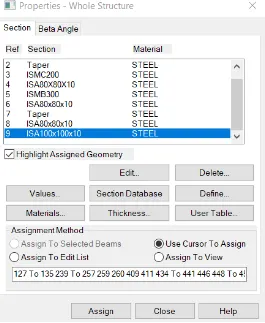

Go to properties > define and assign the property to structure.

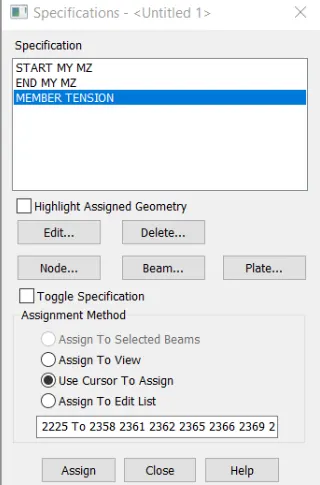

Go to specification > add specification to member of strcuture.

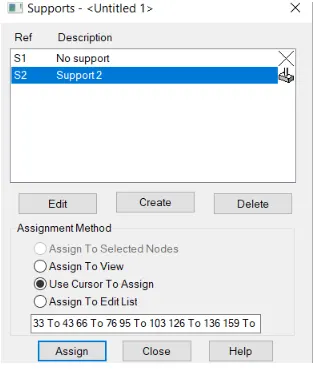

Go to supports > create support as fixed support

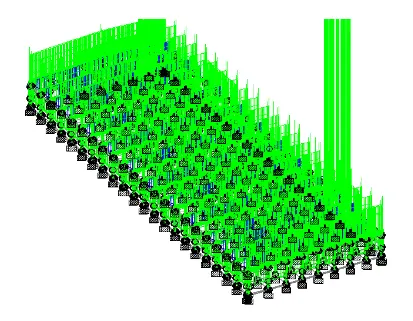

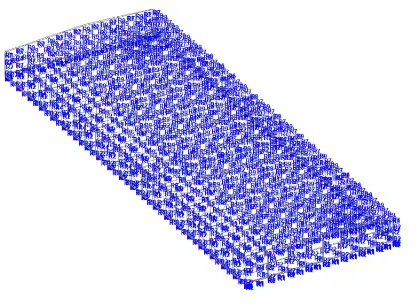

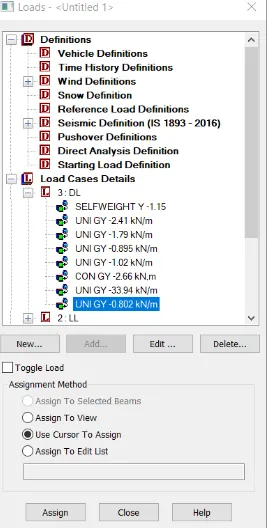

Go to loading > add and assign loads as dead,live and wind load.

Self weight on purlins= 10 Kg/m^2=0.1 Kn/m^2

=0.1 x 0.845+ 0.1 x 8= 1.60 Kn/m

Self weight on portals= 15 Kg/m^2= 0.15 Kn/m^2

=0.15 x 0.845 + 0.15 x 8=2.41 Kn/m

Assumed weight of purlin= 100x100x10=14.9 Kg/m

Udl load due to purlin over the main frame=(no of purlin x weight of purlin per m)/ rafter length

No of purlin= round off(Rafter length/Purlin Spacing)+1

= round off(31.34/8.916)+1

=5

Udl due to purlin over main rafter=5 x 8 x 14.9 x=596/31.34= 19.0 Kg/m=0.19 Kn/m

Total udl on main rafter= 1.6+0.19=1.79 Kn/m

Total udl on roof on gable rafter =1.79/2=0.895 Kn/m

Weight of side wall sheet= 5Kg/m^2=5 x 8.045 +5 x 8 =80.225 Kg/m= 0.802 Kn/m

Weight of sag rods and bracing= 5 Kg/m^2=0.82 kn/m

Weight of girts=22.1 Kg/m=0.221 Kn/m

Total weight of girts=0.221+0.802=1.02 Kn/m

Assumed weight of eave strut=10.7 Kg/m

Weight of eave strut= 5.89 kgm

Load due to eave gutter and eave strut= 10.7+5.89=16.59 Kg

=16.59 x 8.045 + 16.59 x 8=266.18 Kg=2.66 KN

Self weight of RCC slab 150mm thick for mexxanine= 25x0.5x7.2=27 Kn/m

Density of concrete=25 Kn/m^3

Self weight of structural member for mezzanine=44.2 Kg/m=0.442 Kn/m

Floor finish load for mezzanine=150 kg/m^2=1.5 Kn/m

Addition load for mezzanine = 500 Kg/m^2= 5Kn/m

Total load on mezzamine floor =27+0.442+1.5+5=33.94 Kn/m

Live load-

On roof and canopy=57 Kg/m^2=57 x 8.045 + 57 x 8= 914.56 Kg/m= 9.14 kn/m

On gable rafter =9.14/2=4.57 Kn/m

on mezzanine floor=400 kg/m^2=400 x 8.045 + 400 x 8= 64.18 Kn/m

Assume eave gutter size=250 x 250 x 1 mm =0.25 x 0.25 x 10= 0.625 Kn/m

On main column=0.625 x 8.045 + 0.625 x 8= 10 Kn

On gable column= 10/2= 5 KN



Collateral load

Due to electric fittings= 10 Kg/m^2= 10 x 8.045 + 10 x 8=160.45 Kg/m

Due to electric fittings= 1.6 Kn/m

Due to Sprinklars and fire fighting system= 3 Kg/m= 3 x 8.045+ 3 x 8 =48.135 Kg

Due to Sprinklars and fire fighting systen = 3 Kg/m= 3 x 8.045 + 3 x 8= 48.135 Kg

Due to sprinklars and fire fighting system= 0.481 Kn

Load due to insulation= 10 Kg/m^2 and 5 Kg/m^2= 10 x 8.045+ 10 x 8=160.45 Kg/m

=5 x 8.045+5  x 8= 80.225 Kg/m = 0.80 kn/m

total load due to insulation=1.6+0.80=2.4 Kn/m

Load due to solar panels=15 Kg/m^2=15 x 8.045 + 15 x 8 = 240.67 Kg/m

Load due to solar panels=2.4 Kn/m

load due to false ceiling support= 10 Kg/m^2=1.6 kn/m

tital load=1.6+2.4+2.4+1.6=8 kN/m



Seismic load

Member weight

Live load=9.14 x 0.25=2.285 Kn/m

Collateral load=8 x 1= 8Kn/m

Dead load= 1.79 x 1=1.79 Kn/m

Live load + Collateral load= (9.14+8) x 0.5=8.57 Kn/m



Wind load-

Basic wind speed Vb=39 m/s

K1=1.00

K2=1.05

K3=1.00

K4=1.00

Coefficient of cyclonic wind=1.0

Kd=0.9

Ka(Rafter)=0.8

Ka(column)=0.8245

Ka(purlin)=0.9721

Ka(side runner)=0.978

Area averaging factor=(0.8+0.8245+0.9721+0.978)/4=0.89

Kc=0.9

Cpi=+/-0.2

Design wind speed=Vb x K1 x K2 x K3 X K4

=39 x 1.0 x 1.05 x 1.0 x 1.0=40.95 m/s

Wind pressure=0.6 x 40.95^2=1.00 Kn/m^2

Design wind pressure=1 x 0.9 x 0.89 x 0.9=0.72 Kn/m^2

External pressure coefficient(Cpe) for roof=IS 875 part 3

0 degree EF = -0.9

0 degree GH=-0.4

90 degree EG= -0.8

90 degree FH=-0.4



External pressure coefficient(Cpe) for column=

Degree         A       B        C     D

     0           0.7  -0.25   -0.6  -0.6

    90          -0.5  -0.5   0.7  -0.2



Use Cpe-Cpi

WL -0+CPI-

Load on EF=(-0.9-0.2) x 0.72 x 8.045 + (-0.9-0.2) x 0.72 x 8=-12.70 Kn/m

Load on GH=(-0.4-0.2) x 0.72 x 8.045 + (-0.4-0.2) x 0.72 x 8=-6.93 Kn/m

Load on Column A=(0.7-0.2) x 0.72 x 8.045 + (0.7-0.2) x 0.72 x 8=5.77 Kn/m

Load on Column B=(-0.25-0.2) x 0.72 x 8.045 + (-0.25-0.2) x 0.72 x 8=5.198 Kn/m



WI -90+CPi-

Load on EG=(-0.8-0.2) x 0.72 x 8.045 + (-0.8-0.2) x 0.72 x 8=-11.55 Kn/m

Load on FH=(-0.4-0.2) x 0.72 x 8.045 + (-0.4-0.2) x 0.72 x 8=-6.93 Kn/m

Load on Column A=(-0.5-0.2) x 0.72 x 8.045 + (-0.5-0.2) x 0.72 x 8=8.082Kn/m

Load on Column B=(-0.5-0.2) x 0.72 x 8.045 + (-0.5-0.2) x 0.72 x 8=8.082 Kn/m



WI -90-CPI-

Load on EG=(-0.8+0.2) x 0.72 x 8.045 + (-0.8+0.2) x 0.72 x 8=-6.93 Kn/m

Load on FH=(-0.4+0.2) x 0.72 x 8.045 + (-0.4+0.2) x 0.72 x 8=-2.31 Kn/m

Load on Column A=(-0.5+0.2) x 0.72 x 8.045 + (-0.5+0.2) x 0.72 x 8=3.465Kn/m

Load on Column A=(-0.5+0.2) x 0.72 x 8.045 + (-0.5+0.2) x 0.72 x 8=3.465Kn/m

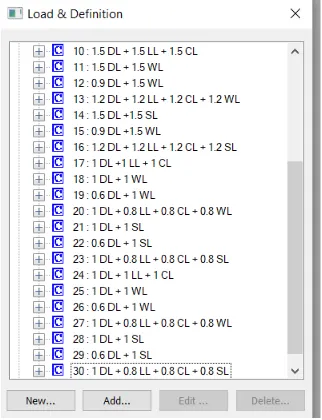

Go to loading > add load combination case

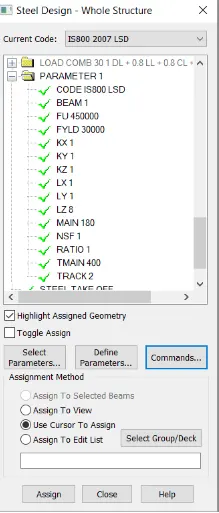

Go to design > select codes > define and assign the design parameters.



Go to analysis > run the nalysis > check results
