Creation of geometries by Coordinate system methods using AutoCad

Aim: to draw the given geometires using different coordinate methods in Autocad Procedure: 1. P-1 a) Absolute Coordinate system: in this the distances are measured from origin. Procedure: 1. Type the command "L" for line and give coordinates for point 1 (2,1). 2. Type the next coordinate of point 2 (2,7) in the command…

    • Shubham verma

      updated on 15 Jun 2021

    Aim: to draw the given geometires using different coordinate methods in Autocad

    Procedure:

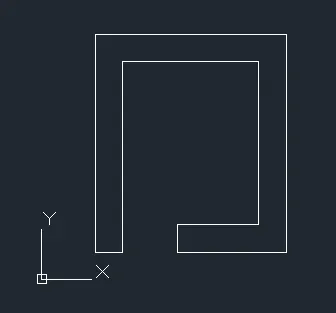

    1. P-1

    a) Absolute Coordinate system: in this the distances are measured from origin.

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 (2,7) in the command box.

    3. Type the next coordinate of point 3 (8,7) in the command box.

    4. Type the next coordinate of point 4 (8,6) in the command box.

    5. Type the next coordinate of point 5 (3,6) in the command box.

    6. Type the next coordinate of point 6 (3,2) in the command box.

    7. Type the next coordinate of point 7 (8,2) in the command box.

    8. Type the next coordinate of point 8 (8,1) in the command box.

    9. Enter or click on the command close.



    Result:





    b) Relative rectangular coordinate system: in this the coordinates are measured from the previous point.

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 (@0,6) in the command box.

    3. Type the next coordinate of point 3 (@6,0) in the command box.

    4. Type the next coordinate of point 4 (@0,-1) in the command box.

    5. Type the next coordinate of point 5 (@-5,0) in the command box.

    6. Type the next coordinate of point 6 (@0,-4) in the command box.

    7. Type the next coordinate of point 7 (@5,0) in the command box.

    8. Type the next coordinate of point 8(@0,-1) in the command box.

    9.  Enter or click on the command close.



    Result:





    c) Polar coordinate system: in this the coordinate and the angle with respect to x axis is given.

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 (@6<90) in the command box.

    3. Type the next coordinate of point 3 (@6<0) in the command box.

    4. Type the next coordinate of point 4 (@1<270) in the command box.

    5. Type the next coordinate of point 5 (@5<180) in the command box.

    6. Type the next coordinate of point 6 (@4<270 in the command box.

    7. Type the next coordinate of point 7 (@5<0) in the command box.

    8. Type the next coordinate of point 8(@1<270) in the command box.

    9.  Enter or click on the command close.

    Result:

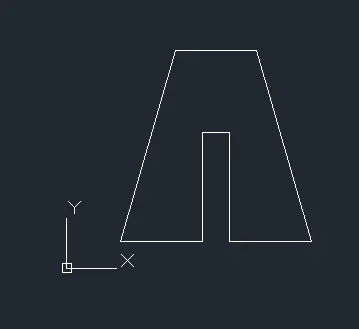

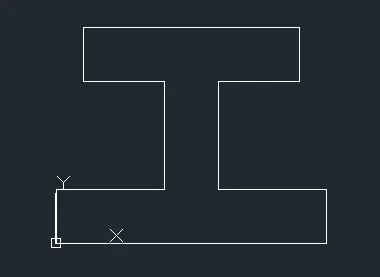

    2. P-2

    a) Absolute coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1  (2,1).

    2. Type the next coordinate of point 2 (5,1) in the command box.

    3. Type the next coordinate of point 3 (5,5) in the command box.

    4. Type the next coordinate of point 4 (6,5) in the command box.

    5. Type the next coordinate of point 5 (6,1) in the command box.

    6. Type the next coordinate of point 6 (9,1) in the command box.

    7. Type the next coordinate of point 7 (7,8) in the command box.

    8. Type the next coordinate of point 8(4,8) in the command box.

    9.  Enter or click on the command close.

    Result:





    b) Relative rectangular coordinate system:

    Procedure:

    1.Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 (@3,0) in the command box.

    3. Type the next coordinate of point 3 (@0,4) in the command box.

    4. Type the next coordinate of point 4 (@1,0) in the command box.

    5. Type the next coordinate of point 5 (@0,-4) in the command box.

    6. Type the next coordinate of point 6 (@3,0) in the command box.

    7. Type the next coordinate of point 7 (@-2,7) in the command box.

    8. Type the next coordinate of point 8(@-3,0) in the command box.

    9.  Enter or click on the command close.

    Result:



    c) Polar coordinate system:

    1. Type the command "L" for line and give coordinates for point (2,1).

    2. Type the next coordinate of point 2 (@3<0) in the command box.

    3. Type the next coordinate of point 3 (@4<90) in the command box.

    4. Type the next coordinate of point 4 (@1<0) in the command box.

    5. Type the next coordinate of point 5 (@4<270) in the command box.

    6. Type the next coordinate of point 6 (@3<0) in the command box.

    7. Type the next coordinate of point 7 (@7.28<105.95) in the command box.

    8. Type the next coordinate of point 8(@3<180) in the command box.

    9. Type the next coordinate of point 9(@7.28<254.058) in the command box.

    10.  Enter or click on the command close.

    Result:

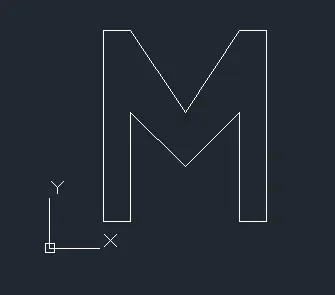

    3. P-4

    a) Absolute coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 (2,8) in the command box.

    3. Type the next coordinate of point 3 (3,8) in the command box.

    4. Type the next coordinate of point 4 (5,5) in the command box.

    5. Type the next coordinate of point 5 (7,8) in the command box.

    6. Type the next coordinate of point 6 (8,8) in the command box.

    7. Type the next coordinate of point 7 (8,1) in the command box.

    8. Type the next coordinate of point 8 (7,1) in the command box.

    9. Type the next coordinate of point 9 (7,5) in the command box.

    10. Type the next coordinate of point 10 (5,3) in the command box.

    11. Type the next coordinate of point 11 (3,5) in the command box.

    12. Type the next coordinate of point 12 (3,1) in the command box.

    13. Enter or click on the command close.

     Result:



    b) Relative rectangular coordinate:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 @0,7 in the command box.

    3. Type the next coordinate of point 3 @1,0 in the command box.

    4. Type the next coordinate of point 4 @2,-3 in the command box.

    5. Type the next coordinate of point 5 @2,3 in the command box.

    6. Type the next coordinate of point 6 @1,0 in the command box.

    7. Type the next coordinate of point 7 @0,-7 in the command box.

    8. Type the next coordinate of point 8 @-1,0  in the command box.

    9. Type the next coordinate of point 9 @0,4 in the command box.

    10. Type the next coordinate of point 10 @-2,-2 in the command box.

    11. Type the next coordinate of point 11 @-2,2 in the command box.

    12. Type the next coordinate of point 12 @0,-4 in the command box.

    13. Enter or click on the command close.

    Result:

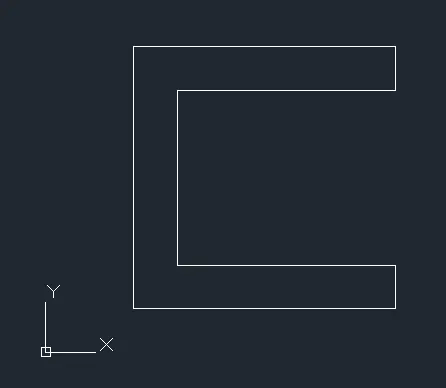

    4. P-5

    a) Absolute coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 (2,9) in the command box.

    3. Type the next coordinate of point 3 (9,9) in the command box.

    4. Type the next coordinate of point 4 (9,1) in the command box.

    5. Type the next coordinate of point 5 (5,1) in the command box.

    6. Type the next coordinate of point 6 (5,2) in the command box.

    7. Type the next coordinate of point 7 (8,2) in the command box.

    8. Type the next coordinate of point 8 (8,8) in the command box.

    9. Type the next coordinate of point 9 (3,8) in the command box.

    10. Type the next coordinate of point 10 (3,1) in the command box.



    11. Enter or click on the command close.

    Result:





     b) Relative rectangular coordinate:

    Procedure:



    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 @0,8 in the command box.

    3. Type the next coordinate of point 3 @7,0 in the command box.

    4. Type the next coordinate of point 4 @0,-8 in the command box.

    5. Type the next coordinate of point 5 @-4,0 in the command box.

    6. Type the next coordinate of point 6 @0,1 in the command box.

    7. Type the next coordinate of point 7 @3,0 in the command box.

    8. Type the next coordinate of point 8 @0,6  in the command box.

    9. Type the next coordinate of point 9 @-5,0 in the command box.

    10. Type the next coordinate of point 10 @0,-7 in the command box.

    11. Enter or click on the command close.



    Result:

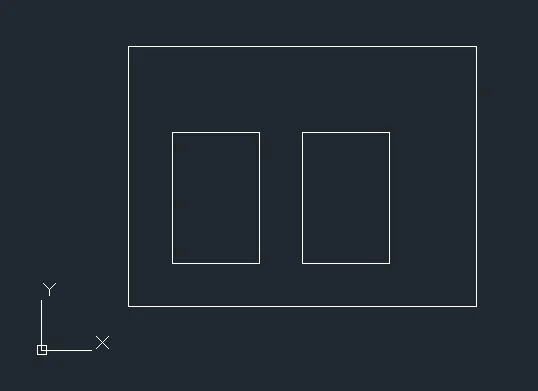

    5. P-7

    a) Absolute coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 (2,7) in the command box.

    3. Type the next coordinate of point 3 (10,7) in the command box.

    4. Type the next coordinate of point 4 (10,1) in the command box.

    5. Enter or click on the command close.

    6. Type the command "L" for line and give coordinates for point 5 (3,2).

    7. Type the next coordinate of point 6 (3,5) in the command box.

    8. Type the next coordinate of point 7 (5,5) in the command box.

    9. Type the next coordinate of point 8 (5,2) in the command box.

    10. Enter or click on the command close.

    11. Type the command "L" for line and give coordinates for point 9 (6,2).

    12. Type the next coordinate of point 10 (6,5) in the command box.

    13. Type the next coordinate of point 11 (8,5) in the command box.

    14. Type the next coordinate of point 12 (8,2) in the command box.

    15. Enter or click on the command close.

    Result:



    b) Relative rectangular coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (2,1).

    2. Type the next coordinate of point 2 @0,7 in the command box.

    3. Type the next coordinate of point 3 @8,0 in the command box.

    4. Type the next coordinate of point 4 @0,-7 in the command box.

    5. Enter or click on the command close.

    6. Type the command "L" for line and give coordinates for point 5 (3,2).

    7. Type the next coordinate of point 6 @0,3 in the command box.

    8. Type the next coordinate of point 7 @2,0 in the command box.

    9. Type the next coordinate of point 8 @0,-3 in the command box.

    10. Enter or click on the command close.

    11. Type the command "L" for line and give coordinates for point 9 (6,2).

    12. Type the next coordinate of point 10 @0,3 in the command box.

    13. Type the next coordinate of point 11 @2,0 in the command box.

    14. Type the next coordinate of point 12 @0,-3 in the command box.

    15. Enter or click on the command close.



    Result:

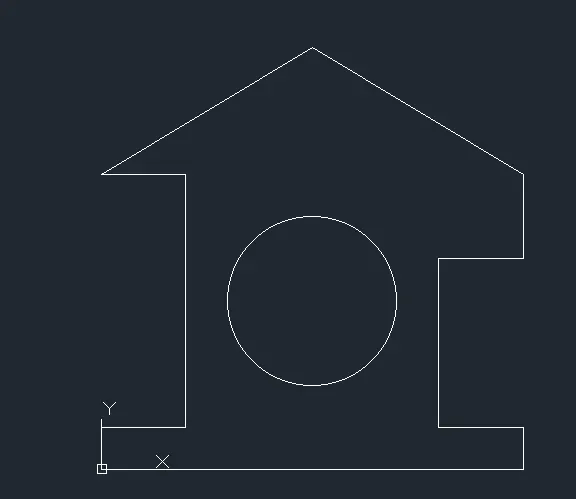

    6. P-8

    a) Absolute coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (0,0).

    2. Type the next coordinate of point 2 (0,2) in the command box.

    3. Type the next coordinate of point 3 (4,2) in the command box.

    4. Type the next coordinate of point 4 (4,6) in the command box.

    5. Type the next coordinate of point 5 (1,6) in the command box.

    6. Type the next coordinate of point 6 (1,8) in the command box.

    7. Type the next coordinate of point 7 (9,8) in the command box.

    8. Type the next coordinate of point 8 (9,6) in the command box.

    9. Type the next coordinate of point 9 (6,6) in the command box.

    10. Type the next coordinate of point 10 (6,2) in the command box.

    11. Type the next coordinate of point 11 (10,2) in the command box.

    12. Type the next coordinate of point 12 (10,0) in the command box.

    13. Enter or click on the command close.

    Result:







    b) Relative rectangular coordinate:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1.(0,0).

    2. Type the next coordinate of point 2 @0,2 in the command box.

    3. Type the next coordinate of point 3 @4,0 in the command box.

    4. Type the next coordinate of point 4 @0,4 in the command box.

    5. Type the next coordinate of point 5 @-3,0 in the command box.

    6. Type the next coordinate of point 6 @0,2 in the command box.

    7. Type the next coordinate of point 7 @8,0 in the command box.

    8. Type the next coordinate of point 8 @0,-2 in the command box.

    9. Type the next coordinate of point 9 @-3,0 in the command box.

    10. Type the next coordinate of point 10 @0,-4 in the command box.

    11. Type the next coordinate of point 11 @4,0 in the command box.

    12. Type the next coordinate of point 12 @0,-2 in the command box.

    13. Enter or click on the command close.

    Result:





    7. P-9

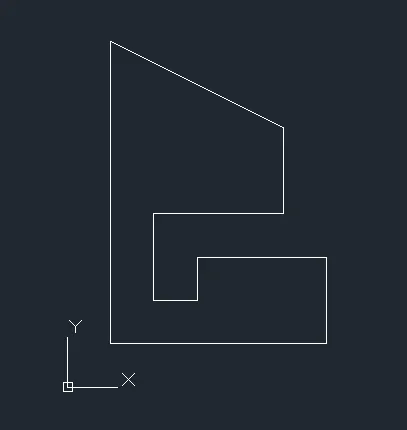

    a) Absolute coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (1,1).

    2. Type the next coordinate of point 2 (1,8) in the command box.

    3. Type the next coordinate of point 3 (5,6) in the command box.

    4. Type the next coordinate of point 4 (5,4) in the command box.

    5. Type the next coordinate of point 5 (2,4) in the command box.

    6. Type the next coordinate of point 6 (2,2) in the command box.

    7. Type the next coordinate of point 7 (3,2) in the command box.

    8. Type the next coordinate of point 8 (3,3) in the command box.

    9. Type the next coordinate of point 9 (6,3) in the command box.

    10. Type the next coordinate of point 10 (6,1) in the command box.

    11. Enter or click on the command close.

    Result:





    b) Relative rectangular coordinate:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (1,1).

    2. Type the next coordinate of point 2 @0,7 in the command box.

    3. Type the next coordinate of point 3 @4,-2 in the command box.

    4. Type the next coordinate of point 4 @0,-2 in the command box.

    5. Type the next coordinate of point 5 @-3,0 in the command box.

    6. Type the next coordinate of point 6 @0,-2 in the command box.

    7. Type the next coordinate of point 7 @1,0 in the command box.

    8. Type the next coordinate of point 8 @0,1 in the command box.

    9. Type the next coordinate of point 9 @3,0 in the command box.

    10. Type the next coordinate of point 10 @0,-2 in the command box.

    11. Enter or click on the command close.

    Result:







    8. P-10

    a) Absolute coordinate system:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (1,1).

    2. Type the next coordinate of point 2 (1,8) in the command box.

    3. Type the next coordinate of point 3 (6,8) in the command box.

    4. Type the next coordinate of point 4 (6,4) in the command box.

    5. Type the next coordinate of point 5 (3,4) in the command box.

    6. Type the next coordinate of point 6 (3,1) in the command box.

    7. Enter or click on the command close.

    8. Type the command "L" for line and give coordinates for point 7 (2,5)

    9. Type the next coordinate of point 8 (2,7) in the command box.

    10. Type the next coordinate of point 9 (5,7) in the command box.

    11. Type the next coordinate of point 10 (5,5) in the command box.

    12. Enter or click on the command close.

    Result:





    b) Relative rectangular coordinate:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (0,0).

    2. Type the next coordinate of point 2 @0,7 in the command box.

    3. Type the next coordinate of point 3 @5,0 in the command box.

    4. Type the next coordinate of point 4 @0,-4 in the command box.

    5. Type the next coordinate of point 5 @3,0 in the command box.

    6. Type the next coordinate of point 6 @0,-3 in the command box.

    7. Enter or click on the command close.

    8. Type the command "L" for line and give coordinates for point 7 (2,5)

    9. Type the next coordinate of point 8 @0,2 in the command box.

    10. Type the next coordinate of point 9 @3,0 in the command box.

    11. Type the next coordinate of point 10 @0,-2 in the command box.

    12. Enter or click on the command close.

    Result:







    9. Profile wood

    Absolute coordinate system is used:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (0,0).

    2. Type the next coordinate of point 2 (10,0) in the command box.

    3. Type the next coordinate of point 3 (10,1) in the command box.

    4. Type the next coordinate of point 4 (8,1) in the command box.

    5. Type the next coordinate of point 5 (8,5) in the command box.

    6. Type the next coordinate of point 6 (10,5) in the command box.



    7. Type the next coordinate of point 7 (2,7) in the command box.

    8. Type the next coordinate of point 8 (5,9) in the command box.

    9. Type the next coordinate of point 9 (0,6) in the command box.

    10.Type the next coordinate of point 10 (2,6) in the command box.

    11. Type the next coordinate of point 11 (2,1) in the command box.

    12. Type the next coordinate of point 12 (0,1) in the command box.

    13. draw a circle of radius 2 for the coordinate of point 13 at centre point (5,4)

    Result:

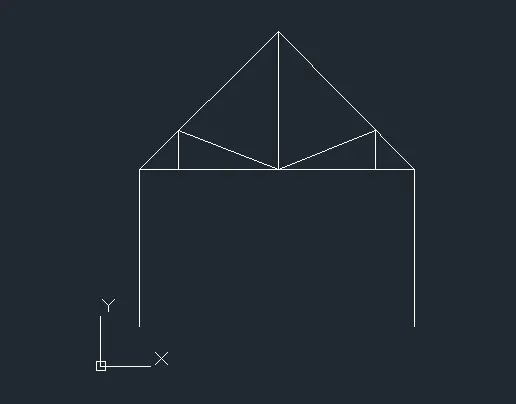

    10. Queen post truss

    Absolute coordinate system is used:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (1,1).

    2. Type the next coordinate of point 2 (1,5) in the command box.

    3. Type the next coordinate of point 3 (8,5) in the command box.

    4. Type the next coordinate of point 4 (8,1) in the command box.

    5. Enter or click on the command close.

    6. Go back to the point 2 and give coordinate of point 5 (4.5,8.5)

    7. Type the next coordinate of point 6 (8,5) in the command box.

    8. Type the next coordinate of point 7 (2,5) in the command box.

    9. Type the next coordinate of point 8 (2,6) in the command box.

    10.Type the next coordinate of point 9 (4.5,5) in the command box.

    11. Type the next coordinate of point 10 (7,5) in the command box.

    12. Type the next coordinate of point 11 from (4.5,5) to (4.5,8.5) in the command box.

    Result:

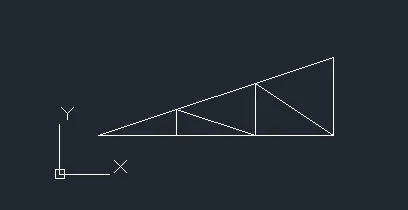

    11. Monopitch:

    Relative rectangular coordinate system is used:

    Procedure:

    1. Type the command "L" for line and give coordinates for point 1 (1,1).

    2. Type the next coordinate of point 2 @6,2 in the command box.

    3. Type the next coordinate of point 3 @0,-2 in the command box.

    4.  Enter or click on the command close.

    5. Type the command "L" for line and give coordinates for point 4 (3,1).

    6. Type the next coordinate of point 5 @0,0.667 in the command box.

    7. Type the next coordinate of point 6 @2,-0.667 in the command box.

    8. Type the next coordinate of point 7 @0,1.333 in the command box.

    9. Type the next coordinate of point 8 @2,-1.333 in the command box.



    Result:



























    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Shubham verma (73)

    Project 2

    Objective:

    Aim- to model and design a proposed PEB warehouse using STAAD.Pro Introduction- Here we model and design the PEB warehouse buidling.As per given description,material data,specification we can design it. PEB- Pre engineered buildings are factory built buildings shipped to site and assembled by bolting together. The columns…

    calendar

    26 Jun 2022 07:32 PM IST

      Read more

      Week 12 Challenge

      Objective:

      1.  Given Column= 300 mm x 450 mm Axial Load= 1500 KN Mu=150 KNm Assume that the moment is reversible The safe bearing capacity of the soil= 200KN/m^2 Depth=1 m from ground level M 25 and Fe 415 for the footing   Procedure: Open Staad foundation> Click on general mode> Doundaton plan> Linear grid setup…

      calendar

      26 Jun 2022 08:10 AM IST

        Read more

        Week 11 Challenge

        Objective:

        1. Friction load determination A pipe carrying LNG rests on the shoe having vertical force of 125 kN. Calculate the Friction load on the axis. Also find the friction force, if TEFLON pad is used between shoe and pipe support. Given vertical force=125 KN TEFLON pad is used between shoe and pipe support Procedure: Friction…

        calendar

        01 Jun 2022 04:42 AM IST

          Read more

          Week 10 Challenge

          Objective:

          1. Aim- To calculate number of purlins and girts for building. Given- Rafter span = 50 m Bay spacing = 8 m Roof slope = 1 in 10 Height of column = 12 m Brick wall height = 2 m Purlin spacing = 1.2 m Girt spacing = 1.5 m Procedure- Create model of structure with given dtat in staad. Open Staad>cretae file>define nodes…

          calendar

          15 May 2022 06:53 AM IST

            Read more

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            Related Courses

            coursecard

            Design loads considered on bridges

            Recently launched

            10 Hours of Content

            coursecard

            Design of Steel Superstructure in Bridges

            Recently launched

            16 Hours of Content

            coursecard

            Design for Manufacturability (DFM)

            Recently launched

            11 Hours of Content

            coursecard

            CATIA for Medical Product Design

            Recently launched

            5 Hours of Content

            coursecardcoursetype

            Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

            Recently launched

            0 Hours of Content

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            logo

            Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

            https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

            Our Company

            News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
            map
            EpowerX Learning Technologies Pvt Ltd.
            4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
            mail
            info@skill-lync.com
            mail
            ITgrievance@skill-lync.com

            Top Individual Courses

            Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

            Top PG Programs

            Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

            Skill-Lync Plus

            Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

            Trending Blogs

            Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

            © 2025 Skill-Lync Inc. All Rights Reserved.

                        Do You Want To Showcase Your Technical Skills?
                        Sign-Up for our projects.
