Week 2 Challenge

1. Column properties for pedestal members

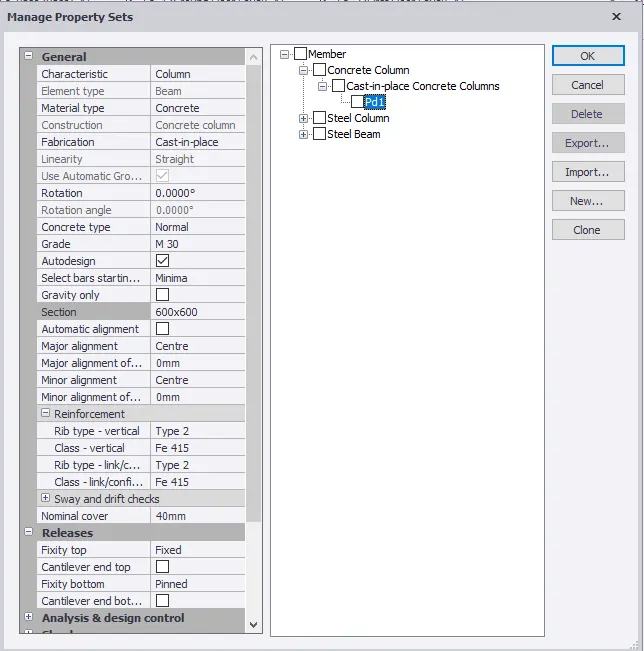

2. Selecting coulmn pedestals size of 600x600mm and assigning the properties of pedastals as PD1 construction level is from Base to Ground floor.

• Two Construction line are created for the secondary beams with grid number as #8 and #9.

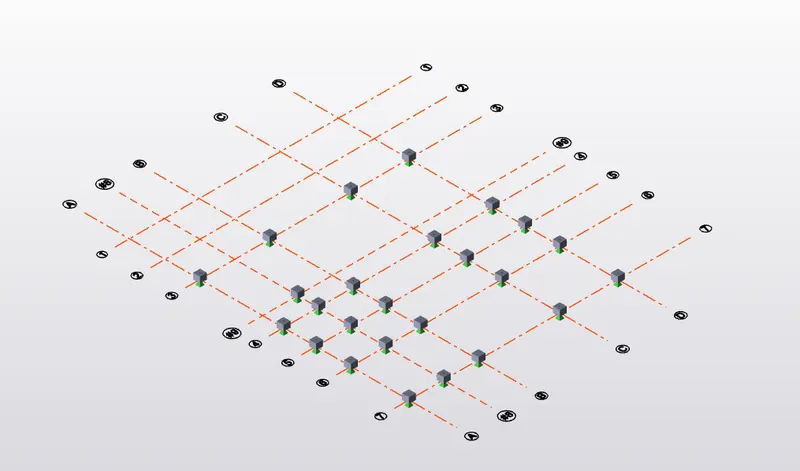

3. Column Pedstals view in 3D

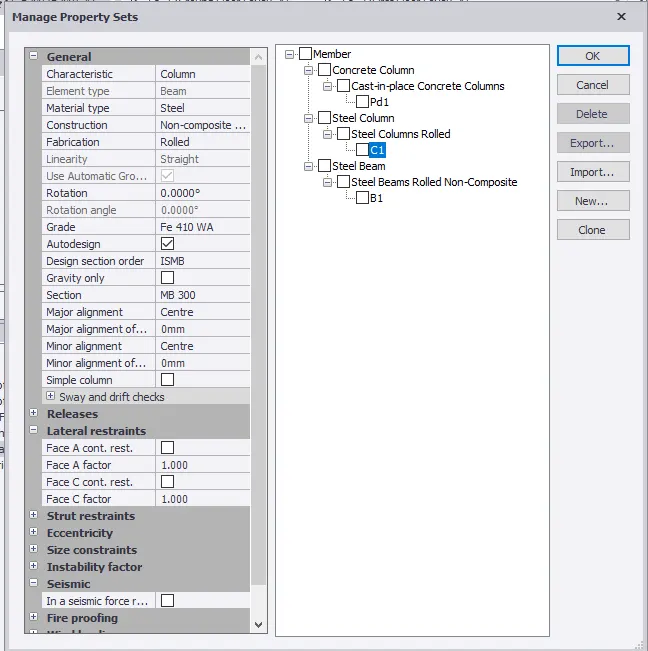

4. Selecting column properties for steel columns

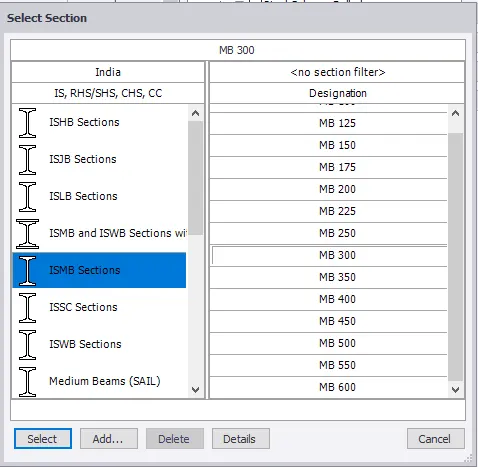

5. Member size of ISMB 300 (Indian Standard Medium Beam is selected)

6. Steel column named as C1

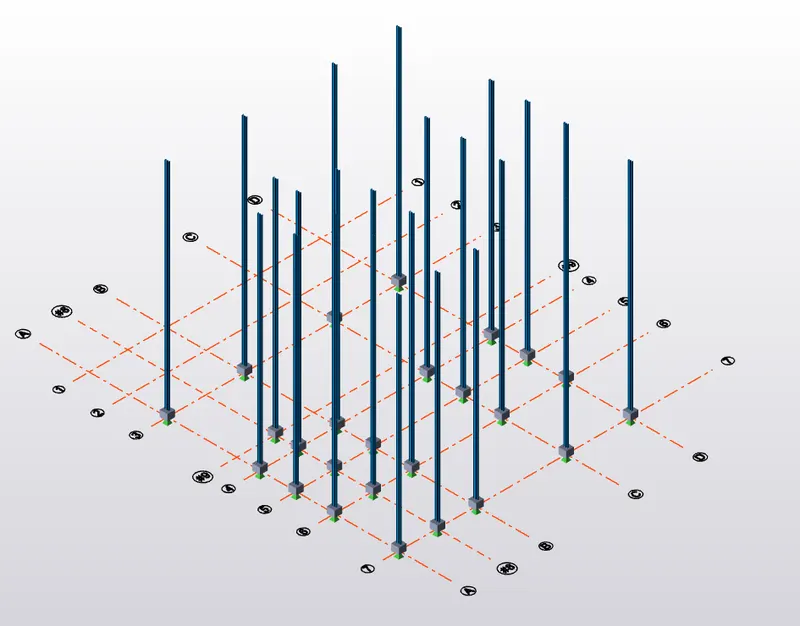

7. Assigning the member as ISMB 300 Constrcution level is from ground floor to top roof

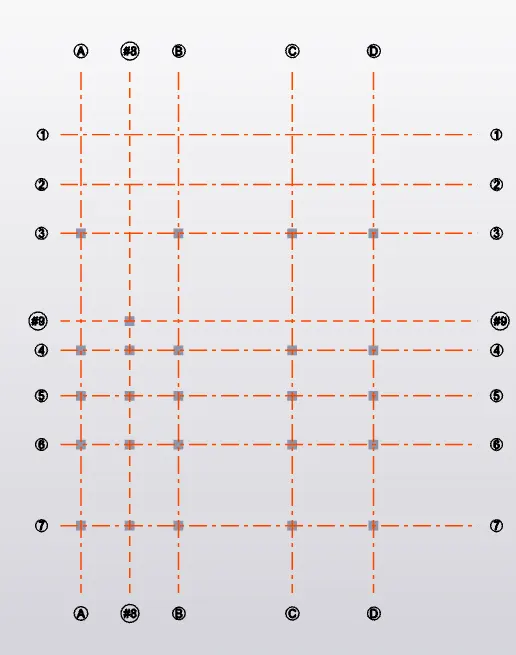

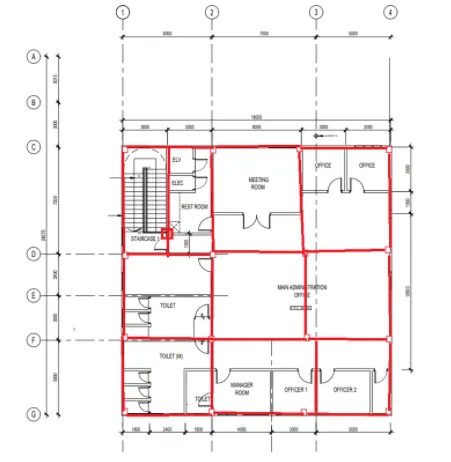

8. Adjustment of column Pedastals and steel columns as per plan in attachment 1

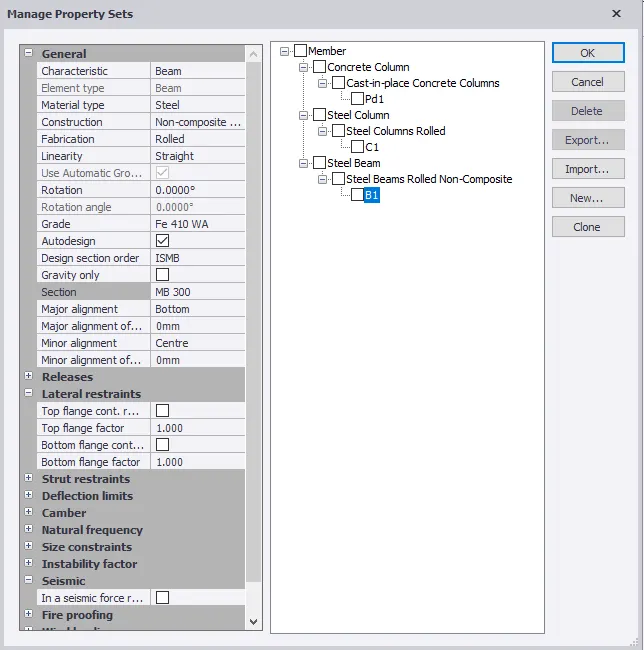

9. Creation of ISMB 300 Steel Beam Member

10. Creation of primary and secondary member beam as per the plan of attachment 1 on the Ground floor and beam is named as B1.

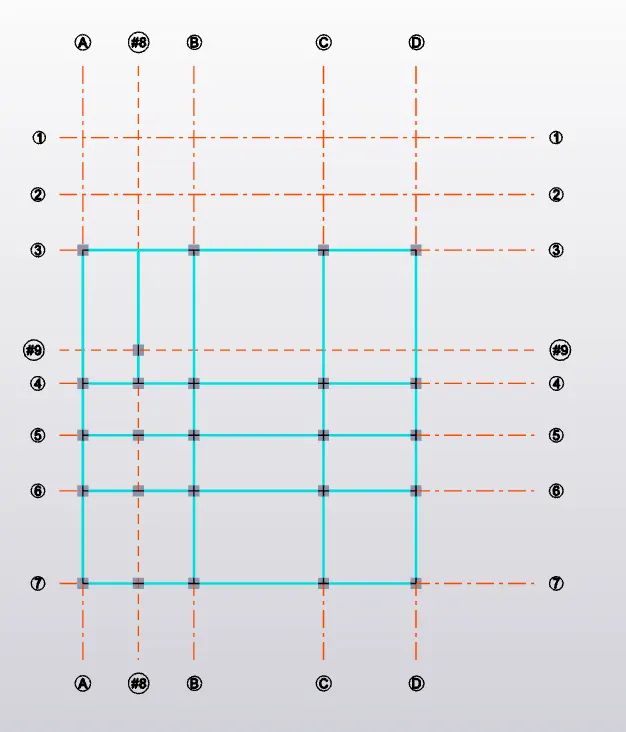

11. Comparision as per plan view of attachment 1

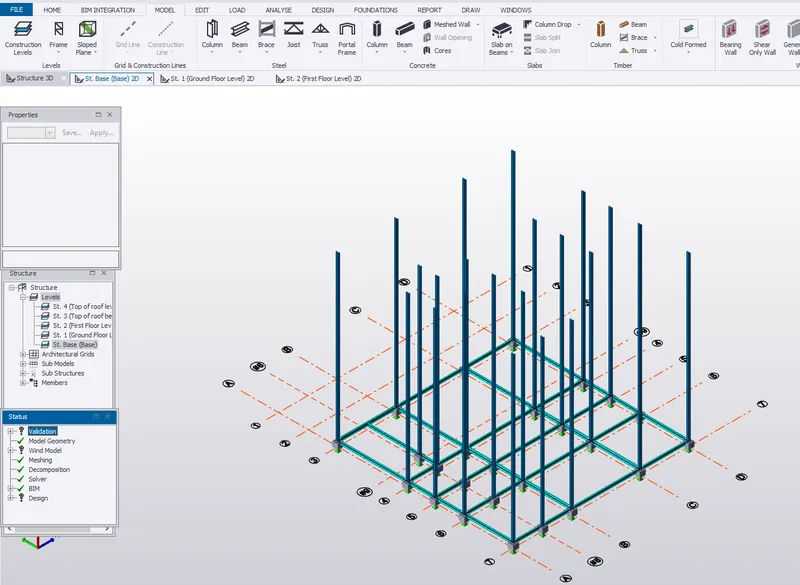

12. Beams view in 3D after validating it no warnings were observed.
