Project 2 - MODELLING, ANALYSIS & DESIGN OF COMPOSITE STUCTURES IN COMFLOR & ETABS
Aim: to model a tall buidling in ETABS for the given Architechural drawing along with the given parameters and to design their frame elements.
Procedure:

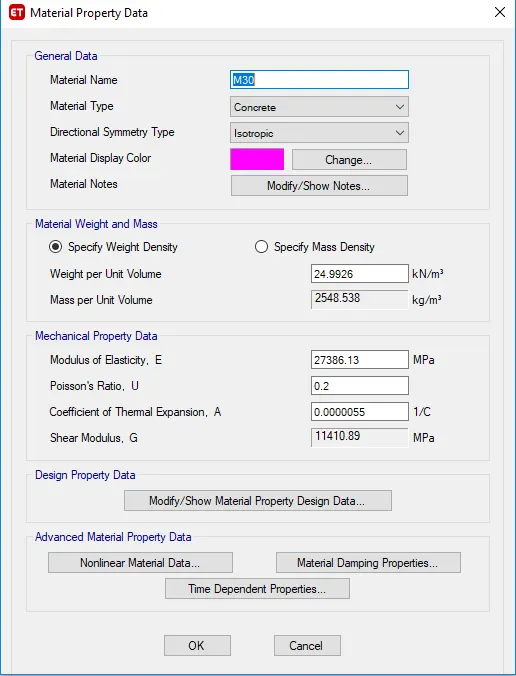

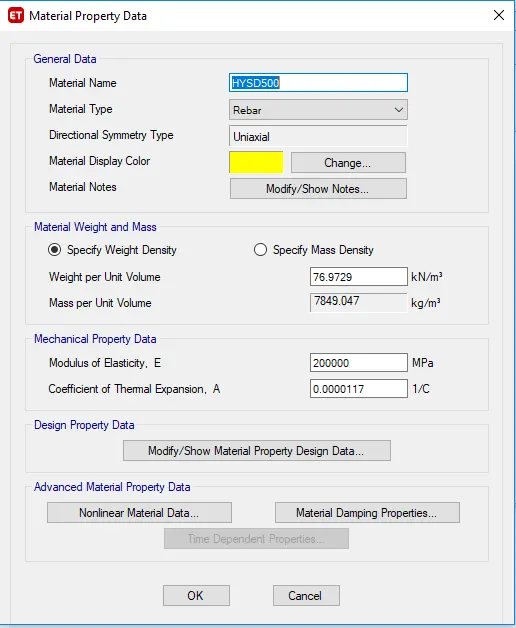

Assign the materials

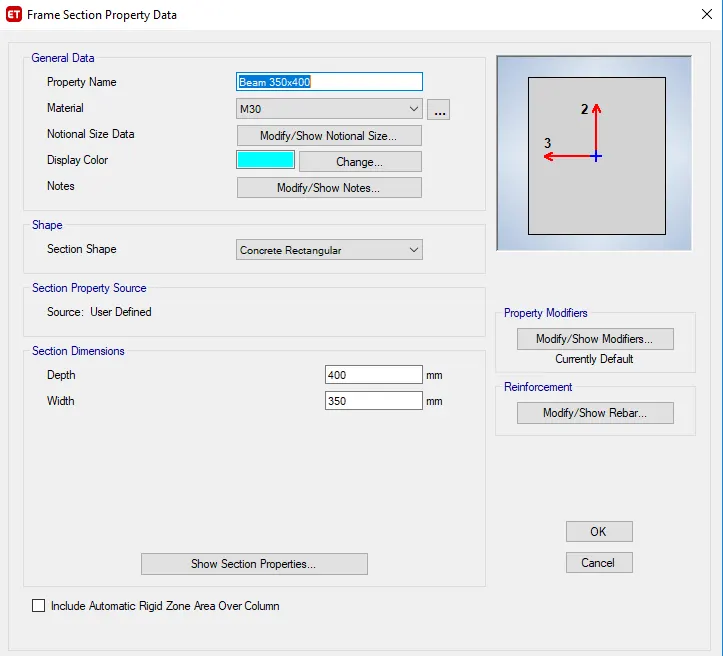

Assign the Frme properties

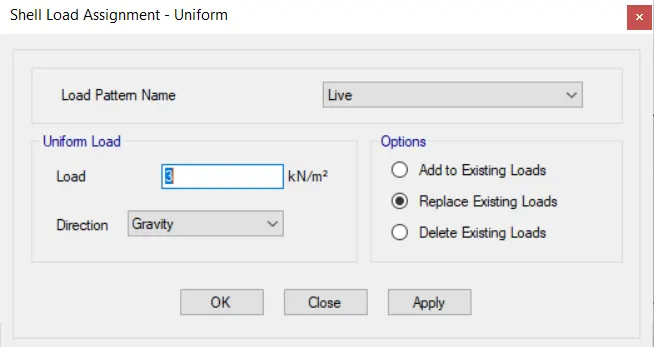

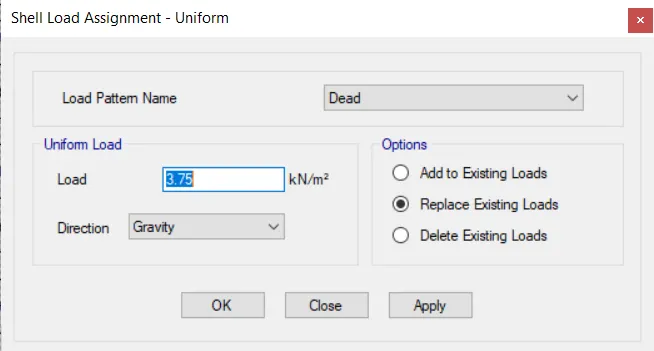

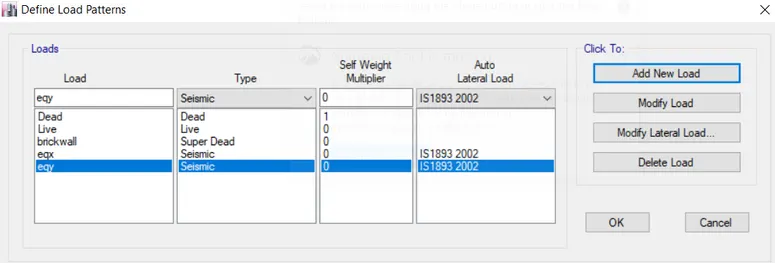

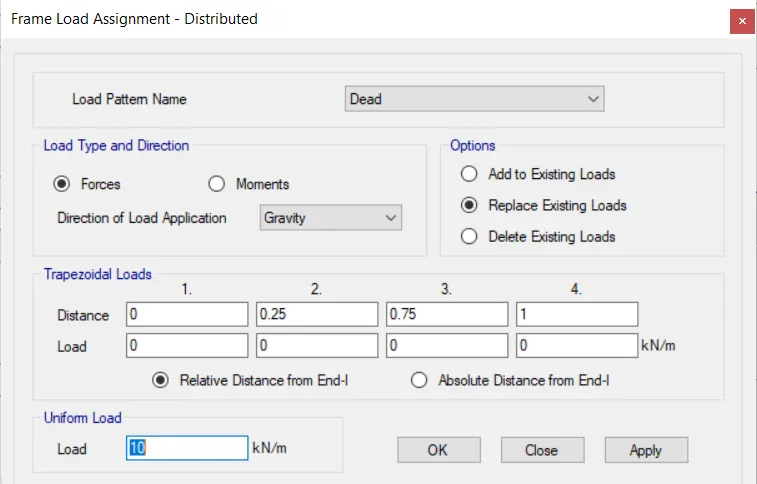

Assign load patterns

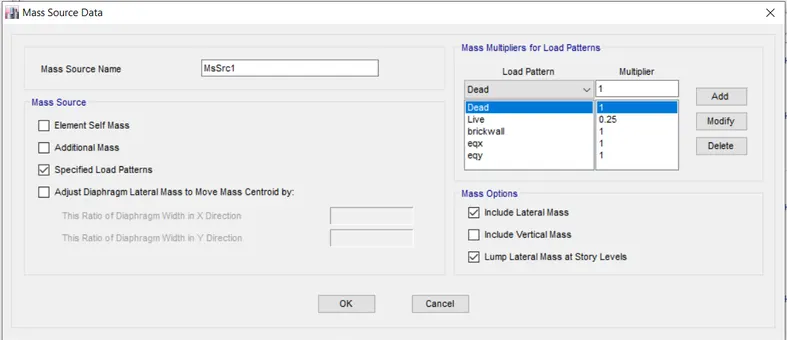

Assign Mass source

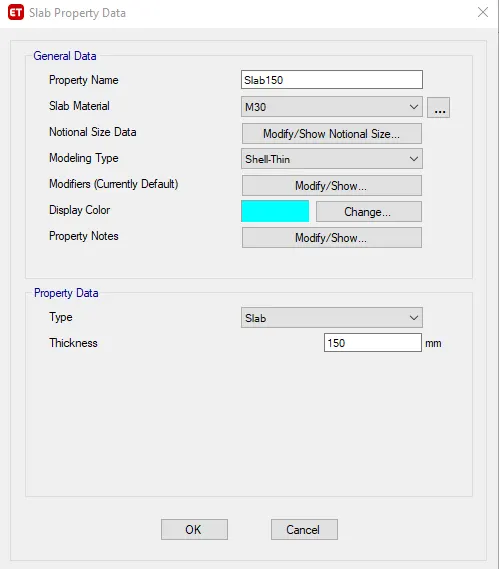

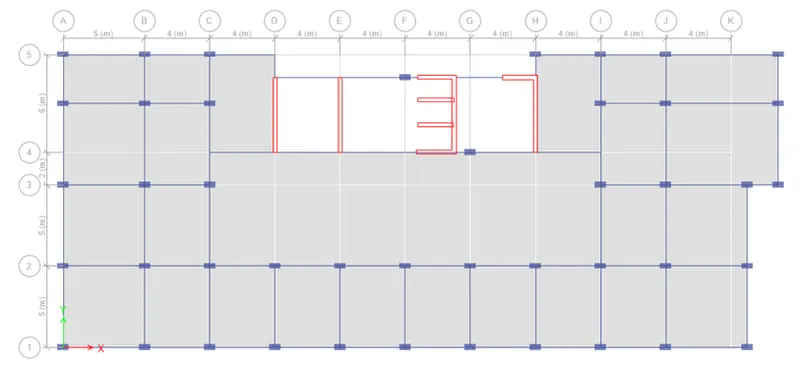

Assign Slab Data:

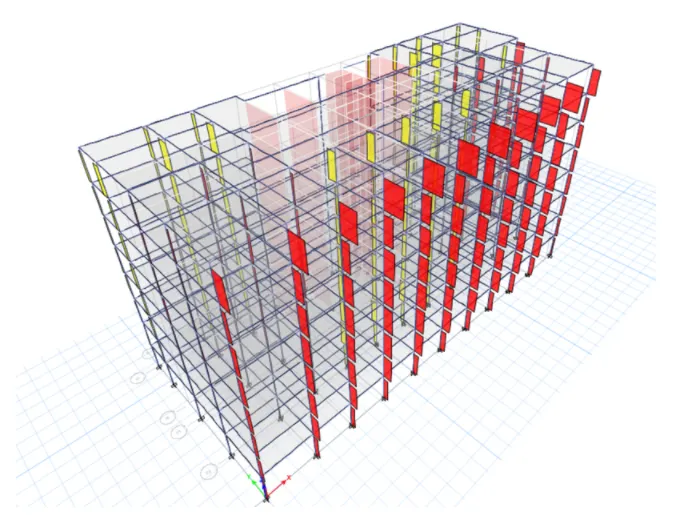

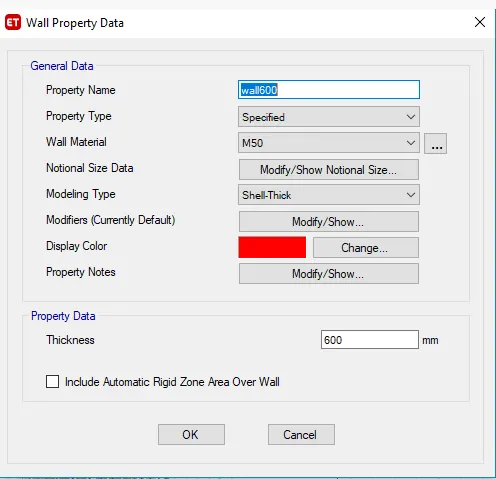

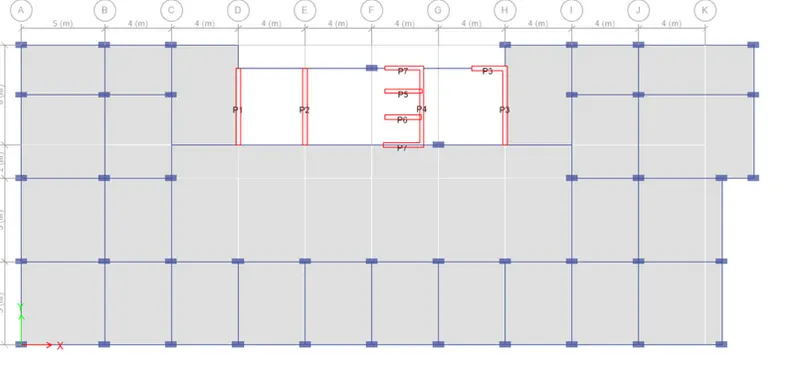

Assign the Shear wall

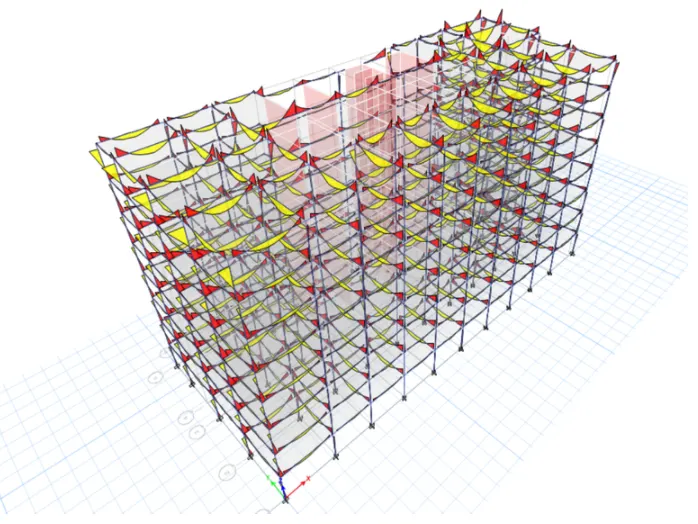

Bending Moment diagram
Axial Force Diagram

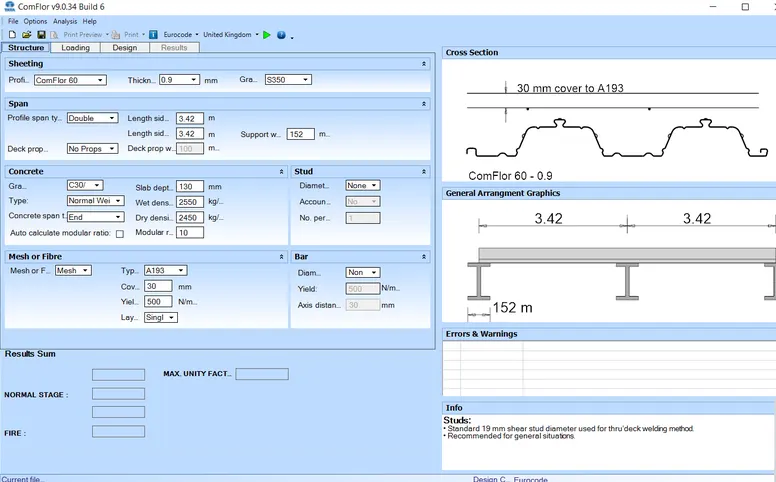

Comflor Design
Procedure:

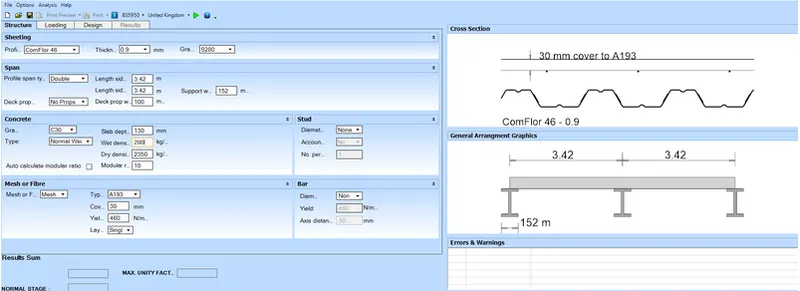

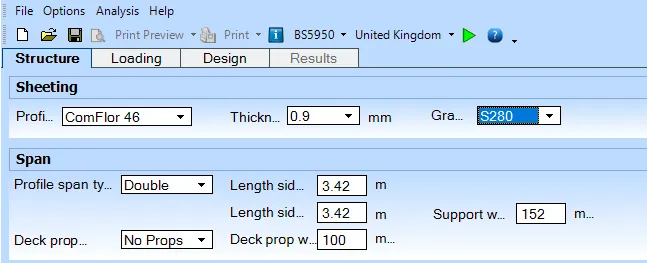

- Open the comflor software and enter the given data: thickness and grade.
- Enter the lengths of given member.
- Enter the span details such as profile span,deck properties and support width.

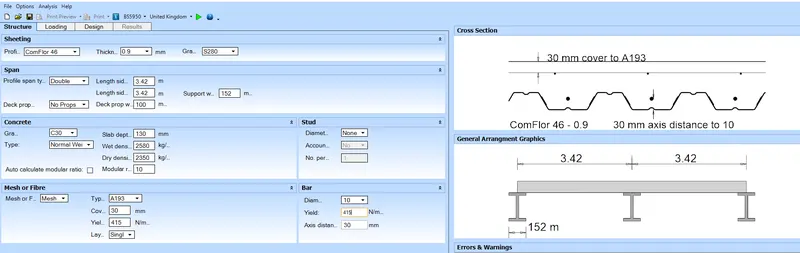

- Enter the mesh details such as grade and yield stress.

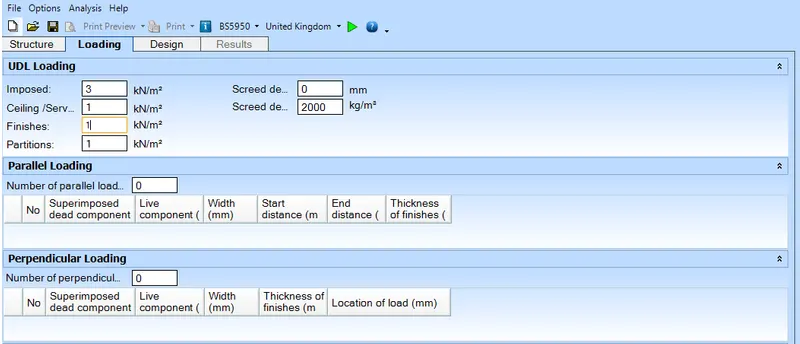

- Go to the loading tab and enter the live load and dead load.

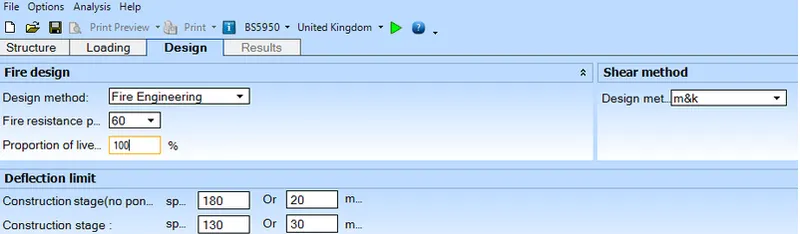

- Enter the design method as fire engineering.

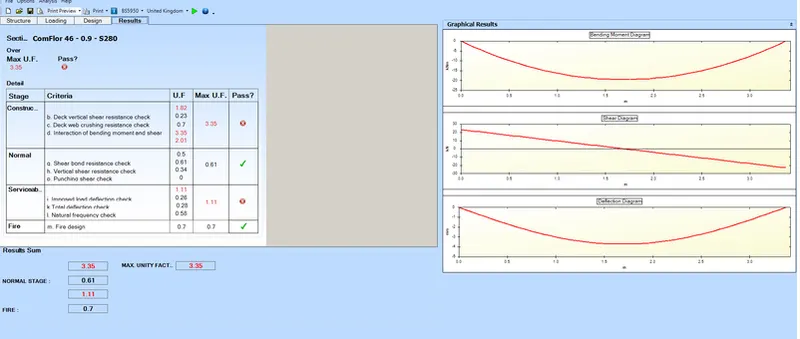

- Now run the analysis and note the results.
