Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly
TITLE:
Box Aseembly
OBJECTIVE:
The sheet metal design of box assembly from the sketch dimensions and also incorporate the features needed and make the two dimensional represntation on a drawing sheet denoting the dimensions and orientation.

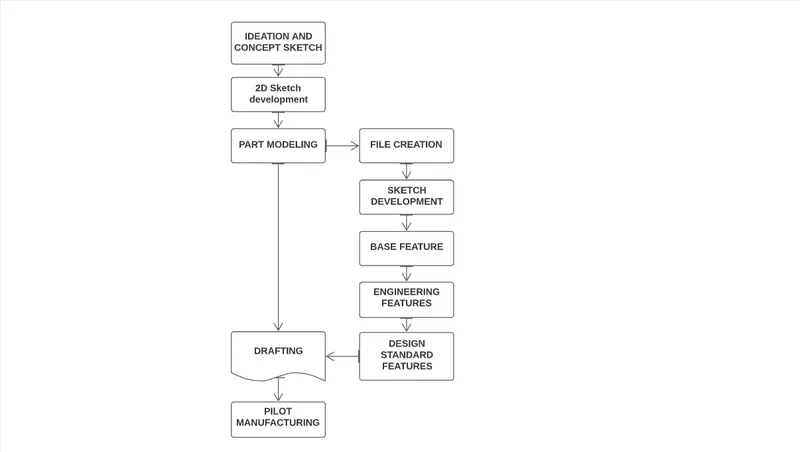

DESIGN METHODOLOGY:
DESCRIPTION:
TOOLS
Sketch: This tool is used to create the elementary step in the process. It helps in creating the two dimensional sketch that can be developed into part. The orientation and the position are specified in the sketch support using the planes and origin.
BASE OR ENGINEERING FEATURES
Tab: One of the base feature, allows to extrude a sketch along a vector where the thickness or the length are taken global values predominantly or can be altered. Simply, it adds material to the planar sketch by a value.
Flange: This feature helps by bending a section with or without relief, at a specified angle and distance. These are again taken globally and can be altered to meet the specs needed.
Hem: Modifies the the edge or the model by folding the sheet metal flange over onto itself with the angle variation, provided for the purpose of stiffness.
Cutout: A specific area to be removed can be out drawn using the sketch feature and this cutout removes the projected sketch from the base part.
Hole: Creates a hole on a specified point, also the hole can be modified to adapt the fasteners with its standards as given input and clearance provided itself.
DESIGN FEATURES
Dimple: They are given to the surface to give support and improve the rigidity of the component, inturn better energy absorption. Also, they are oriented and aligned to produce aesthetic property.
Bead: They are again added to increase the stiffness of the component. NX allows to input the depth, radius of the bead along with it the die and punch radius are also described in this feature.
Break Corner: Adds a preset fillet value to the edges extruding sharper.
Closed corner: Closes the corner where two adjacent flanges meet by extending the bends and flanges.
SHAPING FEATURES
Bend: Modifies the part by bending a section along a sketch line at perpendicular orientation with reversable directions.
Unbend: Does the pretty much opposite of the above, used to maintain the datum of the part and avoiding complexity in creating CSYS separately.
Rebend: As the name itself suggests, rebends the unbended component. Differs from bend by bending the component with its earlier orientation in memory.
Mirror: Produces the specific feature mirror image along a center line or plane to reduce the repitition of creating separate sketches and features.
DRAFTING FEATURES
Flat pattern: Creates the flat metal appearance from the formed sheet metal part which can be used to draft, making the understanding better and less complex.

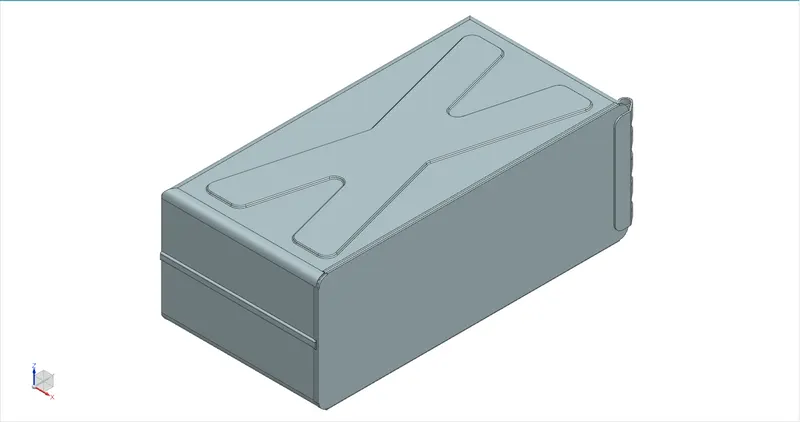

BOX ASSEMBLY:

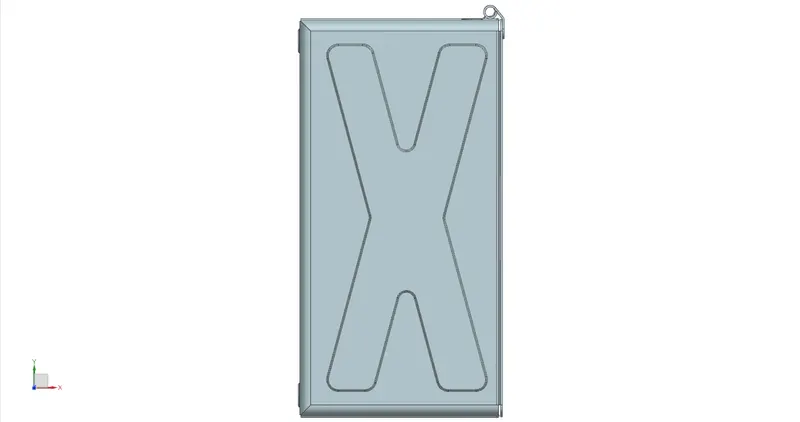

TOP VIEW:

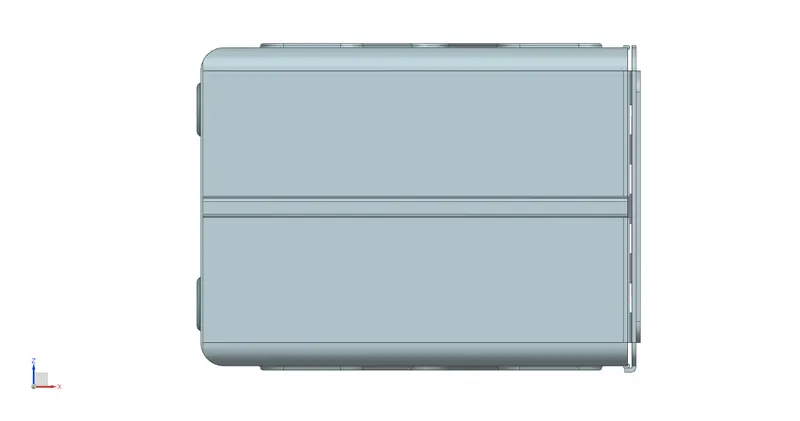

FRONT VIEW:

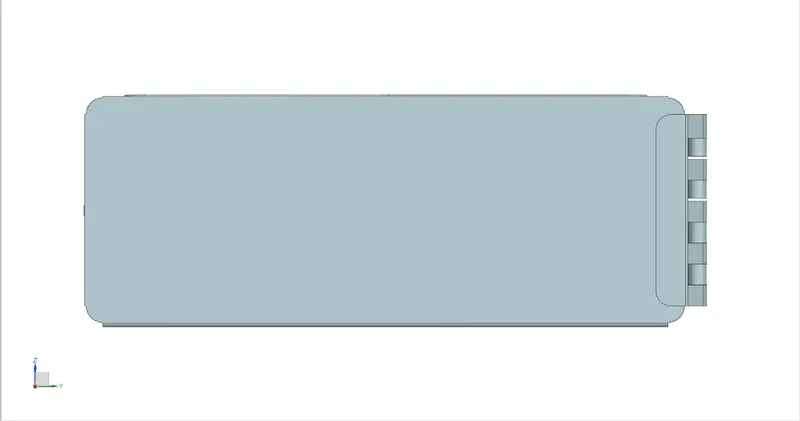

SIDE VIEW:

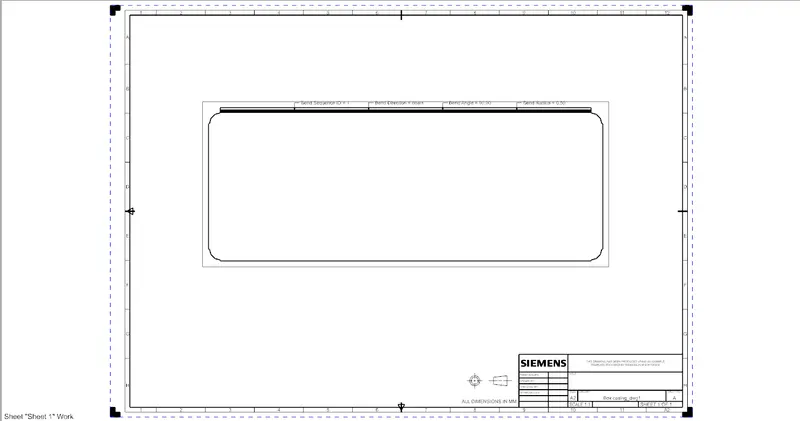

DRAFTING:
CONCLUSION:
The box assembly with the lid on top in Siemens NX PLM has been designed and drafted.
