Modelling of 25 storey building with the specified properties using ETABS

AIM:

Model a 25-storey building on ETABS with structural properties and to know modeling of a high rise building in ETABS software and to verify the seismic code requirements from ETABS analysis

INTRODUCTION:

By using ETABS software, analyse the building of 25-storey and see how a building behaves under various loads.

PROCEDURE:

STEP1) Install and Launch ETABS 2022

• Install the ETAB software from CSI Website
• After complete the installation, Launch ETABS 2022 software from windows

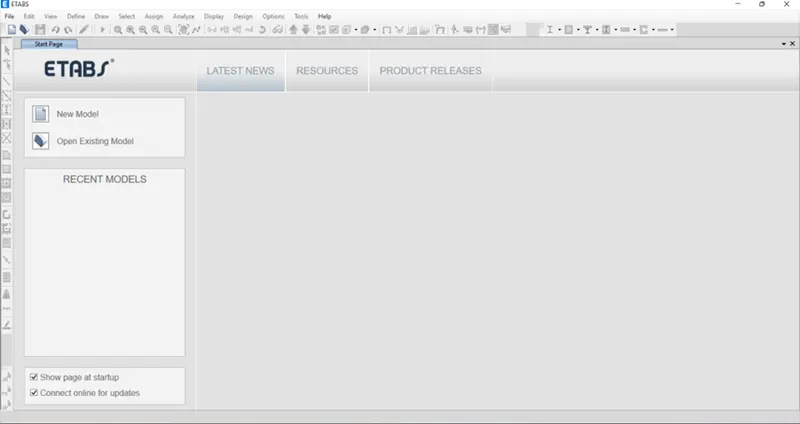

• ETABS home interface will be open as shown below

STEP2) Create New Model

• Click on New Modal from ETABS home interface

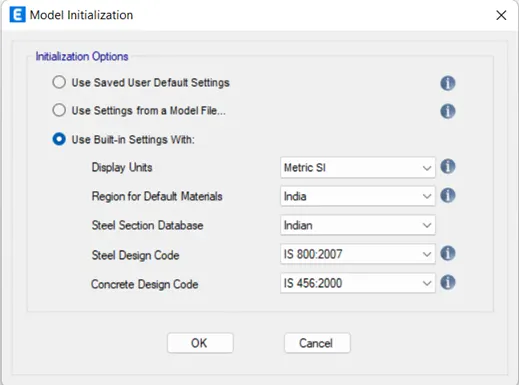

• Select Unit Built in Setting from Modal Initialization dialog box
• Change display unit as METRIC SI
• Region for default material as INDIA
• Steel selection database INDIAN
• Steel design code IS-800:2007
• Concrete design code IS-456:2000 enter OK

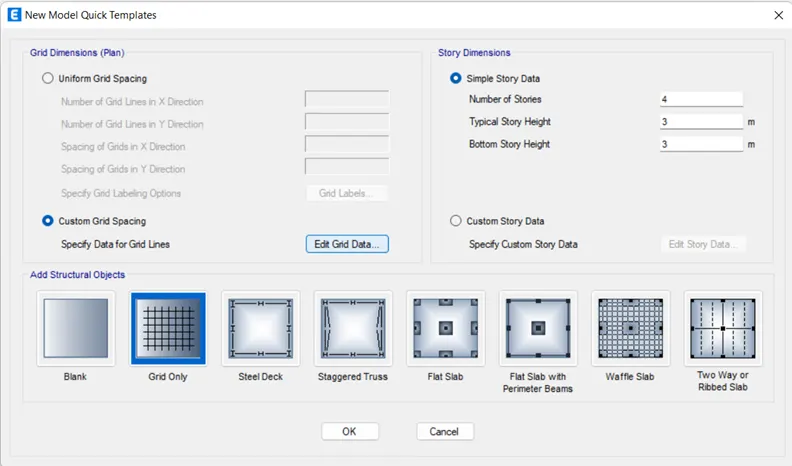

STEP3) Create Grids

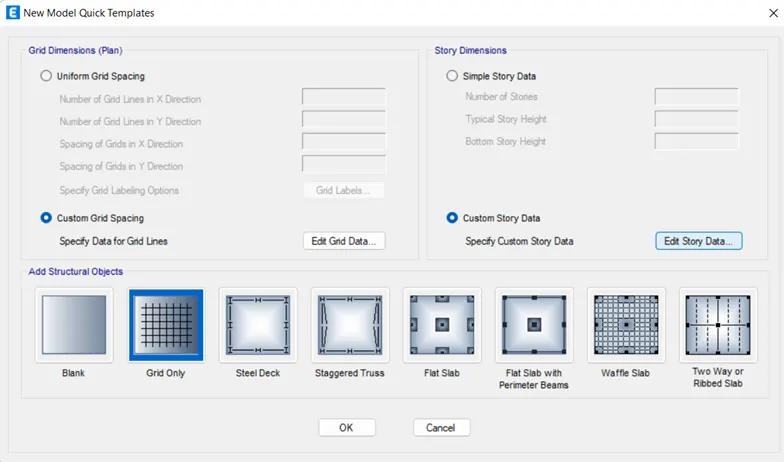

• A new dialog box opened as New Modal Quick Templates
• Select Custom Grid Spacing and click on the Edit Grid Data

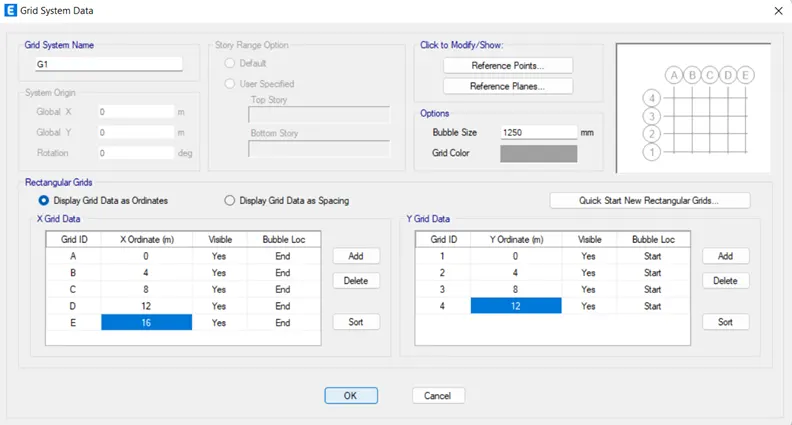

• Modify the X & Y Grid Data from the Grid System Data dialog box and click OK

STEP4) Add Building Storey

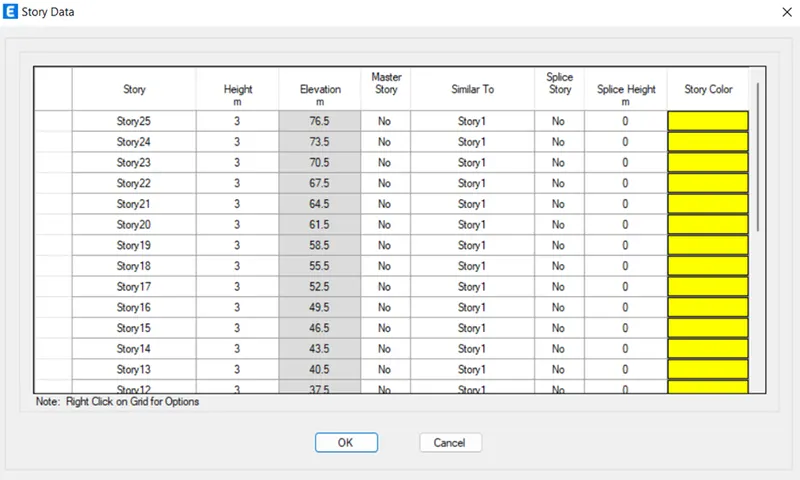

• Select Custom Story Data and click on Edit Story Data

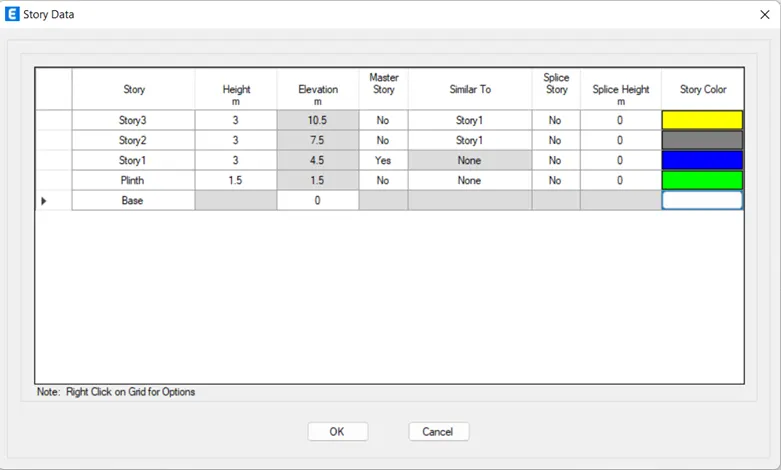

• A new dialog box open as Story Data
• Rename the levels of the story 1,2 3,4 as plinth and story 1,2,3 respectively
• Only plinth level height is 5 and all other story height is 3
• Story 1 as master story so, select yes, towards the story 1
• Change story 2 & 3 similar to story 1

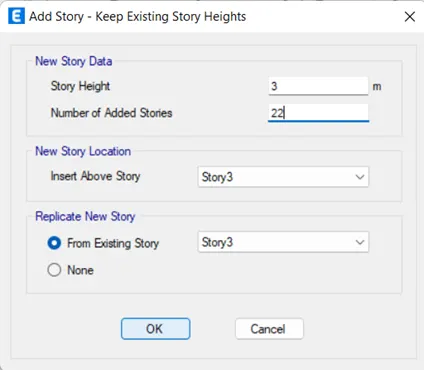

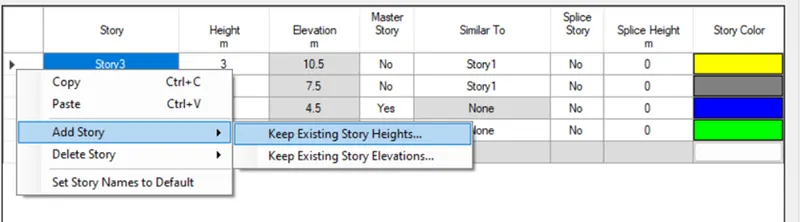

• To add more story above the story 3, right click on story 3 and click add story>keep existing story heights
• Provide number of added stories 22 from the dialog box, click OK
• All 25 story are created then change Similar To option as Story 1

STEP5) Define Material

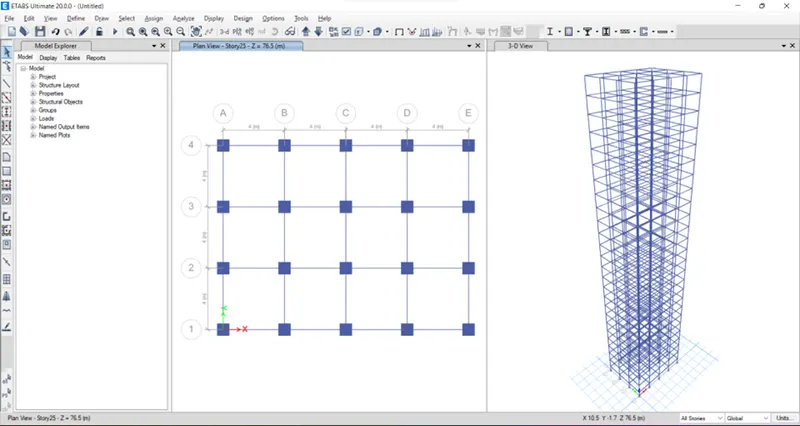

• The grid arrangement of the new modal will open

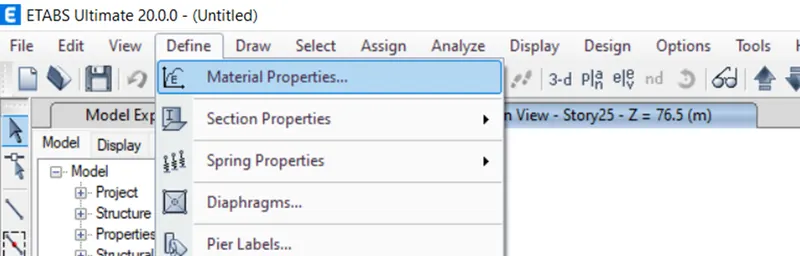

• Go to Define and click Material Property

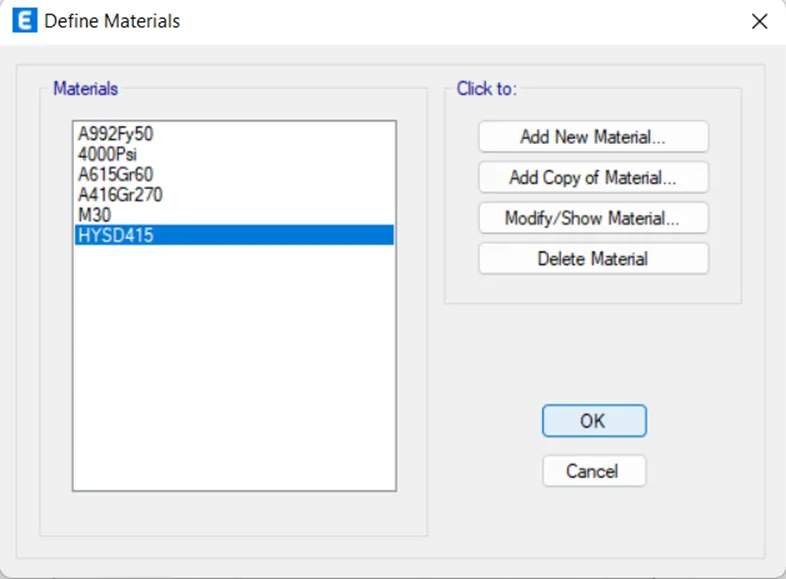

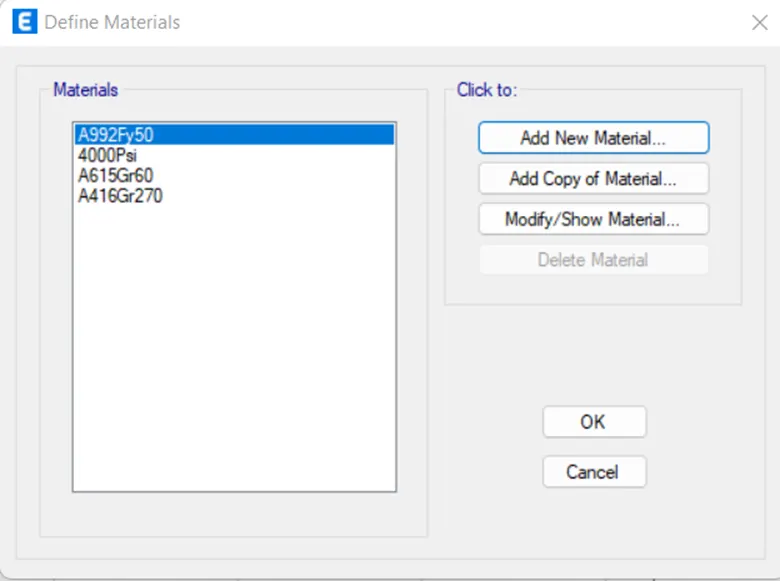

• Define Material dialog box will open, click on Add New Material

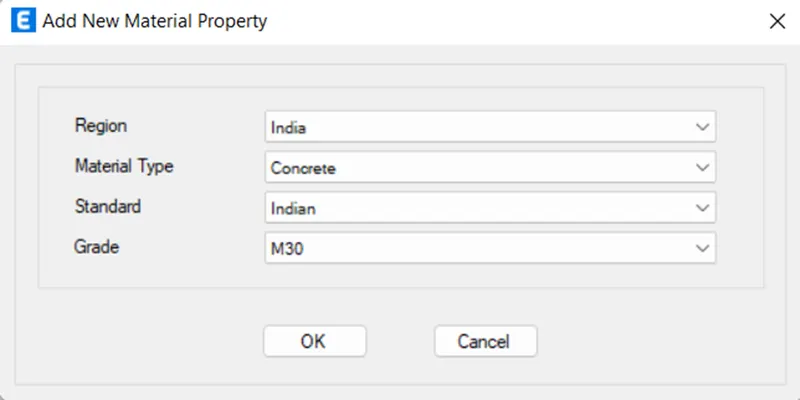

• Add New Material dialog box will open, select Material Type Concrete and ensure Grade M30 click OK

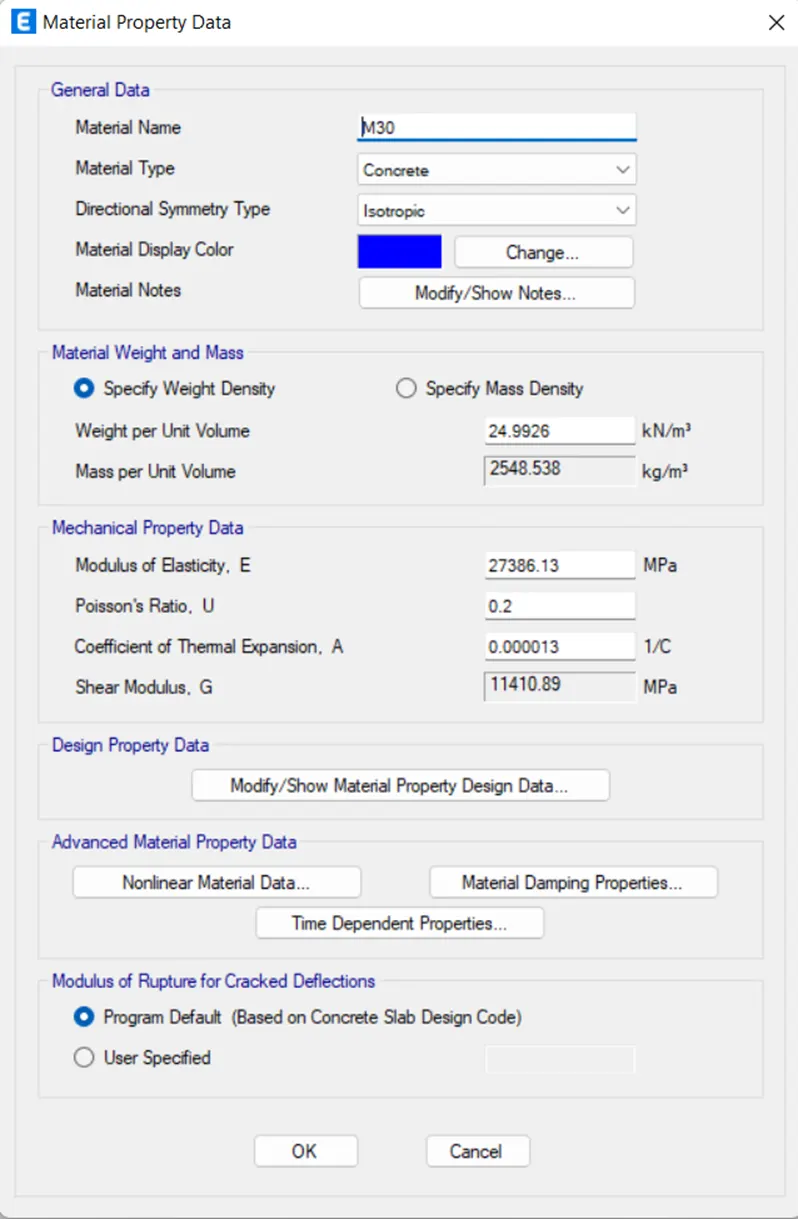

• Material Properly Data dialog box will open, click OK
• Again, click on Add New Material

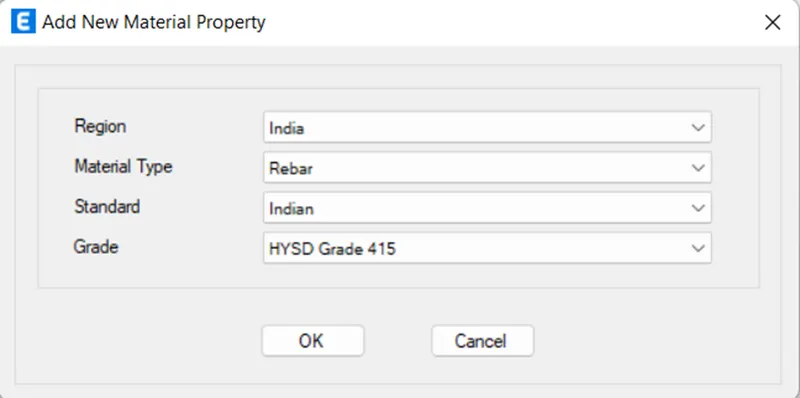

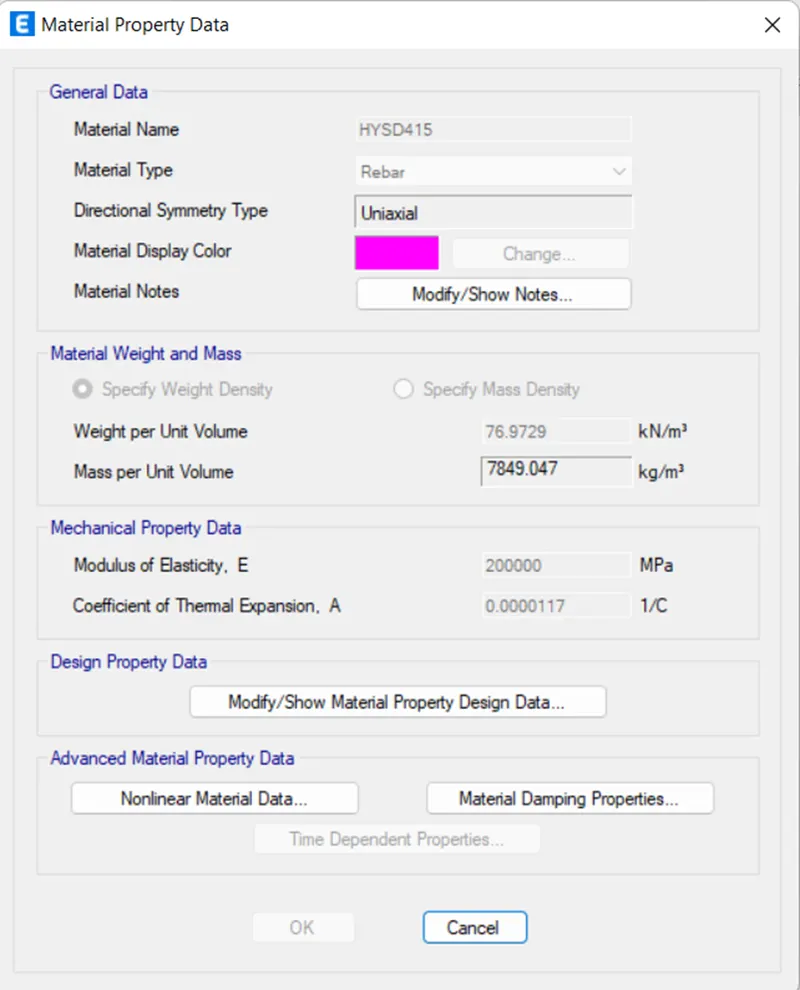

• Add New Material dialog box will open, select Material Type Rebar and select Grade HYSD 415 click OK
• Material Properly Data dialog box will open, click OK

STEP6) Add Column, Beam

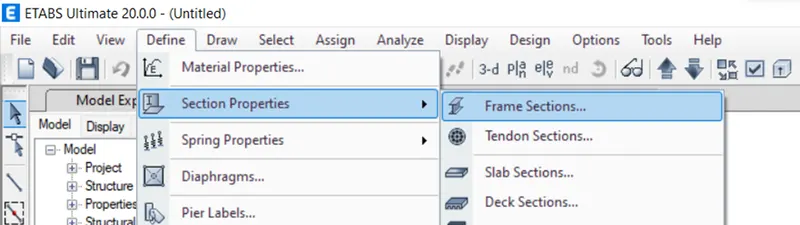

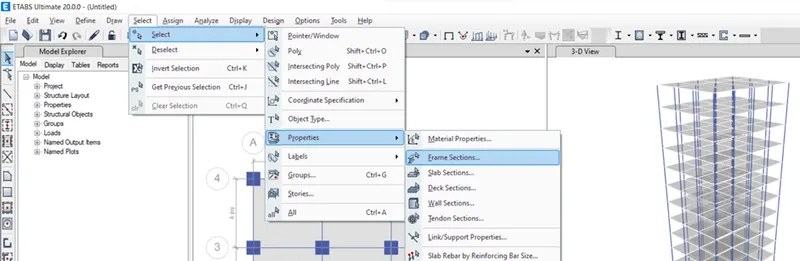

• Go to Define tab, and select Frame Section from Section Property

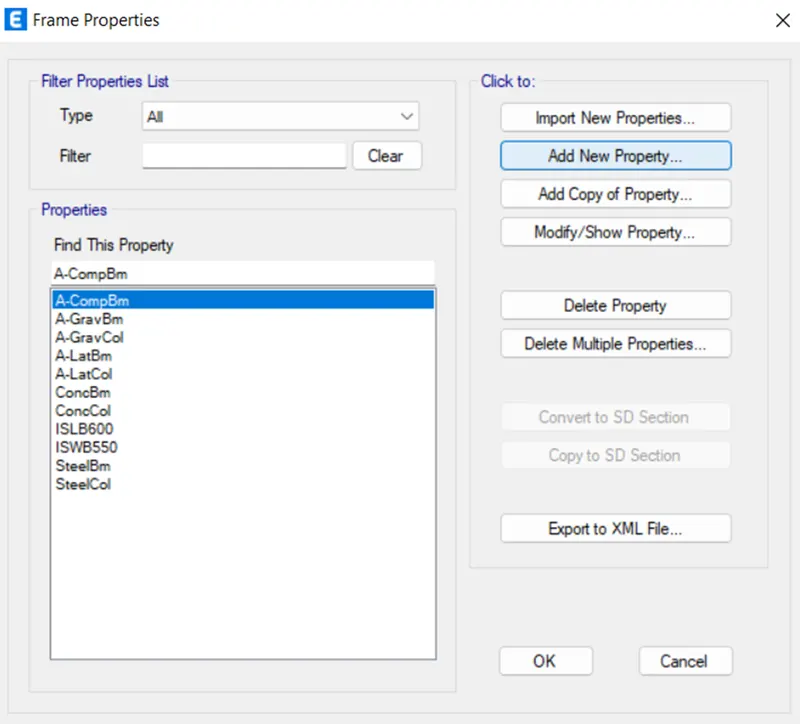

• Click on Add New Property from Frame Properties dialog box

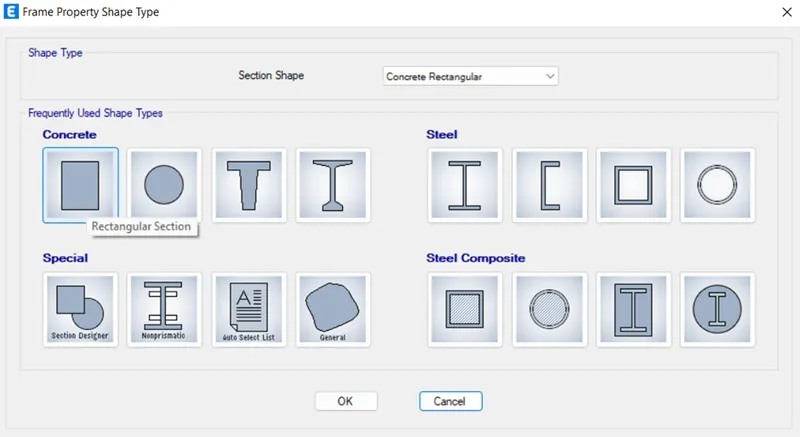

• Click on Rectangular Section for Beam from Frame Property Shape Type

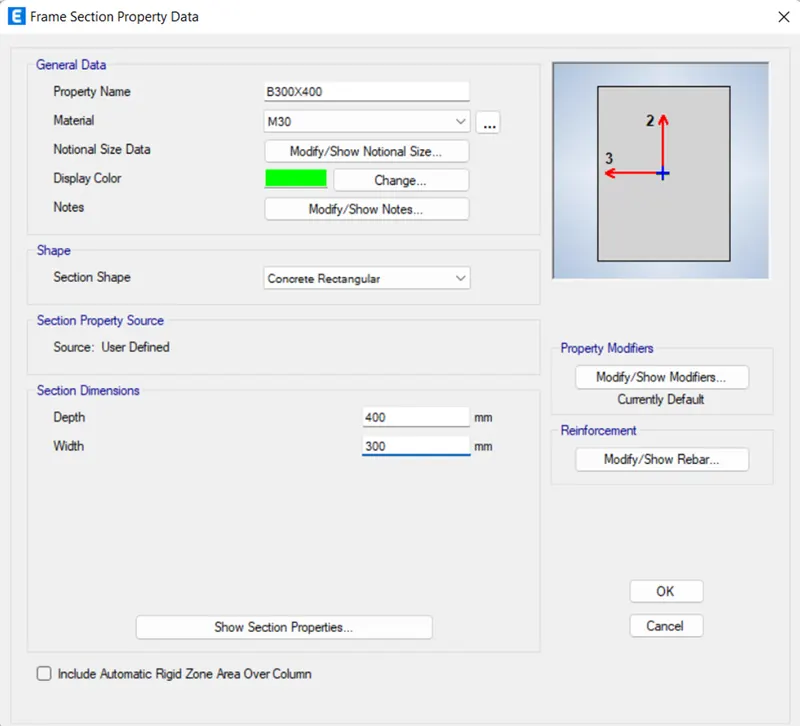

• Change the Property Name as B300X400 and Material M30 and section dimension Depth as 400 & width as 300 from Frame Section Property Data, click on Modify/Show Rebar under Reinforcement

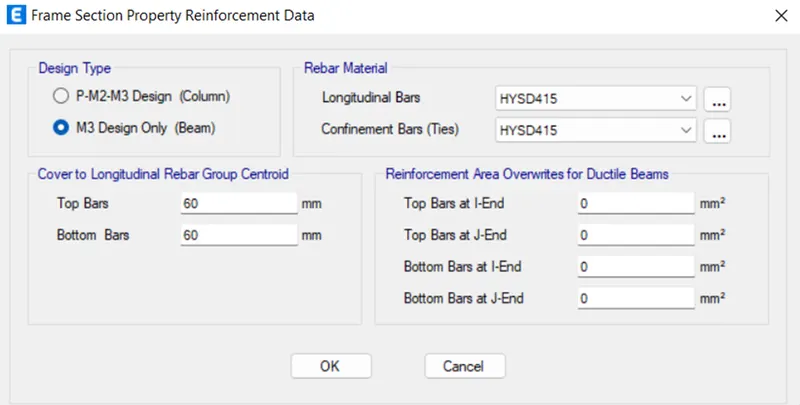

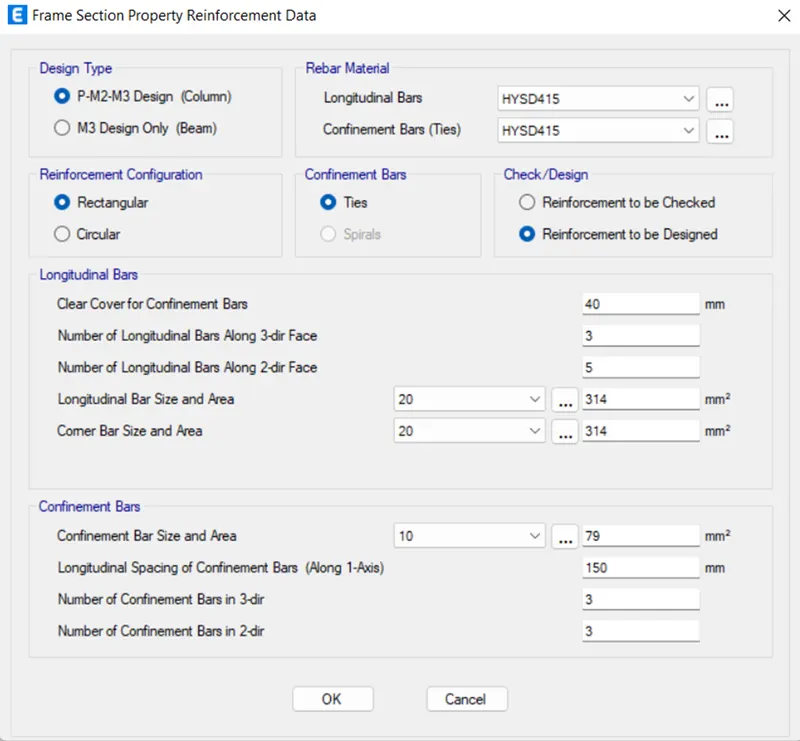

• Change Design Type and Rebar Material, click OK

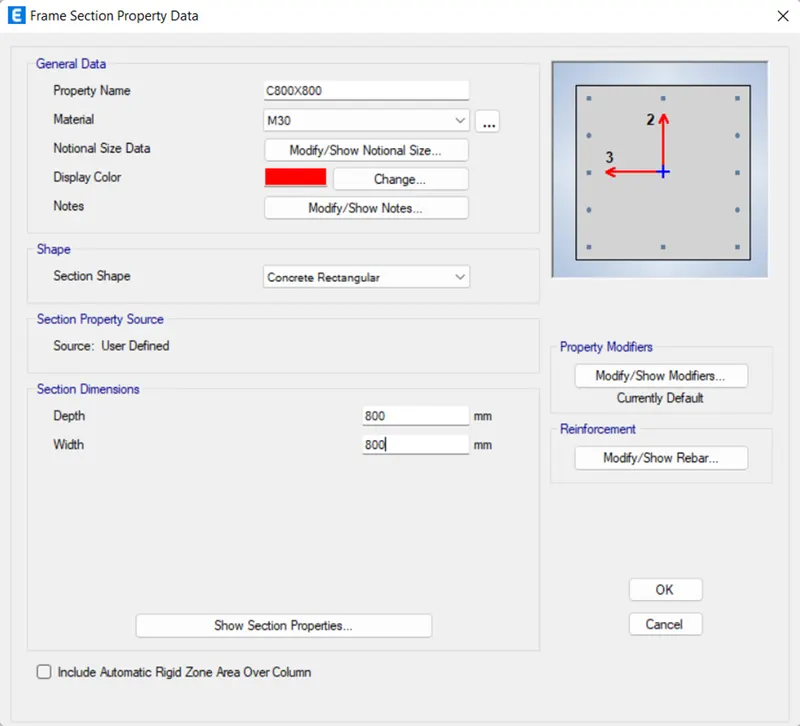

• Again, Add New Property for Column and select Rectangular Section
• Change the Property Name, Material and Dimension and Modify/Show Rebar similarly

STEP7) Add Slab

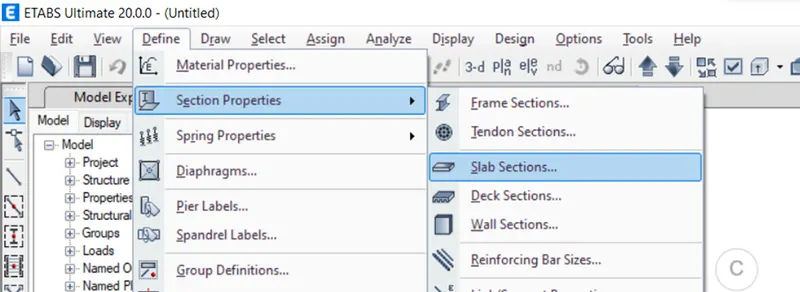

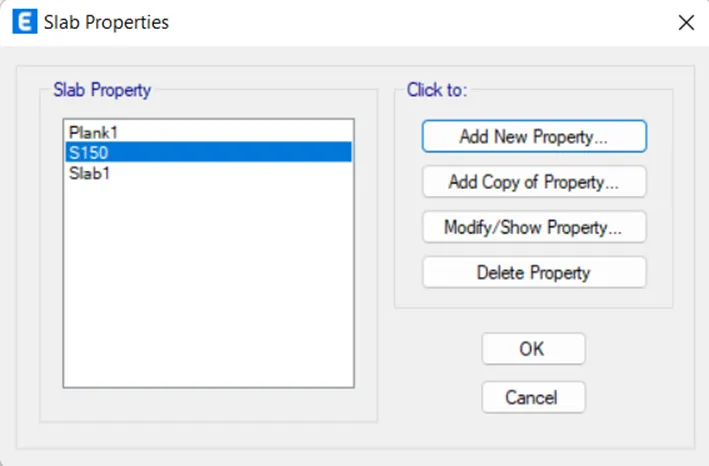

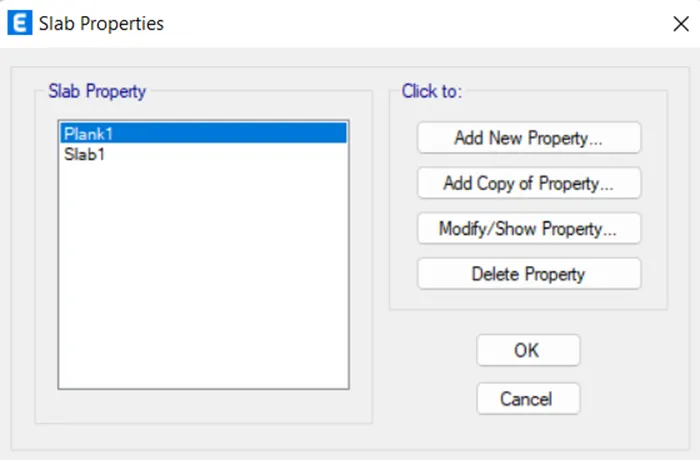

• Go to Define, Select Slab Section from Section Property
• Click on Add New Property for Slab

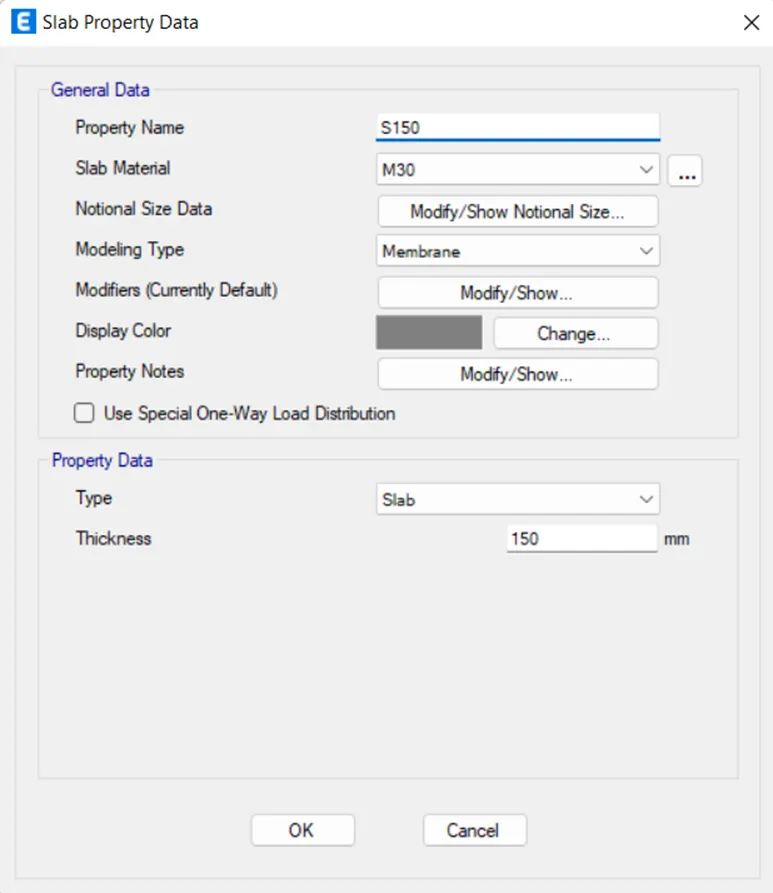

• Change the Property Name, Slab Material, Modeling Type and Thikness of Slab

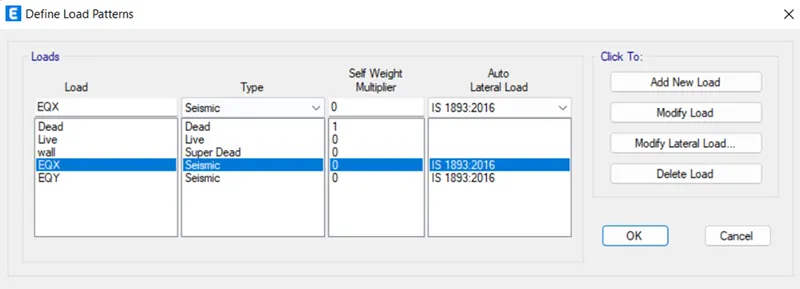

STEP8) Load Pattern

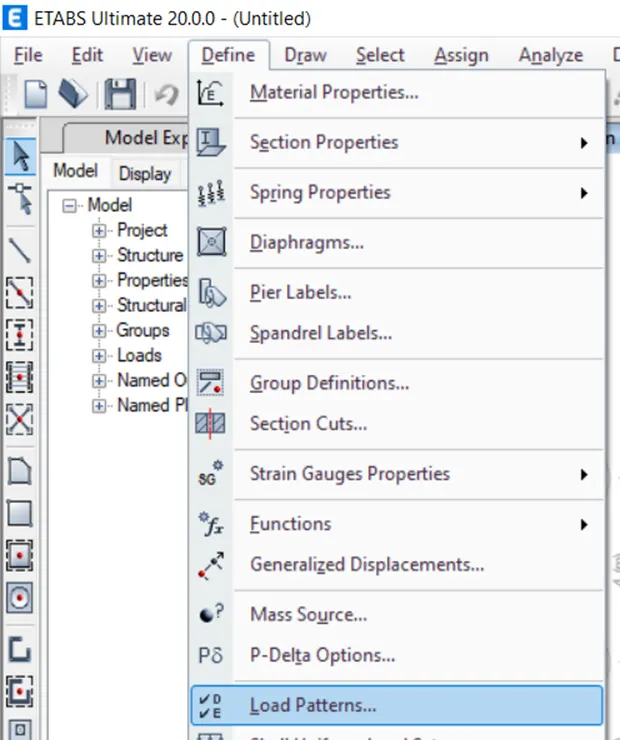

• Go to Define and select Load Patterns
• Add Wall Load as Super Dead type

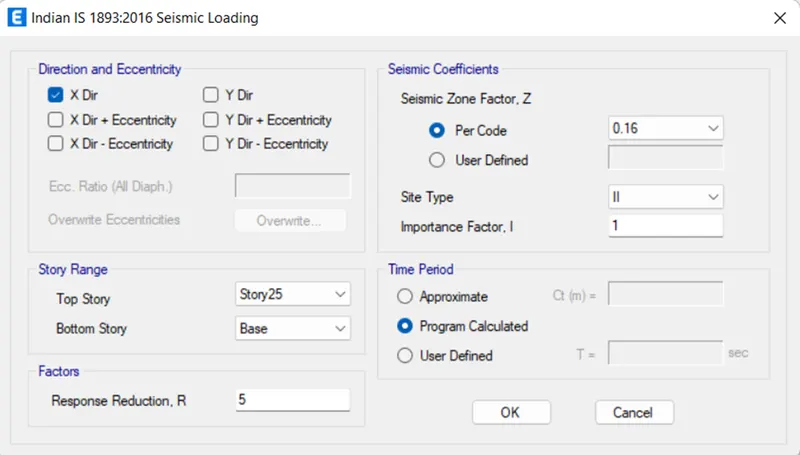

• Simalry add EQX & EQY Load as Seismic type and select IS-1893:2016

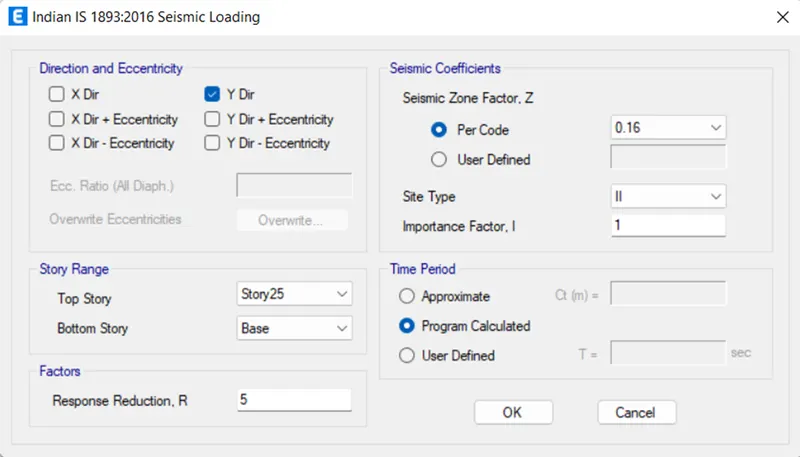

• Modify the lateral load and uncheck the other direction except X for EQX and Y for EQY
• Change the zone as per code 16

STEP9) Define Mass Source

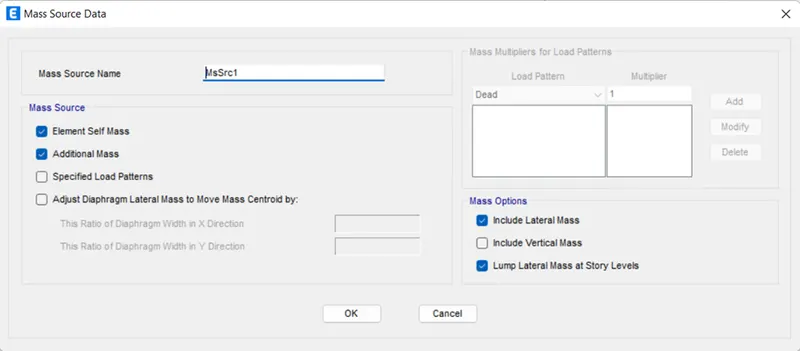

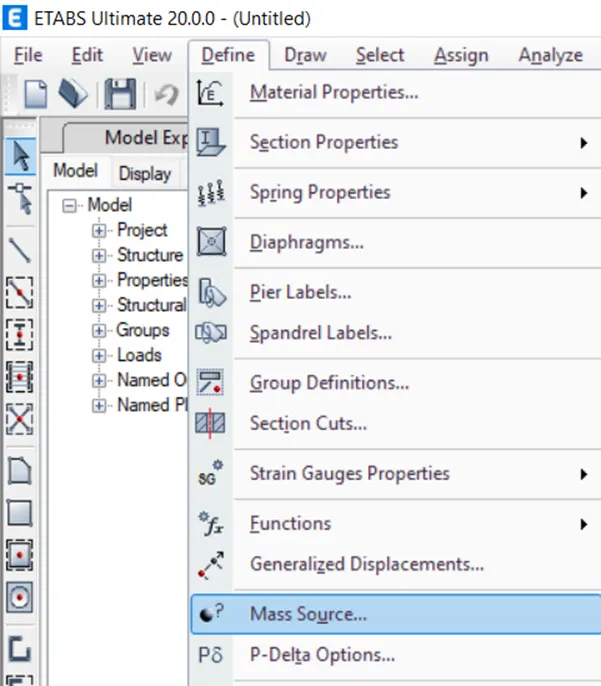

• In Define tab Select Mass Source

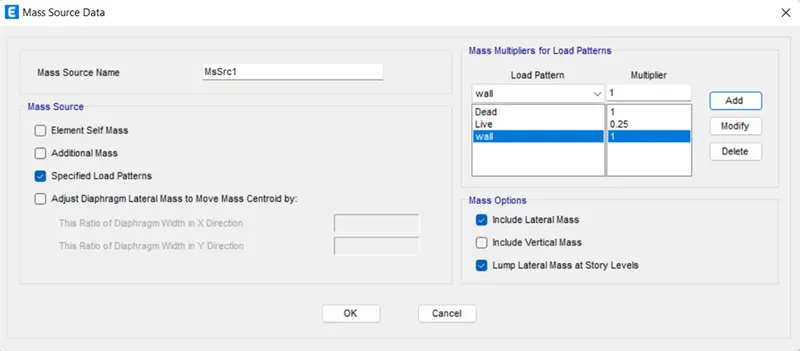

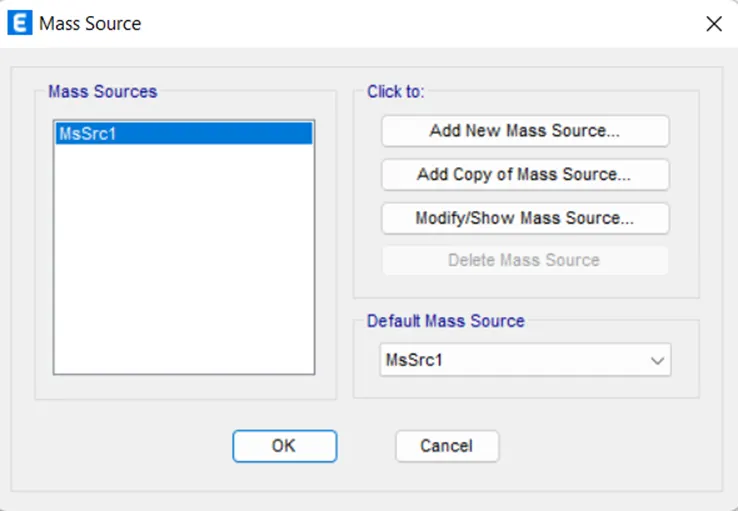

• Click on Modify/Show Mass Source
• Check mark only Specified Load Pattern
• Add wall, live and dead load

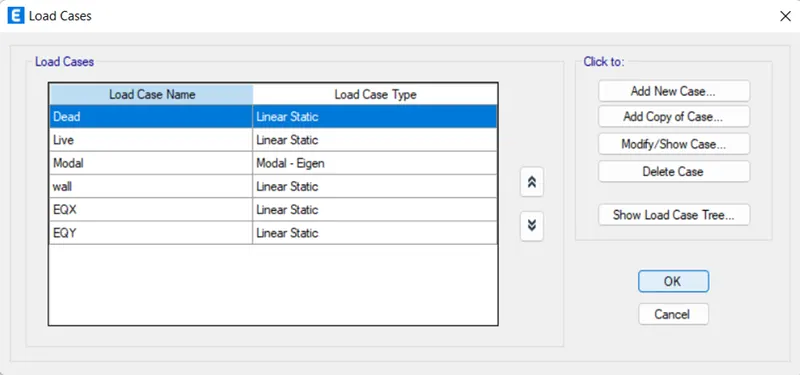

STEP10) Check Load Case

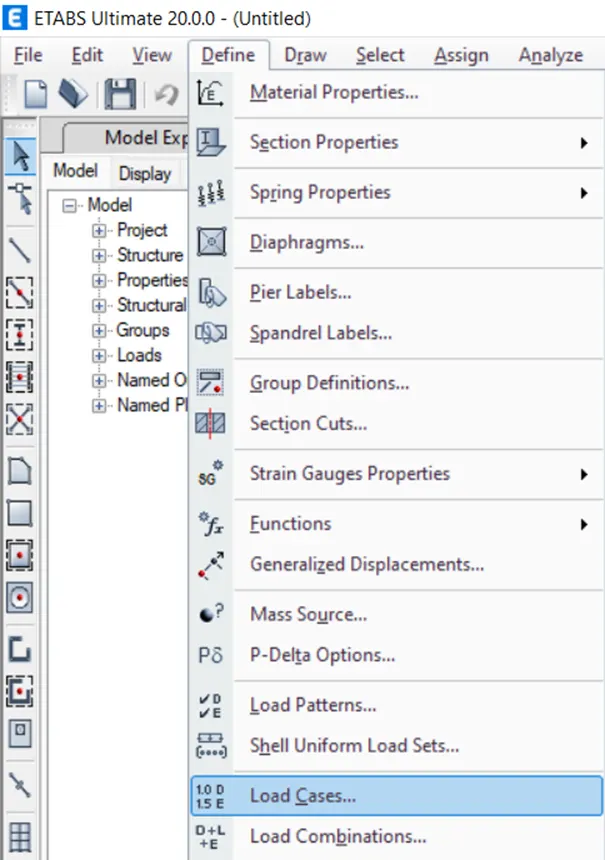

• Go to Define and select Load Cases
• Check load cases and click OK

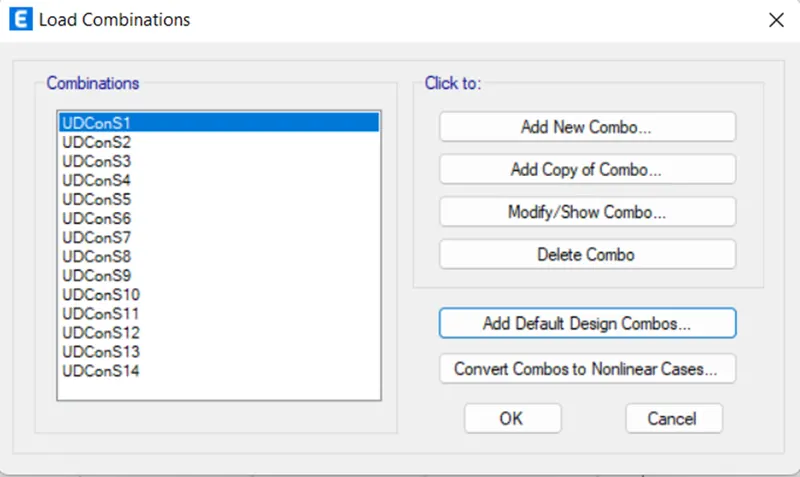

STEP11) Load Combinations

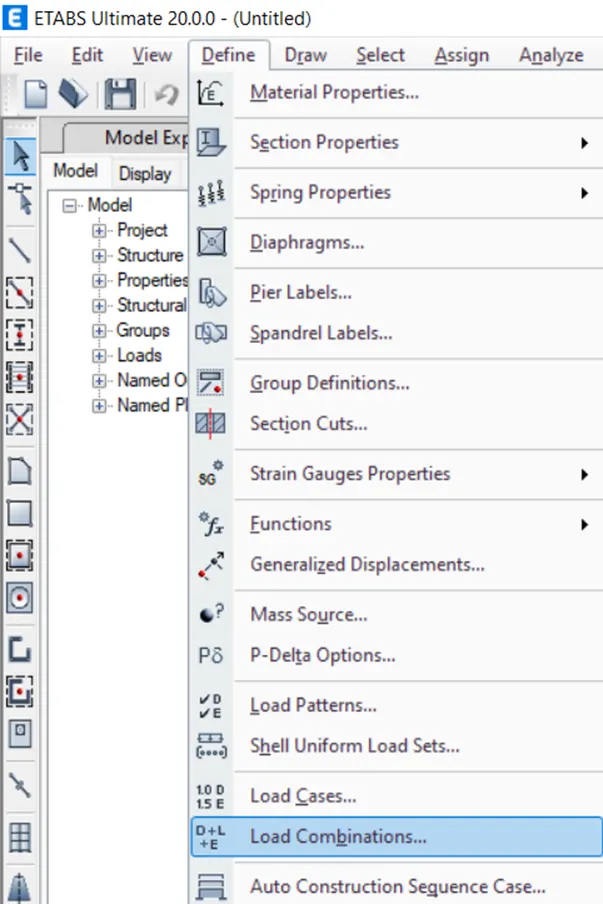

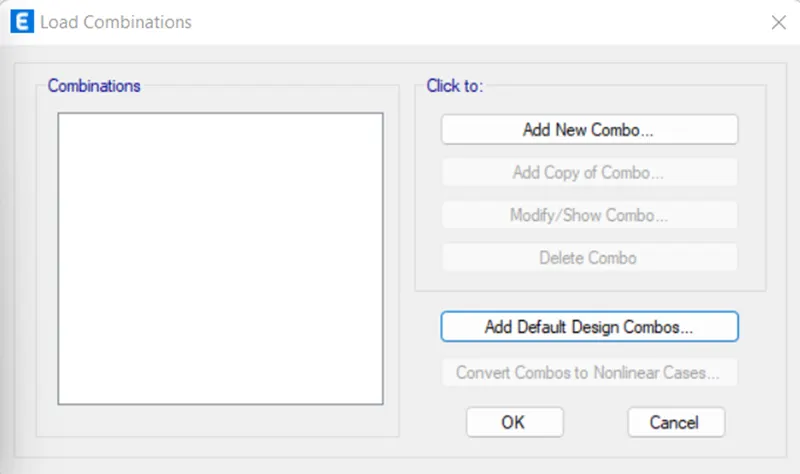

• Go to Define select Load Combinations

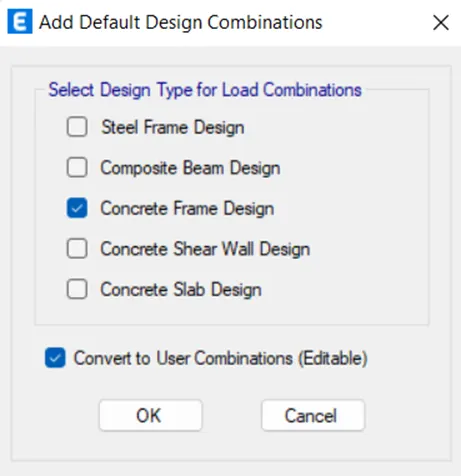

• Add Default Design Combination
• Check on Concrete Frame Design and Convert To User Combination

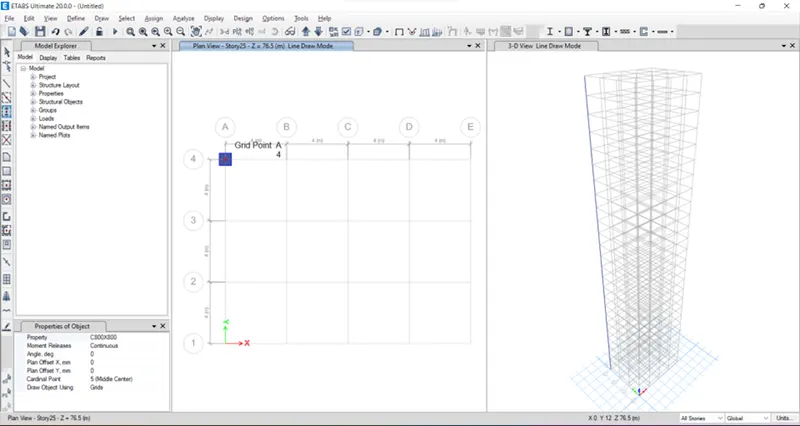

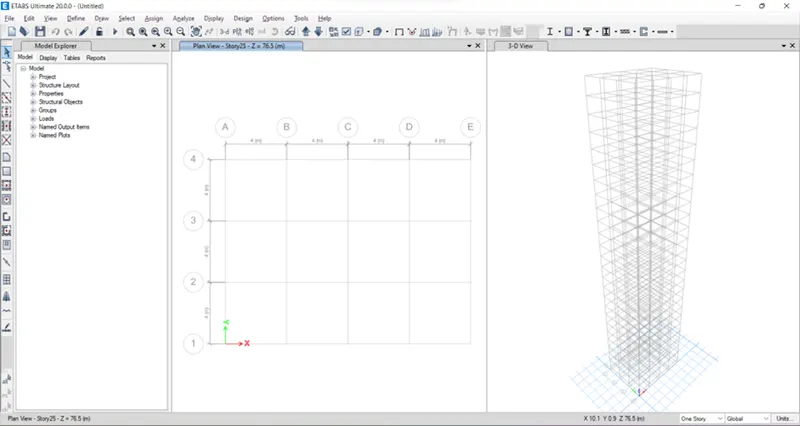

STEP12) Draw Column

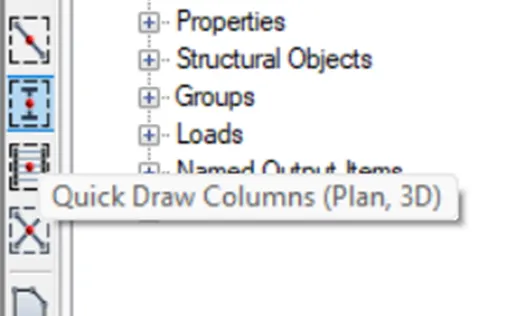

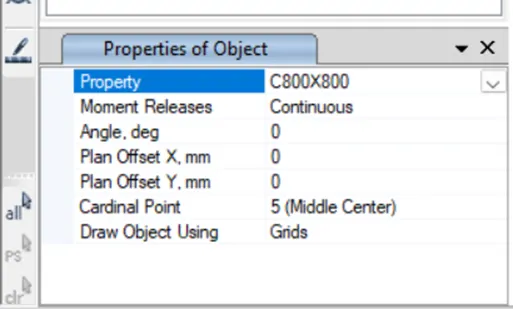

• Select Quick Draw Column
• And change the

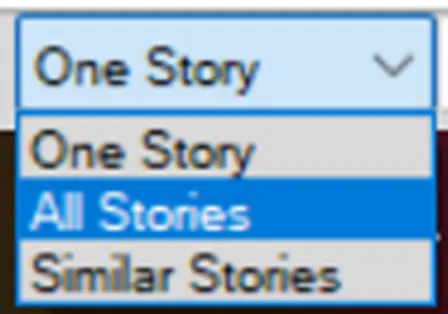

• Select All Stories

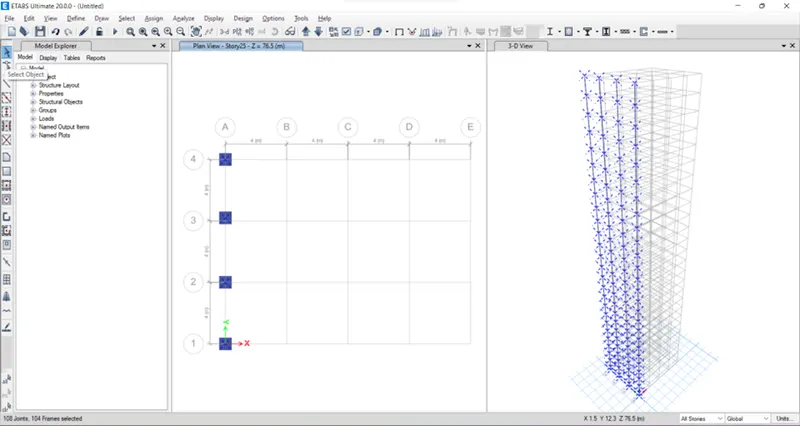

• Click on Left Most Y Direction Grid to place the column

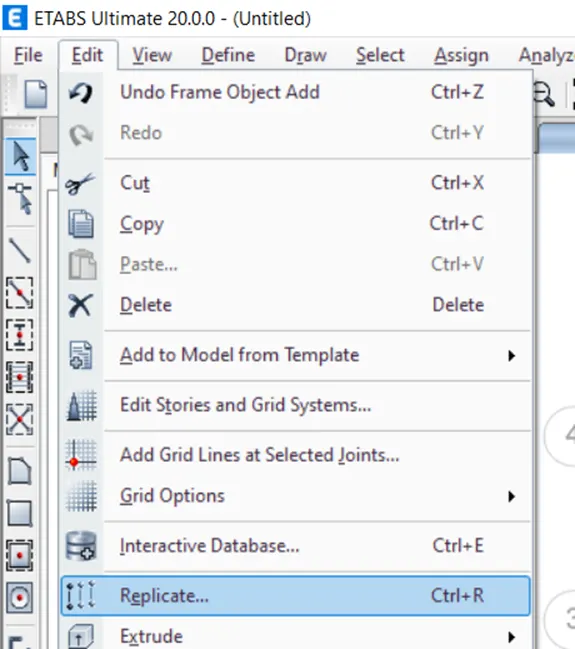

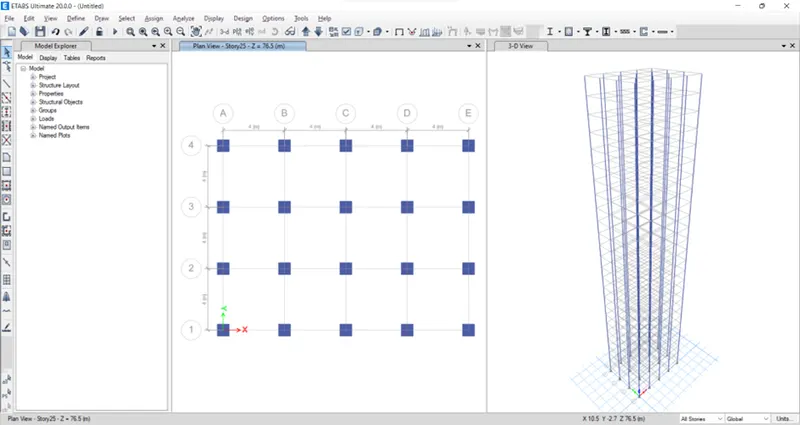

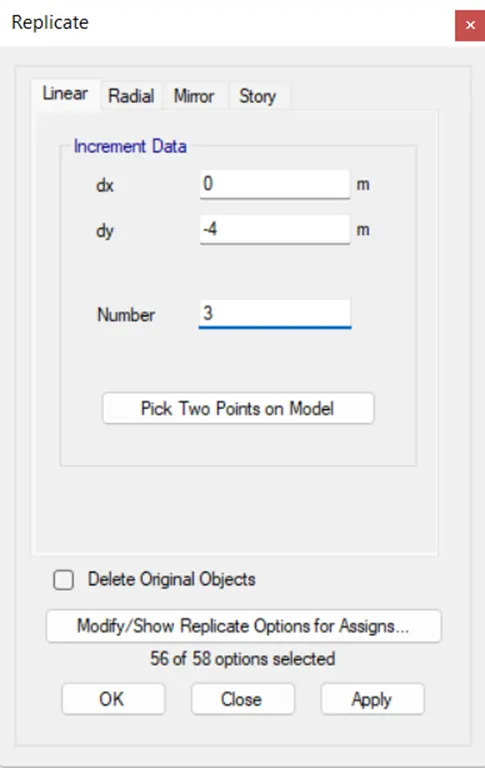

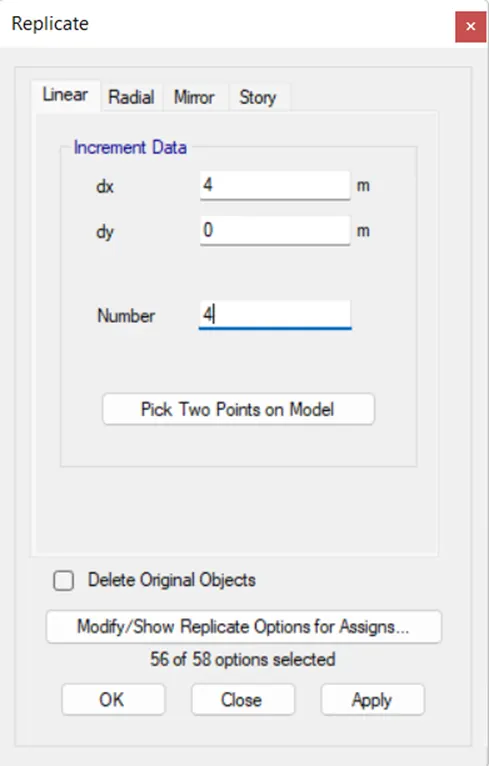

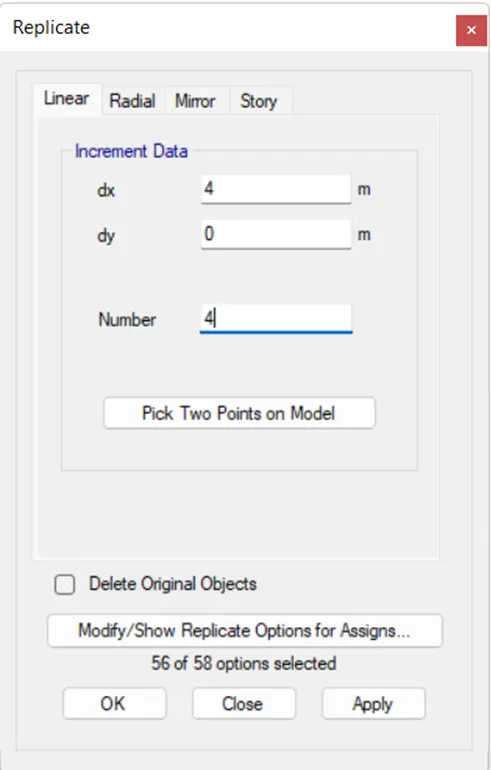

• Select all the column and make Replicate

STEP13) Draw Beam

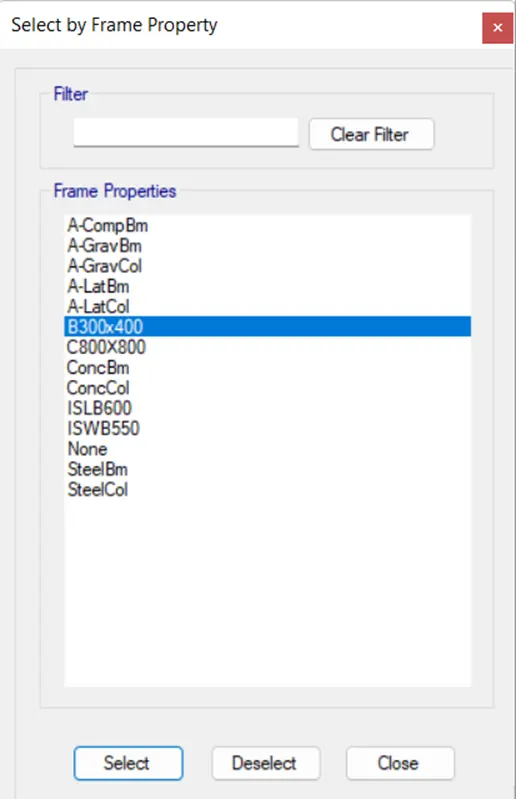

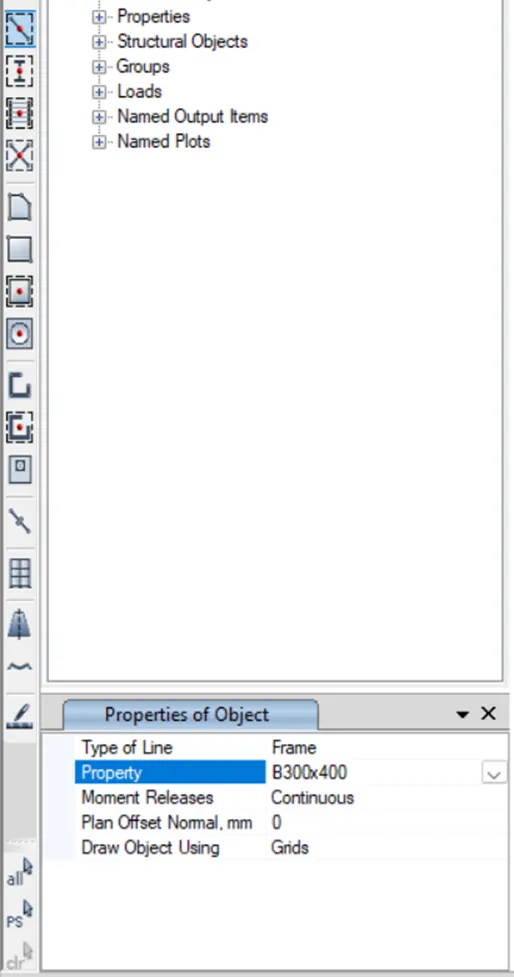

• Select Quick Draw Beam and change the Property
• Click Between Two Columns and place the beam X & Y Direction
• And make Replicate

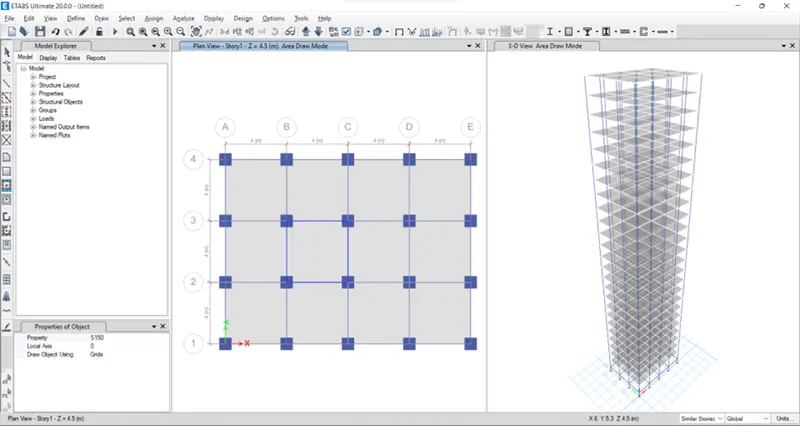

STEP14) Draw Slab

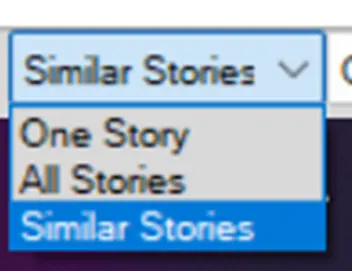

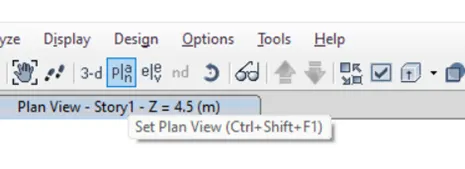

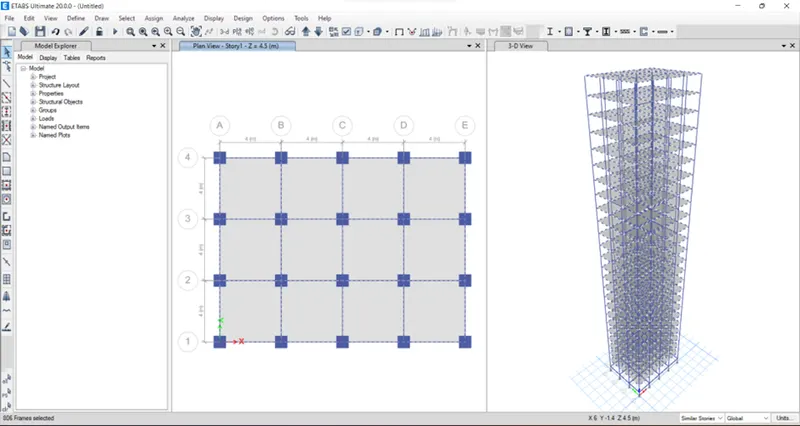

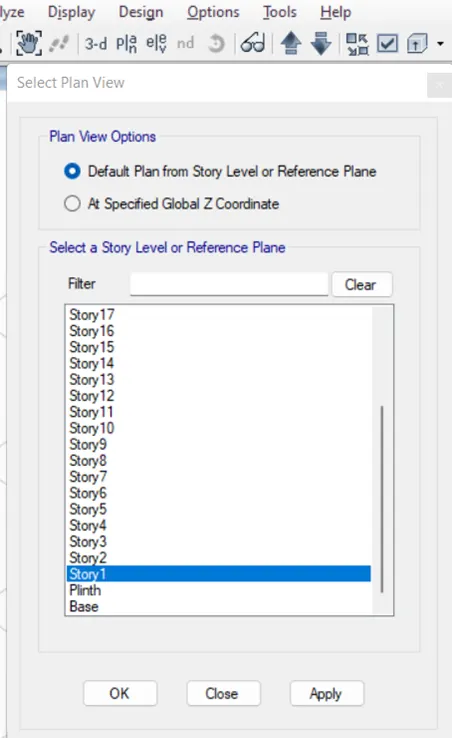

• Change set plan as Stroy 1 and Similar Stories

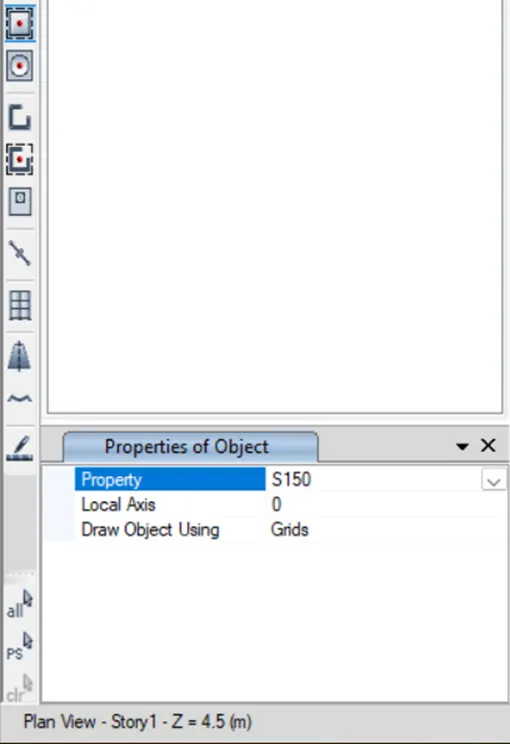

• Select Quick Draw Floor icon and change the Property
• Click on the Boundries Of The Grid
• Slab will be created for all floor

STEP15) Assign Load

• Select all Beam

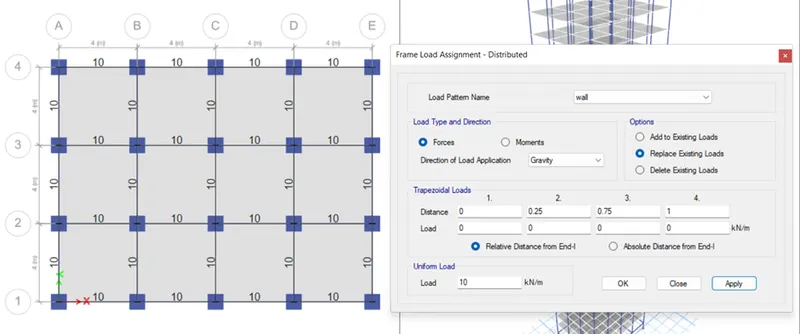

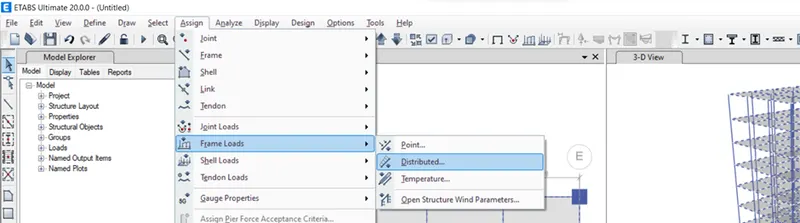

• Assign Frame Load as a Distributed
• Load Pattern Name Wall and Uniform Load 10kn/m

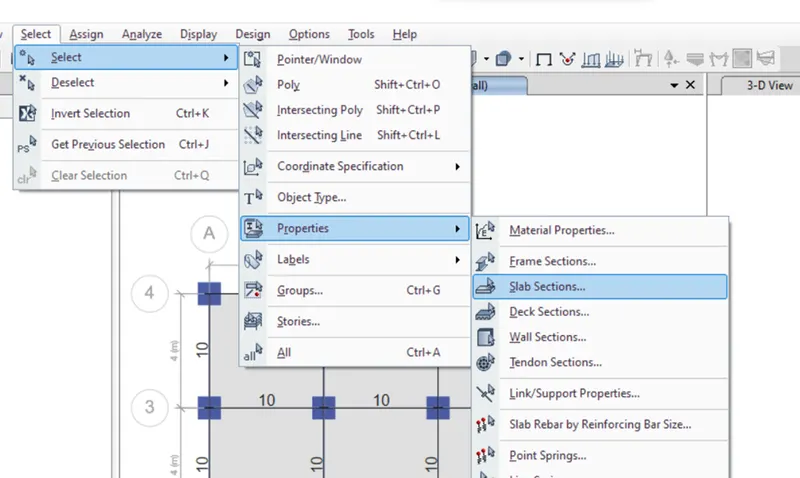

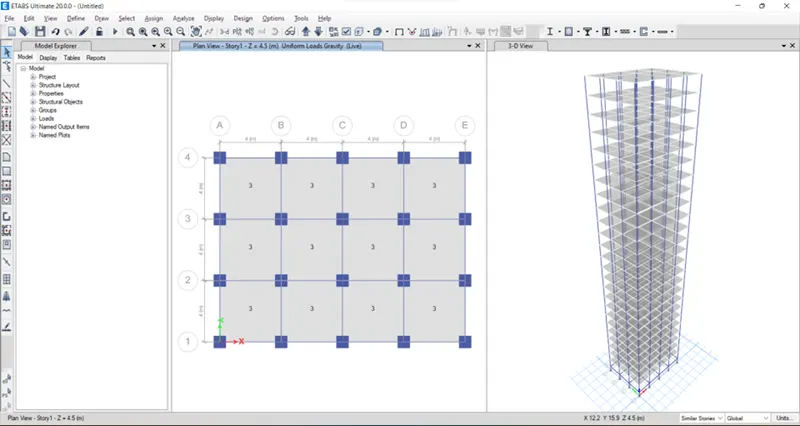

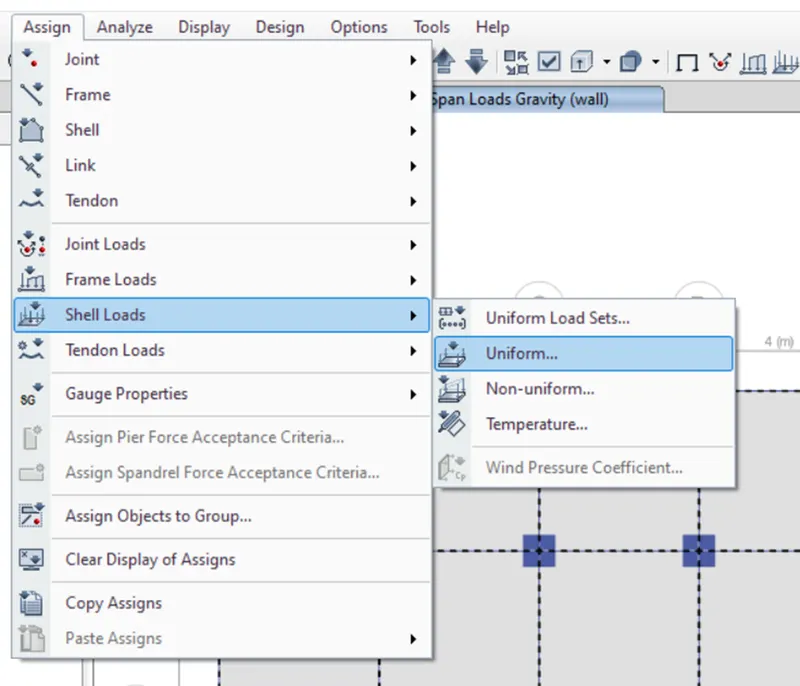

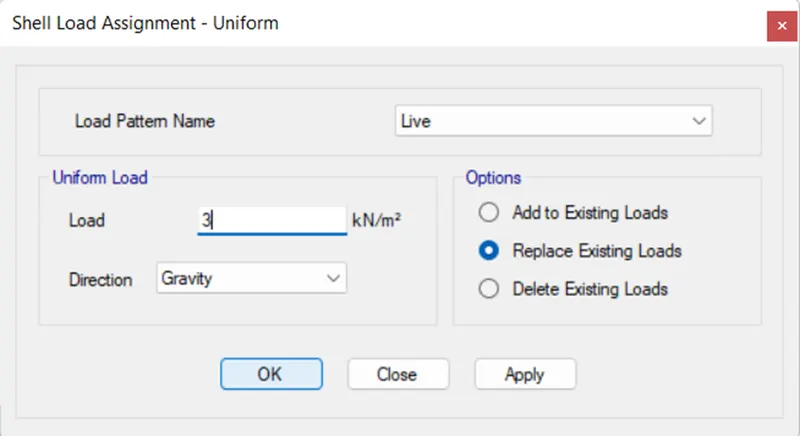

• Similarly select slab
• Assign shell load as uniform
• Load Pattern Name live and Uniform Load 3 kn/m

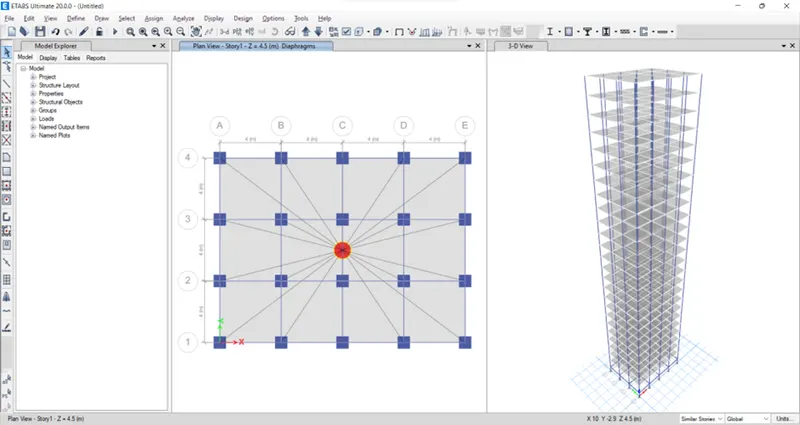

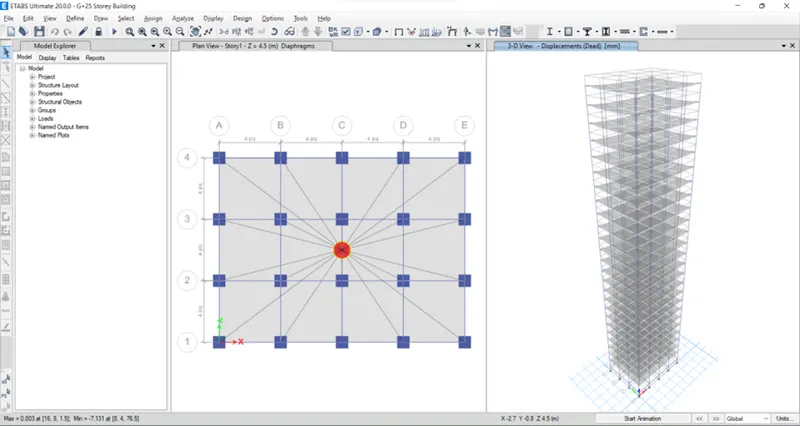

STEP 16) Add Diaphragms

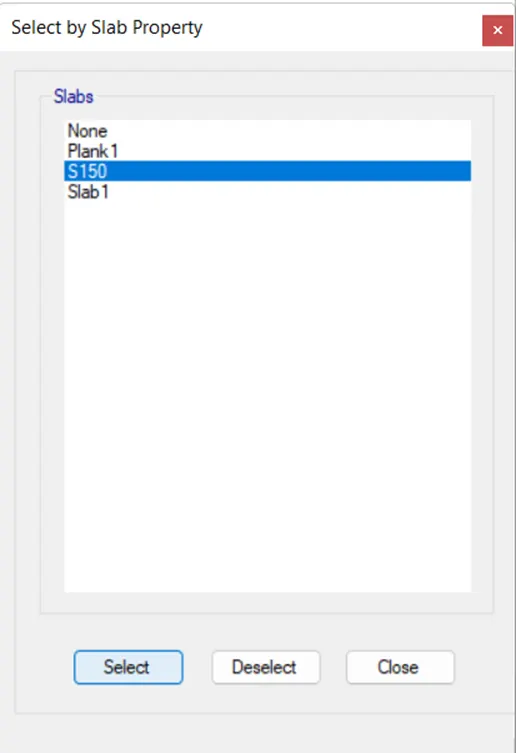

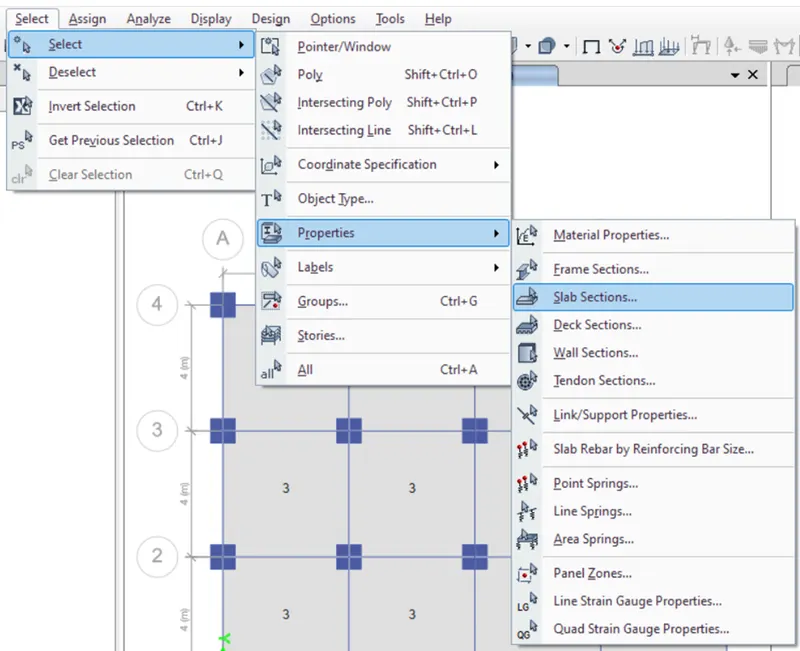

• Select Slab

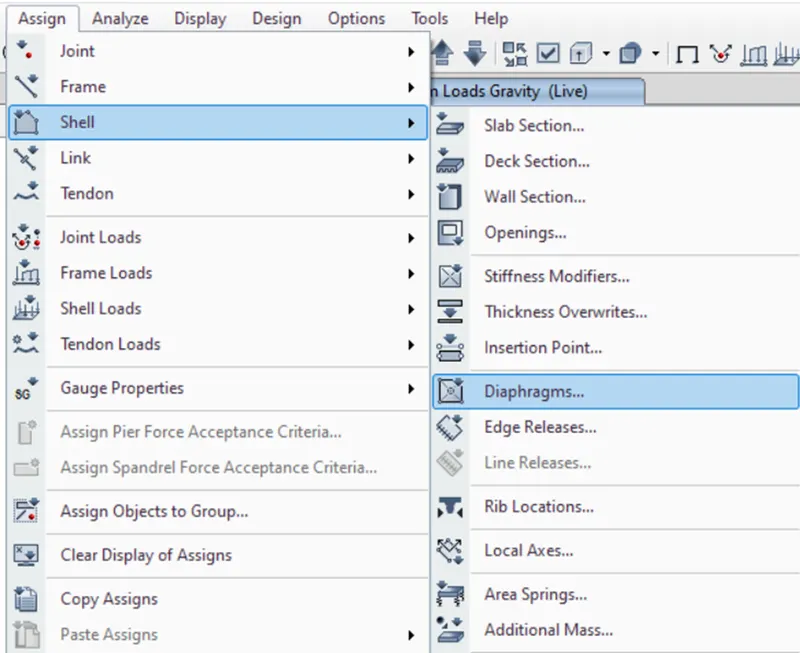

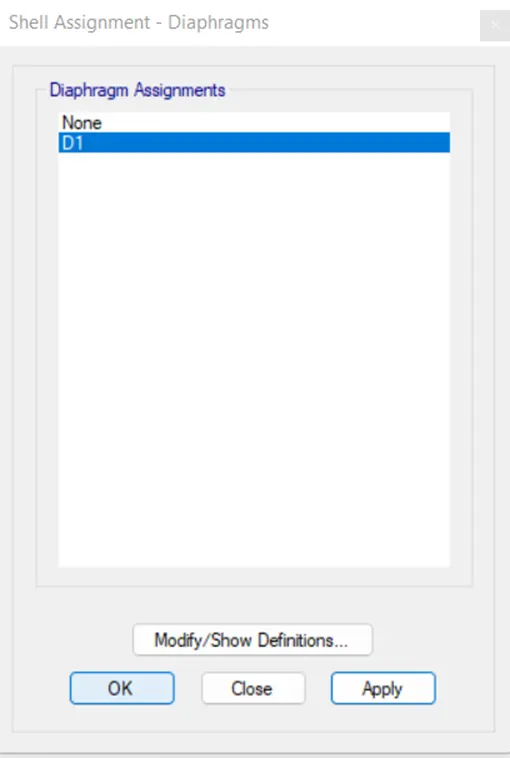

• Assign Shell as Diaphragms

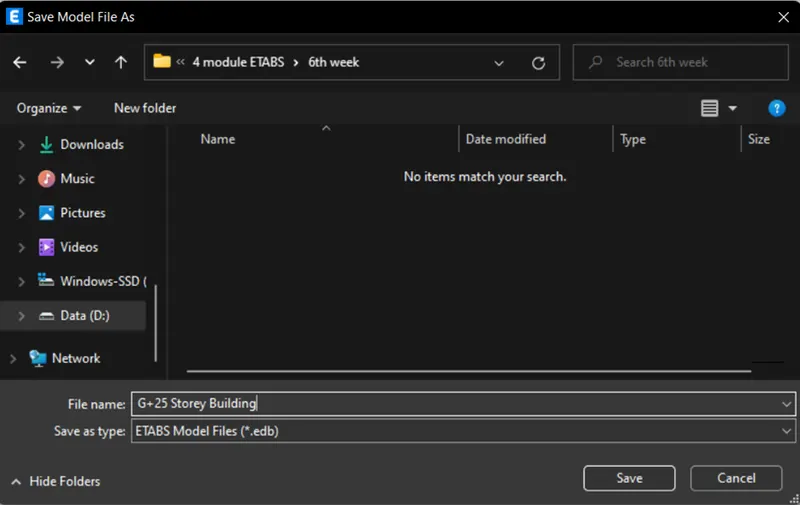

STEP 17) Save the Model

• Choose appropriate folder and name to save the model

STEP 18) Run Analyse the Model

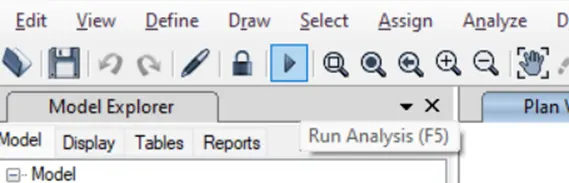

• Click on Run Analysis Button
• This will Analyse the structure and provide the result

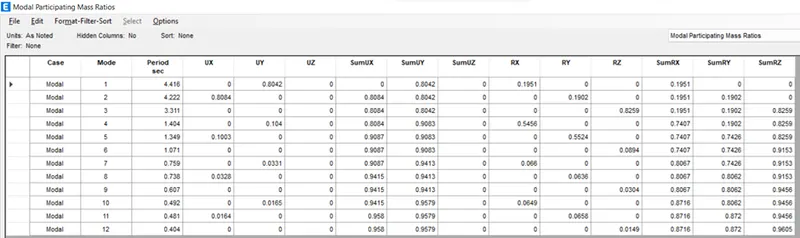

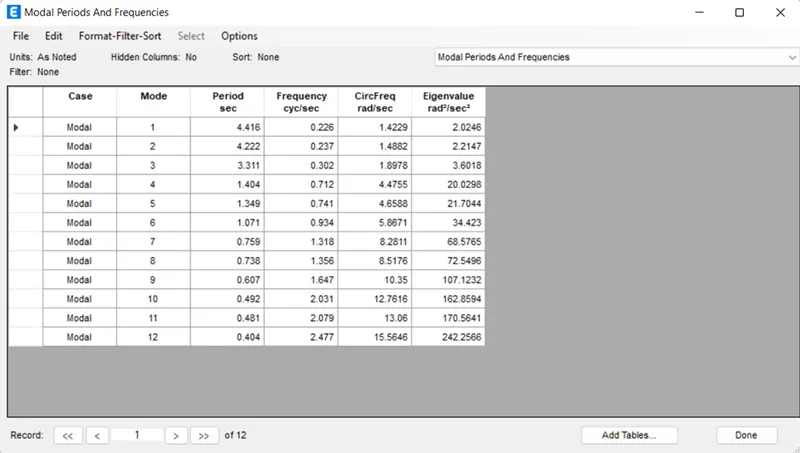

STEP 19) Check the Model Information

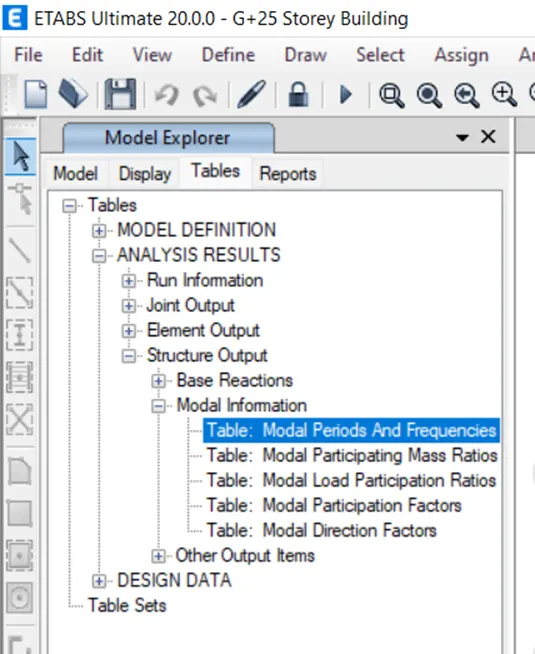

• Click on Tables in Model Explorer tab
• Goto Tables>Analysis Result>Structure Output>Model Information
• Click one by one to all table and check the results

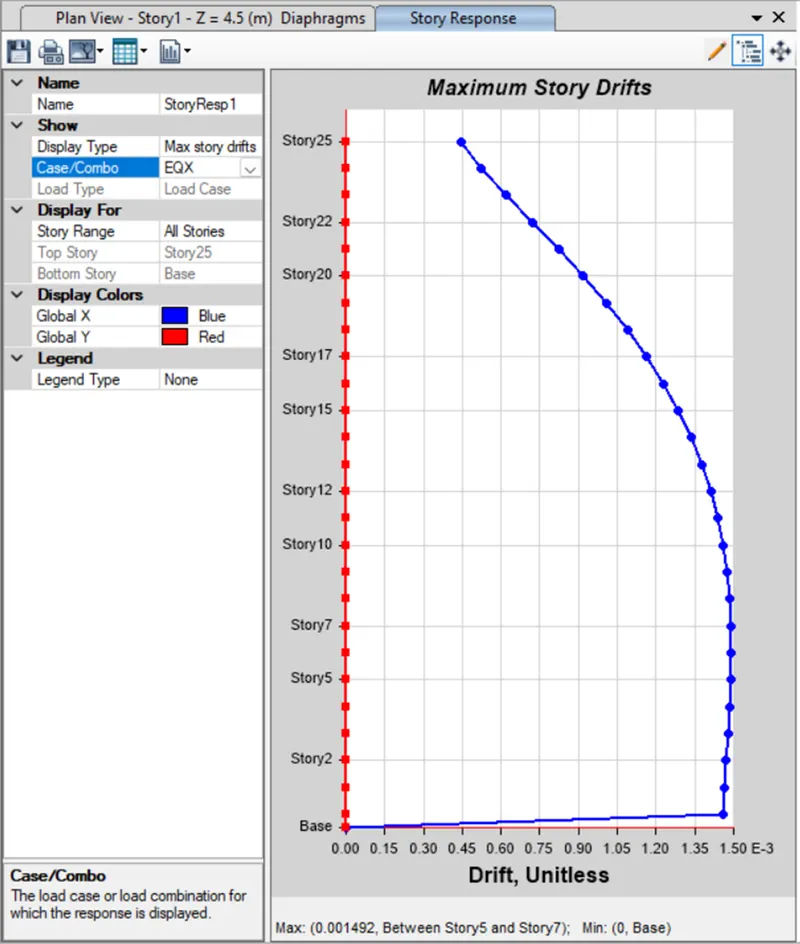

STEP 20) Plots the Story Response

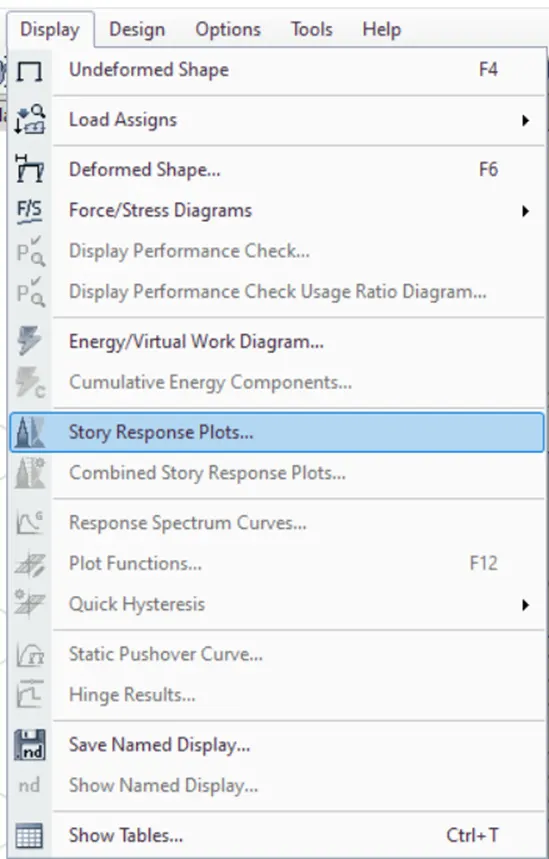

• Goto open Story Response Plot from Display
• Change the Display Type and Case/combo for EQX and EQY

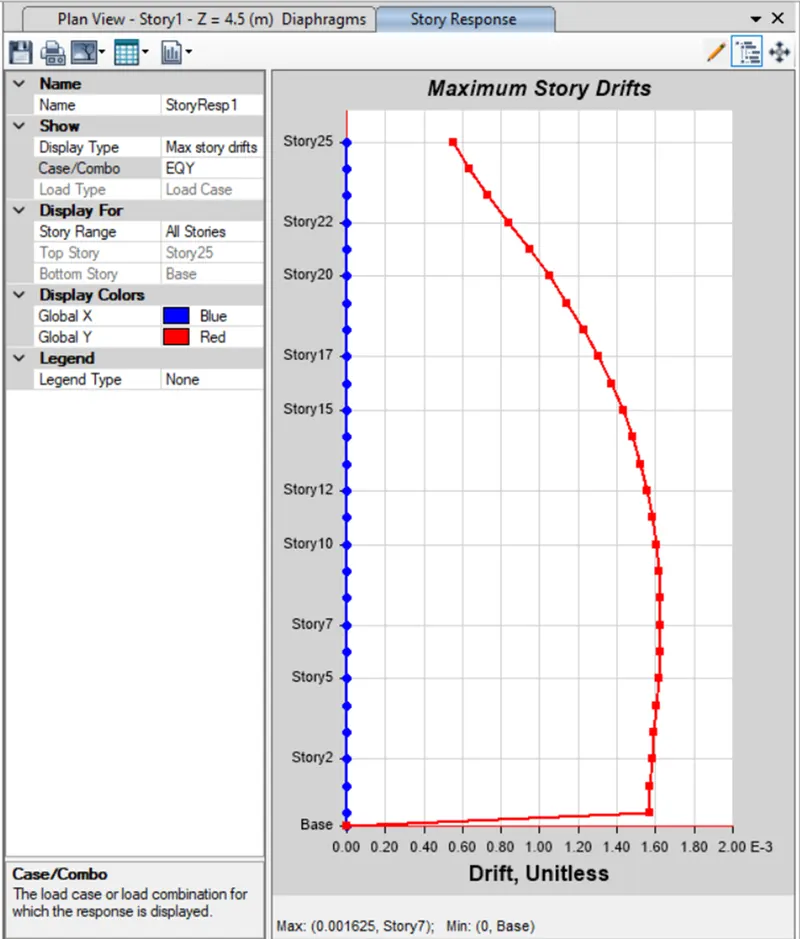

• Verify the Maximum Story Drifts for both EQX and EQY

RESULT:
