3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

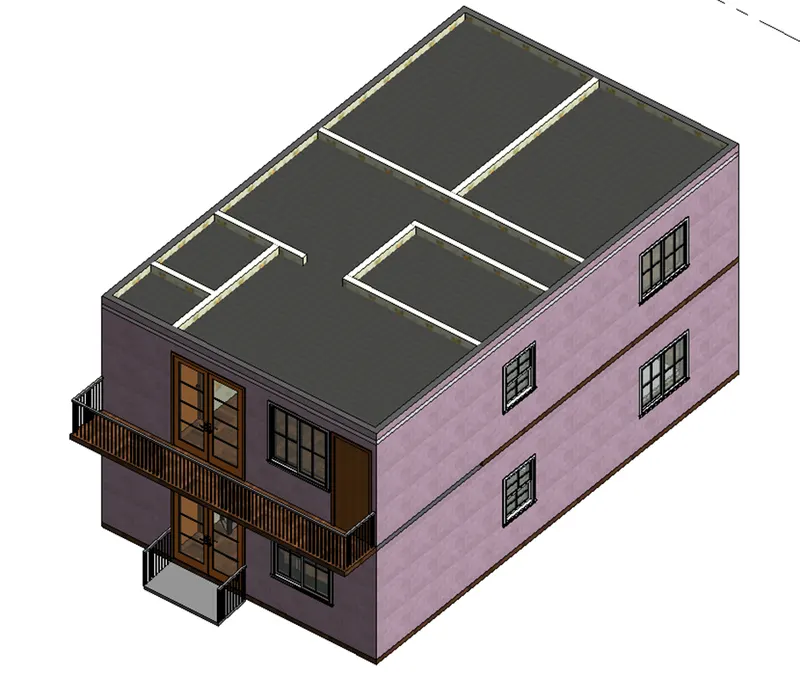

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

AIM:

Created a ceiling in the first floor level

INTRODUCTION:

From the architectural tab to model a ceiling at the first floor level on the saved week 3 project of the residential unit.

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) CREATE CEILING

• Go to Project Browser expand Ceiling Plan, double click on First Floor
• Go to Architecture tab select Ceiling
• Select sketch ceiling from Modify |Place Ceiling

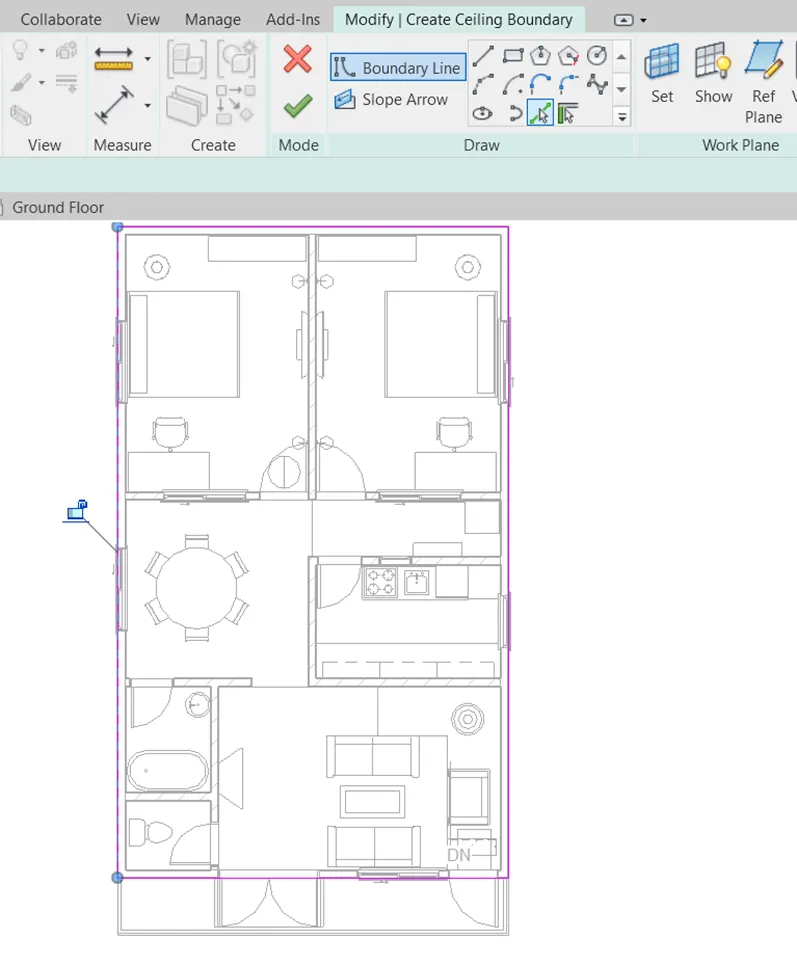

• Modify| Create Ceiling Boundary tab is open, now select Pick Line tool from draw panel
• Select exterior line of the plan then click on green tick from mode to finish
• Ceiling is created on the first floor level

RESULT:

Following the above procedure, we have created a ceiling at the first floor level

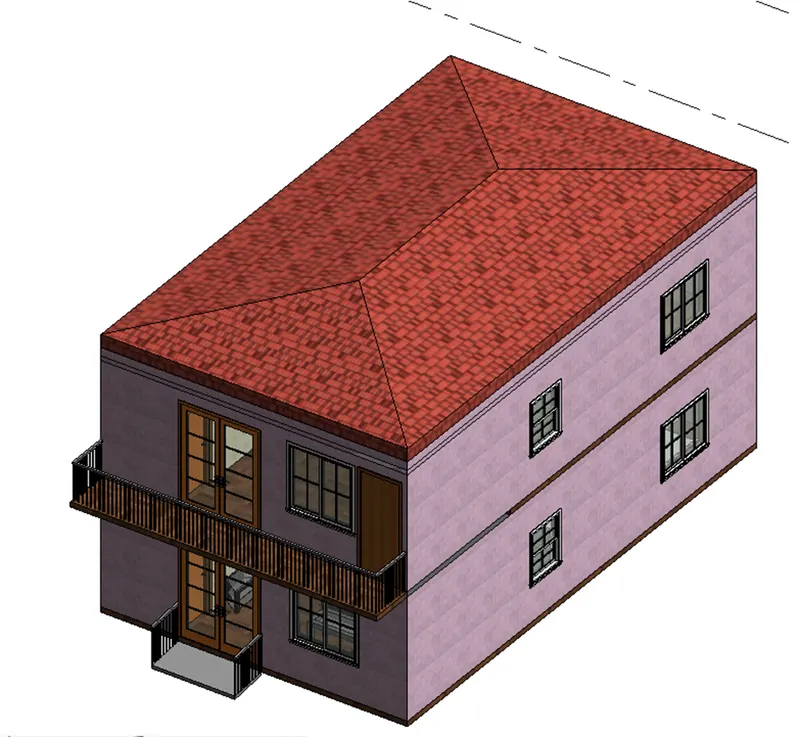

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

AIM:

Created a roof by footprint above the ceiling

INTRODUCTION:

From the architectural tab to model a roof by footprint at 10-degree slope by using adjustment toolbar.

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) CREATE ROOF

• Go to Project Browser in the Floor Plan double click on Roof
• Go to Architecture tab drop down the Roof and select Roof by Footprint

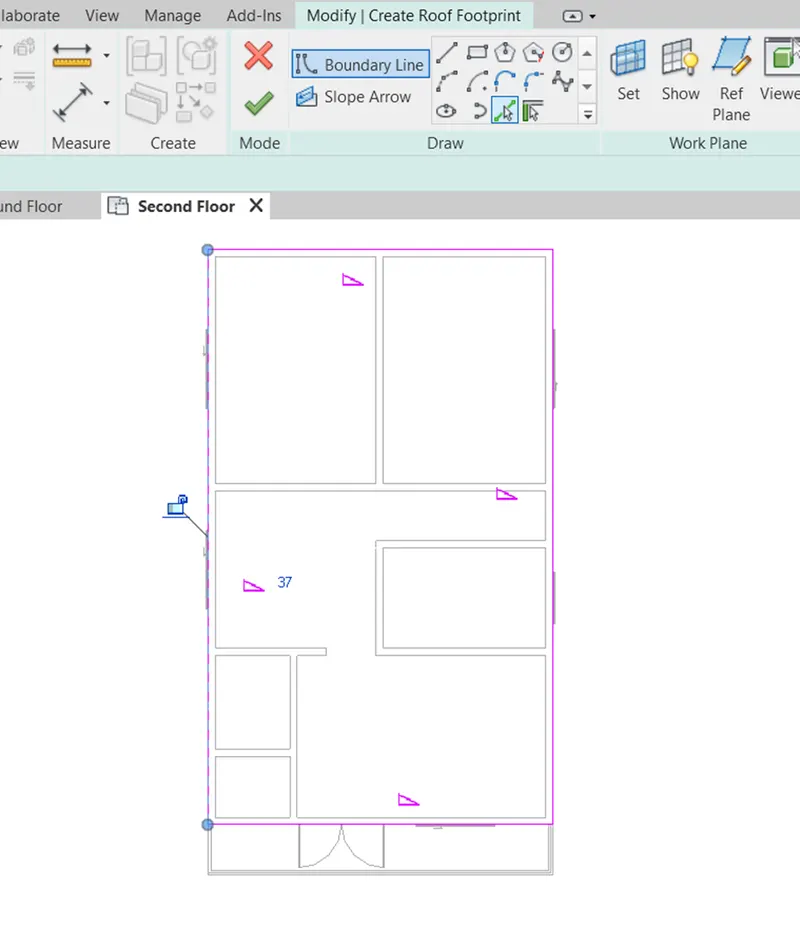

• Modify| Create Roof Footprint tab is open, now select Pick Line tool from draw panel
• Select exterior line of the plan then click on green tick from mode to finish
• Roof is created on the Roof level

STEP 3) PROVIDE SLOPE

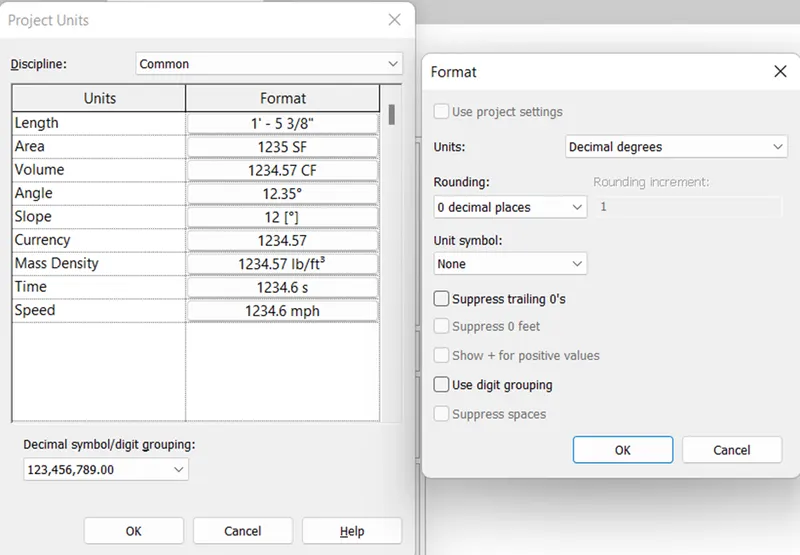

• Type UN to open project unit
• Select unit format slope
• Change units as decimal degree from format dialog box
• Click OK
• Select created roof
• Go to property browser

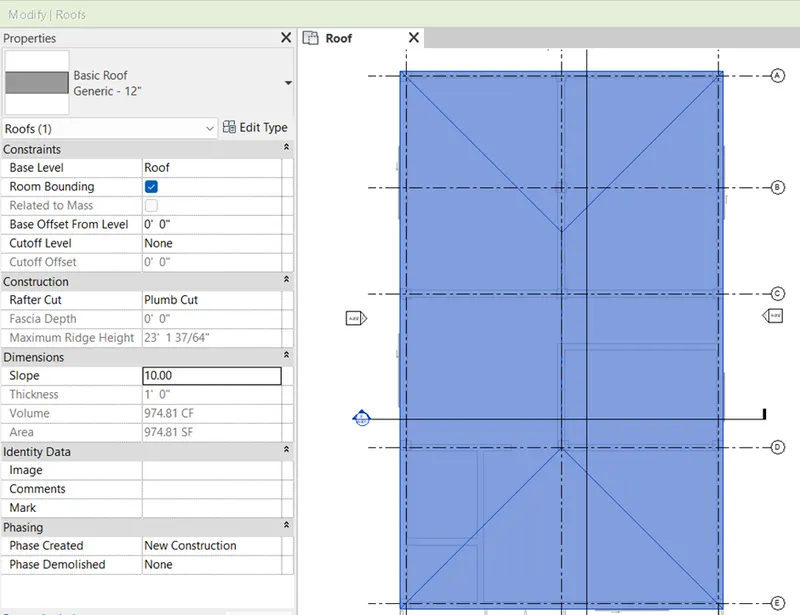

• Change slope as 10 from dimensions

RESULT:

Following the above procedure, we have created roof by footprint above the ceiling

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

AIM:

Created architectural and structural plan based on previously saved project

INTRODUCTION:

Architectural and structural plan shown separately with their component

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) ARCHITECTURAL PLAN

• Go to Project Browser in the Floor Plan double click on Ground Floor
• Similarly for First Floor Plan

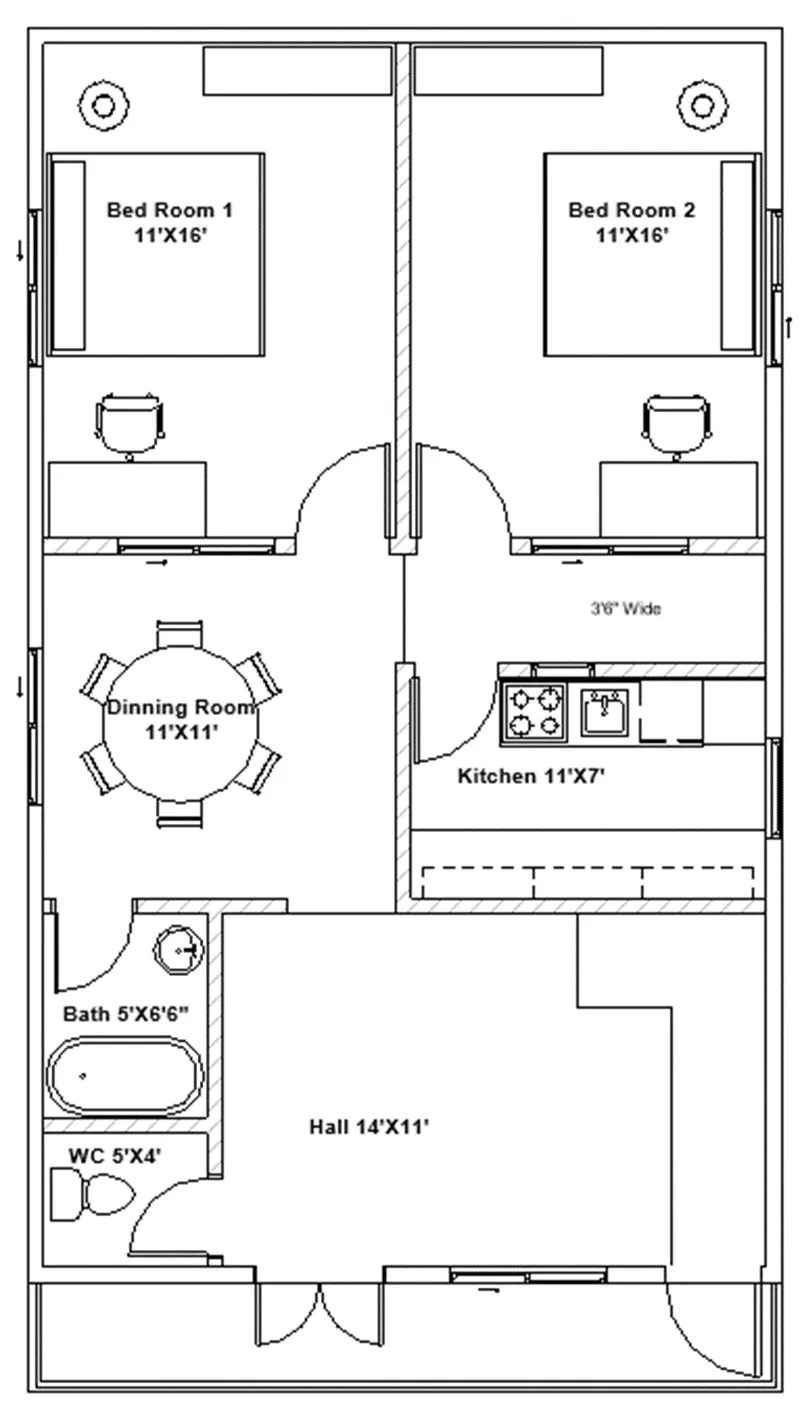

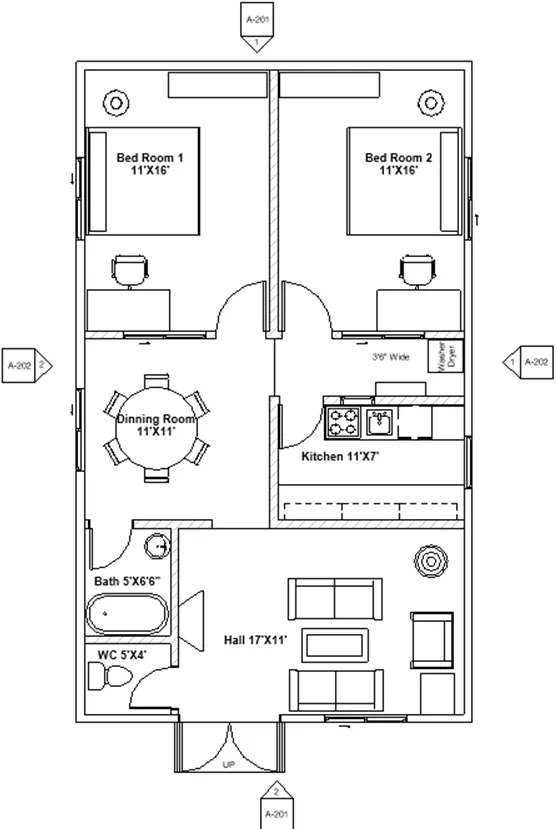

1-GROUND FLOOR ARCHITECTURE PLAN

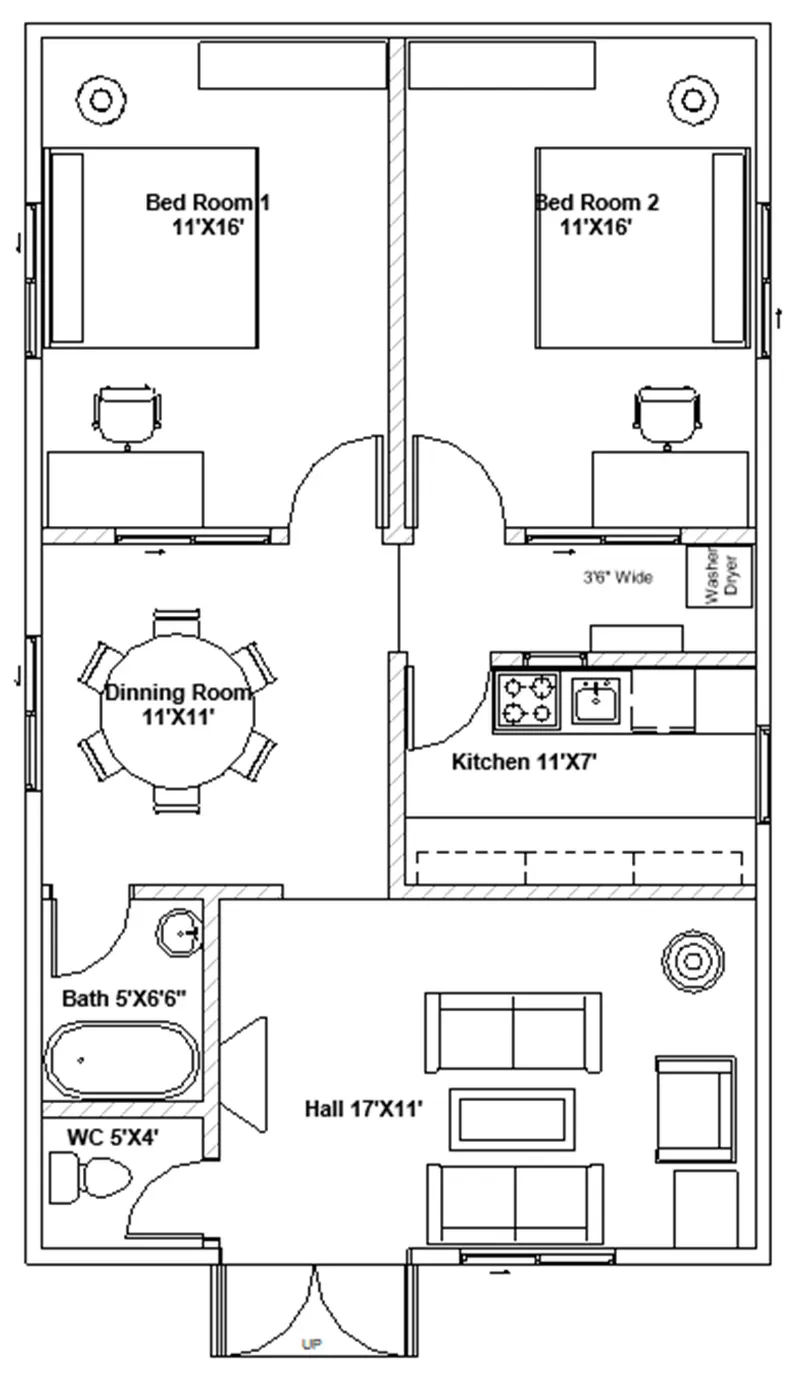

2-FIRST FLOOR ARCHITECTURE PLAN

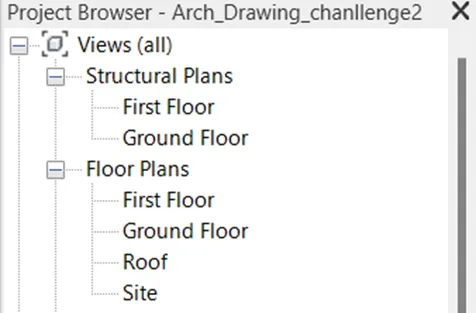

STEP 3) STRUCTURAL PLAN

• Go to view tab
• Drop down the Plan Views from the create panel
• Select Structure Plan

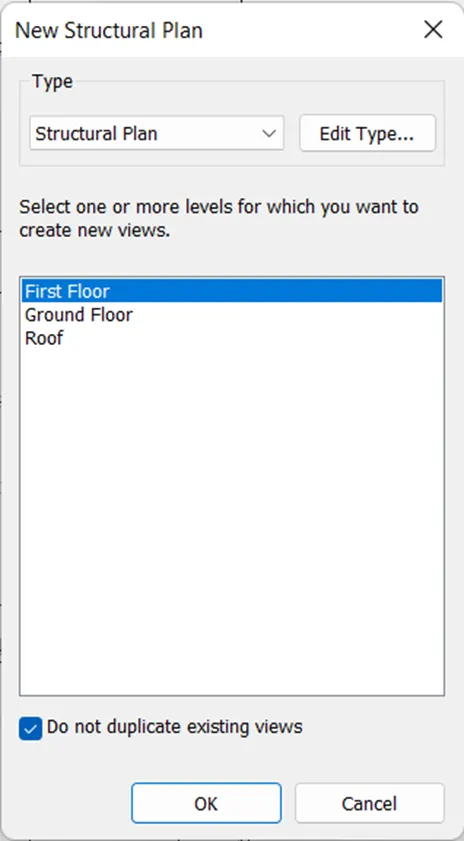

• Dialog box will open for selecting levels
• Choose ground floor then first floor

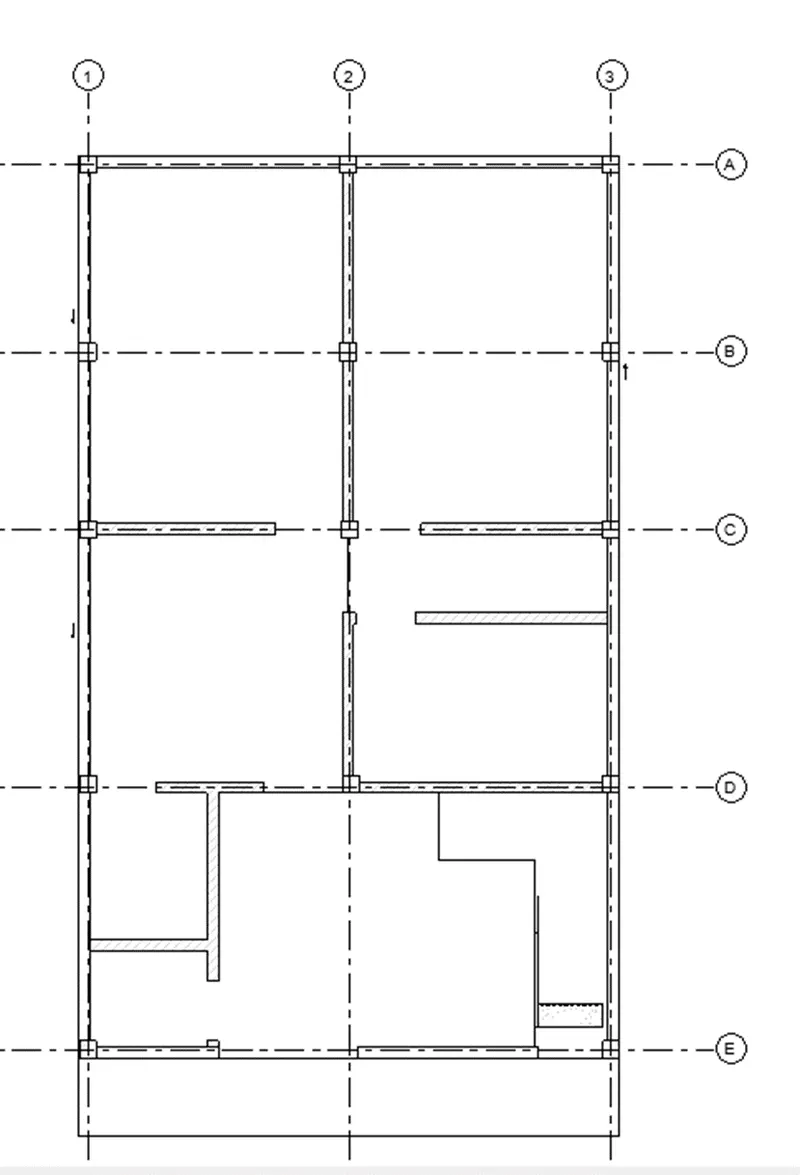

1-GROUND FLOOR STRUCTURAL PLAN

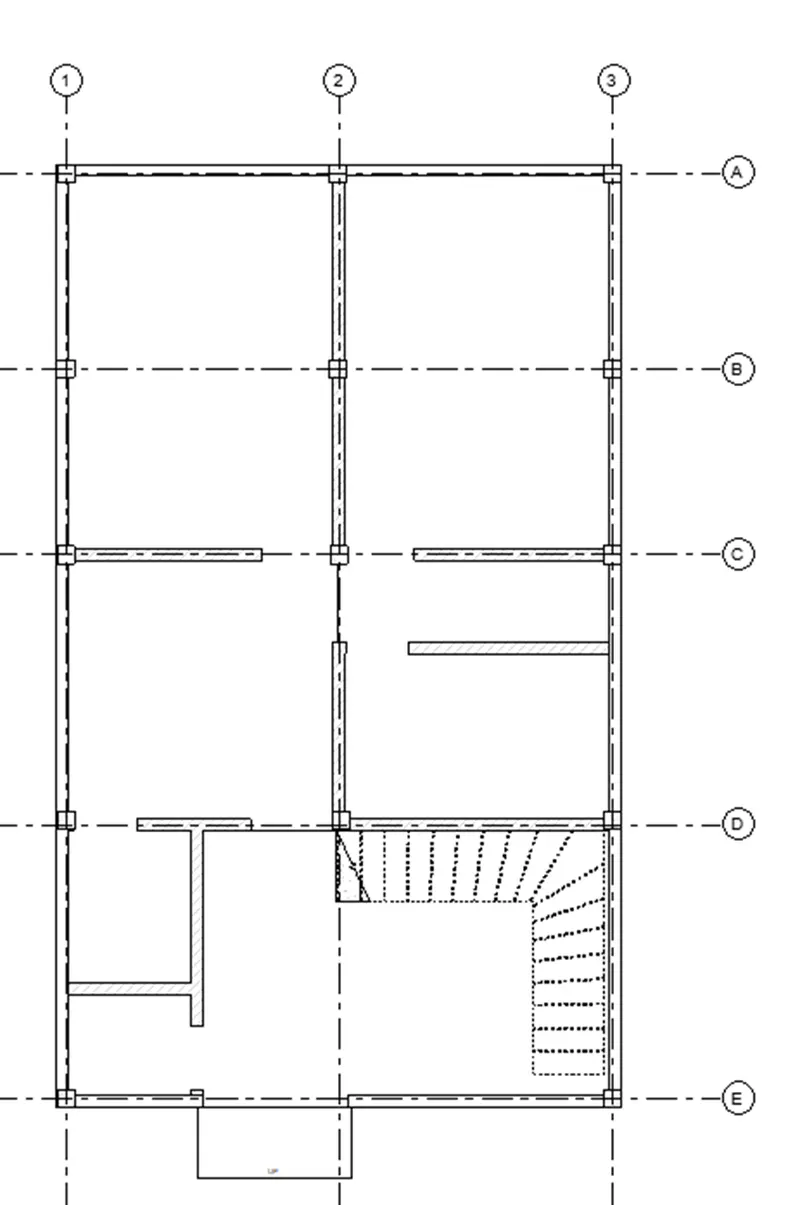

2-FIRST FLOOR STRUCTURAL PLAN

RESULT:

Following the above procedure, we have created separately architectural and structural plan

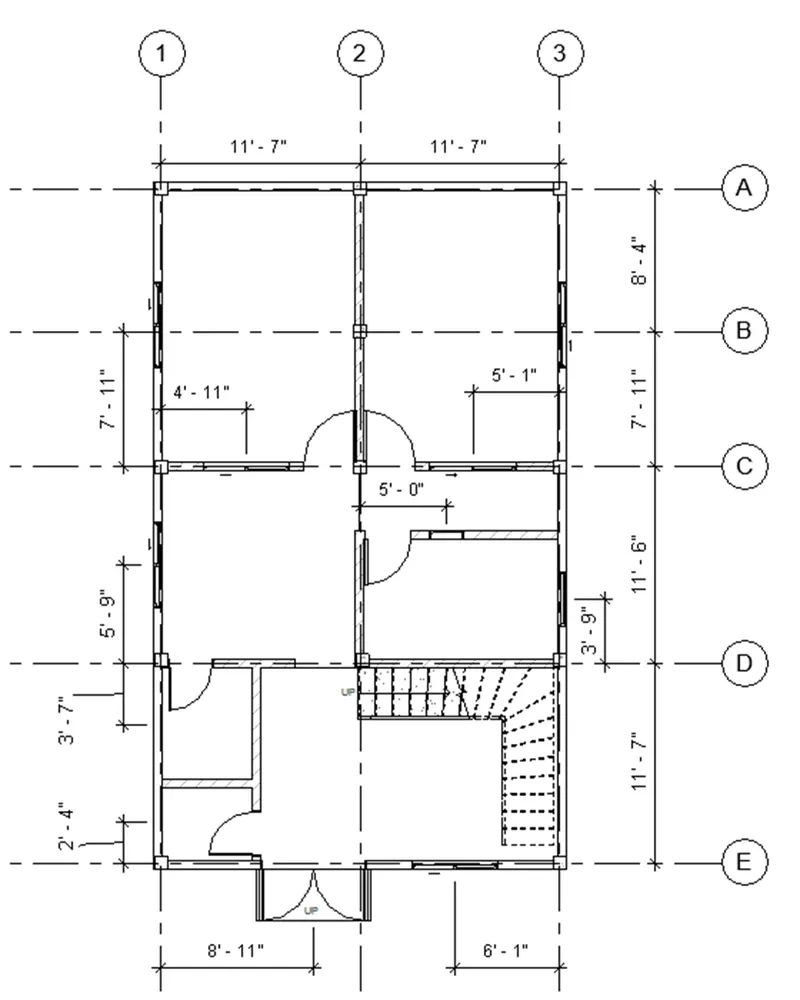

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM:

Added dimension in architectural and structural plan by using annotate toolbar

INTRODUCTION:

In the architectural and structural plan added dimension with respect to grids

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) ADD DIMENSION

• Go to Project Browser in the Floor Plan double click on Ground Floor
• Open Annotate tab select Aligned tool
• Create dimension to the component from grids
• Similarly for the structural plan

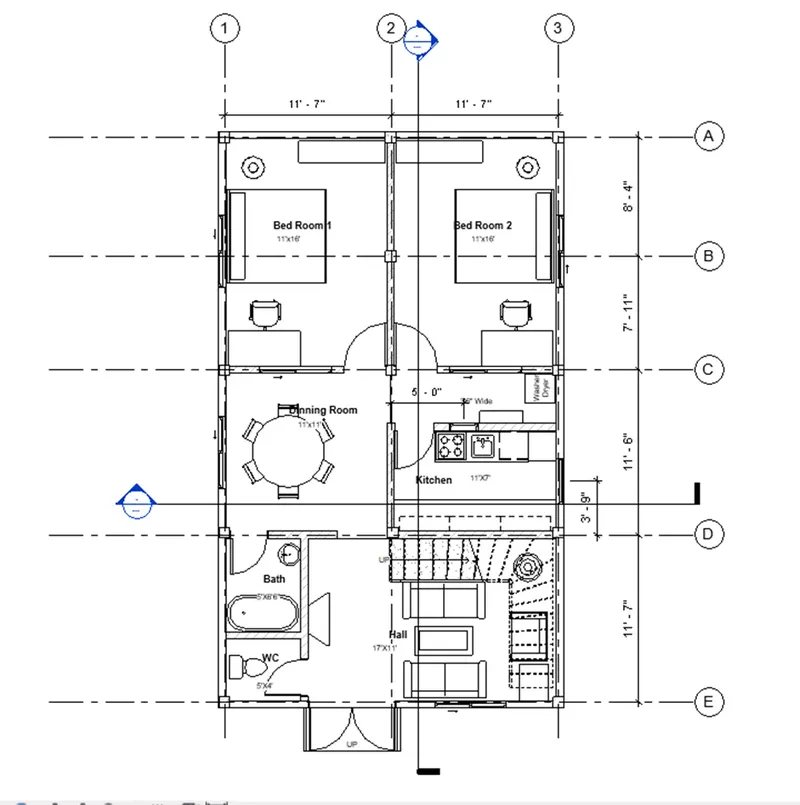

1-DIMENSION WITH COMPONENT

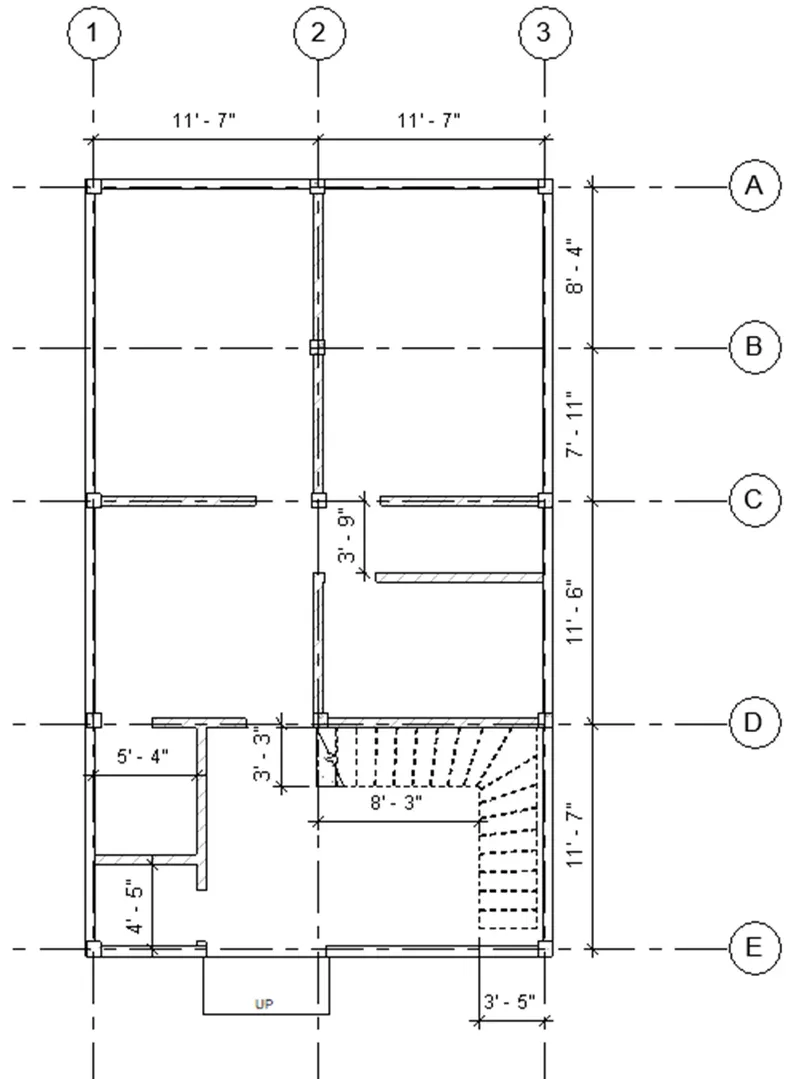

2-DIMENSION WITH STRUCTURAL MEMBER

RESULT:

Following the above procedure, we have added the dimension in the architecture and structure plan

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

AIM:

Sheet template created from view tab and adjust the parameter

INTRODUCTION:

From the view tab to create a sheet template and adjust the parameter on the sheet to add the appropriate view

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) CREATE SHEET TEMPLATE

• Go to View tab
• Select Sheet from Sheet Composition panel

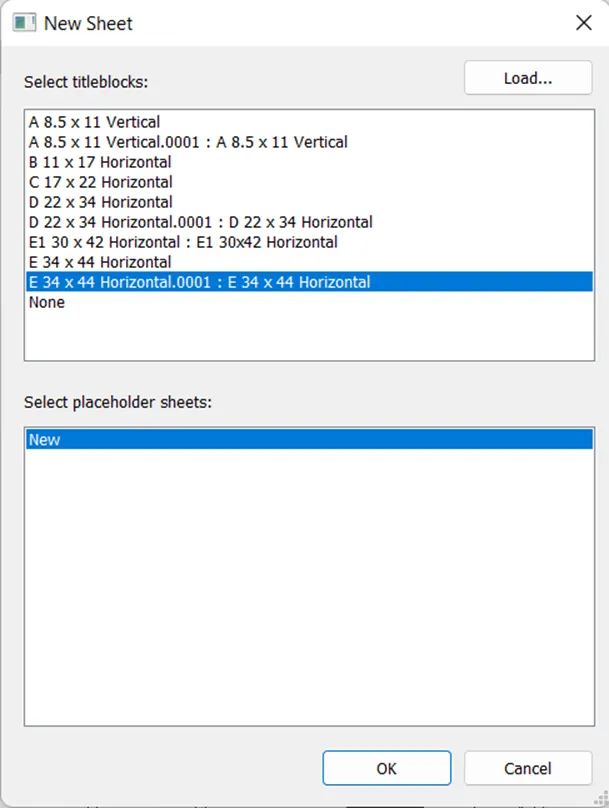

• Open a new sheet dialog box click on Load

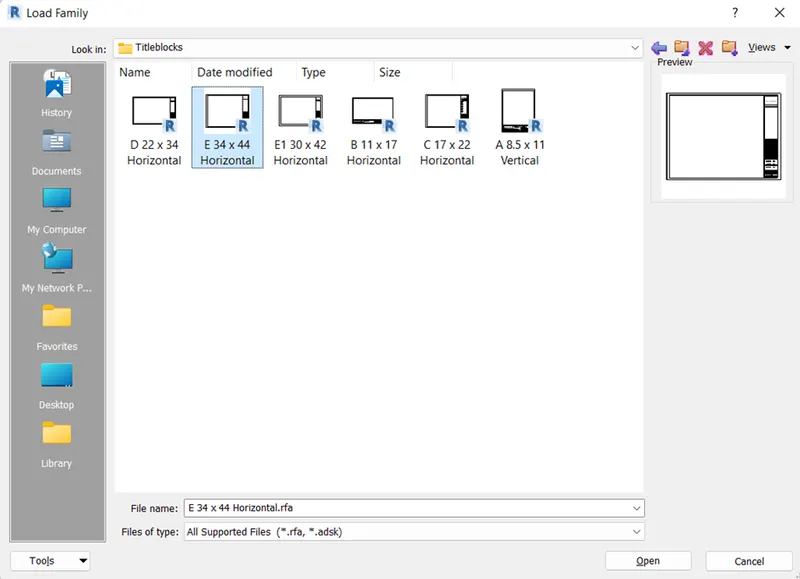

• Open TITLEBLOCKS from library
• Select appropriate sheet
• Edit sheet title block as per view
• Drag to insert the plan from project browser in sheet

STEP 3) ADD VIEW IN SHEET

• From project browser select any view then drag to the sheet
• after that from property browser change view scale to adjust the view
• edit the parameter on the title block

RESULT:

Following the above procedure, create a sheet template from the view tab and adjust the parameter

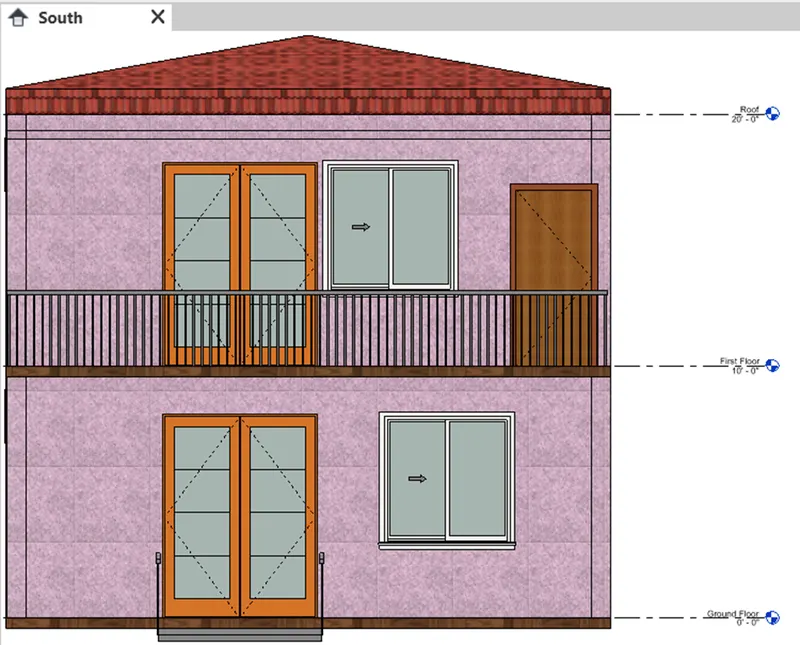

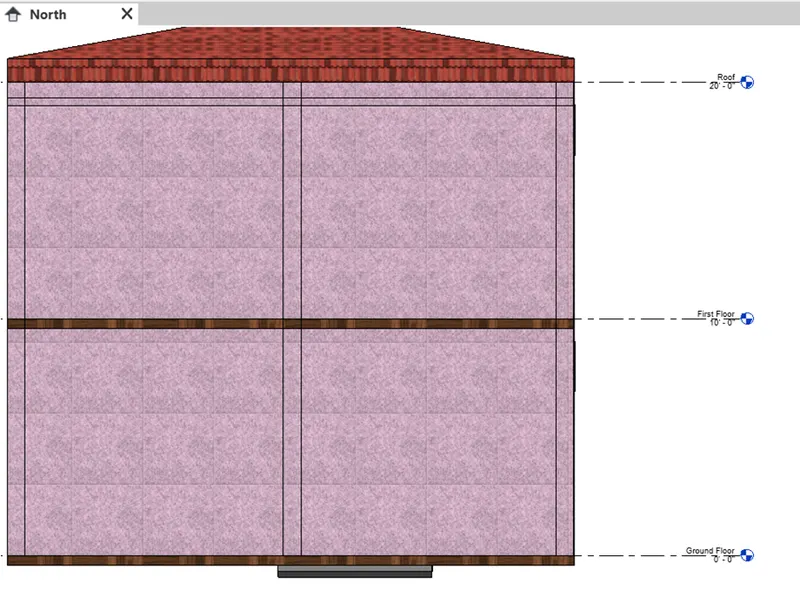

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

AIM:

Created the elevation view of the building

INTRODUCTION:

From the view tab to create elevation views, looking at my building from East, North, South and West

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) CREATE ELEVATION VIEW

• Open Ground Floor Plan
• Go to View tab
• Drop down the Elevation from the create panel
• Select Elevation
• Create view from East North South West

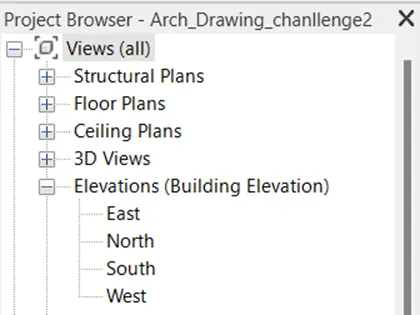

• After set the views go to project browser

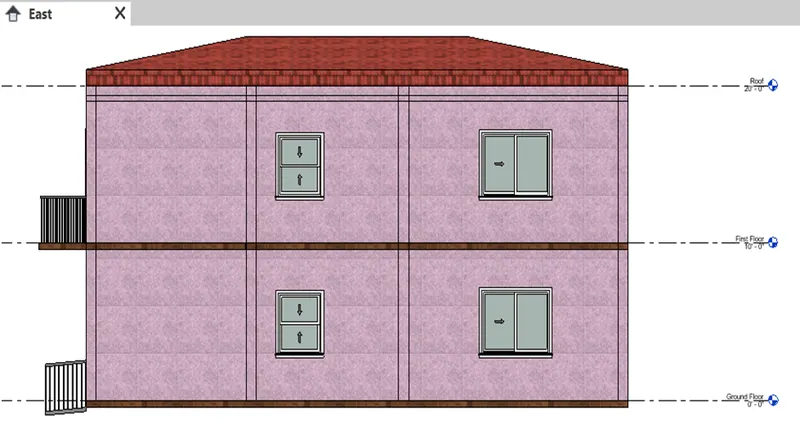

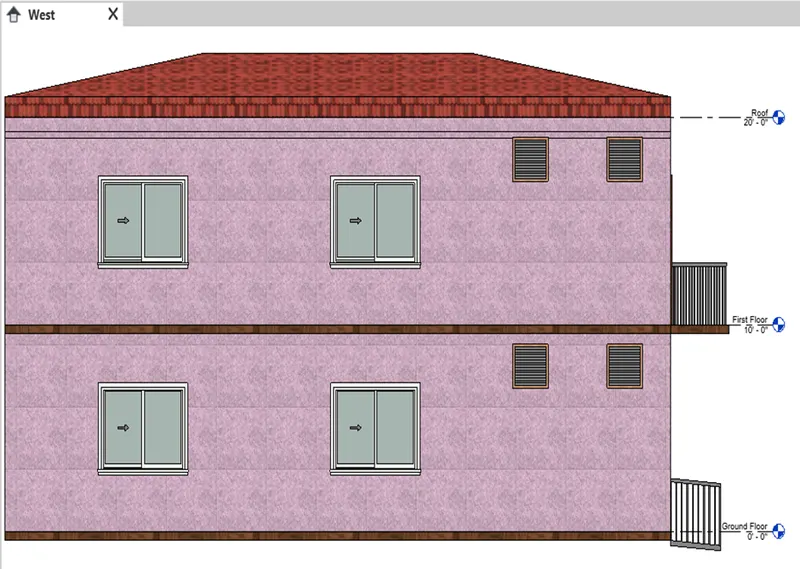

• Expand elevation open East view
• Similarly select one by one to open other views

RESULT:

Following the above procedure, created elevation views such as East North South West

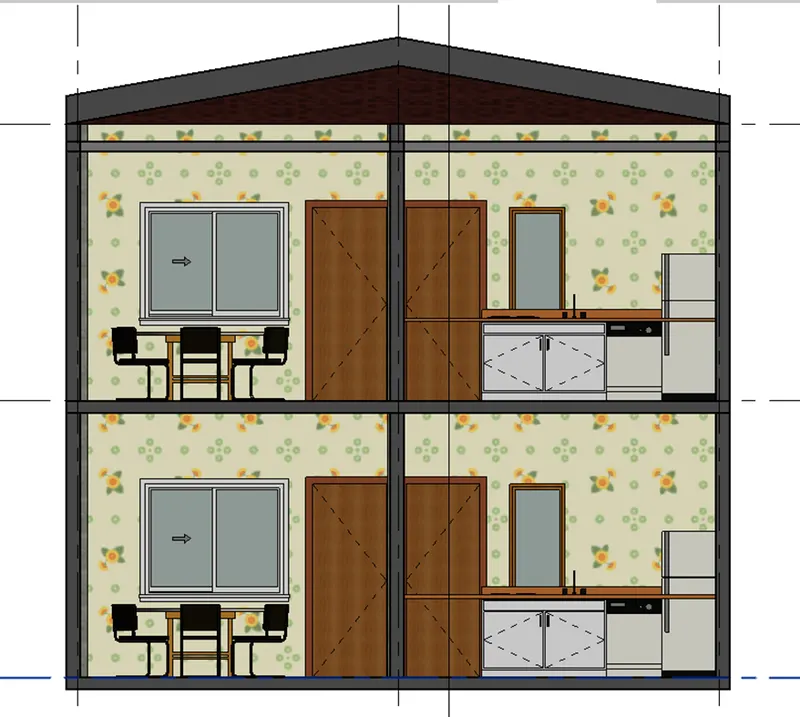

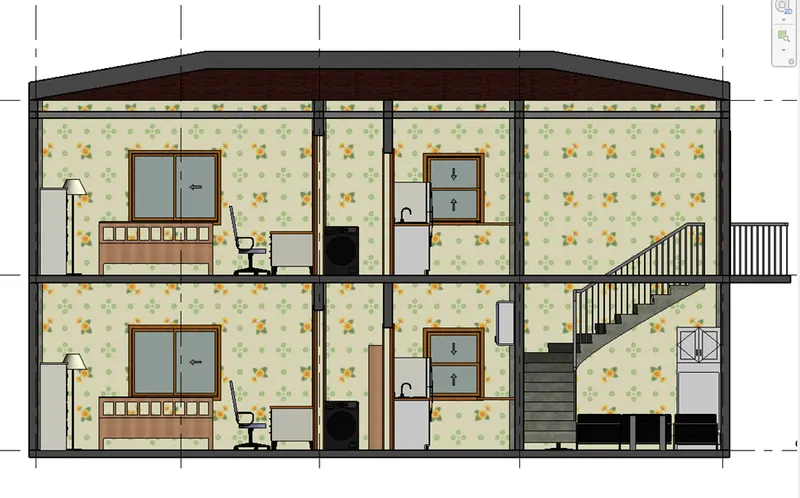

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

AIM:

Created the section view of the building

INTRODUCTION:

From the view tab to create sections cut through each room, cutting across longitudinally and transverse direction

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) CREATE SECTION VIEW

• Open Ground Floor Plan
• Go to View tab
• Select Section
• Cut longitudinal drawing across the plan
• Similarly cut the plan across the transverse direction

RESULT:

Following the above procedure, we have created section accros longitudinal and transverse direction

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

AIM:

Classified the view of the building

INTRODUCTION:

From the project browser to classified the view in documentation category

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge

STEP 2) CREATE SECTION VIEW

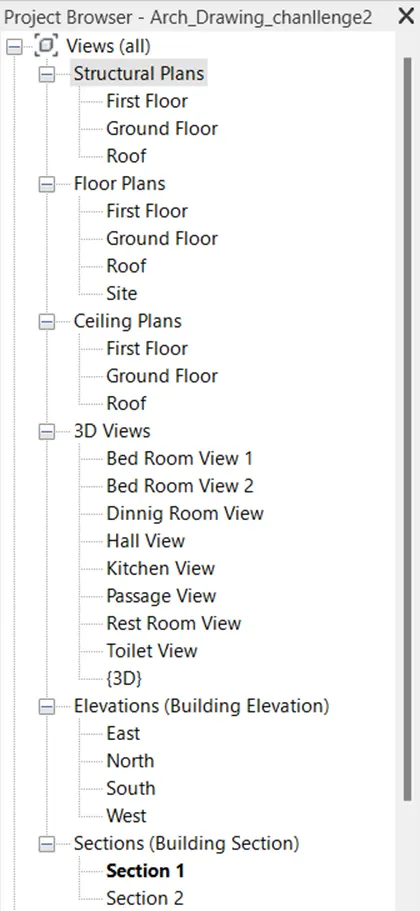

• Go to project browser
• Expand all the view

RESULT:

Following the above procedure to classify the view



9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

AIM:

Created multiple sheet template

INTRODUCTION:

Sheet template produce for architecture, structural, elevations and section’s view

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) CREATE SHEET TEMPLATE

• Go to View tab
• Select Sheet from Sheet Composition panel
• Open a new sheet dialog box click on Load
• Open TITLEBLOCKS from library
• Select appropriate sheet for each plan
• Edit sheet title block as per view
• Drag to insert the plan from project browser in sheet
• Similarly drag all the plan and view in the sheet

RESULT:

Following the above procedure, we have created multiple sheets for each plan and view and result are shown in below

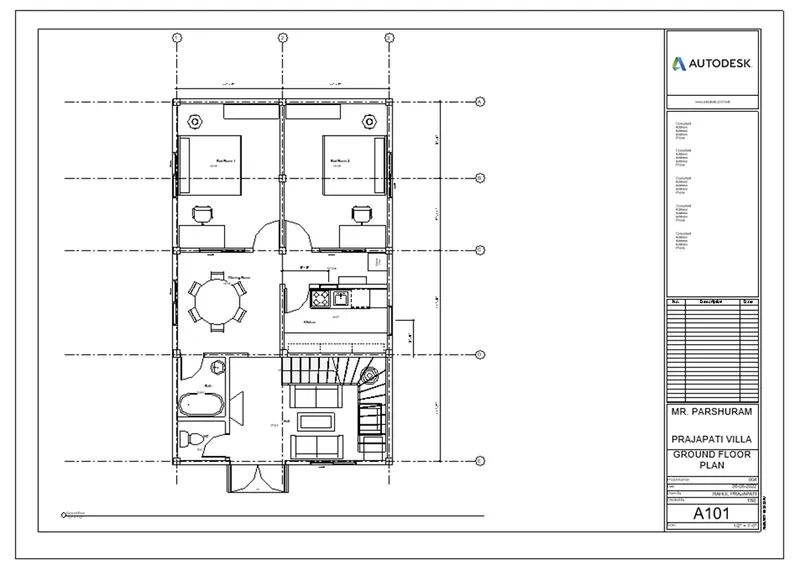

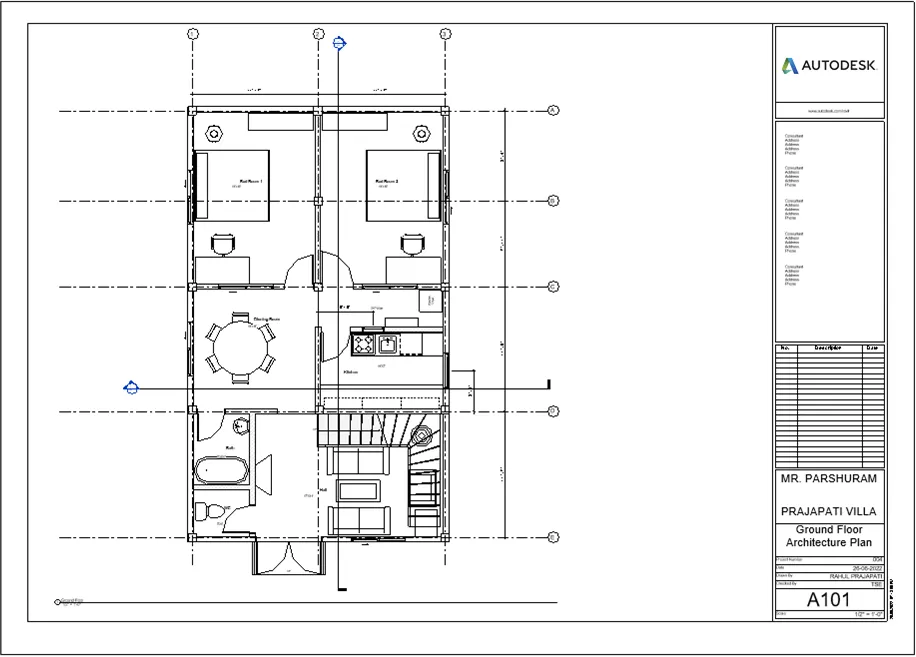

1. A101- GROUND FLOOR ARCHITECTURE PLAN

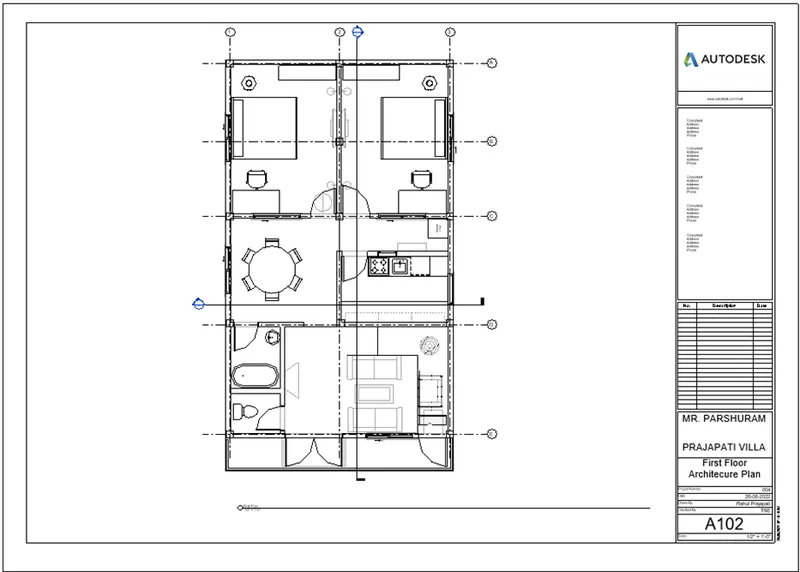

2. A102- FIRST FLOOR ARCHITECTURE PLAN

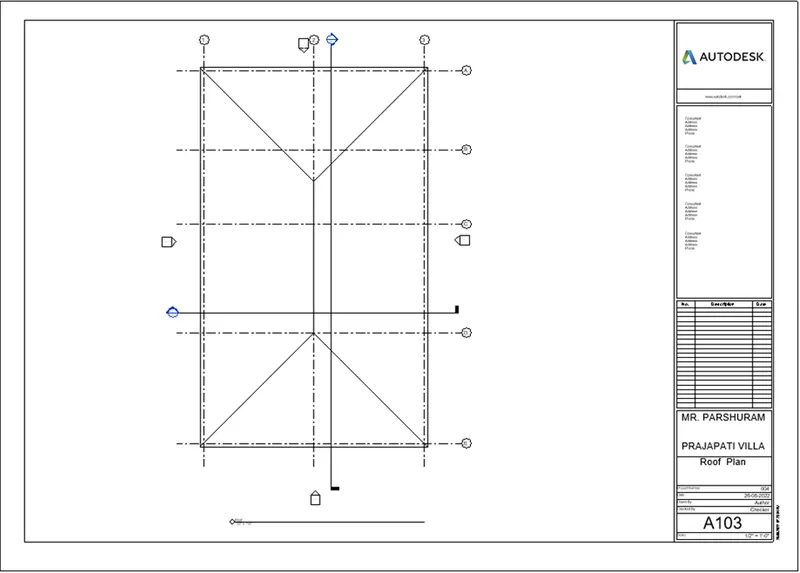

3. A103- ROOF PLAN

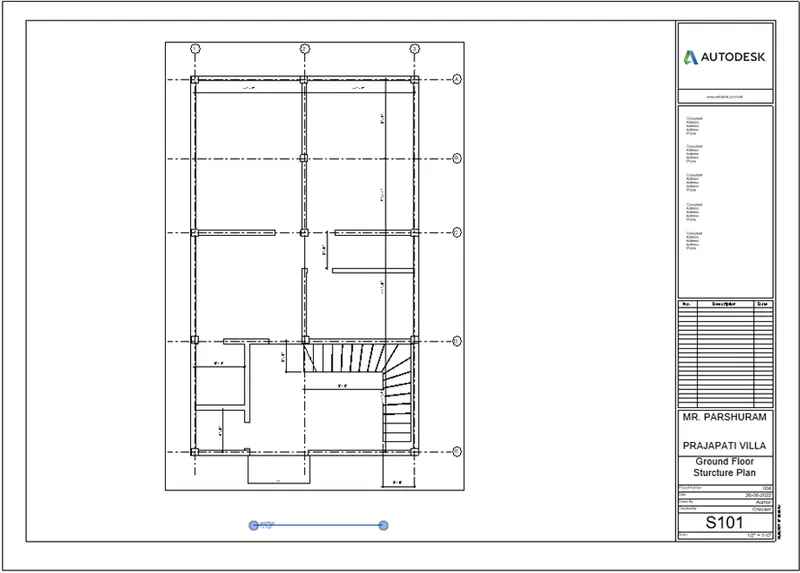

4. S101- GROUND FLOOR STRUCTURAL PLAN

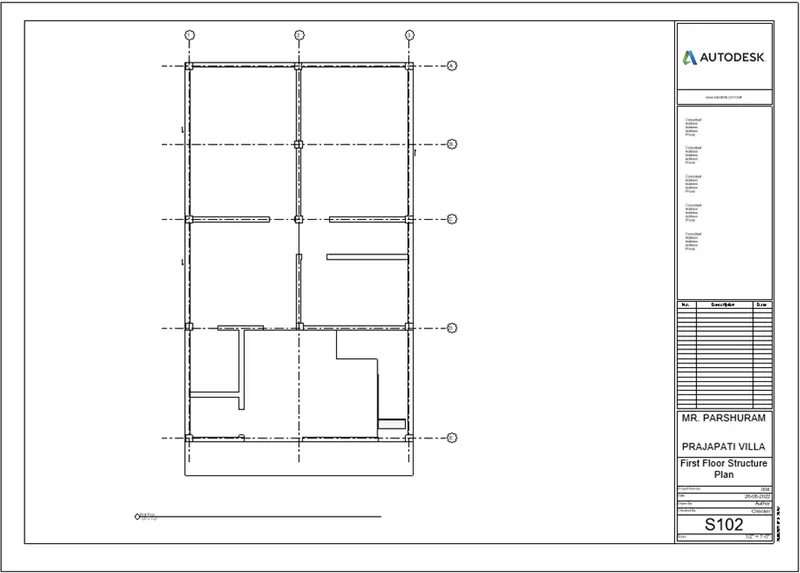

5. S102- FIRST FLOOR STRUCTURAL PLAN

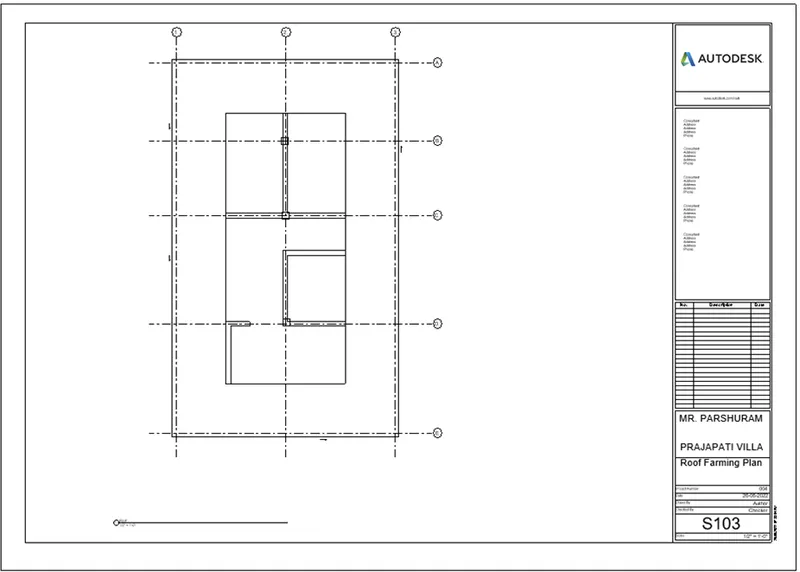

6. S103- ROOF FARMING PLAN

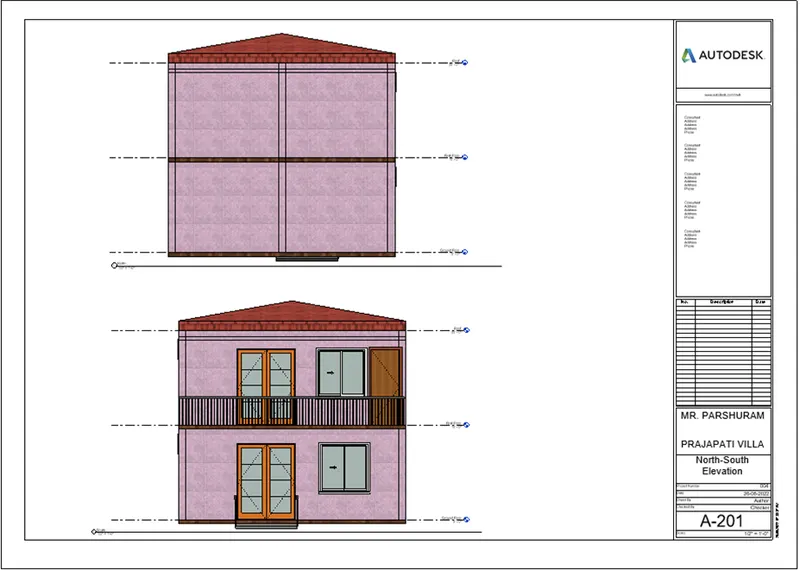

7. A201- NORTH- SOUTH ELEVATION

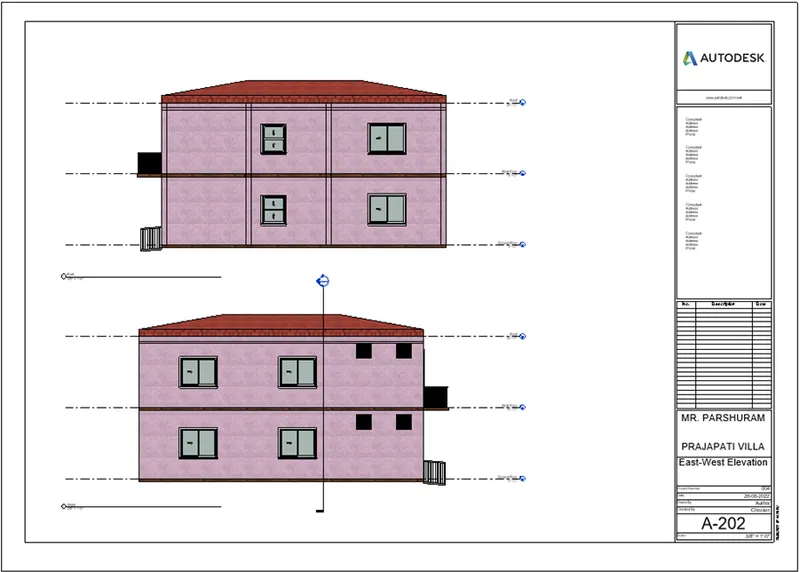

8. A202- EAST- WEST ELEVATION

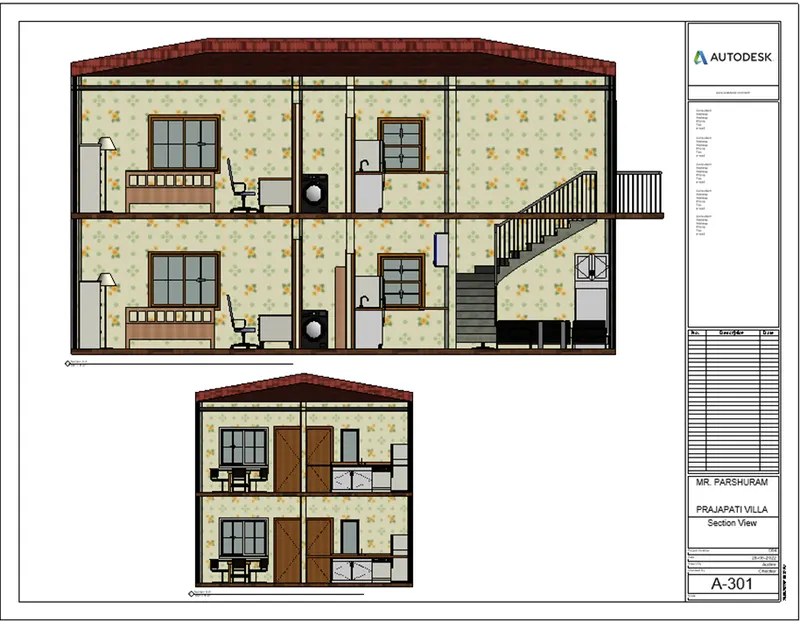

9. A301- SECTION

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

AIM:

Created a 3D view in each room

INTRODUCTION:

Sheet template produce for 3D view for each room such as living, dining, bedroom

PROCEDURE:

STEP 1) OPEN MODEL

• Launch the Revit software
• Click on open and select previously created drawing as Arch_Drawing_chanllenge2

STEP 2) CREATE SHEET TEMPLATE

• Go to View tab
• Select Sheet from Sheet Composition panel
• Open a new sheet dialog box click on Load
• Open TITLEBLOCKS from library
• Select appropriate sheet for each plan
• Edit sheet title block as per view
• Drag to insert the plan from project browser in sheet
• Similarly drag all the plan and view in the sheet

RESULT:

Following the above procedure, we have created multiple sheets for each plan and view and result are shown in below

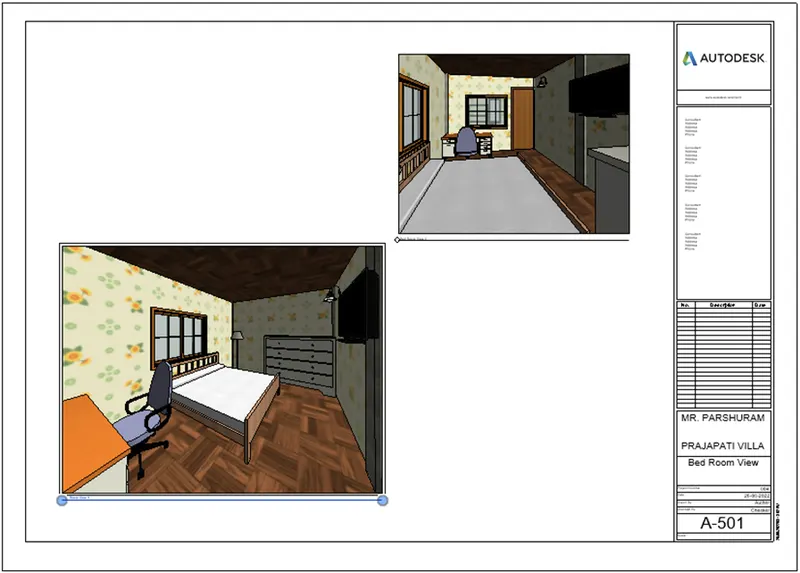

1. Bed Room View

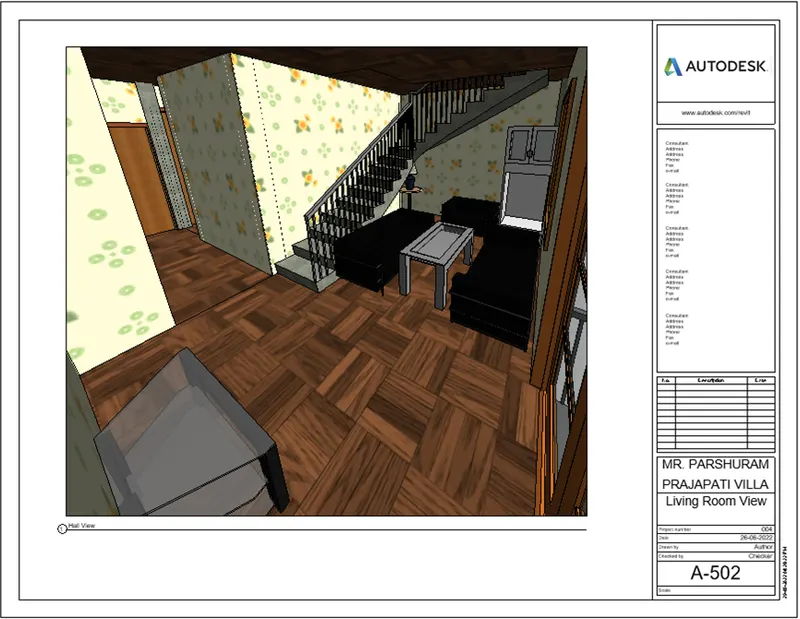

2. Living Room View

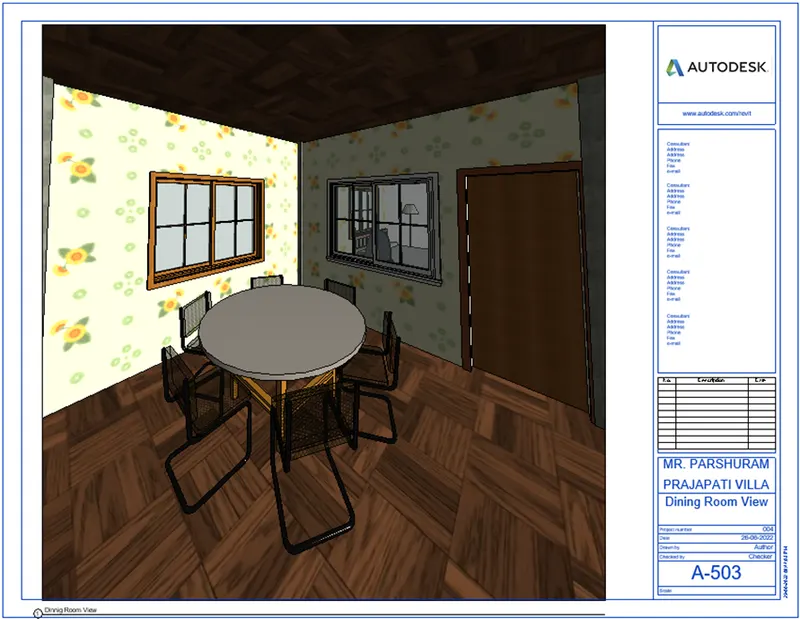

3. Dining Room

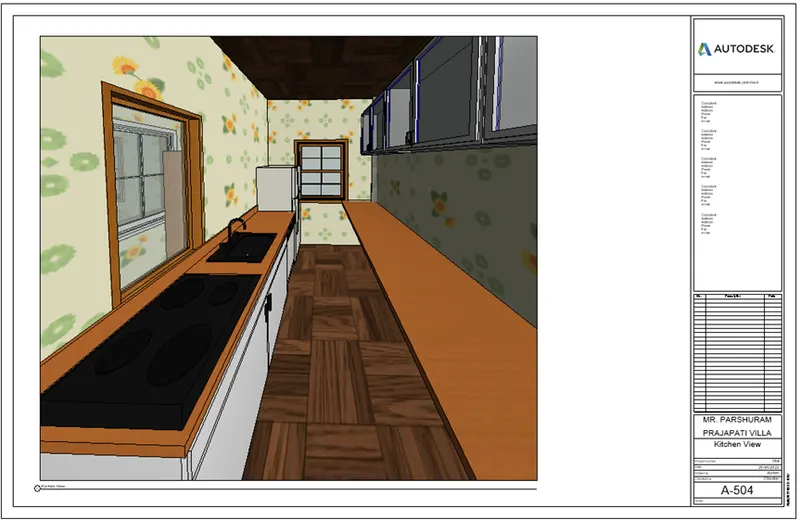

4. Kitchen View

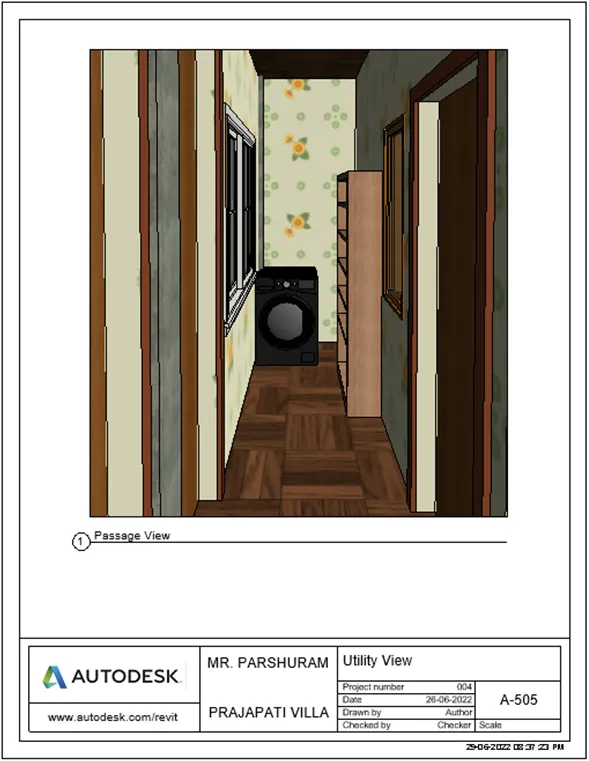

5. Utility View

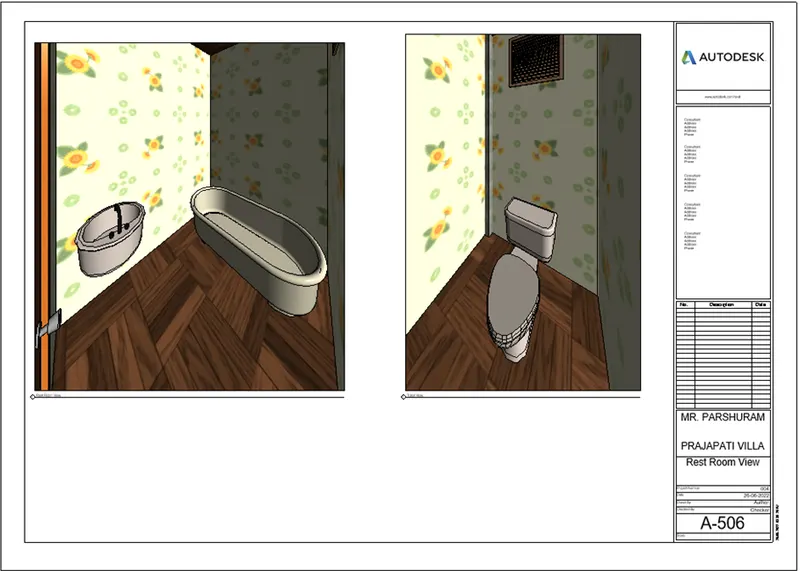

6. Rest Room View
