To plan a structural layout and to create grids using TSD

Project Workspace – How to access and usage in Tekla:

• First, open the Tekla software

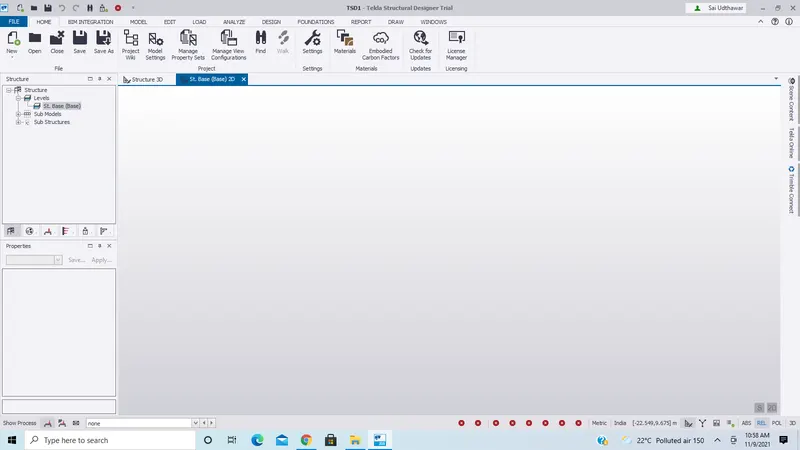

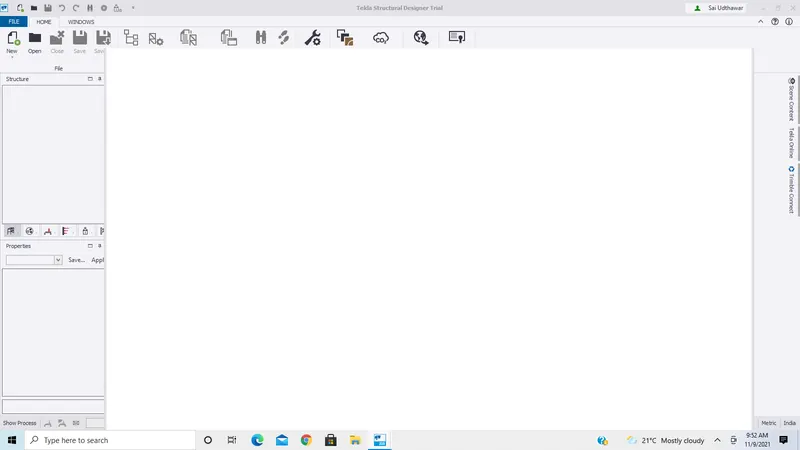

• Next click on the New option, then the project workspace will be visible as shown below

Scene Content – Demonstrate the use of scene content:

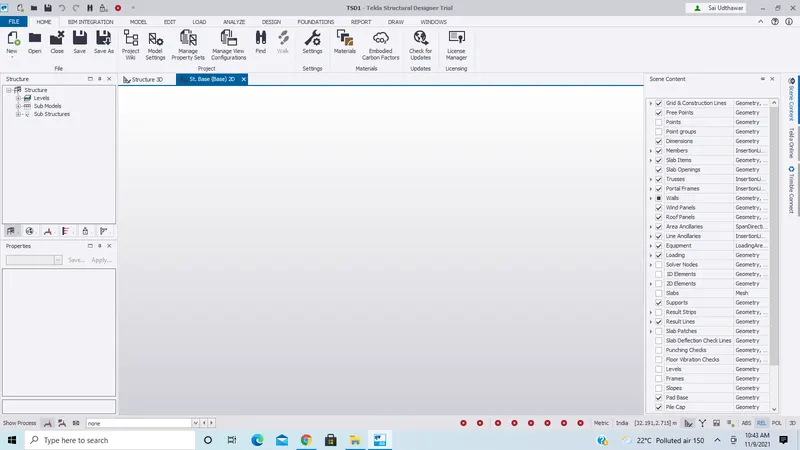

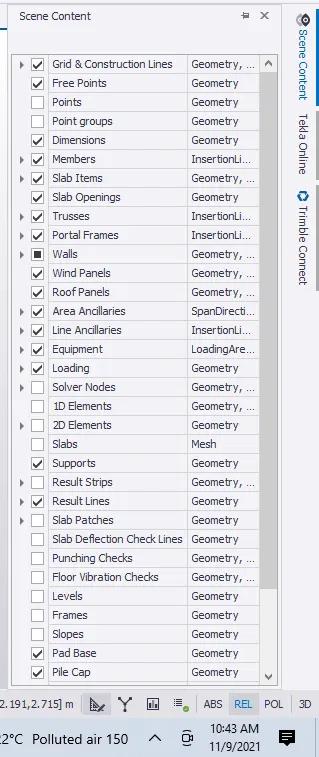

• Now click on the scene content option at the left side of the screen as shown below
• The use of scene content is we can enable and disable the elements  that are applied to the model

Create two scene views:

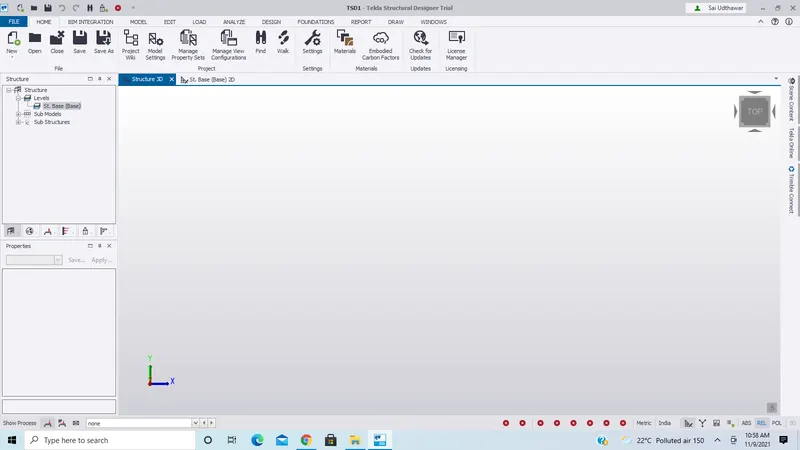

• The two scene views are 2D and 3D view
• Both 2D and 3D views are shown below

Loading drop list- How to access

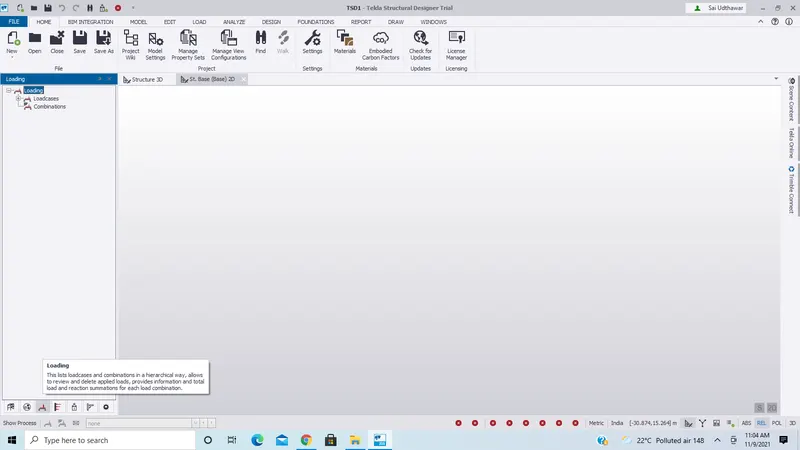

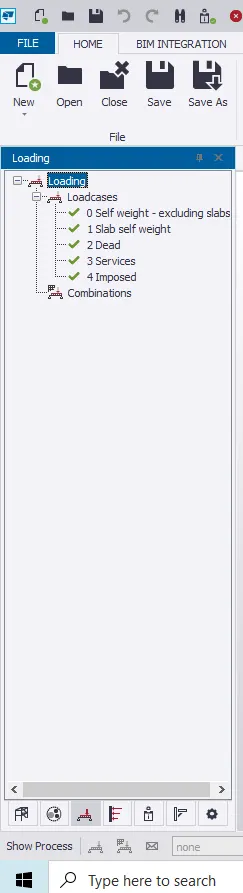

• On the left of the project interface, we can see the loading drop list
• In the loading drop list, we can see the load cases and load combinations

Properties windows-How to access and usage

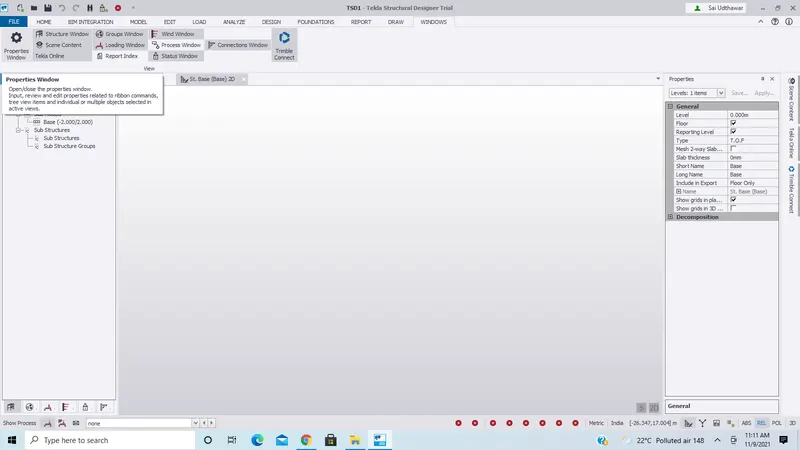

• Open the windows option and select the properties window option
• Then the properties will visible as shown

2 ans:

• First, we have to open Tekla software
• Next, select the materials option and then we get the material tab on screen

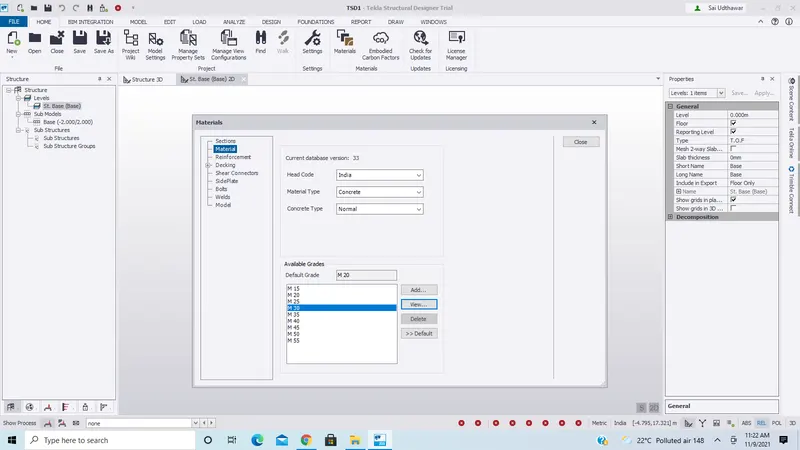

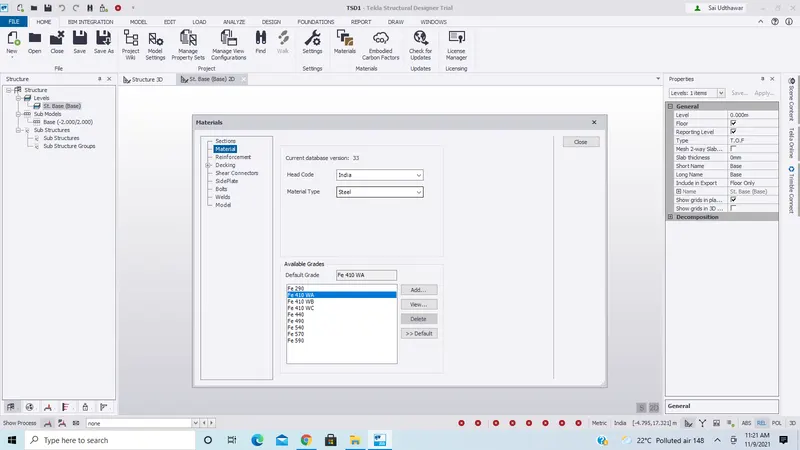

• Now we have to select the steel grade as Fe410 and concrete grade as M30 in the Material tab as shown below

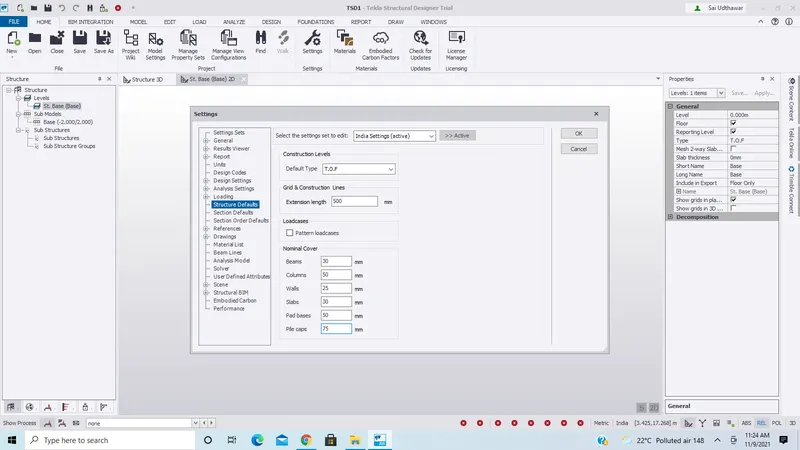

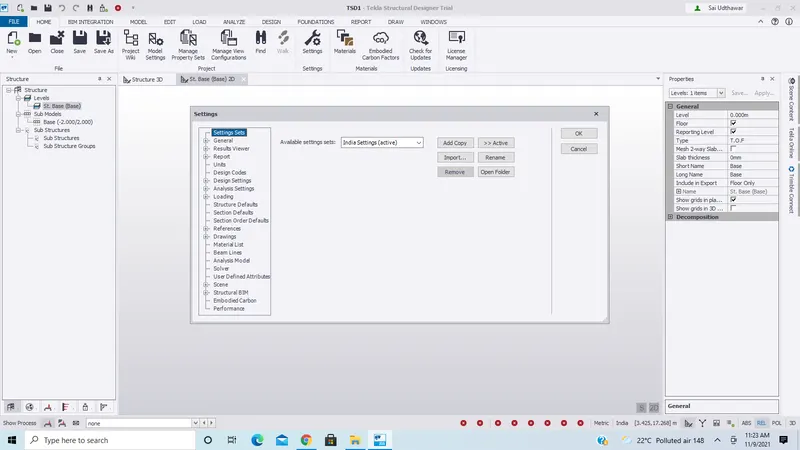

• Next, we open the settings and set the nominal covers for the given members in contact with the ground and above ground as shown below

3 ans:

Attachment -1:

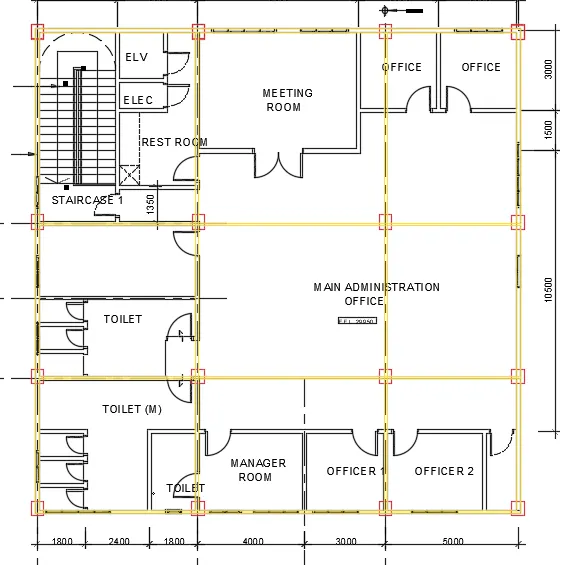

2D Sketch of beams and columns  as required

Attachment -1.1:

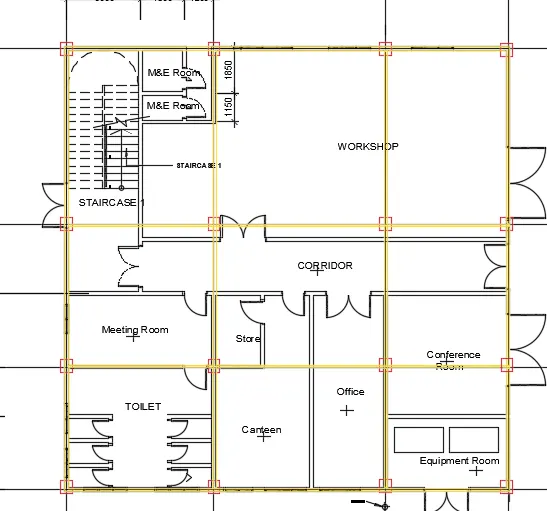

2D Sketch of beams and columns  as required

Attachment -1.2:

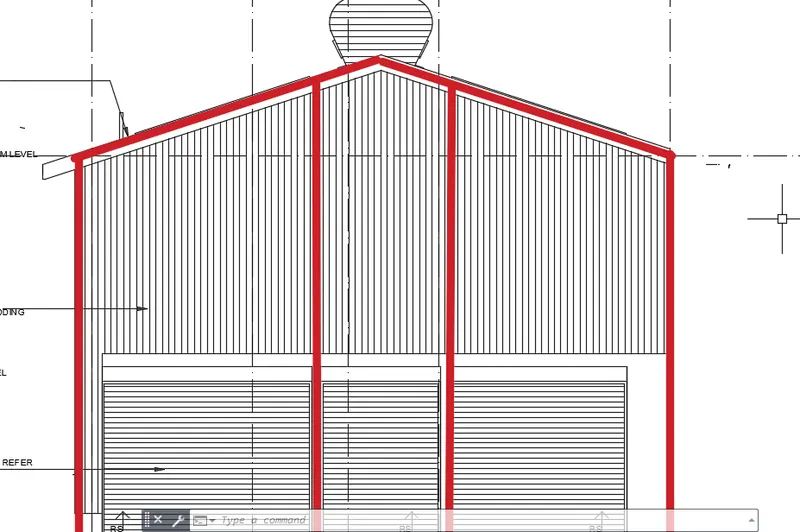

Elevation Sketch of beams and columns  as required

4 ans:

• First, we have to open Tekla software

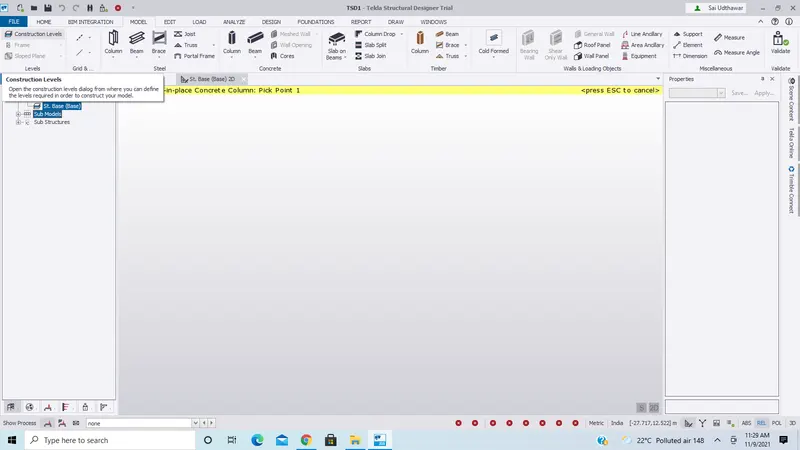

• now go-to model tab and select  construction levels as shown below

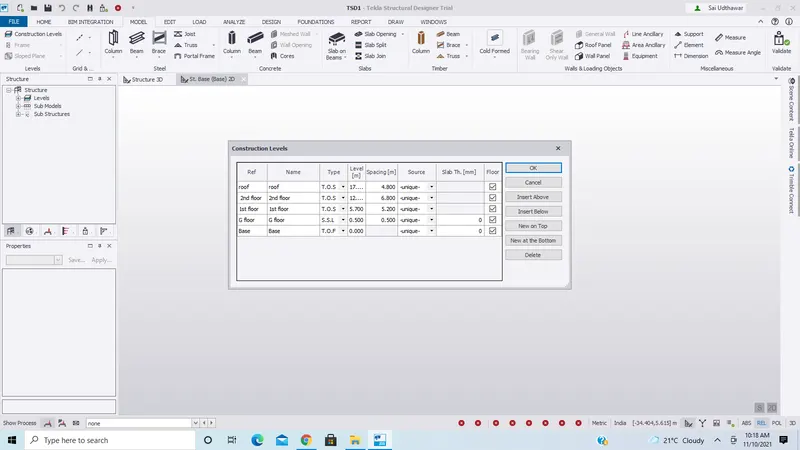

• Now we get a construction levels window as shown below
• Now set the levels as required

• Go to the model tab and select the grid lines

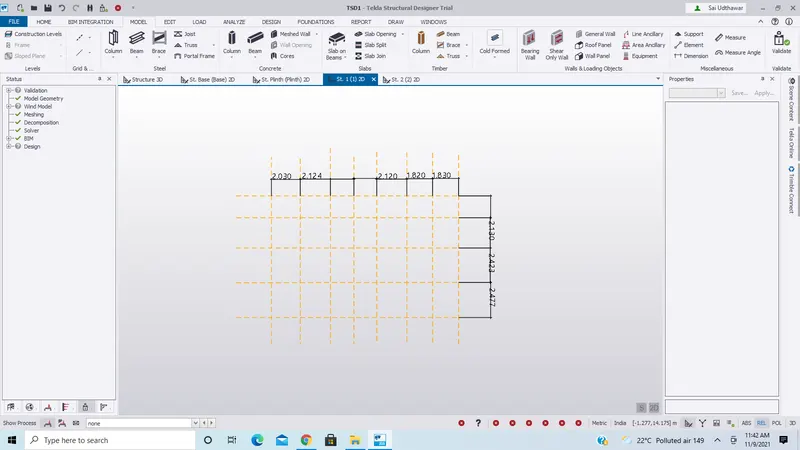

• Now draw the grid lines as required
