To Design RC column and beam for RC residential structure using TSD

Aim:- to run the analysis of the structure and design reinforced concrete beam and column procedure:- open the tekla model and run the analysis  now select any of the column member and right click on it then select the interactive design from the given option check whether the member is passing through all the design checks…

    • Rahul Prajapati

      updated on 10 Jan 2023

    Aim:- to run the analysis of the structure and design reinforced concrete beam and column

    procedure:-

    • open the tekla model and run the analysis

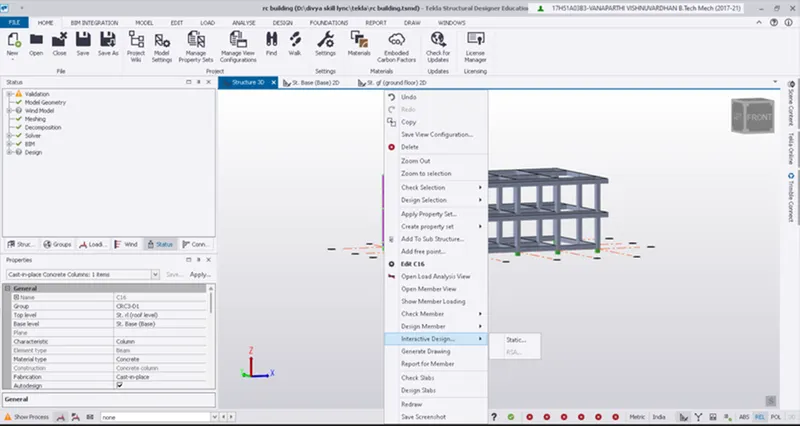

    •  now select any of the column member and right click on it

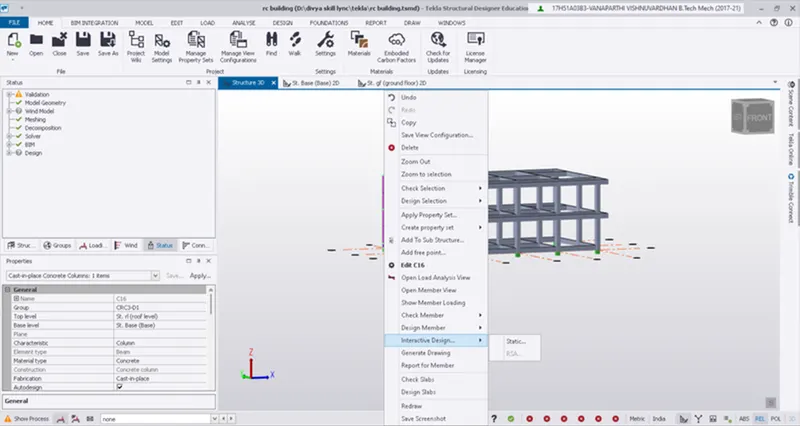

    • then select the interactive design from the given option

    • check whether the member is passing through all the design checks

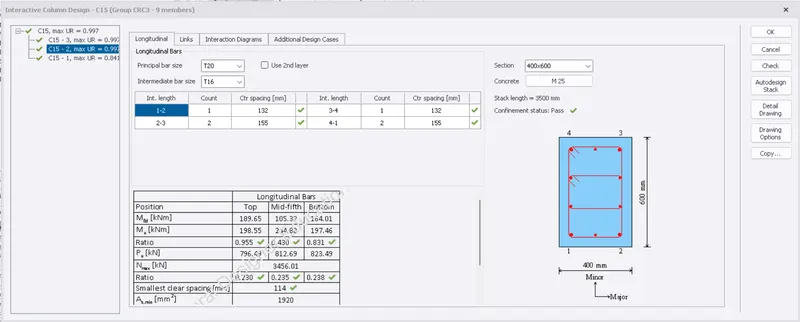

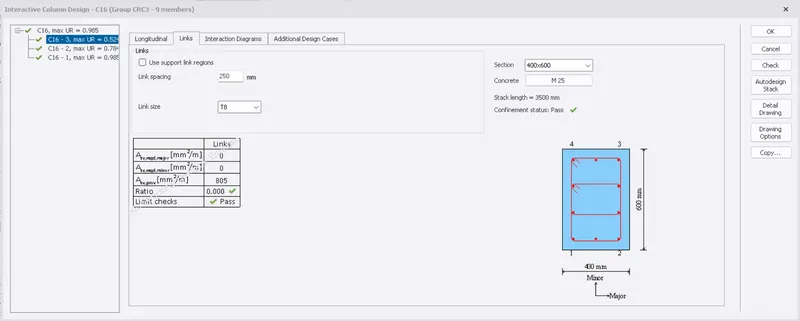

    COLUMN NO: 16

    • here we can see that the column is safe in design and consider the reinforcement details

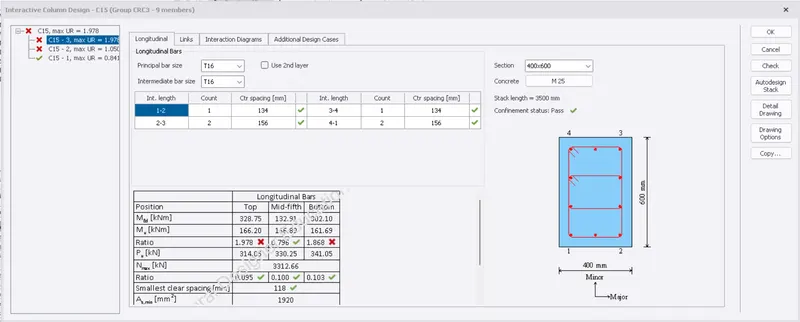

    COLUMN NO :15

    • here we can see that the ratio of longitudinal bars is greater than 1

    • edit the rebar details to obtain the ratio of longitudinal bars as 1
    • try to change the rebar details of the top reinforcement and bottom reinforcement

    RESULTS:- the design of the columns is done and verified with the design checks





    Aim:- to design the beam member and verify it for the design checks

    procedure:-

    • open the tekla model and run the analysis
    •  now select any of the beam member and right click on it
    • then select the interactive design from the given option

    • verify for the design checks

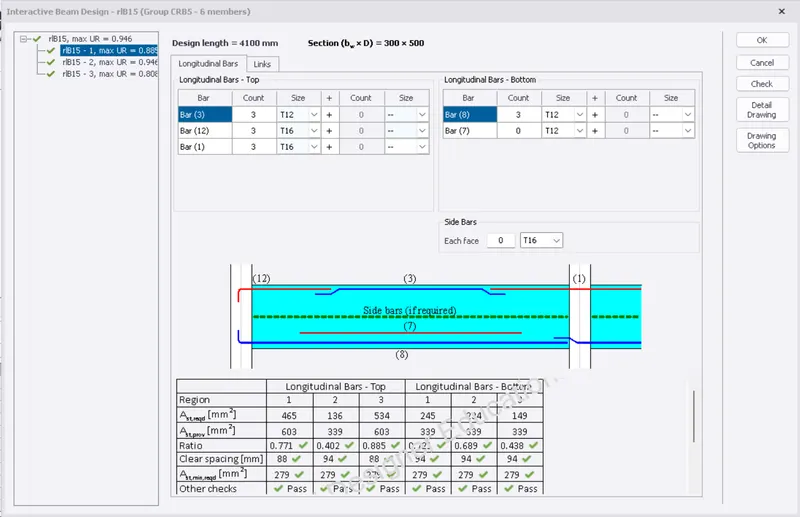

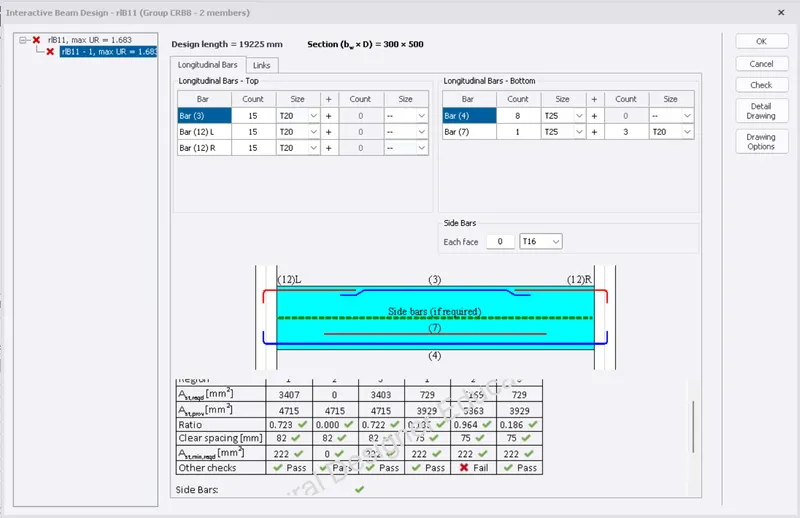

    BEAM NO: 15

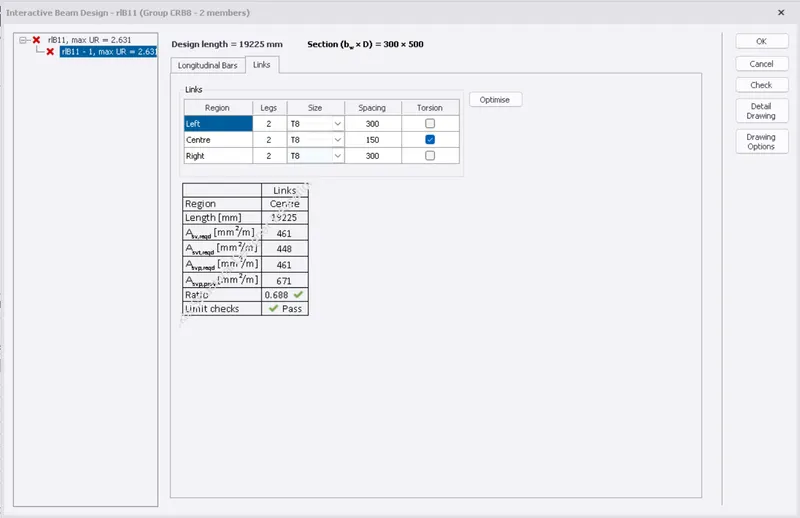

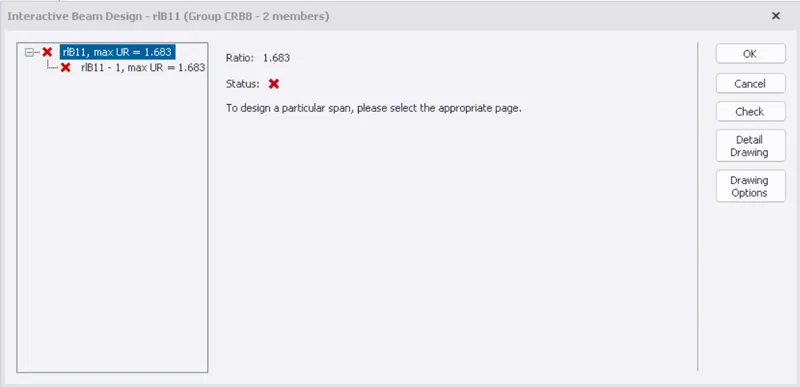

     BEAM NO: 11

    •  the above beam is not satisfied with the deflection check
    • to verify the beam for deflection increase the depth of the beam section

    RESULTS:- the beam design is checked and necessary correctopns have been done
