Week 8 - Challenge 6 - Core & Cavity Design

CORE AND CAVITY DESIGN of Switch Bezel using CATIA V5

AIM:

To create the core and cavity blocks for the switch bezel component.

DESCRIPTION:

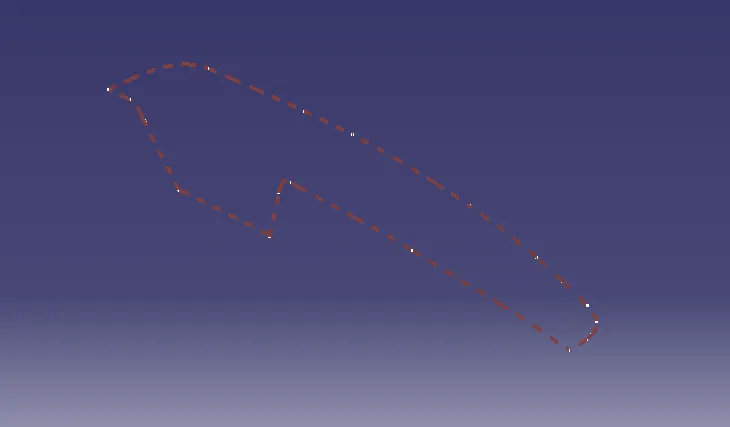

1. PARTING LINE

• A parting line is an inevitable part of injection-moulded products.
• It is the line of separation between where two halves of a mould meet.
• It manifests itself on injection moulded parts as a line that runs the entire perimeter of the part.
• In most parts, it is just a line that runs straight down the middle.
• It is created by intersecting the final trim of the class B surface with the final trim of the class C surface.

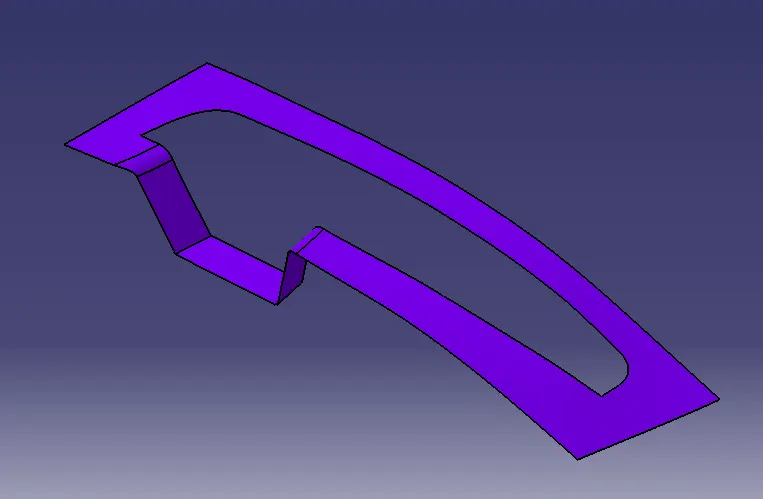

2. PARTING SURFACE

• A parting surface is a surface that separates the mould block into two parts – the core and the cavity.
• It is created by trimming the final trim of the class B surface with the final trim of the class C surface.

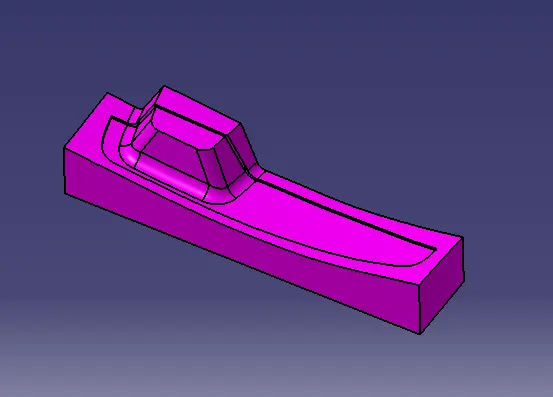

3. CORE DESIGN

• It is the moving block in the injection moulding machine and it is mainly the projection of the design to moulded.
• The block is created by creating a boundary and extruding along with the tooling axis, the tooling axis defines the movement of the core and cavity.

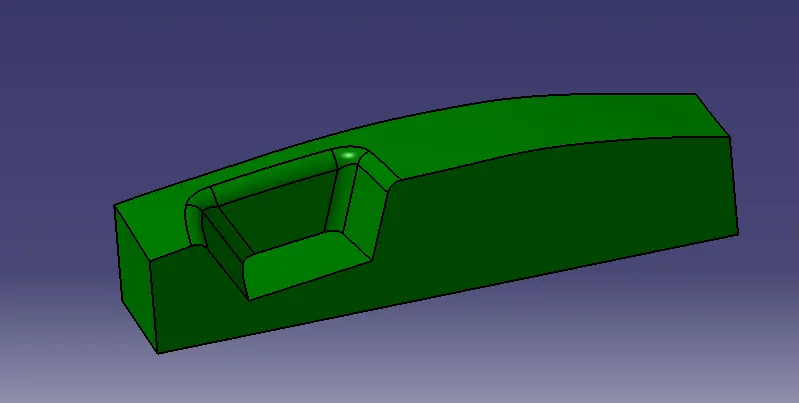

4. CAVITY DESIGN

• A mould is a hollow form typically made from stainless steel that has plastic injected into it to manufacture a plastic part.
• It is the fixed halved of the injection moulding machine.
• The plastic is inserted into the mould cavity, which is a hole in the mould shaped like the desired part.

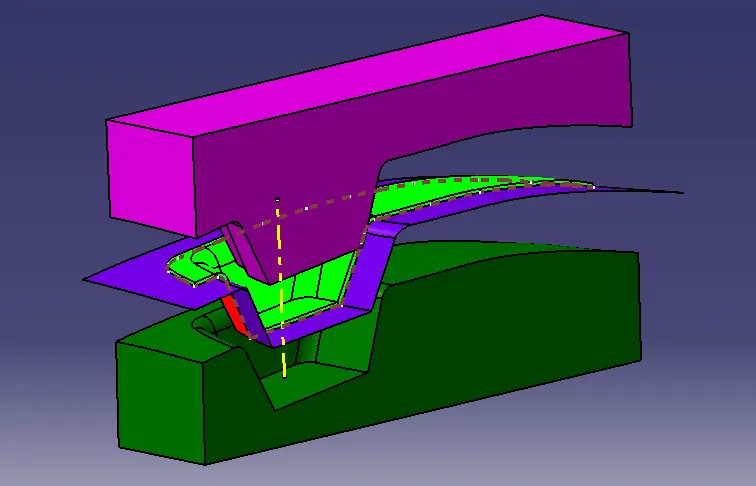

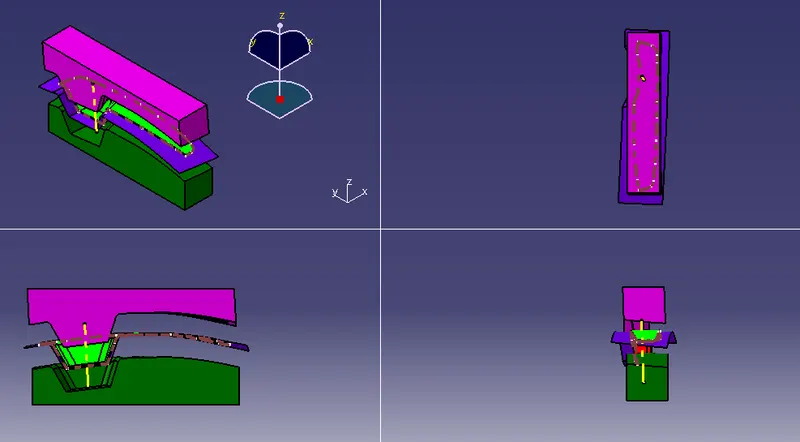

5. 3D VIEWS

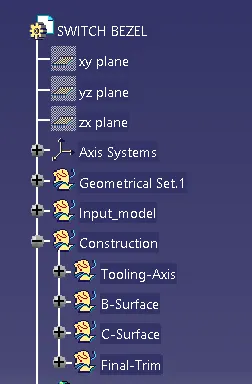

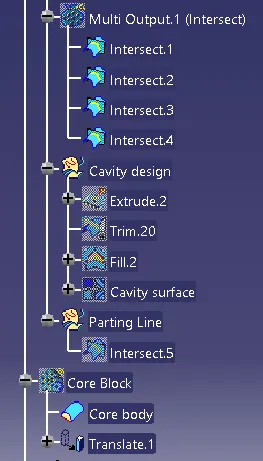

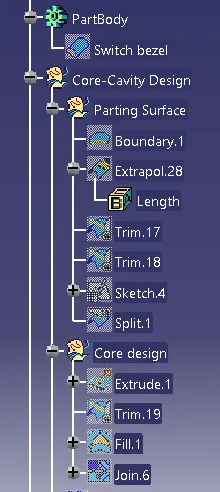

6. STRUCTURE TREE

CONCLUSION:

• The core and cavity blocks for the switch bezel component are created.
