Calculation of Stiffness in Structural elements

1) AIM: Compute lateral stiffness of the one-story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc Solution : if $U_{1}$ $U_1$ = 1 $U_{1}$ $U_1$ = 24 $\frac{E I_{c}}{h^{3}}$ $(EI_c) /h^3$ $'U_2'$ = 6 $(EI_C)/h^2$ $U_3$ = 6 $(EI_C)/h^2$ …

Sanjana Reddy Pandillapalli
updated on 16 Jul 2021

AIM:

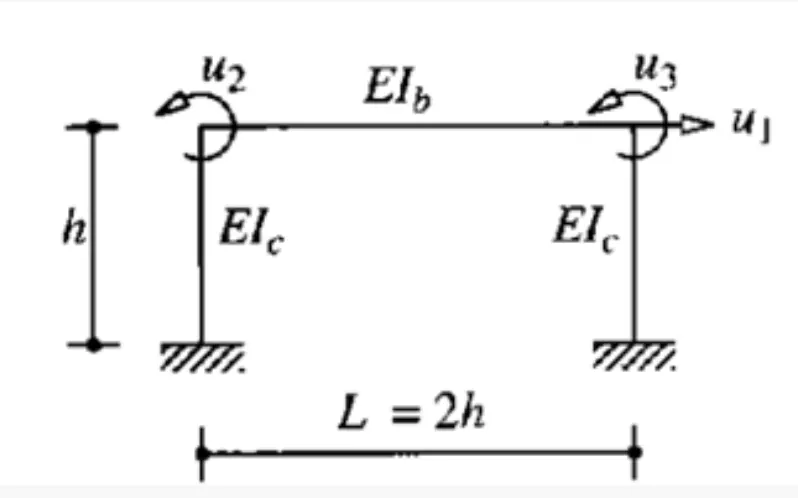

Compute lateral stiffness of the one-story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and El_b= El_c

Solution :

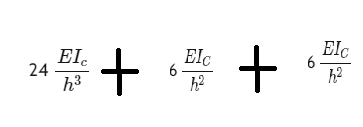

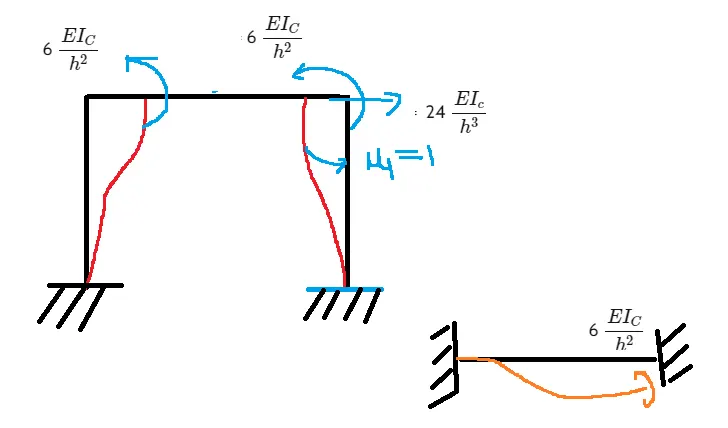

if $U_1$ = 1

$U_1$ = 24 $(EI_c) /h^3$

$'U_2'$ = 6 $(EI_C)/h^2$

$U_3$ = 6 $(EI_C)/h^2$

1 st equation :

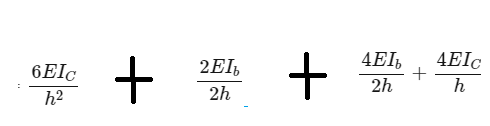

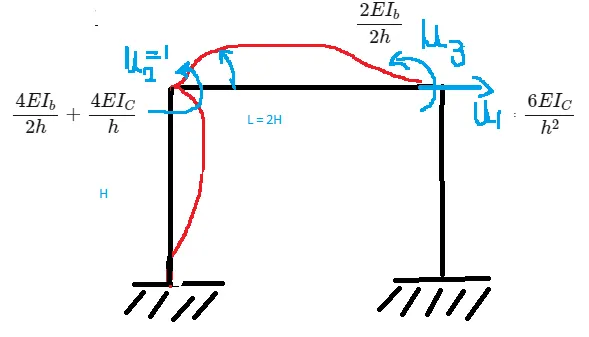

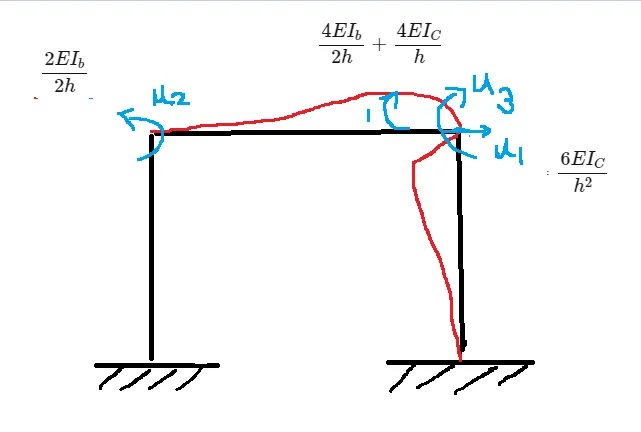

If $U_2$ = 1

$U_1 = (6 EI_C)/h^2$

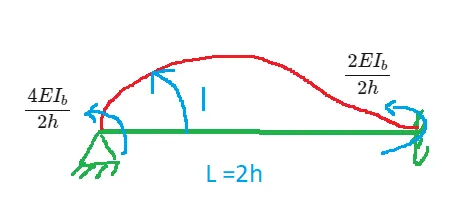

$U_2 =(4EI_b )/(2h) + (4EI_C)/ h$

$U_3 = (2EI_b)/(2h)$

2nd equation :

If $U_3 = 1$

$U_1 = (6 EI_C)/h^2$

$U_3 =(4EI_b )/(2h) + (4EI_C)/ h$

$U_2= (2EI_b)/(2h)$

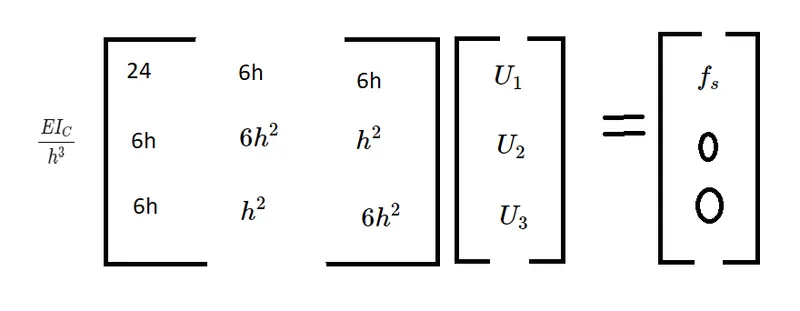

This is solved using a 3 X 3 matrix

*According to stiffness matrix method :

$((U_2 ), (U_3 ))$ = - $[[6h^2 , h^2 ],[h^2,6h^2]]^-1$ $((6h),(6h))$ $U_1$

$-(1/(36h^4-h^4)) [[-6h^2,h^2],[h^2,-6h^2]] 6h ((1),(1))U_1$

$-(6h)/(35h^4) [[6h^2,-h^2],[-h^2,6h^2]]((1),(1))U_1$

$-(6h)/(35h^4)((5h^2),(5h^2))U_1$

= $-(6h)/(35h^4) xx 5h^2 ((1),(1))U_1$ $=((U_2),(U_3))$

$((U_2),(U_3))$ = $-6/(7h) ((1),(1))$ $U_1$ `

substituting the above equation in the equation given below

$f_s=(24U_1 +6hU_2 + 6hU_3) (EI_C)/h^3$

= $f_s = (24 (EI_C)/h^3 -6/(7h) (EI_C)/h^3 [6h ,6h] ((1),(1)))U_1$ `

= $((24EI_C)/h^3 -6/(7h) (EI_C)/(h^3) . 12h)U_1$

= $((EI_c)/h^3 (24-6/(7h)).12h) U_1$

= $((EI_C)/h^3 (24)(-6/(7h)).12h)U_1$

= $(EI_C)/h^3 (24-72/7)U_1$

= $F_S = (EI_C)/h^3 96/7 U_1$

AIM:

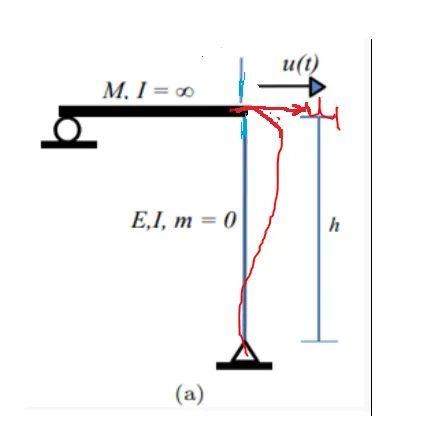

For the following structures:

Determine the number of degrees-of-freedom for dynamic analysis
Establish the equation of motion
Calculate their natural frequencies

*The degree of freedom is 1

*Equation of motion

= mu + fd+fs= p(t)

= mu + ku = P(t)

= $((12EI)/ h^3 ) U + Mu = P(t)$

* Natural frequency

= $F_n = 1/T_n$

= $T_n = (2 pi )/w_n$

= $F_n = w_n /(2pi)$ = $sqrt ( k/M)$ $. 1/(2pi)$

= $w_n = sqrt (k/m$

= $w_n =sqrt (((12EI)/ (h^3 m))$

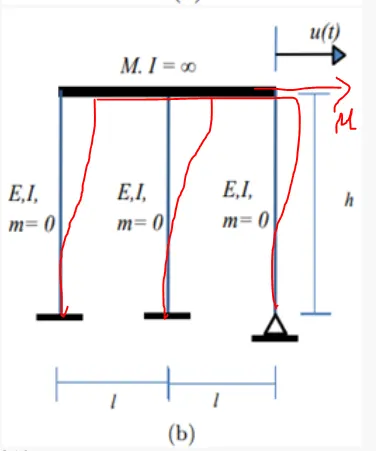

*The degree of freedom is 1

*as the beam is rigid ( i.e flexural rigidity M.I = infinity

* K= $sum_(column) (12EI )/h^3$

= $(36EI)/h^3$

*Equation of motion

= mu + fd+fs= p(t)

= mu + ku = P(t)

=mu + $(36EI)/h^3$ u = p(t)

* Natural frequency

= $F_n = 1/T_n$

= $T_n = (2 pi )/w_n$

= $F_n = w_n /(2pi)$ = $sqrt ( k/M)$ $. 1/(2pi)$

= $w_n=sqrt(k/m$

= $w_n=sqrt((36EI)/(mh^3))$

* Natural frequency

= $F_n = 1/T_n$

= $T_n = (2 pi )/w_n$

= $F_n = w_n /(2pi)$ = $sqrt ( k/M)$ $. 1/(2pi)$

= $w_n = sqrt(k/m$

$therefore w_n =sqrt(g/u$

$T_n = 2pi sqrt(u/g$

$f_s/K_e = f_s/k_s + f_s/k_b$

$K_e = (K_s K_b )/(K_s+K_b$

$K_b = (3EL)/L^3$

$K_e = (K(3EI)/L^3 )/(K + (3EI)/L^3$

$K_e = (3EIK )/((3EI) +L^3K)$

*as the beam is rigid i.e EI = infinity

K= $sum_(column) (12EI )/h^3$

k ( column ) = $(24EI)/h^3$

$K_e = K + K ( column )$

$K_e = K+ (24 EI)/h^3$

$K_e = (Kh^3 + 24 EI )/h^3$

$Ke = K_a + K _b$

$K_e =(EA)/(sqrt (h^2+L^2)$ $+ (48EI)/L^3$
