Modelling of 25 storey building with the specified properties using ETABS
Q1)
AIM:
Model a 25 storey building on ETABS 2018 with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres.
Given details :
Structural Element Sizes
- Beams: 300 × 400 mm
- Columns : 800 × 800 mm
- Slab: 150 mm thick
Material Properties
- Grade of Concrete: M30
- Grade of Steel Reinforcement Bars: Fe 415
Loading
- Dead Load on beams from infill wall: 10 kN/m
- Live load on the floor : 3 kN/m2
Buildings are assumed to be pinned at the base
All columns in all storey are of the same size
All beams in all storeys are of the same size
Procedure :
step 1:( open new model )
**open Etabs software > New model
** Use built-in settings
**Display units : Metric SI
** Steel Section : Indian
** Steel : IS 800
** Concrete : IS 456

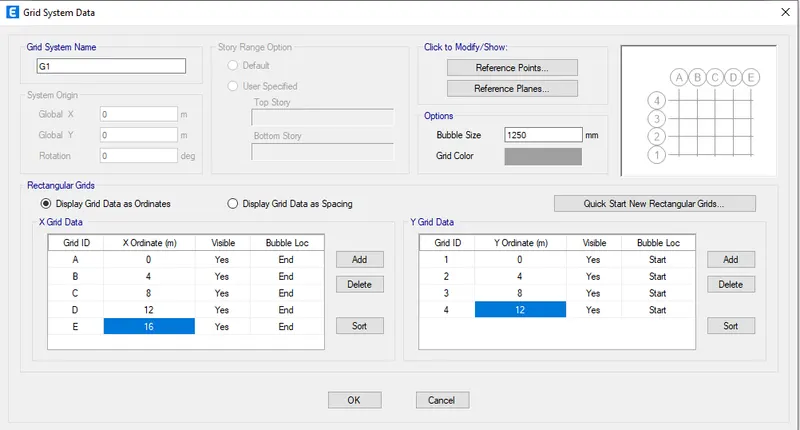

step 2 : Grids
** In X Direction 5 grids with each spacing of 4000 mm
**In Y direction 4 grids with each spacing of 4000 mm
**Grids > custom grid spacing > edit grid data
Step 3 ( Model Storey )

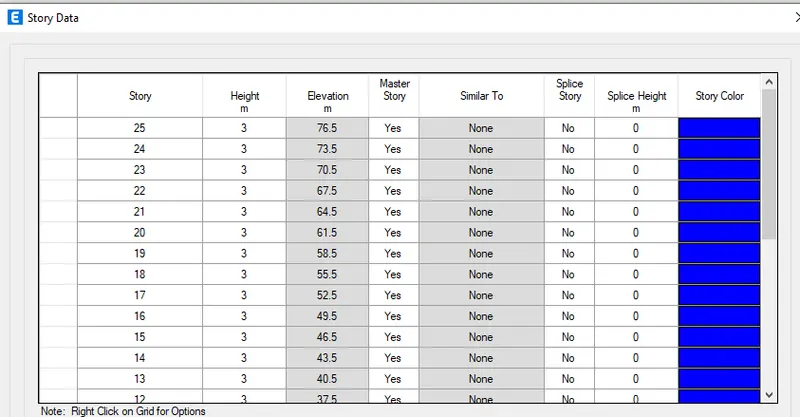

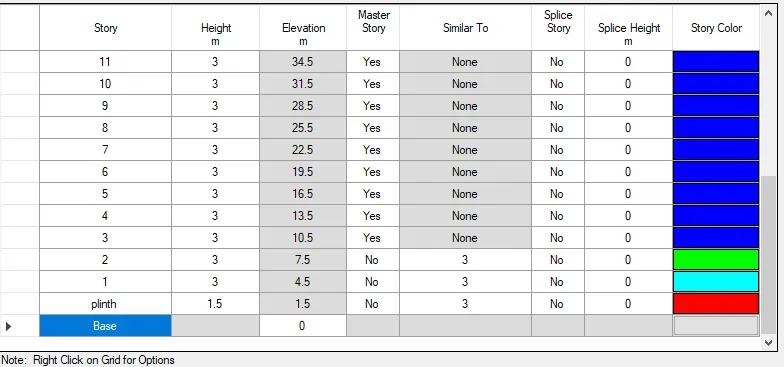

**custom storey data > edit storey height

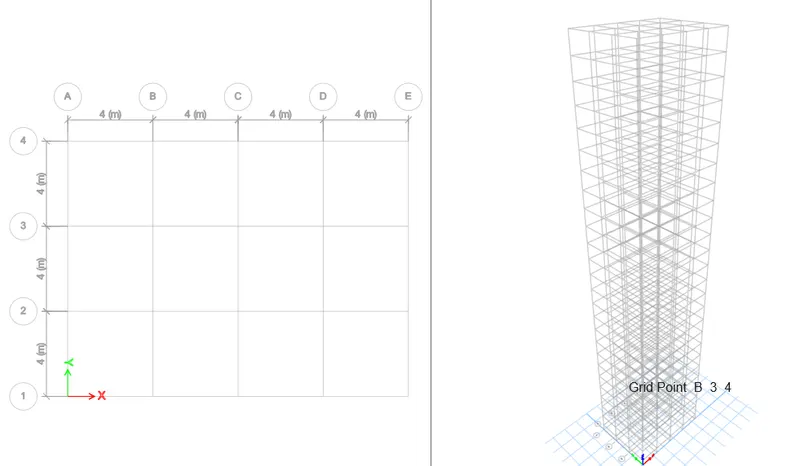

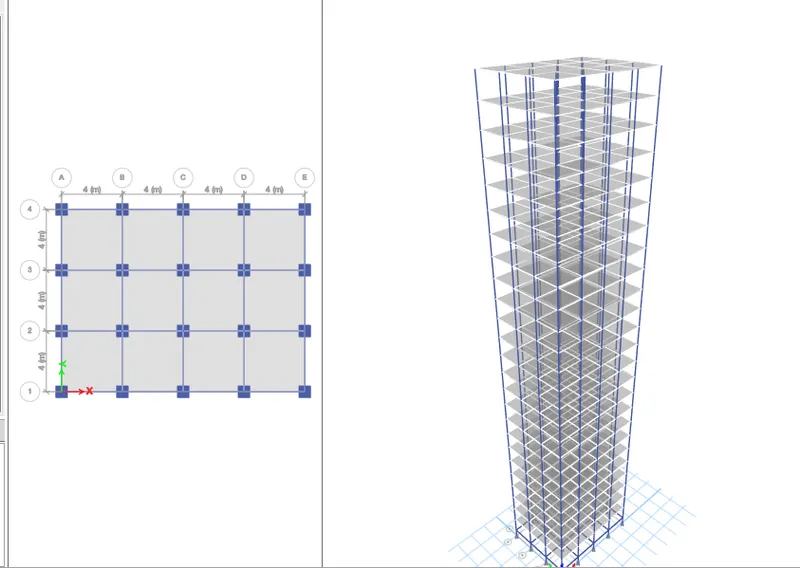

Result of step 1 ,2 and 3

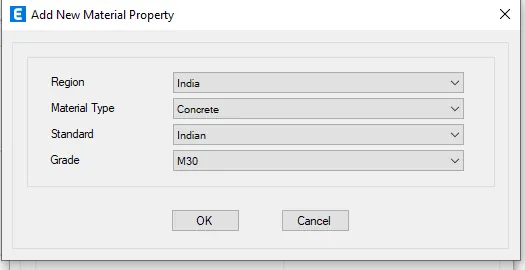

Step 4 : ( add the materials )
**Define>Material properties > add new material
**Concrete and rebar material are add

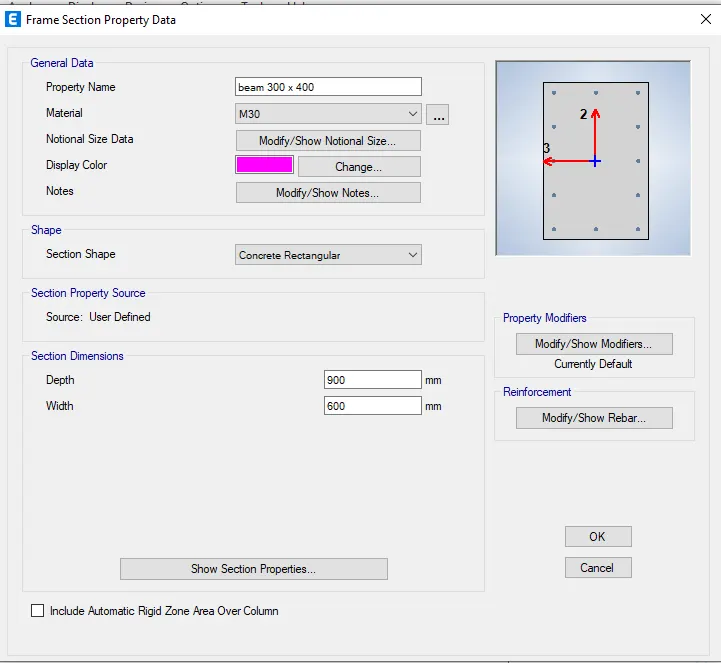

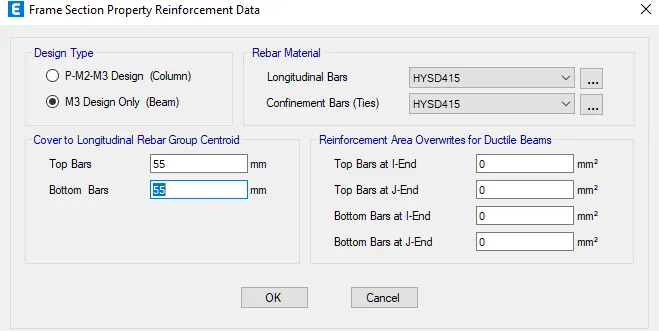

Step 5 ( to add beam property )
**Define > secton properties >frame sections
** Add new property > concrete

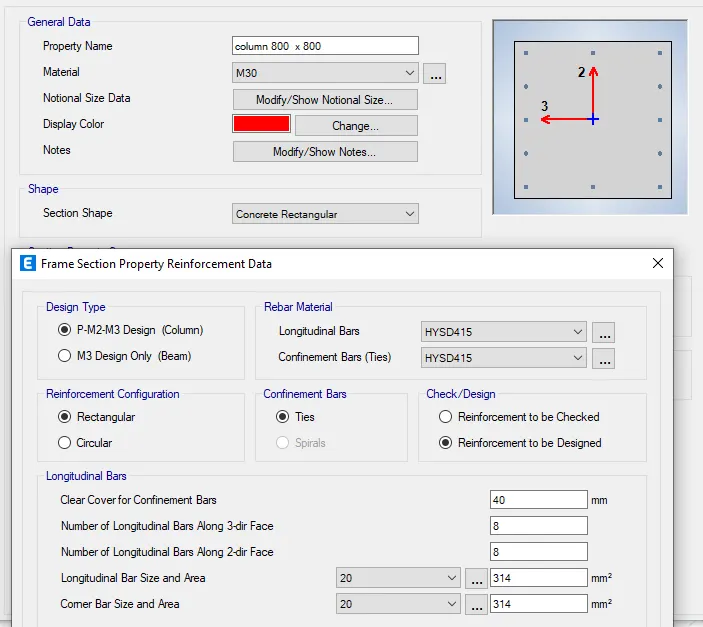

step 6 ( add column property )
**Define > secton properties >frame sections
** Add new property > concrete

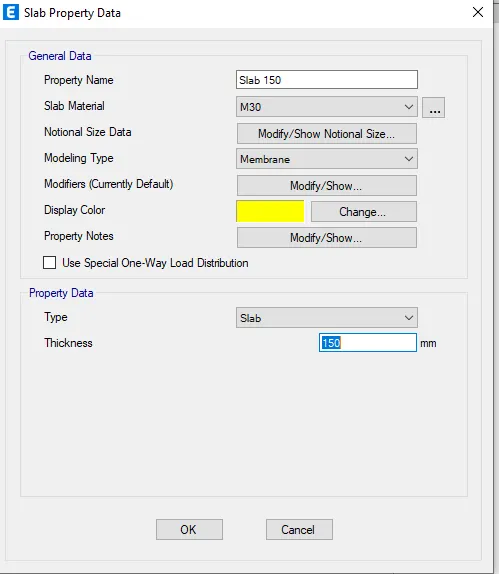

step 7 ( to add slabs property )
**Define > slab sections > add new slab
step 8 ( to add the columns )
**keep it to all stories
** Quick draw columns

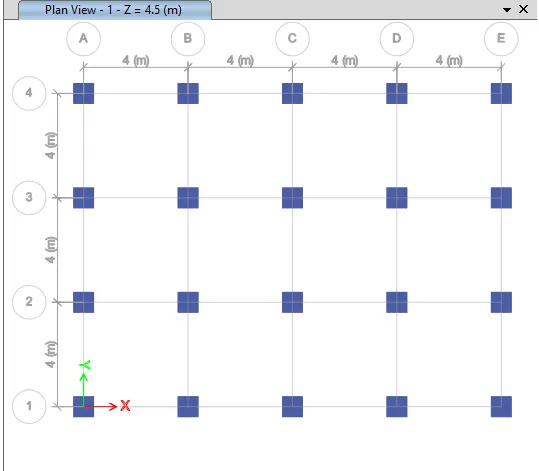

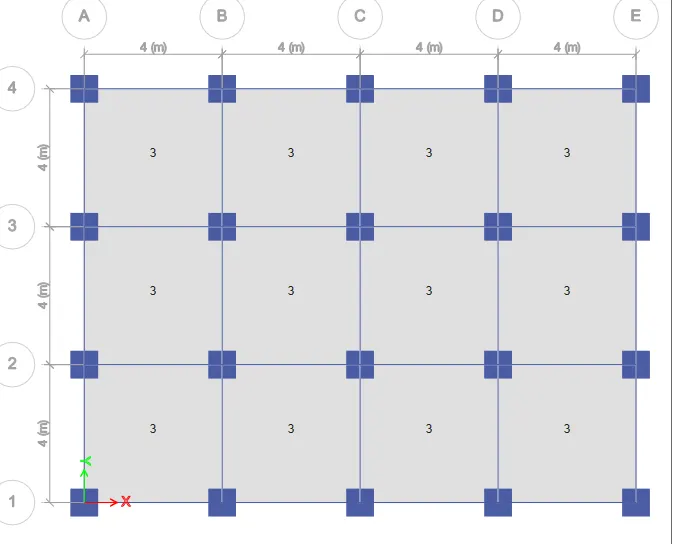

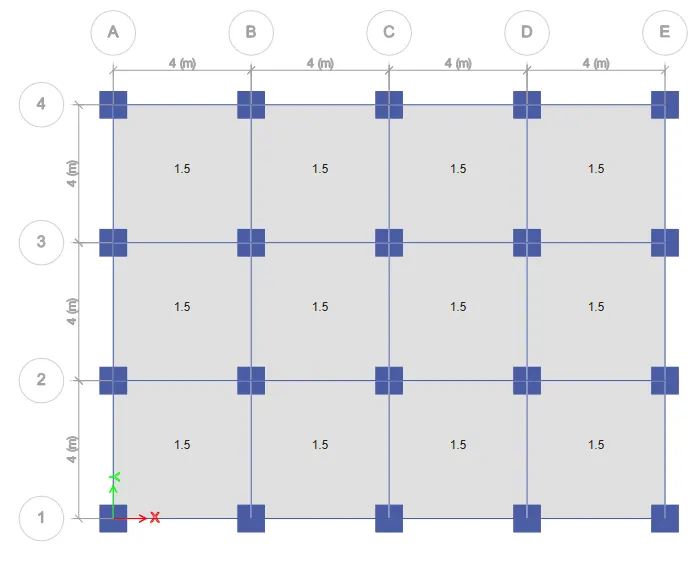

Plan view

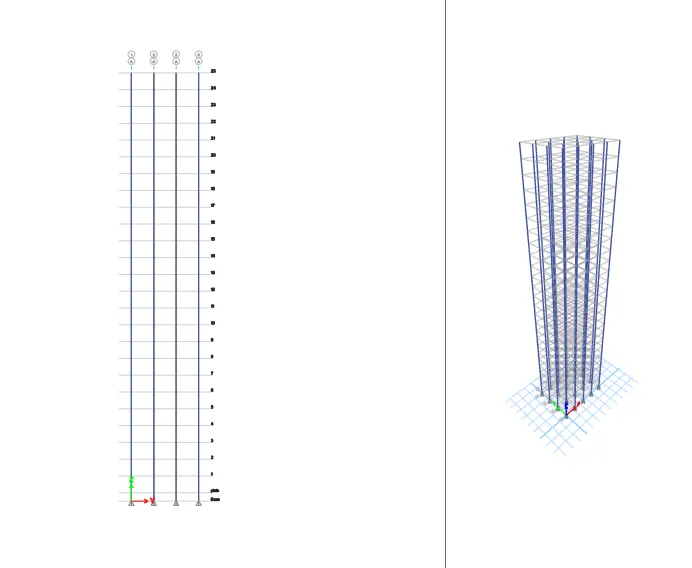

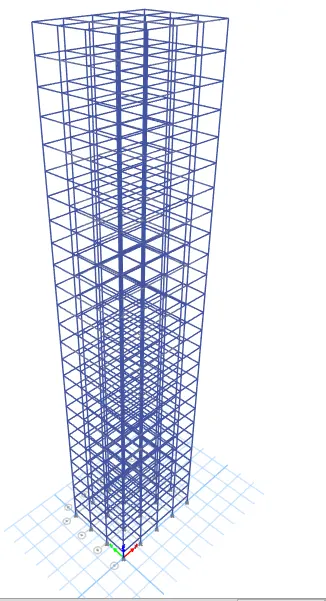

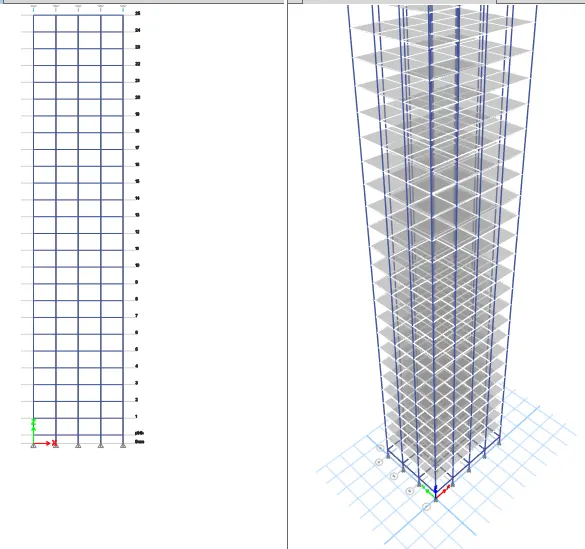

Elevation and 3D view
Step 9 ( to add beams )
**keep it to all stories
** Quick draw beams
Step 10 ( to add the slabs )
*Similar stories
** slabs are added from 1st floor ton 25th floor
*Buildings are assumed to be pinned at the base
**base > one story
**Assign > joined > restrains >pinned

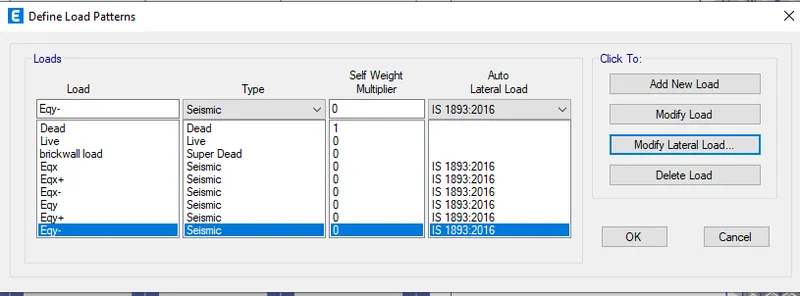

LOADINGS :

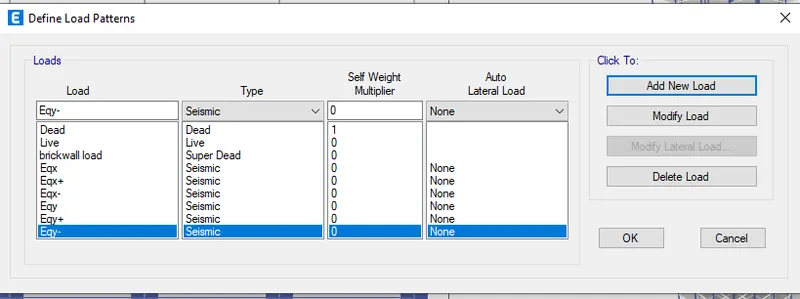

Add load cases
Define >load patterns

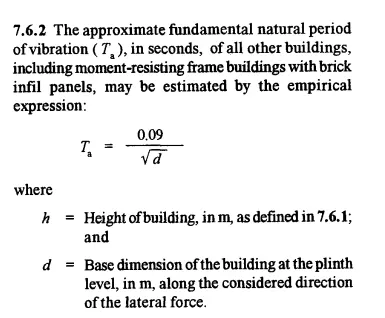

According to IS 1893
the fundamental period of vibration is calculated by above-given formula
h = 76.5m
dx= 16m
X-direction:
Ta = 1.7 seconds
Y-direction :
Ta=1.98 seconds
**To Assign the live load to the building
**Assign > shell load > uniform >3kn/m^2
**Add from 1st floor to the 24 th floor
for the roof the live load is added 1.5 kn/m^2

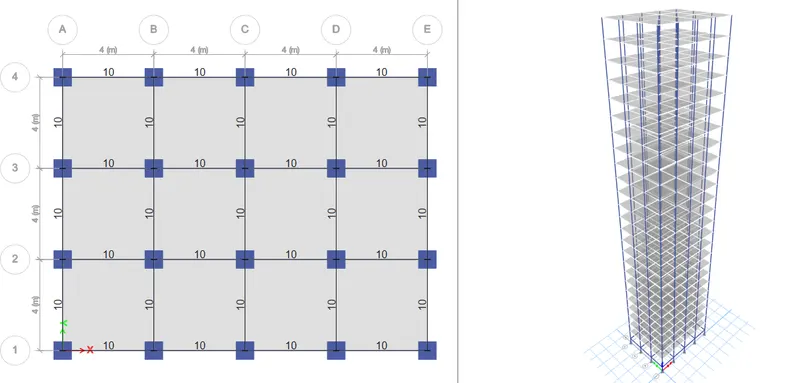

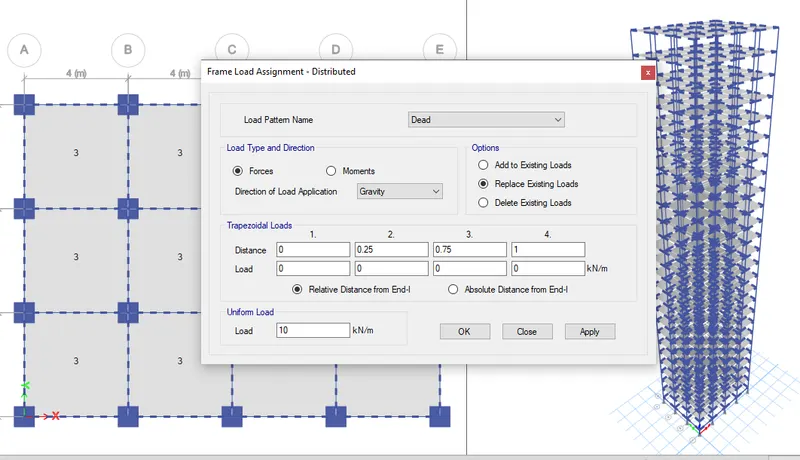

Brickwall load
**selected beams > assign >frame section > distributed load
** The mass source is added
* live load = 0.25
* Dead load = 1
*brick wall load = 1
**The diaghram is added to the floor
**Run analysis is done to the model

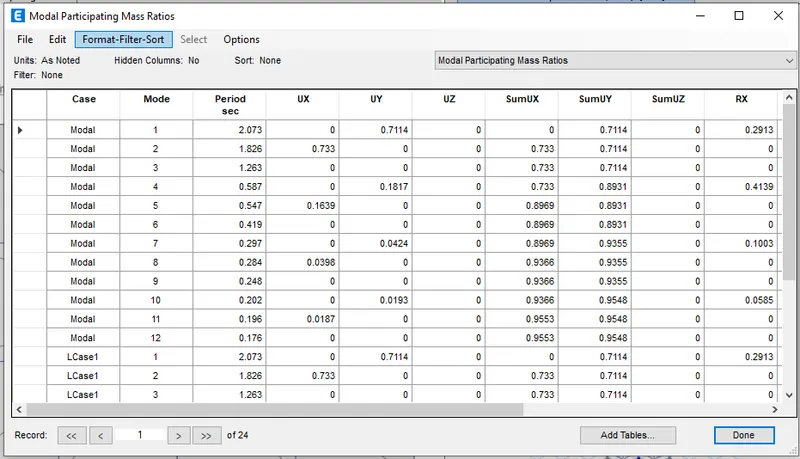

Model Participating mass ratio:

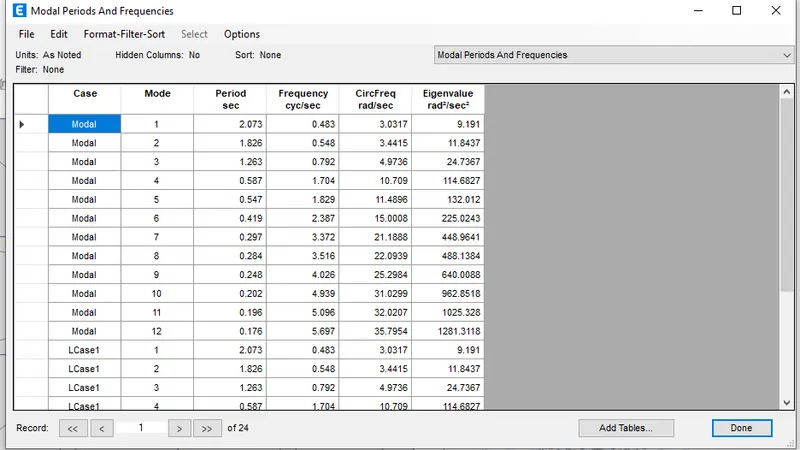

Modal period and frequencies
mode participating mass ratio for 1st 3 nodes
0.733+0.1639+0.0398=0.9367
Therefore it is more than 65 per cent

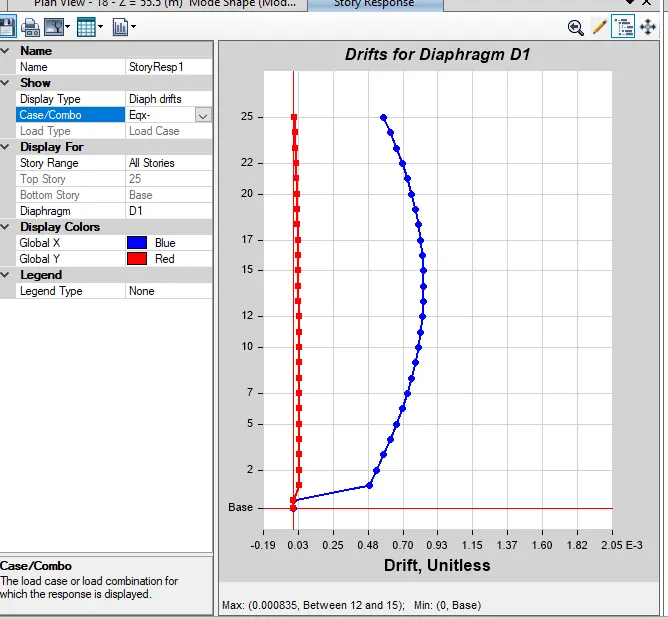

Storey Response plot
